Factory fog lights are designed to meet minimum output requirements, prioritizing appearance over real-world performance. The Elite Series Fog Lamps change that completely. Engineered from the ground up for true performance, these OEM-style replacements deliver dramatically wider coverage, higher intensity, and improved visibility in poor weather—all with a clean factory fit and plug-and-play installation.
Important notes
Trim compatibility: Not compatible with TRD Pro models
Fog light requirement: This kit is a replacement for OEM fog lamps; vehicles without factory fog lights may require additional hardware and wiring
Road legal: SAE F3 compliant when properly aimed; always verify local regulations
Features
Direct replacement: OEM-grade fitment for Toyota Tacoma factory fog light locations
SAE compliant output: Road-legal fog light performance with controlled beam pattern
High-performance optics: Custom-engineered, patent-pending optic for extremely wide and intense output
Plug and play: Main beam connects directly to factory wiring with no modification required

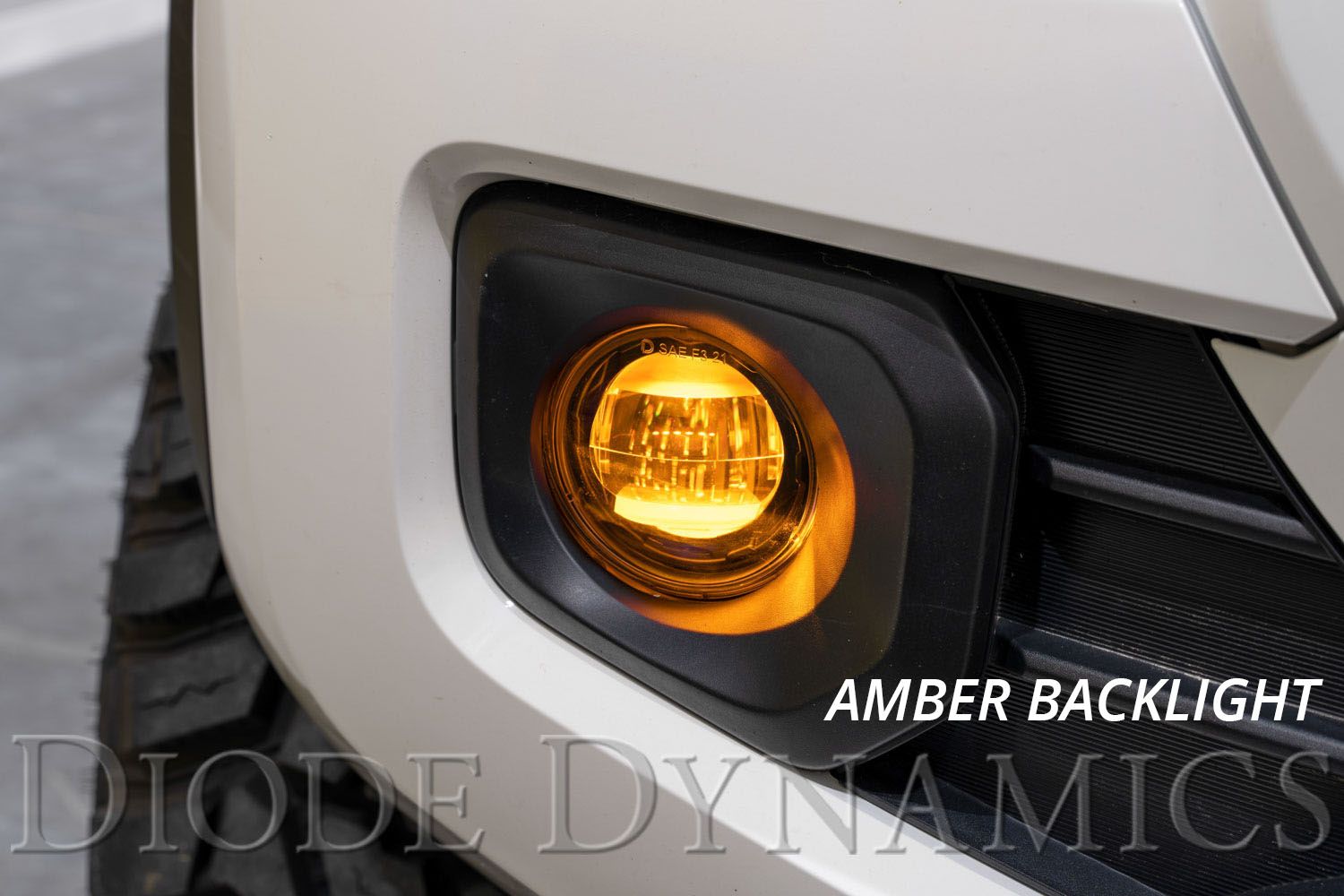

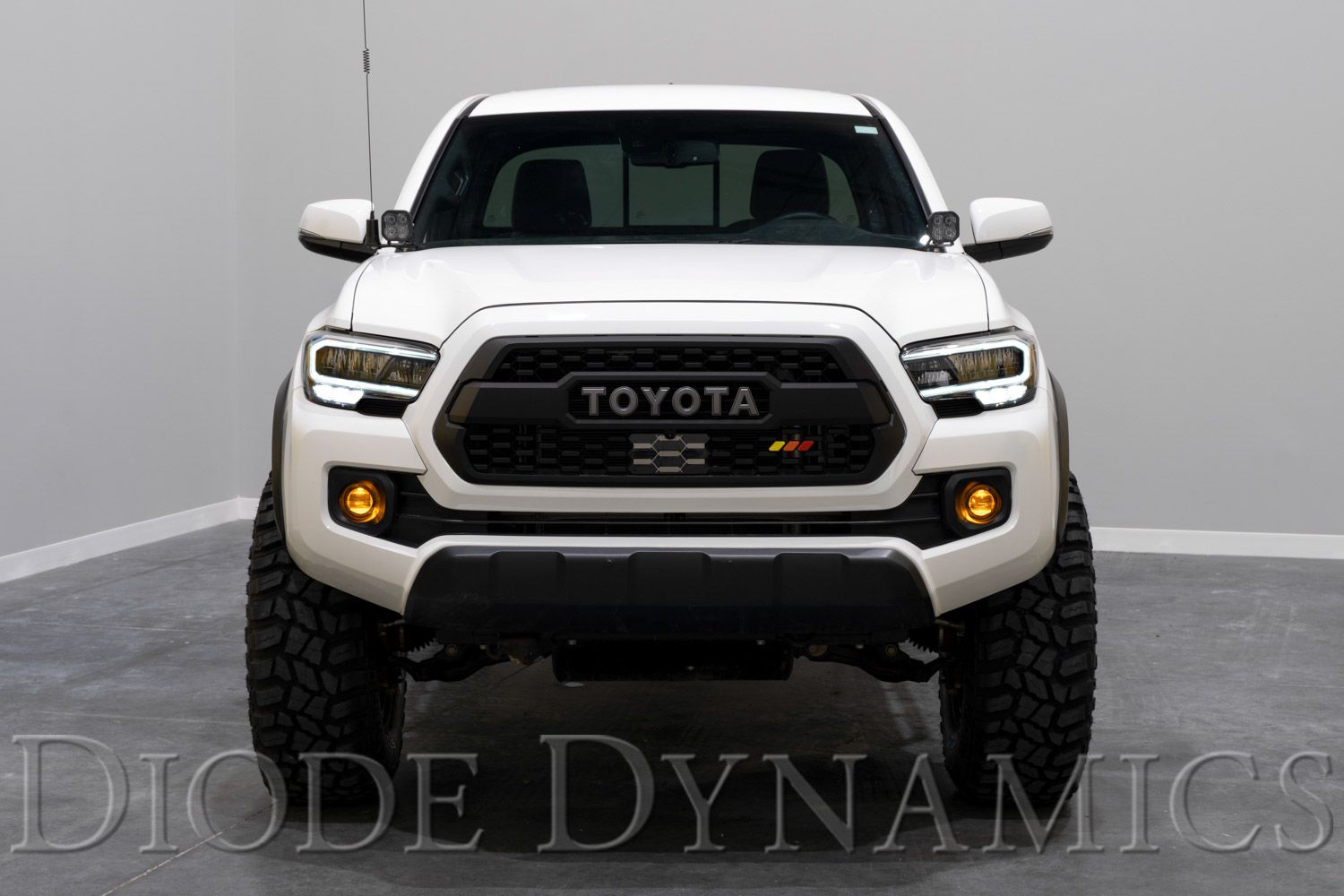

Amber backlight: Integrated amber accent light for added visibility and a modern appearance

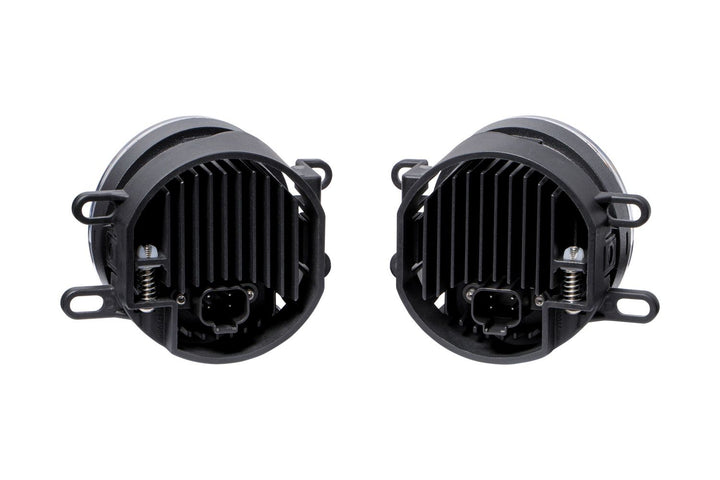

Premium construction: Precision aluminum housing with full copper circuit boards
Made in USA: Engineered and assembled in the United States
Performance overview
Output that outperforms: Up to five times more output than factory halogen fog lamps
Advanced optic design: Single-piece toroidal lens engineered for an ultra-wide 80-degree spread
Glare control: Smooth beam pattern with a sharp cutoff to reduce glare for oncoming traffic
White or yellow output:
White (6000K): Matches factory LEDs and DRLs with a premium color band at the cutoff

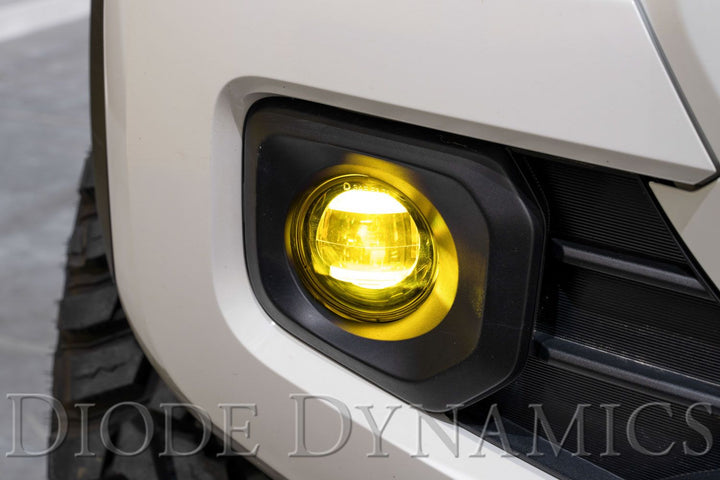

Selective yellow (3000K): Improves contrast in rain, fog, and snow
Integrated backlight: Amber accent light automatically shuts off when the main beam is active
Fitment
Application: Fog light
Make: Toyota
Model: Tacoma
Years: 2012–2023
Specifications
Raw output:
White: 1,850 lumens
Yellow: 1,650 lumens
Backlight: 14 lumens
Peak intensity:
White: 10,200 candela
Yellow: 8,700 candela
Beam pattern: Fog, 80° × 6°
Color temperature: 6000K (White), 3000K (Yellow)
Power draw:
Main beam white: 17W
Main beam yellow: 15W
Backlight: 0.3W
Operating voltage: 9–16V
Ingress rating: IP68 waterproof
Operating temperature: -40°C to 85°C (-40°F to 185°F)
In the box

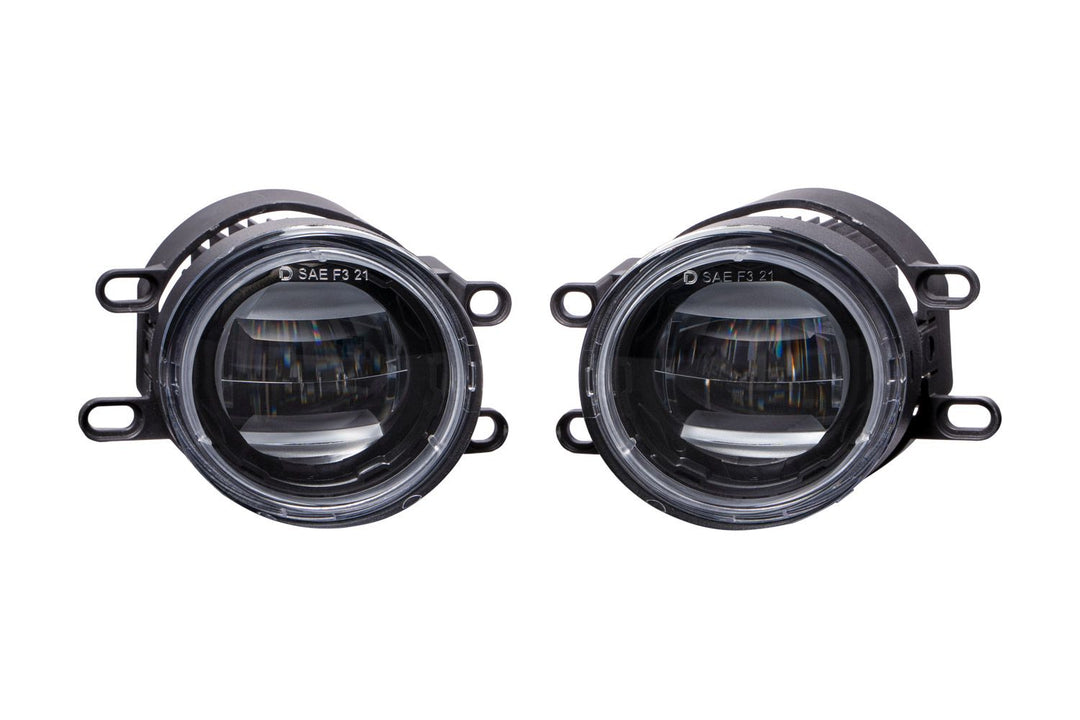

Fog lamps: Two (2) Elite Series Type B fog lamps
Wiring: Two (2) H11 4-pin DT backlight tap wires
Connectors: Two (2) T-taps

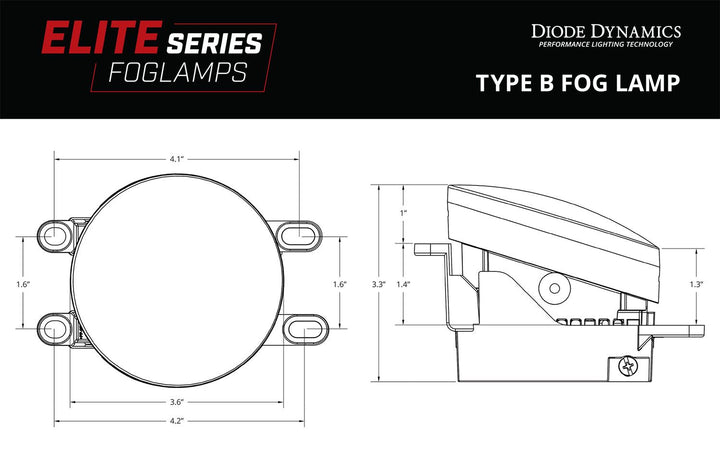

Documentation: Mounting guide
Quantity: Pair (left and right)
Warranty & installation
Warranty: 8-year limited warranty
Return policy: 30-day returns with no restocking fee
Installation time: 30–60 minutes
Tools required: Basic toolset
Modification required: None
