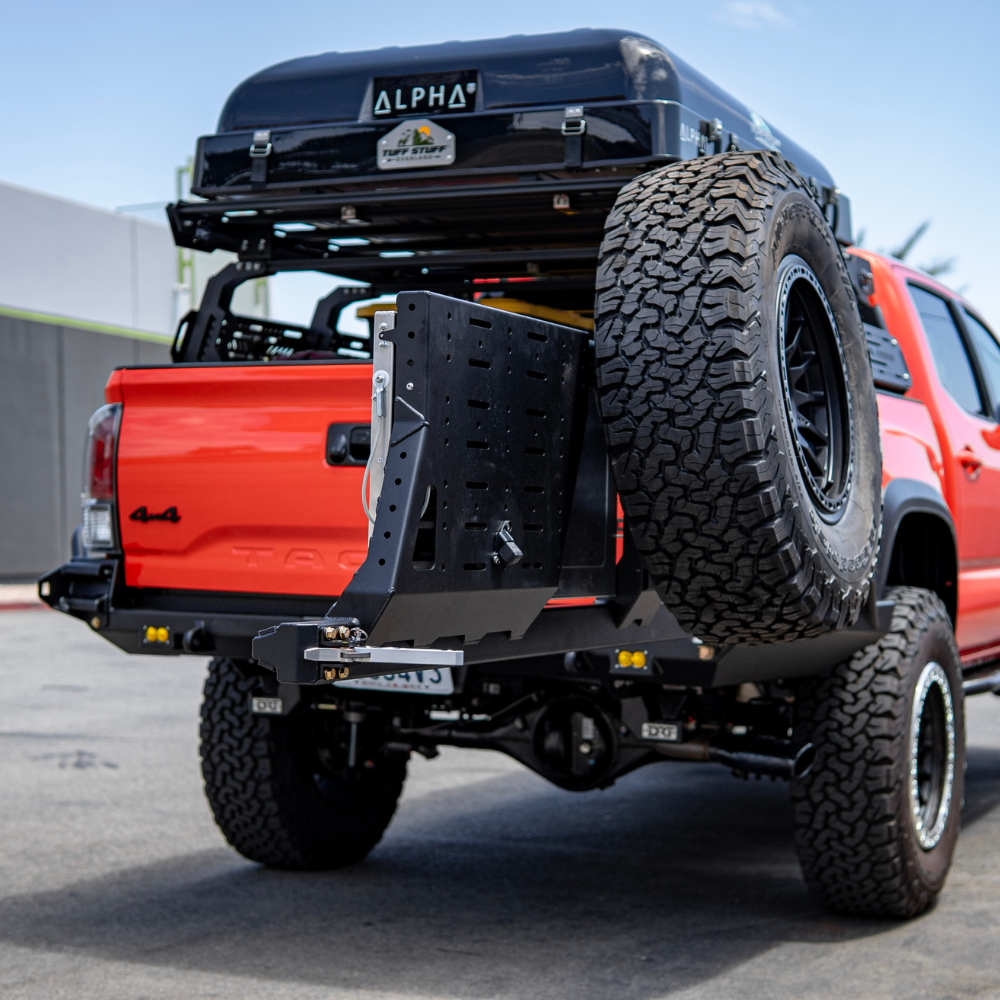

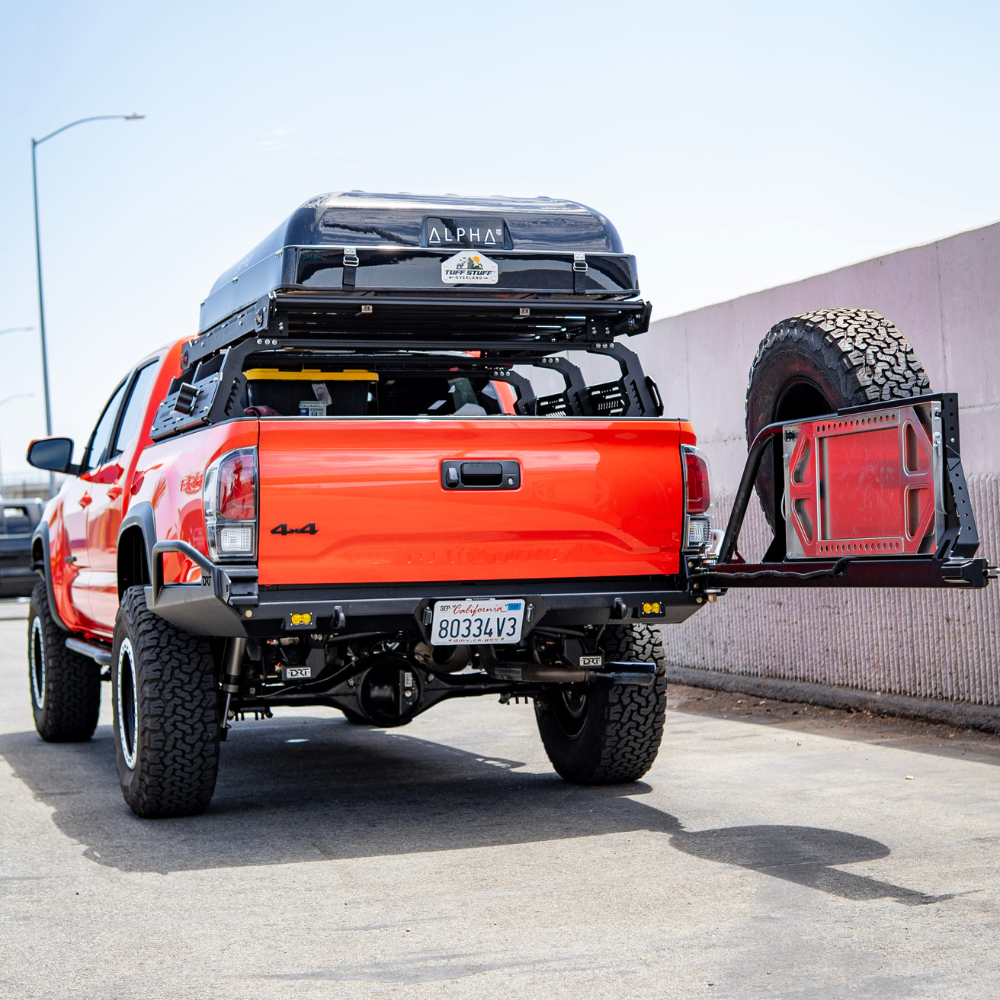

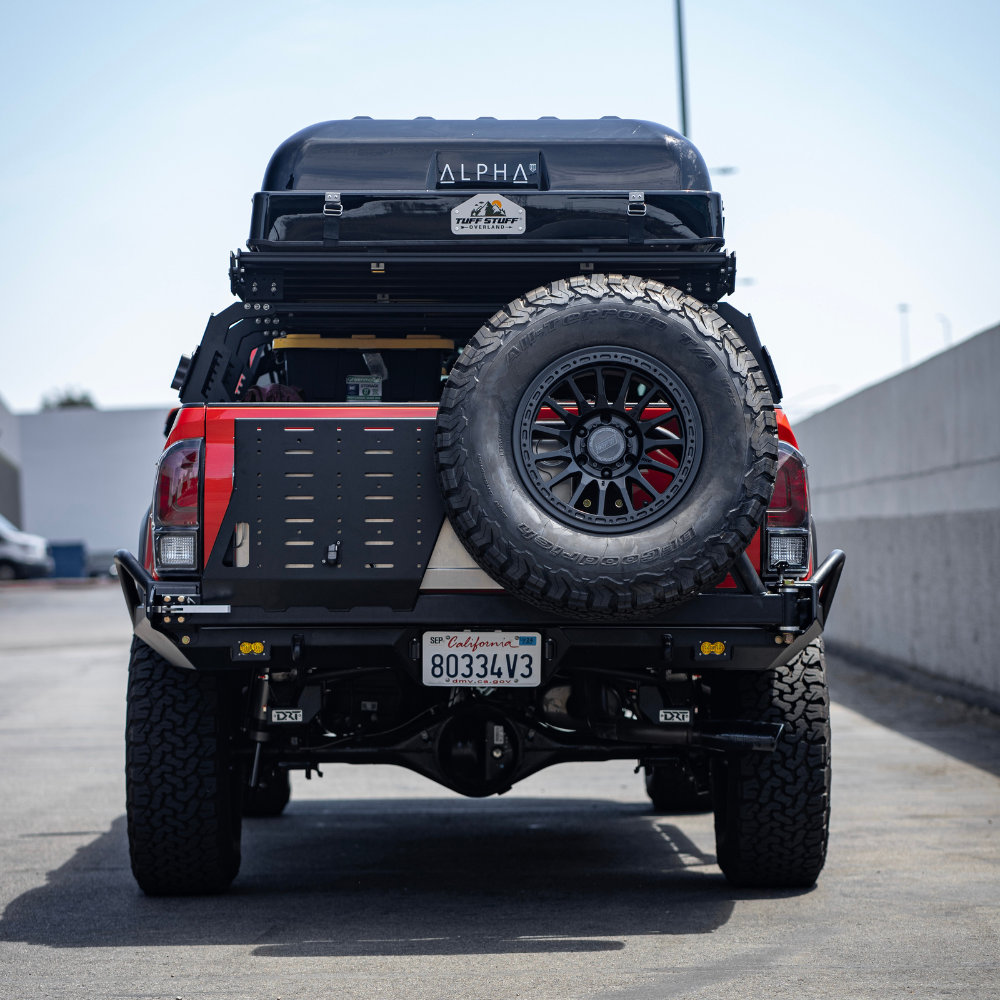

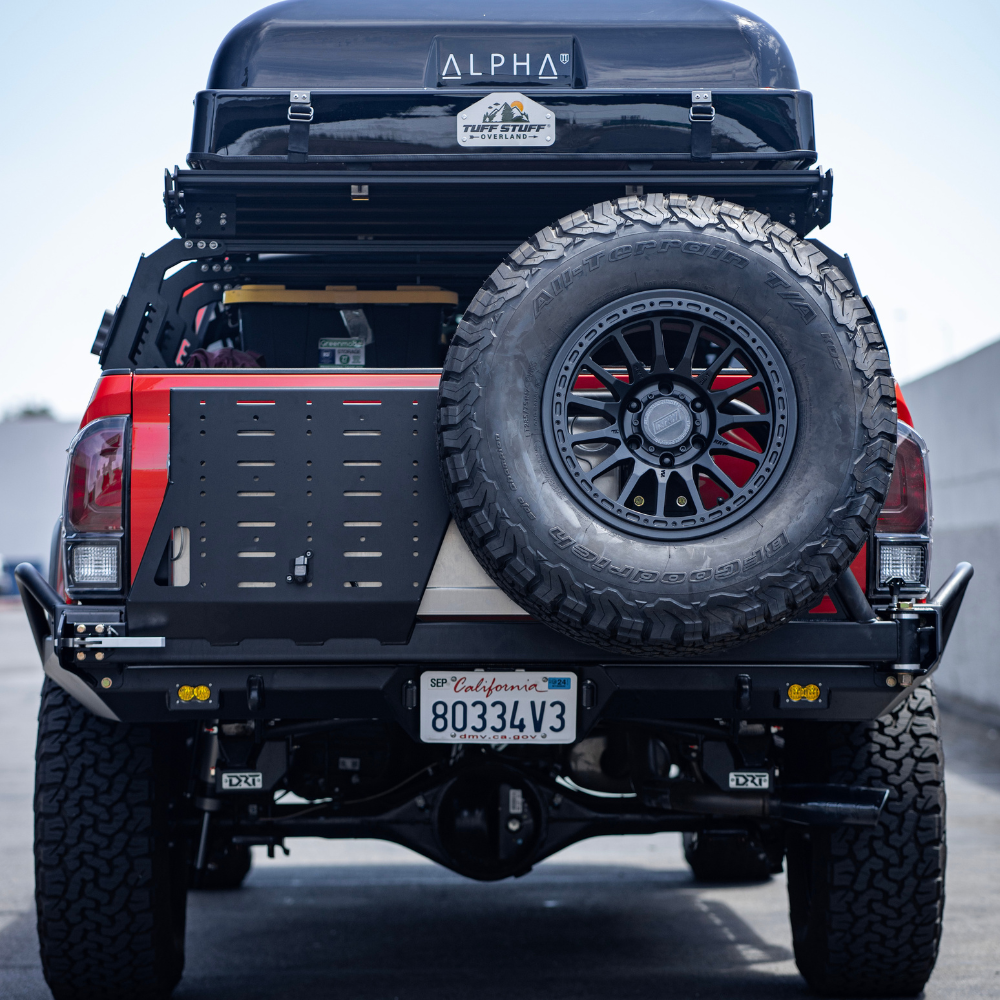

DRT Fabrication Bolt on Swing Out for Tacoma (2016-2023)

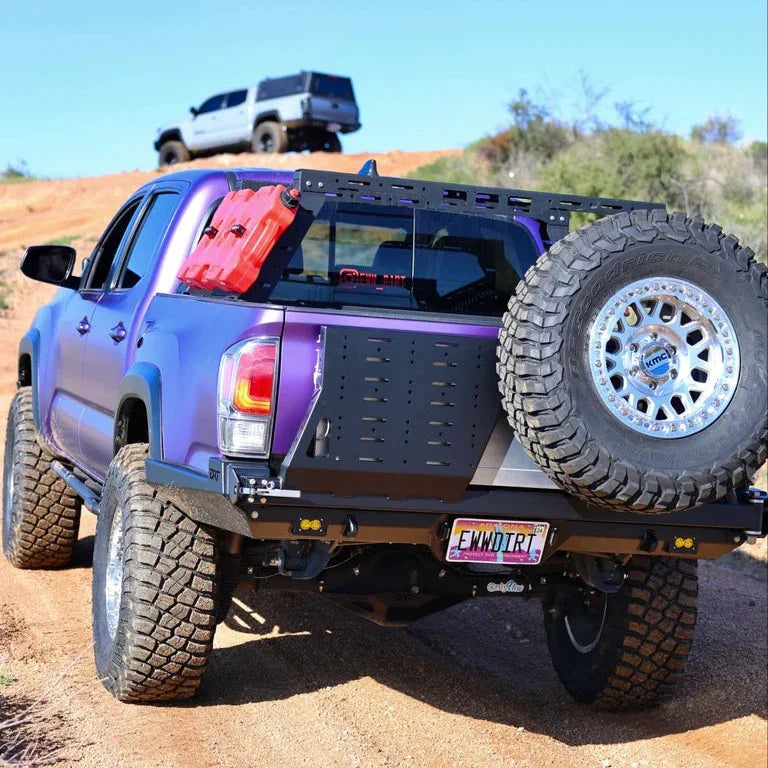

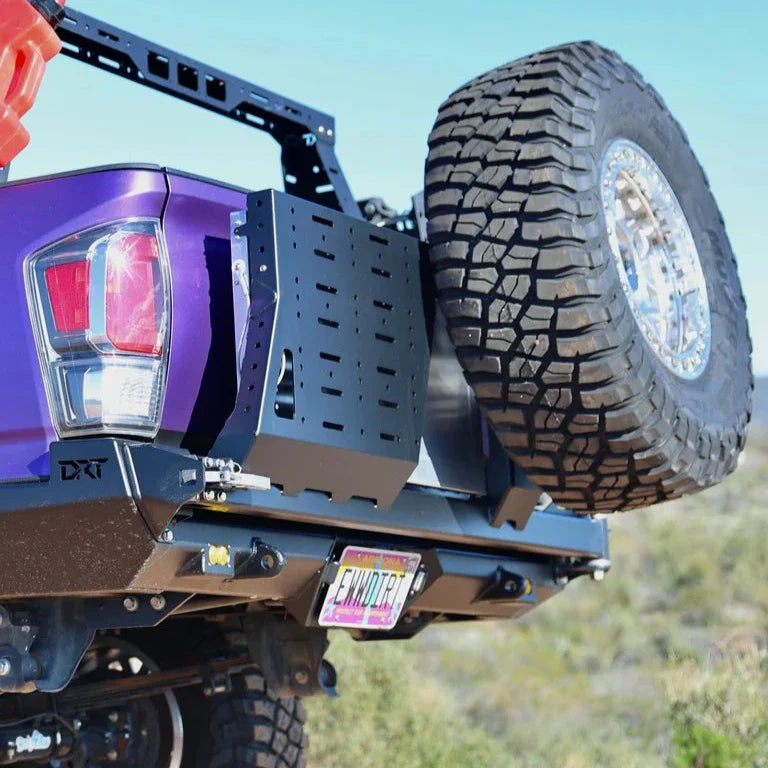

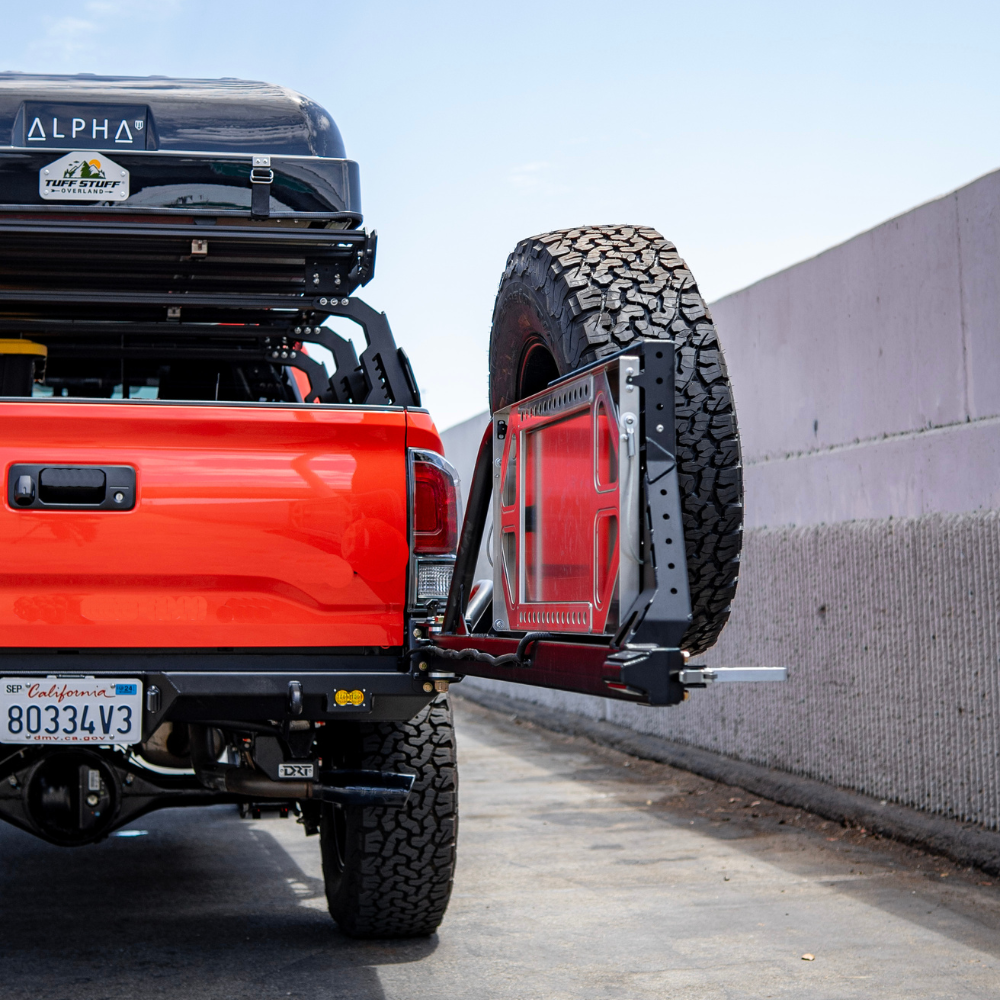

Introducing the DRT Fabrication Bolt On Tire Carrier / Swing Out, engineered to dramatically increase your Tacoma’s versatility. Designed with both form and function in mind, this swing-out provides a secure way to mount a spare tire along with essential gear such as a jack, fuel or water cans, rotopax, tools, and more. Every detail has been methodically designed.

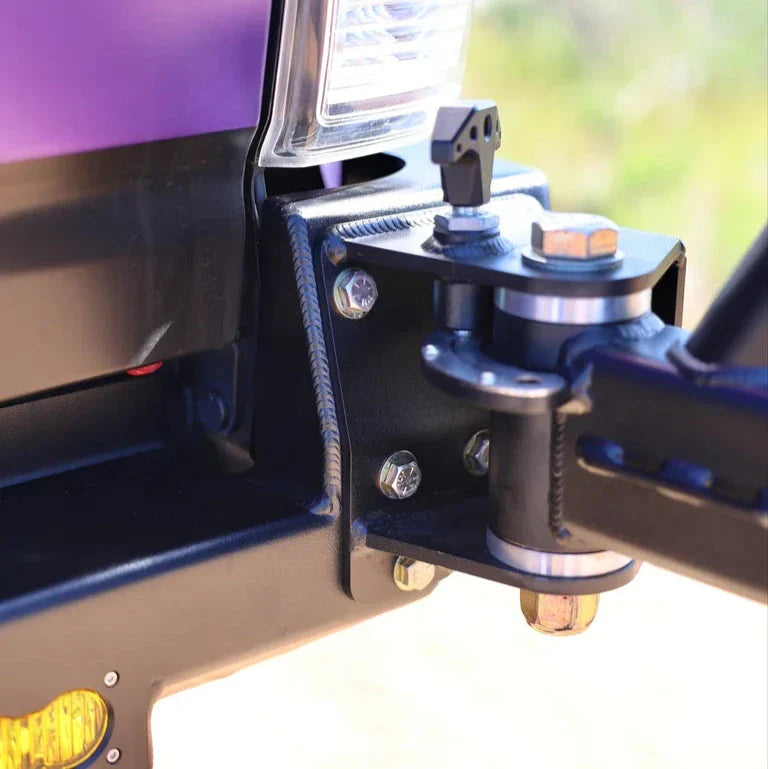

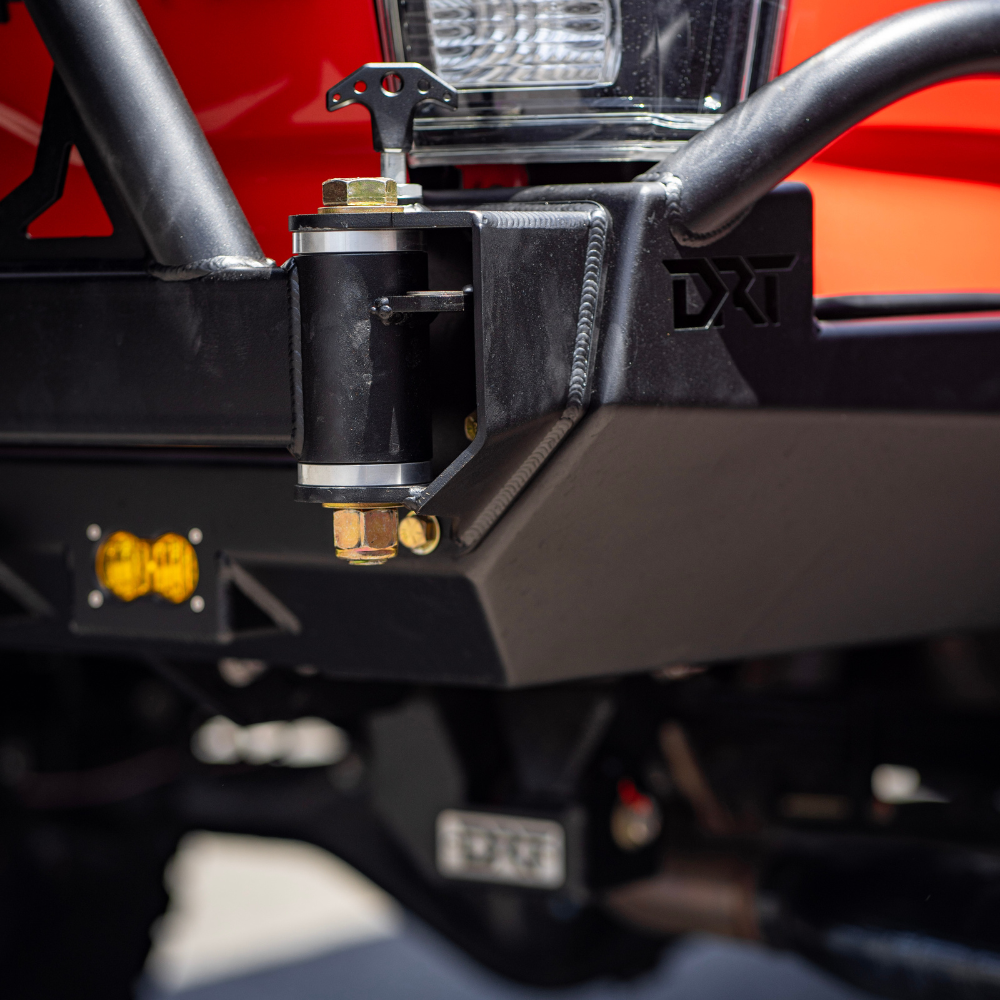

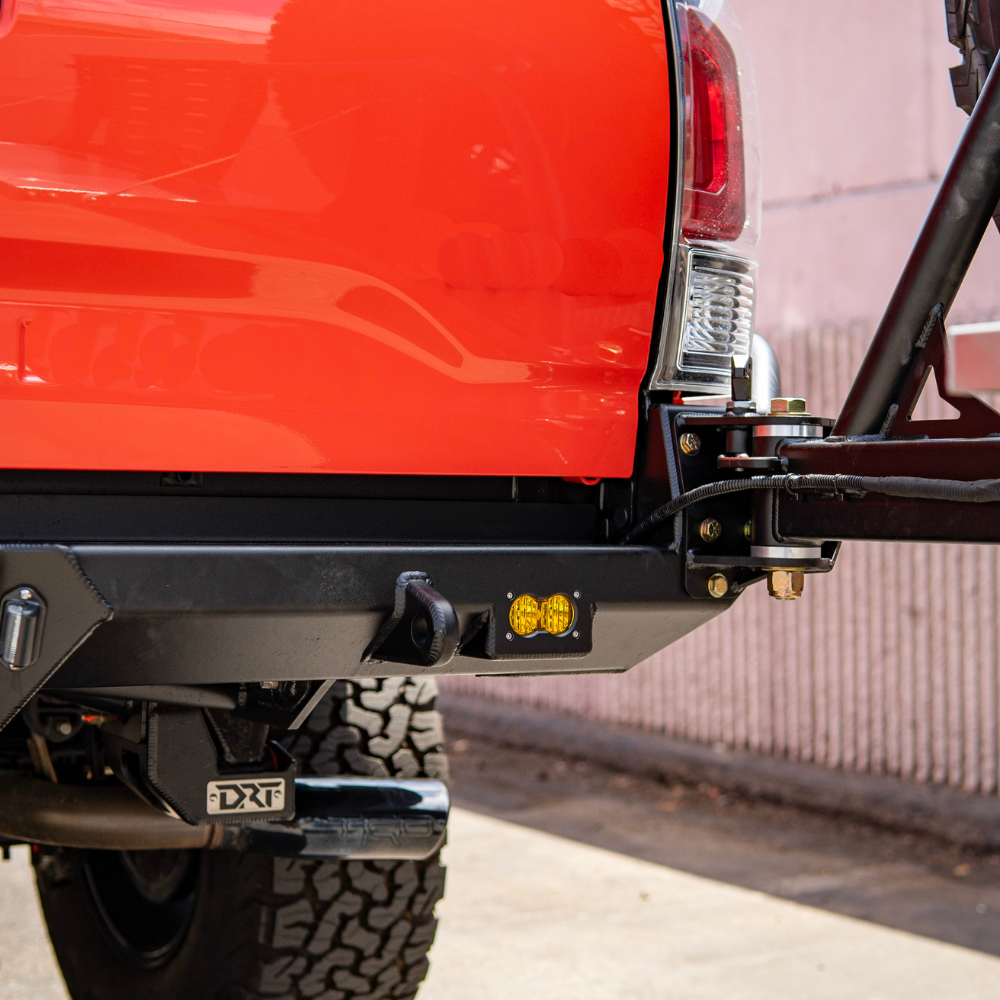

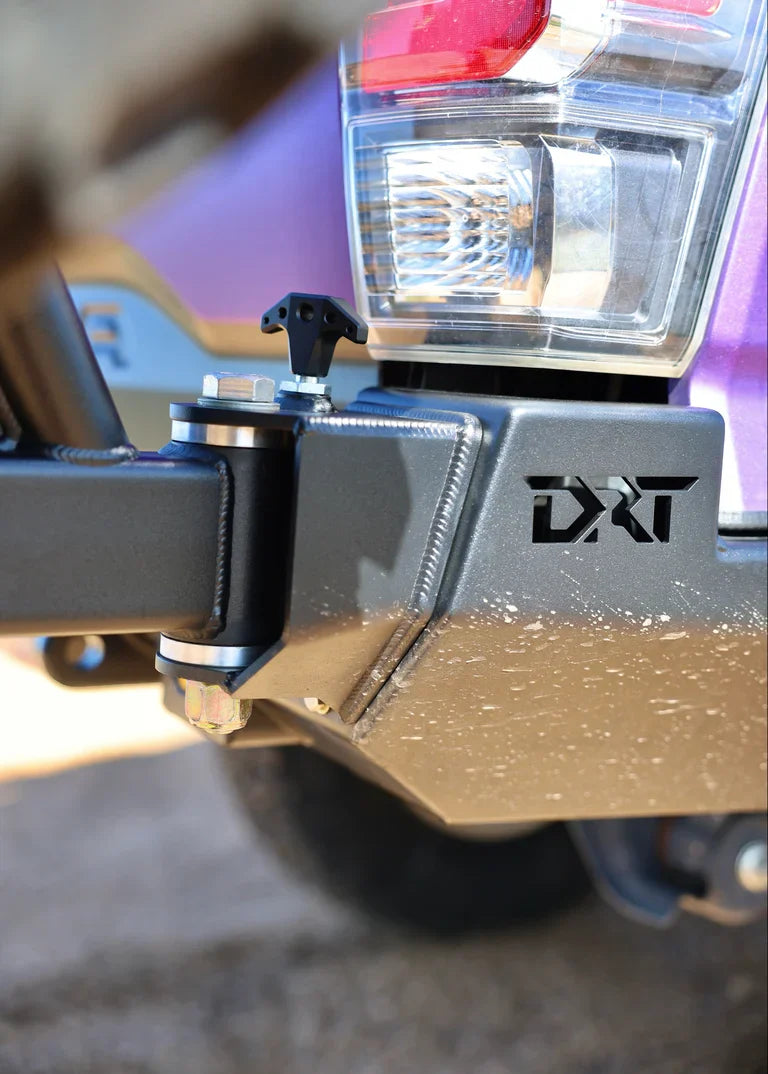

Hinge Design

The swing-out hinge uses dual COM16 uniball bearings with aluminum misaligns and O-rings for durability, smooth operation, and resistance to water and debris. This ensures a quiet and long-lasting performance, no more dealing with cheap wheel bearings packed full of grease.

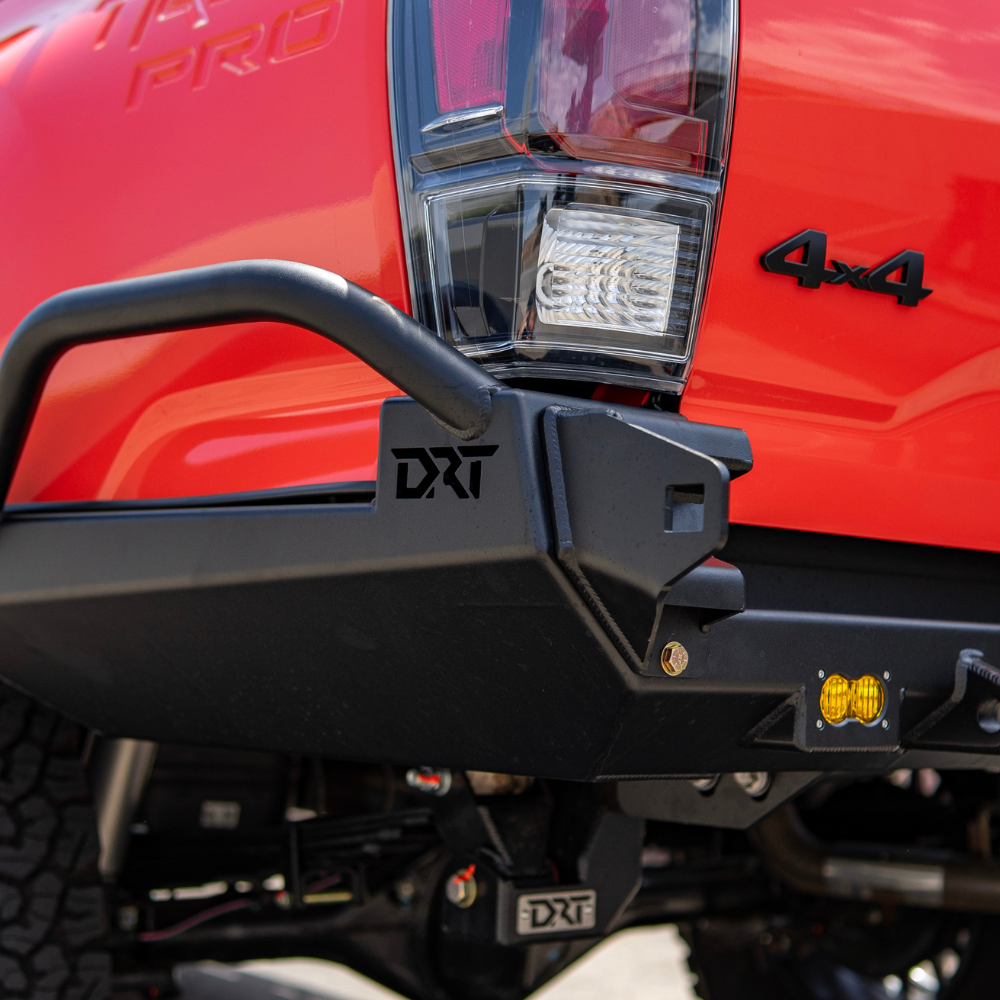

Strong, Secure Mounting

• Each carrier is attached to the bumper with five ⅜” Grade 8 bolts
• 100% bolt-on installation – no welding required
• Can be added to your DRT HC Rear Bumper at a later date
• Includes laser-cut templates for a straightforward install

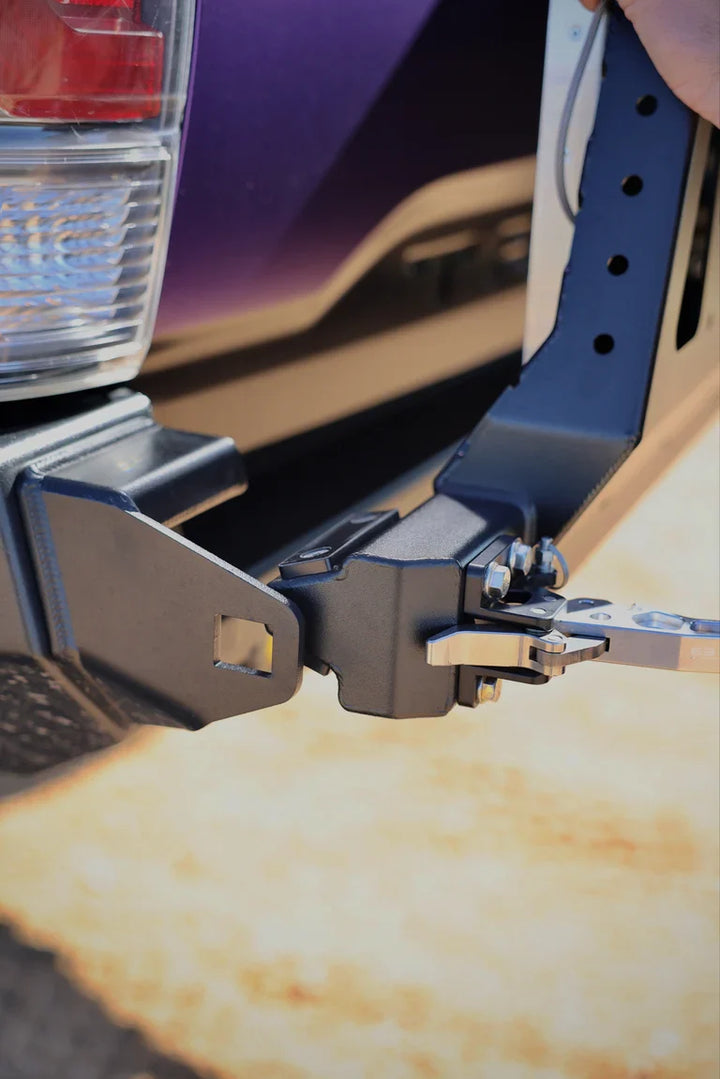

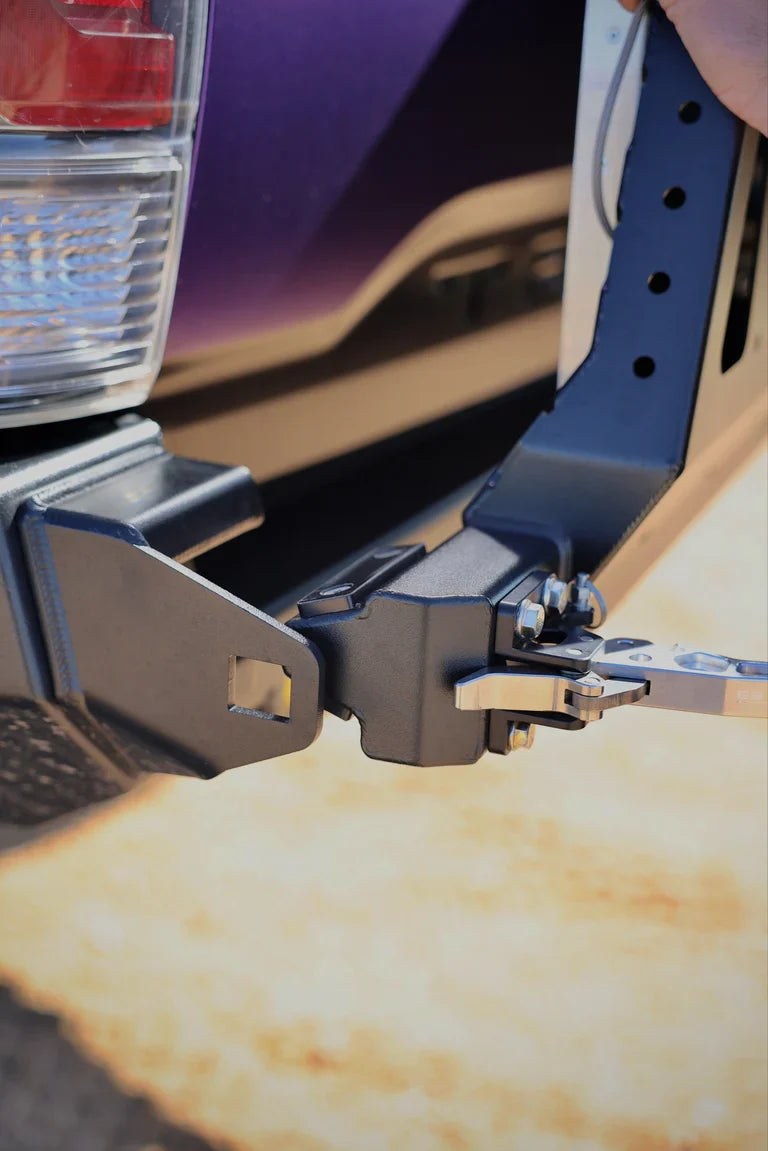

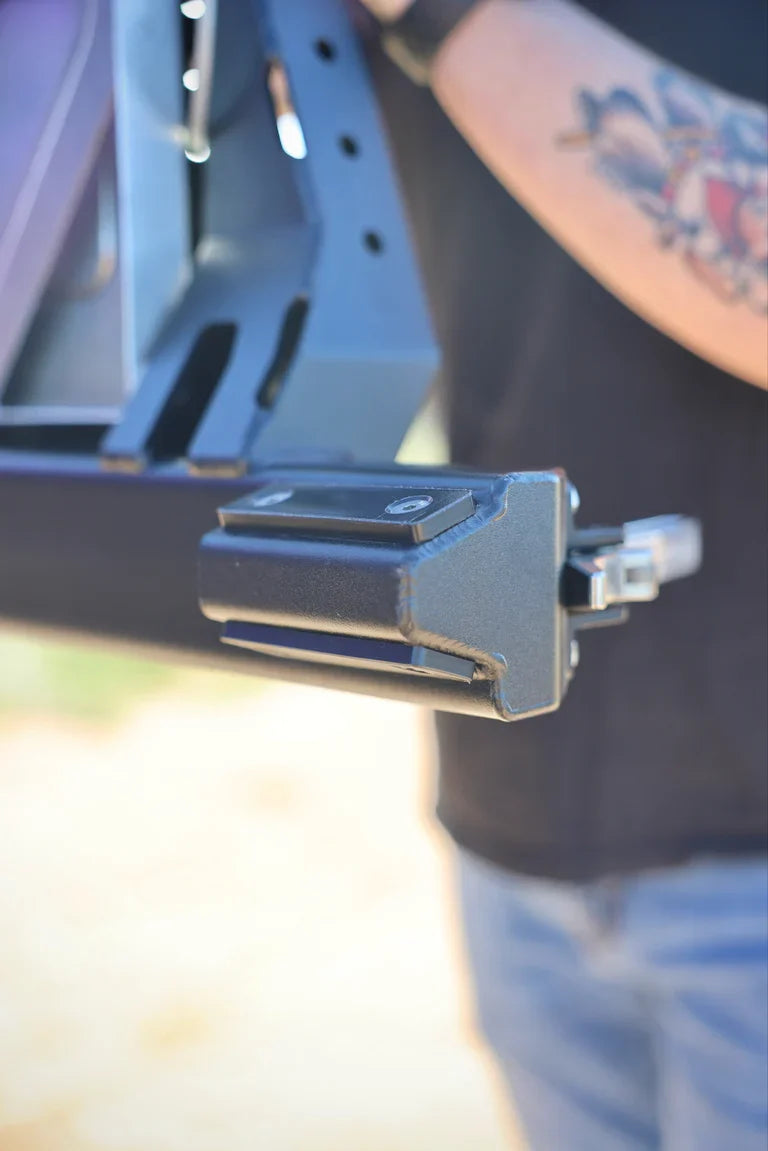

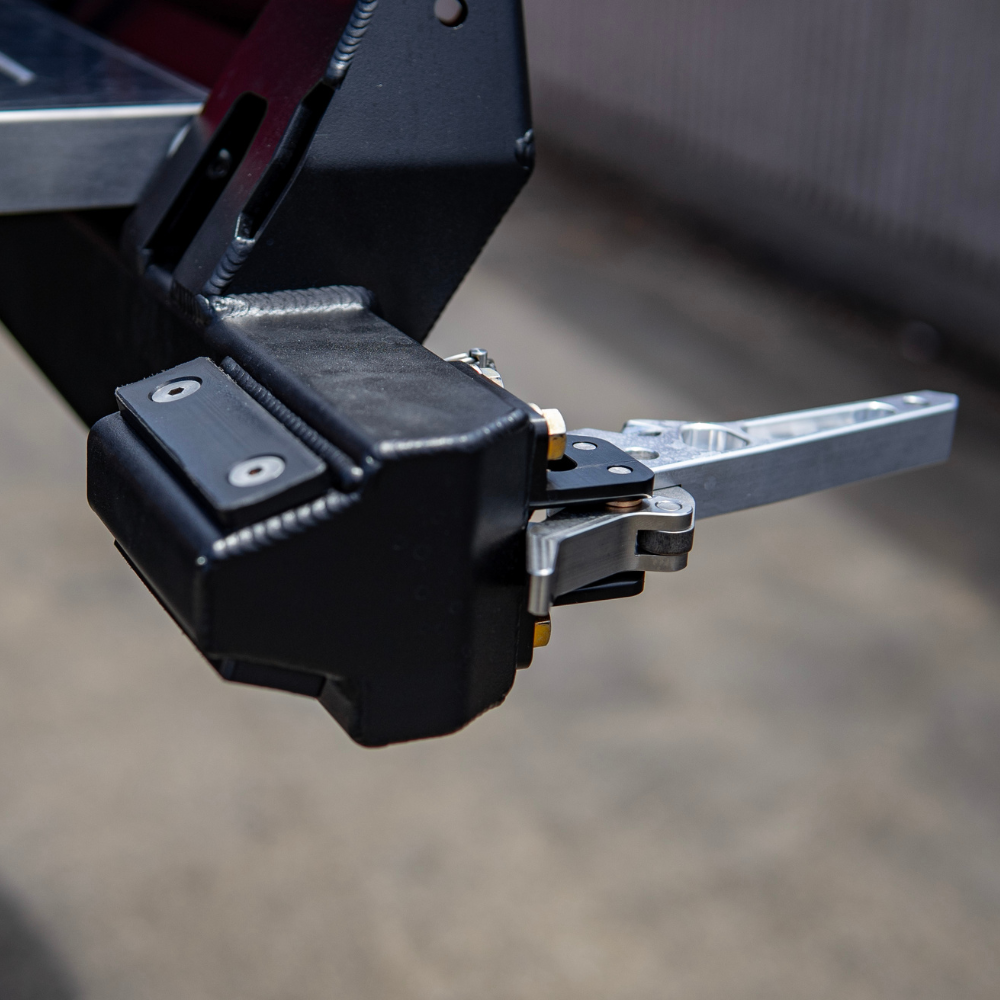

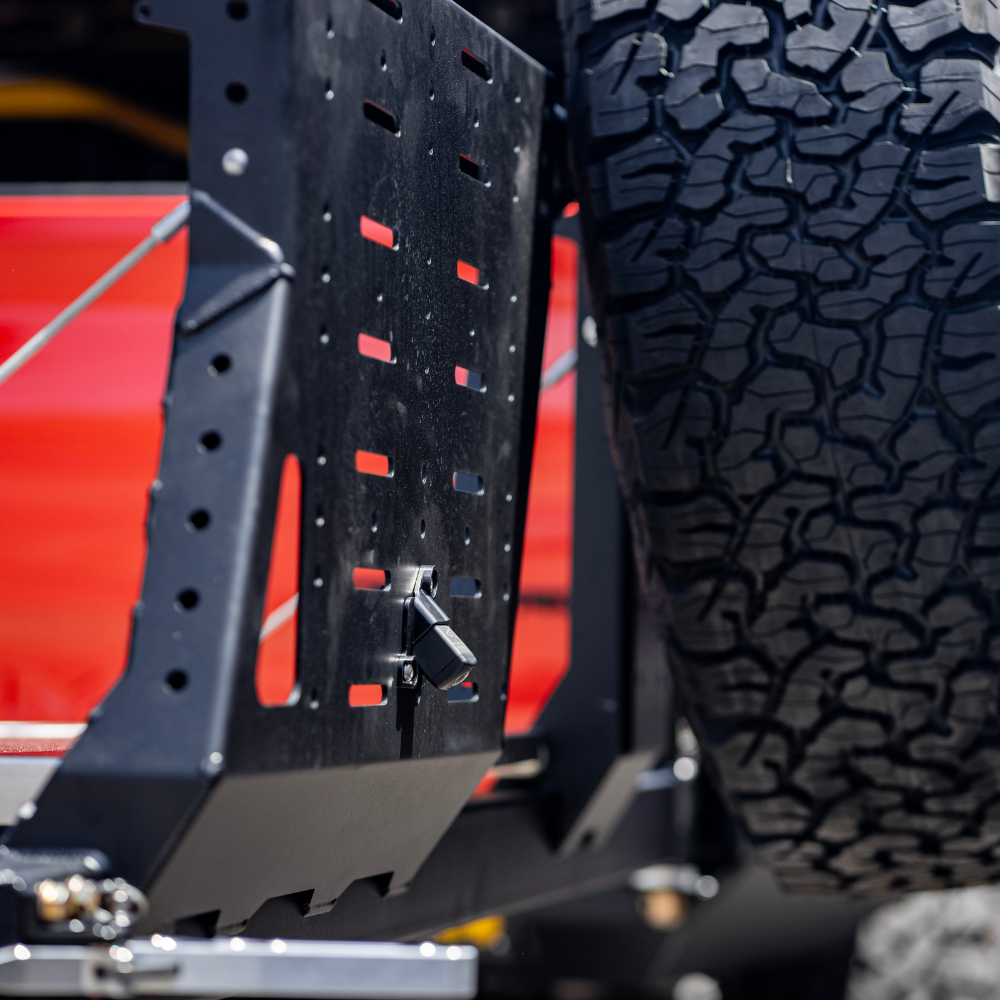

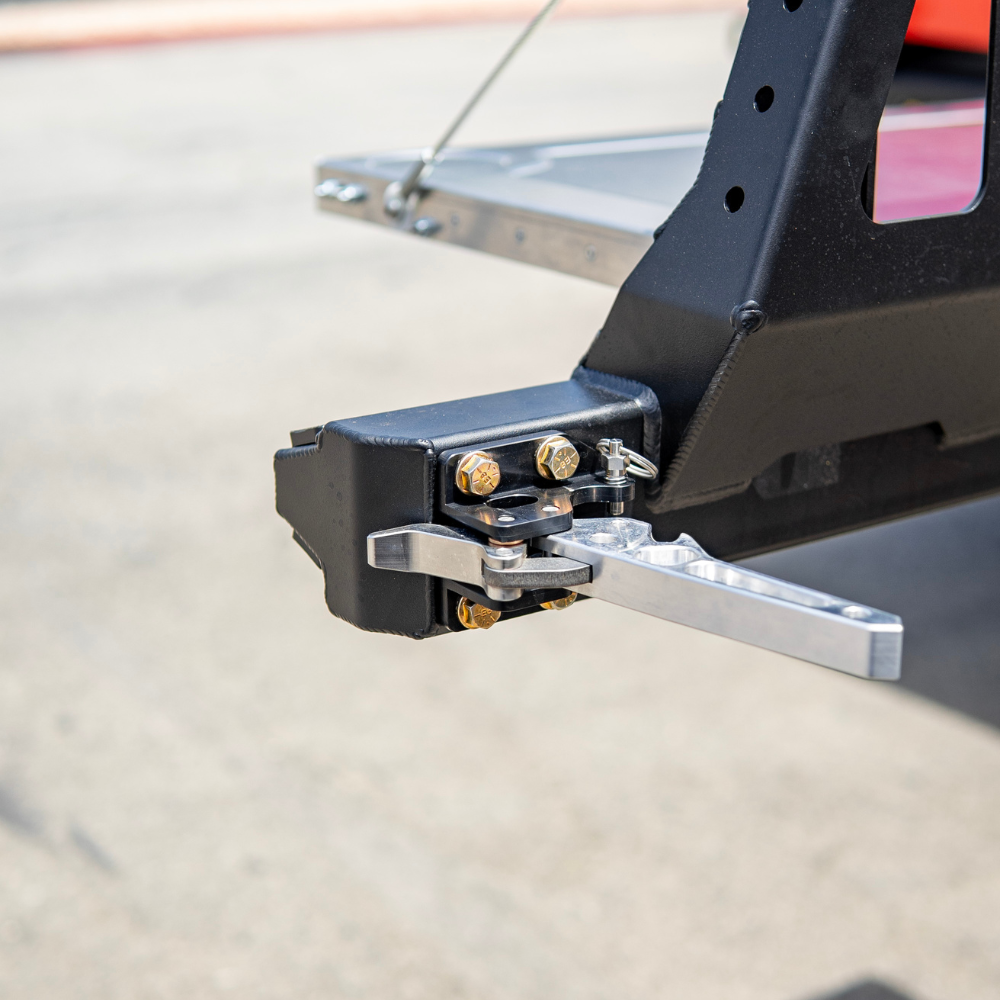

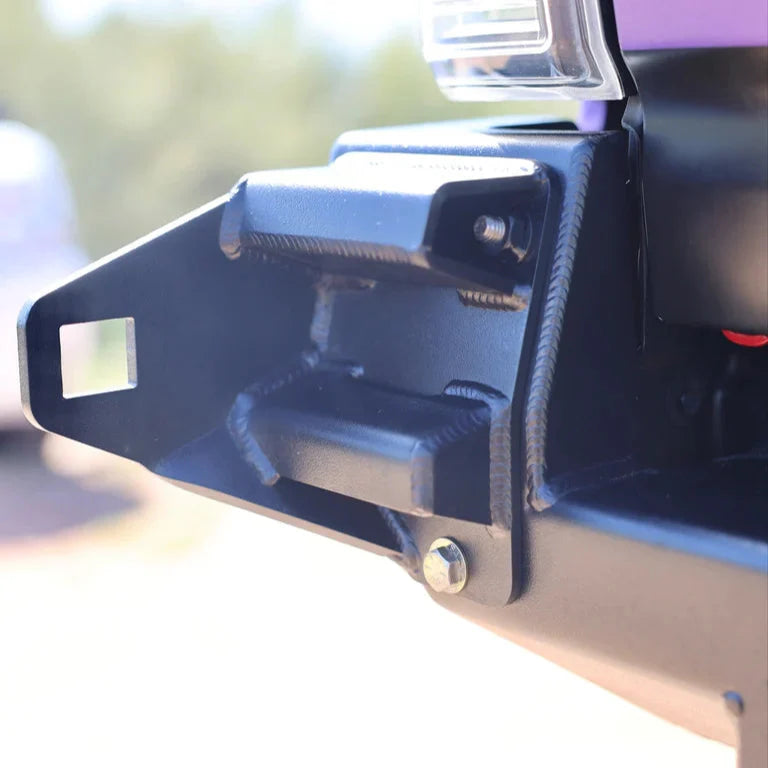

Wedge-Style Latch System

• Uses CNC-machined black UHMW wedge pads to reduce wear and noise
• Comes standard with a lockable billet e3 Machine compression latch (black/raw combo)

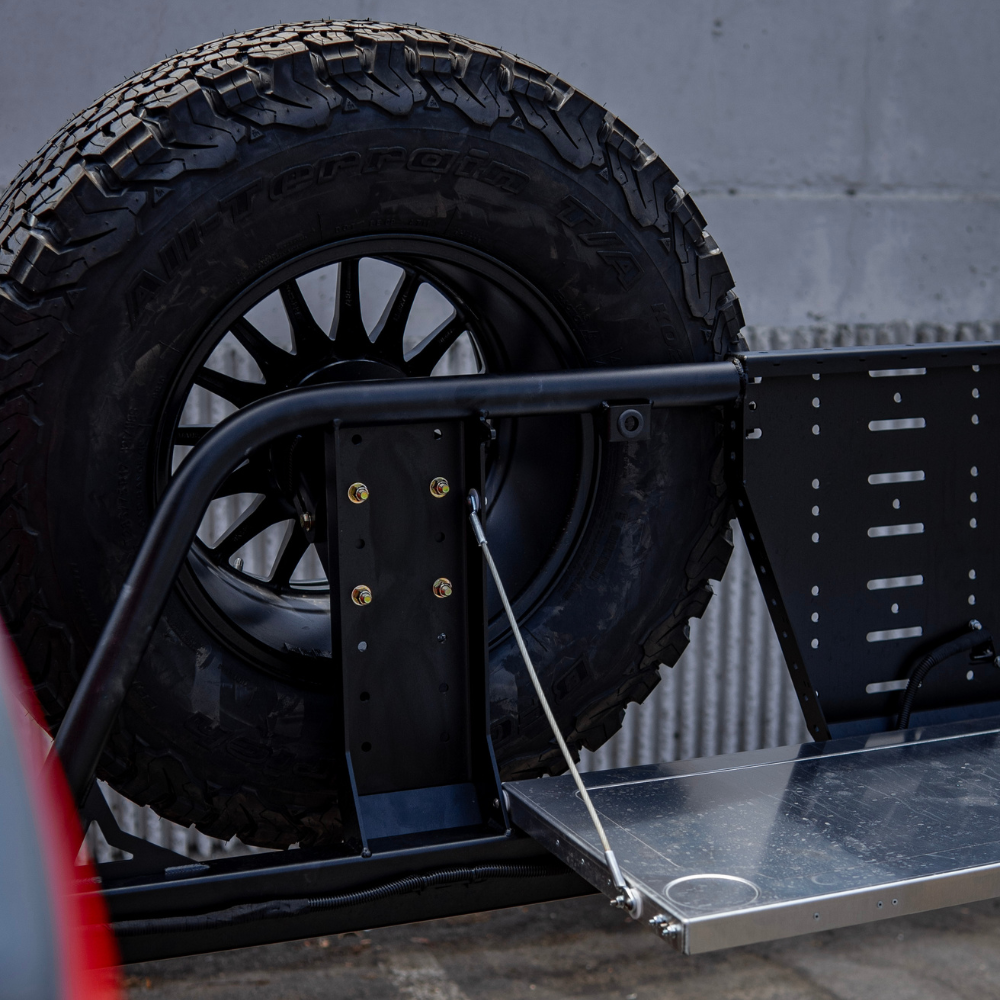

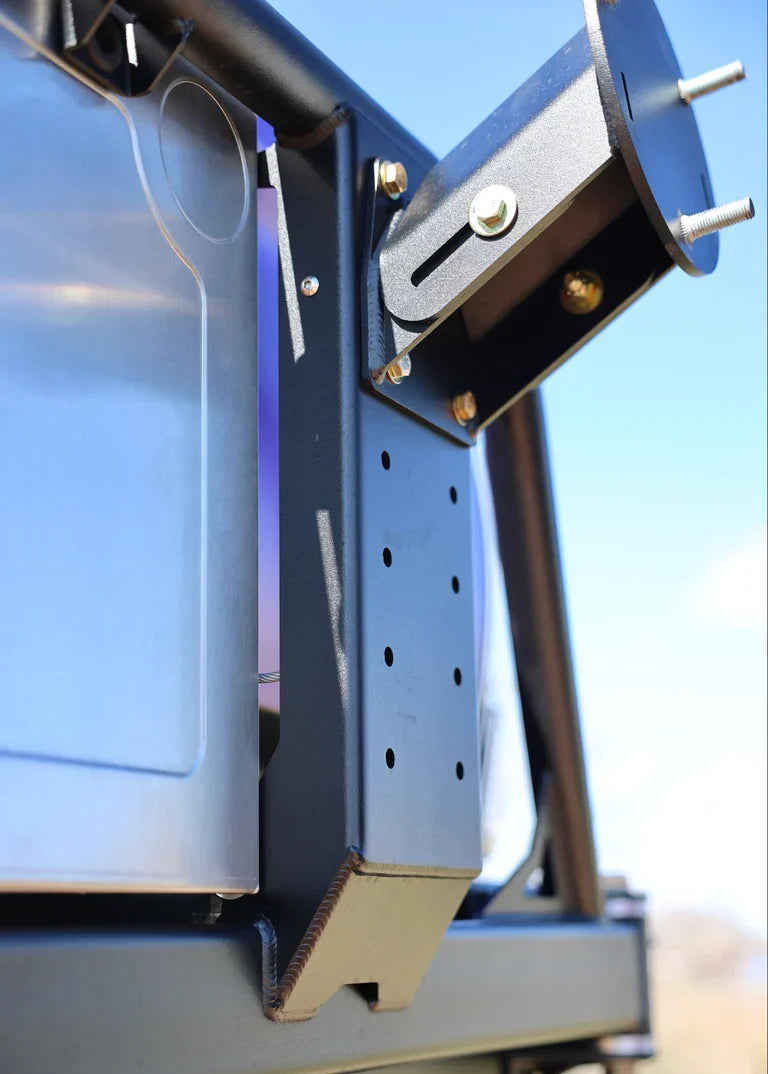

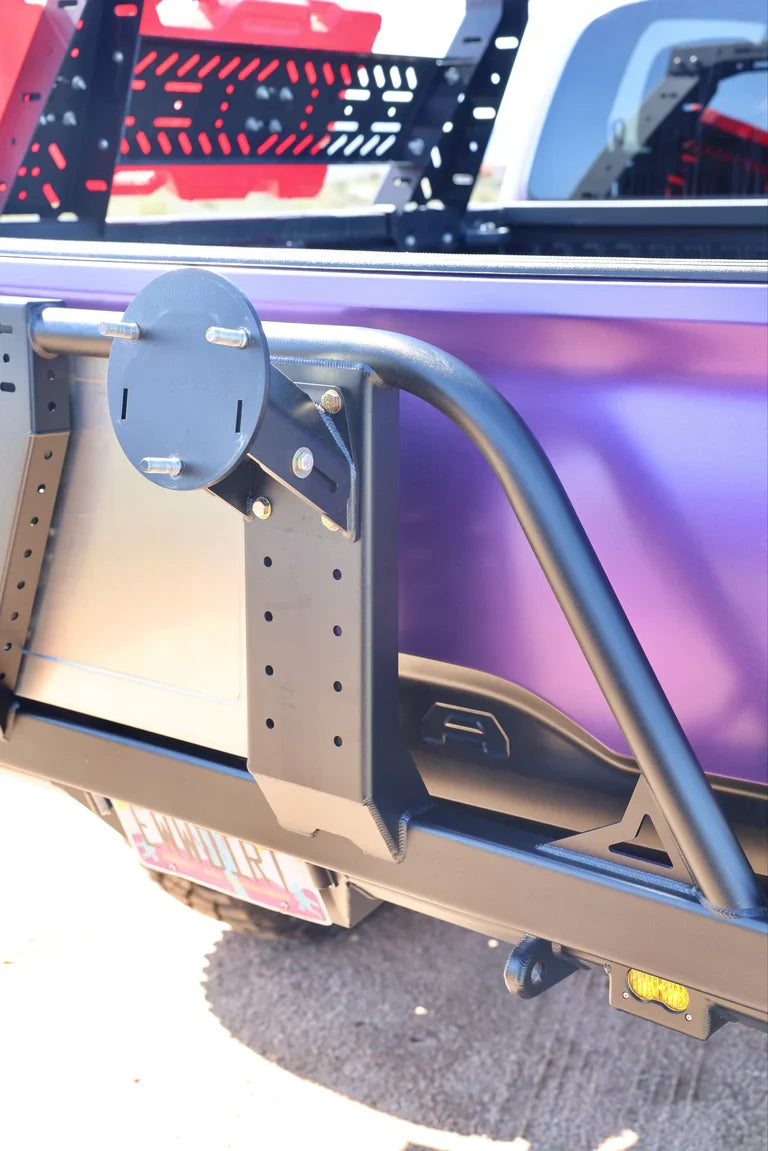

Adjustable Spare Tire Mount

• Bolt-on mount included
• Angled for improved ground clearance
• Adjustable to fit a range of tire widths and wheel offsets (0 to -36 offset)
• Designed around a 35” tire (as shown in photos)

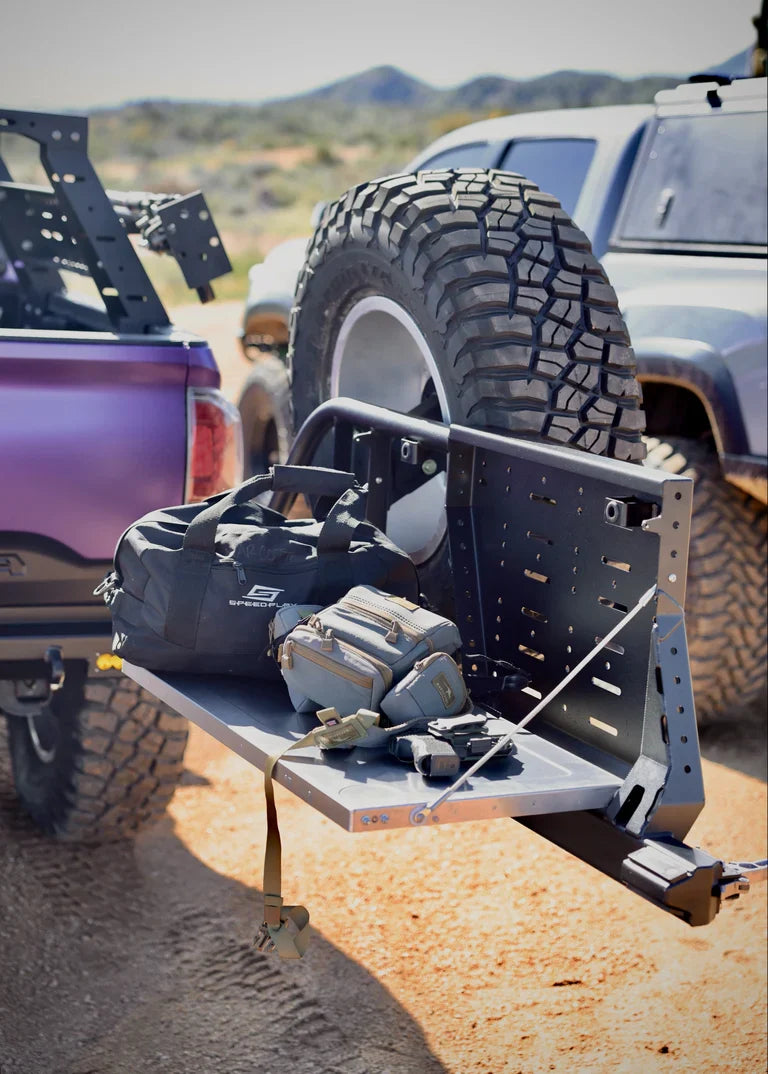

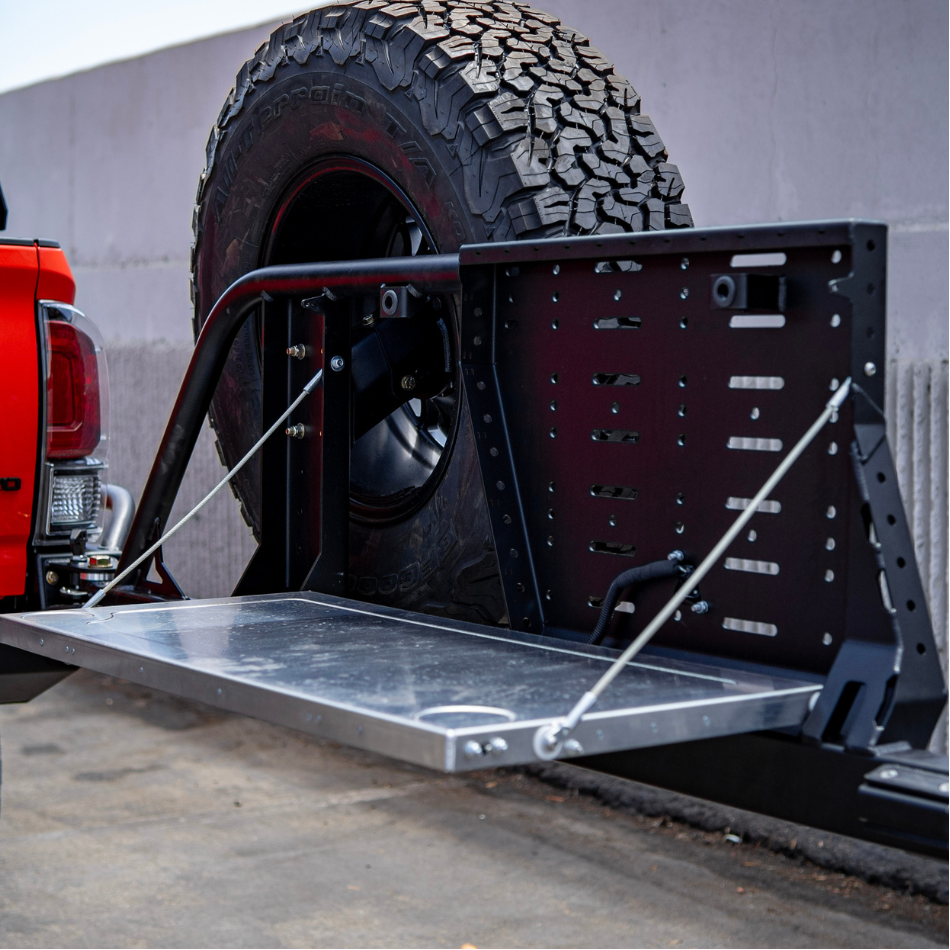

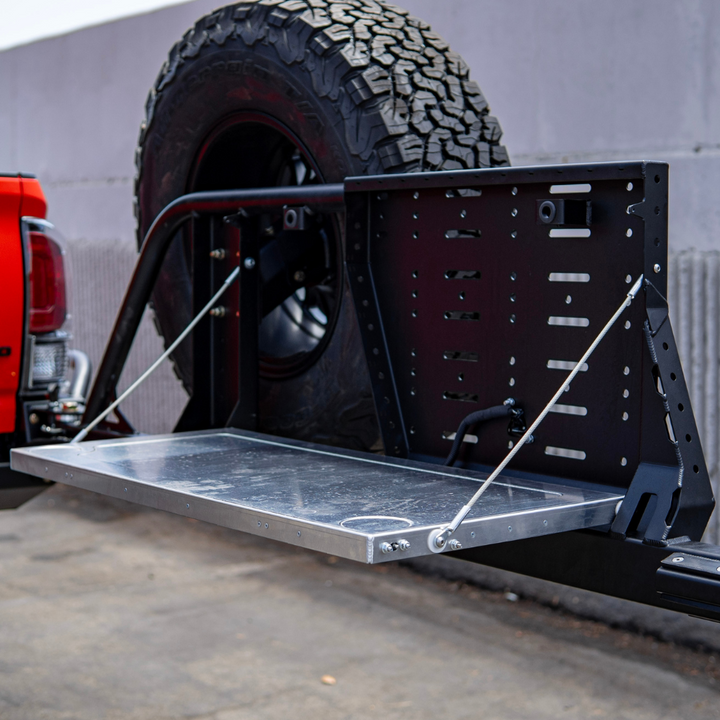

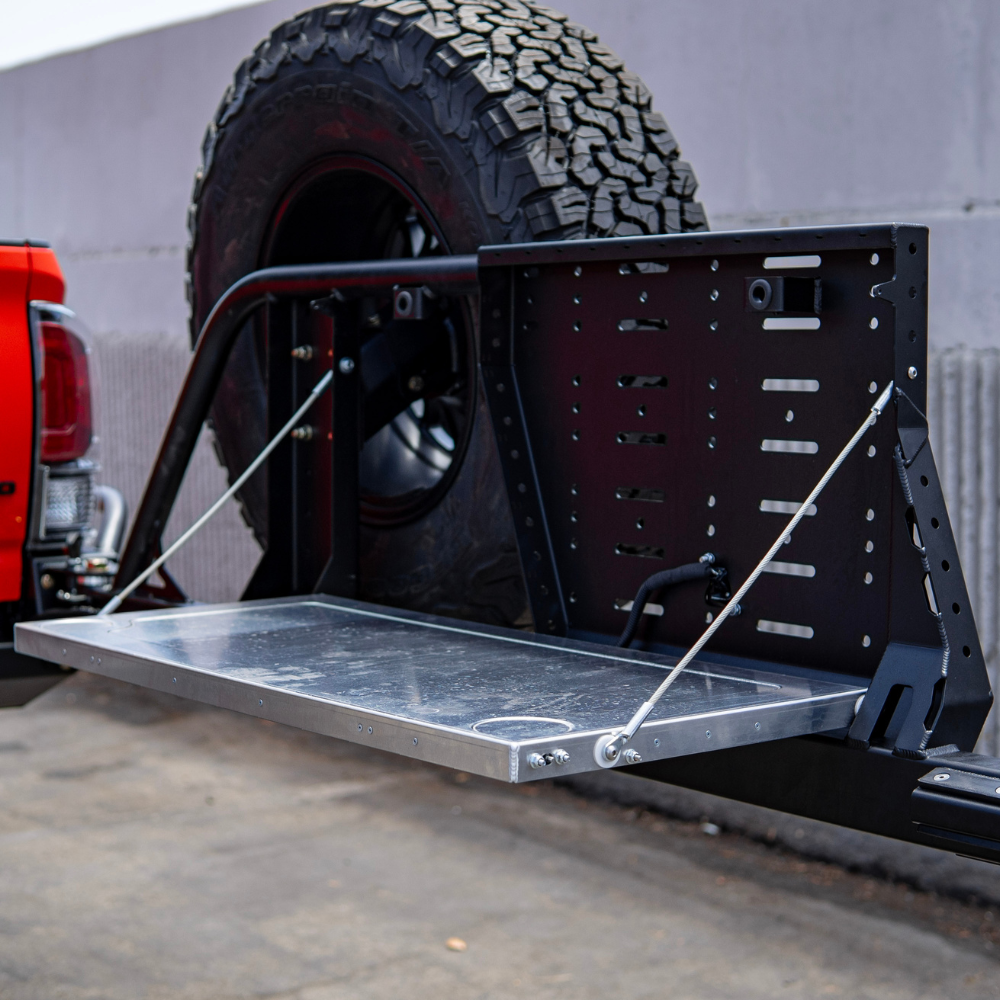

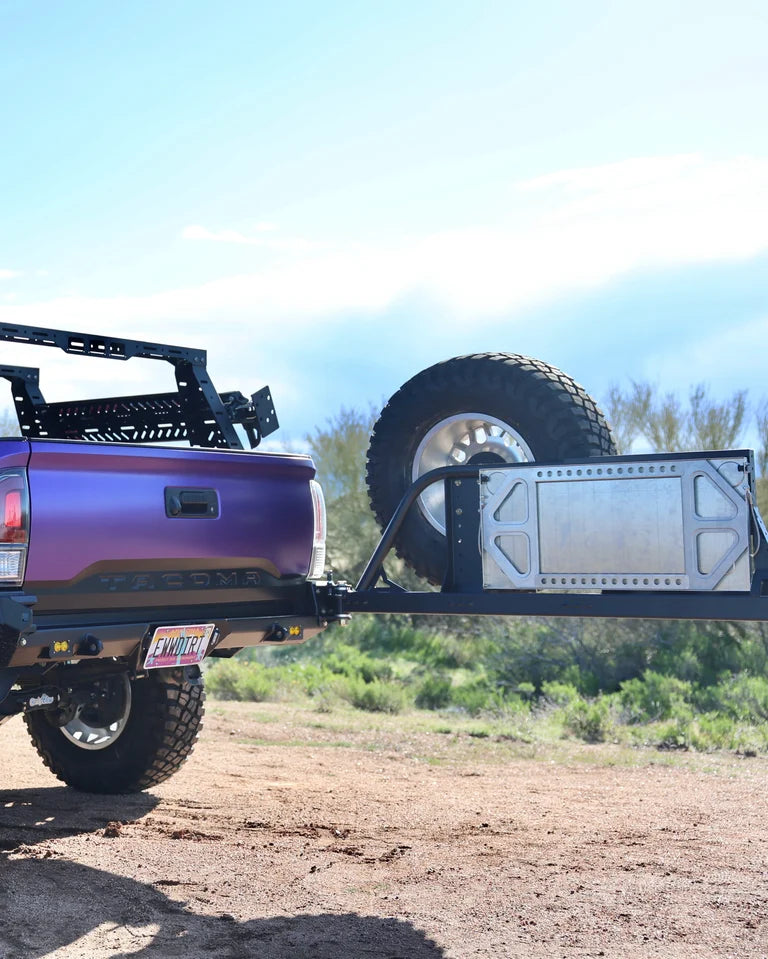

Built-In Fold-Down Table

When opened, the swing-out reveals a massive CNC bead-rolled aluminum table—perfect for cooking, organizing tools, or staging gear on the trail.

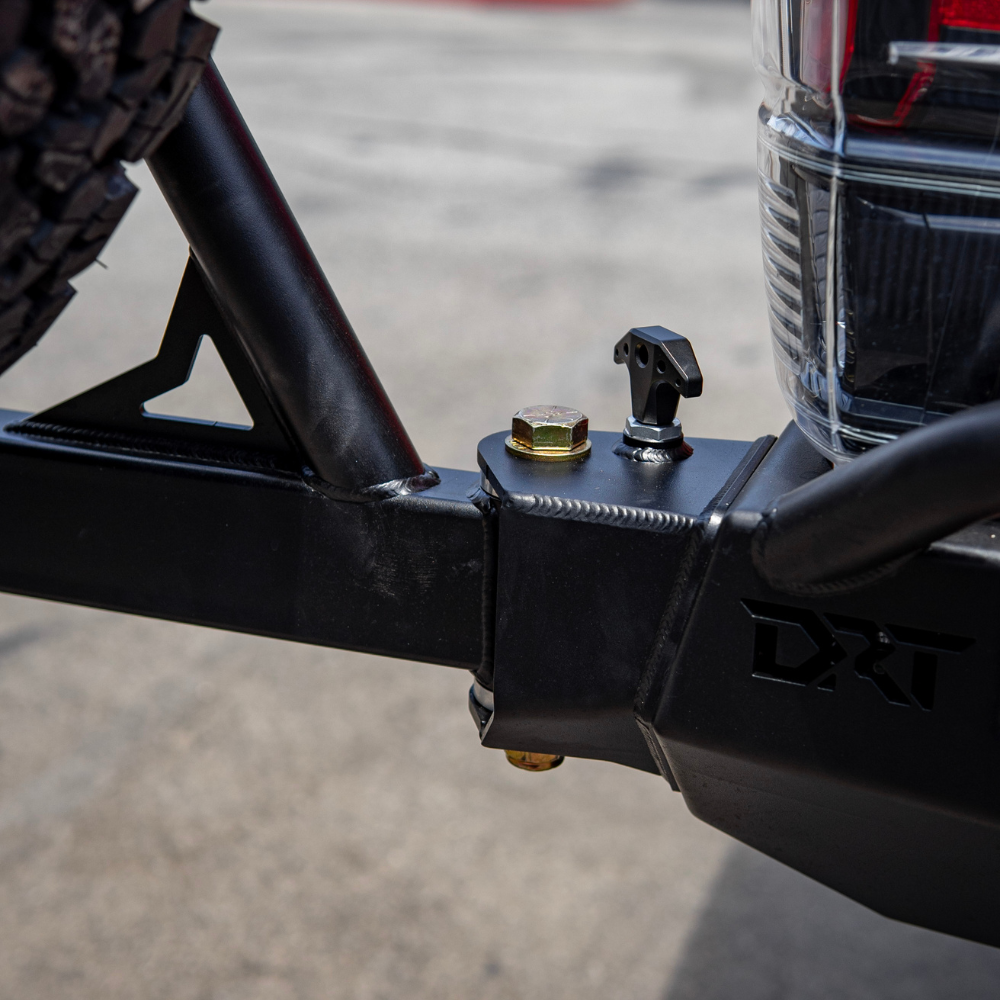

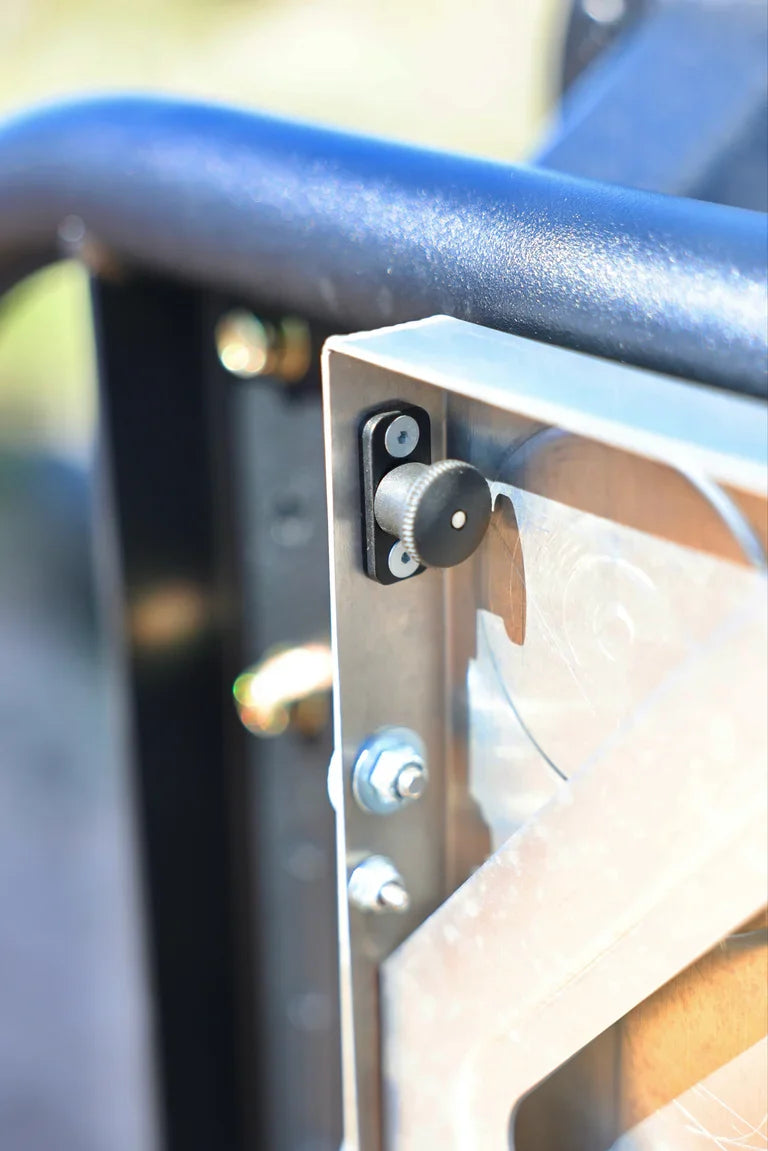

Billet Pull Pin with Multiple Positions

• Pull pin includes 2 locking positions:  90°, and 130° open
• Stainless steel slide plate prevents powder coat wear during repeated use

Specs & Features

• 100% bolt-on
• Dual uniball hinge
• Machined UHMW wedge pads
• Billet e3 Machine compression latch
• CNC bead-rolled aluminum table
• 3/16” steel base spare tire mount
• Adjustable tire mount (0 to -36 offset)
• Billet pull pin w/ 2 positions (90°, 130°)
• Stainless steel pin slide plate
• Weight: ~85 lbs
• Ships raw (powder coating not included)

Shipping & Lead Time

Estimated lead time: 8–10 weeks

• Ships via freight
• Flat rate shipping applies only to the lower 48 states
• If ordered separately, your bumper will ship once the swing-out is complete so both arrive together

Why DRT?

This is, without question, the highest-quality swing-out on the market. Where most companies build as cheaply as possible, every component of the DRT swing-out has been carefully engineered to perform as a unified system. From the uniball hinge to the bead-rolled table, no detail is overlooked.
