Dr KDSS Rear KDSS Sway Bar Billet Clamps for 4Runner (2010-2024) & GX460 (2010-2023)

The Dr. KDSS Rear KDSS Sway Bar Billet Clamps are purpose-built to keep the rear KDSS strut and fixed link properly aligned on KDSS-equipped vehicles. CNC-machined from billet aluminum and engineered for real trail abuse, these clamps prevent unwanted movement that can lead to bent components, binding, or premature KDSS failure—especially on rigs that actually flex and articulate.

Important Note

• Sold as a Pair: Hardware included.

• Returns: 20% restocking fee applies.


Vehicle Fitment

• Toyota 4Runner: 2010–Current with KDSS.

• Lexus GX460: KDSS equipped models only.

What It Does

• Alignment Control: Keeps the rear KDSS strut and fixed link perfectly in line.

• Sway Bar Centering: Prevents the sway bar from shifting under hard articulation.

• KDSS Protection: Reduces the chance of the KDSS strut being forced into the frame or twisted out of alignment.

Why You Need It

• Component Protection: Misalignment can bend KDSS fixed links or struts during hard hits or heavy flex.

• Failure Prevention: Clamps keep everything centered so KDSS components aren’t loaded incorrectly.

• Trail Use: Especially important for vehicles with extended-travel suspension or frequent off-road articulation.

Design & Construction

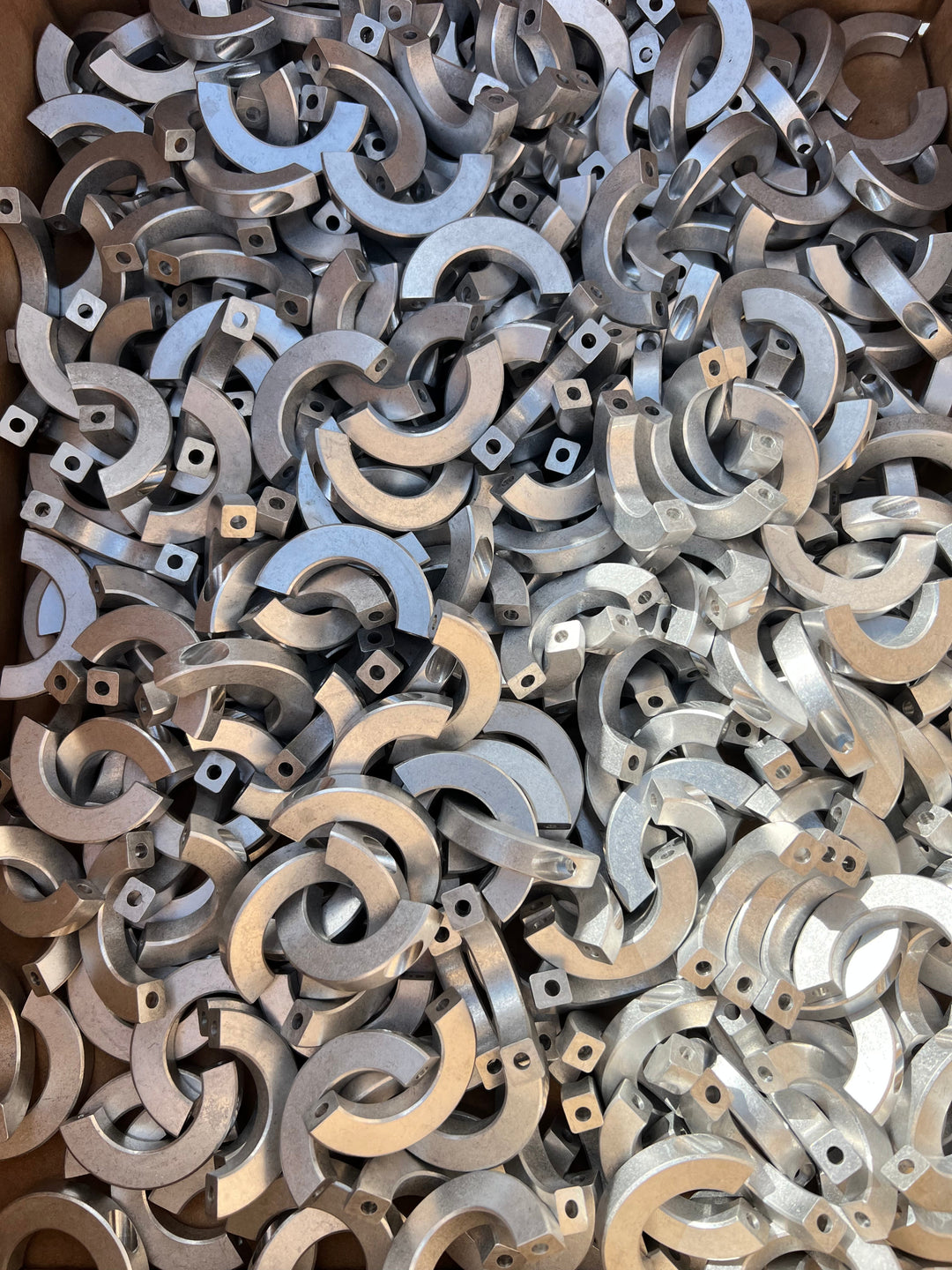

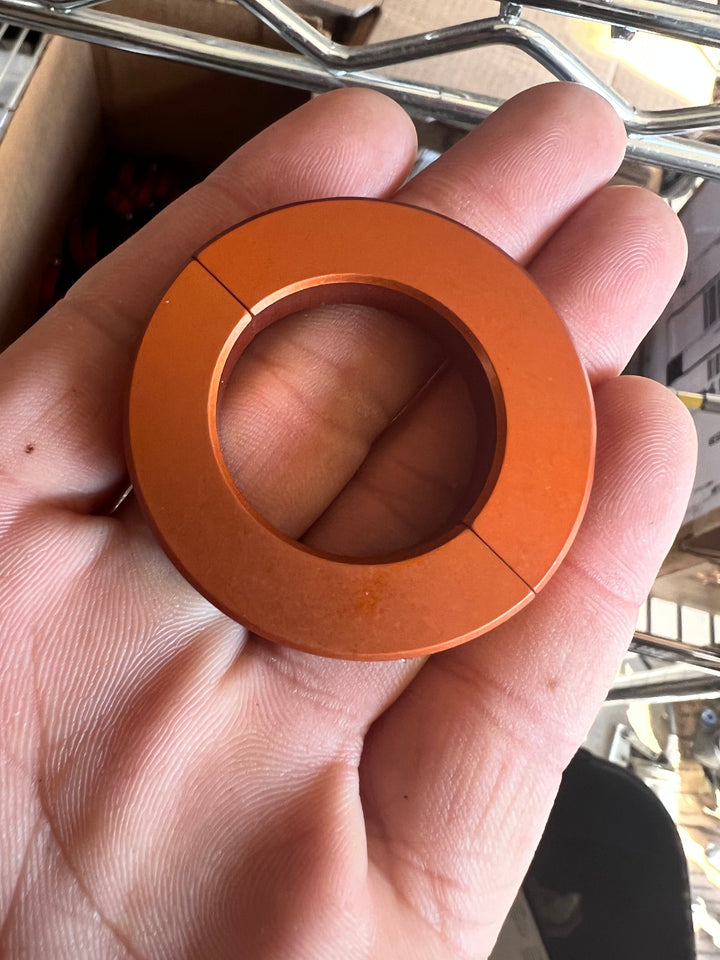

• Material: CNC-machined 6061 billet aluminum.

• Finish: Anodized for durability and corrosion resistance.

• Strength: Over-engineered to withstand real trail abuse—not mall crawling.

• Complete Kit: Includes all required hardware and is sold as a pair.

• Application Specific: One pair is required for the inside of the rear KDSS shock / hard link only.

Do You Need Them?

• Yes: If your factory rubber straps have failed.

• Yes: If your rear KDSS fixed link or strut is out of alignment.

• No: If your rear KDSS components are properly centered and straps are still intact.

Install Notes

• Installation Type: Direct bolt-on using supplied hardware.

• Torque: Tighten securely using blue Loctite.

• Compatibility: Rear only—do not combine with front KDSS adapters or drop spacers.

• KDSS Only: Designed exclusively for KDSS-equipped vehicles.



Benefits

• KDSS Longevity: Prevents stress and premature wear on KDSS components.

• Suspension Ready: Works perfectly with extended-travel suspension kits.

• Built to Last: Billet construction and anodized finish ensure long-term durability.
