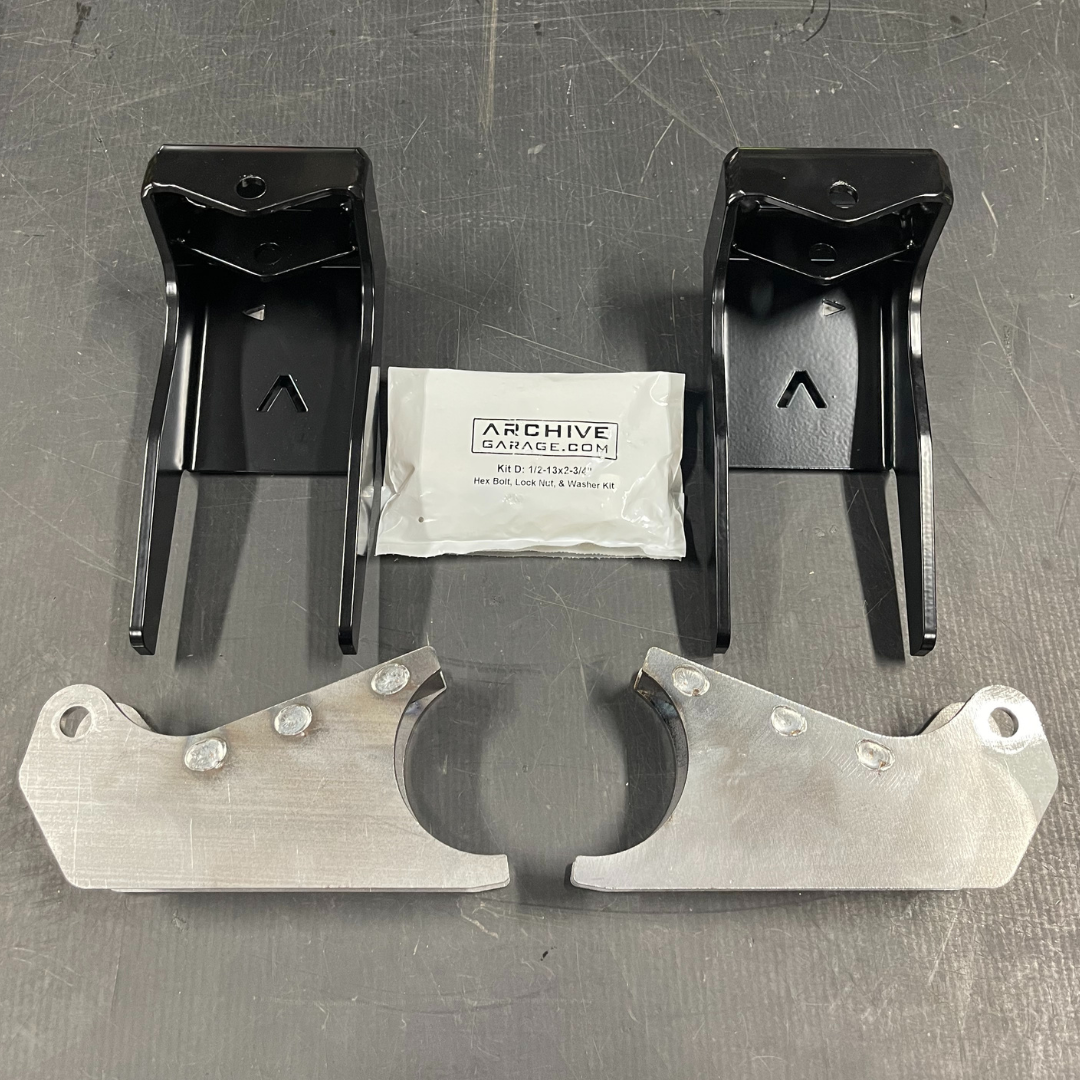

Archive Garage Rear Shock Relocation Tower Kit for Tundra (2022+)

The Archive Garage 2022+ Tundra Rear Shock Relocation Tower Kit is engineered to dramatically increase rear suspension performance by allowing the use of shocks up to 12" of travel—without lifting the rear of the truck or spacing bump stops. The factory setup provides very limited droop and articulation, often causing shocks to top out even in normal street driving. This relocation kit solves that problem by optimizing shock angles and providing room for significantly longer shocks while maintaining proper bump travel and geometry.

Important notes:

• Extended brake hoses required: Longer lines must be installed to accommodate the added droop travel.

• Not for coilovers: Intended for smooth-body shocks only; coilovers would move the frame’s bending point outside Toyota’s engineered zone.

• Large-shock compatible: Works with shocks up to 3.0 3-tube bypass (depending on wheel/tire setup).

• May not need wheel spacers: Fitment depends on shock body diameter.

• Maximum collapsed length: Towers can accommodate shocks with up to a 19" collapsed length.

Features:

• Increased articulation: Allows proper droop travel that the stock setup does not provide.

• Improved shock options: Designed to fit shocks up to 12" travel with a 1.5" wide tab and 1/2" through-bolt.

• Smooth-body shock compatibility: Built specifically for smooth-body remote reservoir shock systems.

• Stronger rear suspension performance: Prevents topping out and improves off-road control and stability.

• Recommended shock setup: Fox 2.0 x 12.1 Remote Reservoir (18.35" collapsed).
