- Patent pending design.
- 15" of unrestricted wheel travel (13.5 inches with our recommended setup of King TC5119-03 coilovers, 23" limit straps, & Superbumps).
- Easily allows the wheel to be moved forward up to 2 inches (up to 4 inches with additional clearancing & fabrication).
- 33-35 degrees of steering angle, 67 degrees total sweep.
- Adds 3.5 inches of width to each side.

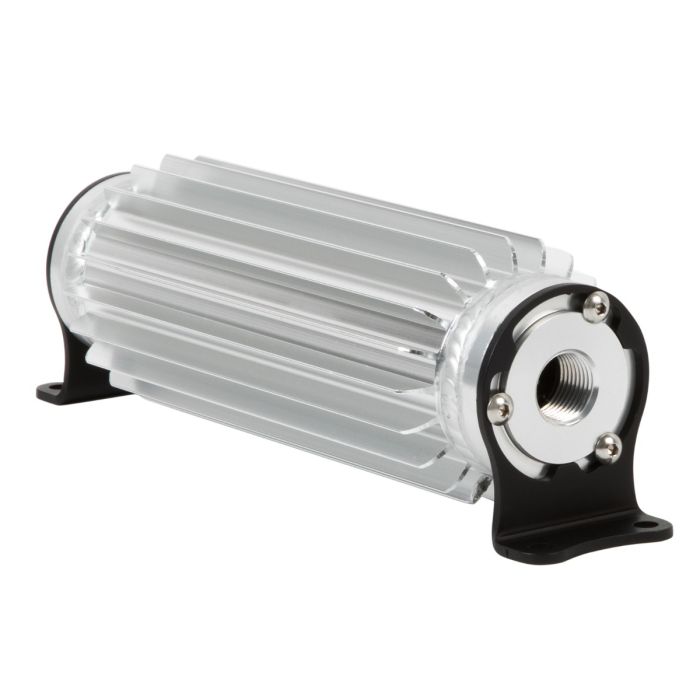

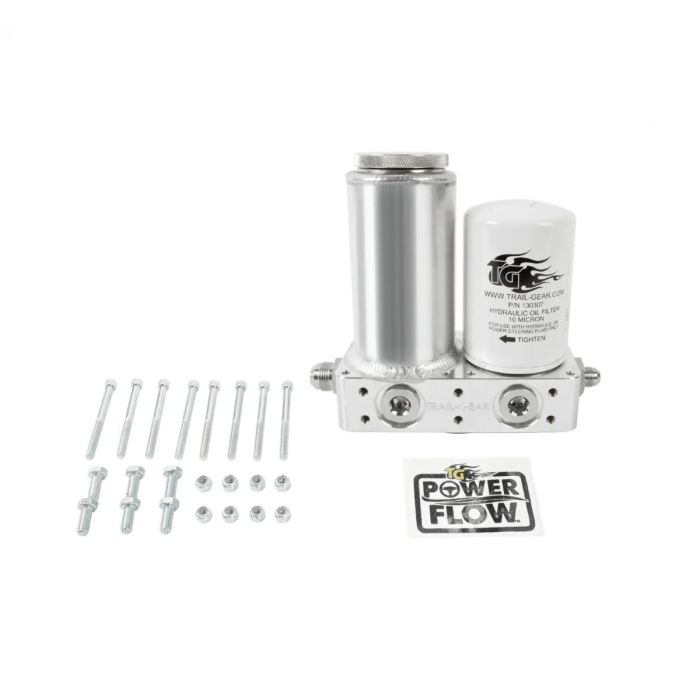

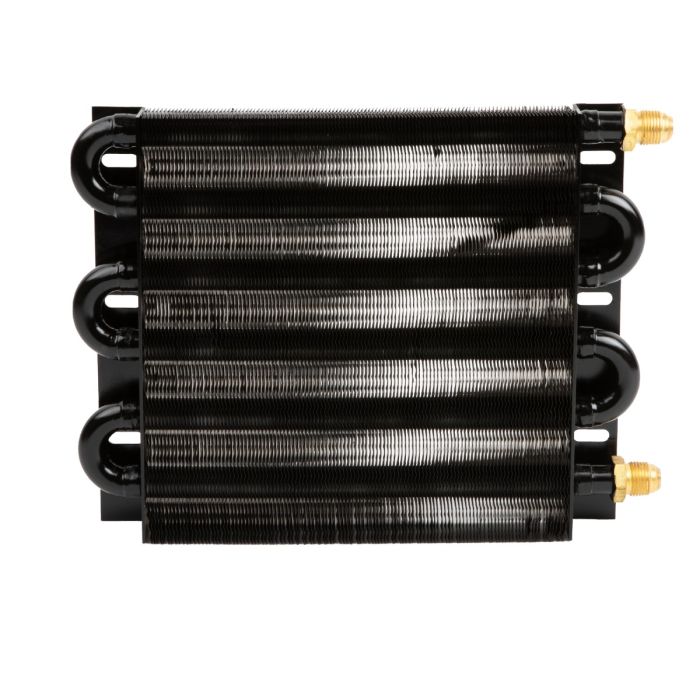

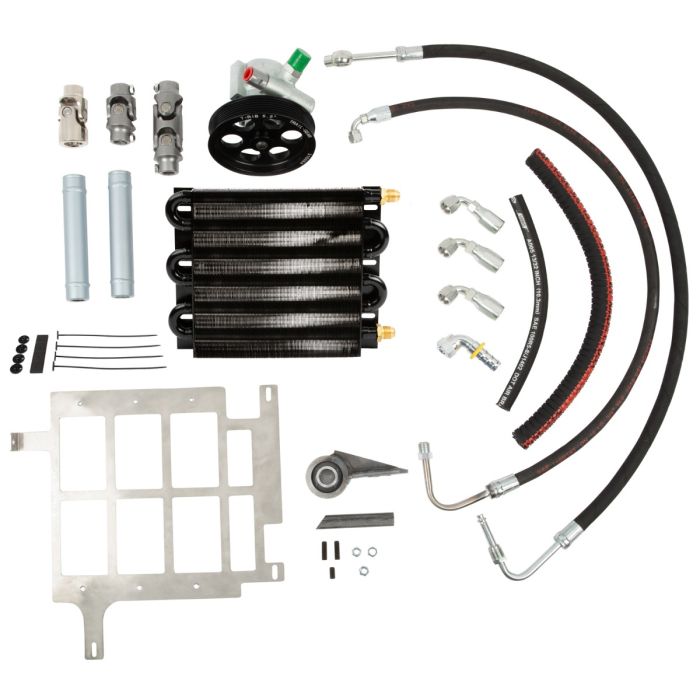

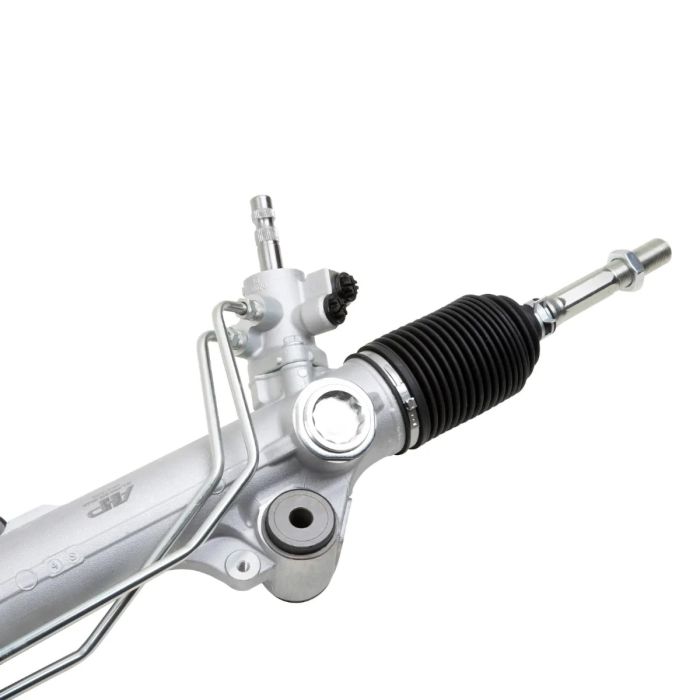

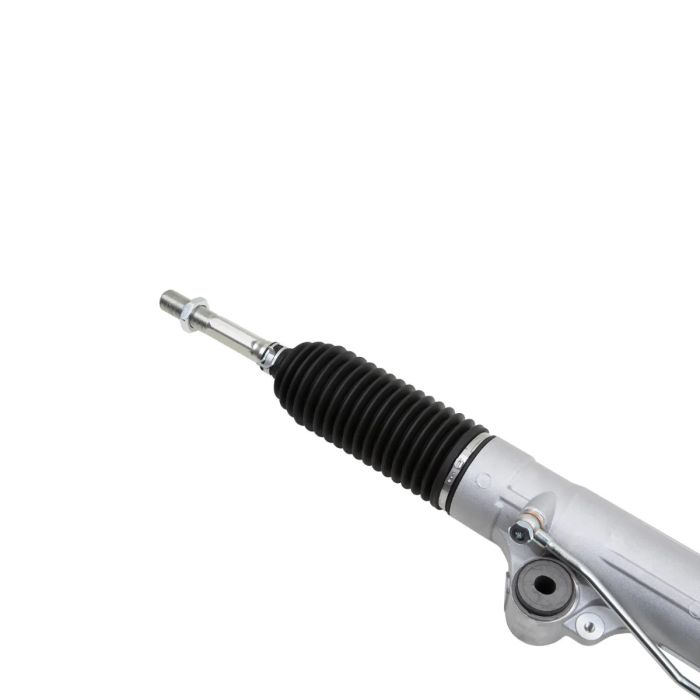

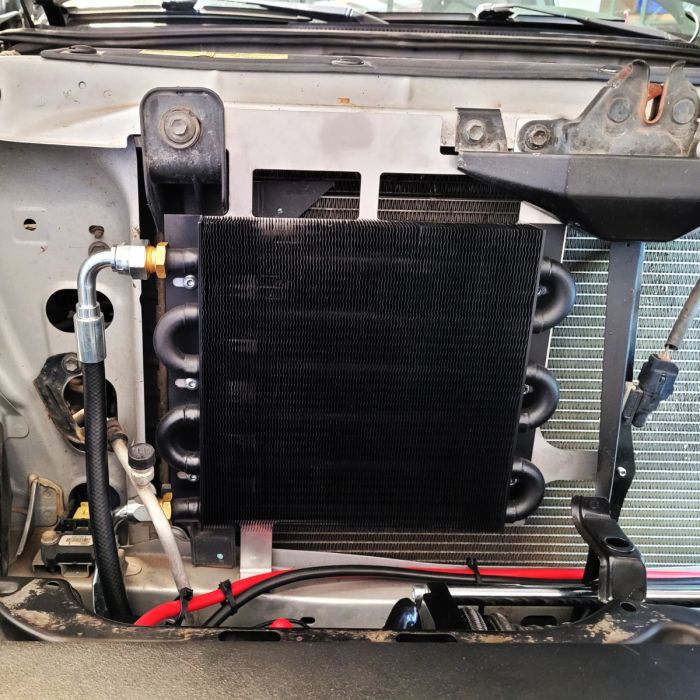

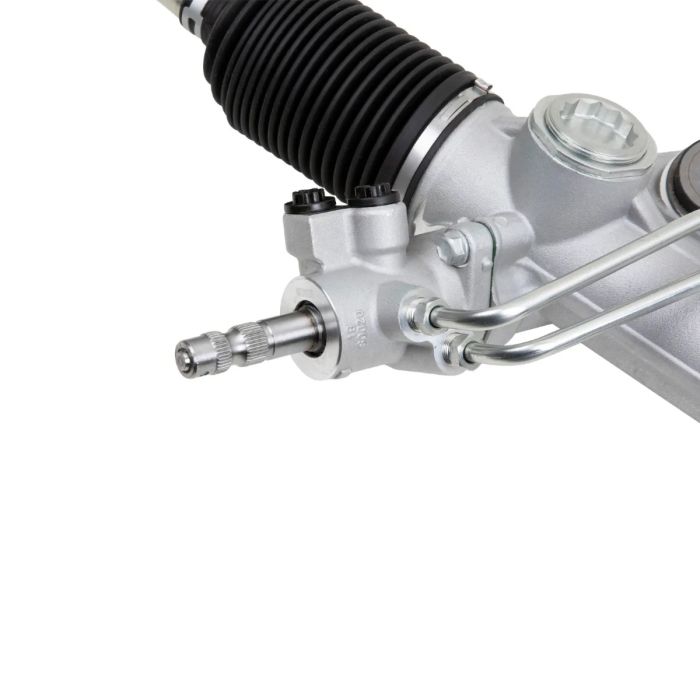

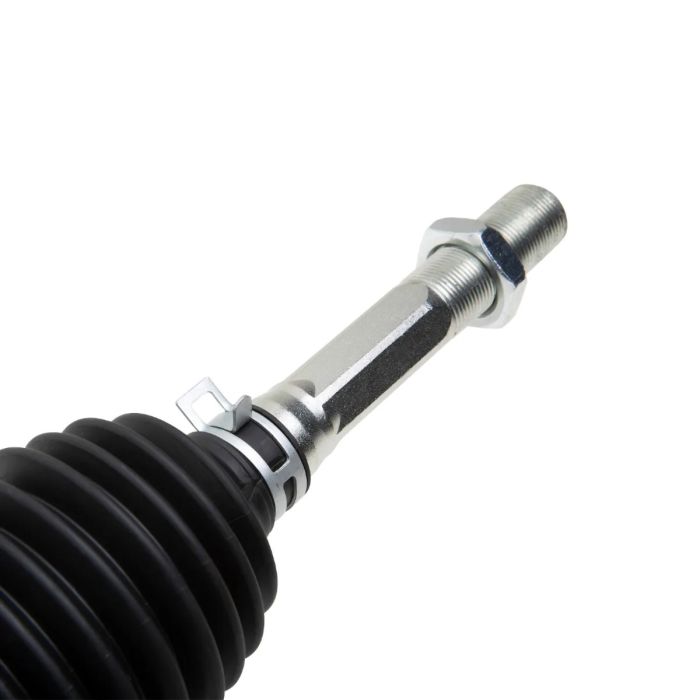

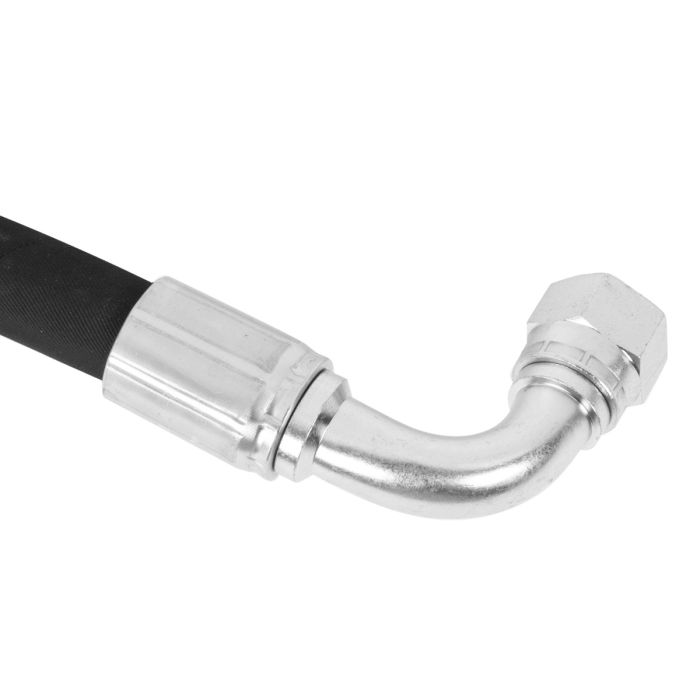

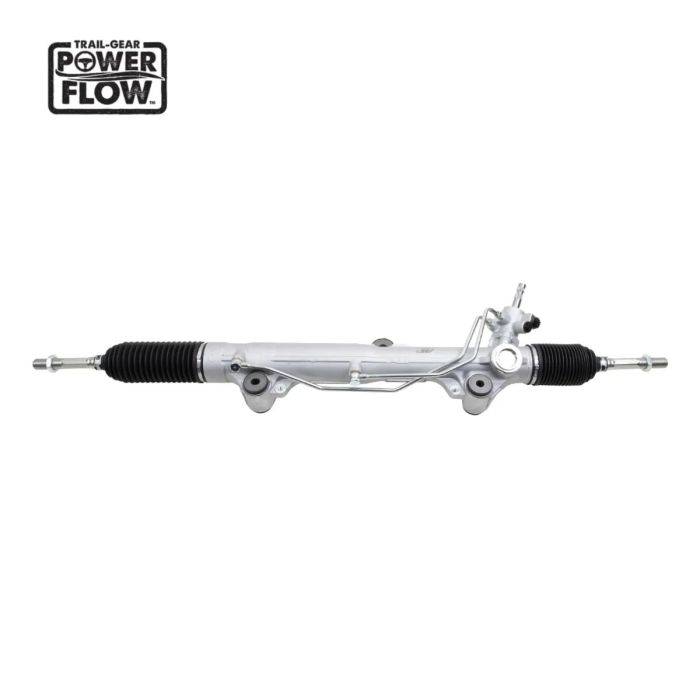

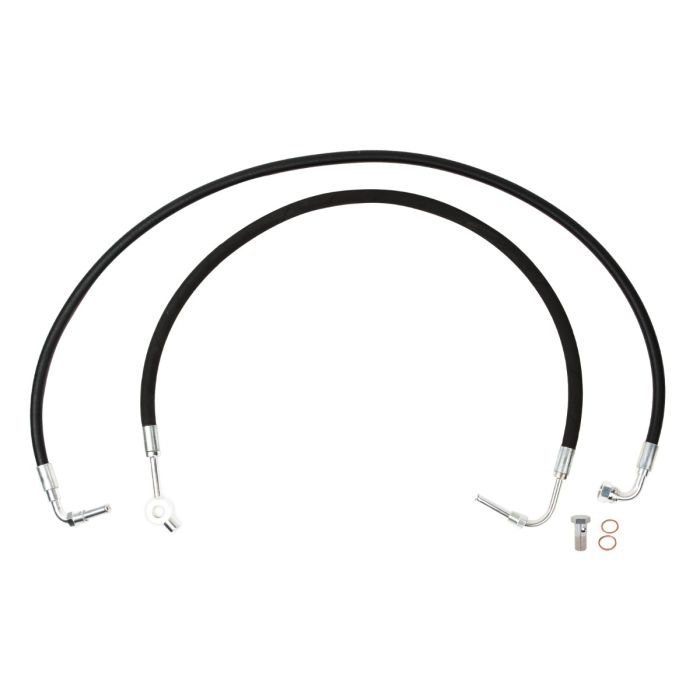

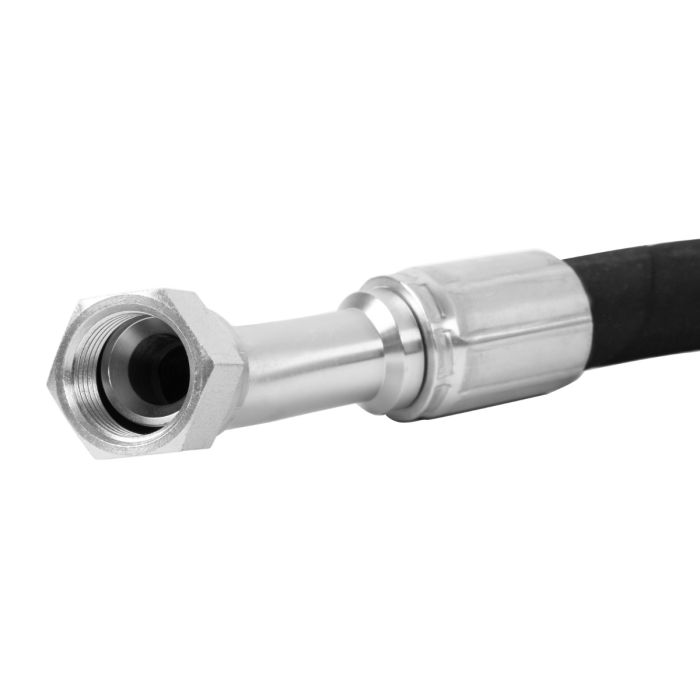

- V6 Power Steering System with heavy-duty Power Flow LC200 steering rack, Power Flow 1650 psi pump, Trail-Gear Filter Reservoir, high-flow cooler with 1/2" ID copper tubing, hoses, brackets, and hardware.
- Fully boxed & welded upper long travel A-arms, made from 3/16" & 1/4" ASTM A36 Steel & powder-coated for corrosion resistance.

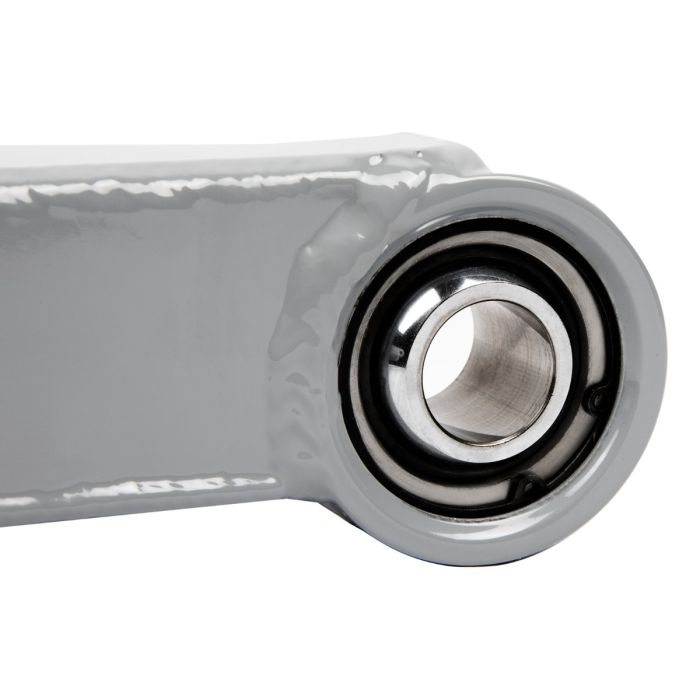

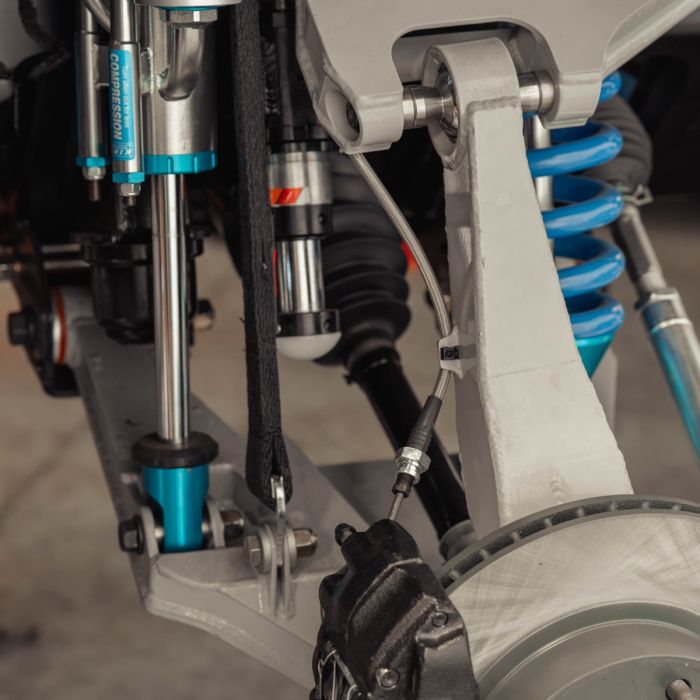

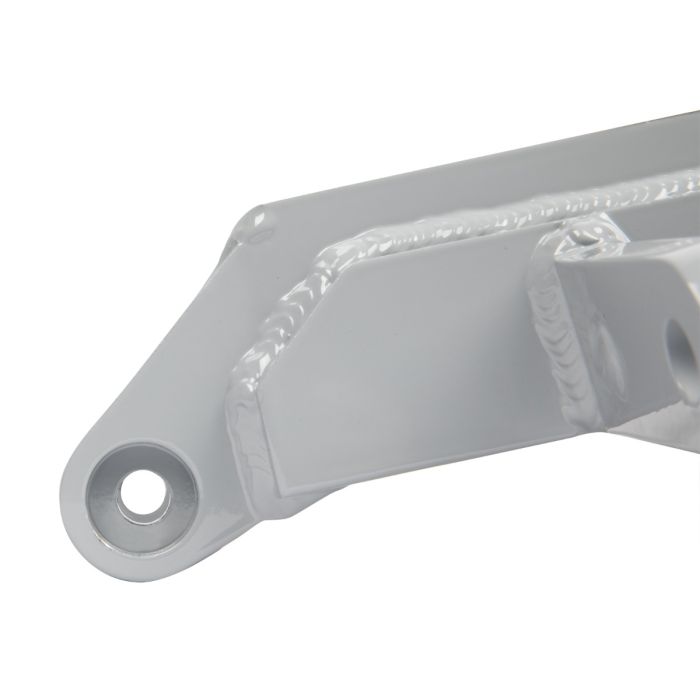

- Fully boxed & welded lower long travel uniball A-arms, made from 3/16" & 1/4" ASTM A36 Steel & powder-coated for corrosion resistance. Limit strap tabs are made from 1/8" SAE 4130 chromoly steel.

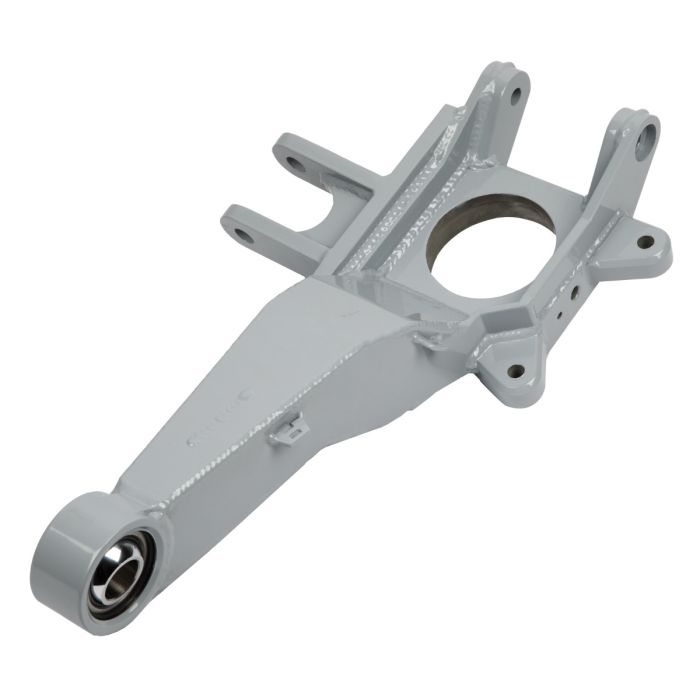

- Fully boxed spindle with uniball mount. Center section made from forged SAE 1020 steel. Fully boxed & welded with ASTM A36 steel plates & 5/16" thick double-shear mounts for the steering rod end. Spindles are powder-coated for corrosion resistance.

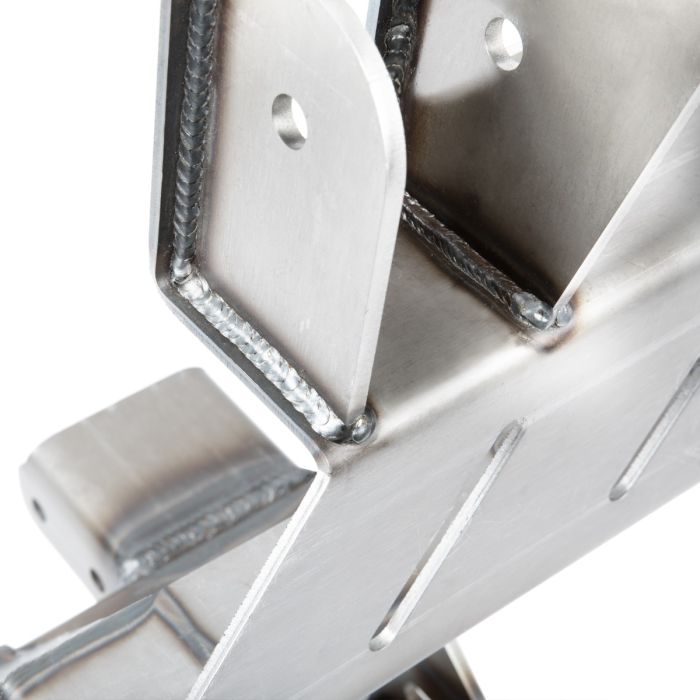

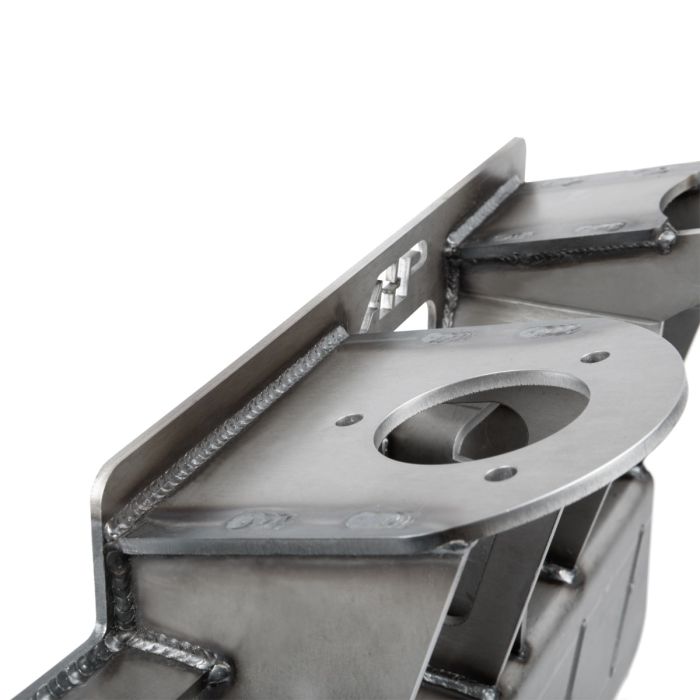

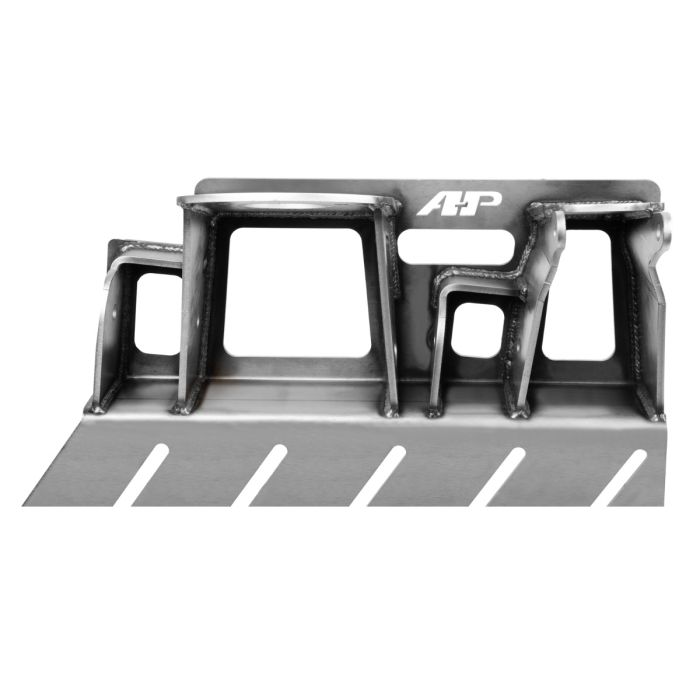

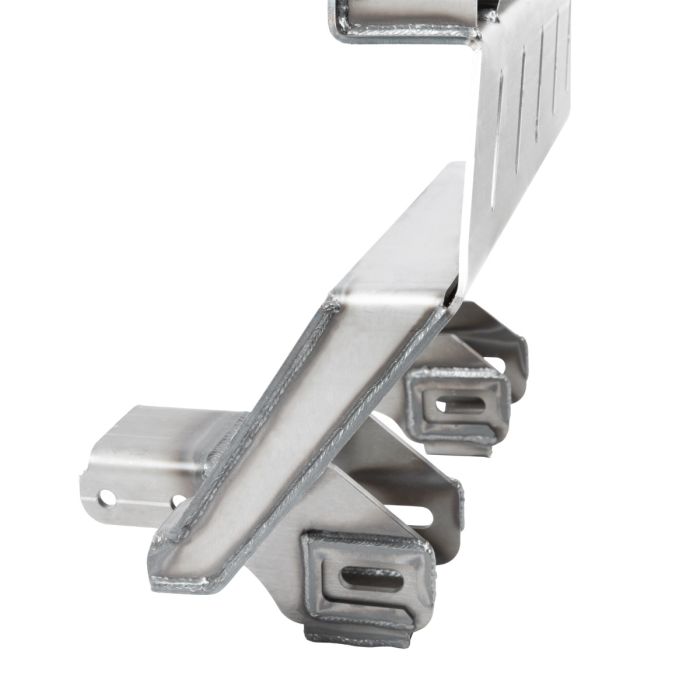

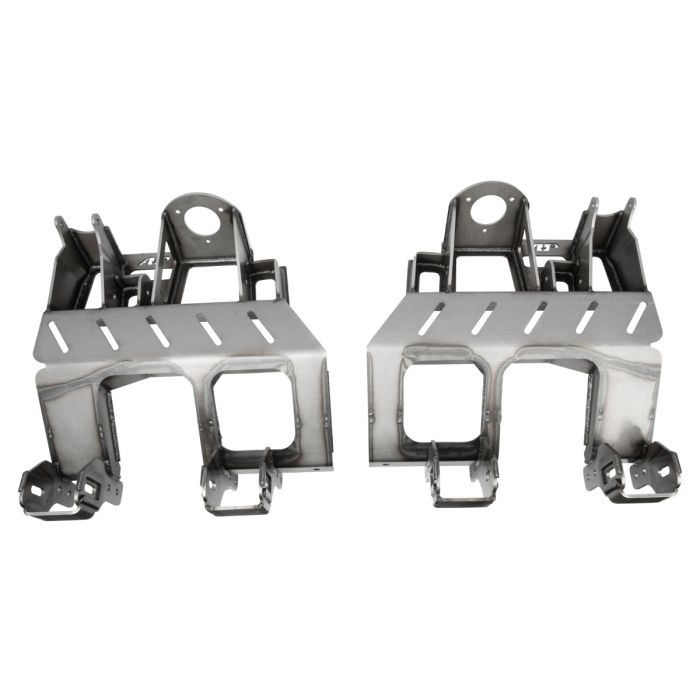

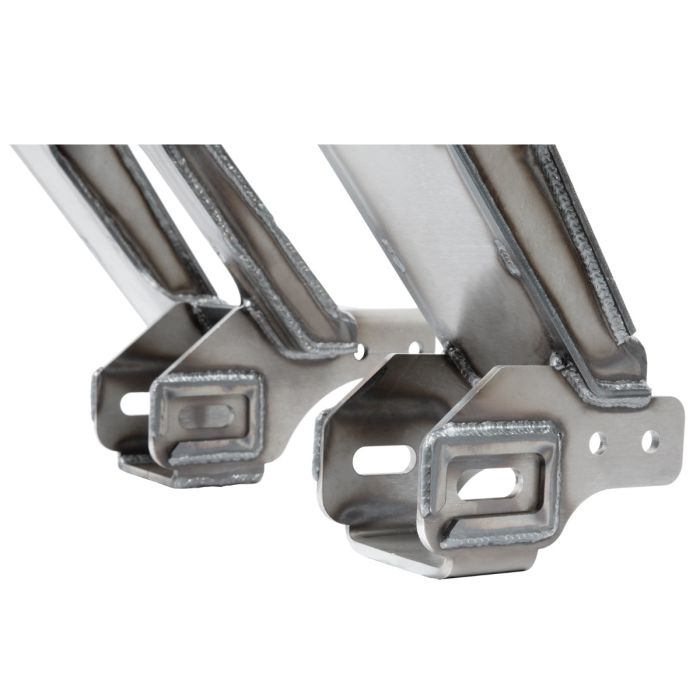

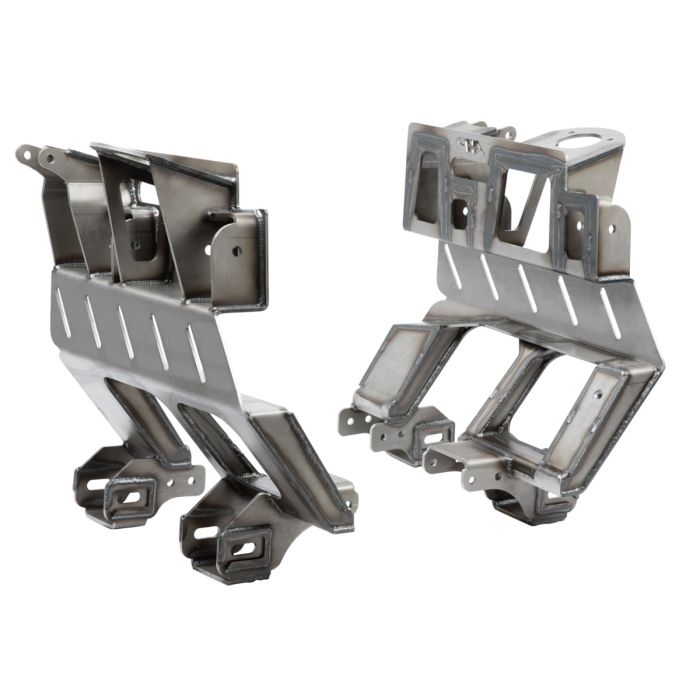

- Weld-on high strength bulkhead made from 3/16" & 1/4" ASTM A36 Steel more than doubles front frame strength and provides heavy-duty A-Arm & shock mounting.

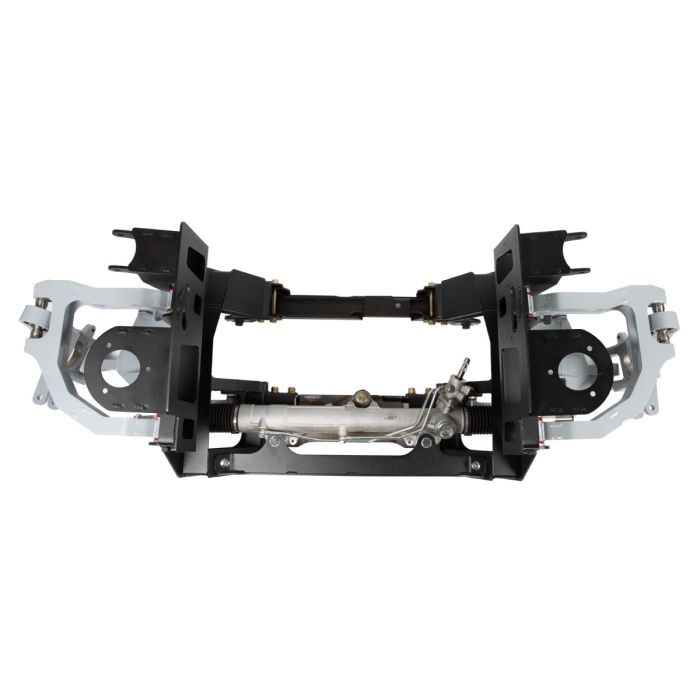

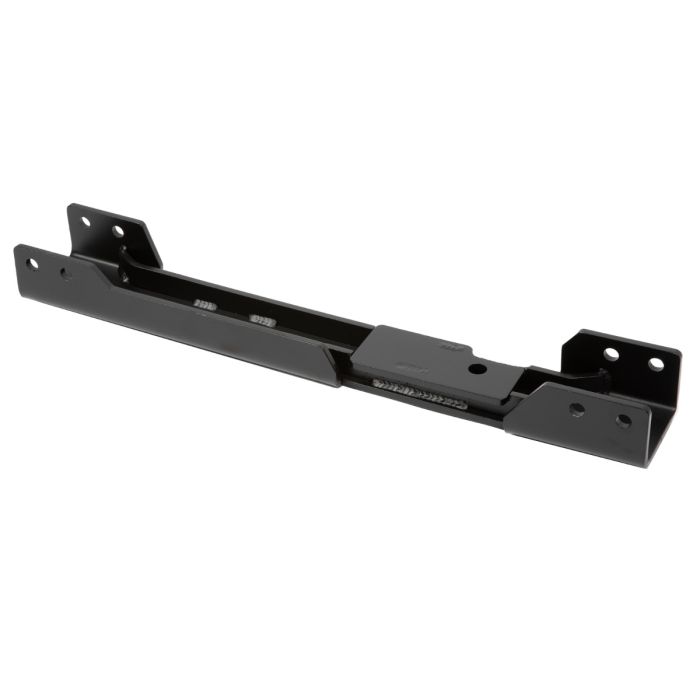

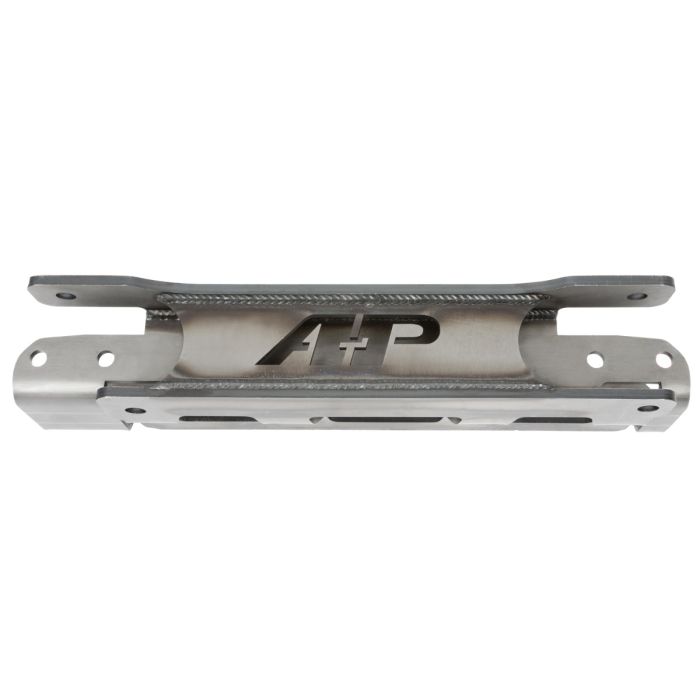

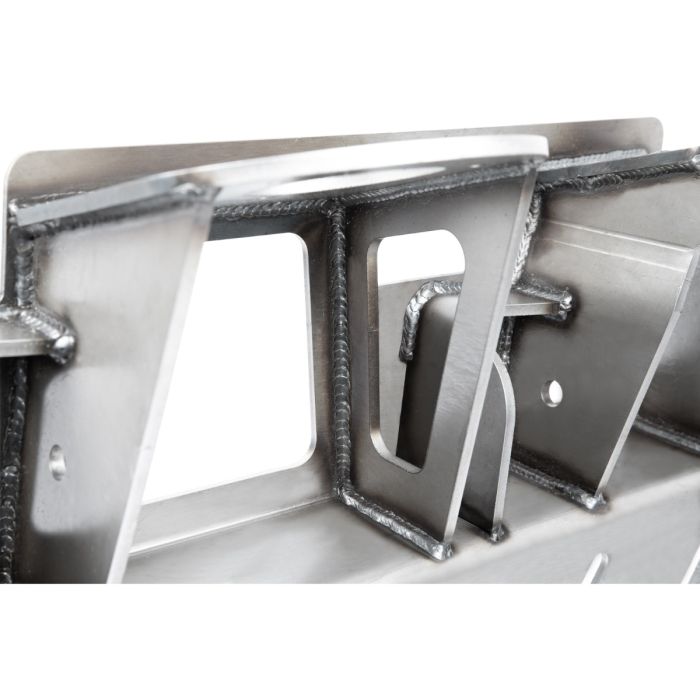

- Heavy-duty crossmembers made from welded 1/4" & 5/16" ASTM A36 Steel provide heavy-duty mounts for the differential & 3-point mounting for the LC200 steering rack.
- Dual shock ready.
- Includes progressive polyurethane foam Superbumps. Optional Trail-Gear 2.0 Performance Air Bump set for trucks that take heavy hits at full compression.

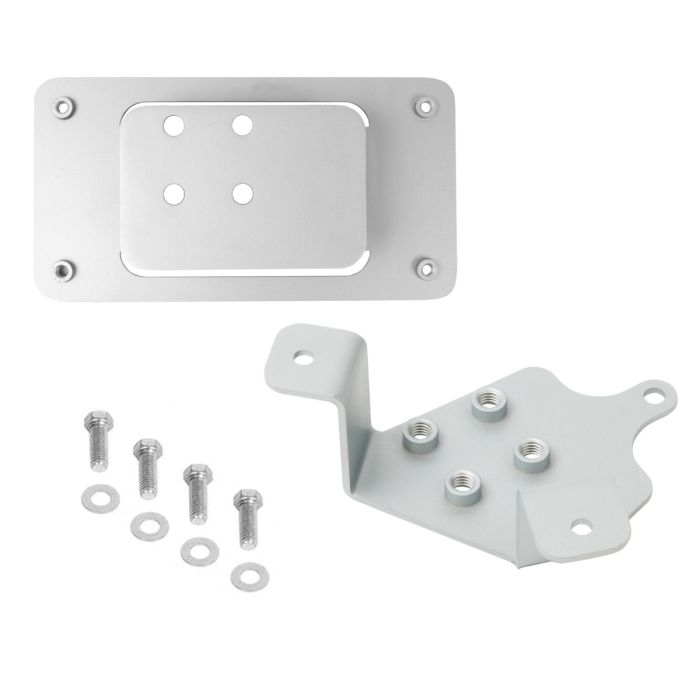

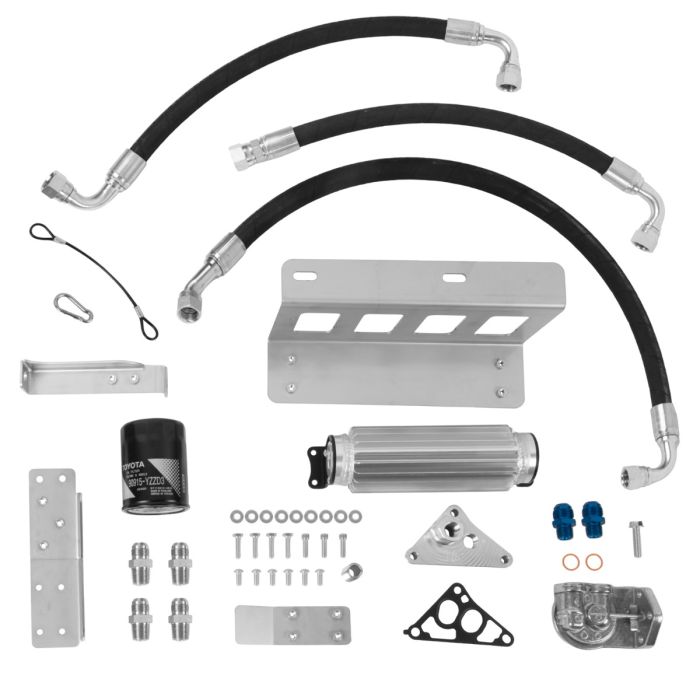

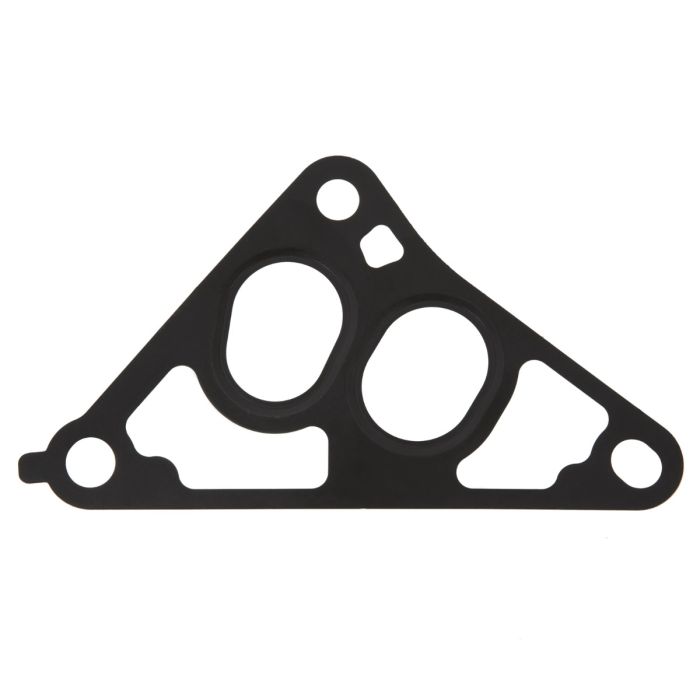

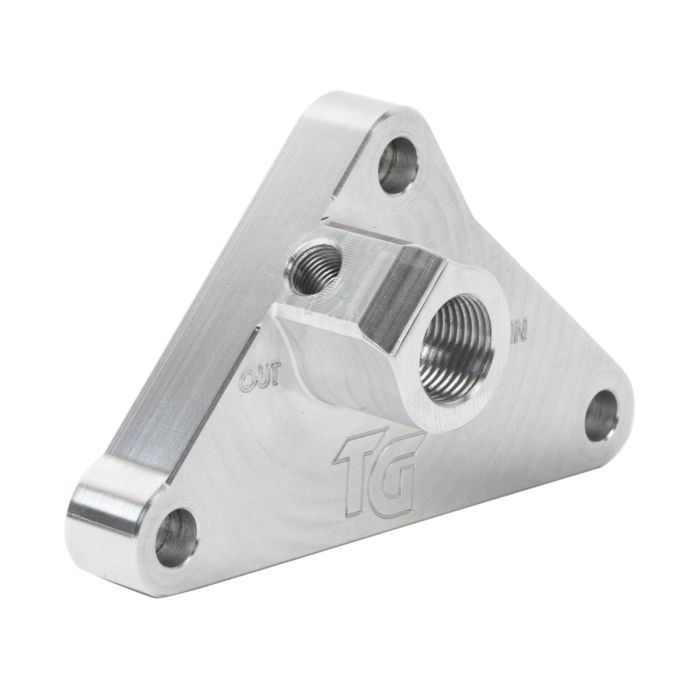

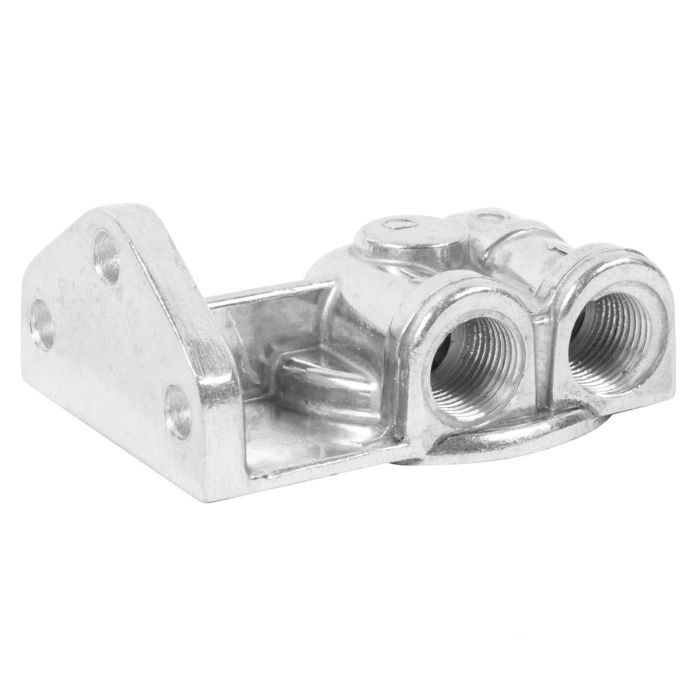

- Included engine oil filter relocation kit with engine oil cooler replaces the hard-to-service stock cartridge filter and replaces it with a conventional spin-on oil filter in an easy-to-access location.

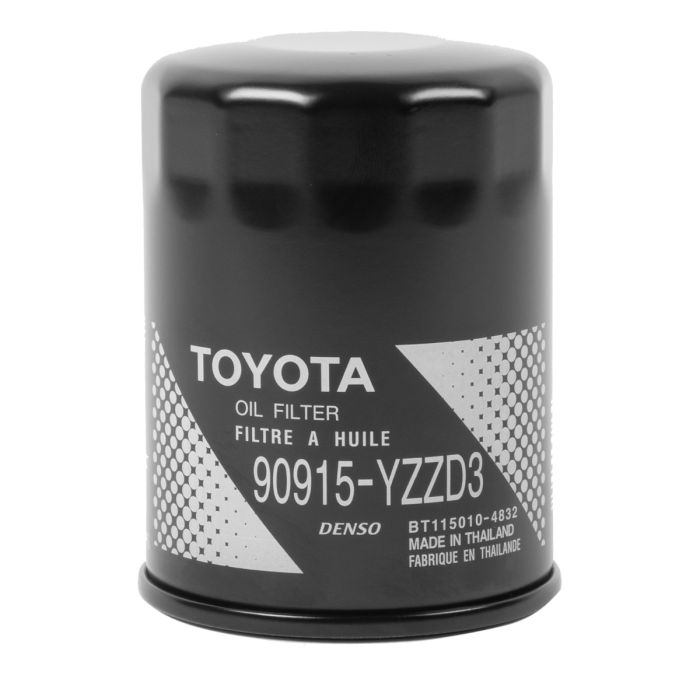

- Includes genuine Toyota spin-on oil filter.

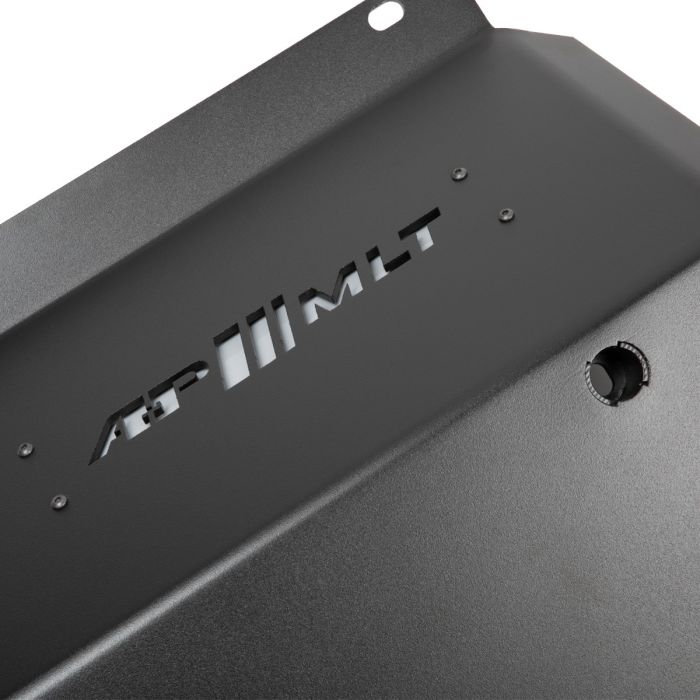

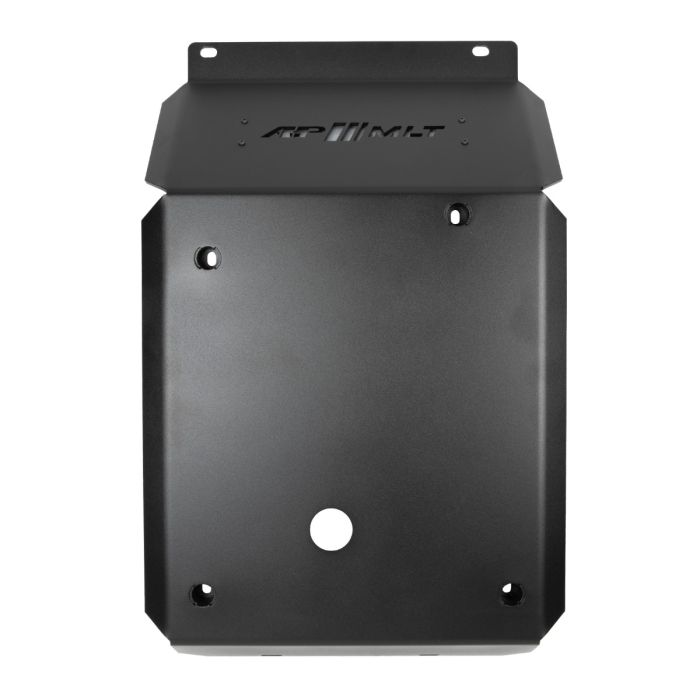

- Powder-coated ¼" thick 5052 Aluminum IFS skid plate (optional steel version sold separately).
- Optional Heavy duty extended length Longfield IFS axles.
- Optional King Long Travel shock set with remote reservoirs & 800-lb springs.
- Optional King 3-tube bypass shock set.

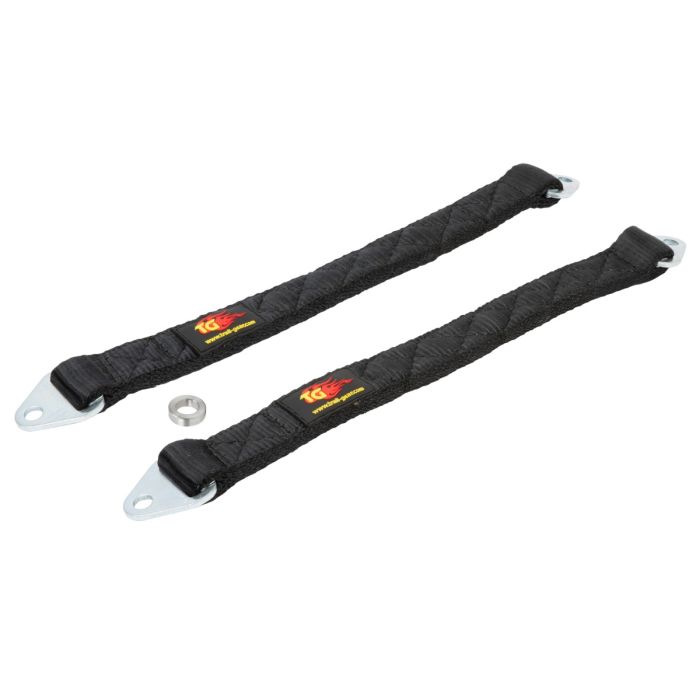

- Includes all necessary hardware & 23" limit straps.

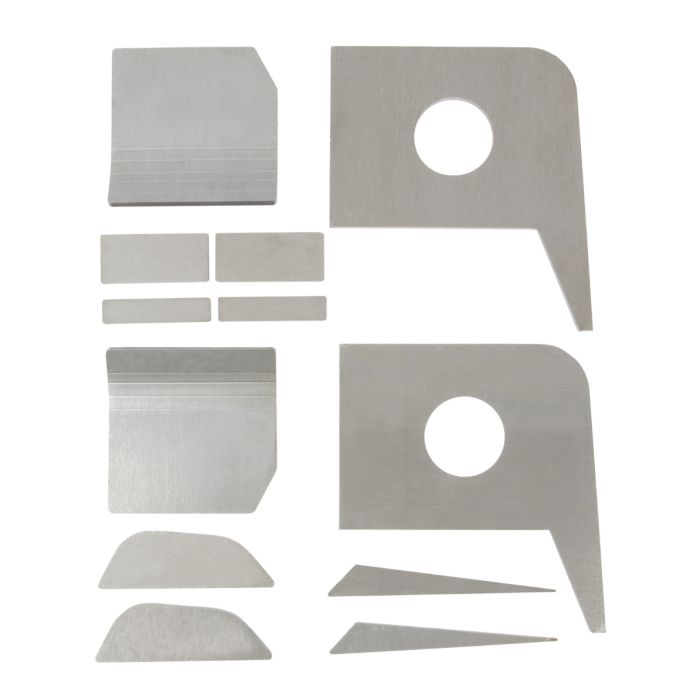

- Novel alignment system with full set of 3/16" thick ASTM A36 alignment tabs in 1/16" increments.
Fitment
TOYOTA TACOMA – V6 Prerunner & 4WD Only
(2016-2023)
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacom
