Add discreet front-facing visibility to your vehicle with the Beat-Sonic BCAM11A universal front camera. Designed to blend seamlessly into your front grille, this compact camera delivers a wide 160° fisheye view to help you confidently navigate parking situations, tight trails, curbs, and off-road obstacles. Its stealth black housing virtually disappears once installed, while high-quality Japanese manufacturing ensures reliable performance in all conditions.
Note
-
Universal Application: Compatible with vehicles using an NTSC RCA video input.
-
Stealth Mounting: Designed to screw directly into the front grille for a clean, low-profile install.
-
Weather Protection: IP67-rated waterproof construction for long-term outdoor durability.
-
Power Requirement: Designed for standard 12V automotive electrical systems.
Features
-
Wide-Angle Coverage: 160° horizontal and 120° vertical field of view for maximum front visibility.
-
Fisheye Lens Design: Broad perspective ideal for parking, off-roading, and tight maneuvering.
-
Automatic Electronic Iris: Smoothly adjusts to changing light conditions for clear day and night images.
-

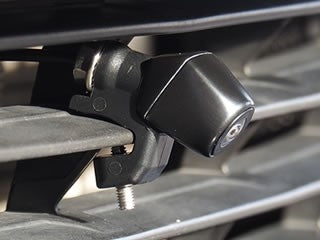

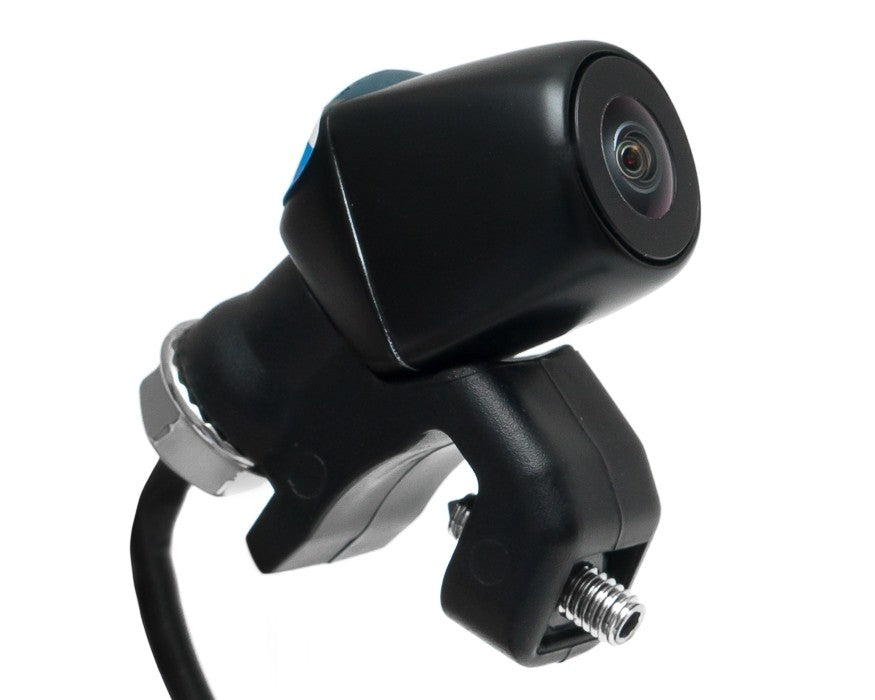

Stealth Grille Mount Housing: Compact black design blends into most factory grilles.
-

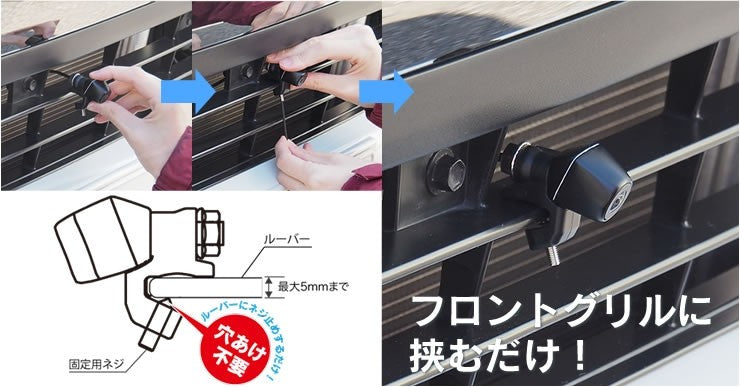

Direct Grille Installation: Secure screw-on mounting for a clean and stable setup.
-
Waterproof Construction: IP67 rating protects against rain, mud, and harsh environments.
-
Extra-Long RCA Harness: Extended video cable allows flexible routing across various vehicle layouts.
-
Japanese Manufacturing: Built with high-quality components for dependable performance.
Specifications
-
Brand: Beat-Sonic
-
Model: BCAM11A
-
Power Supply: DC 12V
-
Current Consumption: 55 ± 5 mA
-
Image Sensor: 1/4” Color CMOS
-
Resolution: 640 × 480
-
Minimum Illumination: 1 Lux
-
Viewing Angle:
-
Horizontal: 160°
-
Vertical: 120°
-
Video Output: NTSC (RCA pin), 1Vpp (75Ω)
-
Signal-to-Noise Ratio: 48 dB or more
-
Operating Temperature: -10°C to 50°C
-
Waterproof Rating: IP67
-
Weight: 40 g
-
Camera Size: 20 (W) × 23 (H) × 25.5 (D) mm
-
Overall Dimensions: 19.5 (W) × 37 (H) × 45 (D) mm
Compatibility
-
Application: Universal
-
System Requirement: NTSC RCA video input (aftermarket head units, factory systems with compatible interfaces)

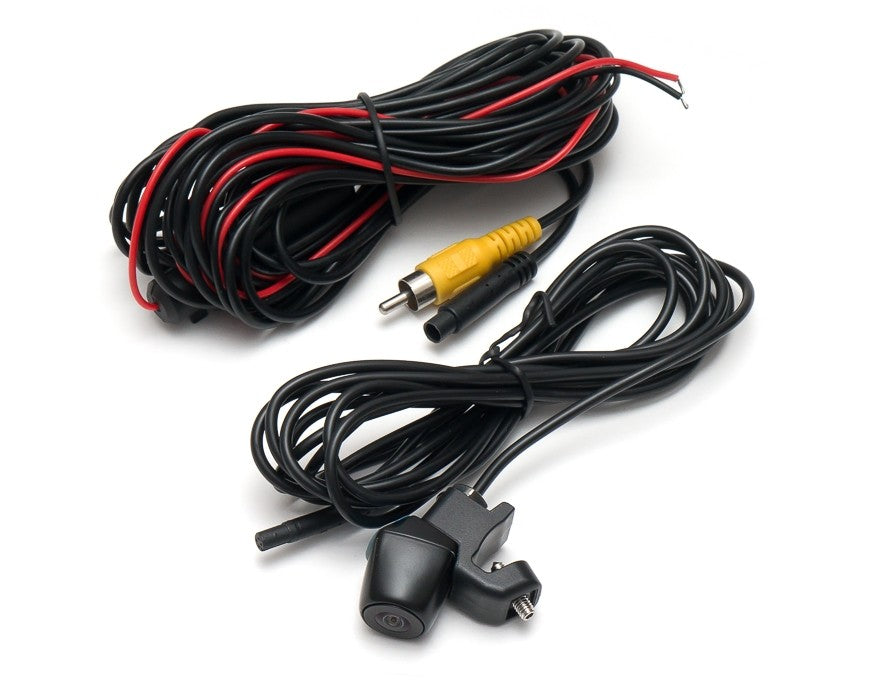

What’s Included
-
Front Camera: BCAM11A camera body (x1)
-
Wiring: Power supply & video output cable (x1)
-
Mounting Hardware:
- M6 nut (x1)
- Metal washer (x1)
- Spring washer (x1)
- Fiber washers (set)
