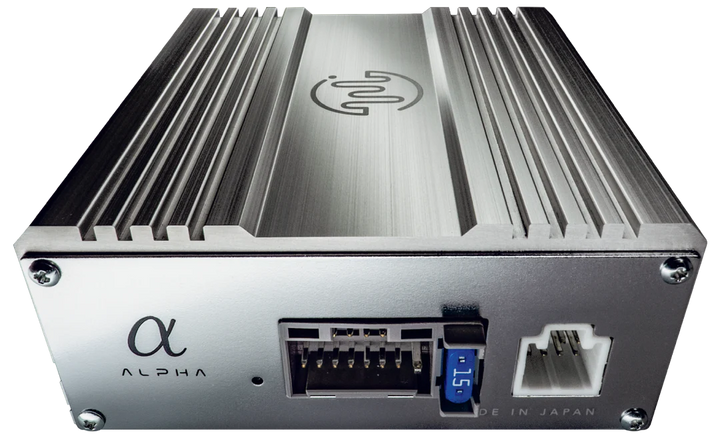

Upgrade your factory audio with the Beat-Sonic ENA-3T3 Plug-and-Play Amplifier Kit, designed to deliver clearer sound, stronger bass, and high-resolution detail—without replacing your factory head unit or speakers. The ENA-3 series adds an RCA subwoofer output, making it easy to integrate an aftermarket subwoofer for even more low-end impact.

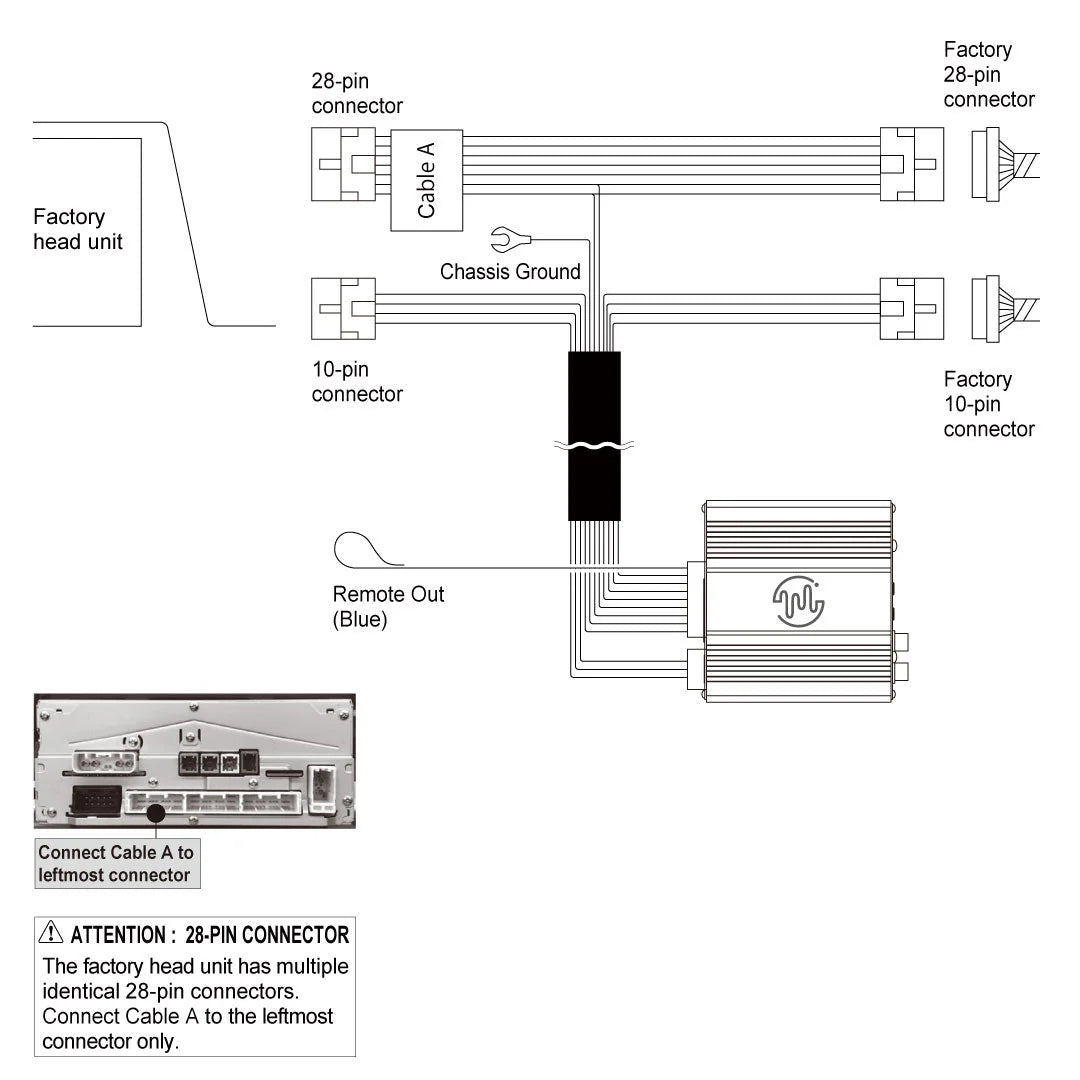

Installation is simple and fully plug-and-play, requiring no special tools and no modification to the factory wiring harness.
Important Note
-

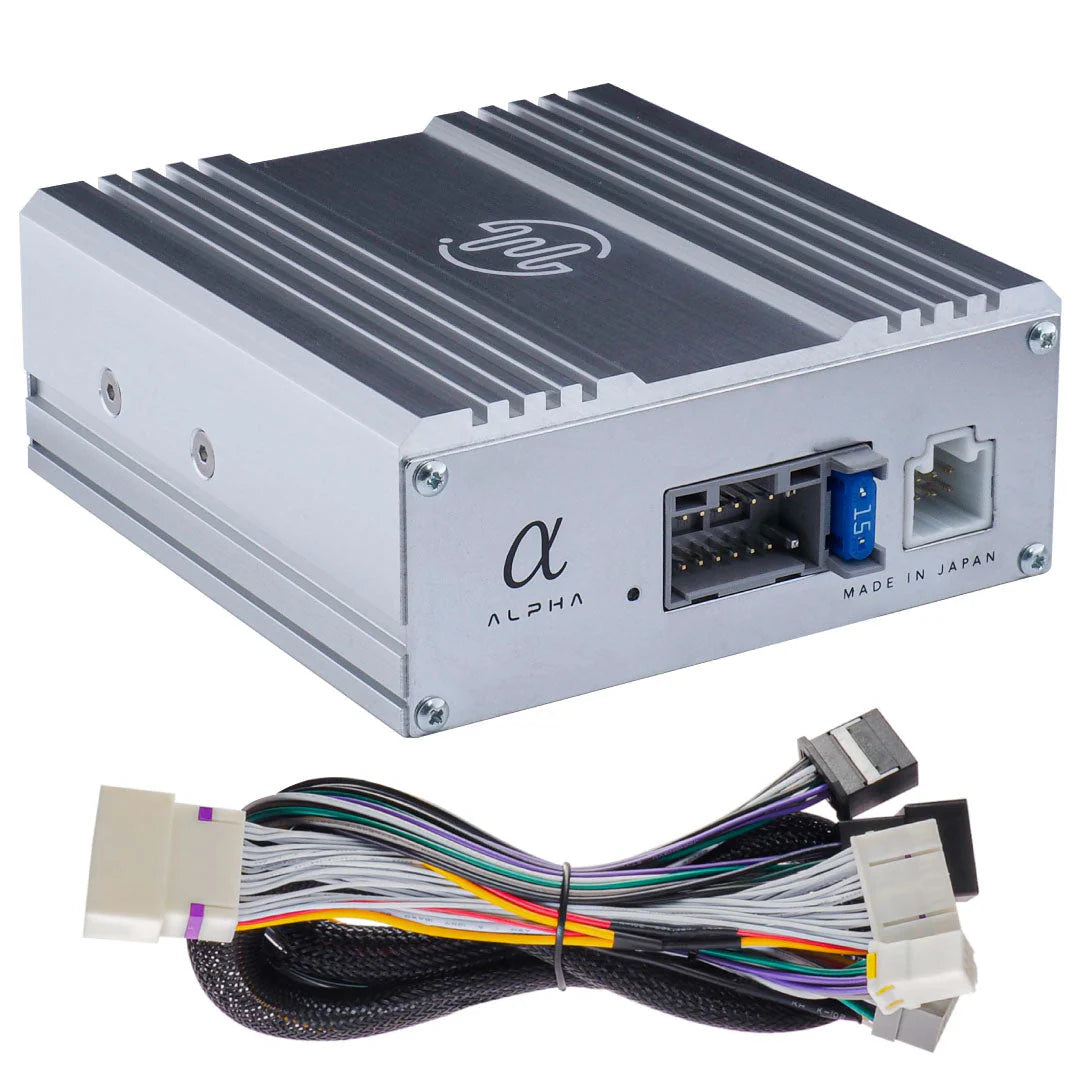

Plug-and-play: Installs directly into the factory stereo system with no cutting or splicing.
-

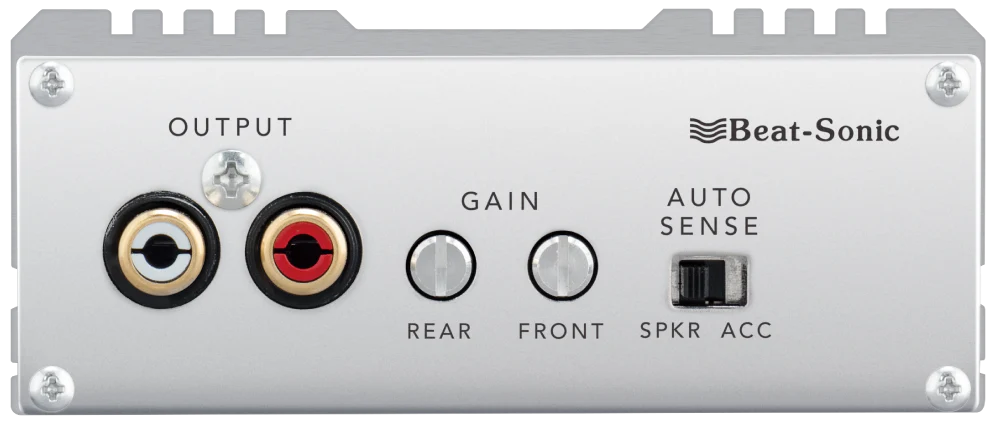

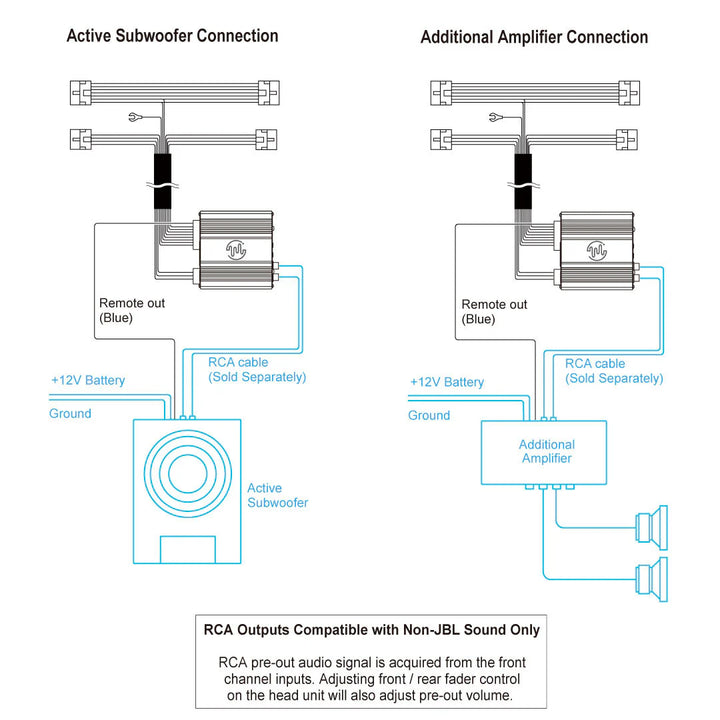

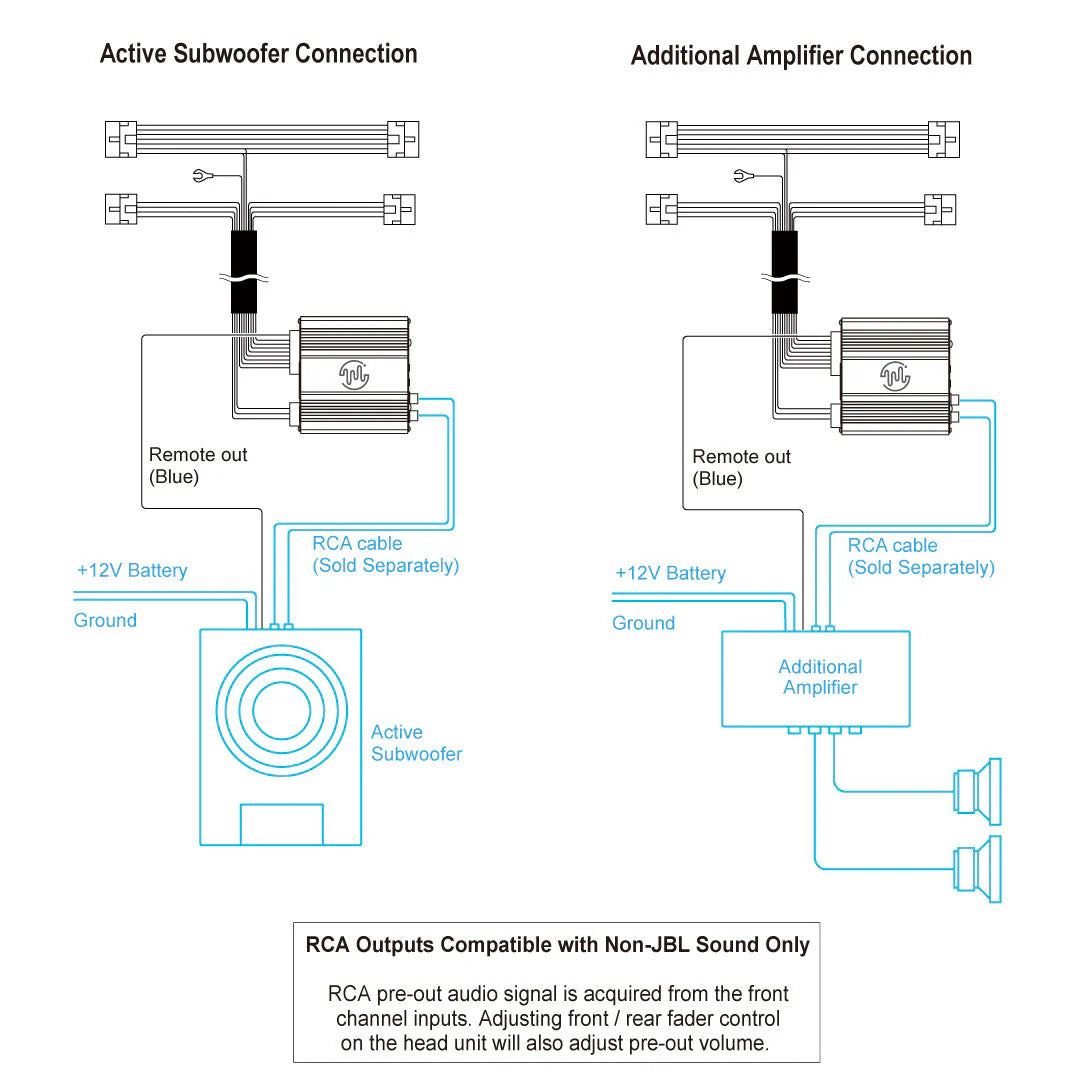

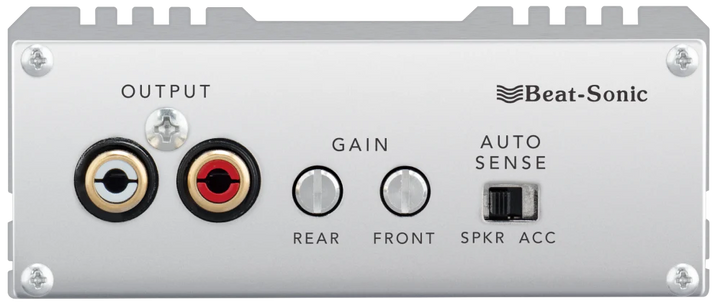

Subwoofer output: Includes RCA subwoofer output for easy aftermarket subwoofer integration.
-
JBL models: JBL-equipped vehicles will lose volume control on aftermarket subs connected via RCA (separate bass volume control knob required).
-
Factory subwoofer: Factory-installed subwoofers are not affected.
-
Sound quality: Significantly improves clarity, balance, and output across low, mid, and high frequencies.
-
Factory retention: Retains factory head unit and speakers while enhancing overall sound.
-
Component quality: Uses premium electrolytic and low-impedance capacitors with 70? copper thickness for full-range performance.
-

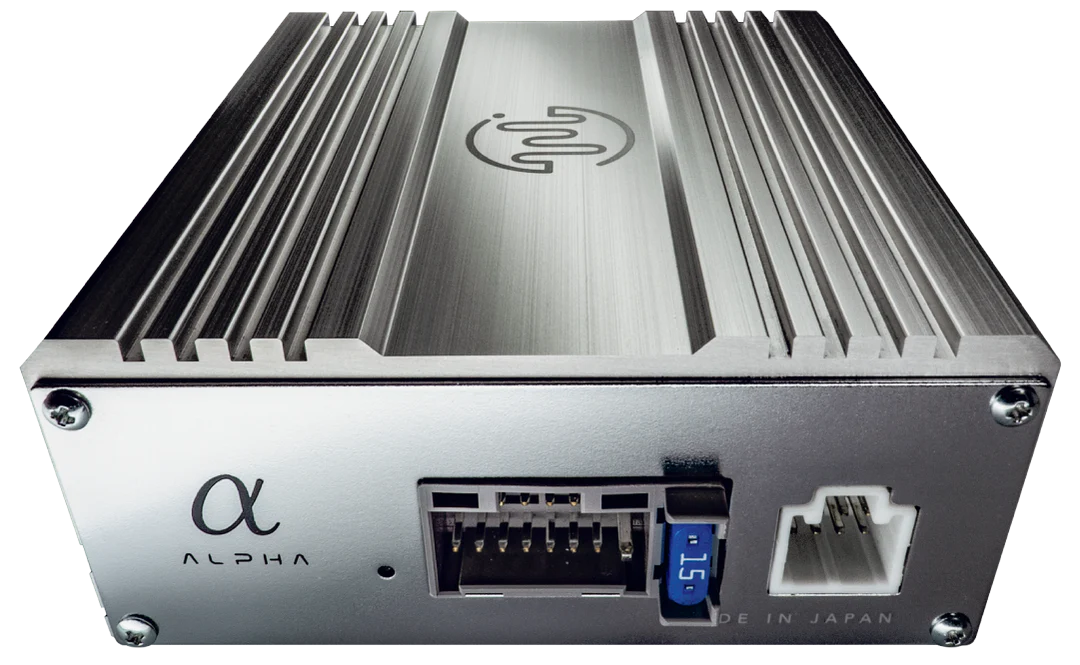

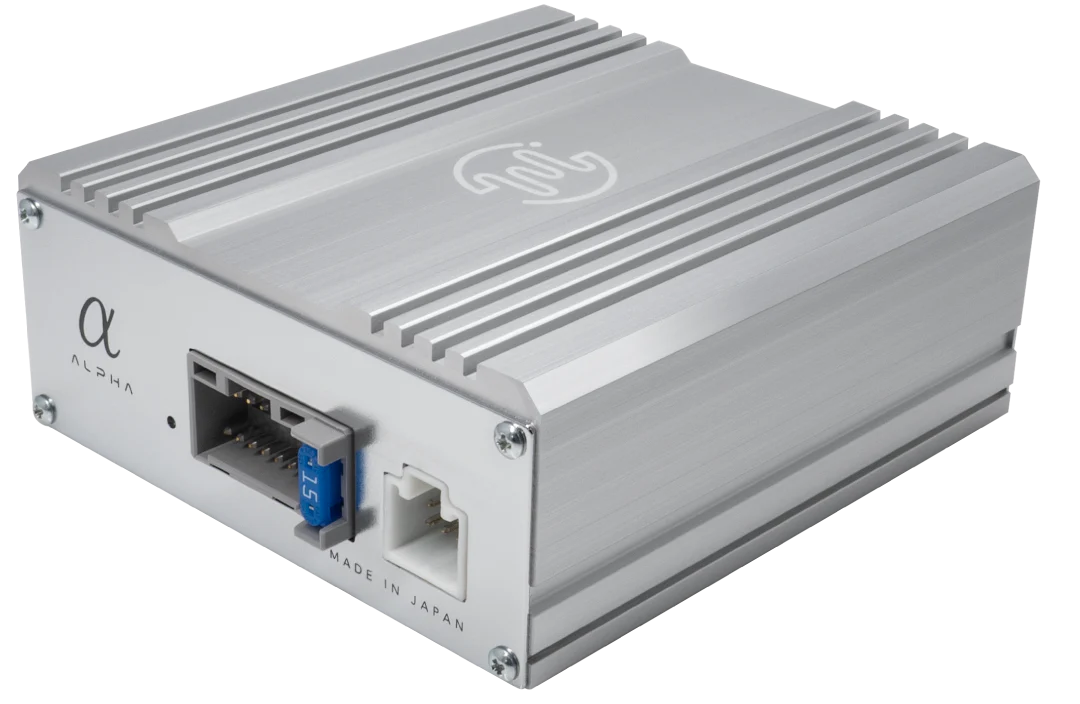

Compact size: Small footprint allows flexible mounting locations.
-
Audio detail: High-quality FET operational amplifiers reproduce fine musical details such as vocals and breath tones.
Specifications
-
Maximum output: 50W × 4 channels (4?)
-
Compatible impedance: 4–8?
-
Input sensitivity: 0.5–5V
-
Frequency response: 15Hz–80kHz (+0, ?1dB)
-
Total harmonic distortion: 0.01% (1kHz / 4?)
-
Power supply: DC 12V (negative ground)
-
Operating voltage: DC 11V–15V
-
Current consumption: 0.2A (no signal)
-
Fuse: 15A
-
Audio output: AUX level (RCA)
-
Speaker input: High-level input supported
-
Dimensions: 96mm (W) × 40mm (D) × 113.5mm (H)
-
Weight: 420g (main unit only)
