Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers
Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers
Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers
Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers
Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers

Beat-Sonic ENX-T315 DSP Amplifier Kit for Tacoma (2020-2023) without JBL 6 speakers

Regular price$529.00
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Backordered, shipping soon

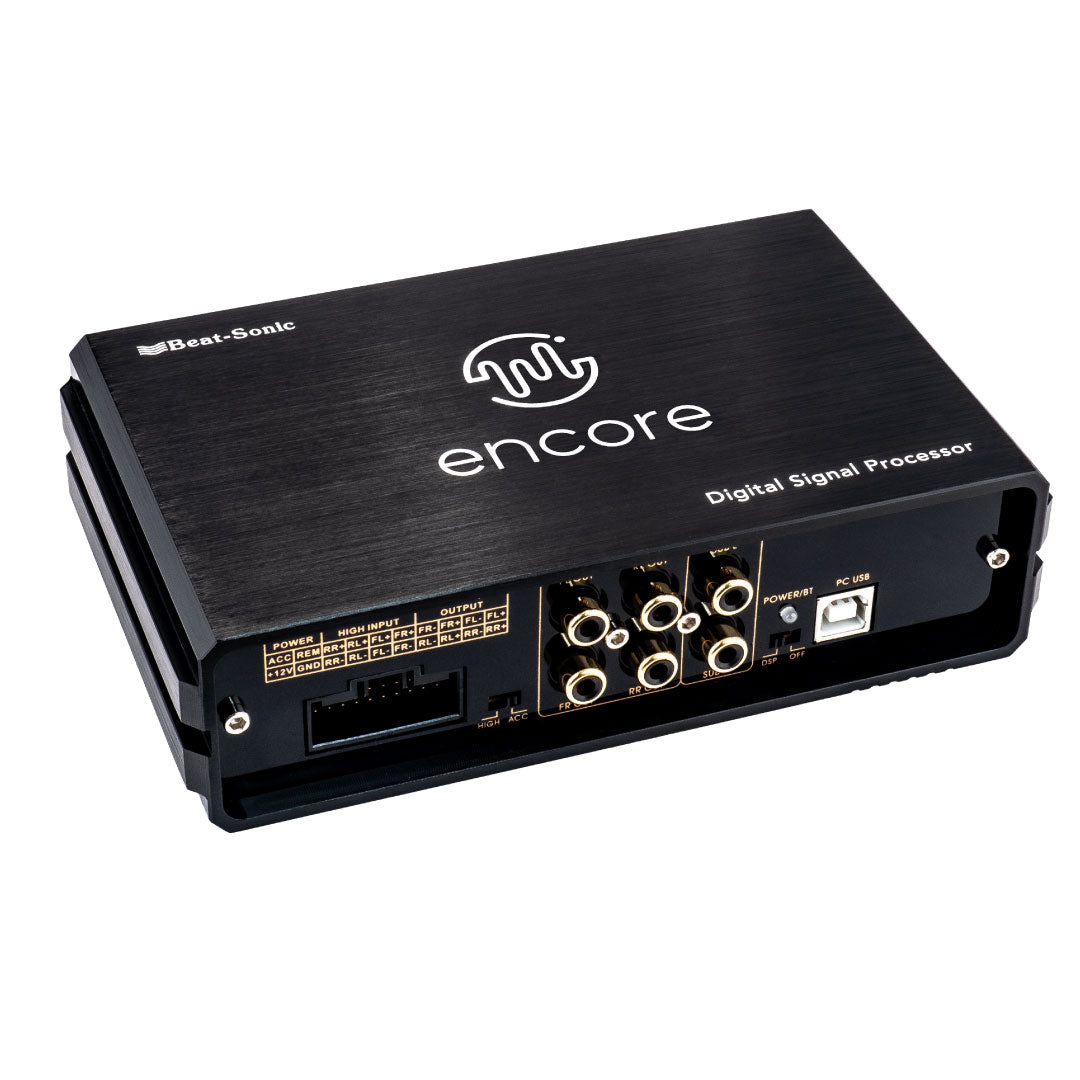

The Beat-Sonic ENX-T315 DSP Power Amplifier is a true plug-and-play upgrade engineered specifically for the 2020–2023 Toyota Tacoma without JBL audio, equipped with a 6-speaker factory system. Tuned with Beat-Sonic’s signature sound profile for the Tacoma cabin, this DSP amplifier delivers noticeably clearer detail, stronger output, and improved balance across low, mid, and high frequencies—while keeping your factory head unit and speakers fully intact.

Installation is straightforward, requires no special tools, and does not modify the factory wiring harness.

Important Note

  • Compatibility: Designed exclusively for 2020–2023 Toyota Tacoma without JBL, equipped with 6 speakers.
  • Plug-and-play: Installs directly into the factory stereo system with no cutting or splicing.
  • Vehicle-specific tuning: DSP is pre-tuned for the Tacoma cabin to maximize clarity and balance.
  • Sound quality: Improves low, mid, and high frequency output with cleaner detail and stronger dynamics.
  • Factory retention: Keeps factory head unit and speakers fully functional.
  • Component quality: Uses premium electrolytic and low-impedance capacitors with 70μ copper thickness.
  • Compact design: Small footprint allows flexible mounting locations.
  • Audio detail: High-quality FET operational amplifiers reproduce fine musical details such as vocals and breath tones.
  • System requirement: DSP tuning software requires Windows 7 or later via USB Type-A.

Specifications

  • Output power: 4 × 45W @ 4Ω (14.4V)
  • Speaker impedance:
  • Amplifier class: Class AB
  • Inputs: 4 × high-level speaker inputs
  • Outputs: 4 × speaker outputs, 6 × RCA (2.2V p-p)
  • Frequency response: 20Hz–22kHz (+0 / −1dB)
  • Signal-to-noise ratio: 105dB
  • Total harmonic distortion: 0.01%
  • DSP resolution: 24-bit
  • Sampling rate: 48kHz

DSP & Tuning

  • Crossover modes: Bypass, Bandpass, Lowpass, Highpass
  • Crossover types: Butterworth, Bessel, Linkwitz-Riley
  • Slope options: 6 / 12 / 18 / 24 / 36 / 48 dB per octave
  • Phase control: 0° / 180°
  • Equalizer range: 20Hz–22kHz
  • EQ modes: Parametric and Graphic
  • EQ bands:
    • 1ch / 2ch: 31-band
    • 3ch / 4ch: 15-band
    • 5ch / 6ch: 9-band
  • EQ adjustment: −15dB to +15dB
  • Q factor: 0.3–50.0

Time Alignment

  • Distance: 0–204cm (0–136cm for sub / center)
  • Time: 0–6ms (0–4ms for sub / center)
  • Increment: 0.021ms / 6.8mm

Electrical

  • Power supply: DC 12V
  • Operating voltage: 10–15V
  • Max current draw: 15A
  • Quiescent current: 350mA
  • Fuse: 15A (φ5.2 × 30mm)
  • Remote output: DC 12V (max 100mA)

Physical

  • Dimensions: 700mm × 103mm × 45mm
  • Weight: 625g (main unit only)

Package Contents

  • Amplifier: Beat-Sonic ENX-T315 DSP power amplifier

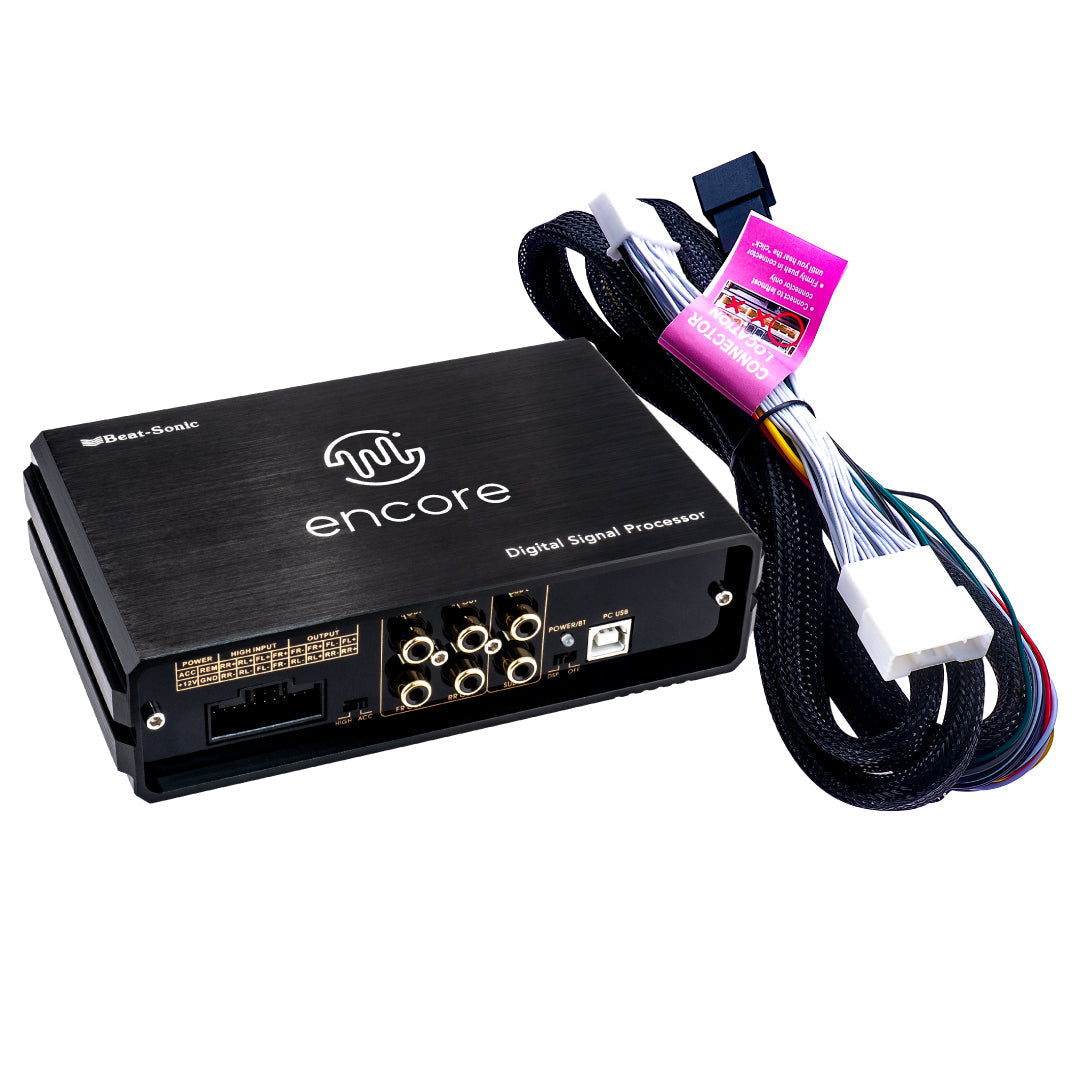

  • Harness: Plug-and-play wiring harness
  • Connection: USB interface for DSP tuning

Vehicle / Fitment

  • Fits: Toyota Tacoma
  • Years: 2020–2023
  • Audio system: Non-JBL factory system with 6 speakers
