The Beat-Sonic ENX DSP Power Amplifier is a true plug-and-play solution designed to dramatically improve the factory audio system in the 2024+ Toyota Tacoma without JBL. Tuned specifically for this platform using Beat-Sonic’s signature sound profile, the ENX delivers clearer detail, stronger output, and a far more balanced listening experience—while keeping your factory head unit and speakers intact.

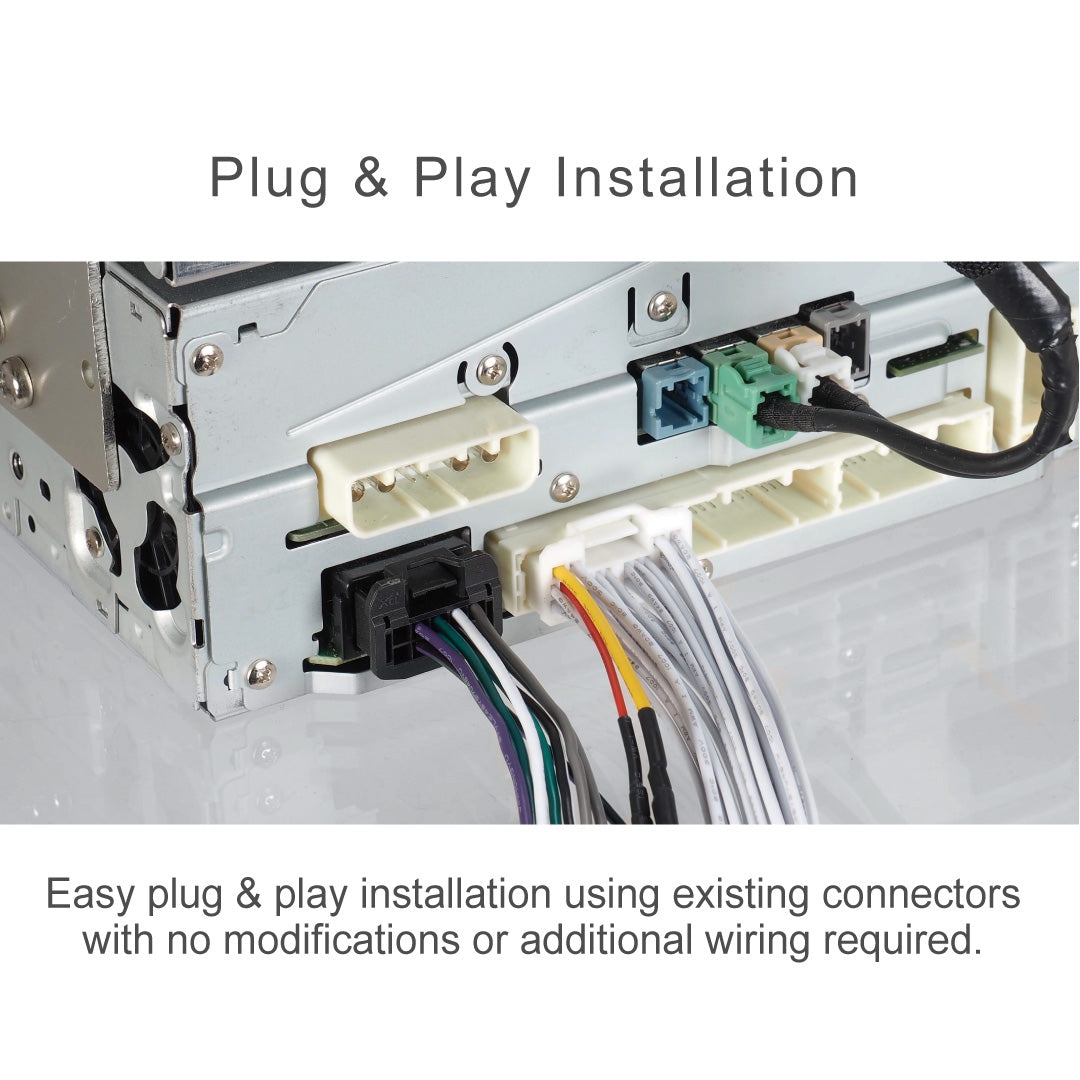

Installation is straightforward, requires no special tools, and does not modify the factory wiring harness.
Important Note
-
Compatibility: Designed specifically for 2024+ Toyota Tacoma without JBL audio.
-
Plug-and-play: Installs directly into the factory stereo system with no cutting or splicing.
-
Vehicle-specific tuning: DSP is pre-tuned for the Tacoma cabin to maximize clarity and balance.
-
Sound quality: Significantly improves low, mid, and high frequency response.
-

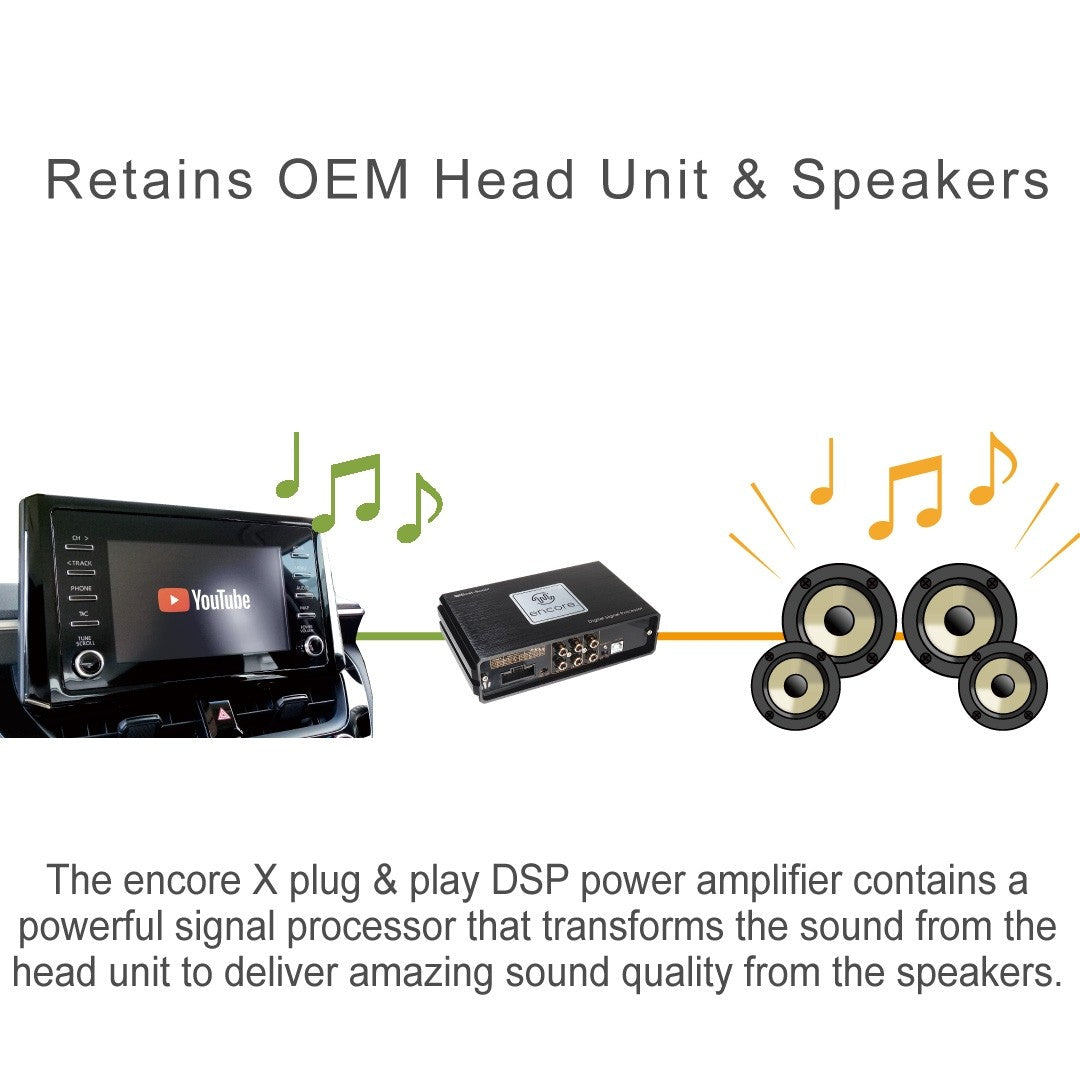

Factory retention: Maintains factory head unit and speakers while upgrading performance.
-
Component quality: Uses premium electrolytic and low-impedance capacitors with 70μ copper thickness.
-
Compact design: Small footprint allows flexible mounting locations.
-
Audio detail: High-quality FET operational amplifiers reproduce fine musical details including vocals and breath tones.
-
System requirement: DSP software requires Windows 7 or later via USB Type-A.
Specifications
-
Output power: 4 × 45W @ 4Ω (14.4V)
-
Speaker impedance: 4Ω
-
Amplifier class: Class AB
-
Inputs: 4 × high-level speaker inputs
-
Outputs: 4 × speaker outputs, 6 × RCA (2.2V p-p)
-
Frequency response: 20Hz–22kHz (+0 / −1dB)
-
Signal-to-noise ratio: 105dB
-
Total harmonic distortion: 0.01%
-
DSP resolution: 24-bit
-
Sampling rate: 48kHz
DSP & Tuning
-
Crossover modes: Bypass, Bandpass, Lowpass, Highpass
-
Crossover types: Butterworth, Bessel, Linkwitz-Riley
-
Slope options: 6 / 12 / 18 / 24 / 36 / 48 dB per octave
-
Phase control: 0° / 180°
-
Equalizer range: 20Hz–22kHz
-
EQ modes: Parametric & Graphic
-
EQ bands:
- 1ch / 2ch: 31-band
- 3ch / 4ch: 15-band
- 5ch / 6ch: 9-band
-
EQ adjustment: −15dB to +15dB
-
Q factor: 0.3–50.0
Time Alignment
-
Distance: 0–204cm (0–136cm for sub / center)
-
Time: 0–6ms (0–4ms for sub / center)
-
Increment: 0.021ms / 6.8mm
Electrical
-
Power supply: DC 12V
-
Operating voltage: 10–15V
-
Max current draw: 15A
-
Quiescent current: 350mA
-
Fuse: 15A (φ5.2 × 30mm)
-
Remote output: DC 12V (max 100mA)
Physical
-
Dimensions: 700mm × 103mm × 45mm
-
Weight: 625g (main unit only)
Package Contents
-
Amplifier: Beat-Sonic ENX DSP power amplifier
-

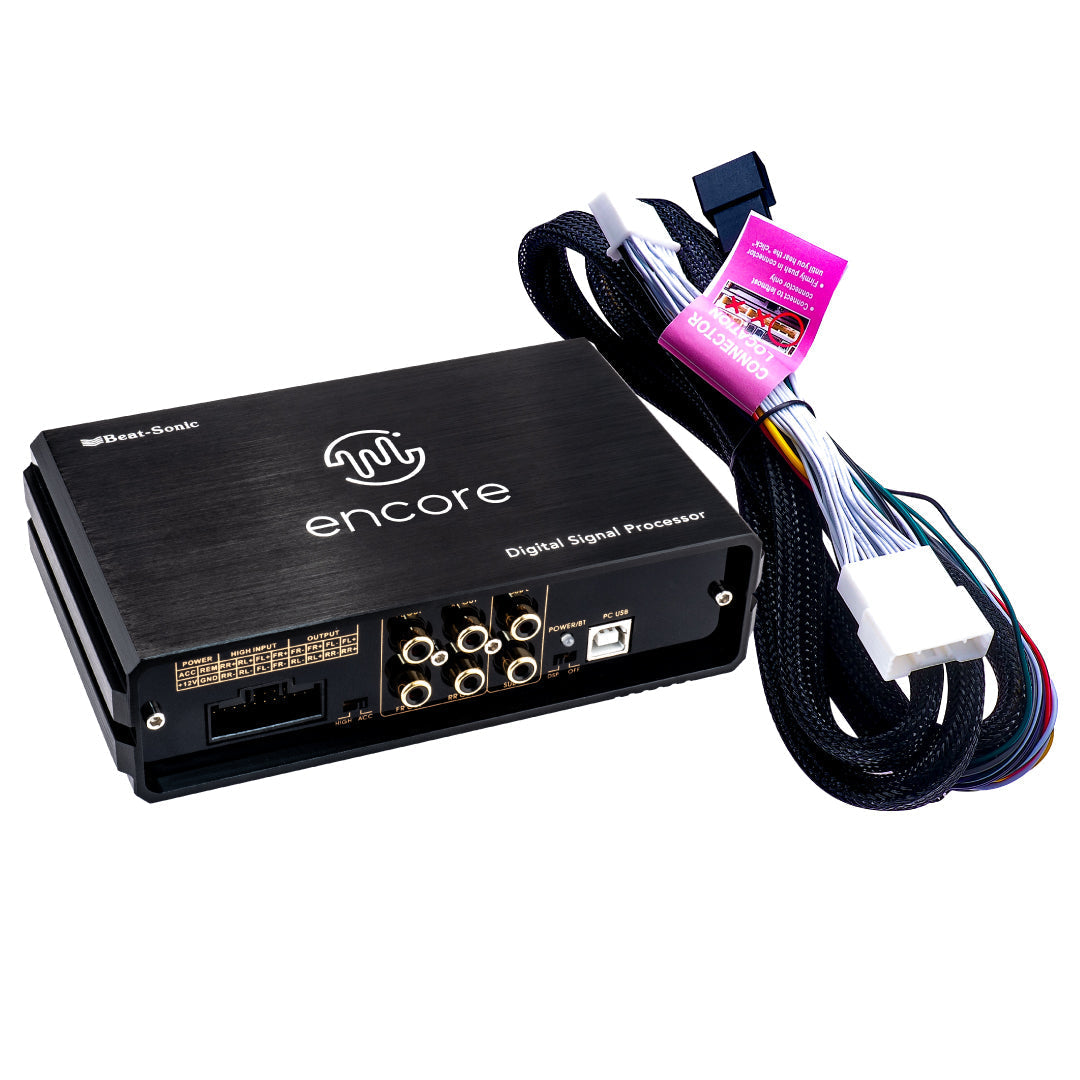

Harness: Plug-and-play wiring harness
-
Connections: USB interface for DSP tuning
Vehicle / Fitment
-
Fits: Toyota Tacoma
-
Years: 2024+
-
Audio system: Non-JBL factory systems only
