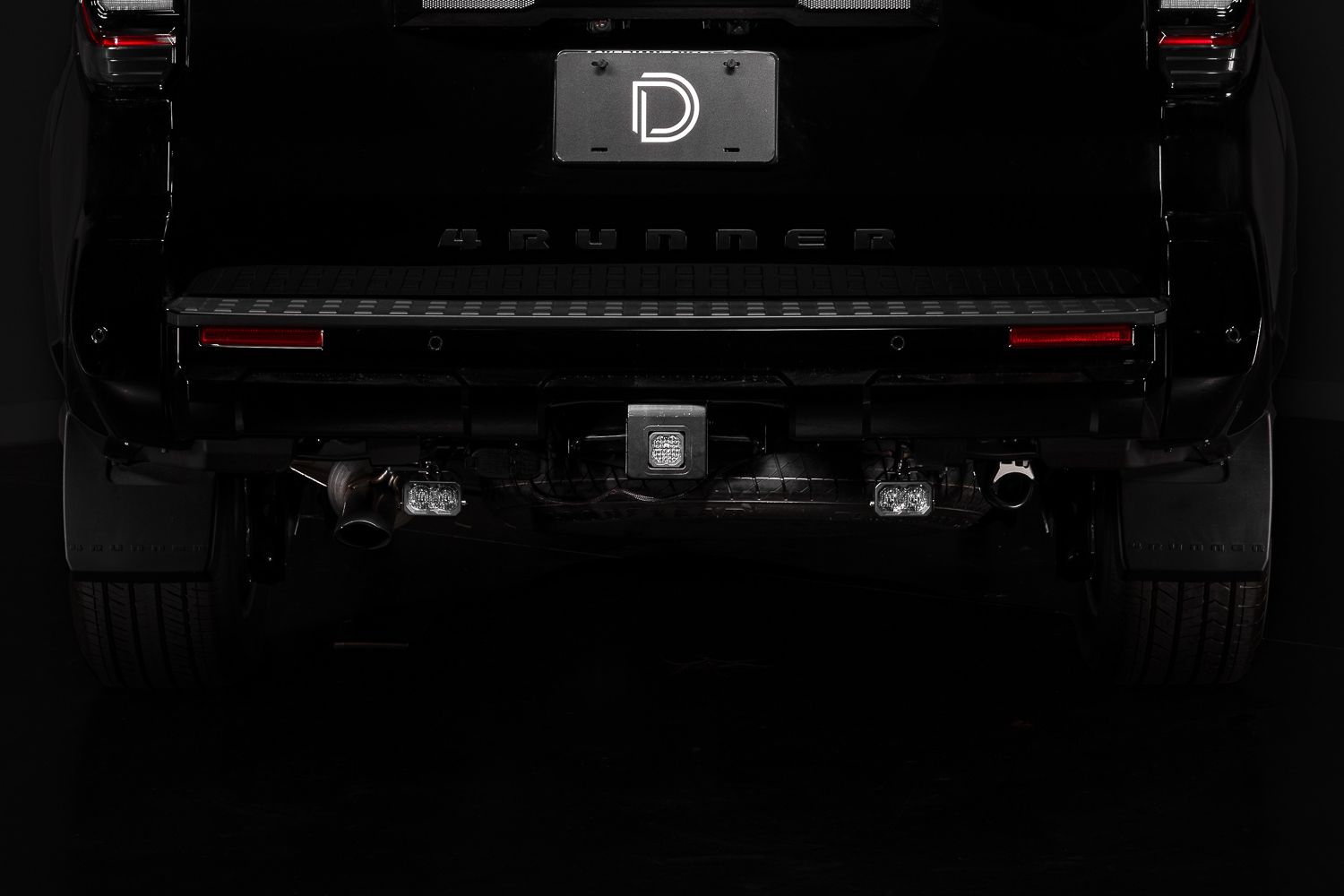

The Stage Series HitchMount Reverse Light Kit dramatically improves rear visibility on your Toyota 4Runner by adding a high-output reverse light, an additional running light, and an optional 4th brake light—all through a simple, plug-and-play hitch-mounted solution. Designed for everyday use, this kit installs in minutes and integrates cleanly with factory trailer wiring for automatic operation.
Important note
-
Trailer systems: Newer SUVs with trailer management systems may monitor power draw; this kit includes an optional red wire to prevent trailer warnings or dashboard alerts.
-
Connector type: Designed for 7-pin trailer connectors; non-7-pin connectors require slight harness modification.
-
Factory lighting: This product is not intended to replace original factory tail lamps.
-
Receiver design: Ensure your trailer hitch has an open back before ordering.
-
Mounting option: A locking trailer pin can be used with a quick modification instead of the snap-fit pins.

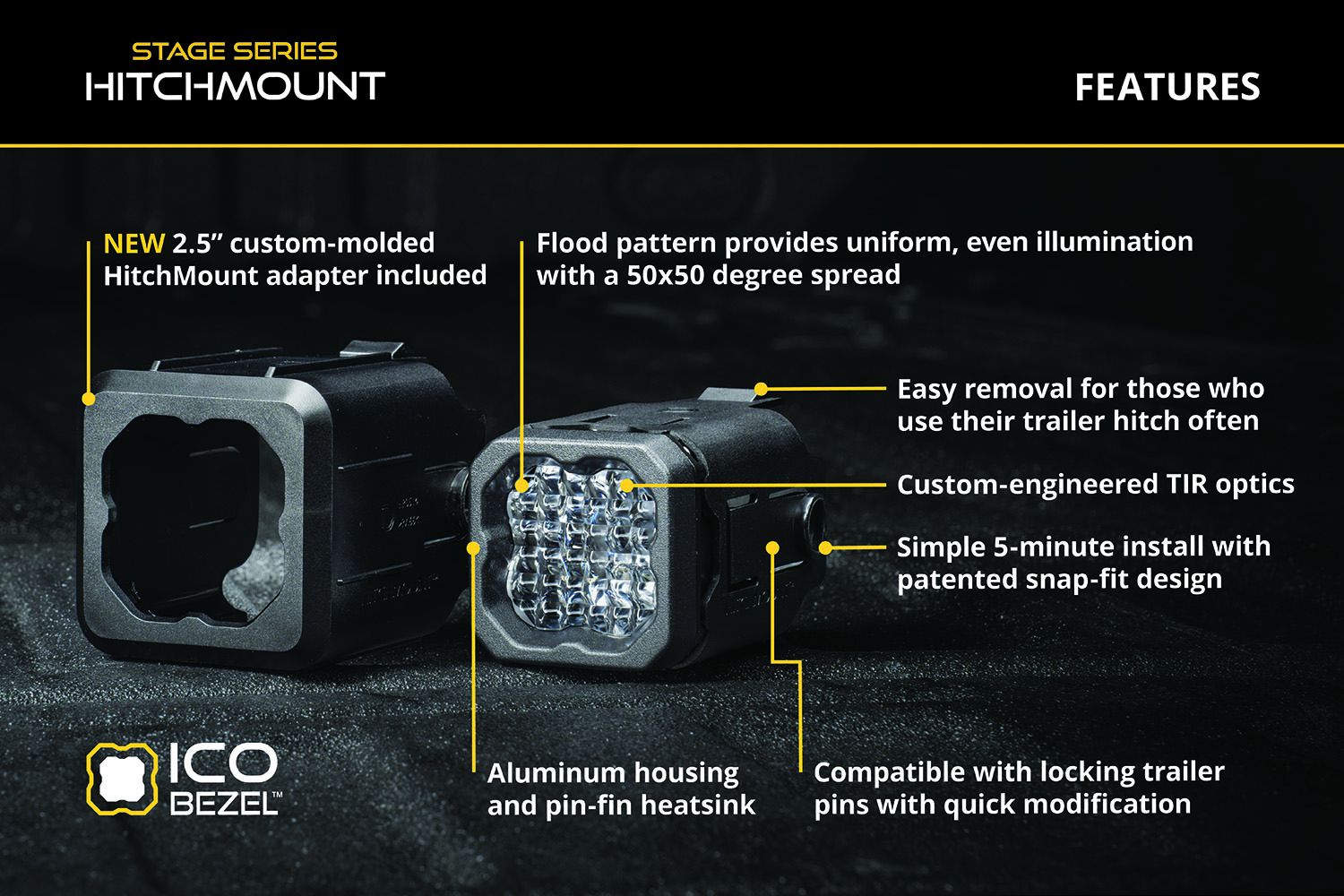

Features
-

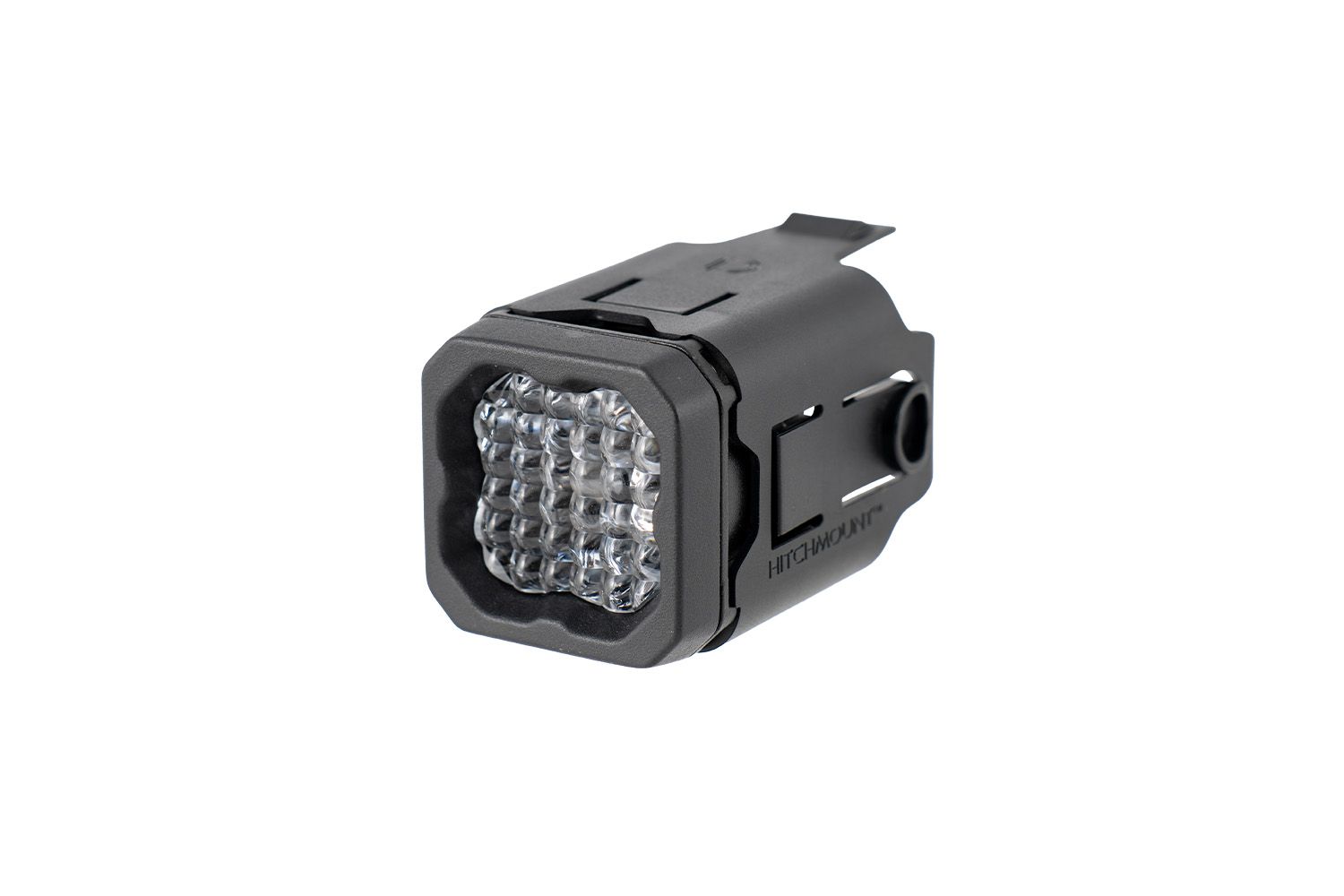

Hitch-mounted design: Mounts one SSC1 or C1R LED pod directly in the trailer hitch receiver.
-

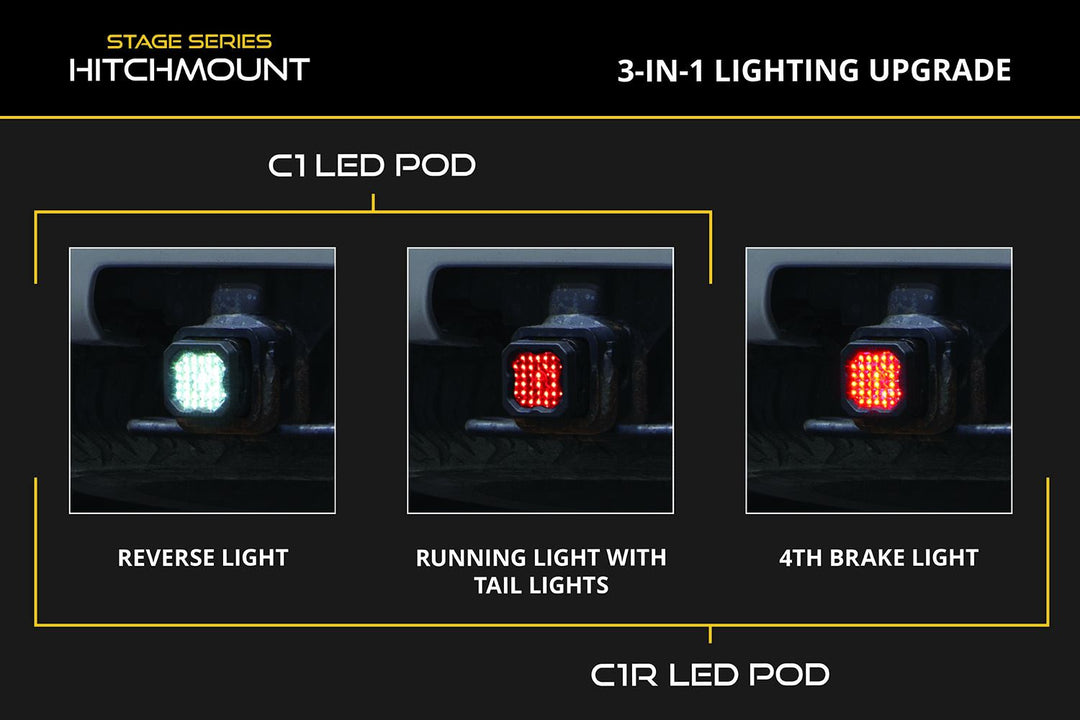

Enhanced reverse lighting: Adds a powerful reverse light that automatically activates in reverse.
-
Additional running light: Integrated red backlight functions as an extra running light.
-
Optional 4th brake light: C1R option adds a high-power red brake light.
-
SafetyStrobe function: Optional brake light strobing with three flashes on initial brake application.
-
Plug-and-play wiring: Connects directly to factory trailer hitch wiring with the included harness.
-
Quick installation: Patent-pending snap-fit mount installs in under five minutes with no drilling.
-
Easy removal: Tool-free removal for frequent hitch use, with DT connector cover for protection.
-
TIR optics: Patented Total Internal Reflection optics focus light where needed while reducing glare.
-
Flood beam pattern: Optically designed 50°x50° spread for uniform, even illumination.
-
Proven durability: Tested to SAE standards for vibration, moisture, corrosion, and temperature extremes.
-
Built in USA: Designed and assembled in the USA using globally sourced materials.
Specifications
-
Measured lumens: SSC1 Sport – 1,030 lm, C1R – 1,080 lm
-
Intensity: SSC1 Sport – 400 cd, C1R – 480 cd
-
Color temperature: 6000K
-
Power: SSC1 Sport – 12.8W, C1R – 14.1W
-
Operating voltage: 9–16V
-
Current draw: SSC1 Sport – 1.0A, C1R – 1.1A @ 12.8V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Cree XP-L HI, Osram 1414 Pure
-

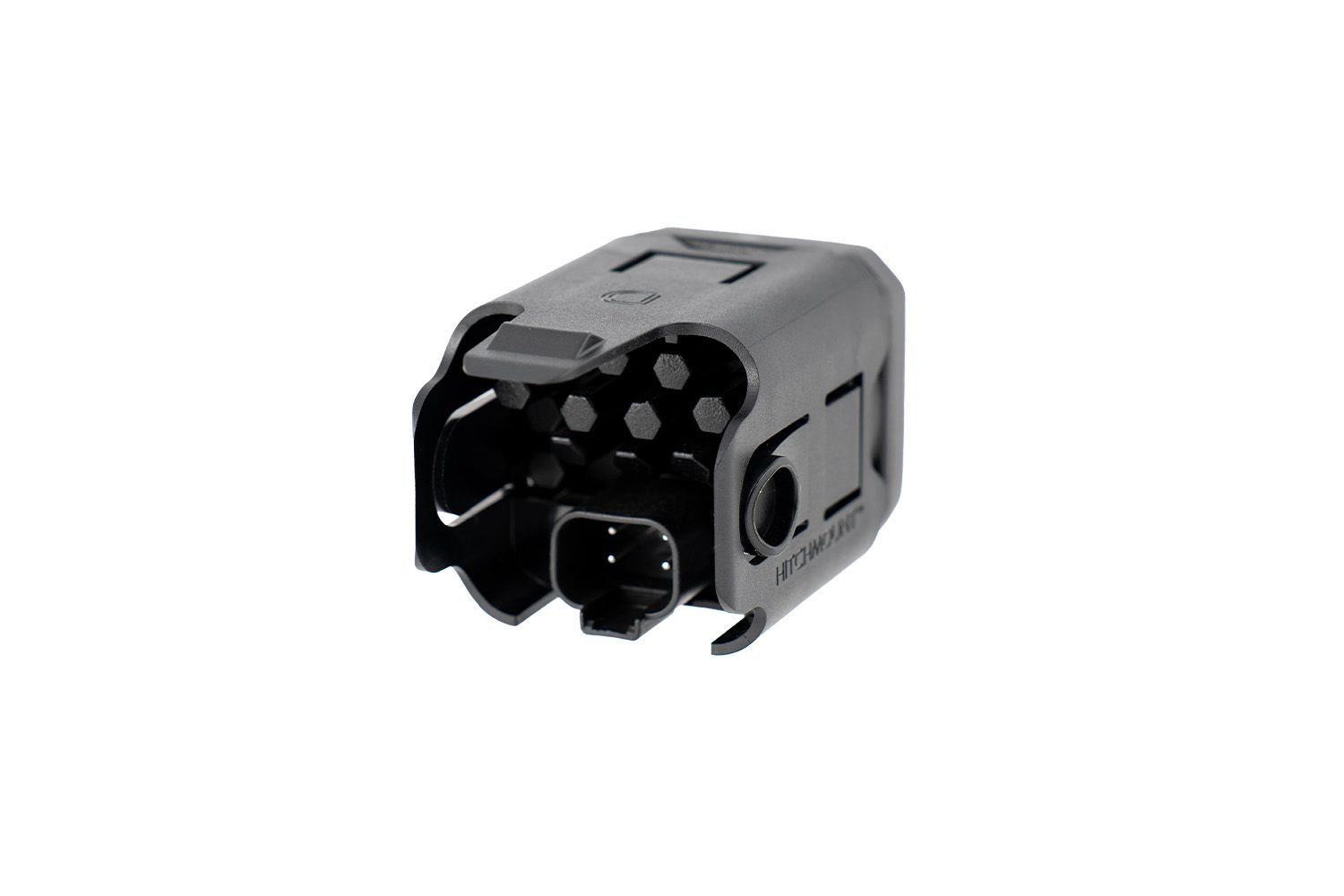

Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Compliance: SAE J575 durability test
-
Ingress rating: IP69K waterproof, high pressure
-
Harness length: DT connector to inline harness – 25.59 in
-
Unit weight: 0.35 lb
-
Product weight: SSC1 – 0.95 lb, C1R – 1.0 lb
-
Shipped weight: 1.5 lb
Fitment
-
Make: Toyota
-
Model: 4Runner
-
Years: (2025–2026)
-
Application: Backup / Reverse light

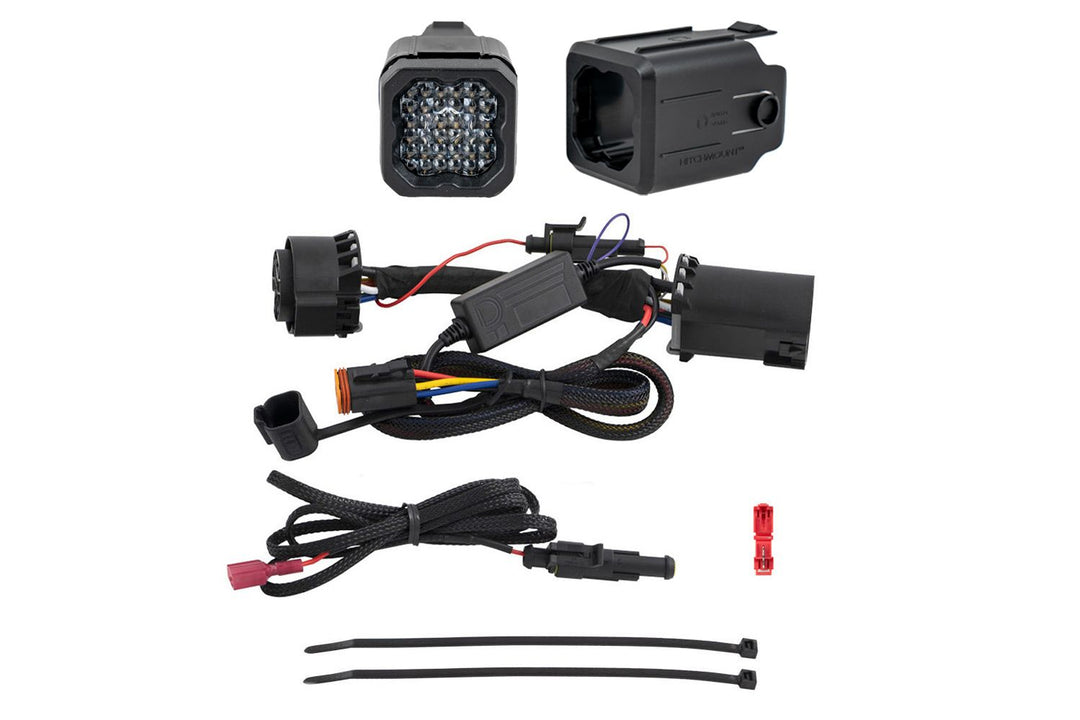

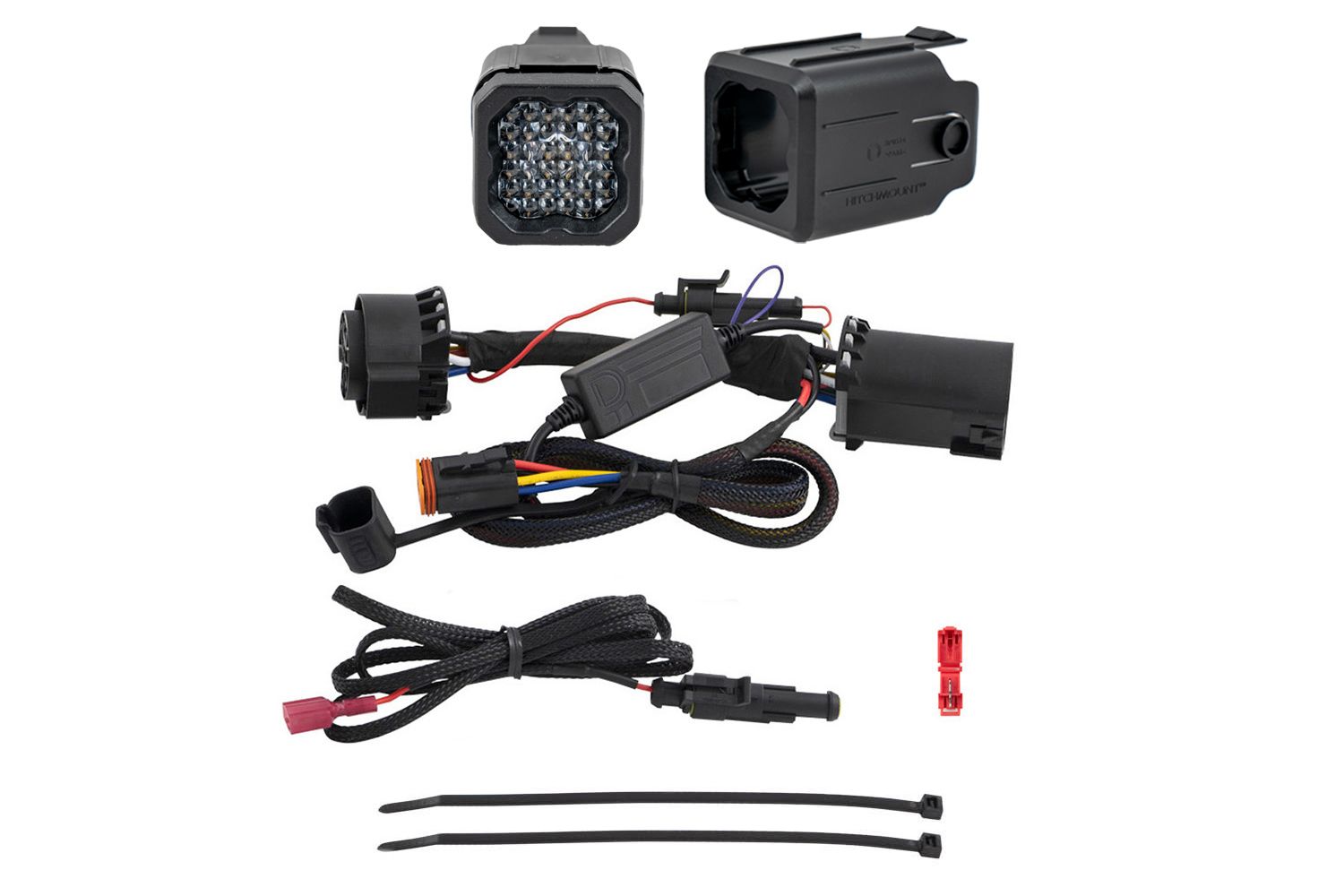

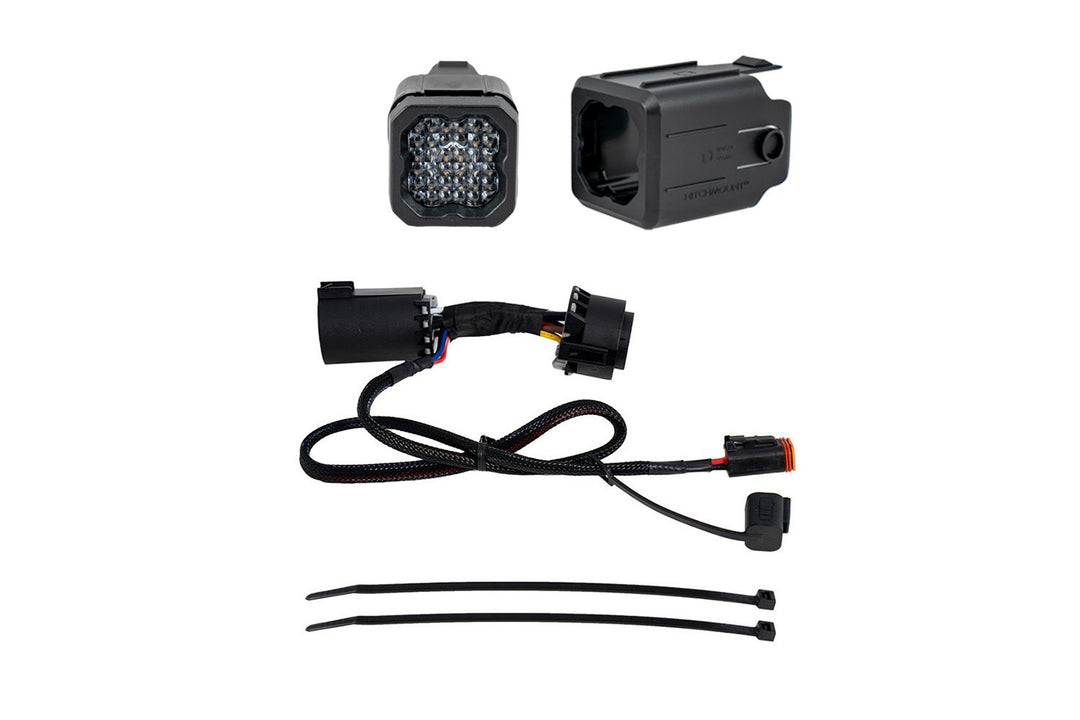

Included in the box
-
LED pod: One (1) SSC1 Sport or C1R HitchMount LED pod
-
Receiver adapter: One (1) snap-in 2.5-inch receiver adapter
-
Wiring harness: One (1) 7-pin trailer single-output harness
-
Zip ties: Two (2)
-
Installation guide: One (1) guide
Additional details
-
Installation time: 5–10 minutes
-
Tools required: Basic toolset
-
Modification: None
-
Quantity: One (1)
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
