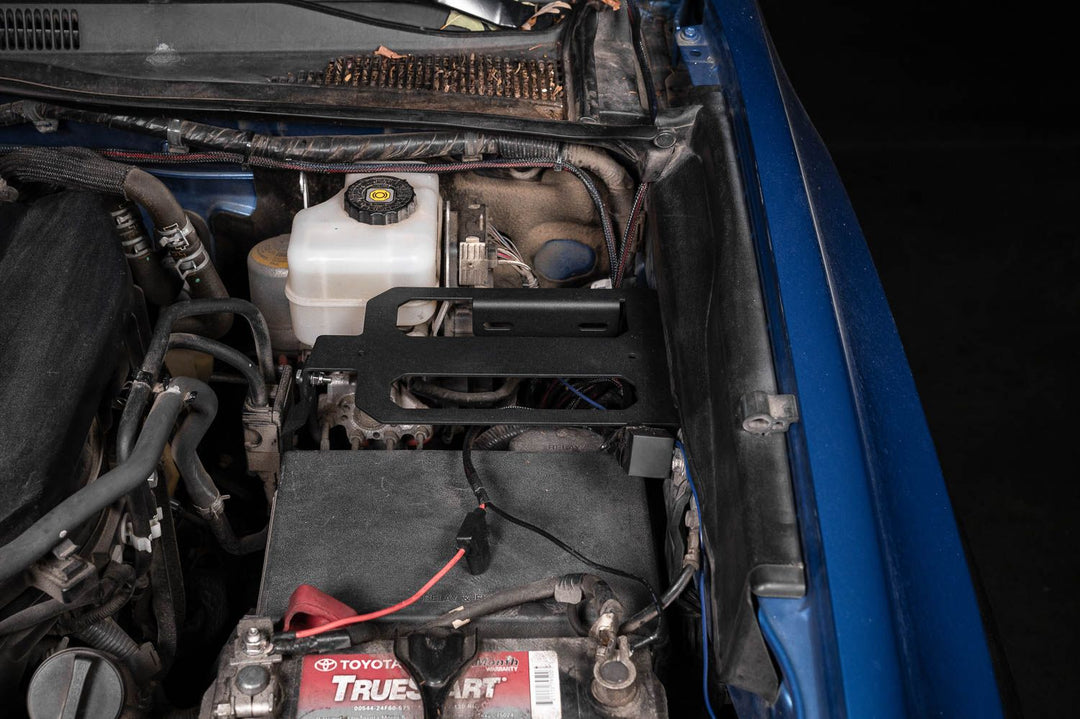

Take full control of your lighting and 12V accessories with the Diode Dynamics D-Switch Hub Mount Kit for the Toyota Tacoma. Designed specifically for a clean, factory-style installation, this vehicle-specific mount provides a secure, bolt-on solution that positions your D-Switch Hub in the engine bay for easy access without interfering with critical components. Paired with the powerful D-Switch system, this setup delivers unmatched customization, reliability, and control for serious builds.
Important notes
-
Trim compatibility: Not compatible with Trail Edition models
-
Manual transmission: Vehicles equipped with a manual transmission will require clutch reservoir relocation

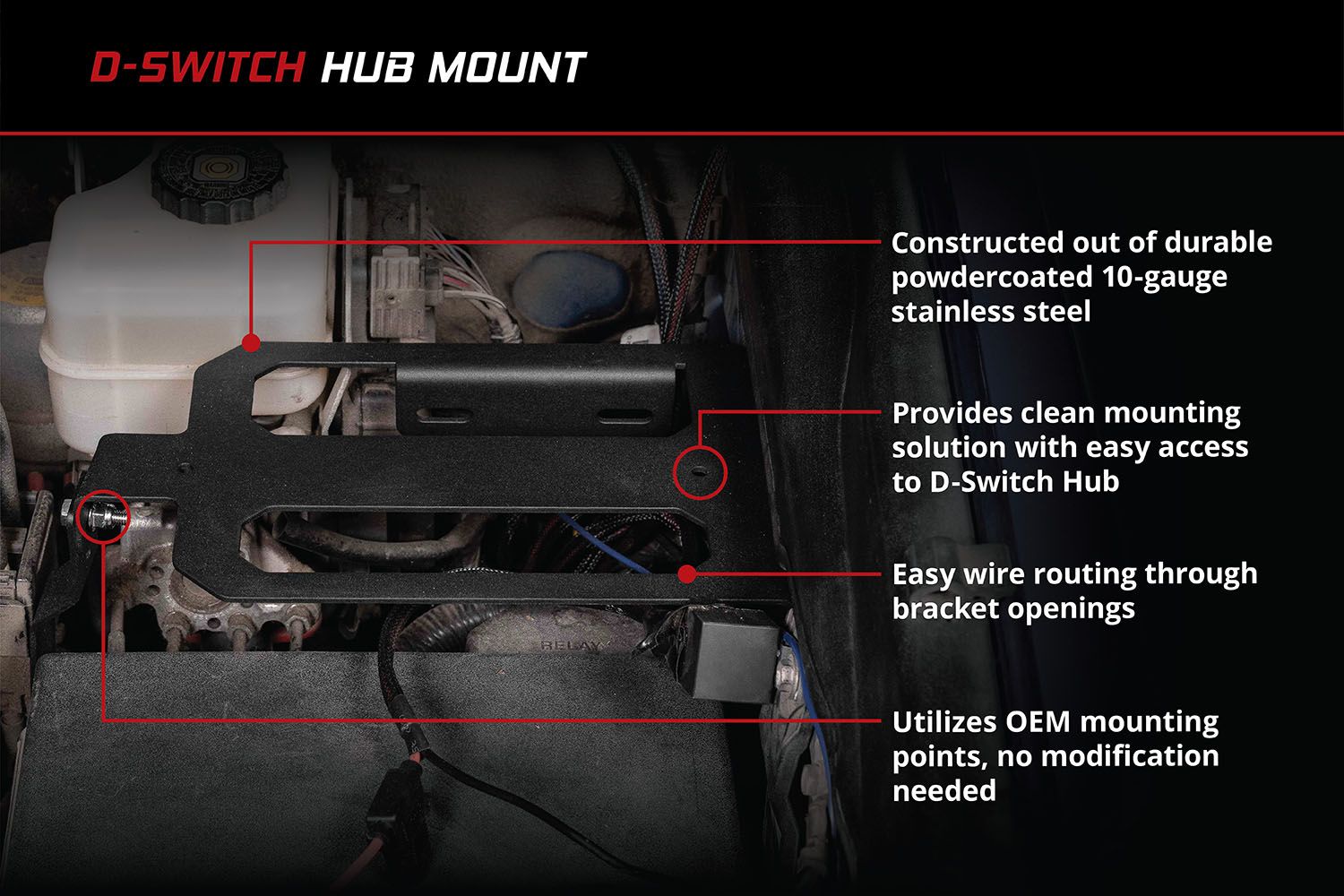

Features
-
Bolt-on installation: Mounts directly to factory engine bay mounting points with no drilling or cutting required
-
Vehicle-specific design: Optimized placement avoids interference with the fuse box or battery
-

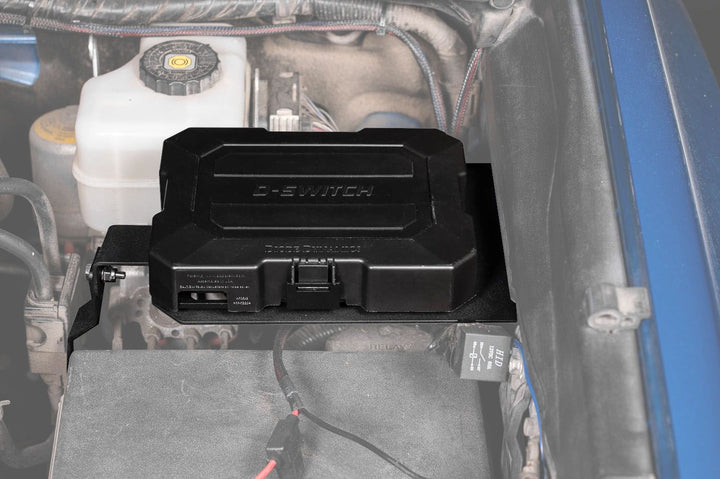

Easy hub access: Allows quick and convenient access to the D-Switch Hub when needed
-
Heavy-duty construction: Built from powdercoated 10-gauge stainless steel for long-term durability
-
Corrosion resistance: Stainless steel design resists rust in harsh environments
-
Made in USA: Designed and manufactured in the USA using globally sourced materials

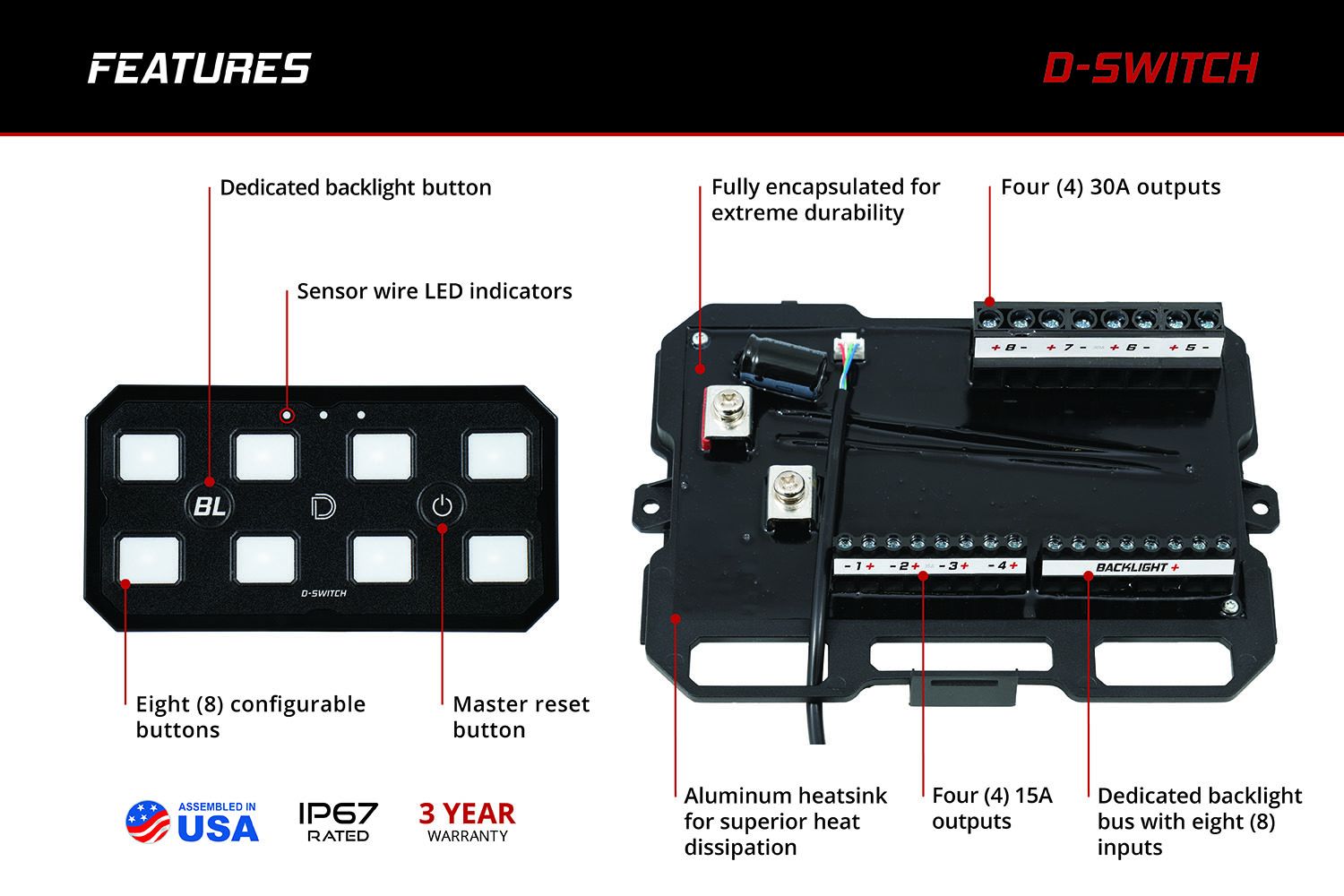

D-Switch system highlights
-
Eight output channels: Four 15A channels and four 30A channels for serious power delivery
-

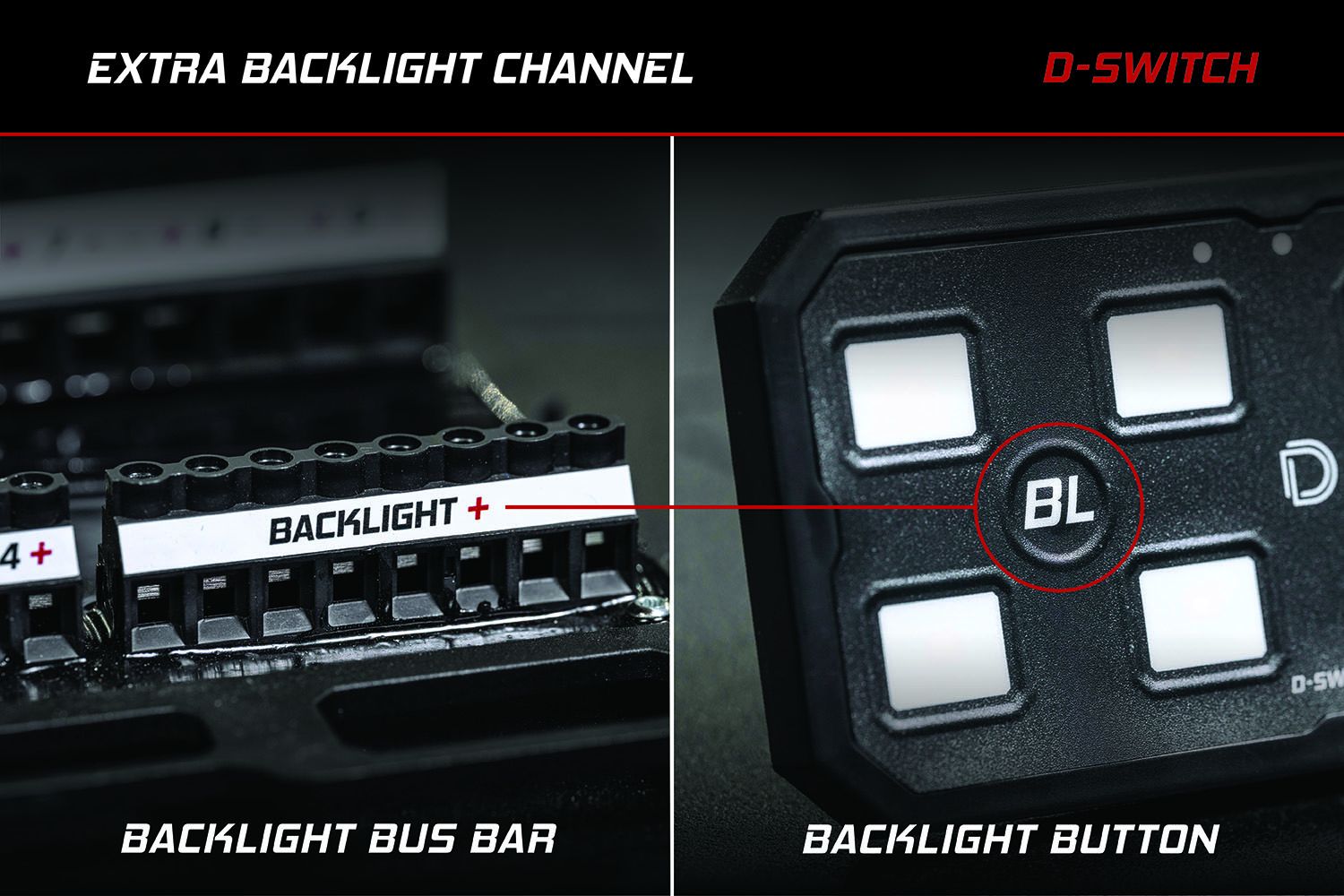

Dedicated backlight channel: Ninth button controls accent and backlit accessories without using main outputs
-

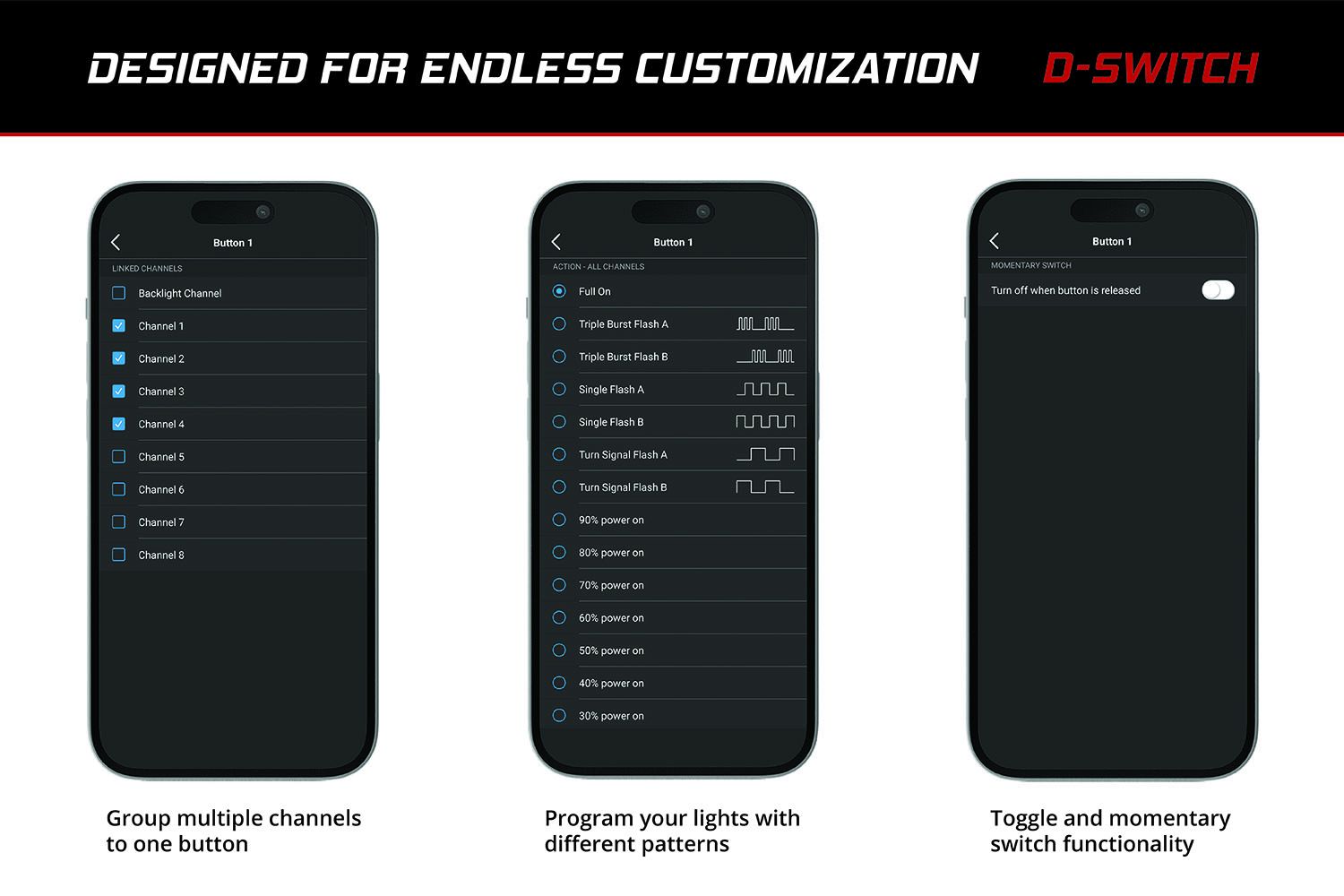

Dynamic channel assignment: Assign multiple outputs to one button or program different modes for the same output
-

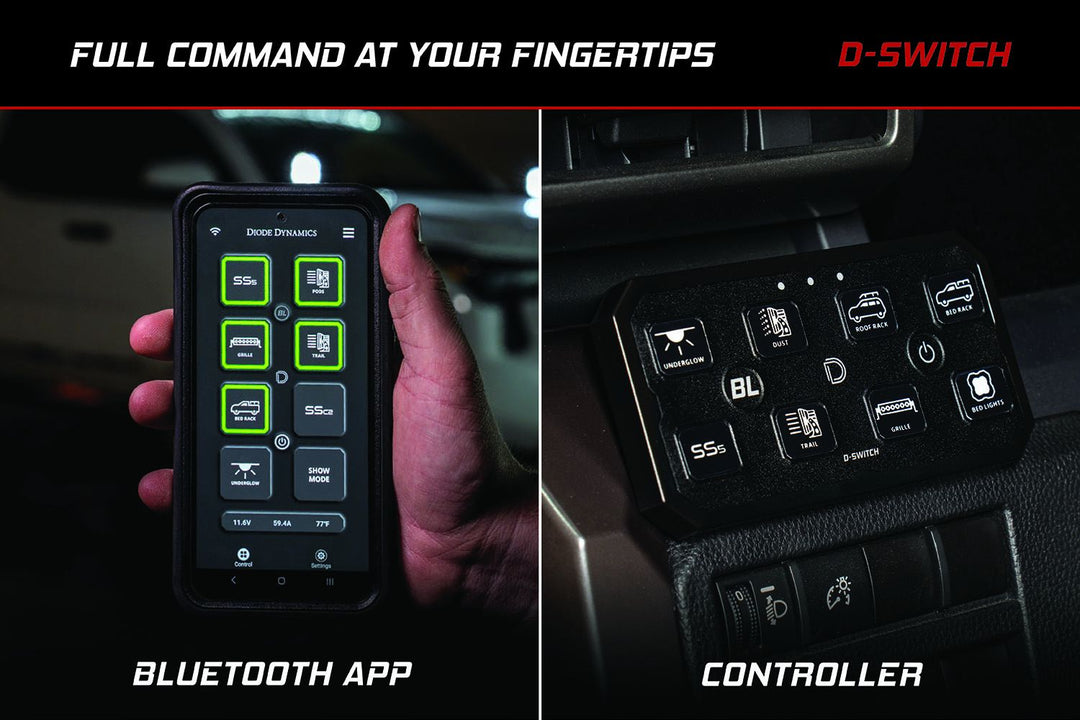

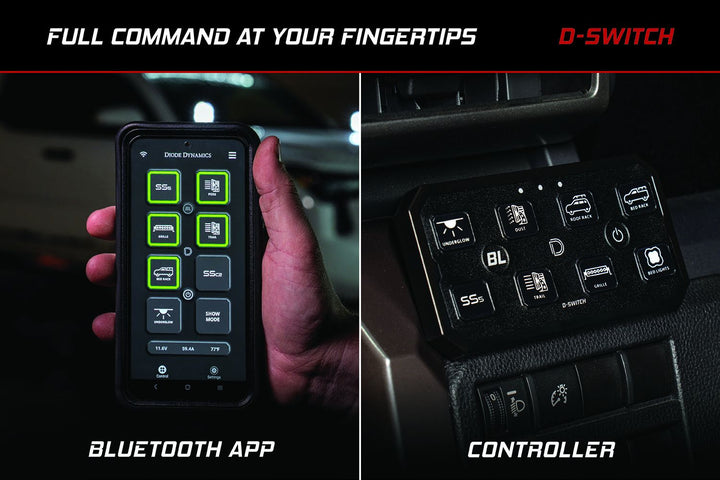

Bluetooth app control: Fast, responsive app for iOS and Android with instant connection and no lag
-
OEM signal integration: Four trigger wires plus ignition and night mode wiring for factory-style automation
-
Solid-state design: No mechanical relays or fuses, ensuring long-term reliability
-
Weather resistant: Fully encapsulated hub with IP67 rating for off-road and all-weather use
Specifications
-
Channel power:
- Channels 1–4: 15A per channel
- Channels 5–8: 30A per channel
- Backlight channel: 15A total
-
Maximum current: 125A
-
Operating voltage: 9–16V DC
-
Wire sizes:
- Battery: 4AWG
- Sensors: 22AWG
- Controller: 26AWG
-
Operating temperature: -40°F to 250°F
-
Materials: FR4 PCB, powdercoated steel, aluminum casting, ASA plastic
-
Cooling: Passive pin-fin heatsink
-
Ingress protection: IP67 weatherproof
-

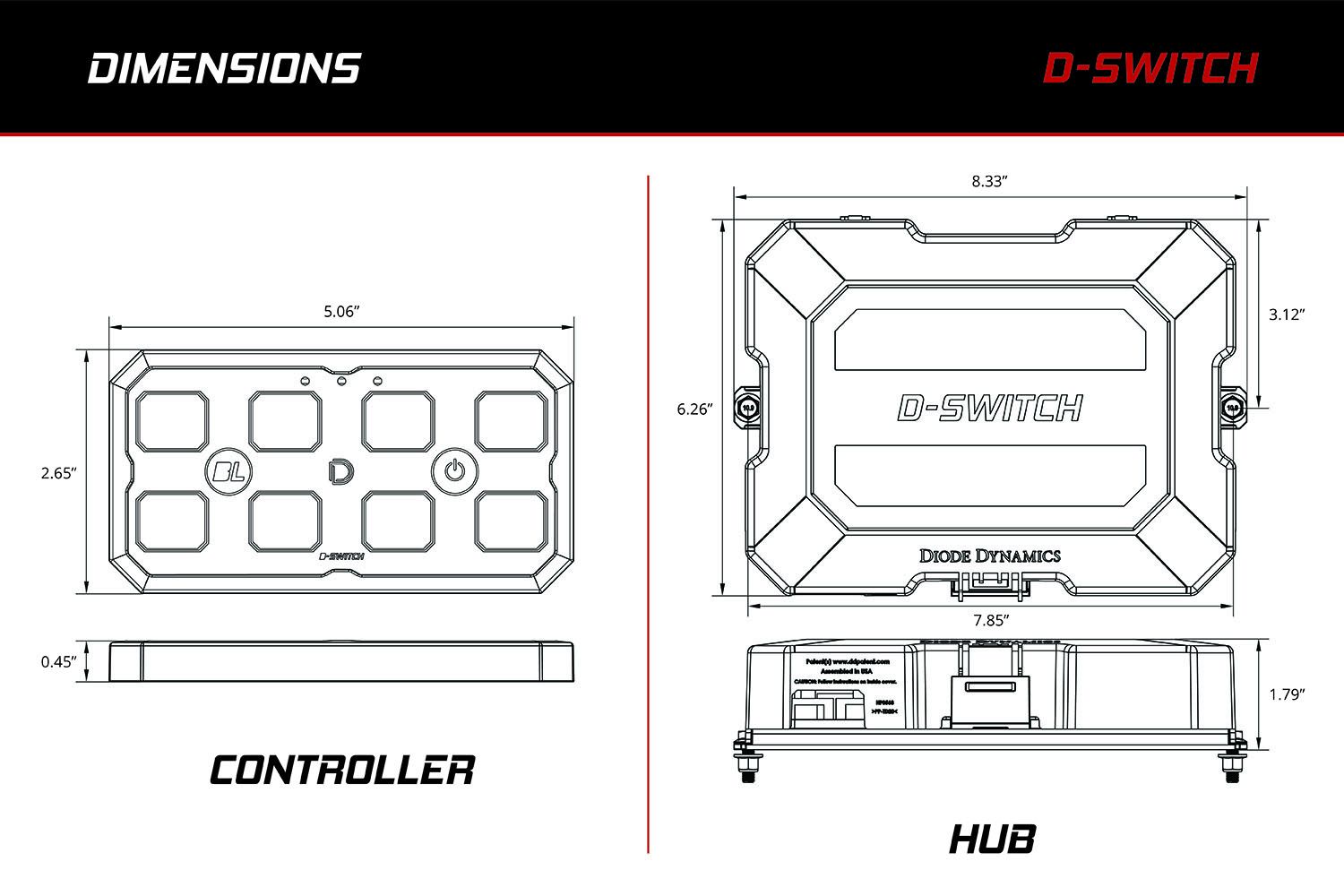

Controller dimensions: 5.06" x 2.66" x 0.45"
-
Hub dimensions: 8.33" x 6.26" x 1.79"
-
Product weight: 4.7 lb
-
Shipped weight: 9.3 lb
In the box

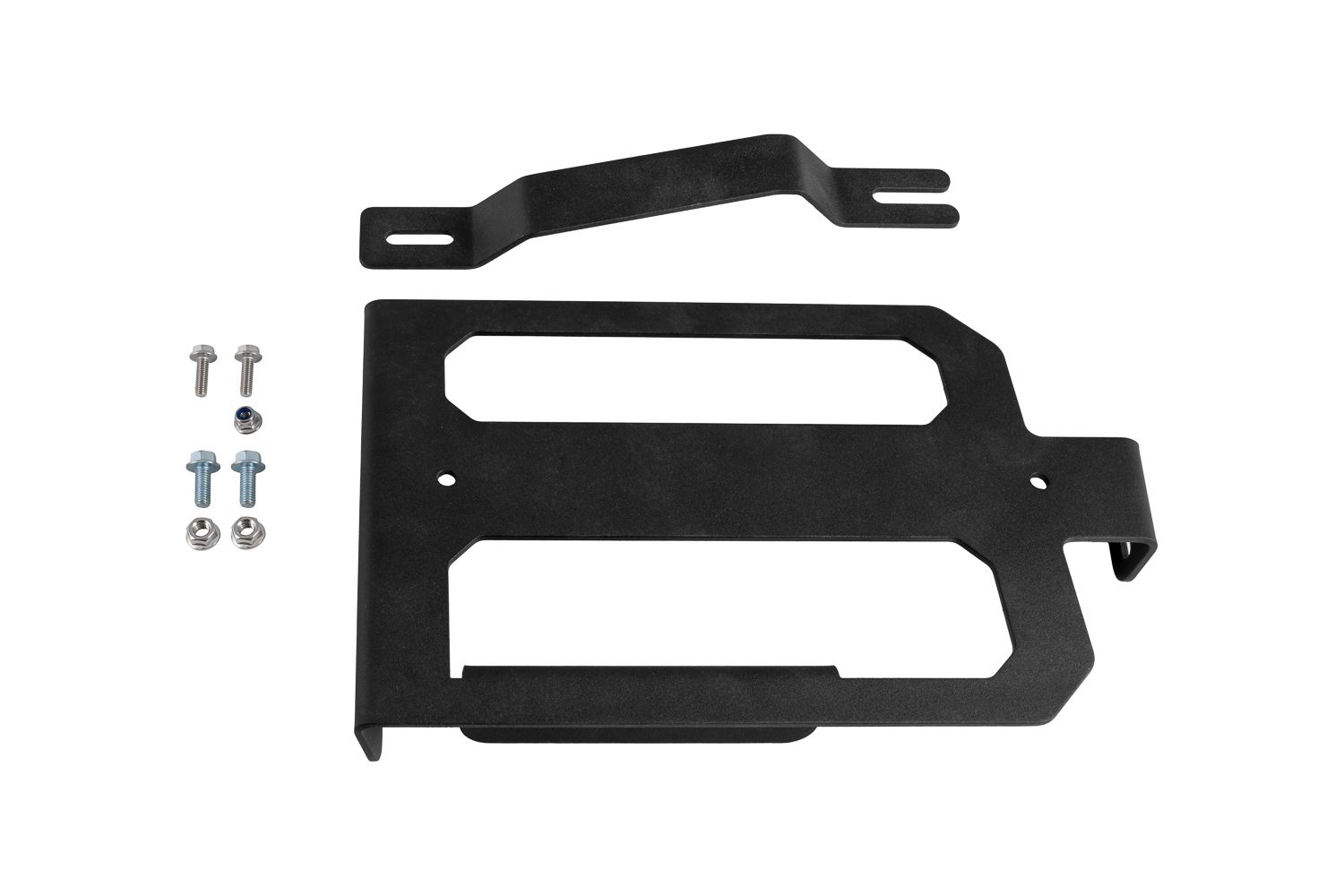

Bracket only
-
Hub bracket: One (1) vehicle-specific D-Switch hub bracket
-
Support bracket: One (1) support bracket
-
Hardware: Installation hardware

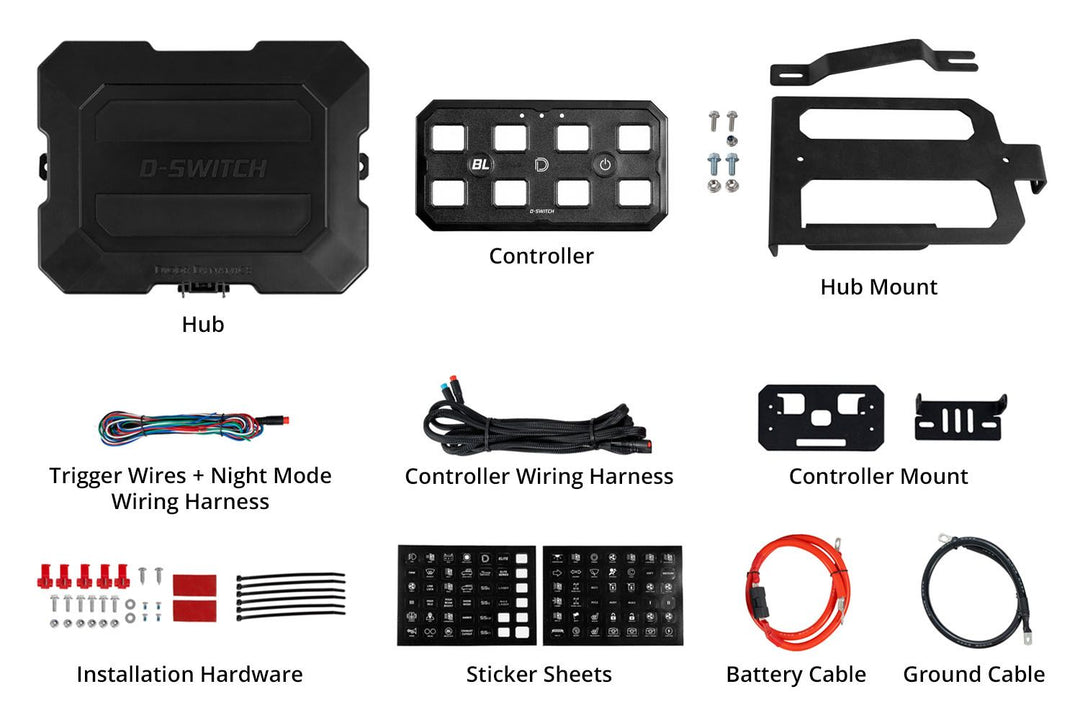

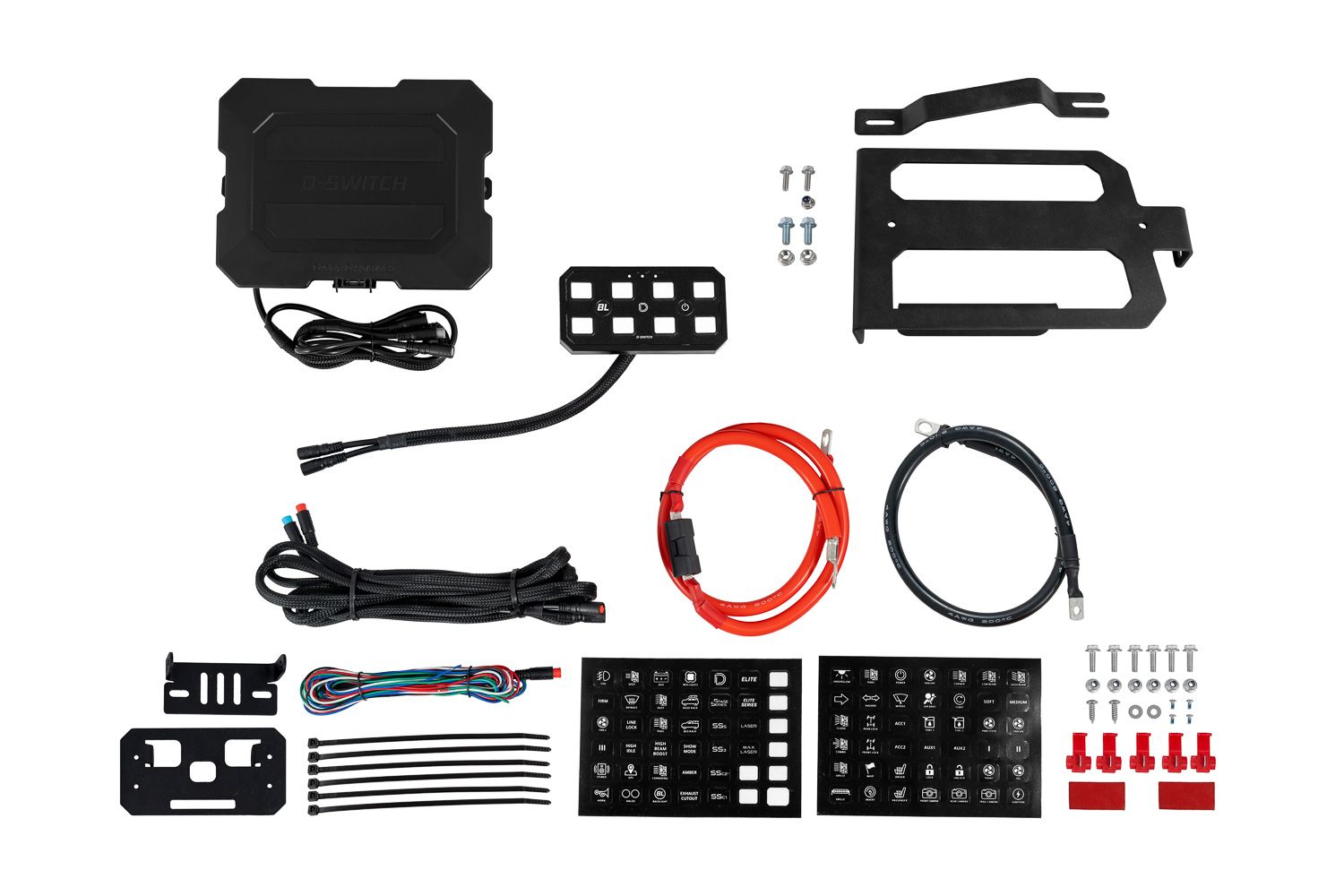

D-Switch with bracket
-
Switch hub: One (1) D-Switch hub
-
Controller: One (1) switch panel controller
-
Controller mount: One (1) universal mounting bracket
-
Vehicle bracket: One (1) Tacoma-specific hub bracket
-
Support bracket: One (1) support bracket
-
Wiring harness: One (1) 10-foot controller wiring harness
-
Trigger wiring: One (1) trigger wire and night mode harness
-
Battery cable: One (1) 3-foot 4AWG cable
-
Ground cable: One (1) 3-foot 4AWG ground cable
-
Button labels: Two (2) button sticker sheets
-
Accessories: Five (5) T-taps, six (6) zip ties, double-sided tape
-
Documentation: Installation and programming guide
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: 2016–2023
-
Application: Off-road
Installation
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
