The D-Switch with Tacoma Engine Bay Mount delivers total control over your lighting and accessories in one clean, OEM-style setup. With dynamic channel assignment, a dedicated backlight channel, and a fast Bluetooth app, this solid-state system is engineered for serious power delivery and seamless integration—designed and assembled by Diode Dynamics.
Features
-

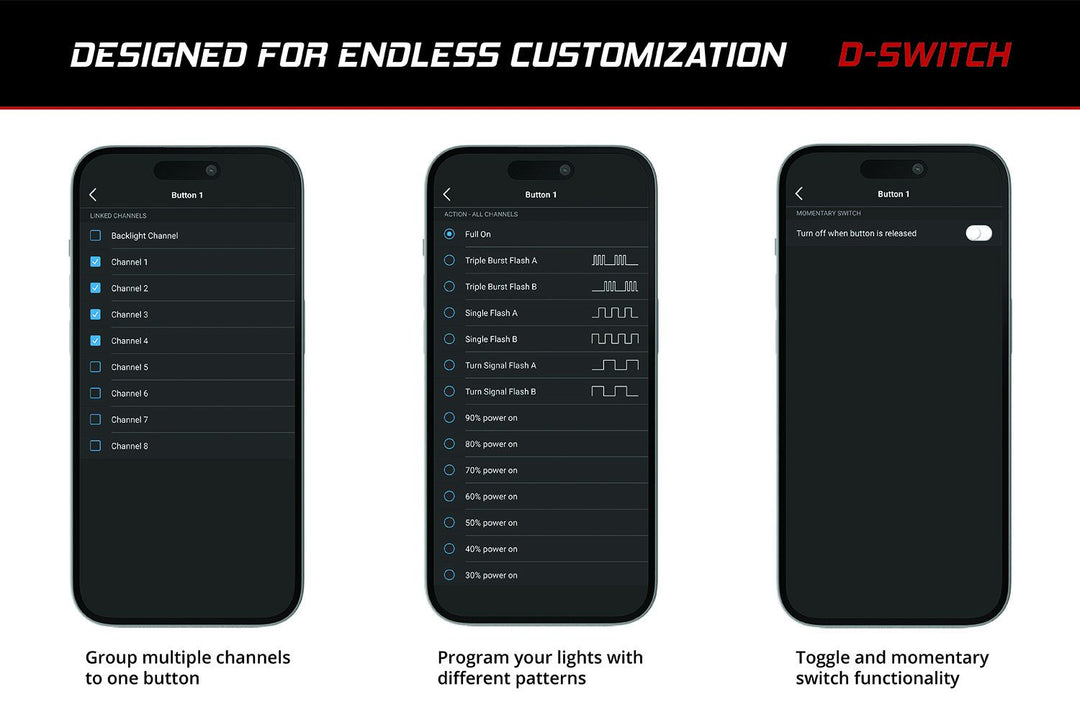

Multi-output control: Group and control multiple outputs with a single button.
-

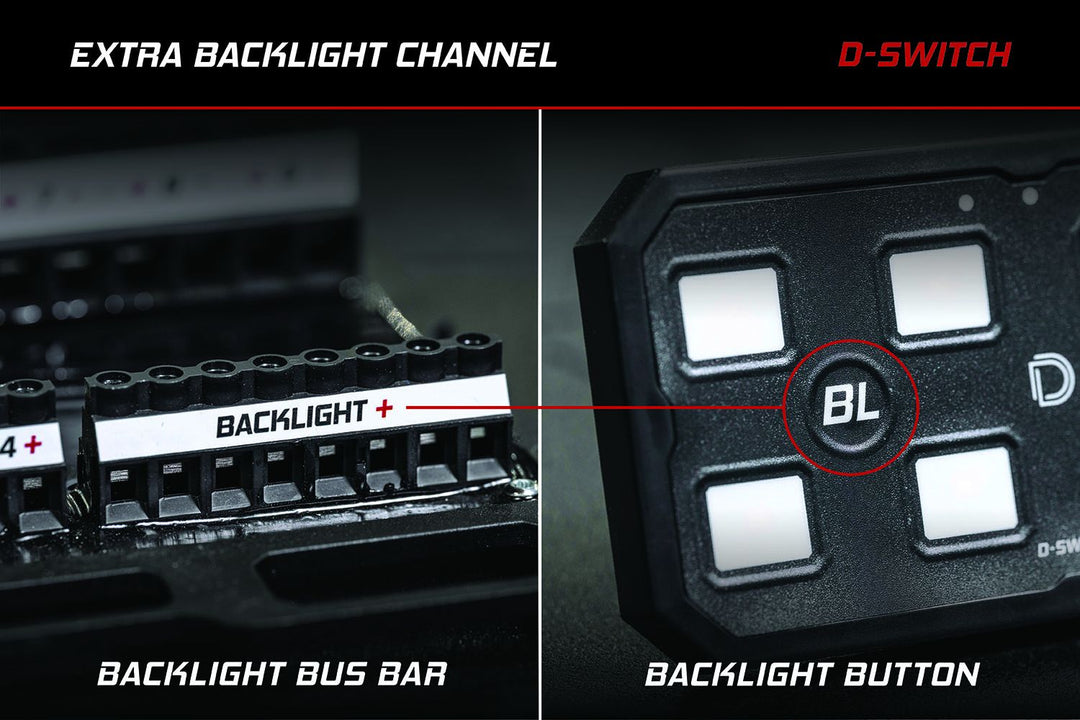

Dedicated backlight channel: Separate channel to control accent and backlit accessories.
-

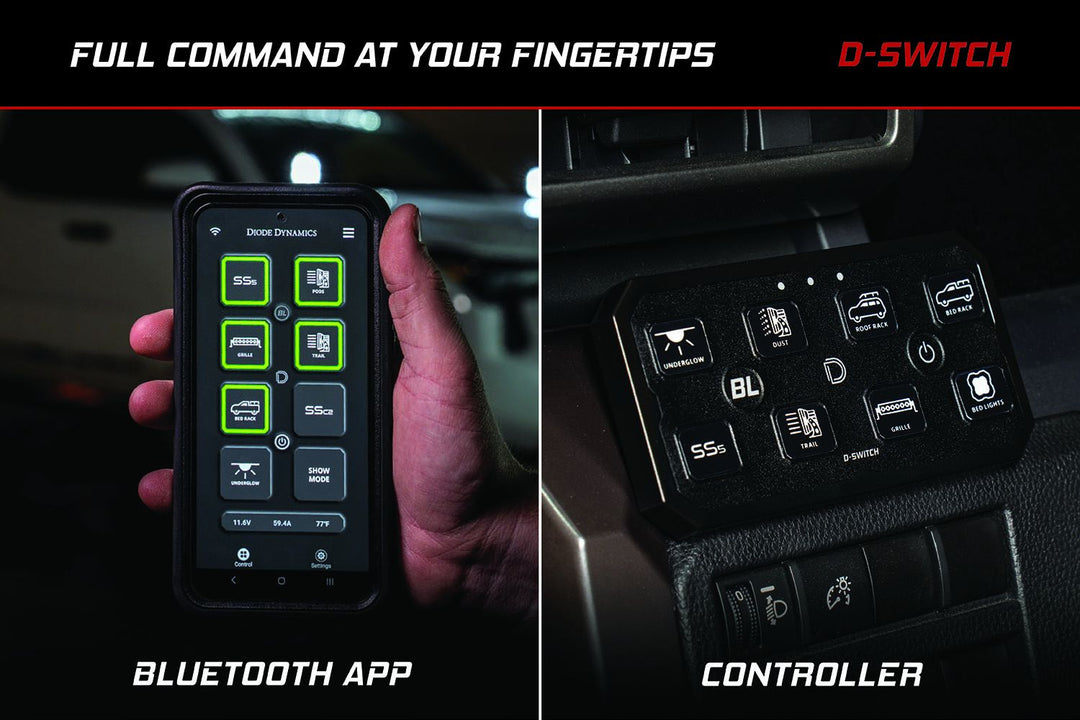

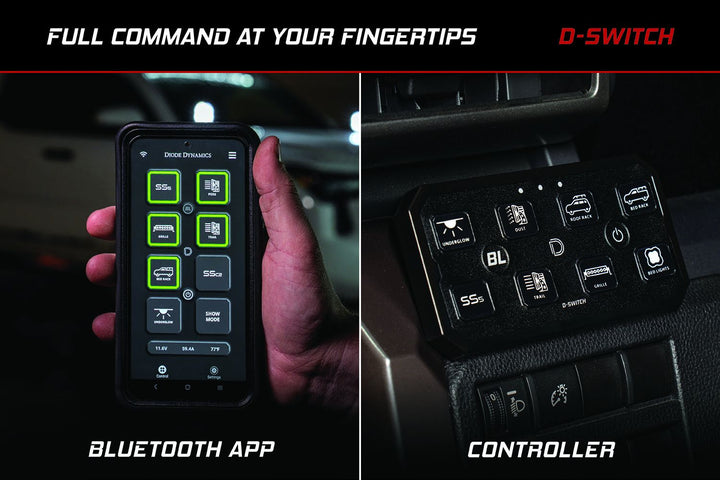

Bluetooth app: Fast, responsive app with no lag or loading screens.
-
Solid-state design: Fully encapsulated electronics for extreme durability.
-
OEM signal integration: Three trigger wires plus ignition and night mode for factory-like operation.
-
USA assembly: Engineered and assembled in the USA using globally sourced materials.
-

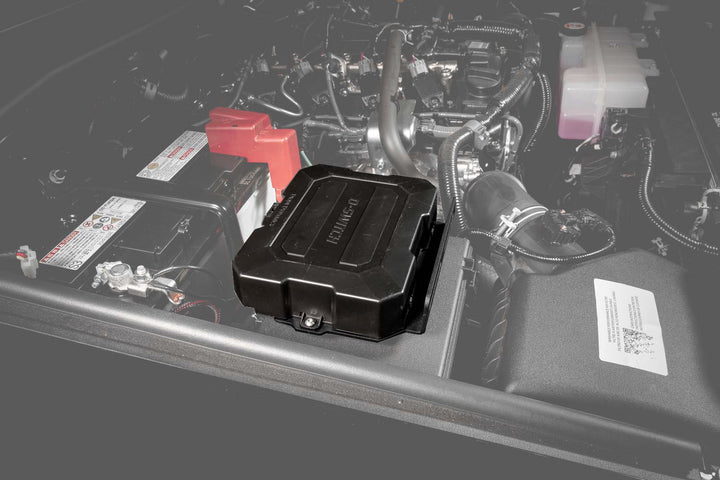

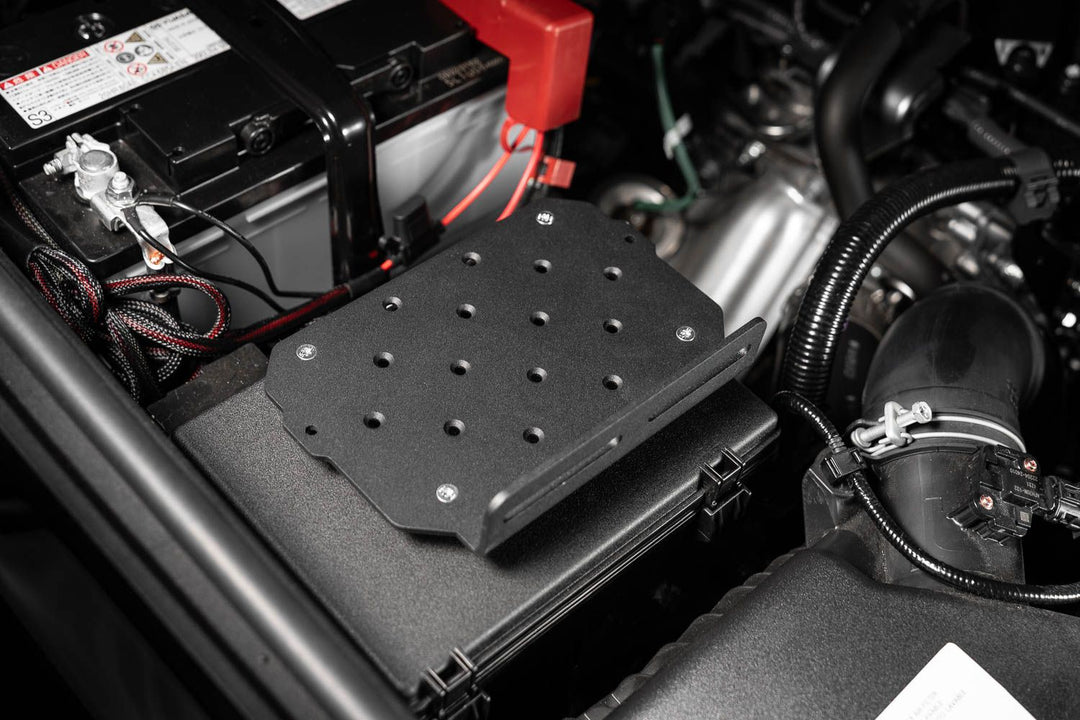

Bolt-on mounting: Installs in the Tacoma engine bay using OEM mounting points.
-
No interference: Designed to avoid the fuse box and battery for clean placement.
-
Easy access: Optimized hub placement for quick service access.
-
Heavy-duty mount: Powdercoated 10-gauge stainless steel construction.
Specifications
-

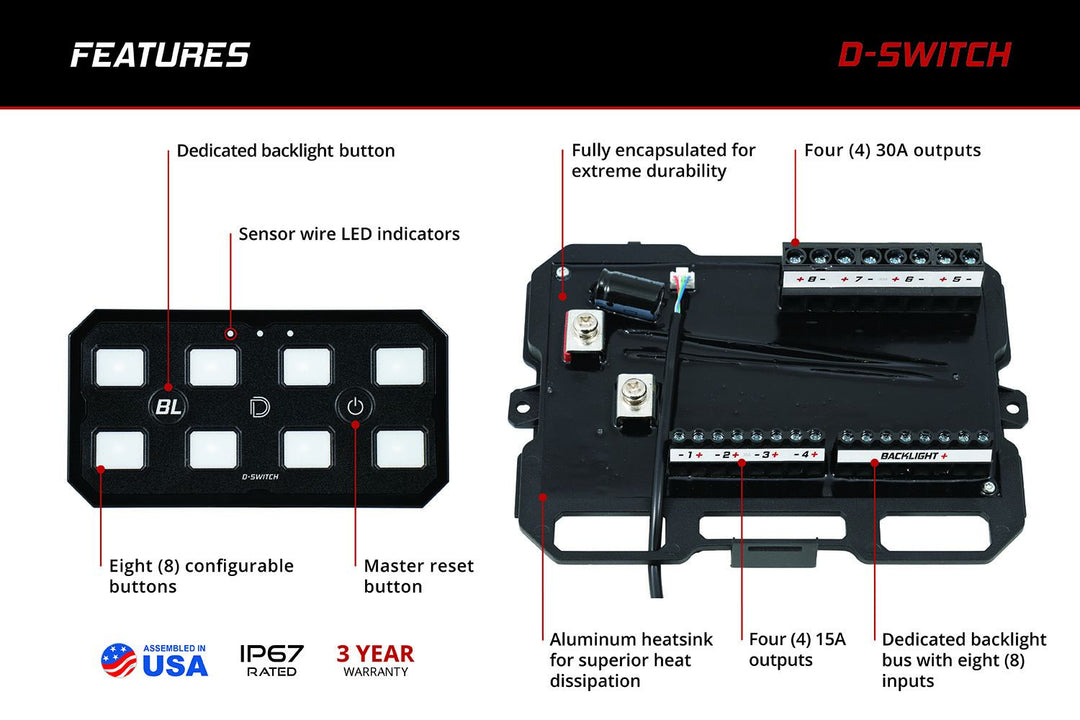

Channel power: Channels 1–4: 15A each; Channels 5–8: 30A each; Backlight: 15A total
-
Max current: 125A
-
Electrical compatibility: DC
-
Operating voltage: 9–16V
-
Wire size: 4AWG (battery), 22AWG (sensors), 26AWG (controller)
-
Operating temperature: -40°C to 120°C (-40°F to 250°F)
-
Materials: FR4 PCB, powdercoated steel, aluminum casting, ASA plastic
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP67 weatherproof
-
FCC ID: 2BPIL-DD8373
-

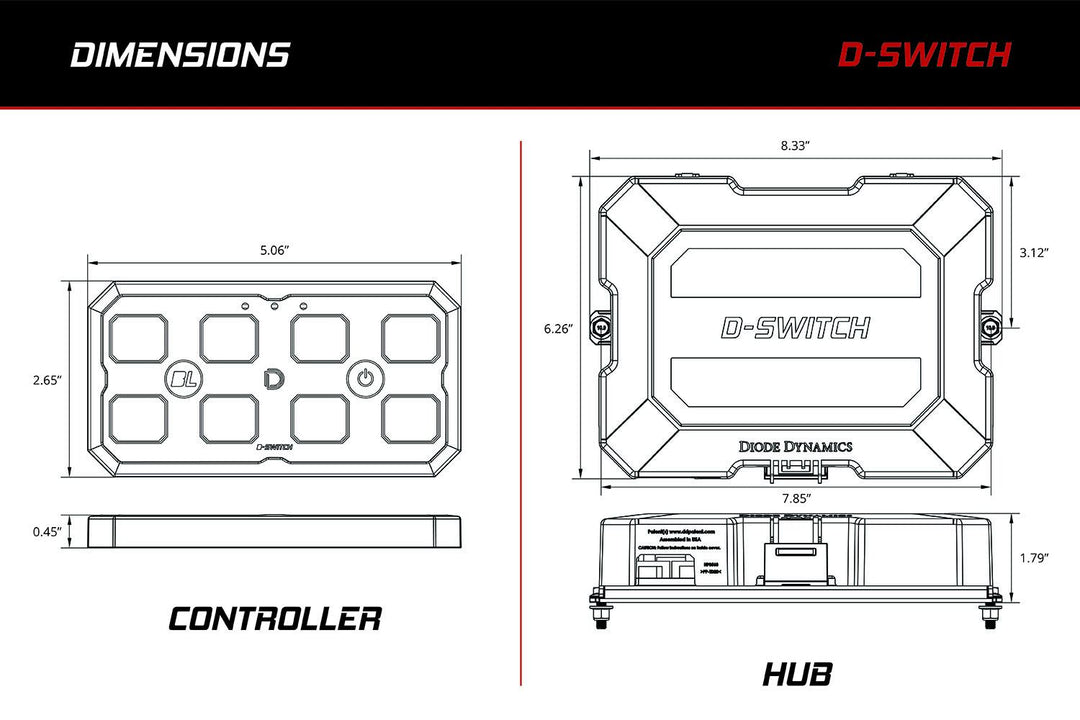

Dimensions: Controller 5.06" x 2.66" x 0.45"; Hub 8.33" x 6.26" x 1.79"
-
Unit weight: 1.9 lb
-
Product weight: 4.7 lb
-
Shipped weight: 9.4 lb
Fitment
-
Application: Off-road
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)
Included in the box

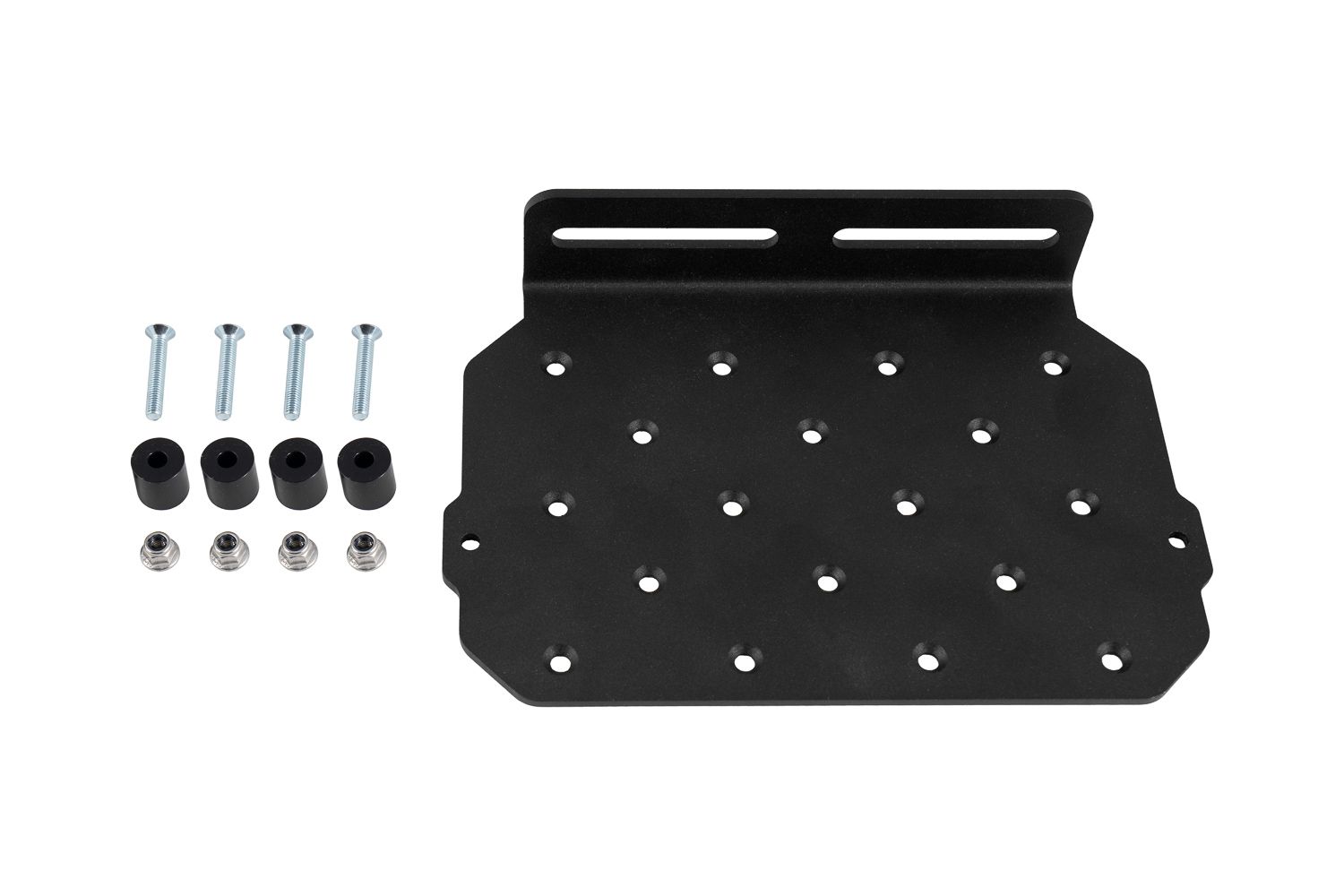

Bracket only
-
Hub bracket: One (1) universal D-Switch hub bracket
-
Spacers: Four (4) 15mm spacers
-
Hardware: Installation hardware

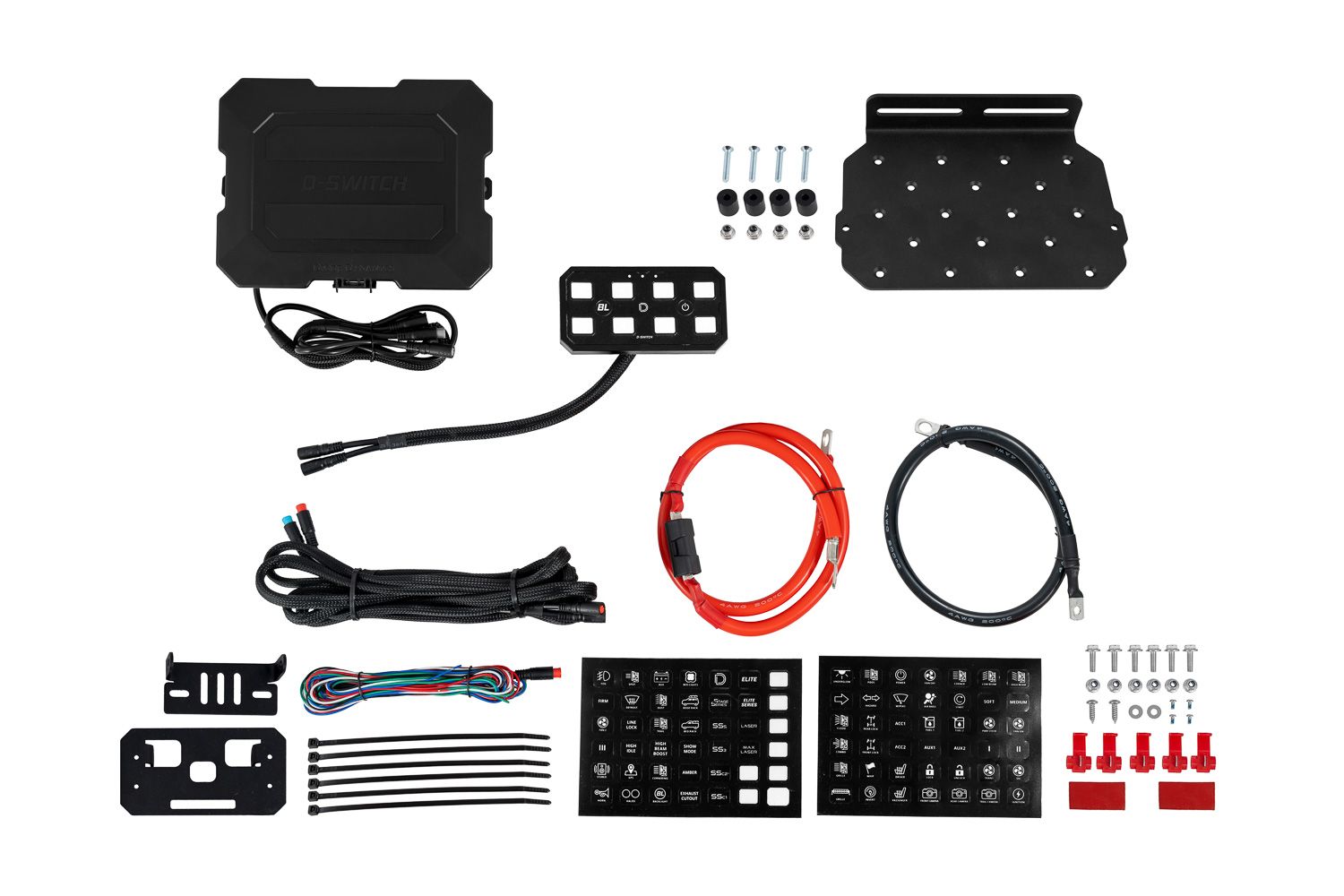

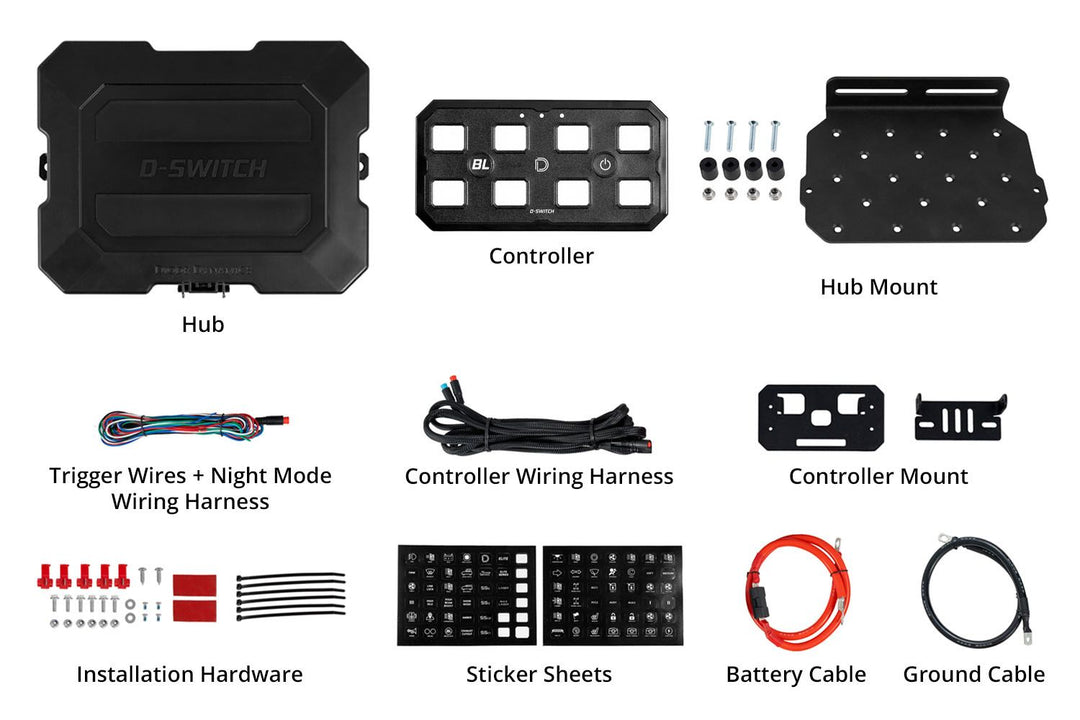

D-Switch with bracket
-
Hub: One (1) switch panel hub
-
Controller: One (1) switch panel controller
-
Controller mount: One (1) universal mounting bracket
-
Hub bracket: One (1) universal D-Switch hub bracket
-
Controller harness: One (1) 10-foot wiring harness
-
Trigger harness: One (1) trigger wires + night mode wiring harness
-
Battery cable: One (1) 3-foot 4AWG cable
-
Ground cable: One (1) 3-foot 4AWG cable
-
Stickers: Two (2) button sticker sheets
-
T-taps: Five (5)
-
Zip ties: Six (6)
-
Spacers: Four (4) 15mm spacers
-
Adhesive: Double-sided tape
-
Hardware: Installation hardware
-
Documentation: Installation & programming guide
Additional details
-
Quantity: One (1)
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Warranty: 3-year warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
