Add serious rear visibility and safety to your Tacoma with the Stage Series C1R HitchMount Reverse Light Kit. Designed to mount directly into your trailer hitch receiver, this kit adds a powerful reverse light, an additional red running light, and a high-output 4th brake light—all in a compact, plug-and-play setup that installs in minutes.
Important note
-
Hitch requirement: Trailer hitch must have an open back for installation
-
Lighting disclaimer: This product is not intended to replace factory tail lamps
-
Locking pin option: Using a locking trailer pin requires a minor modification

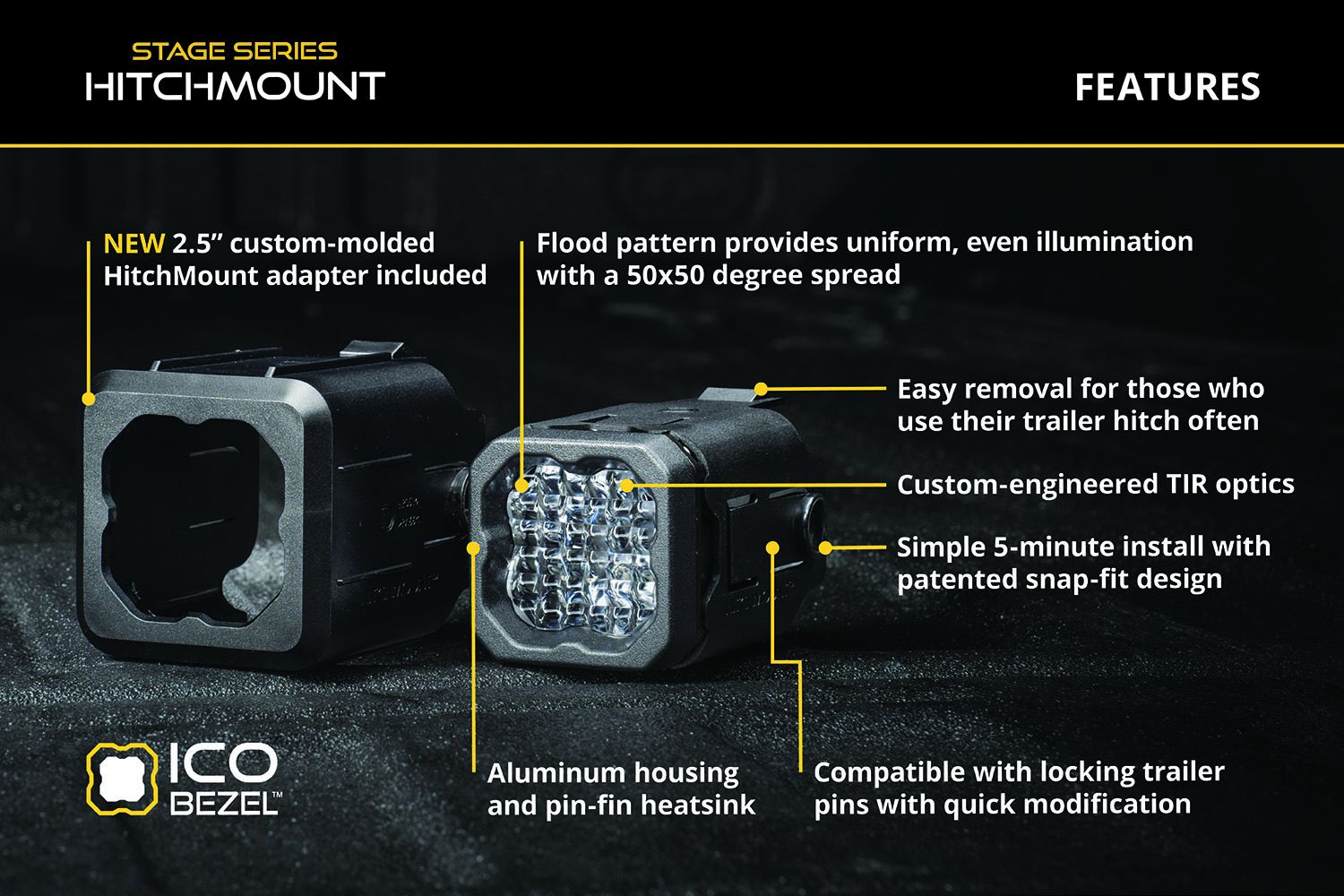

Features
-

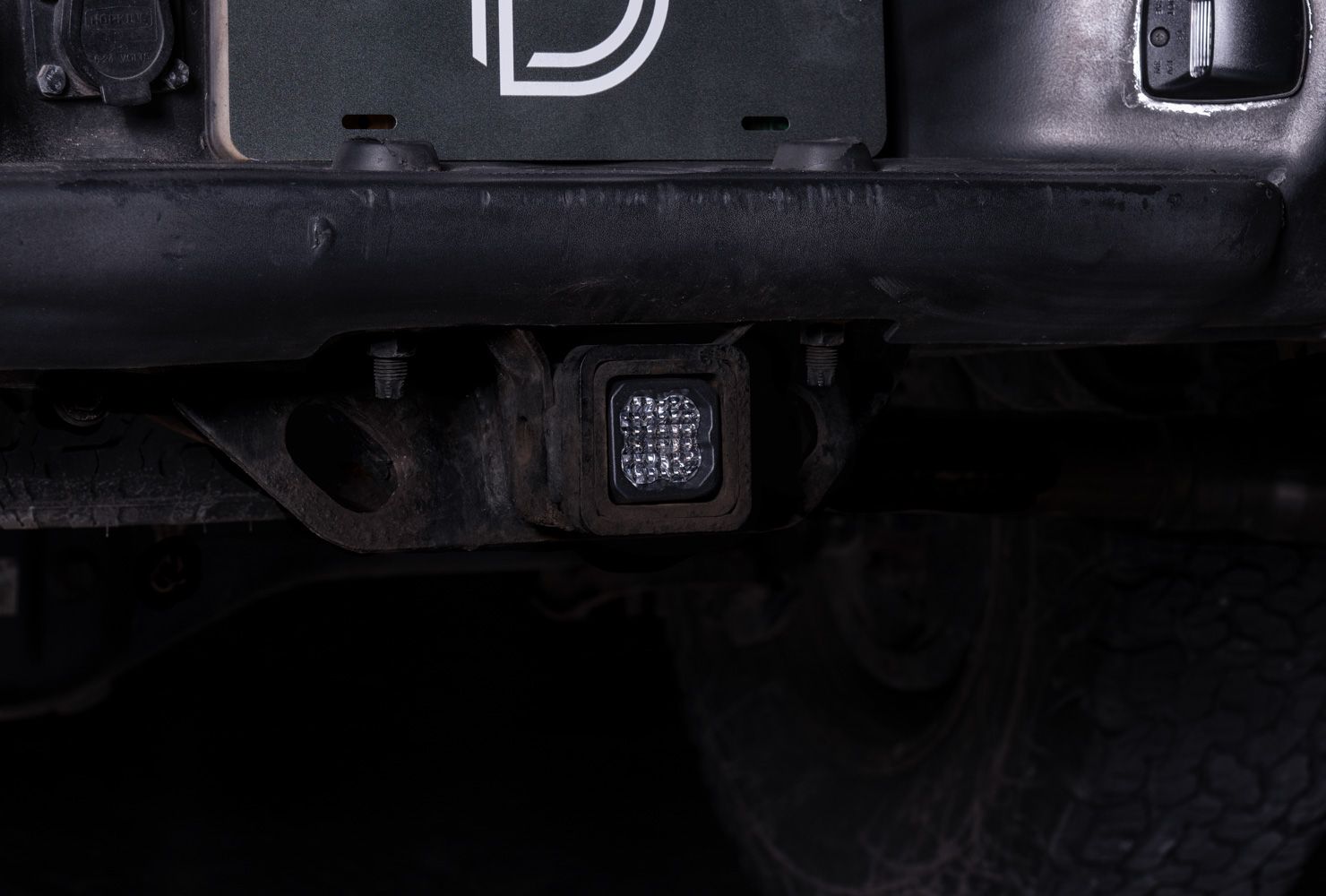

Hitch-mounted design: Mounts a single C1R LED pod in the trailer hitch receiver
-
Multi-function lighting: Adds a reverse light, 4th brake light, and running light
-
Quick installation: Installs in approximately 5 minutes with no custom wiring
-
SafetyStrobe option: Optional brake light strobing for increased visibility
-
Plug-and-play wiring: Harness connects directly to factory wiring
-
Made in USA: Designed and assembled in the USA using global materials

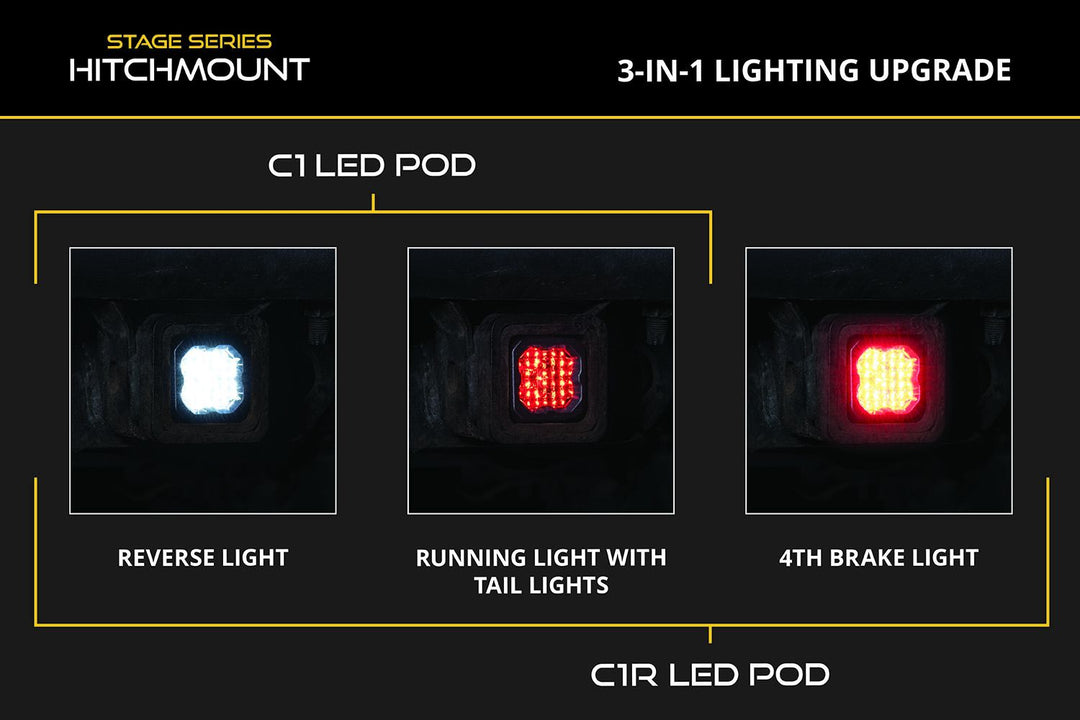

Lighting functions
-

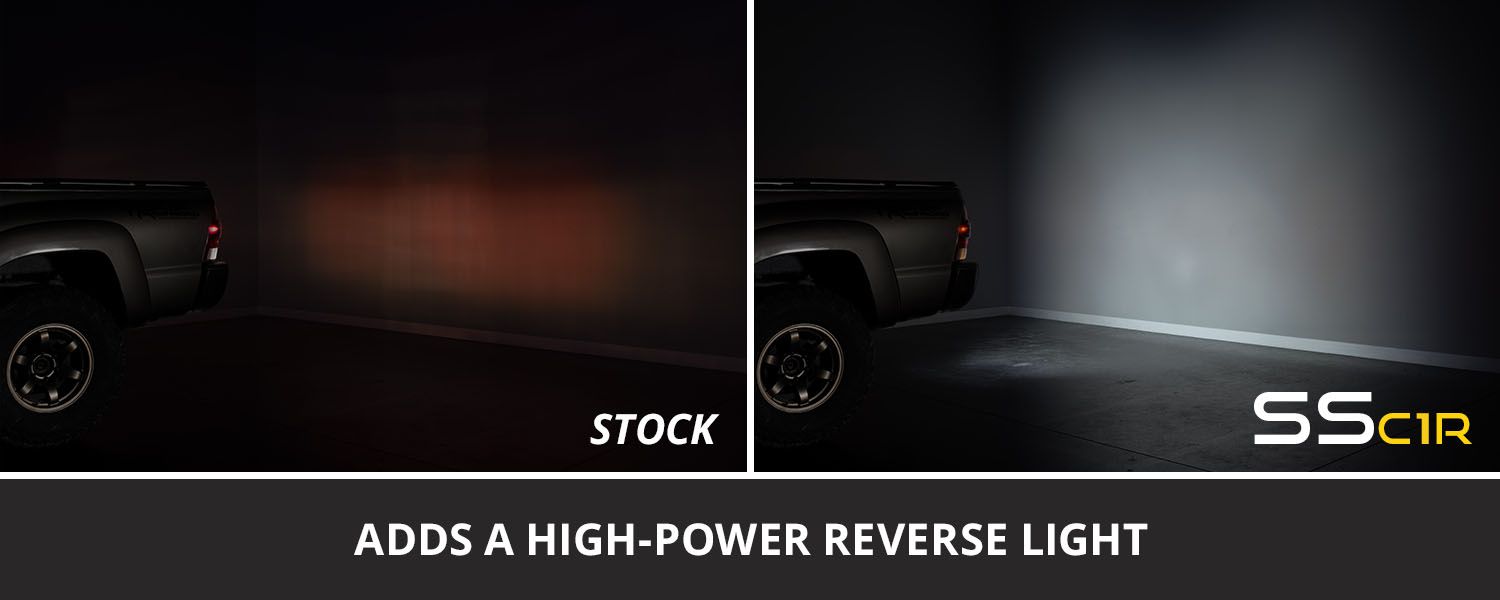

Reverse light: High-output white flood beam activates automatically in reverse
-
Running light: Red backlight operates with factory tail lights
-
4th brake light: High-power red output activates with braking
-
SafetyStrobe: Optional brake strobing for increased rear visibility
Specifications
-
Measured output: 1,080 lumens
-
Beam pattern: Flood, 80° × 50°
-
Intensity: 480 candela
-
Color temperature: 6000K
-
Power consumption: 14.1 watts
-
Current draw: 1.1 amps @ 13.2V
-
Operating voltage: 9–16V
-
Operating temperature: -40°F to 185°F
-
Ingress rating: IP69K waterproof
-
LED emitters: Cree XP-L HI, Osram 1414 Pure
-
Housing materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
Vehicle fitment
-
Application: Backup / Reverse light
-
Make: Toyota
-
Model: Tacoma
-
Years: 2005–2015

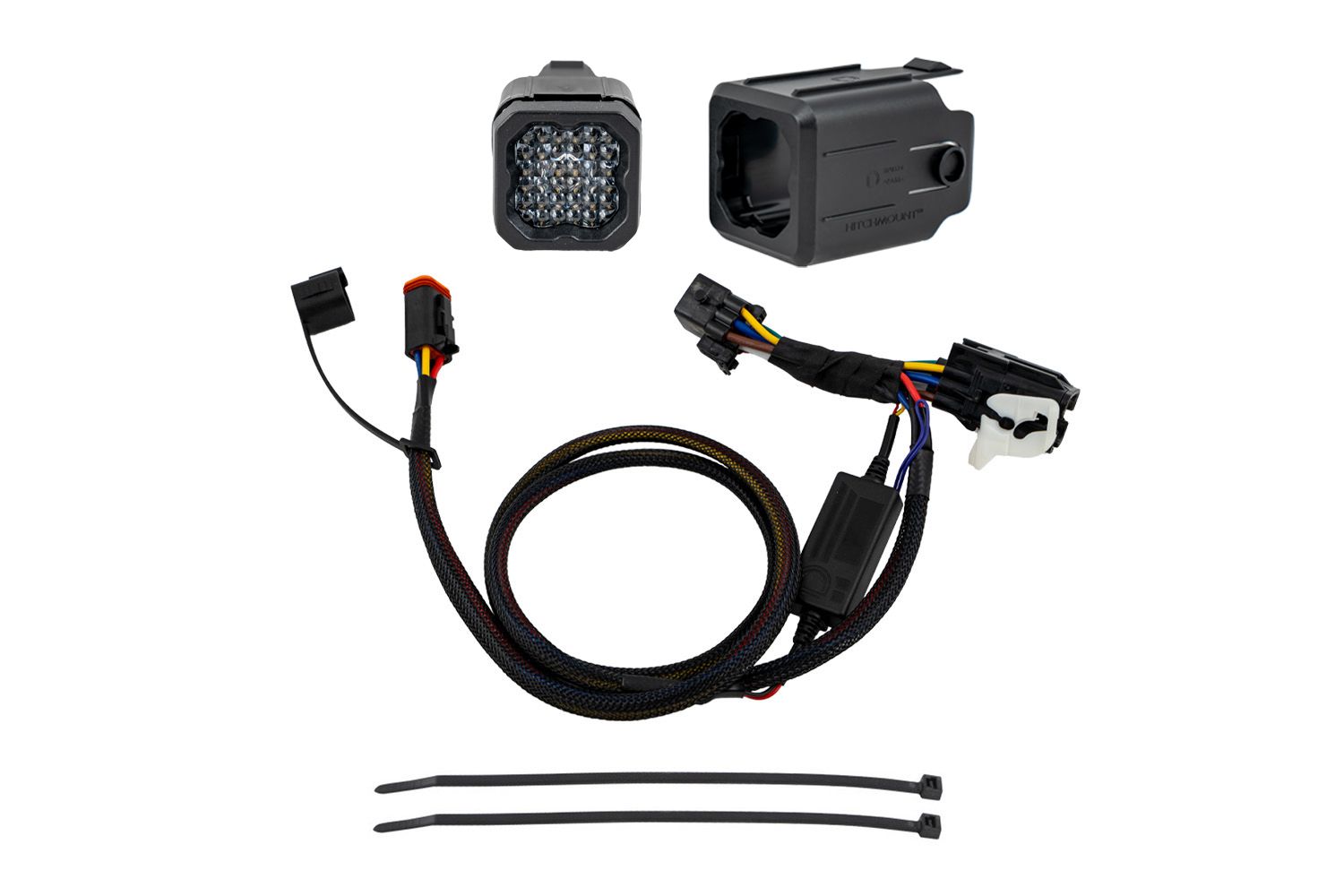

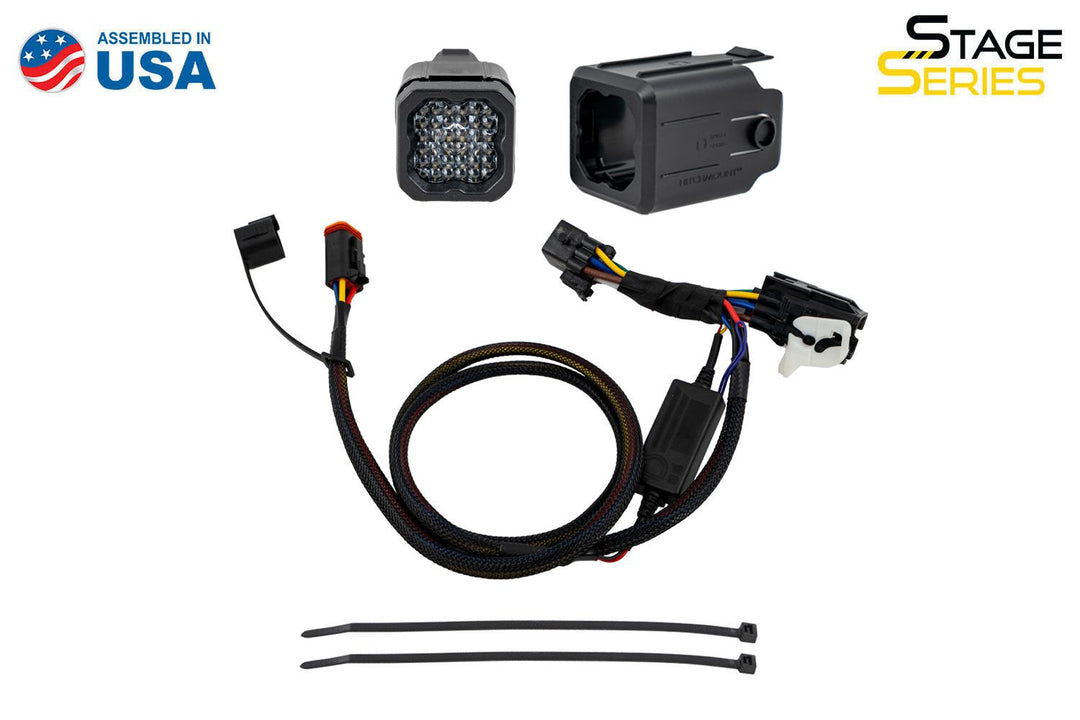

Included in the box
-

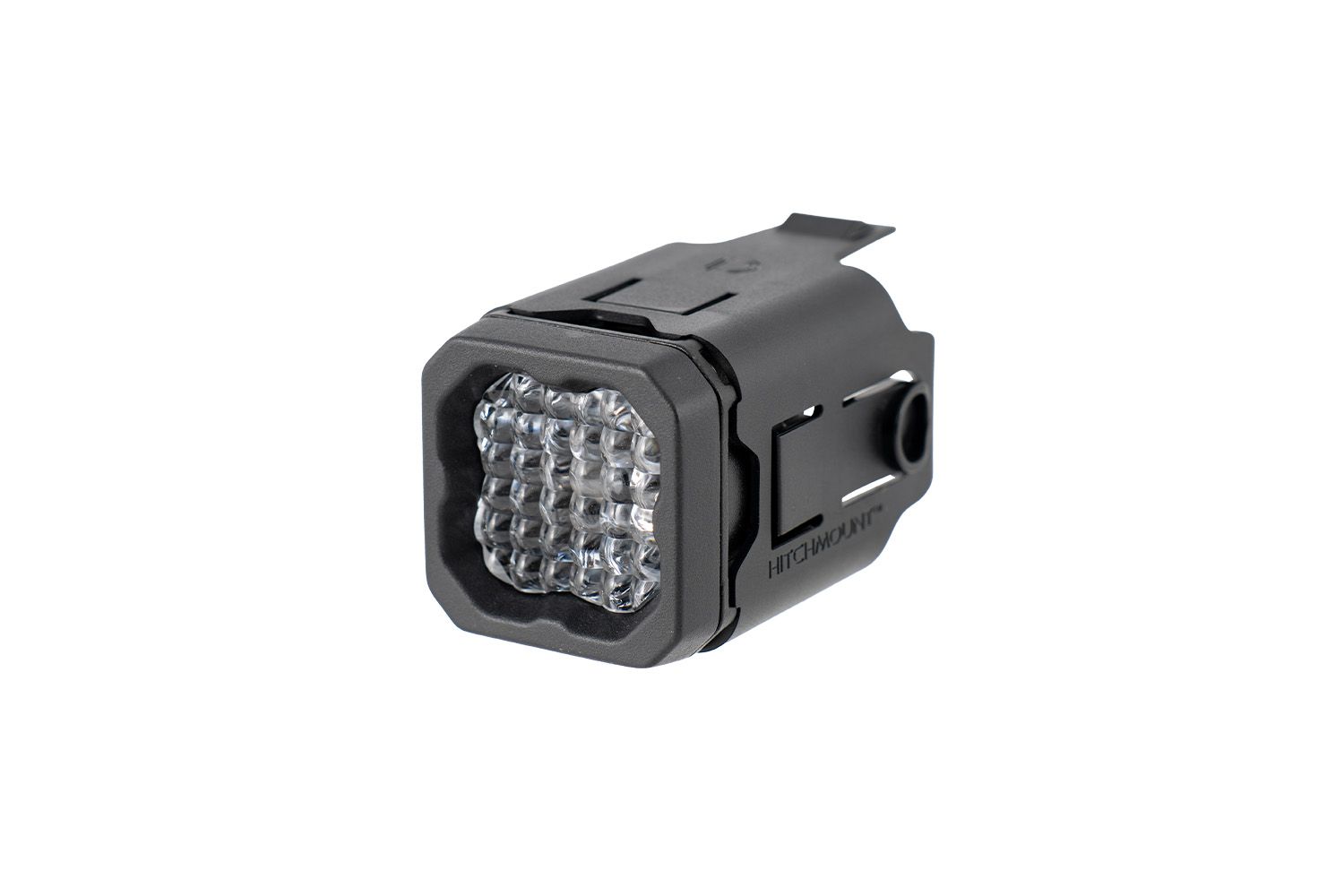

LED pod: One (1) C1R HitchMount LED pod
-

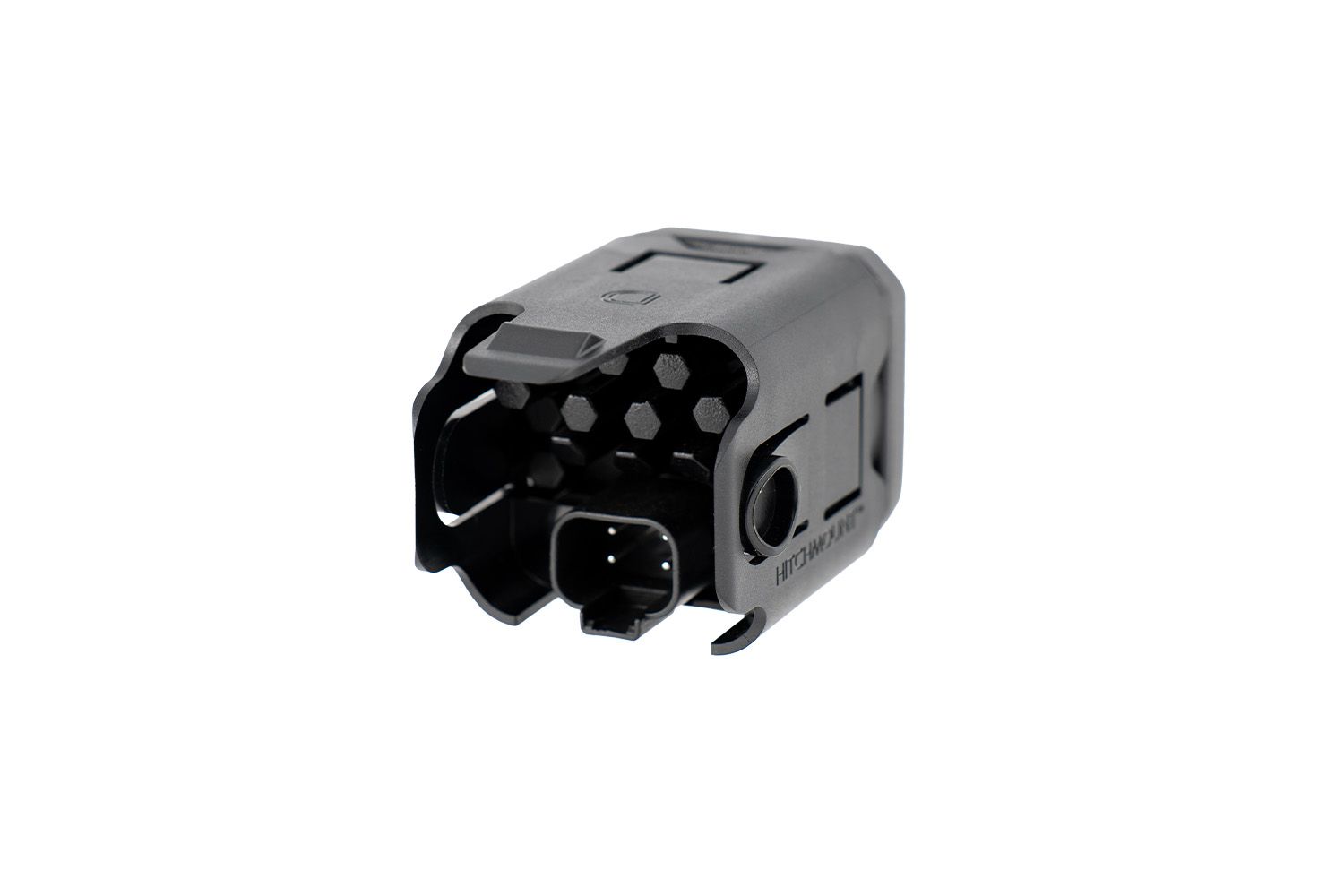

Receiver adapter: One (1) snap-in 2.5-inch receiver adapter
-
Wiring harness: One (1) C1R HitchMount harness for Toyota Tacoma (2005–2015)
-
Installation items: Two (2) zip ties and installation guide
-
Quantity: One (1) complete kit
Warranty and returns
-
Warranty: Lifetime warranty
-
Returns: 30-day return policy with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
Installation
-
Installation time: 5–10 minutes
-
Tools required: Basic toolset
-
Modification: None required
