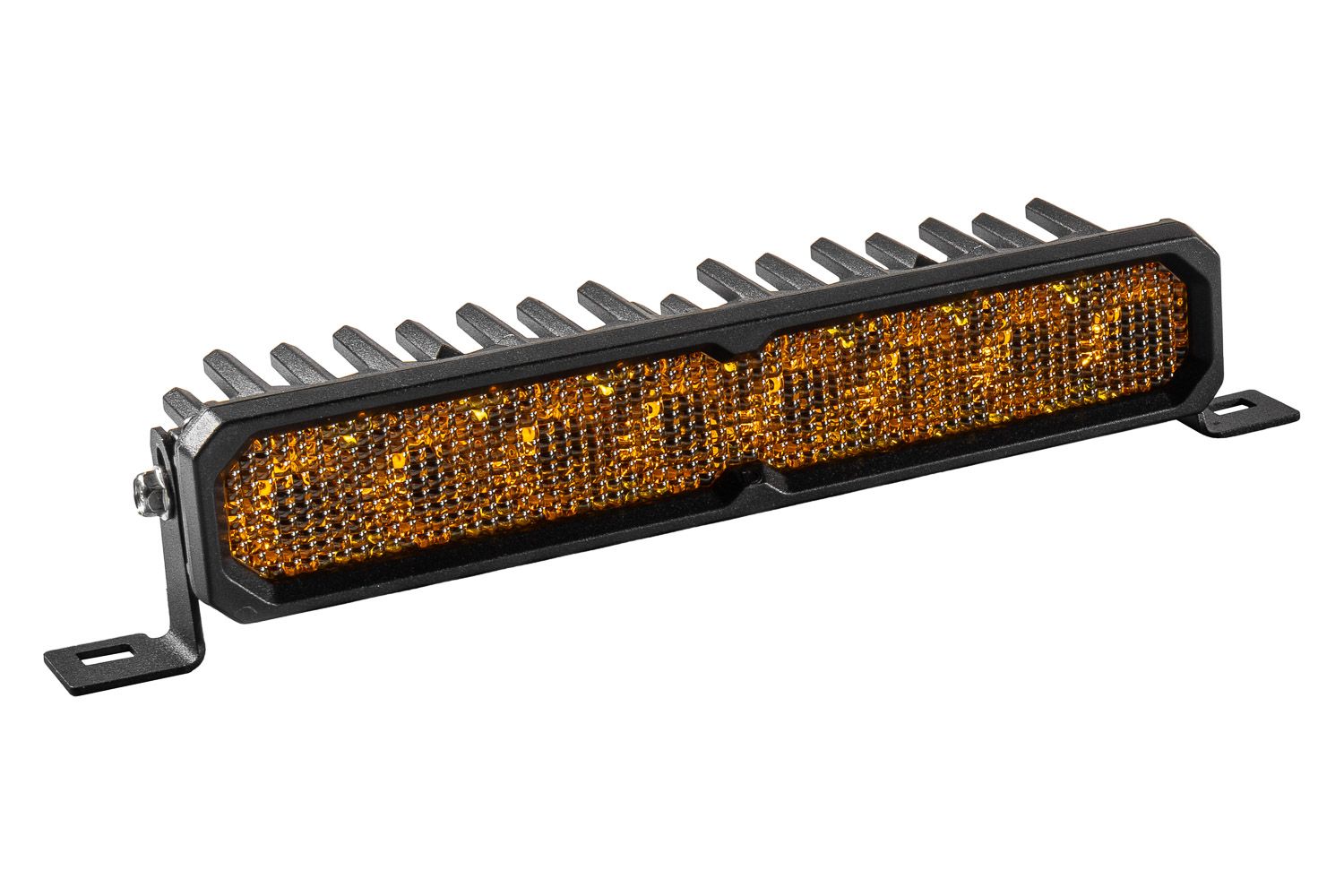

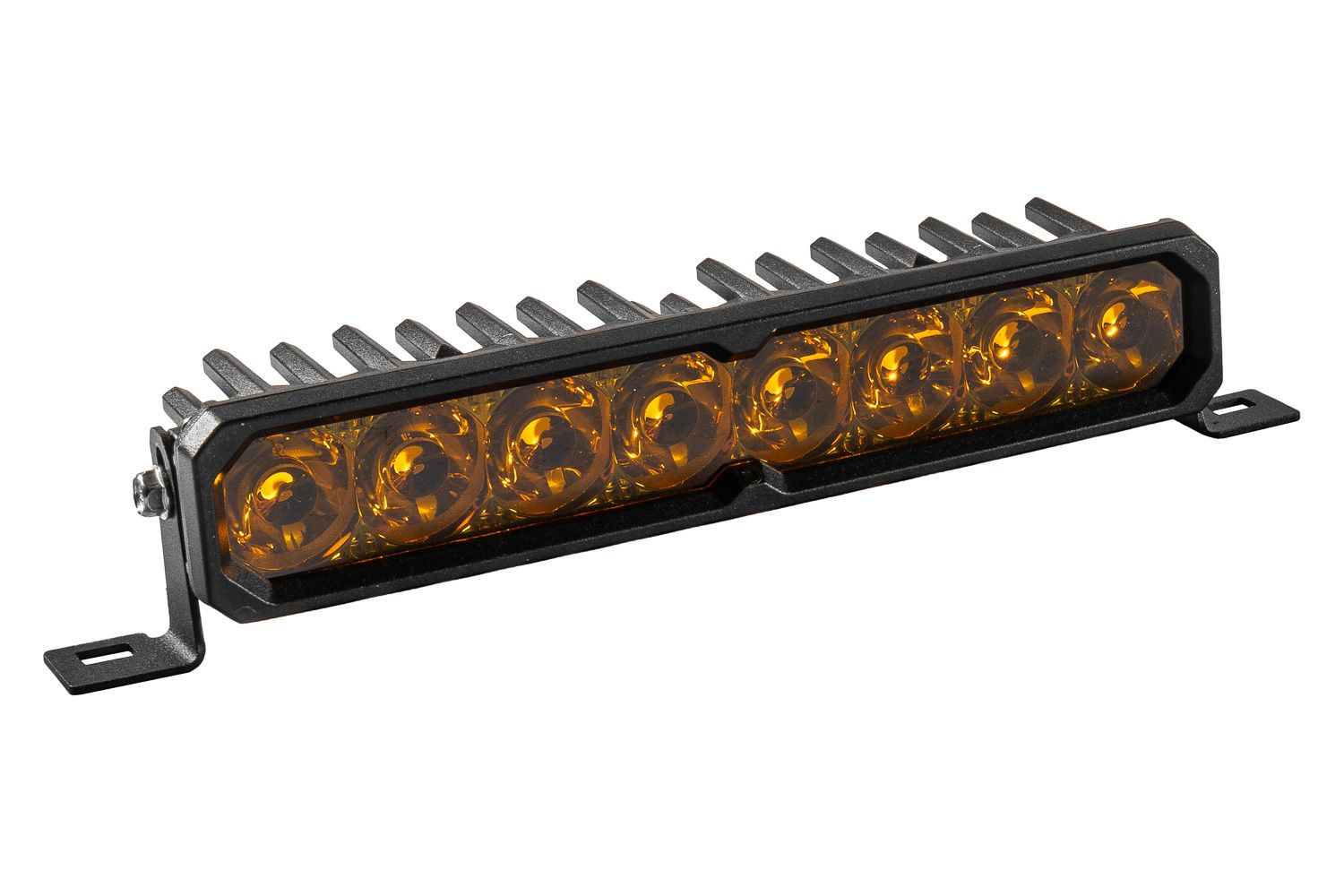

The Diode Dynamics Stage Series SS10 Yellow LED Light Bar is purpose-built for maximum visibility in harsh weather and demanding conditions. Utilizing patented TIR (Total Internal Reflection) optics, this light bar captures and directs usable light exactly where it’s needed, reducing glare while dramatically increasing efficiency. With a true 3000K yellow output, the SS10 cuts through fog, rain, snow, and dust far better than white light, making it an ideal solution for inclement weather, off-road travel, and long-distance driving. Proudly engineered and manufactured in the USA, the Stage Series sets the standard for premium performance and reliability.
Note
-
Light Output: 3000K true yellow output optimized for fog, rain, snow, and dust
-
Backlight: Amber backlight is always-on when powered (no color selection)
-
Wiring: Wiring harness sold separately unless otherwise specified
-
Lens Swaps: Lenses are swappable; emitters remain consistent across Stage Series
-
Compliance: SAE Driving pattern meets SAE J581 when installed and aimed properly (check local regulations)

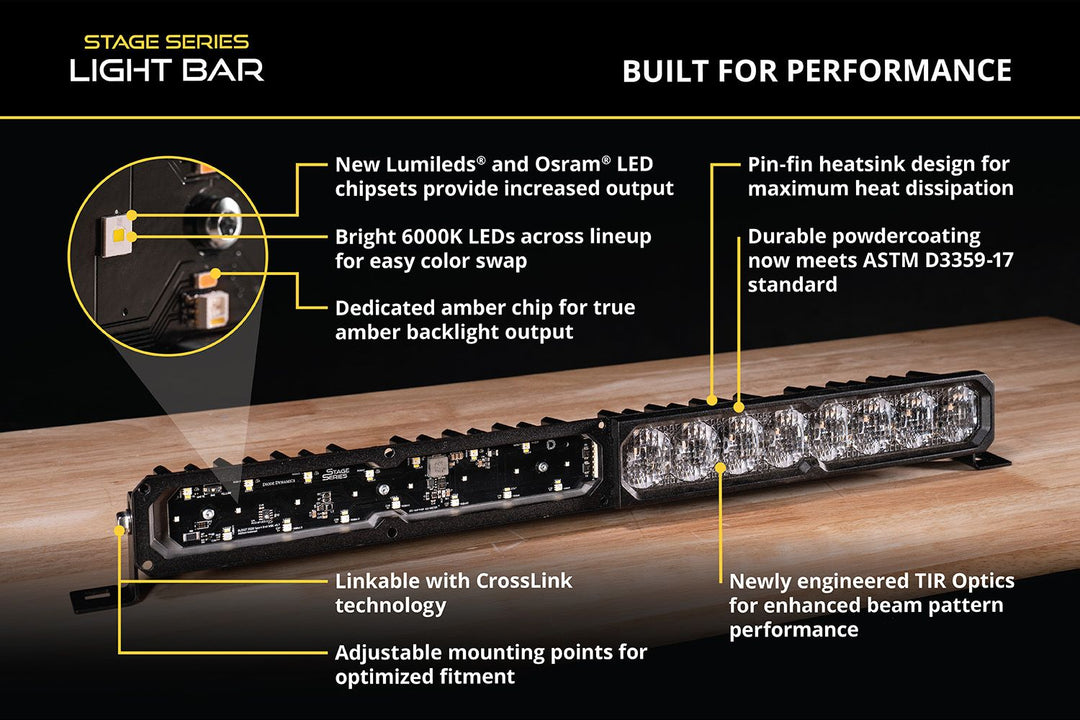

Feature
-
Optics: Patented TIR optics for maximum efficiency and controlled beam output
-
Weather Performance: 3000K yellow light reduces glare and improves visibility in inclement weather
-
Beam Patterns: Available in Combo/Driving, SAE Driving, Flood, and Spot configurations
-
Power Levels: Offered in Sport, Pro, and Max output options
-

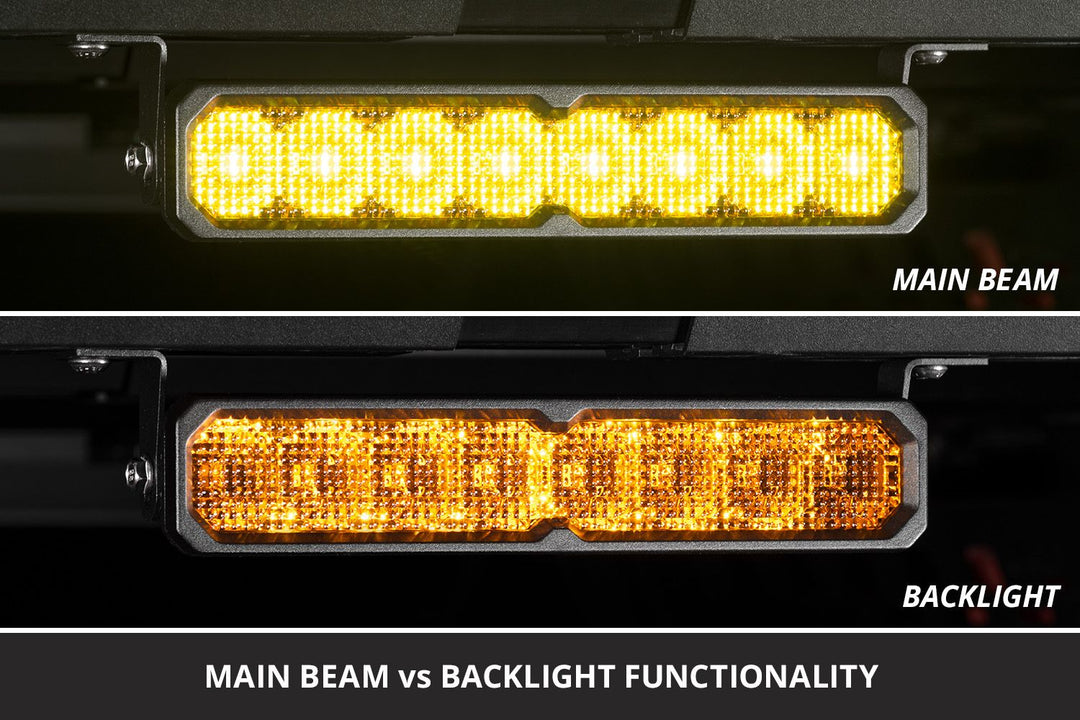

Backlight: Fully illuminated amber backlight fills the TIR optic for a distinctive appearance
-
Construction: Durable aluminum housing with ASTM-standard powder coat finish
-
Thermal Management: Copper PCB and optimized heatsinks for sustained high-output performance
-
Protection: IP69K waterproof and high-pressure wash resistant
-
Customization: Compatible with snap-on lens covers and CrossLink mounting systems
-
Manufacturing: Engineered and made in the USA with global materials
-
Warranty: Limited lifetime warranty
Specs
General
-
Color Temperature: 3000K (Yellow)
-
Operating Voltage: 9–30V
-
Ingress Rating: IP69K
-
Operating Temperature: -40°F to 185°F
-
Connector: Deutsch DT
-
Cooling: Passive heatsink
-

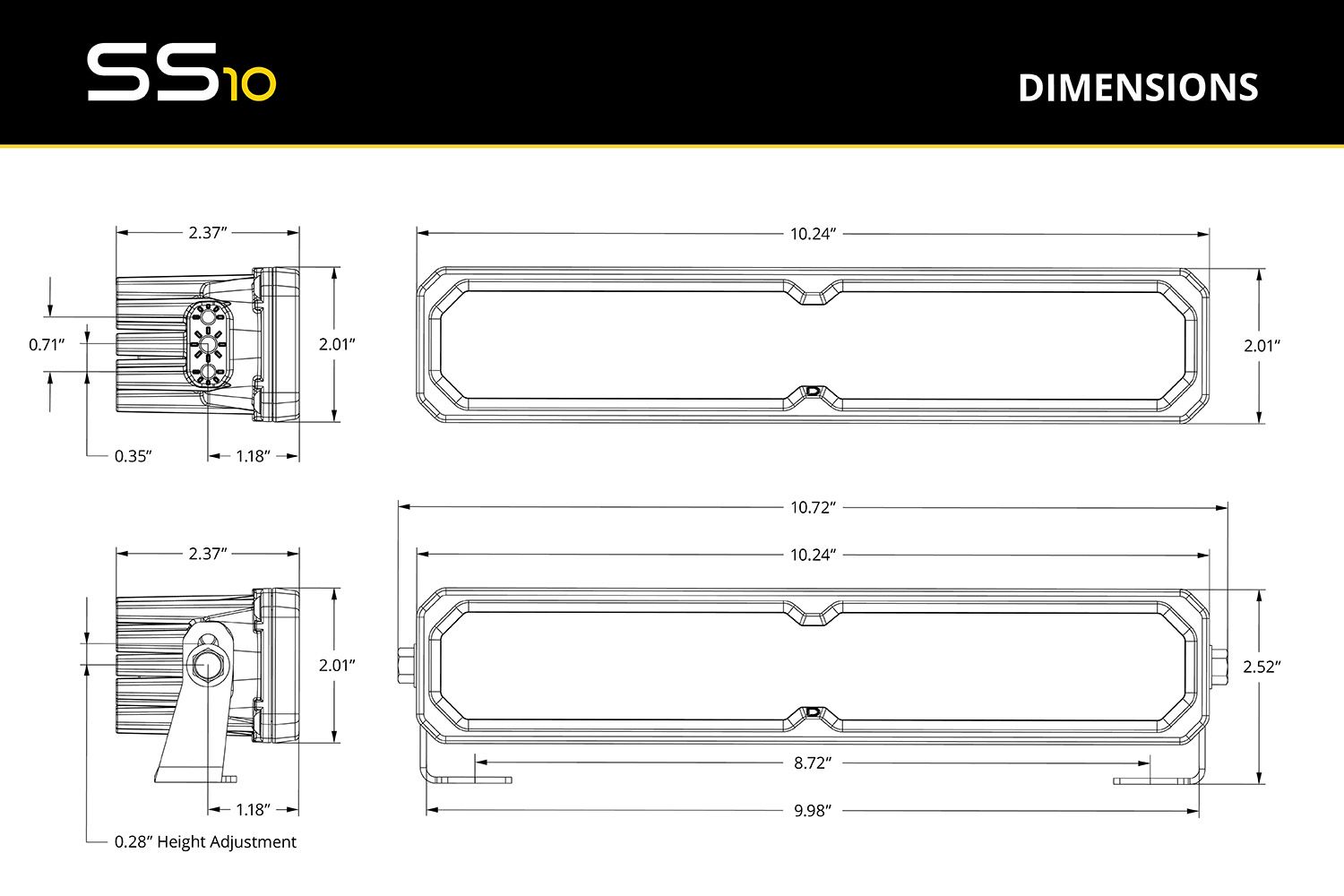

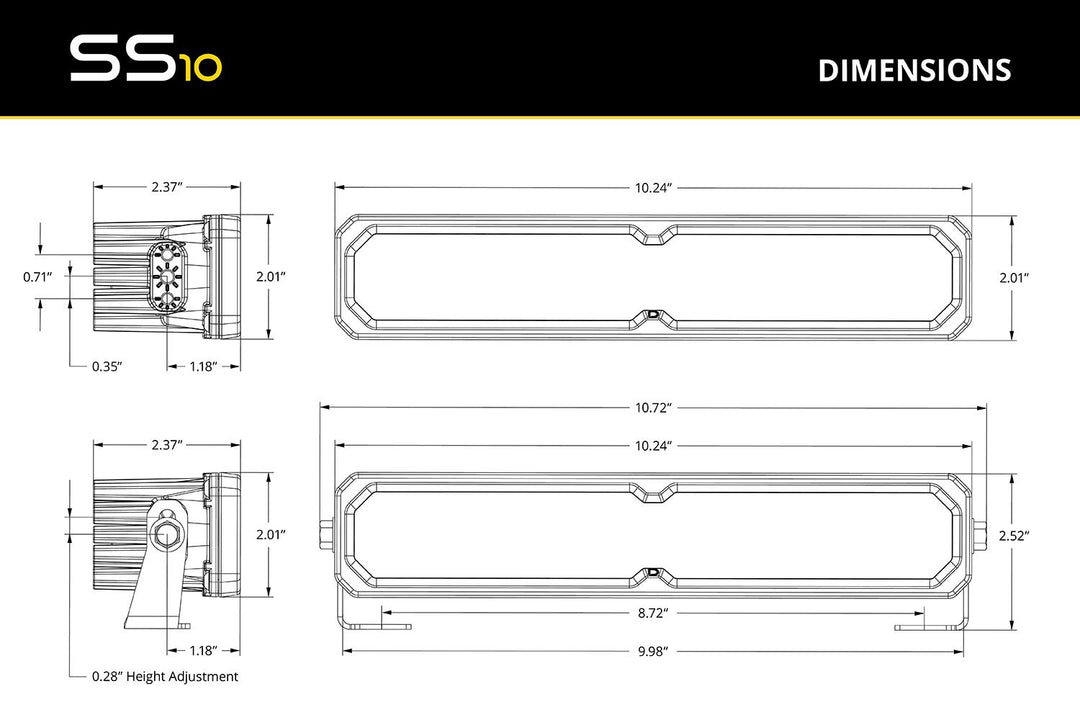

Dimensions: 2.01" x 10.24" x 2.37"

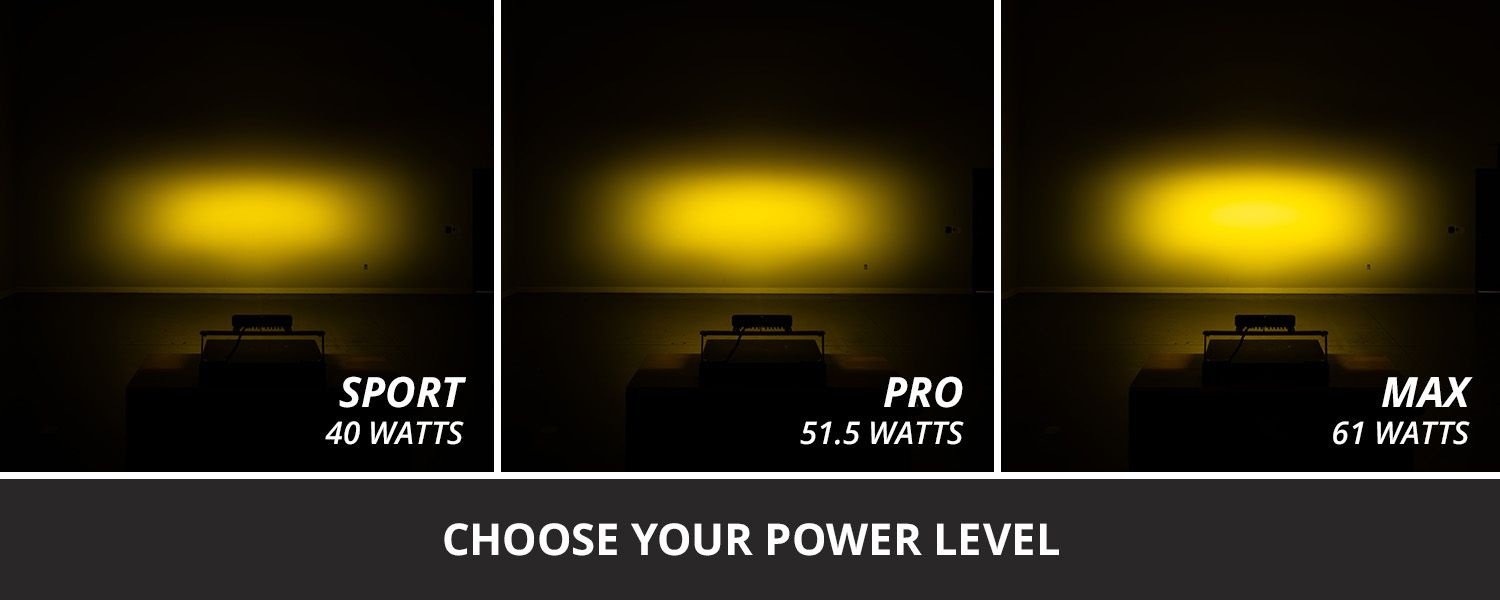

Power Output
-
Sport: 40W / 3.13A
-
Pro: 51.5W / 4.00A
-
Max: 61W / 4.77A

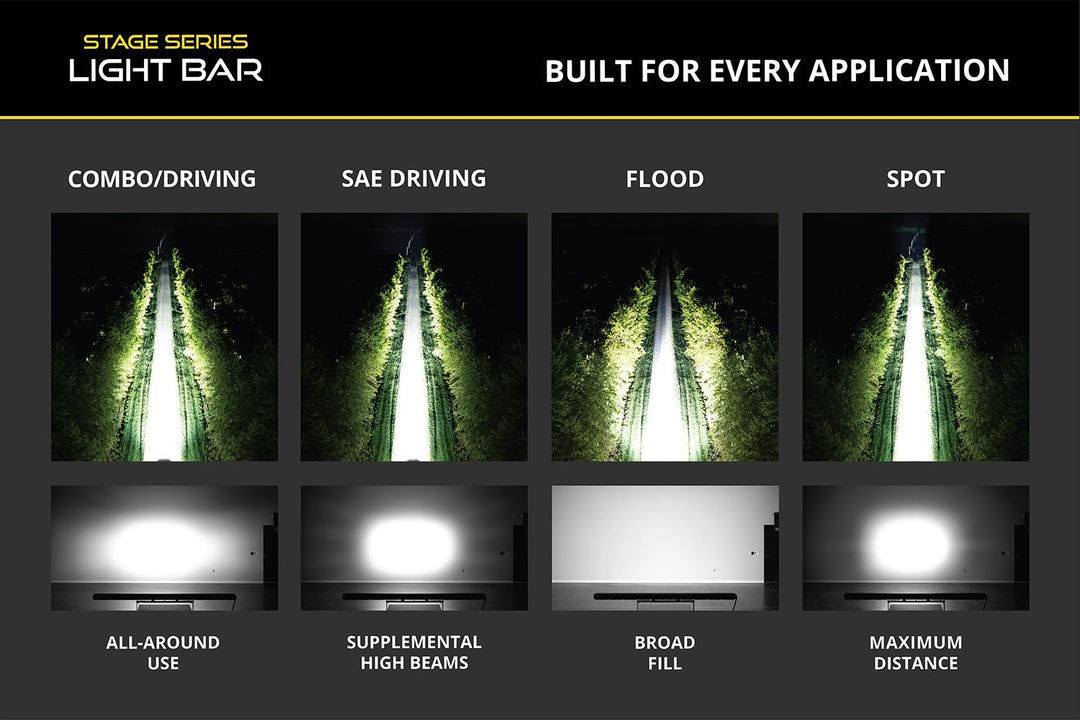

Beam Angles
-
Combo/Driving: 60° x 30°
-
SAE Driving: 20° x 12°
-
Flood: 100° x 80°
-
Spot: 8° x 8°
In the Box
-
Light Bar: One (1) Stage Series SS10 Yellow LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal bracket set
Installation
-
Install Time: 30–60 minutes
-
Tools Required: Basic hand tools
