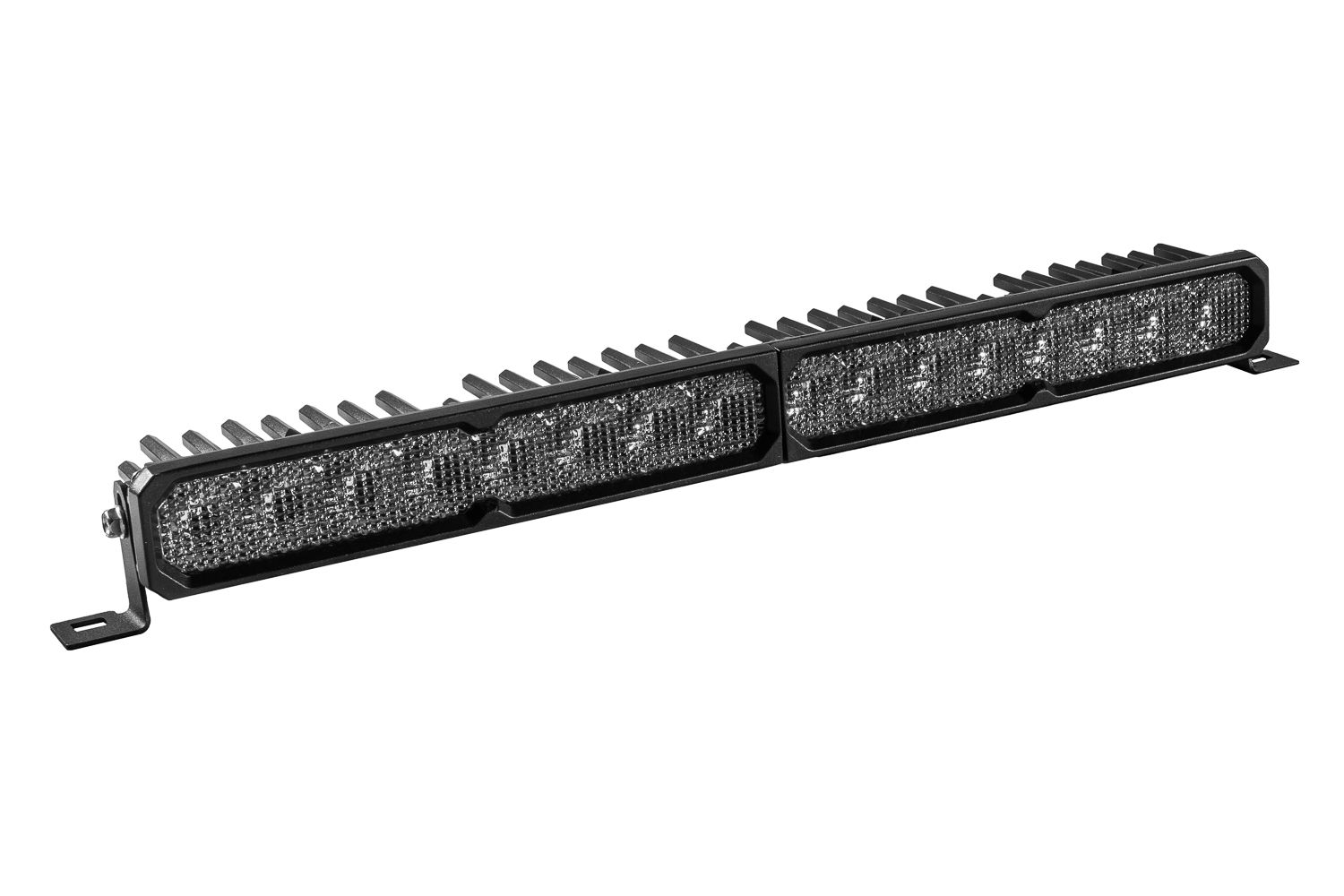

Diode Dynamics SS20 White LED Light Bar (one)

See further and go faster with the SS20 Stage Series LED Light Bar. Designed from the ground up for maximum performance, this compact light bar delivers exceptional output, precise beam control, and modern styling with advanced backlight functionality. Built around patented TIR optics and automotive-grade components, the SS20 offers unmatched intensity, configurability, and reliability for both off-road and on-road auxiliary lighting applications.

Features

• Optical efficiency: Patented TIR (Total Internal Reflection) optics capture and focus nearly all available light, increasing usable output while reducing glare and wasted light
• Focused beam patterns: Multiple beam options are engineered for real-world performance, providing controlled output tailored to driving, off-road, work, or high-speed applications
• Performance-driven design: Advanced optical, thermal, and circuit board technologies work together to deliver more output than traditional reflector-based light bars
• Thermal management: High-power models use copper circuit boards, optimized heatsinks, and thermal transfer materials to maintain peak performance under demanding conditions
• Multiple power levels: Available in Sport and Pro configurations, using high-intensity automotive-grade LED emitters for exceptional focus and output
• Selectable beam patterns: Offered in Combo/Driving, SAE Driving, Flood, and Spot patterns to suit a wide range of lighting needs
• Combo/Driving pattern: Blends distance and width into a balanced 60° × 30° beam using precision pillow optics for smooth, even illumination
• SAE Driving pattern: Broad-spot 20° × 12° beam supplements high beams and meets SAE J581 standards when properly aimed
• Flood pattern: Wide 100° × 80° spread provides uniform illumination for low-speed use, work areas, campsites, or reverse lighting
• Spot pattern: Tight 8° × 8° beam delivers long-distance visibility for high-speed driving and open terrain
• Backlight functionality: Fully illuminated backlight fills the TIR optic for a bold, modern accent not found on traditional light bars
• SmartSelect backlight: Selectable 8-color backlight with dynamic startup sequence, including a dedicated amber chip for accurate color matching
• Standard backlight option: Amber-only backlight available on non-SmartSelect models for increased visibility when stopped on the trail
• Lens configurability: Swappable lenses allow easy changes between white and yellow output without color variation
• Snap-on lens covers: Optional snap-on covers available in multiple colors for added protection and customization
• CrossLink compatible: Supports CrossLink mounting to connect multiple bars or create curved configurations
• Extreme durability: Aluminum housing with ASTM-standard powdercoat finish and IP69K waterproof rating
• Made in USA: Engineered and manufactured in the USA using globally sourced materials
• Warranty coverage: Backed by a limited lifetime warranty

In the box

• One (1) SS20 LED light bar
• One (1) wire pigtail
• Universal bracket set

Specifications

• Color temperature: 6000K
• Operating voltage: 9–30V
• Operating temperature: -40°F to 185°F
• Ingress rating: IP69K waterproof
• Cooling: Passive heatsink
• Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
• Dimensions: 2.01 × 20.24 × 2.37 in

Output (per bar):

• Sport: 7,376 raw lumens
• Pro: 25,088 raw lumens

Warranty and returns

• Warranty: Lifetime warranty
• Returns: 30-day return with no restocking fee
• Guarantee: 100% satisfaction guarantee

Installation

• Install time: 30–60 minutes
• Tools required: Basic toolset
