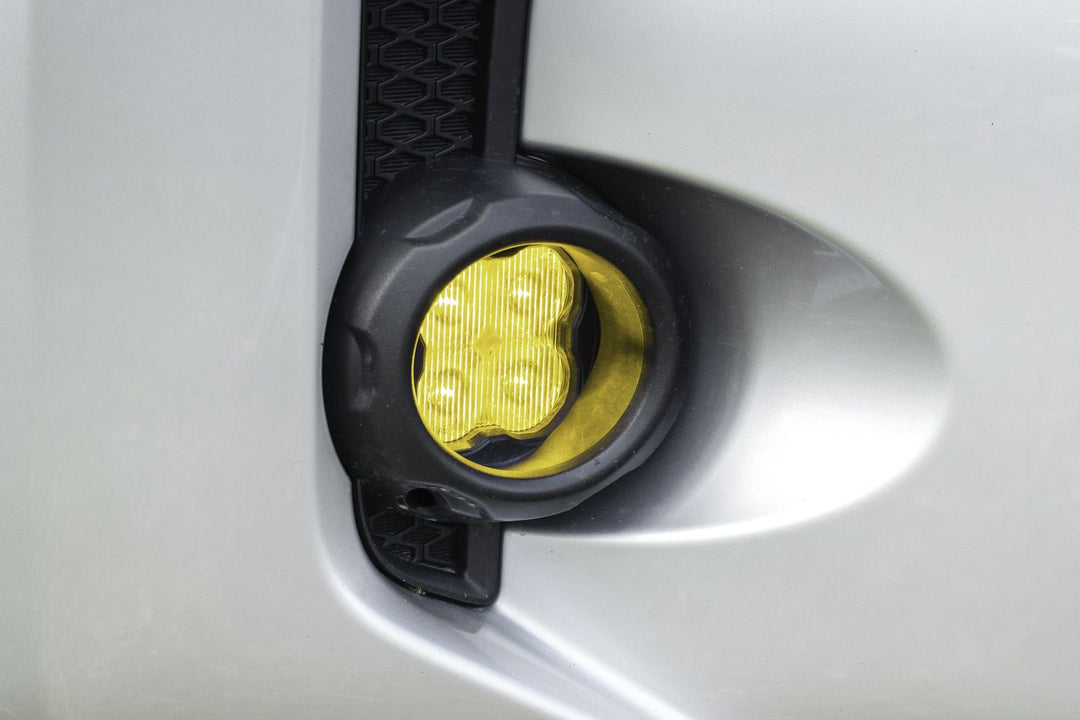

Upgrade the factory fog lights on your Toyota 4Runner with the SS3 Fog Light Bracket Kit—engineered to deliver more usable light than any other 3-inch fog solution on the market while maintaining a clean, factory-style appearance. Designed with advanced TIR optics, SAE-compliant beam patterns, and true plug-and-play installation, this kit is a massive performance upgrade without the hassle.
Important notes
-
Road-Legal: SAE J583 compliant fog light output when properly aimed
-
Compatibility: Fits all 4Runner trim levels including Limited, TRD Pro, and ORP
-
Installation: Direct bolt-on replacement using factory mounting locations
Features
-
Direct replacement: Designed specifically to replace factory Toyota 4Runner fog lamps
-
SAE compliant: Road-legal fog light output when installed and aimed correctly
-
Factory-style bezel: Includes angled bezels for an OEM-like appearance
-
Plug and play: Connects directly to factory fog light wiring with included adapters
-
TIR optics: Custom-engineered Total Internal Reflection optics for maximum efficiency and focus
-
Durable housing: Powdercoated aluminum die-cast construction for long-term reliability
-
USA assembled: Engineered and assembled in the USA using globally sourced materials

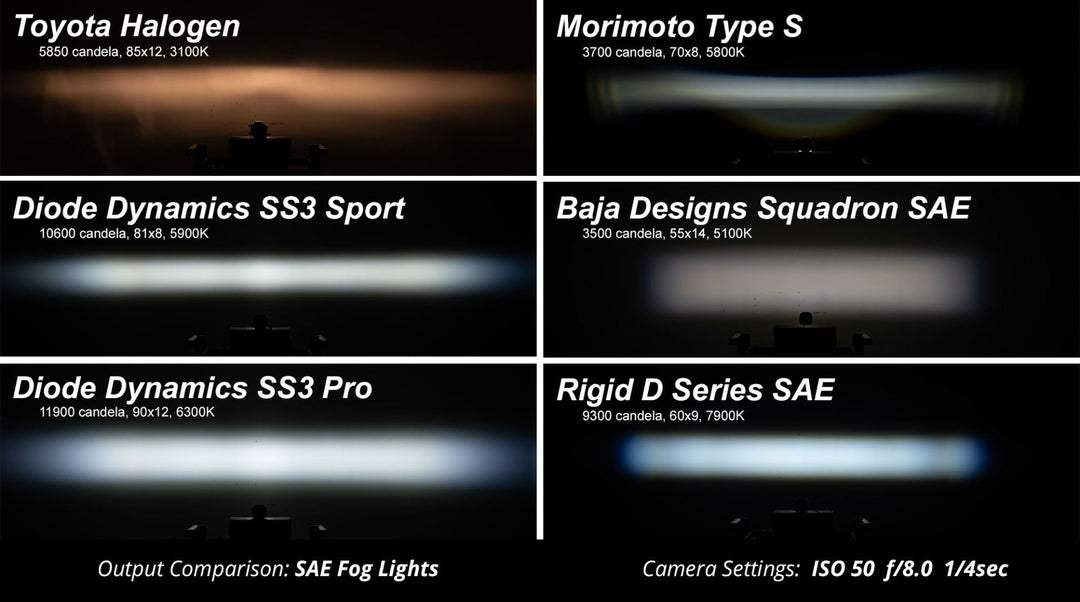

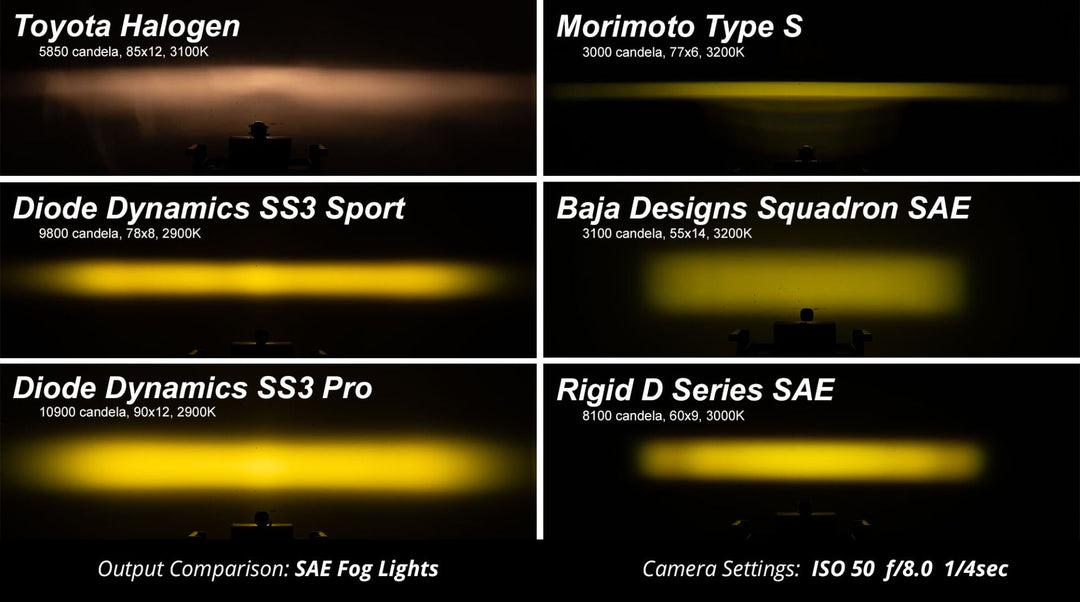

Optics and beam performance
-

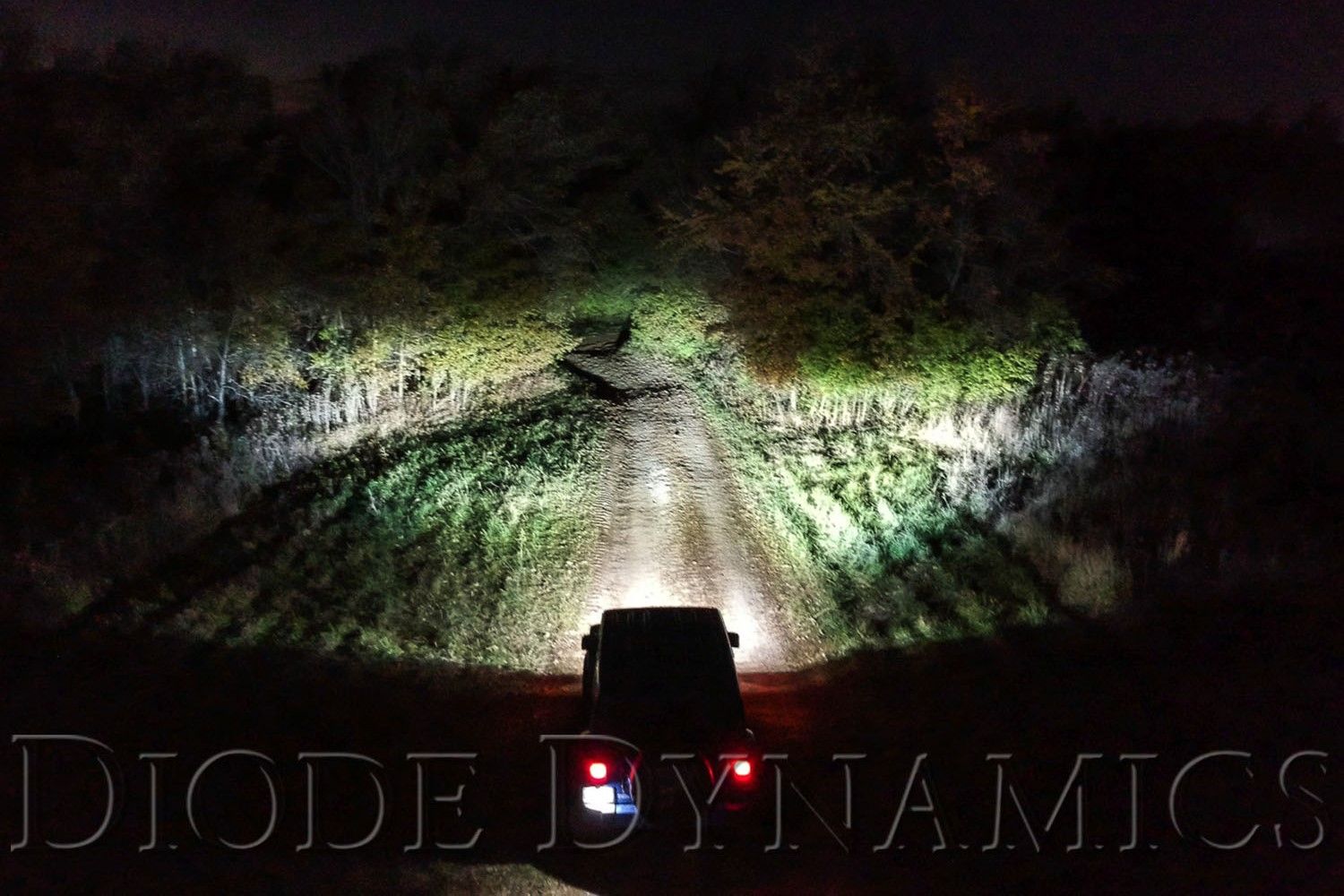

FineLine SAE fog optic: Produces an ultra-wide 80° beam with a sharp cutoff to reduce glare
-
Focused output: Directs nearly all usable light where it’s needed instead of wasting it to glare
-
Weather-ready: Wide, even illumination ideal for fog, rain, snow, and dust
Output color and power options
-

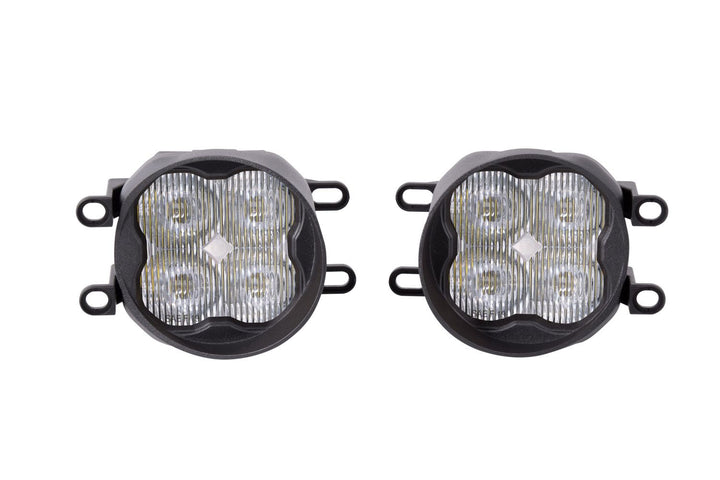

White (6000K): Matches factory LEDs and provides crisp foreground illumination
-

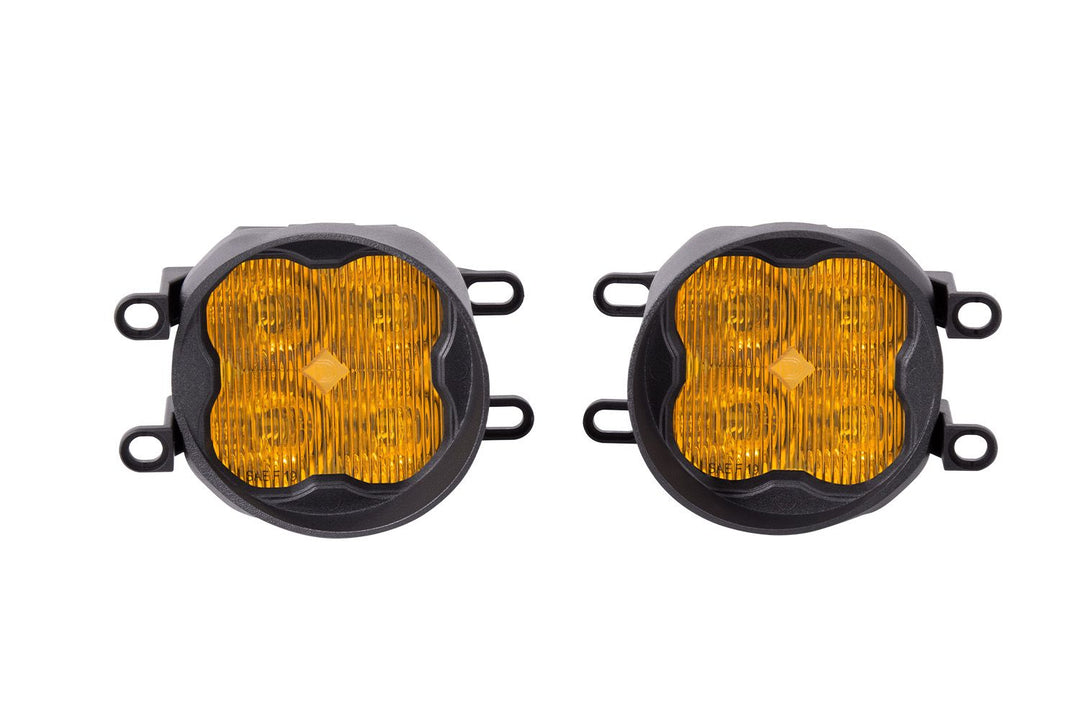

Yellow (3000K): Enhances contrast in poor weather conditions
Power levels available:
-
Sport: Best balance of output and value
-
Pro: Significantly increased brightness and intensity
-
Max: Extreme performance using cutting-edge automotive LED emitters

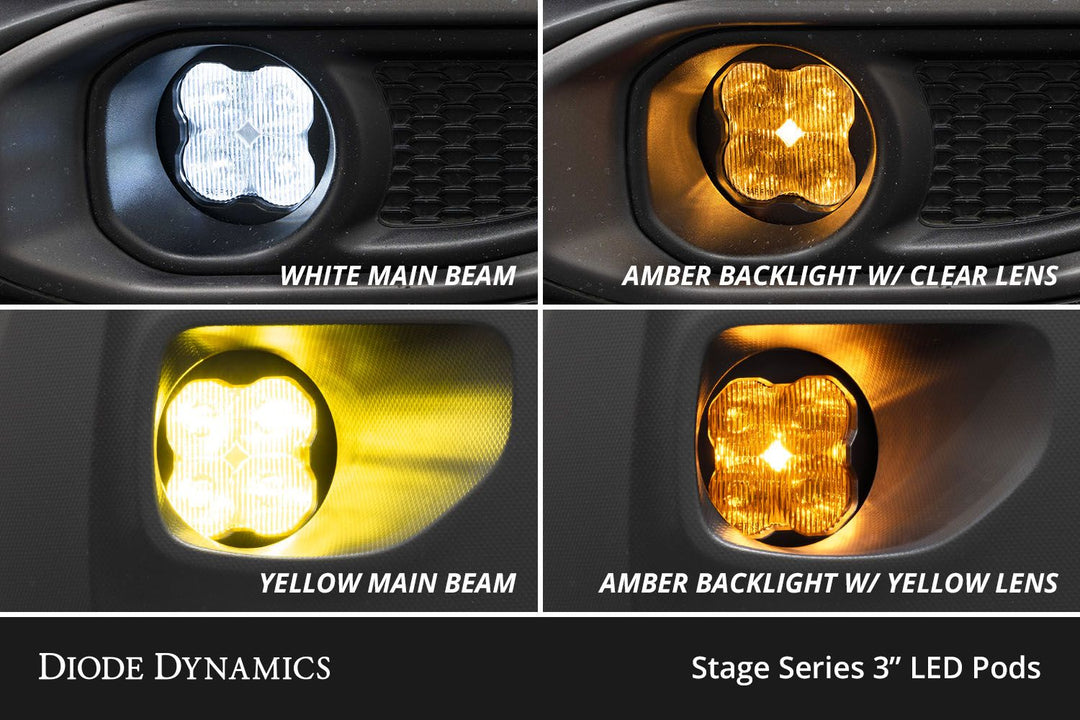

Backlight functionality
-
Integrated amber backlight: Fully illuminates the TIR optic for a bold accent light
-
Custom wiring: Use the included backlight tap to connect to DRLs, parking lights, or another 12V source
Specifications (per pod)
-
Measured output:
- Fog White Sport: 1,520 lm
- Fog White Pro: 3,000 lm
- Fog White Max: 3,500 lm
- Fog Yellow Sport: 1,300 lm
- Fog Yellow Pro: 2,700 lm
- Fog Yellow Max: 3,500 lm
-
Raw output: Up to 7,920 lumens (Max)
-
Beam pattern: Fog, 80° × 8°
-
Main beam power:
- Sport: 14.5W
- Pro: 36W
- Max: 38.5W
-
Backlight power: 0.4W
-
Operating voltage: 9–30V
-
Operating temperature: -40°F to 185°F (-40°C to 85°C)
-
Ingress rating: IP69K waterproof, high-pressure resistant
Fitment
-
Application: Fog light
-
Make: Toyota
-
Model: 4Runner
-
Years: 2014–2024
-
Electrical compatibility: No electrical issues (tested and confirmed)
What’s included
-

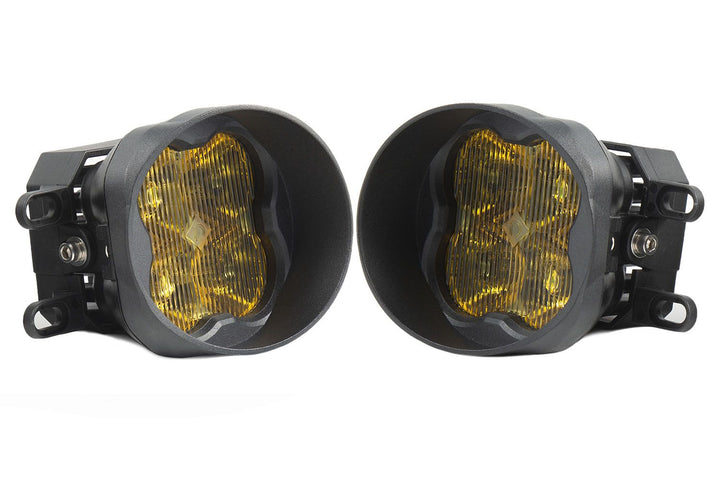

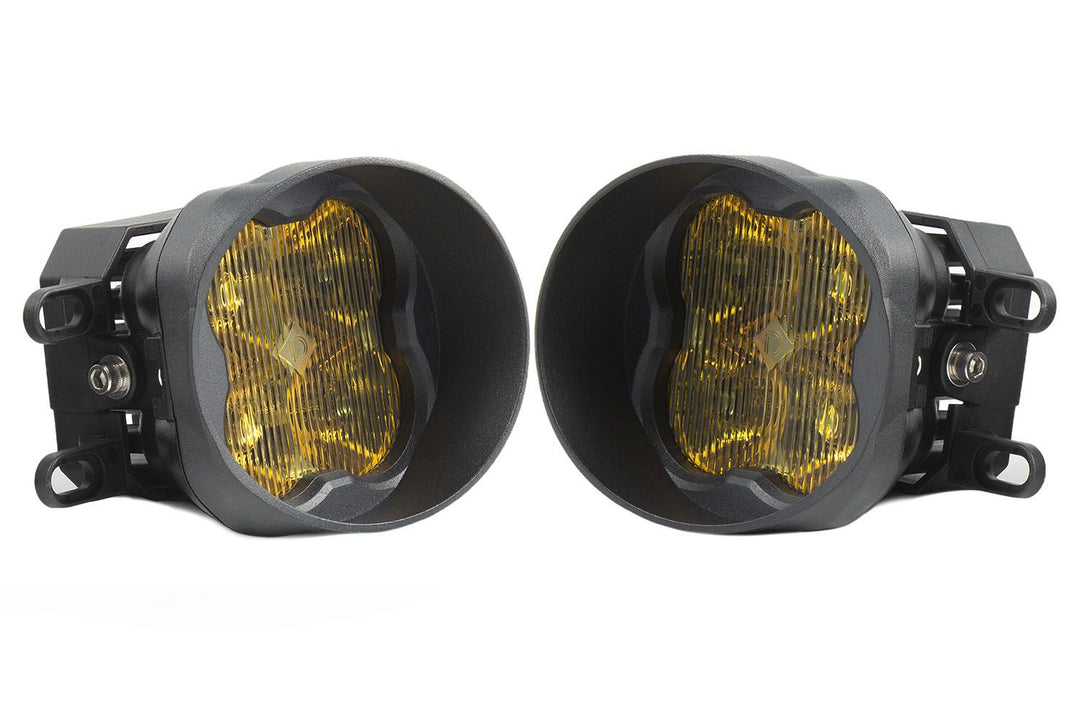

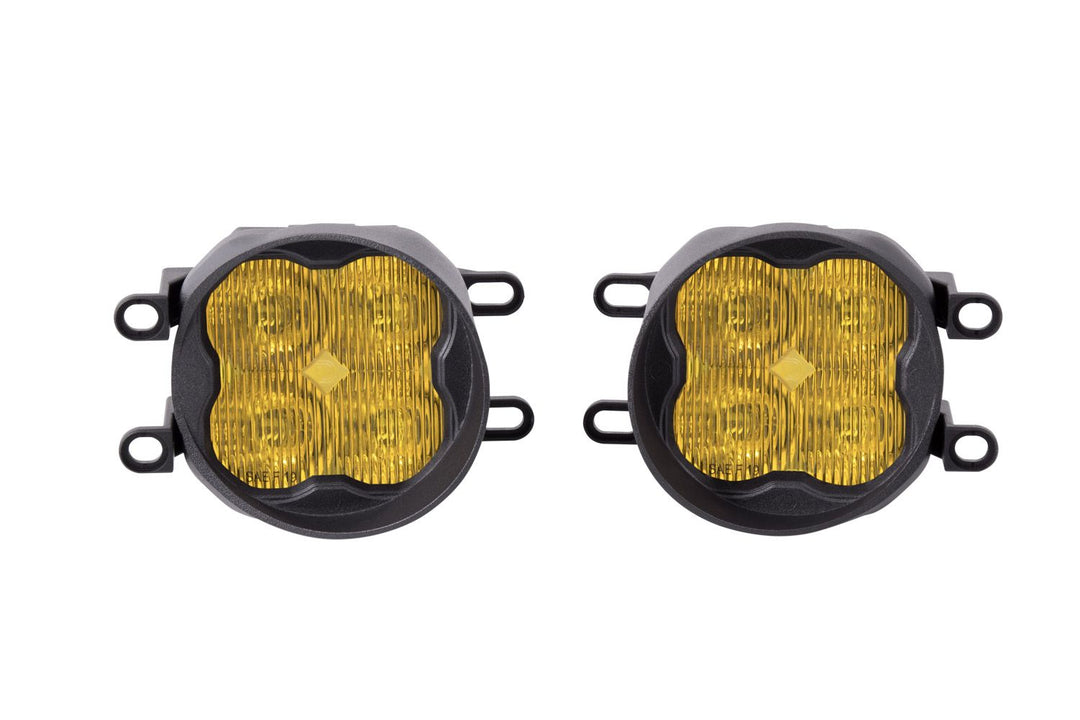

LED pods: Two (2) SS3 3-inch angled LED pods
-

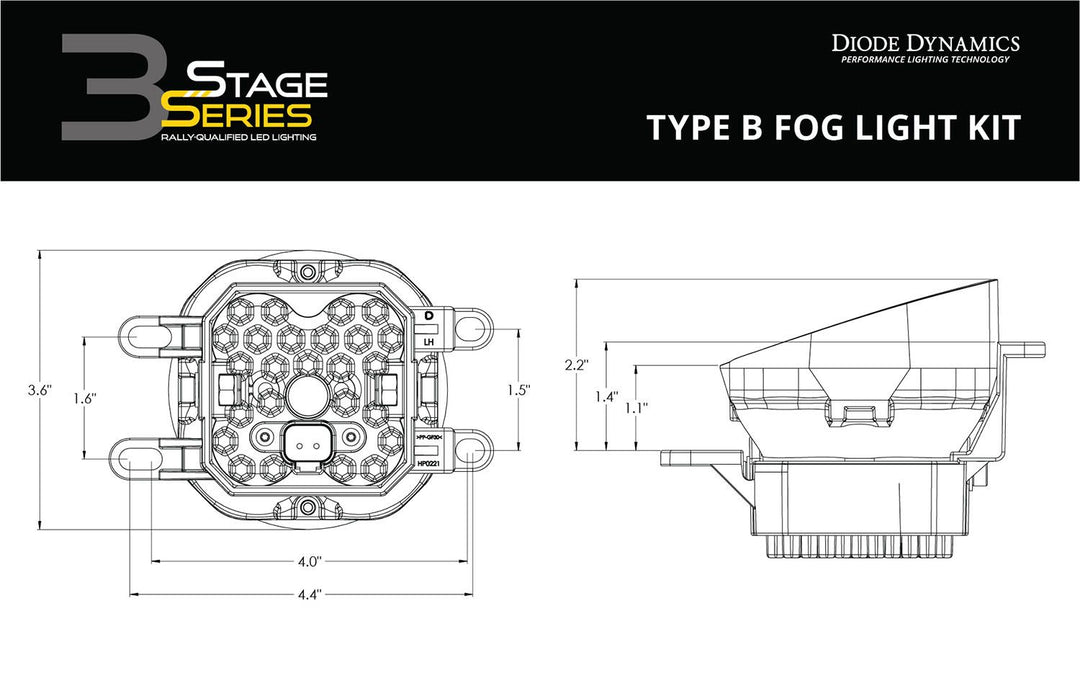

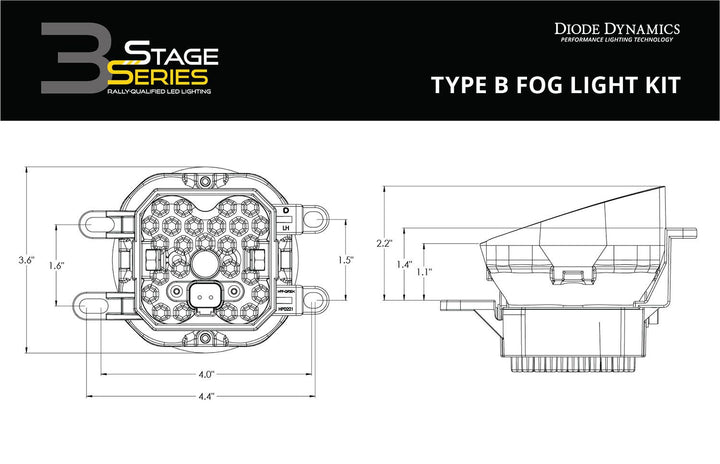

Mounting brackets: Two (2) Type B brackets
-
Wiring: Two (2) H11 4-pin DT backlight tap wires
-
Hardware: All required mounting hardware
-
Guide: Installation guide
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic hand tools
-
Modification required: None
-
Backlight wiring reference:
- Driver side DRL: Pin 2 – Green
- Passenger side DRL: Pin 2 – Green
Warranty and guarantee
-
Warranty: Limited lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
