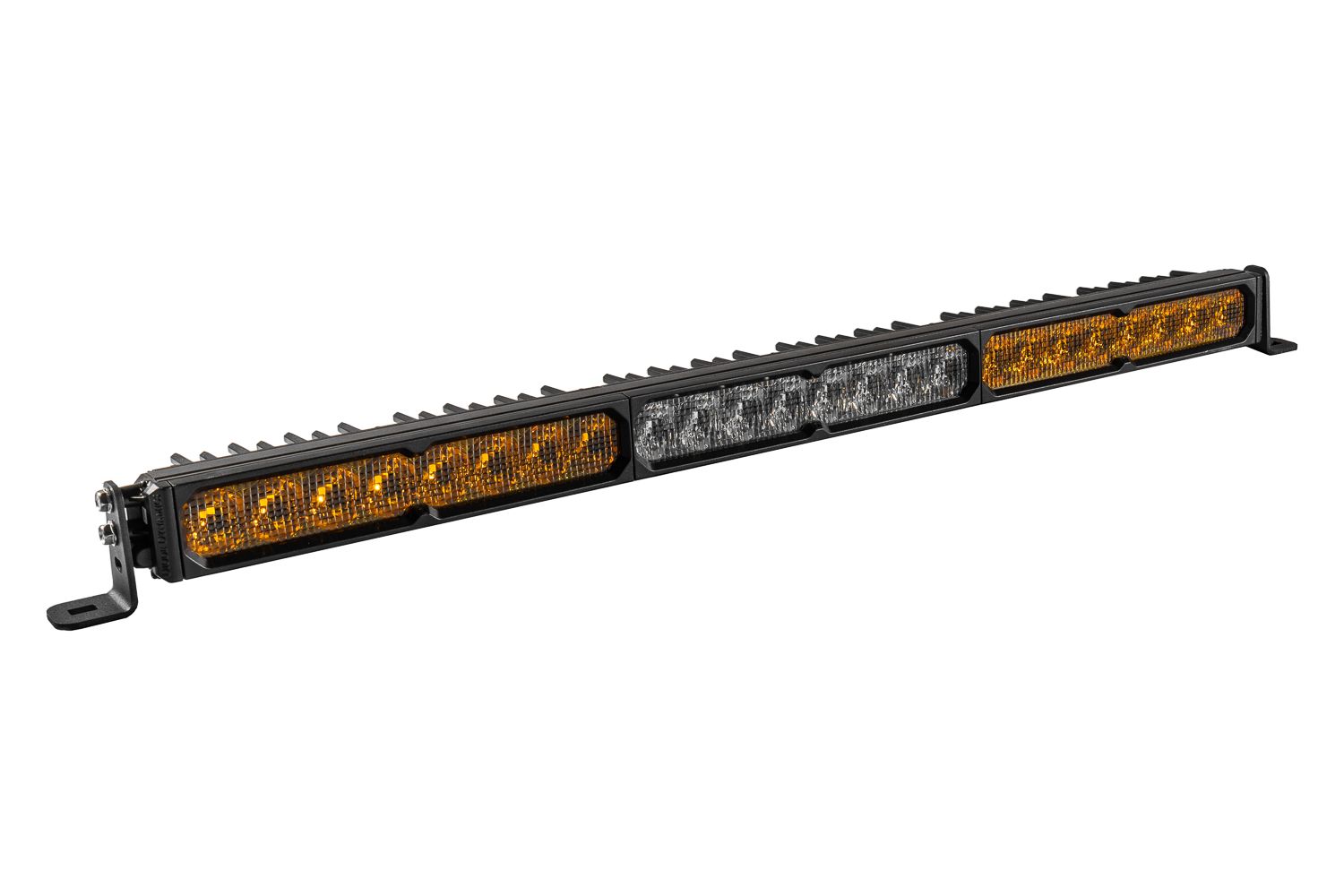

The Stage Series SS30 Dual-Color LED Light Bar represents the most advanced lighting solution in the Diode Dynamics lineup, combining patented TIR (Total Internal Reflection) optics, dual-color beam technology, and SmartSelect control into one powerful system. Designed and manufactured in the USA, the SS30 delivers unmatched versatility by allowing you to switch between yellow combo/driving, white SAE driving, or full-bar output simply by cycling power—no extra wiring or switches required. With a fully illuminated RGB/amber backlight, dynamic startup sequence, and extreme durability, this light bar is built for serious off-road and overland performance.
Important note
-
Dual-Function Beam: Toggle inner, outer, or full-bar output by cycling power
-
No Extra Wiring: SmartSelect technology eliminates the need for additional switches
-

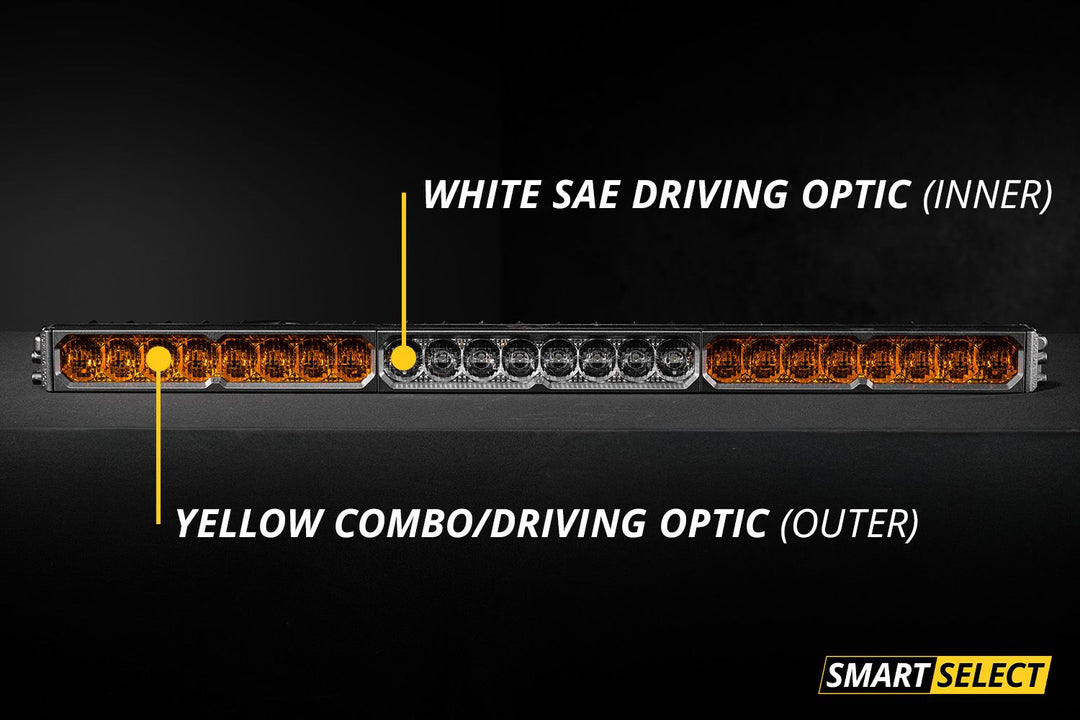

Dual-Color Output: Yellow outer segments + white inner segment
-
Backlight Control: Multicolor inner backlight with amber outer backlight
Features
-

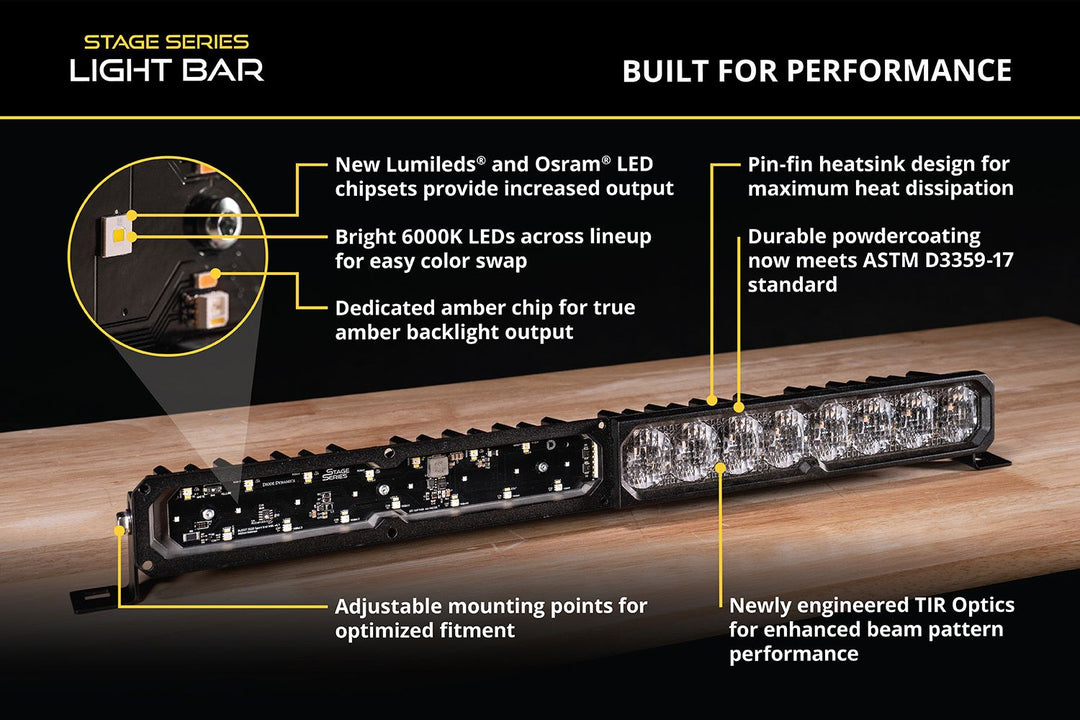

Optics: Patented TIR optics for maximum efficiency and usable light
-
Main Beam: Dual-function control built directly into the light bar
-
Backlight: Amber backlight on outer segments + selectable 8-color inner backlight
-
Startup: Dynamic welcome sequence on inner backlight
-

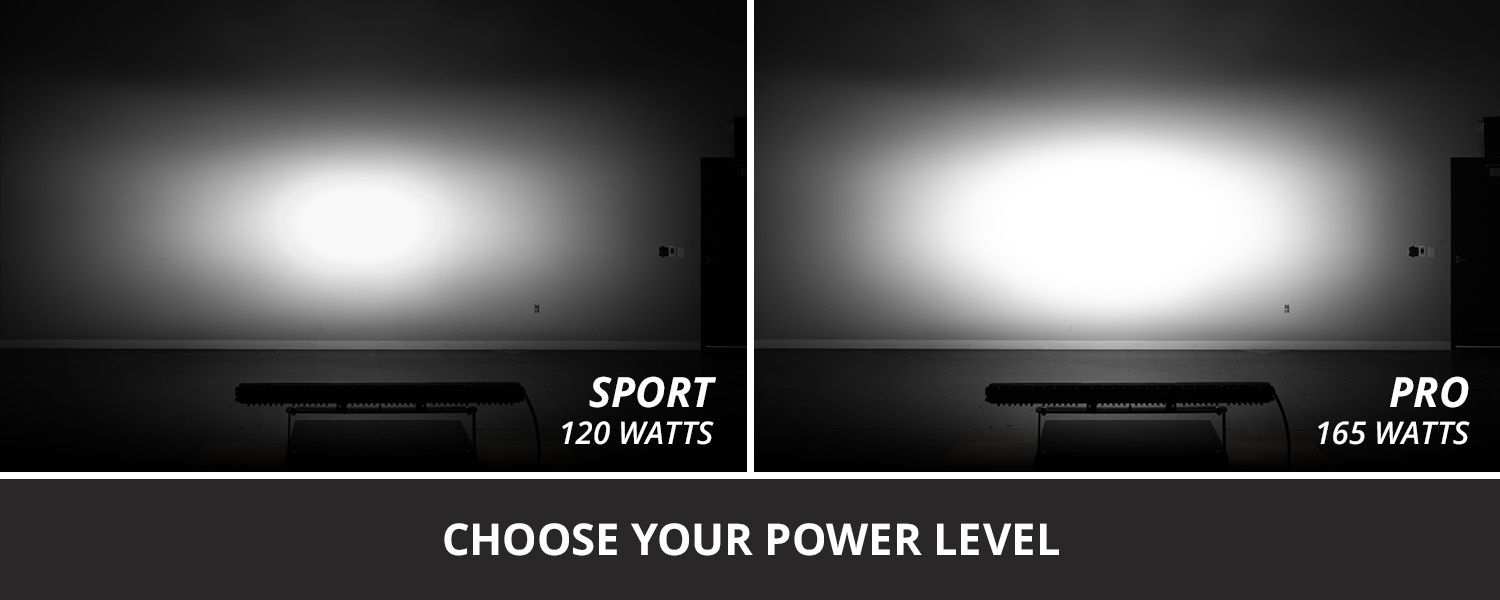

Power Levels: Available in Sport and Pro configurations
-
Housing: Heavy-duty aluminum with ASTM-standard powder coat
-
Weatherproofing: IP69K waterproof and high-pressure wash rated
-
Warranty: Limited lifetime warranty
-
Origin: Engineered and made in the USA using globally sourced materials
Beam Configuration
-

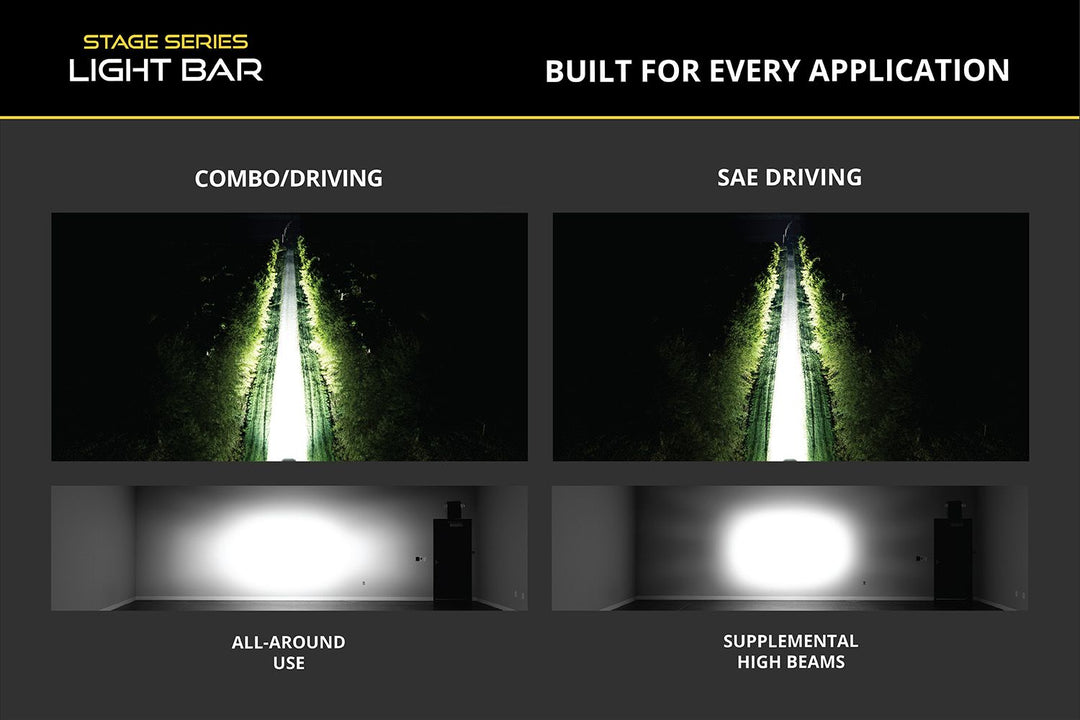

Outer Segments: Yellow Combo / Driving optics (60° x 30°)
-
Inner Segment: White SAE Driving optics (20° x 12°)
-

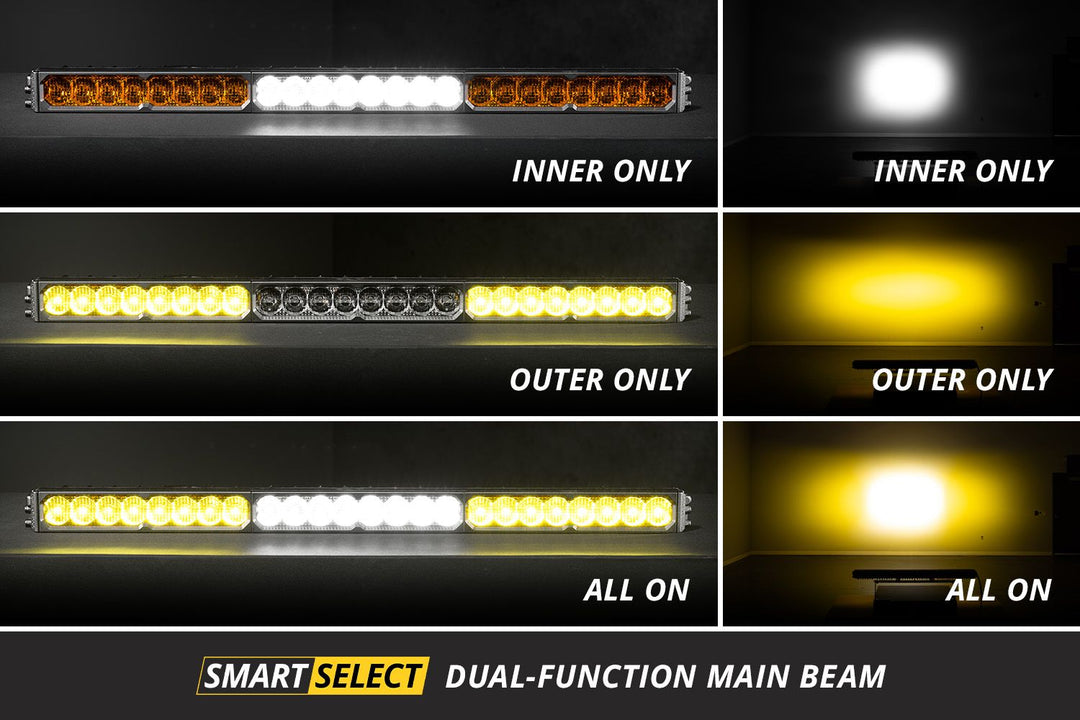

Selectable Modes:
- Outer yellow segments only (wide coverage, reduced glare)
- Inner white segment only (long-range visibility)
- Full bar (maximum distance + width)

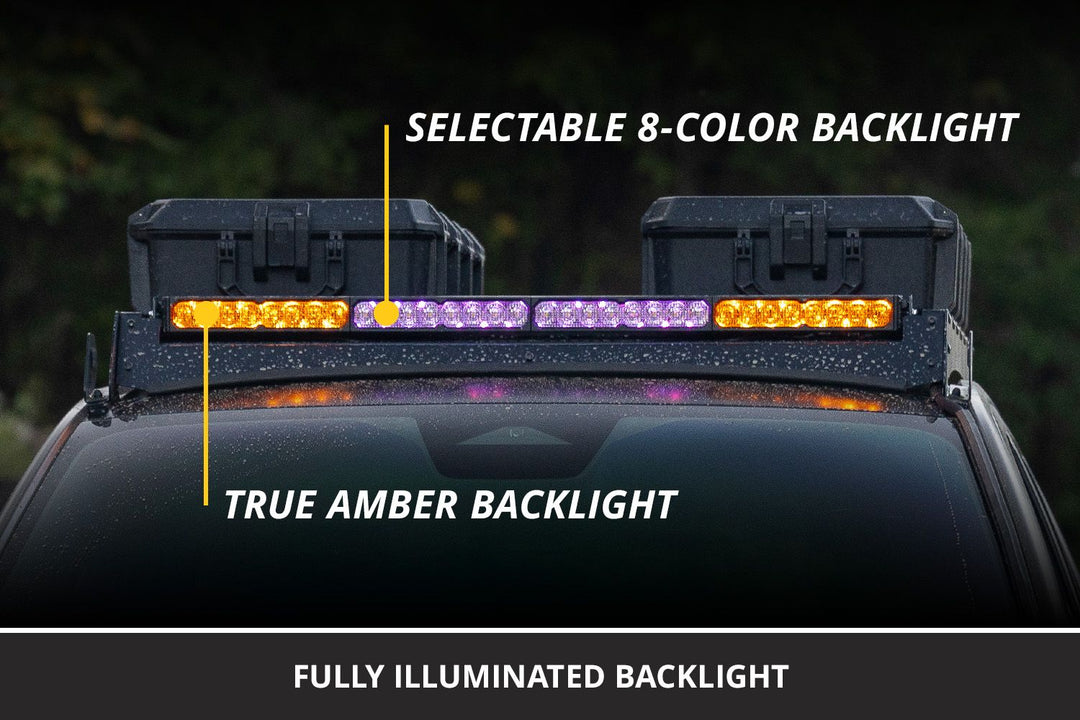

SmartSelect Backlight
-
Outer Backlight: Dedicated true amber LEDs
-
Inner Backlight: Selectable 8-color RGBWA system
-
Control Method: Cycle power to change color
-
Startup Effect: Dynamic sequencing on power-up (excluding amber)
-
No Controller Needed: Fully integrated system
Specs
-
Raw Lumens:
- Sport: 11,064 lm
- Pro: 37,632 lm
-
Color Temperature: 3000K (Yellow), 6000K (White)
-
Power Output:
-
Operating Voltage: 9–30V
-
Current Draw @ 12.8V:
-
LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink
-
Cooling: Passive heatsink design
-
Ingress Rating: IP69K
-

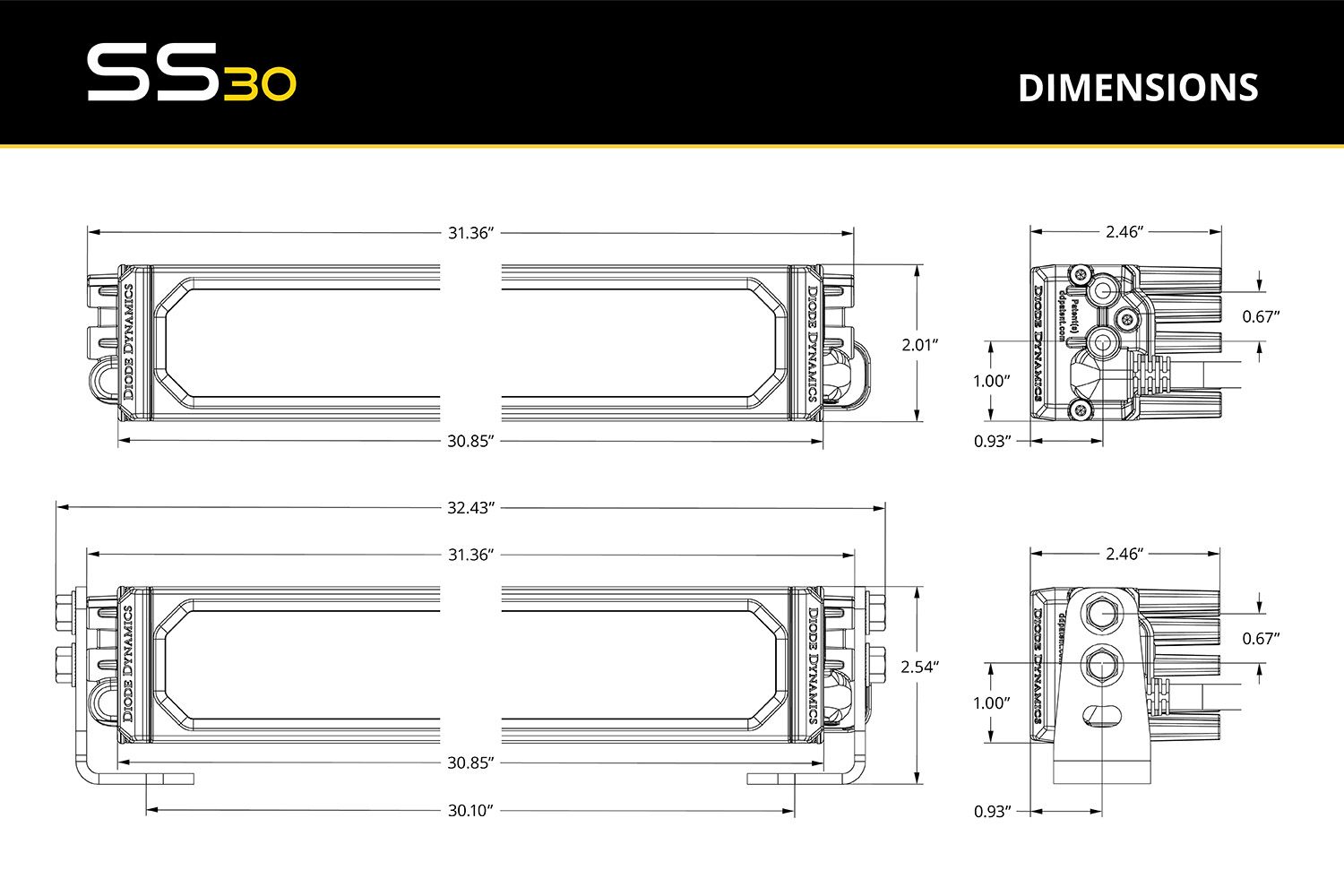

Dimensions: 2.01" x 31.63" x 2.46"
In the Box
-
Light Bar: One (1) SS30 Dual-Color LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal mounting bracket set
Installation
-
Install Time: 30–60 minutes
-
Tools Needed: Basic toolset
-
Programming: SmartSelect built-in (no controller required)
