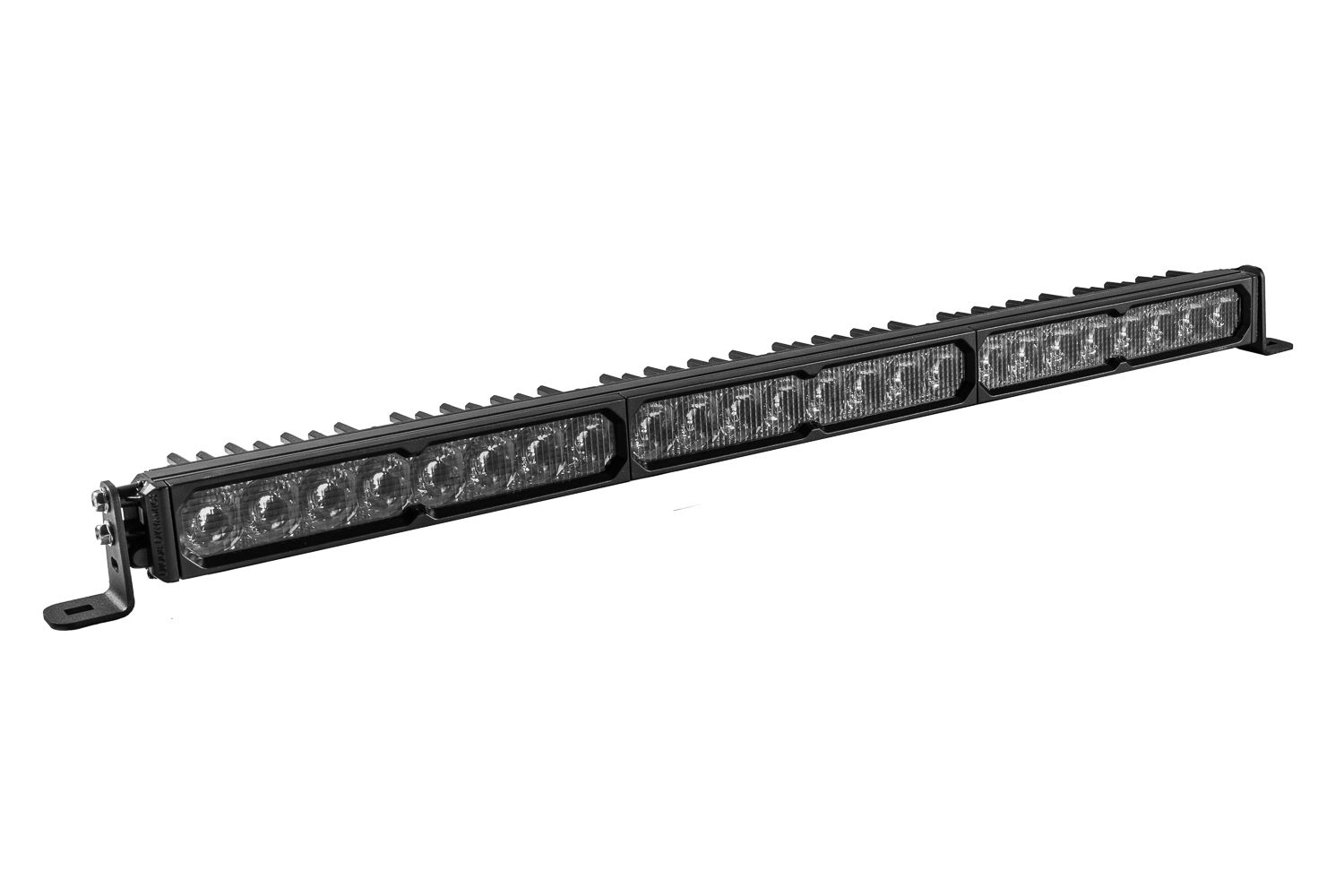

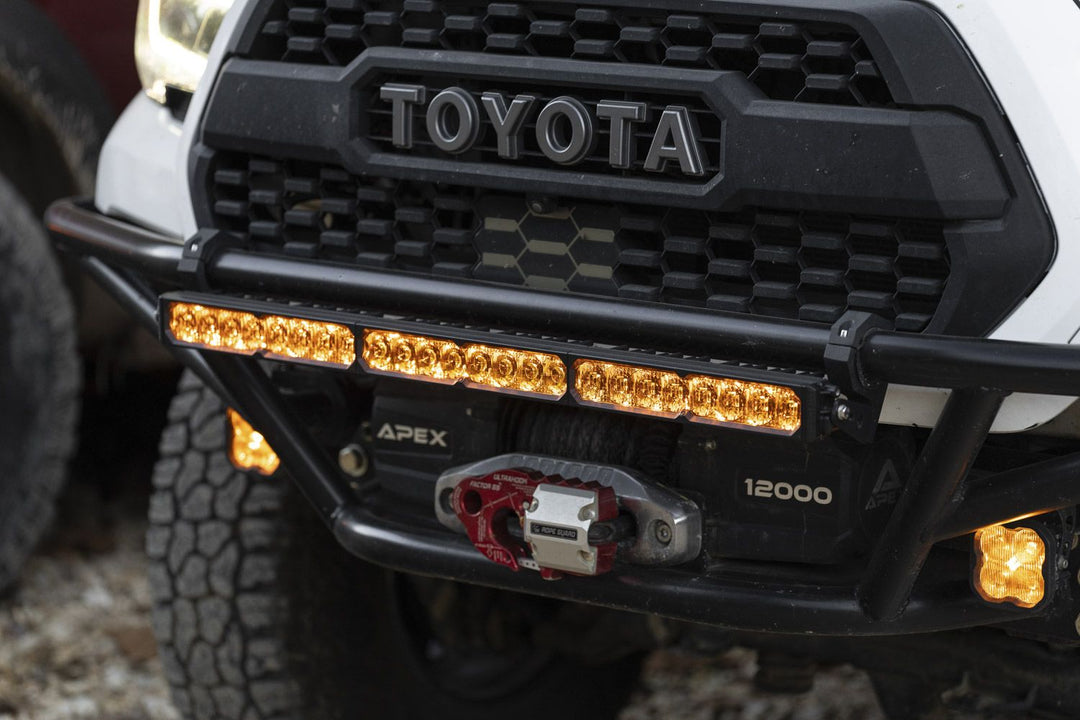

The Diode Dynamics Stage Series SS30 LED Light Bar is built for drivers who demand extreme output, intelligent control, and premium styling in one package. Featuring patented TIR (Total Internal Reflection) optics, the SS30 delivers more usable light exactly where you need it—without glare or wasted output. With SmartSelect dual-function control, selectable multicolor backlighting, and industry-leading durability, this light bar is engineered to dominate any terrain, day or night.
Note
-

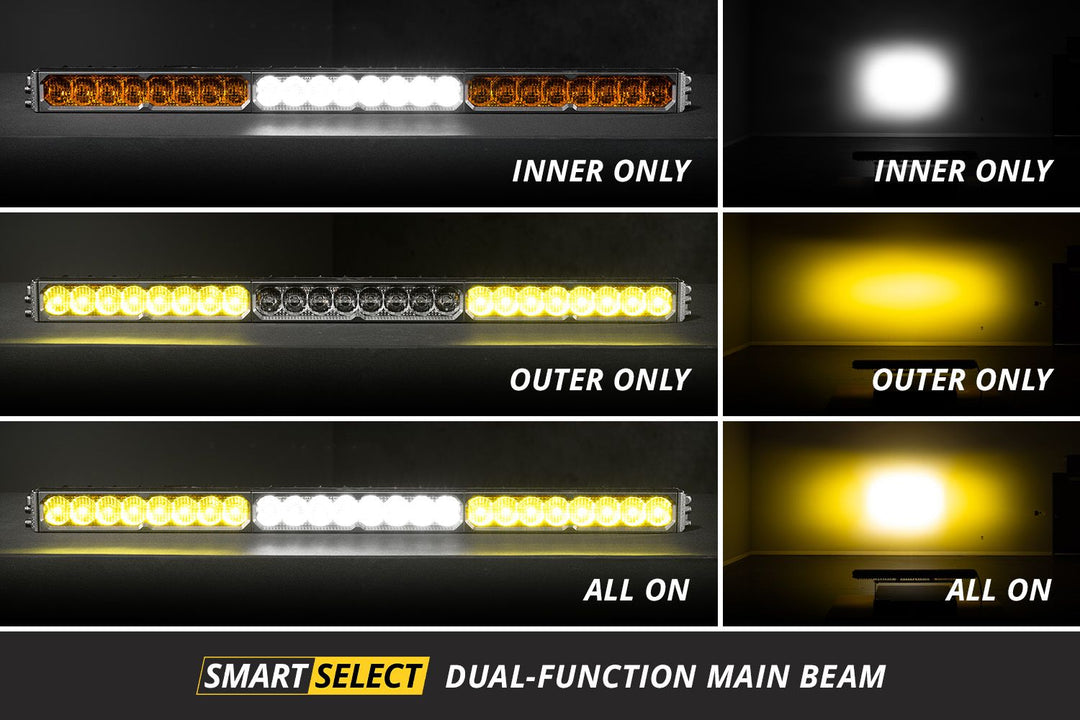

SmartSelect Technology: Allows you to run inner sections, outer sections, or the full bar by cycling power—no extra switches or wiring required.
-

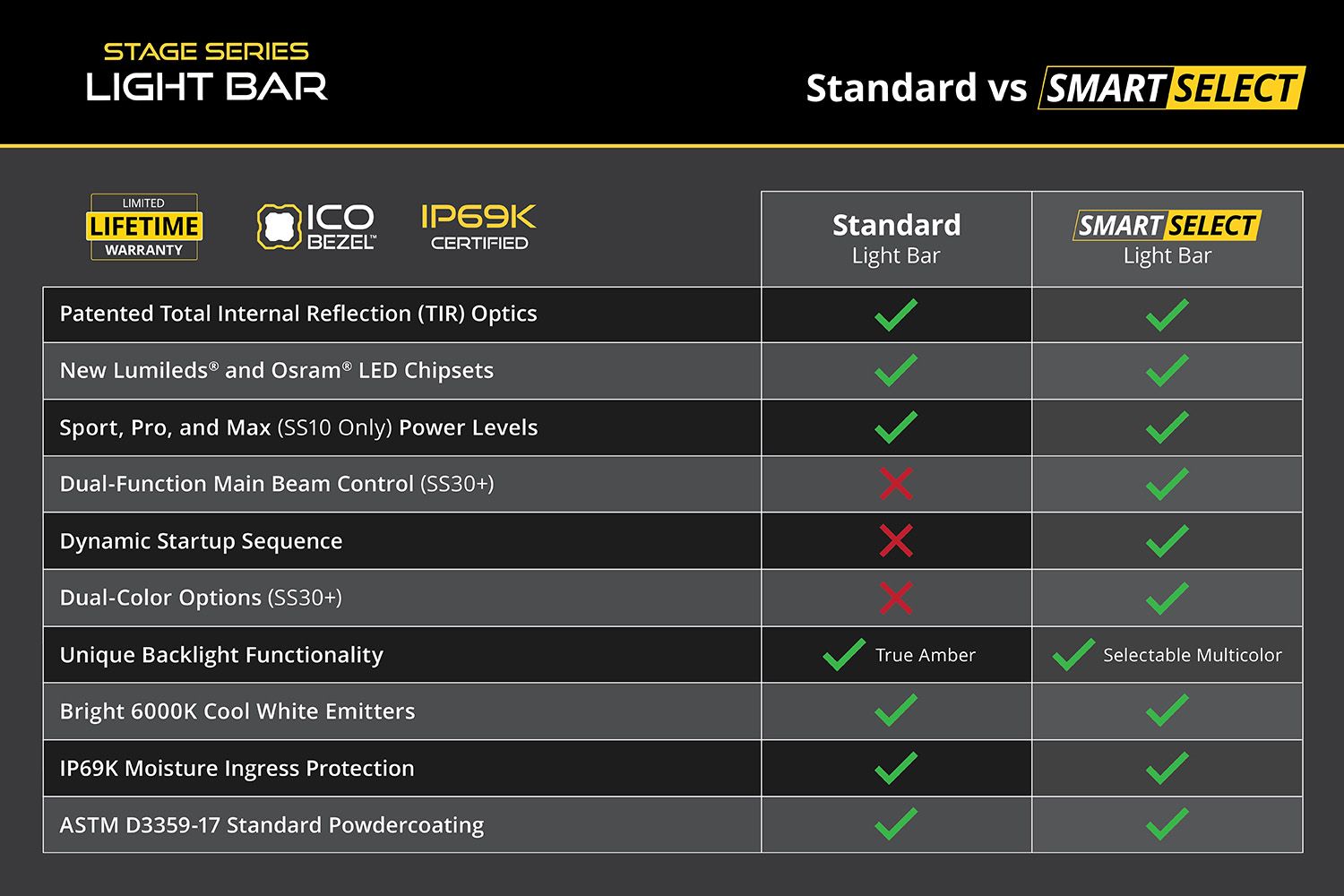

Backlight Options: SmartSelect models feature an 8-color selectable backlight with a dynamic startup sequence; Standard models include amber-only backlighting.
-
Made in USA: Engineered and manufactured in the USA using globally sourced materials.
-
Lens Swapping: Backlight color can be configured to match white or yellow lenses using onboard toggle switches.
-
Legal Use: Always verify local regulations for on-road auxiliary lighting use and aiming.
Features
-

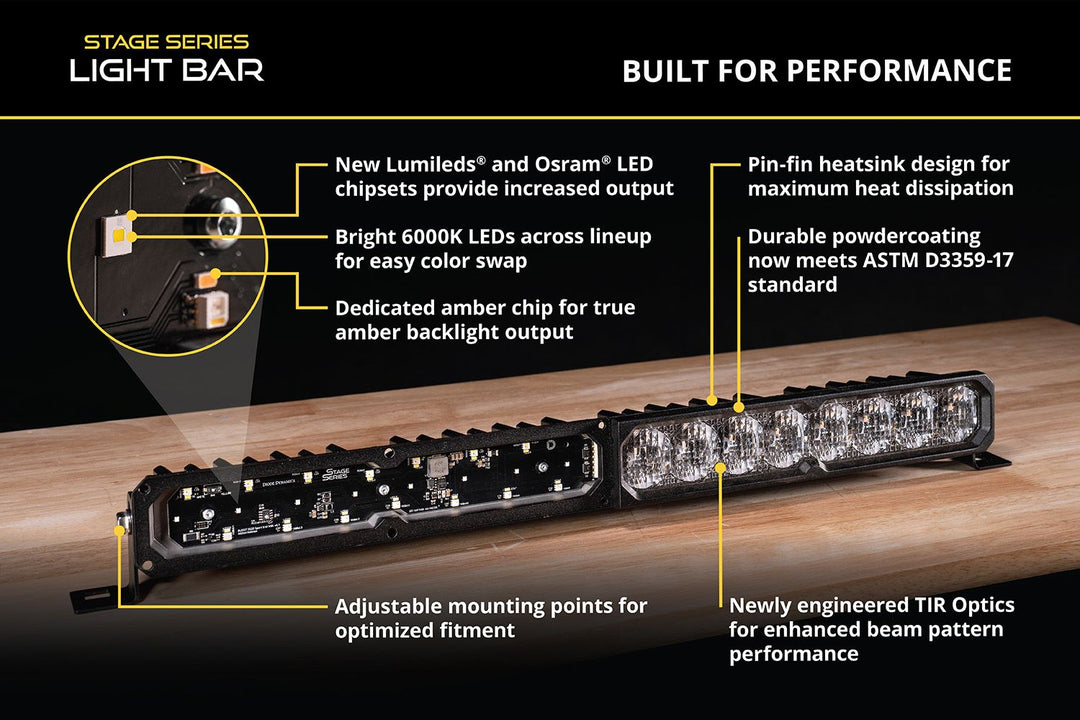

Optics: Patented TIR optics for maximum efficiency and focused output
-

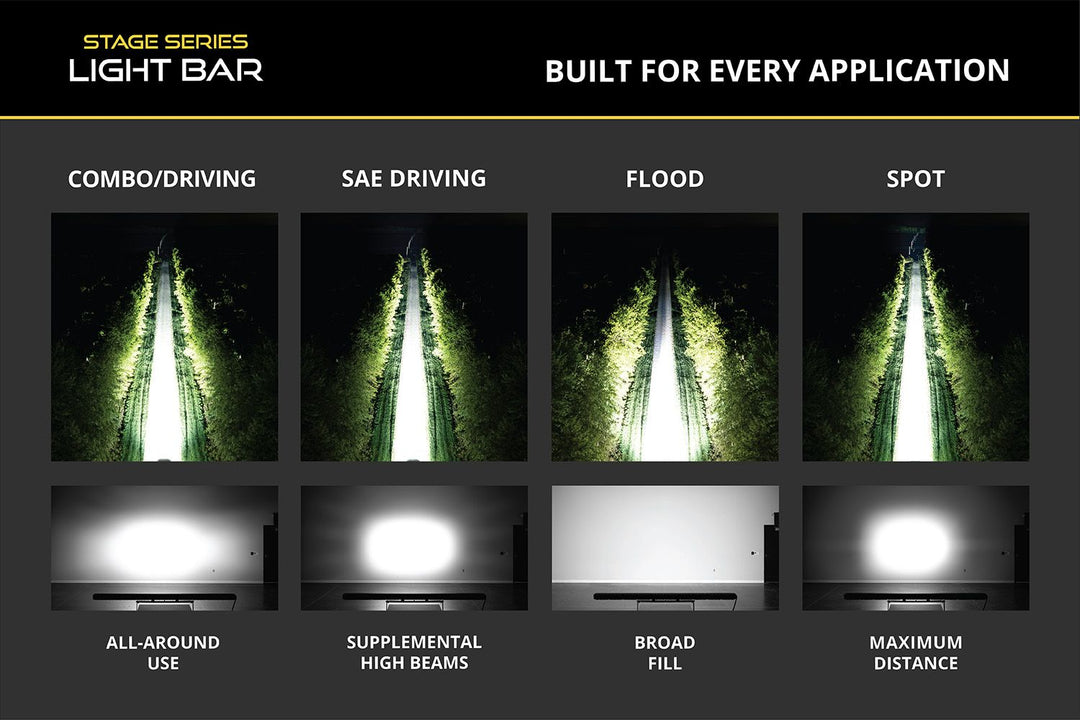

Beam Patterns: Combo/Driving, SAE Driving, Flood, and Spot options
-
SmartSelect Control: Dual-function main beam with zone-selectable output
-

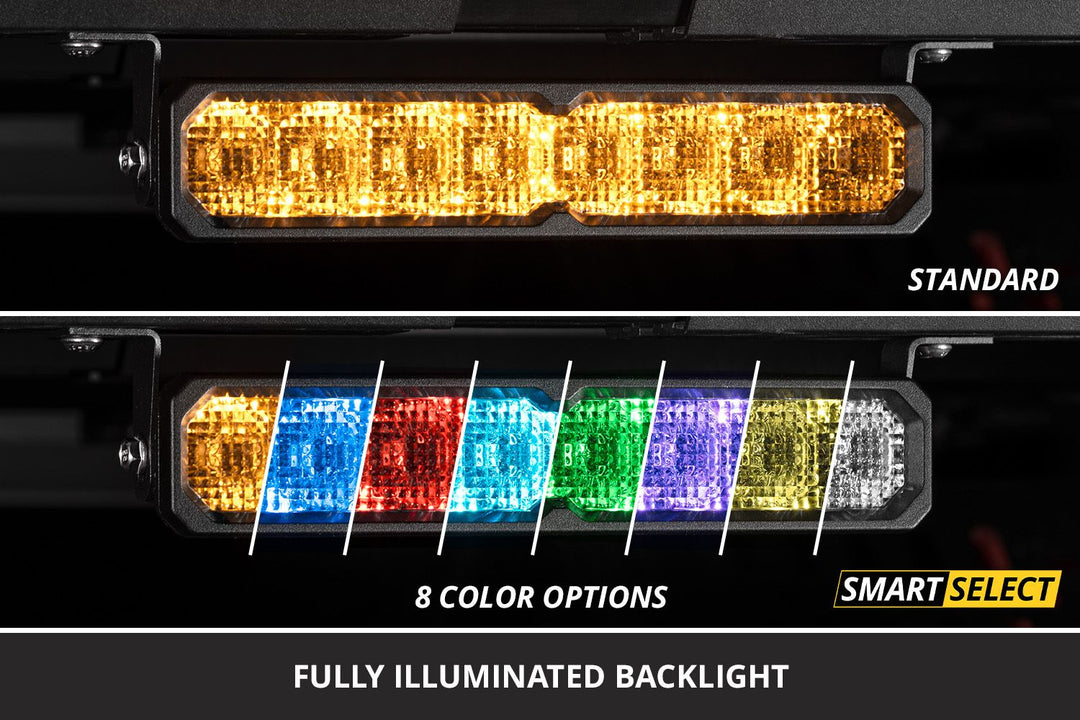

Backlighting: Fully illuminated backlight with selectable 8-color SmartSelect option
-
Startup Animation: Dynamic welcome sequence on SmartSelect models
-
Construction: Heavy-duty aluminum housing with ASTM-standard powder coat
-
Durability: IP69K waterproof and high-pressure resistant
-

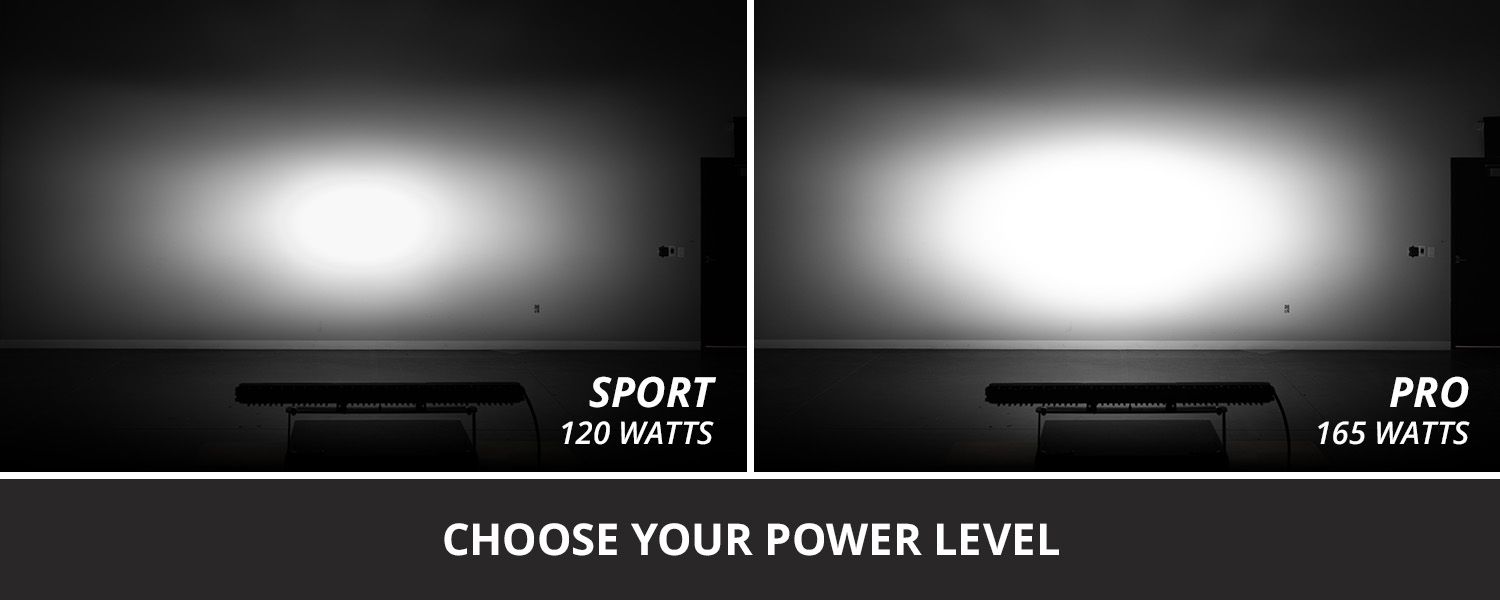

Power Levels: Available in Sport and Pro configurations
-
Warranty: Limited lifetime warranty
-
Origin: Proudly made in the USA
Specs
-
Color Temperature: 6000K (Cool White)
-
Beam Angles:
- Combo/Driving: 60° x 30°
- SAE Driving: 20° x 12°
- Flood: 100° x 80°
- Spot: 8° x 8°
-
Power Output:
-
Current Draw @ 12.8V:
-
Operating Voltage: 9–30V
-
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
-
LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum & copper PCB, polycarbonate lens, aluminum heatsink
-
Cooling: Passive heatsink cooling
-
Ingress Rating: IP69K waterproof
-

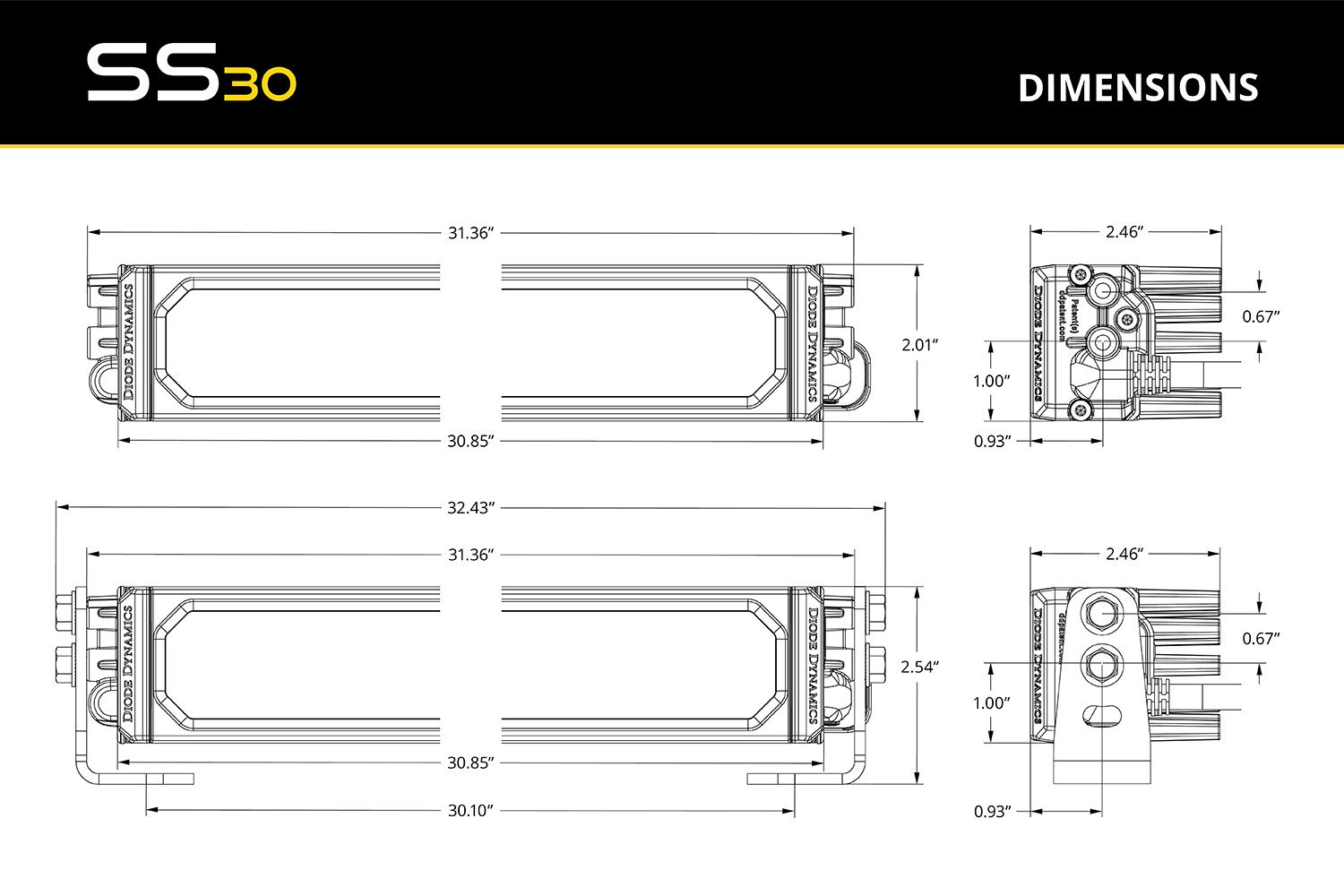

Dimensions: 31.63" x 2.01" x 2.46"
-
Polarity: Polarity specific
-
Connector Type: Deutsch DT-P input
Included
-
Light Bar: One (1) Stage Series SS30 LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal mounting bracket set
Installation
-
Install Time: 30–60 minutes
-
Tools Needed: Basic hand tools
-
Programming: SmartSelect functions are controlled by cycling power—no controller required
