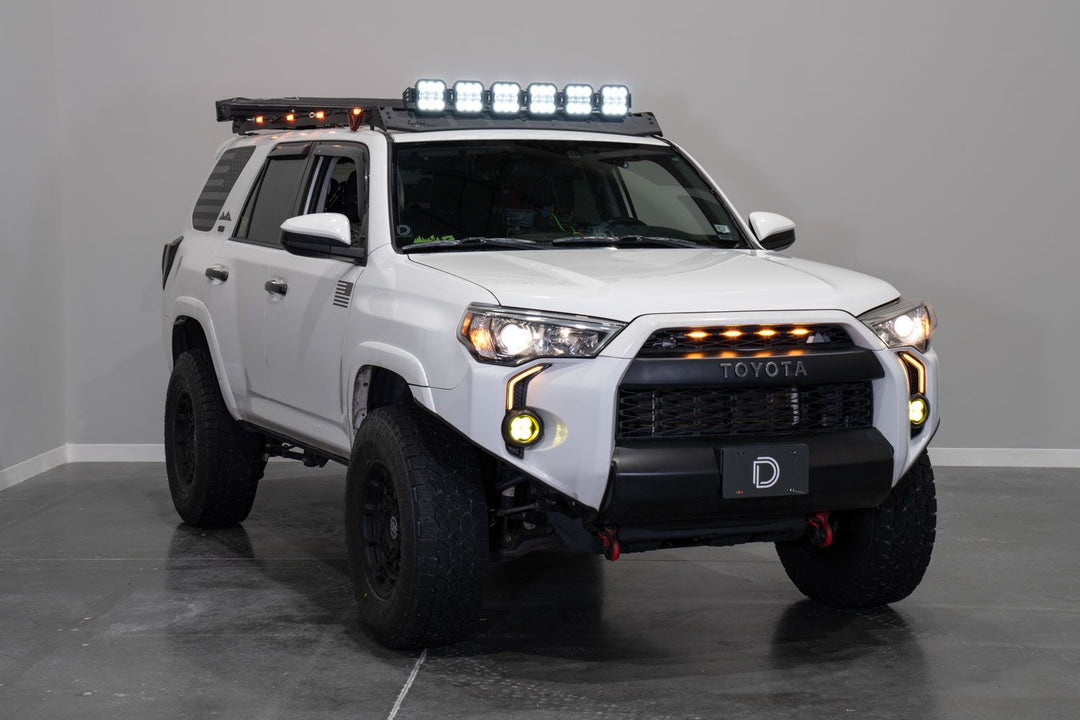

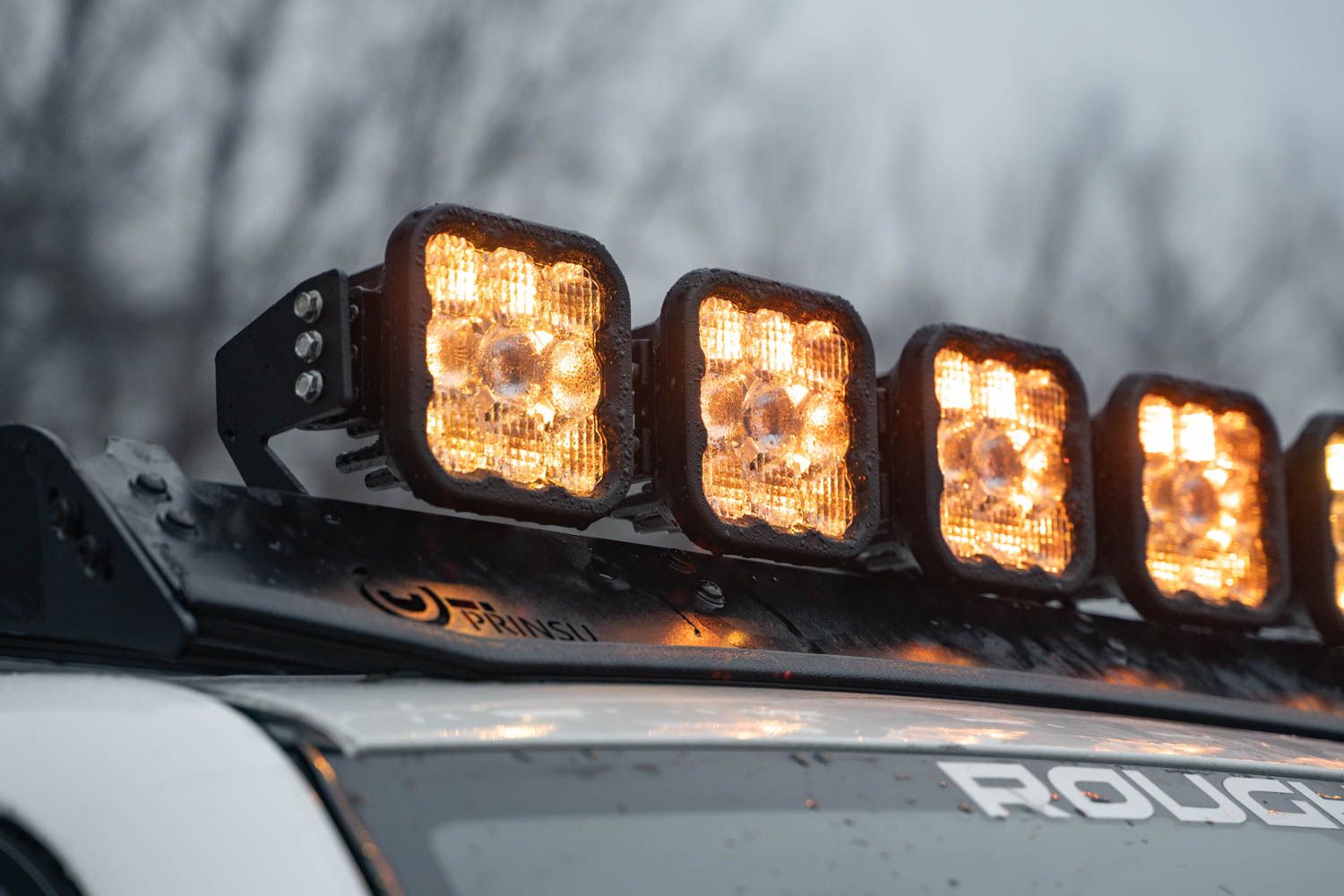

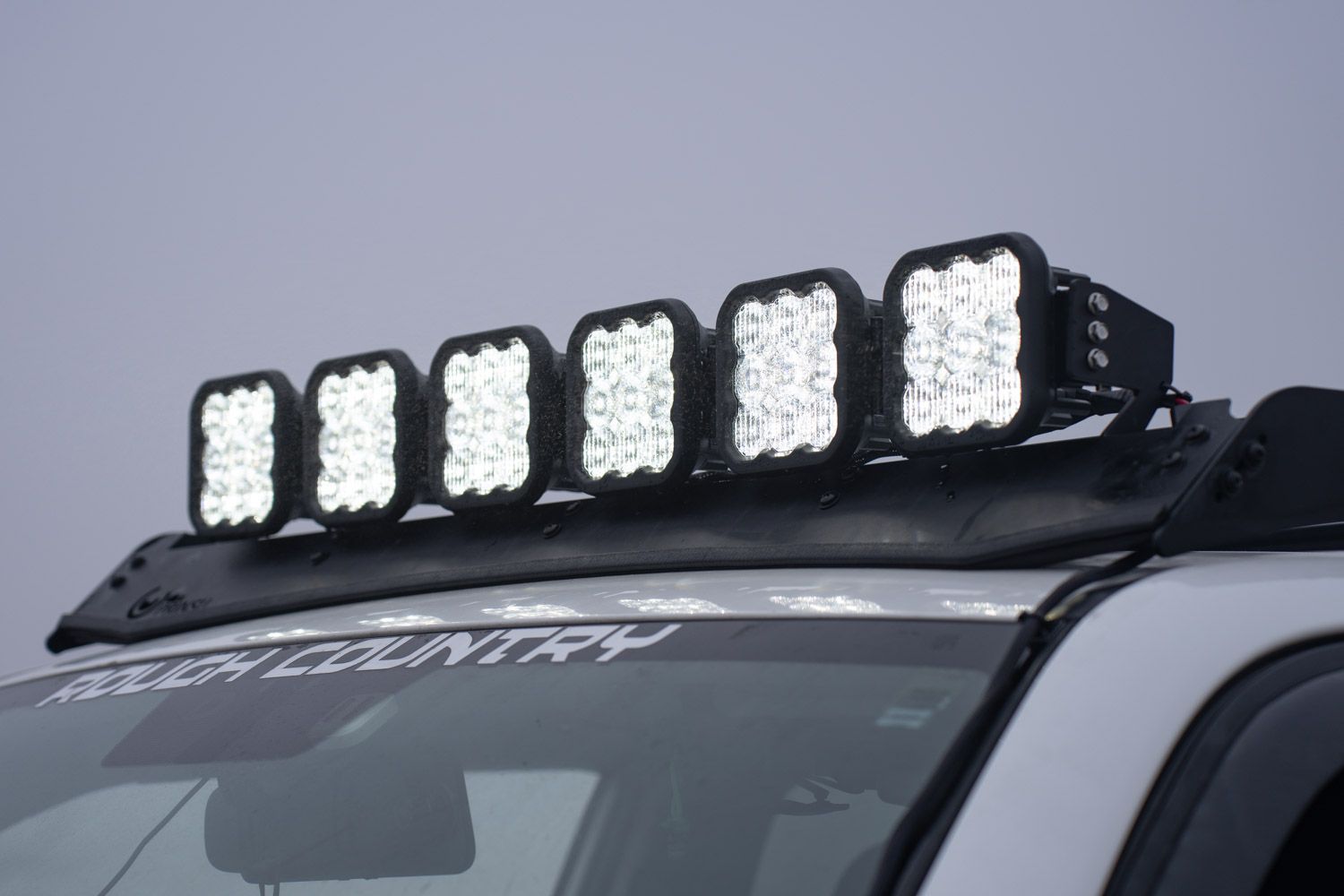

The SS5 CrossLink Lightbar Kit for Prinsu and Sherpa roof racks makes it easy to add powerful, linked pod lighting without custom brackets or removing your wind deflector. Designed for racks with a 40-inch lightbar cutout, this bolt-on solution supports 6-pod or 7-pod SS5 configurations and includes added support brackets to reduce vibration while delivering clean, factory-style integration.
Important note
-
Rack compatibility: Only compatible with Prinsu roof racks with a 40-inch cutout wind deflector and Sherpa roof racks with a half-height wind deflector.
-
Backlight limitation: Yellow lens kits are available with amber backlight only.
-

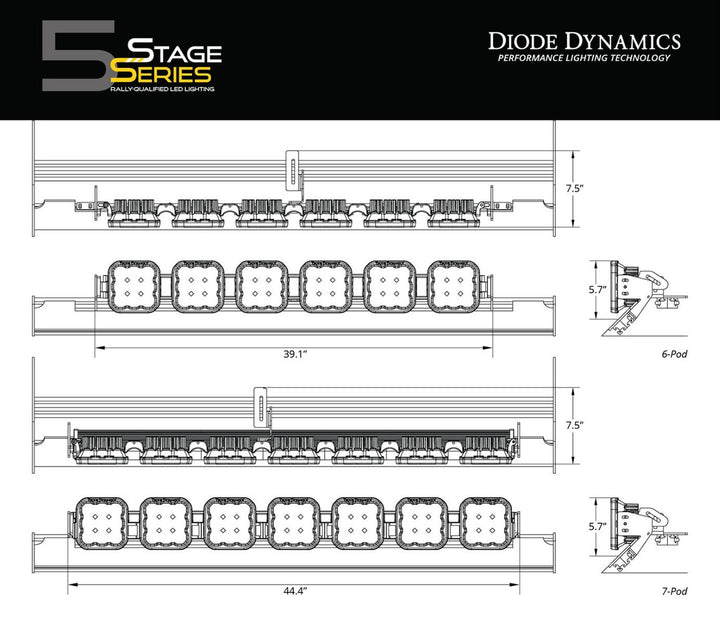

Fit width: 6-pod kits require a minimum rack width of 41⅝"; 7-pod kits require a minimum width of 47⅞".
Features
-
CrossLink mounting: Allows mounting of a 6-pod or 7-pod SS5 CrossLink lightbar to Prinsu and Sherpa roof racks.
-
40-inch cutout fit: Designed specifically for racks with a 40-inch lightbar cutout.
-
Support brackets: Included brackets add stabilization and improved load distribution to reduce vibration.
-
No deflector removal: Installs without removing the wind deflector.
-
Bolt-on installation: CAD-designed brackets use existing mounting points with no cutting or drilling.
-
Stainless steel construction: Durable stainless steel hardware resists corrosion over time.
-
TIR optics: Custom-engineered Total Internal Reflection optics maximize efficiency and reduce glare.
-

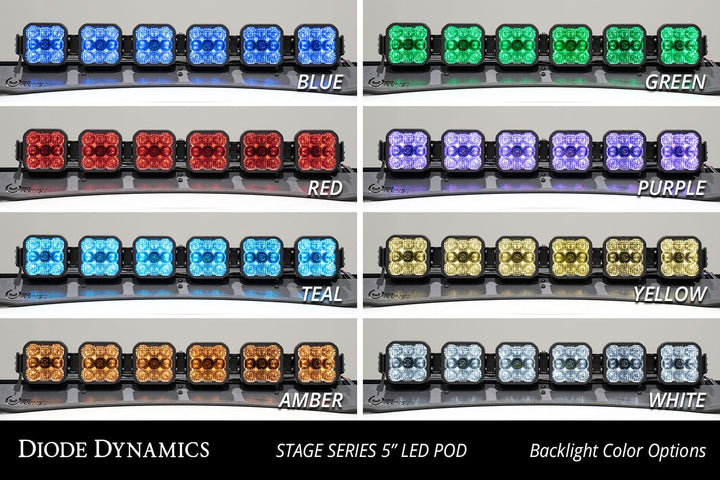

Selectable backlight: Eight selectable backlight colors on white kits for unique accent lighting.
-

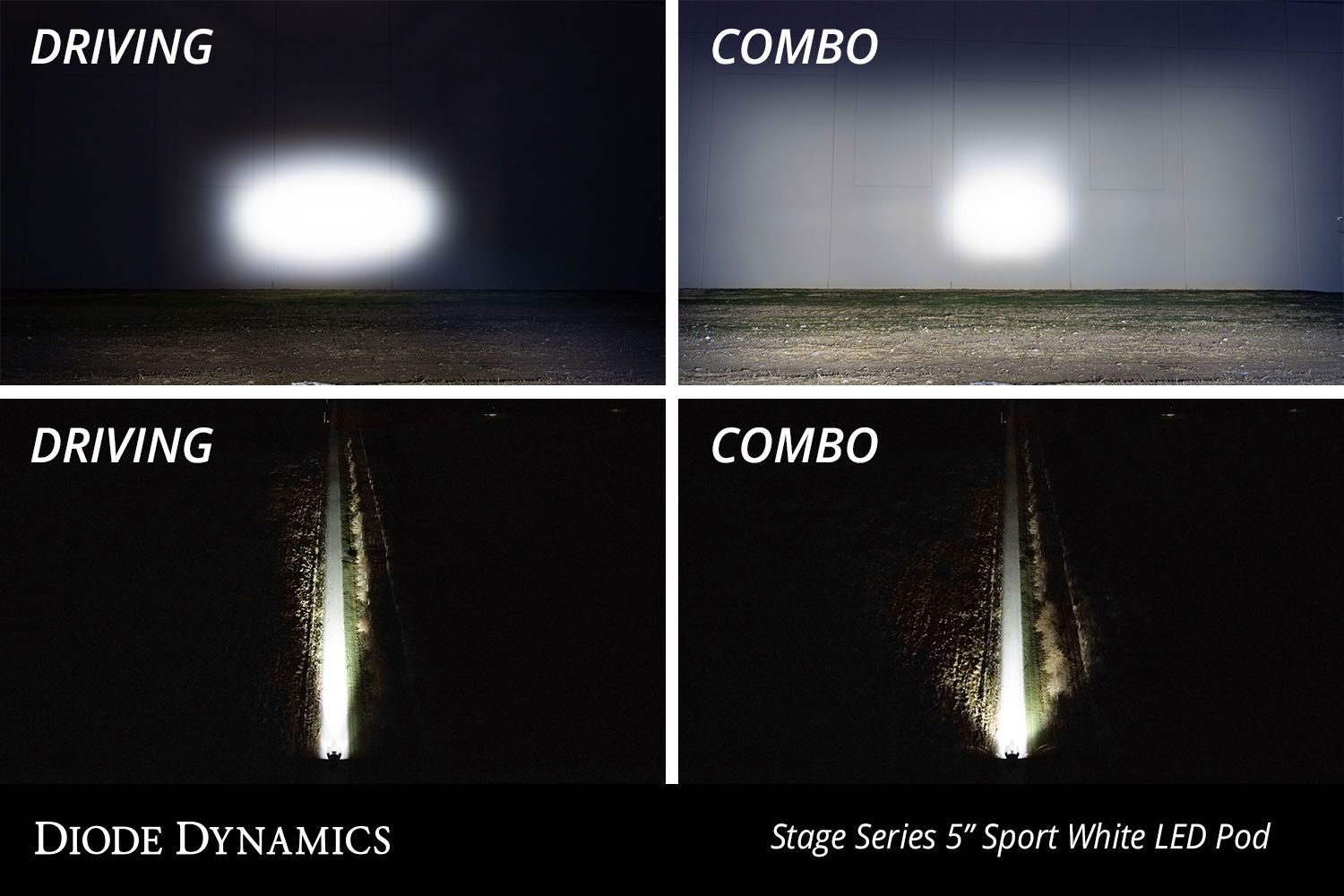

Driving and combo patterns: Available beam patterns for distance-focused or all-around illumination.
-
Color options: Offered in cool white (6000K) or selective yellow (3000K).
-
Interchangeable lenses: Replacement lenses allow optic or color changes.
-
Power level options: Available in Sport and Pro configurations.
-
Snap-on cover support: Compatible with optional snap-on covers for protection and compliance.
-
Proven reliability: Tested to SAE standards for vibration, moisture, corrosion, and temperature extremes.
-
Assembled in USA: Built using globally sourced materials.
Specifications
Per-pod output
-
Driving White Sport: 131,300 cd, 1,300 lux @10m, 3,800 lm measured, 4,800 lm raw
-
Driving White Pro: 170,000 cd, 1,700 lux @10m, 9,600 lm measured, 9,700 lm raw
-
Driving Yellow Sport: 103,000 cd, 1,300 lux @10m, 3,700 lm measured, 4,800 lm raw
-
Driving Yellow Pro: 131,600 cd, 1,700 lux @10m, 7,900 lm measured, 8,900 lm raw
-
Combo White Sport: 81,600 cd, 820 lux @10m, 3,800 lm measured, 4,800 lm raw
-
Combo White Pro: 75,700 cd, 750 lux @10m, 9,600 lm measured, 9,700 lm raw
-
Combo Yellow Sport: 71,200 cd, 820 lux @10m, 3,700 lm measured, 4,800 lm raw
-
Combo Yellow Pro: 58,500 cd, 750 lux @10m, 7,900 lm measured, 8,900 lm raw
Electrical and construction
-
Main beam power: Sport – 40W, Pro – 90W
-
Backlight power: White – 3.17W, Yellow – 3.07W
-
Main beam current: Sport White – 2.75A, Sport Yellow – 2.8A, Pro – 6A @ 12.8V
-
Backlight current: White – 0.25A, Yellow – 0.24A @ 12.8V
-
Color temperature: 3000K, 6000K
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
Fitment
-
Roof racks: Prinsu (40-inch cutout), Sherpa (half-height wind deflector)
-
Rack width: 6-pod ≥ 41⅝", 7-pod ≥ 47⅞"

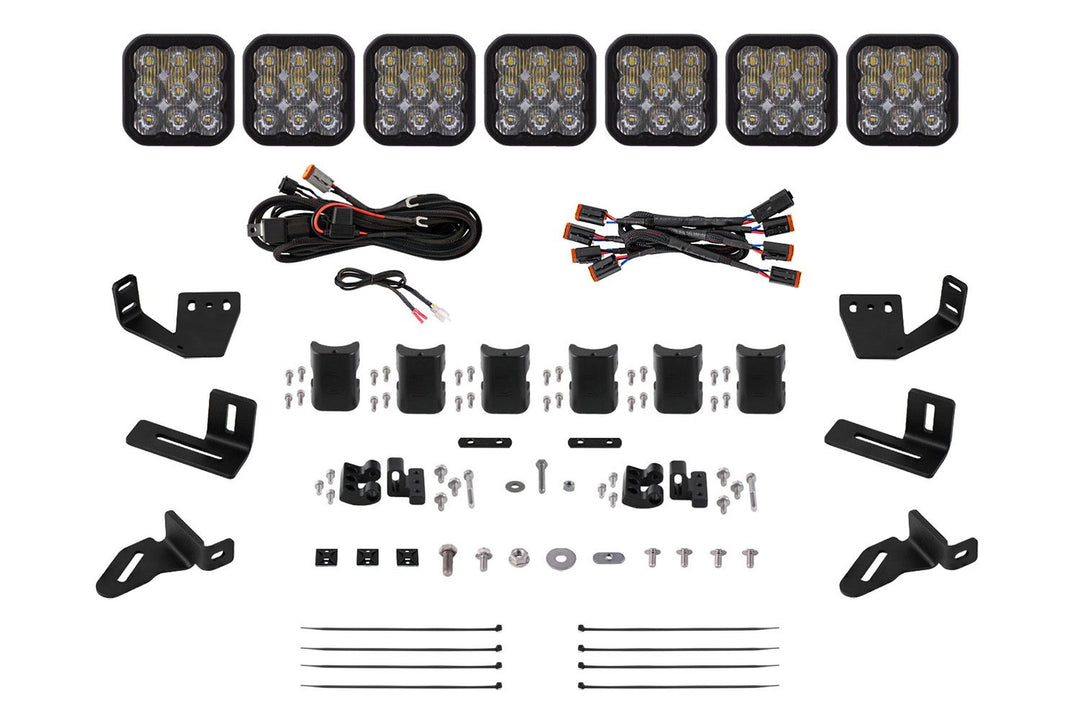

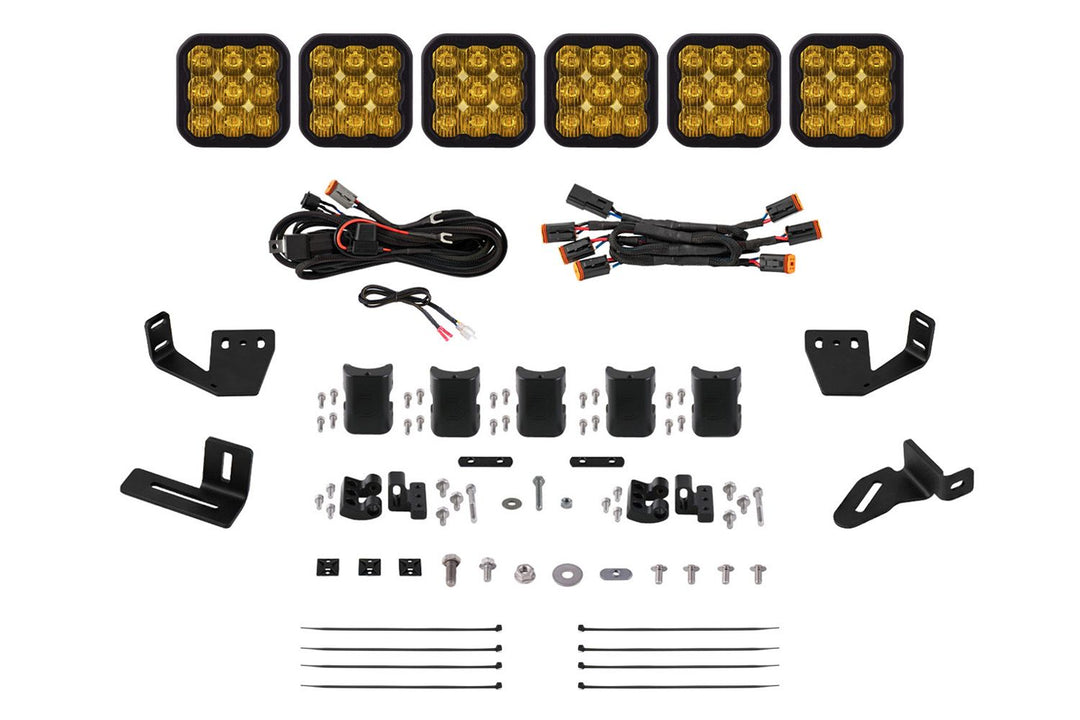

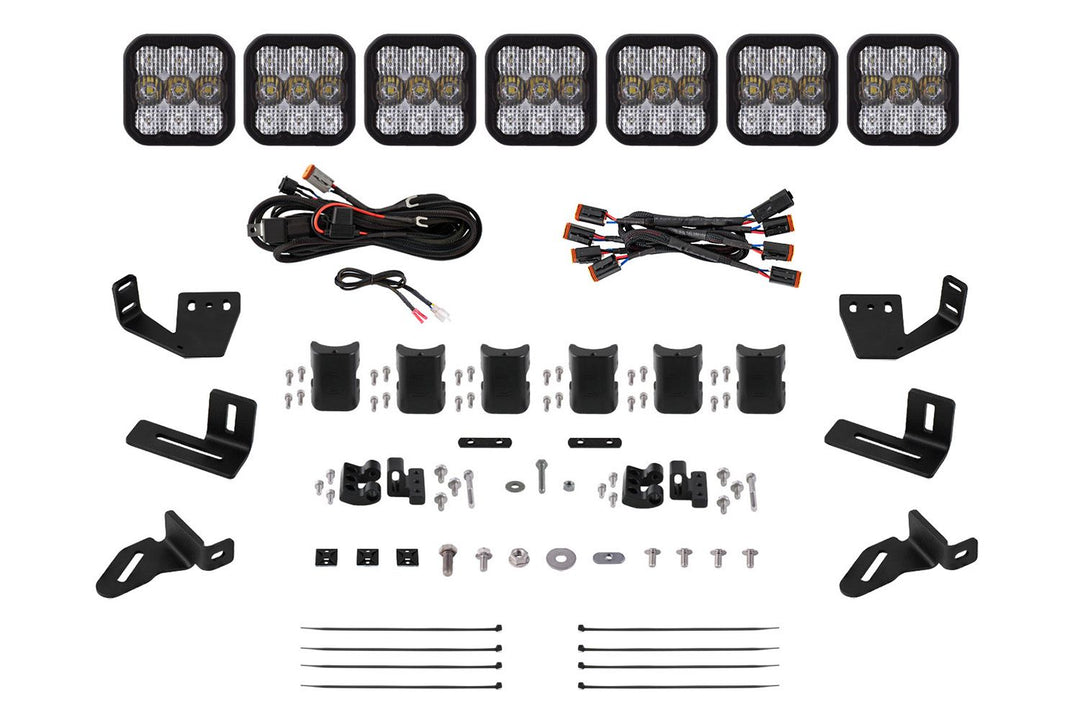

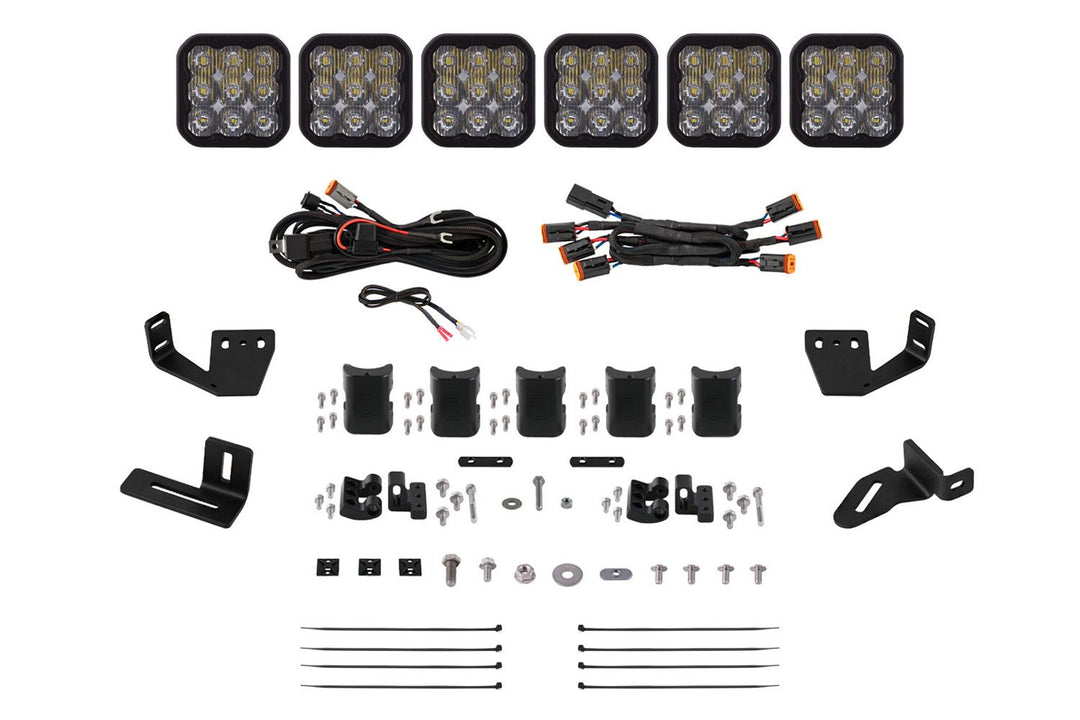

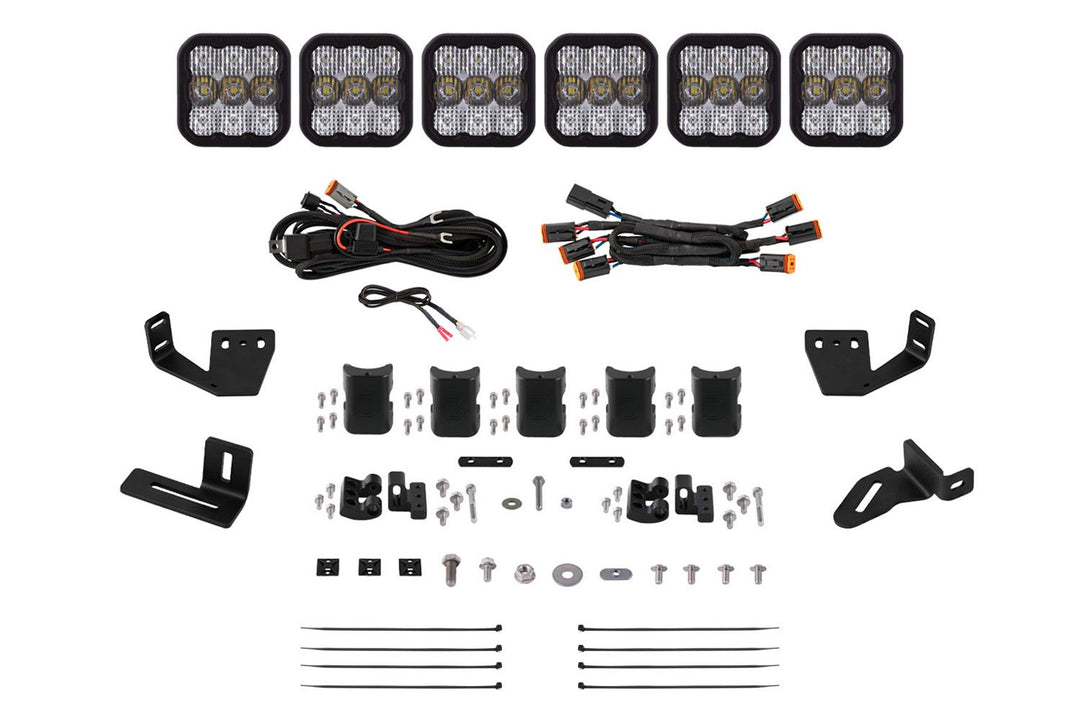

Included in the box
-
LED pods: Six (6) or seven (7) Stage Series 5-inch LED pods
-
Mounting kit: One (1) roof rack mounting kit
-

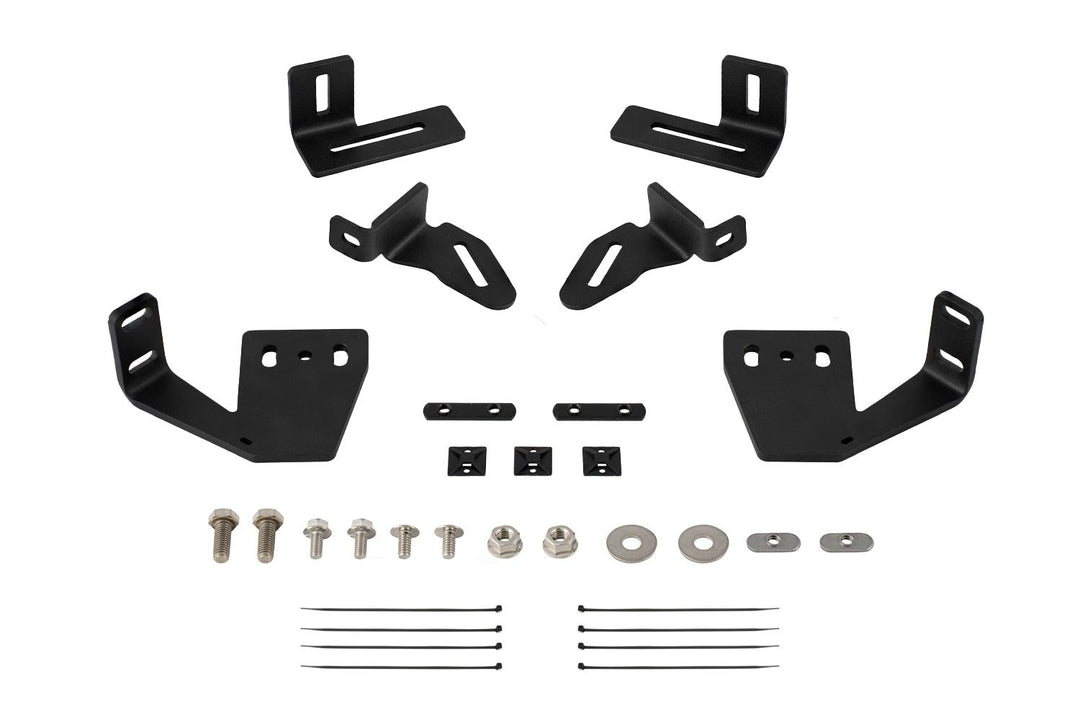

Support brackets: One (1) or two (2) CrossLink support bracket kits
-
CrossLinks: Five (5) or six (6) CrossLinks with hardware
-
End mount: One (1) CrossLink endmount kit
-
Pod harness: One (1) DT 6-pod or 7-pod connecting harness
-
Main harness: One (1) single-output wiring harness
Additional details
-
Quantity: One (1) kit
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification: None
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
