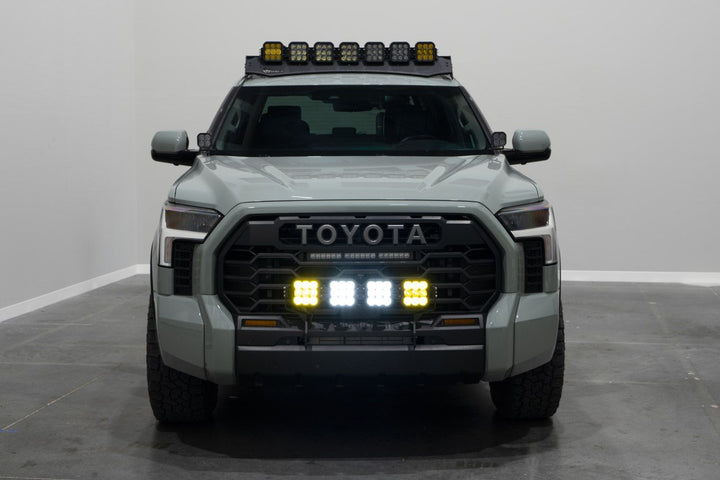

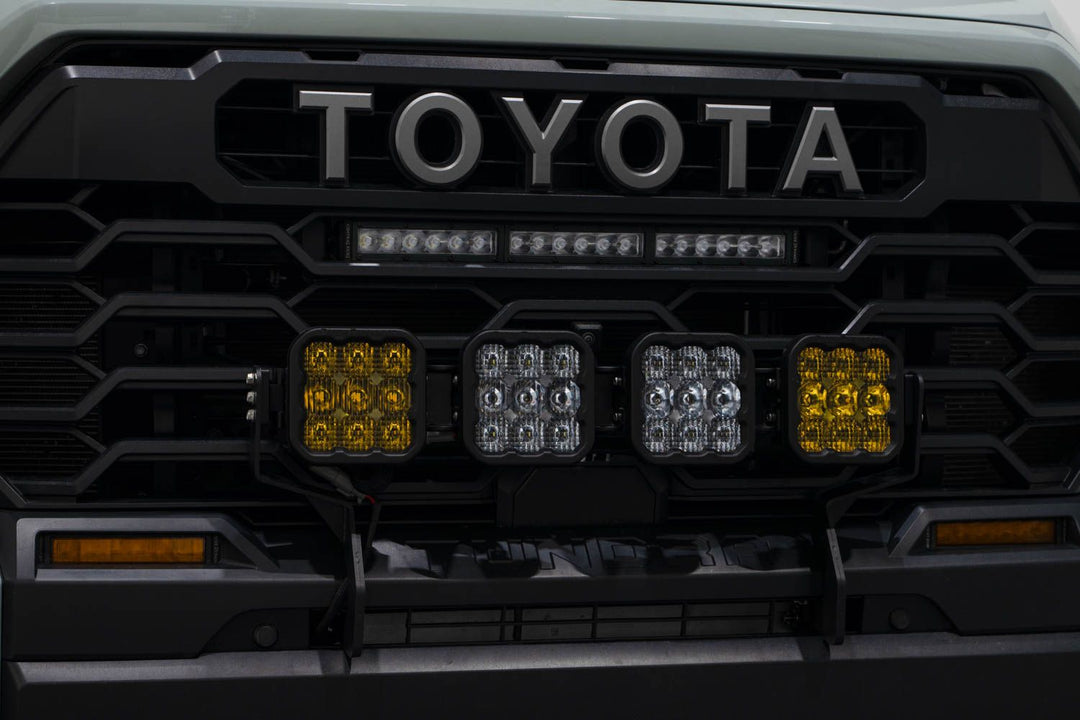

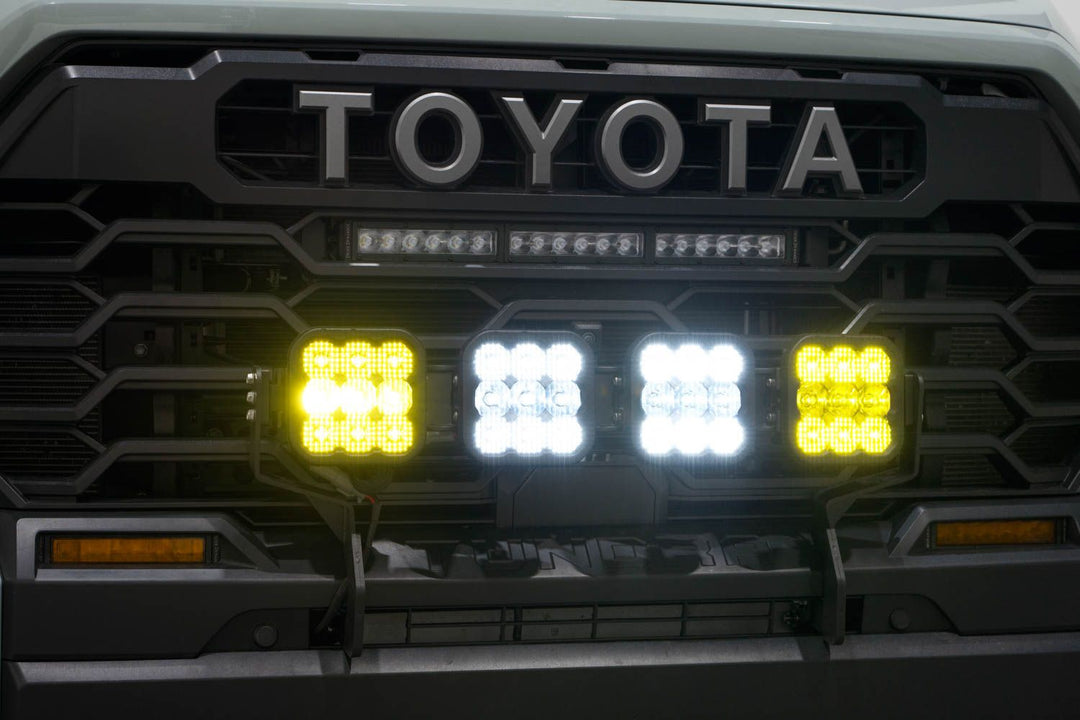

The Grille CrossLink Lightbar Kit for the Toyota Tundra (2022–2026) delivers extreme forward lighting while maintaining a clean, factory-integrated appearance. This bolt-on kit mounts four linked SS5 LED pods directly in front of the factory grille using application-specific brackets and OEM mounting points. No cutting or drilling required. Designed for maximum output, durability, and customization, this kit is built for serious off-road performance.
Important notes
-
Compatibility: Cannot be installed alongside the Stealth Bumper Lightbar Kit
-
Backlight limitation: Yellow lens option is available with amber backlight only
-
Installation: Minor modification required
-
Mounting: Utilizes factory bumper mounting points
Features
-
Bolt-on fitment: Direct installation on 2022+ Toyota Tundra using OEM mounting points
-
Four-pod CrossLink design: Links four SS5 LED pods into a rigid, grille-mounted lightbar
-
Ultra-high intensity: Custom-engineered TIR optics deliver maximum usable output
-

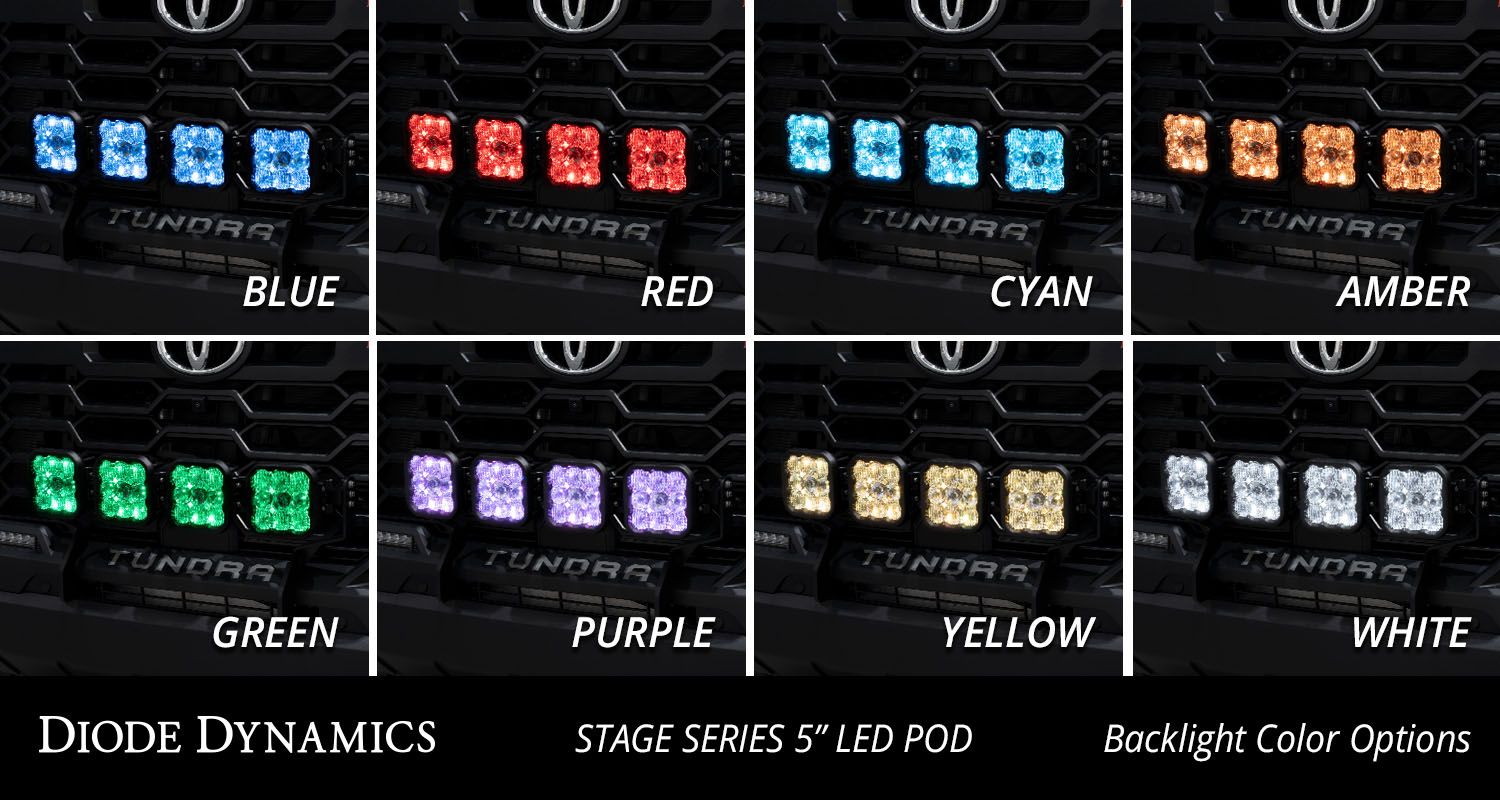

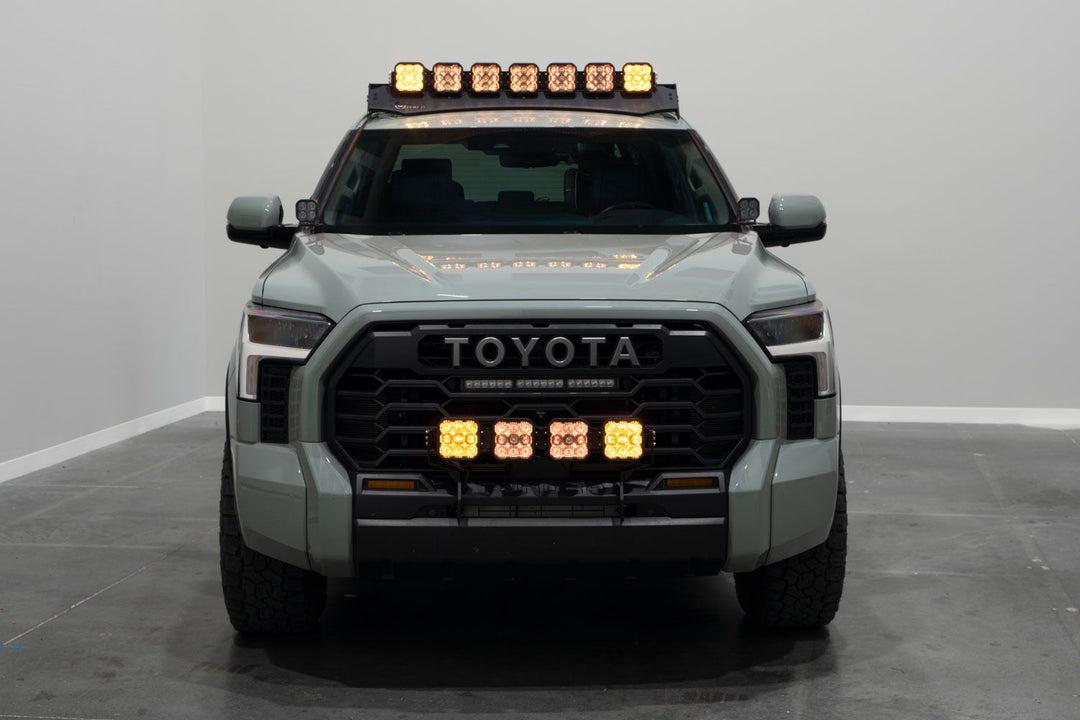

Selectable backlight: Eight color options on white-lens kits for accent lighting
-
Heavy-duty construction: Torture-tested components built for extreme off-road use
-
CrossLink technology: CNC-machined aluminum links provide rigidity and adjustability
-
Interchangeable lenses: Swap optics or colors without replacing the entire pod
-
Power level options: Available in Sport (40W) or Pro (90W) configurations
-
Snap-on covers: Optional covers available for on-road compliance where required
-
Made in USA: Engineered and assembled with globally sourced materials

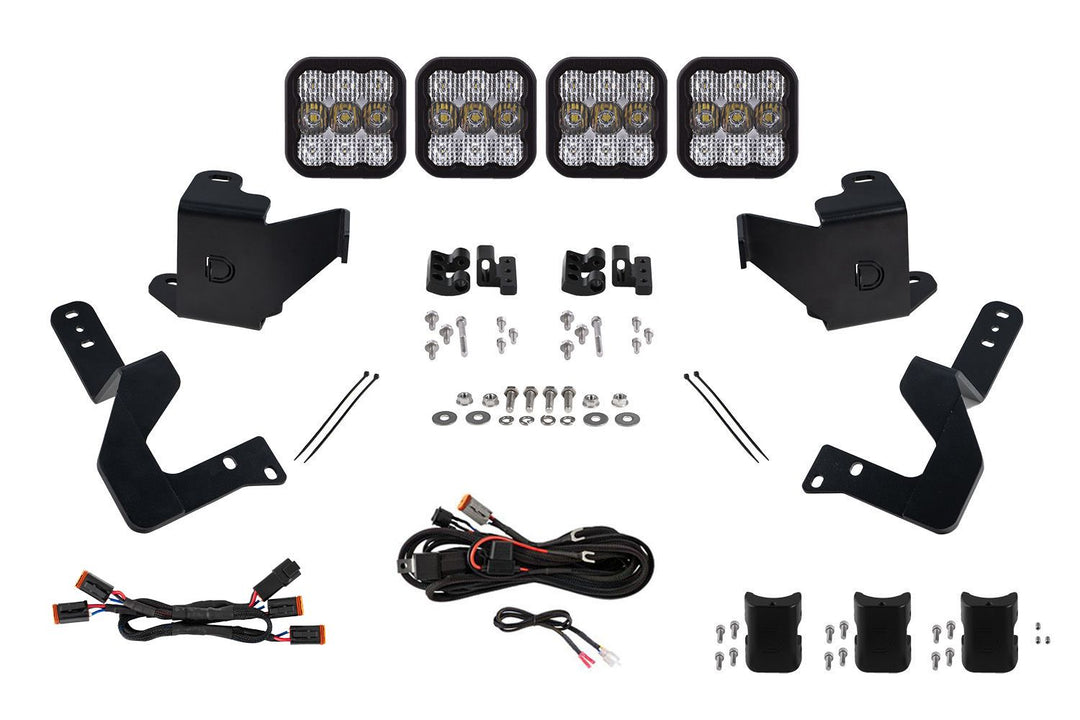

In the box
-

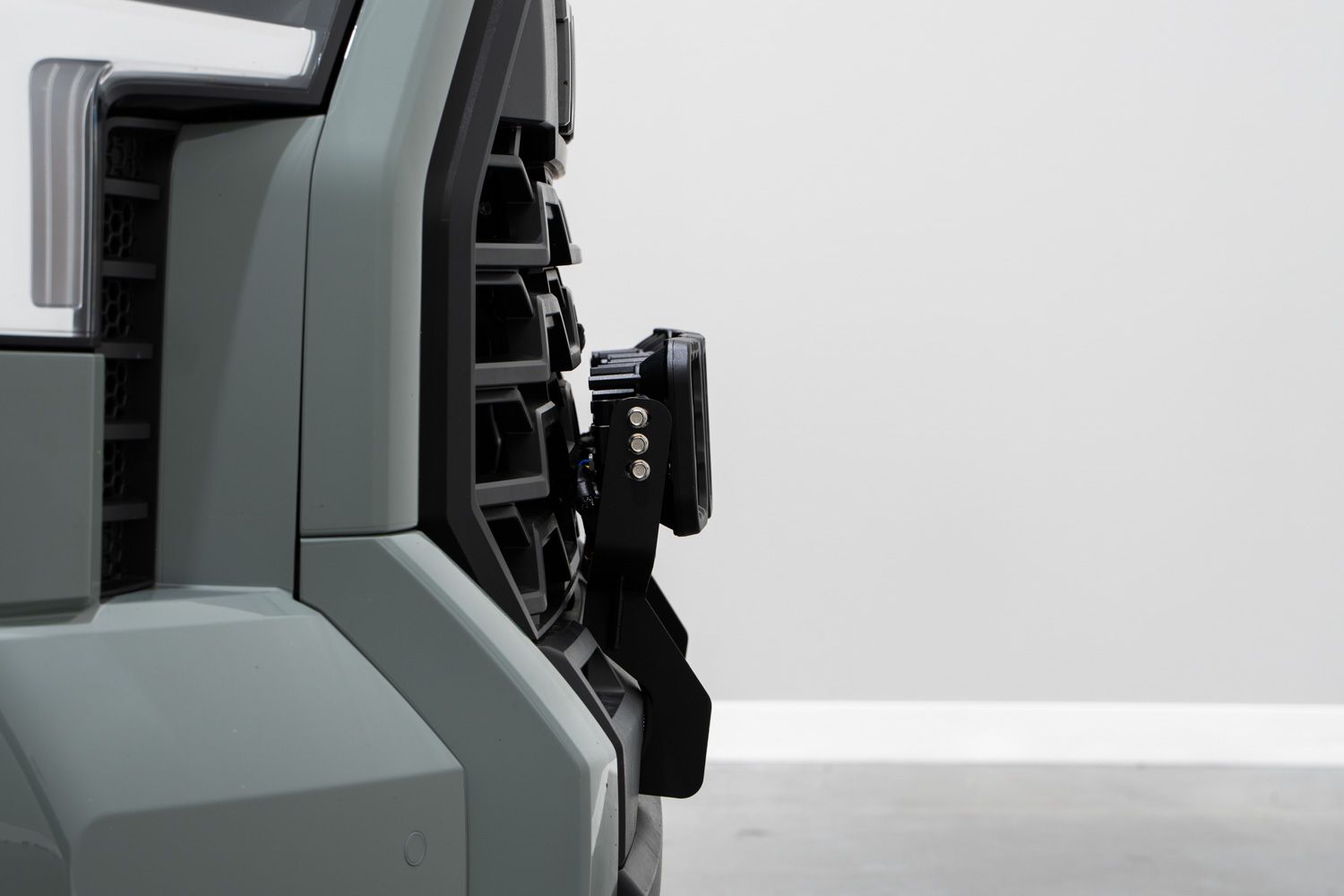

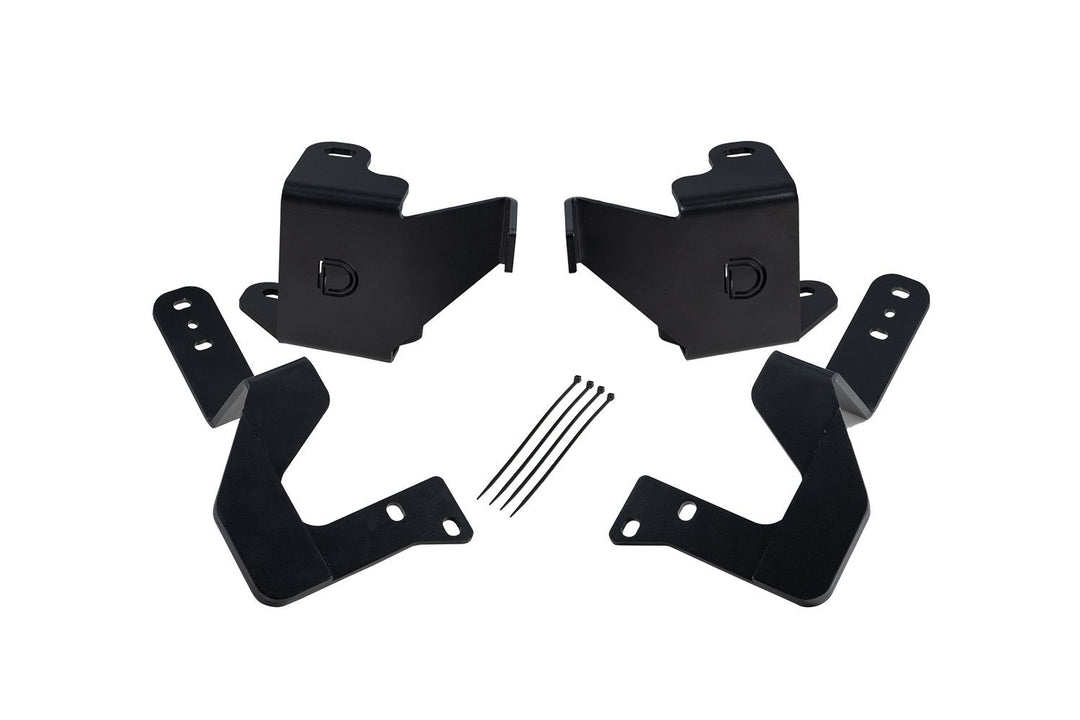

Mounting brackets: Four (4) application-specific heavy-duty steel brackets
-
LED pods: Four (4) Stage Series 5-inch SS5 LED pods
-
CrossLinks: Three (3) CrossLink bars with hardware
-
End mount: One (1) CrossLink end mount kit
-
Wiring: One (1) DT 4-pod connecting harness
-
Harness: One (1) heavy-duty single-output wiring harness
-
Documentation: Installation guide
-
Quantity: One (1) complete kit
Specifications (per pod)
Light output
-
Measured output:
- Sport: 3,800 lumens (white), 3,700 lumens (yellow)
- Pro: 9,600 lumens (white), 7,900 lumens (yellow)
-
Raw output:
- Sport: 4,800 lumens
- Pro: 9,700 lumens (white), 8,900 lumens (yellow)
Electrical
-
Main beam power: Sport: 40W, Pro: 90W
-
Main beam current (@12.8V):
- Sport White: 2.75A
- Sport Yellow: 2.8A
- Pro: 6A
-
Backlight power: White: 3.17W, Yellow: 3.07W
Optics and construction
-
Color temperature: 6000K (white), 3000K (yellow)
-

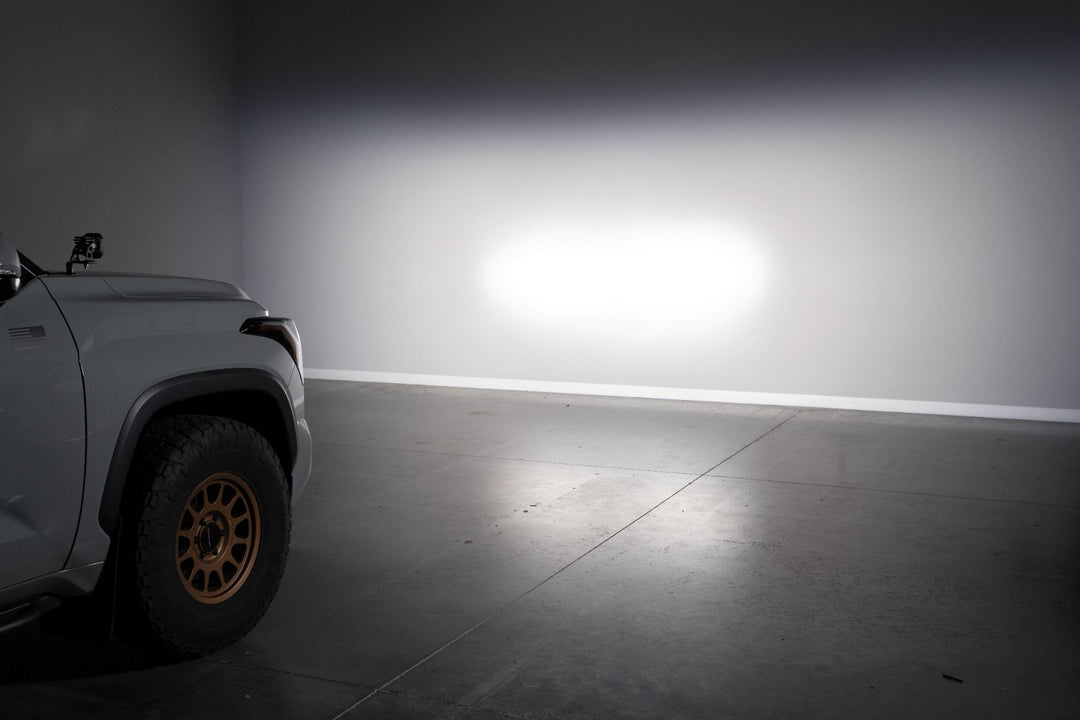

Beam pattern: Combo (Driving + Flood)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high-pressure resistant
-
Operating temperature: -40°F to 185°F
Weight
-
Product weight: 19.5 lb
-
Shipped weight: 23.6 lb
Fitment
-
Make: Toyota
-
Model: Tundra
-
Years: 2022, 2023, 2024, 2025, 2026
Warranty & protection
-
Warranty: Lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
