The SS5 Stealth Grille LED Pod Kit for the Toyota 4Runner delivers extreme forward lighting while maintaining a clean, factory-style appearance. This bolt-on solution allows you to mount two or four Stage Series 5-inch SS5 LED pods behind the factory grille using OEM mounting points—no cutting or drilling required. Designed to retain Toyota Safety Sense functionality, this kit provides unmatched output, advanced optics, and customizable styling without compromising the original look of your 4Runner.
Notes
-
Trim Exclusions: Not compatible with Limited or Nightshade trim levels
-
Toyota Safety Sense: Fully compatible and does not interfere with sensors
-
2014–2019 Models Without TSS: Optional center-mounted fifth SS5 pod possible (not included)
-
Backlight Limitation: Yellow lens kits are only available with amber backlight
Features
-
Bolt-On Fitment: Direct bolt-on installation for 2014–2023 Toyota 4Runner using factory mounting points
-

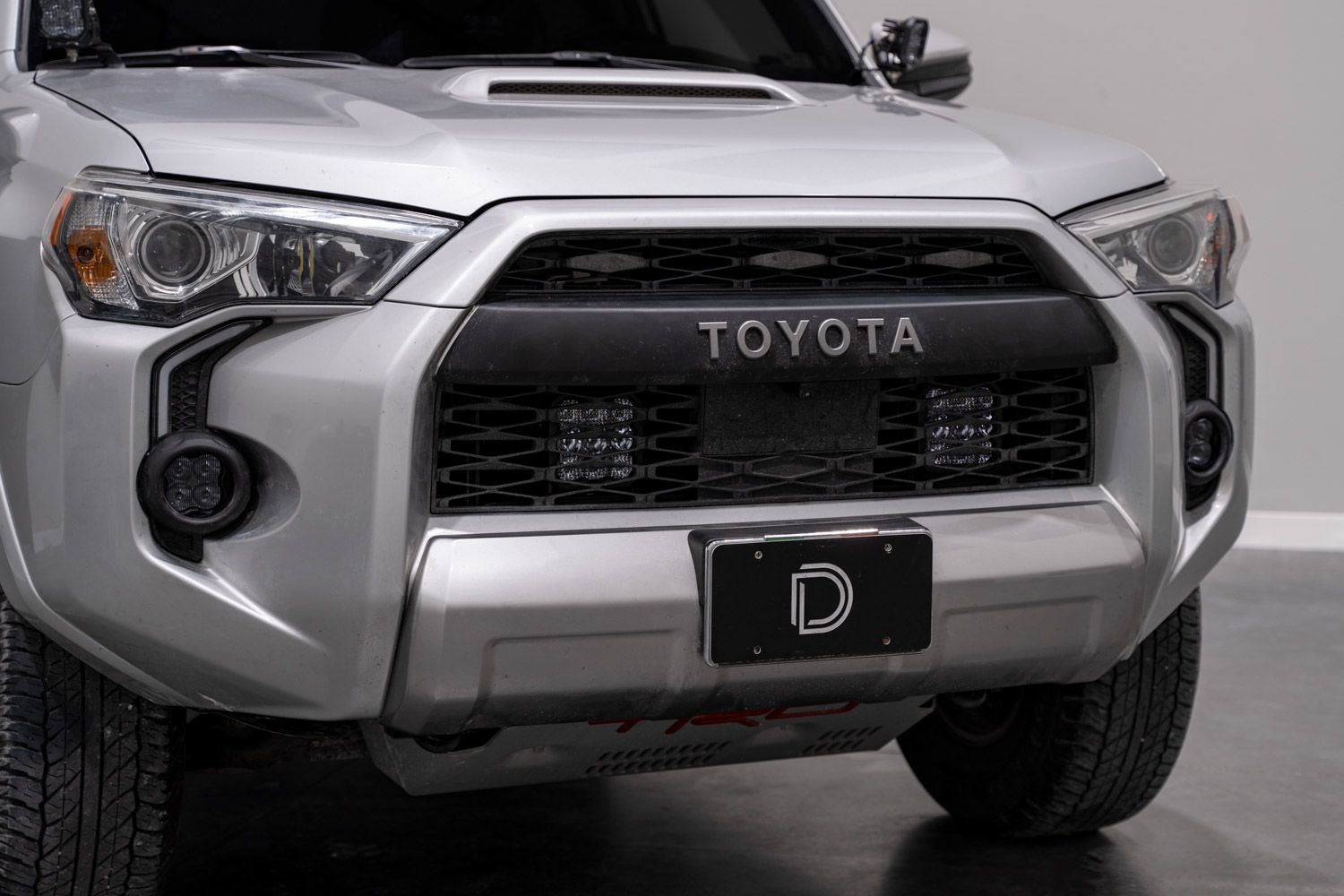

Stealth Mounting: Concealed behind the factory grille for an OEM-style appearance
-

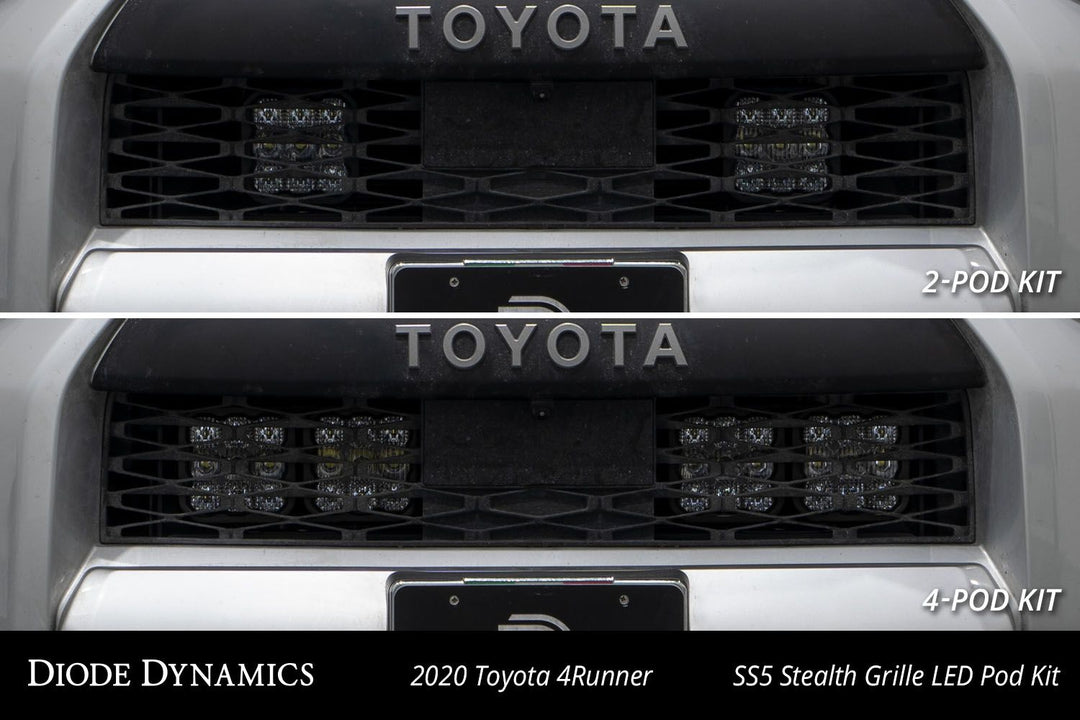

Pod Configuration: Supports two or four SS5 LED pods with adjustable mounting positions
-
TIR Optics: Custom-engineered Total Internal Reflection optics for maximum usable light output
-

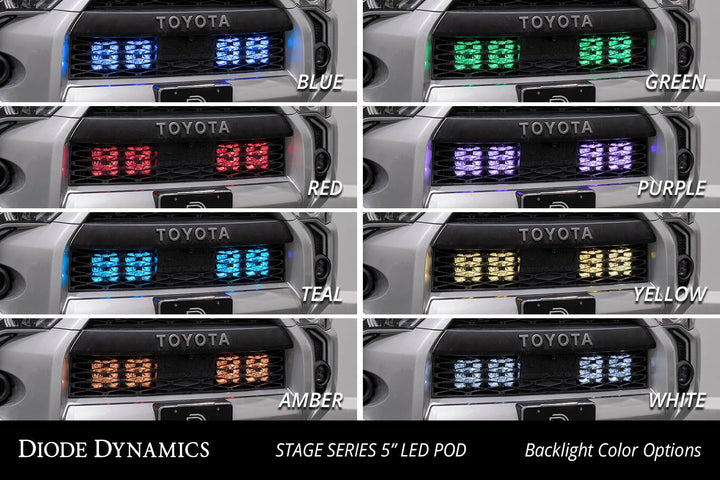

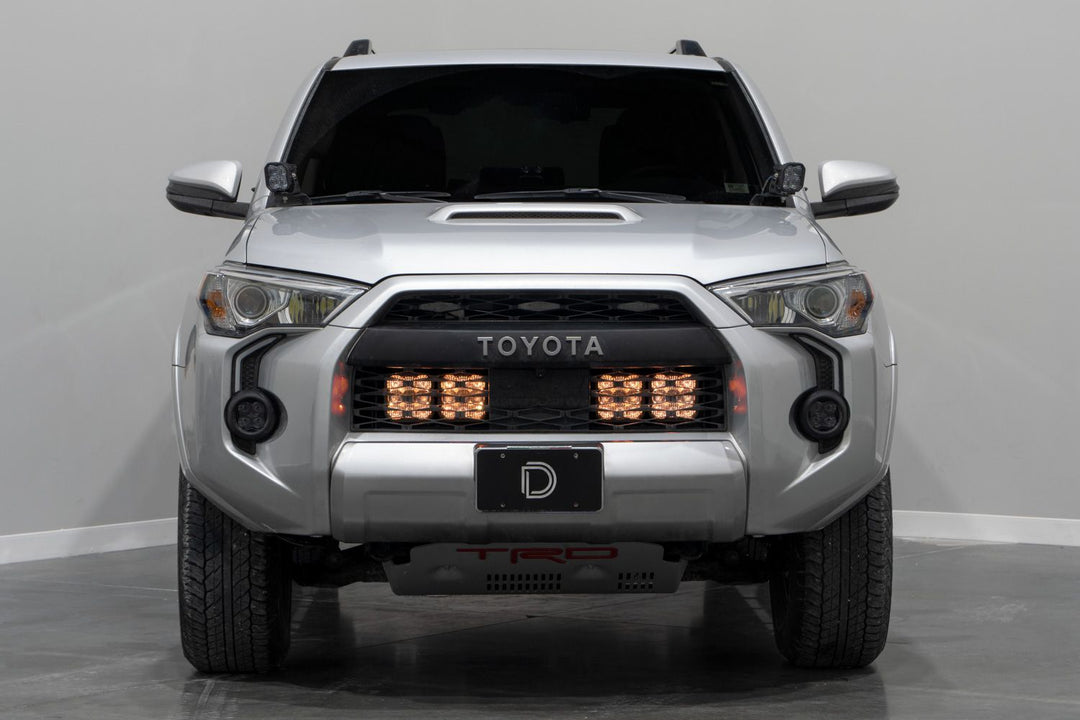

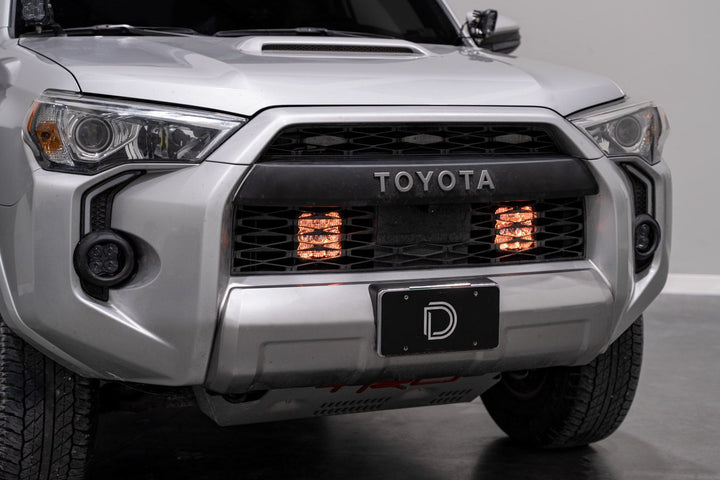

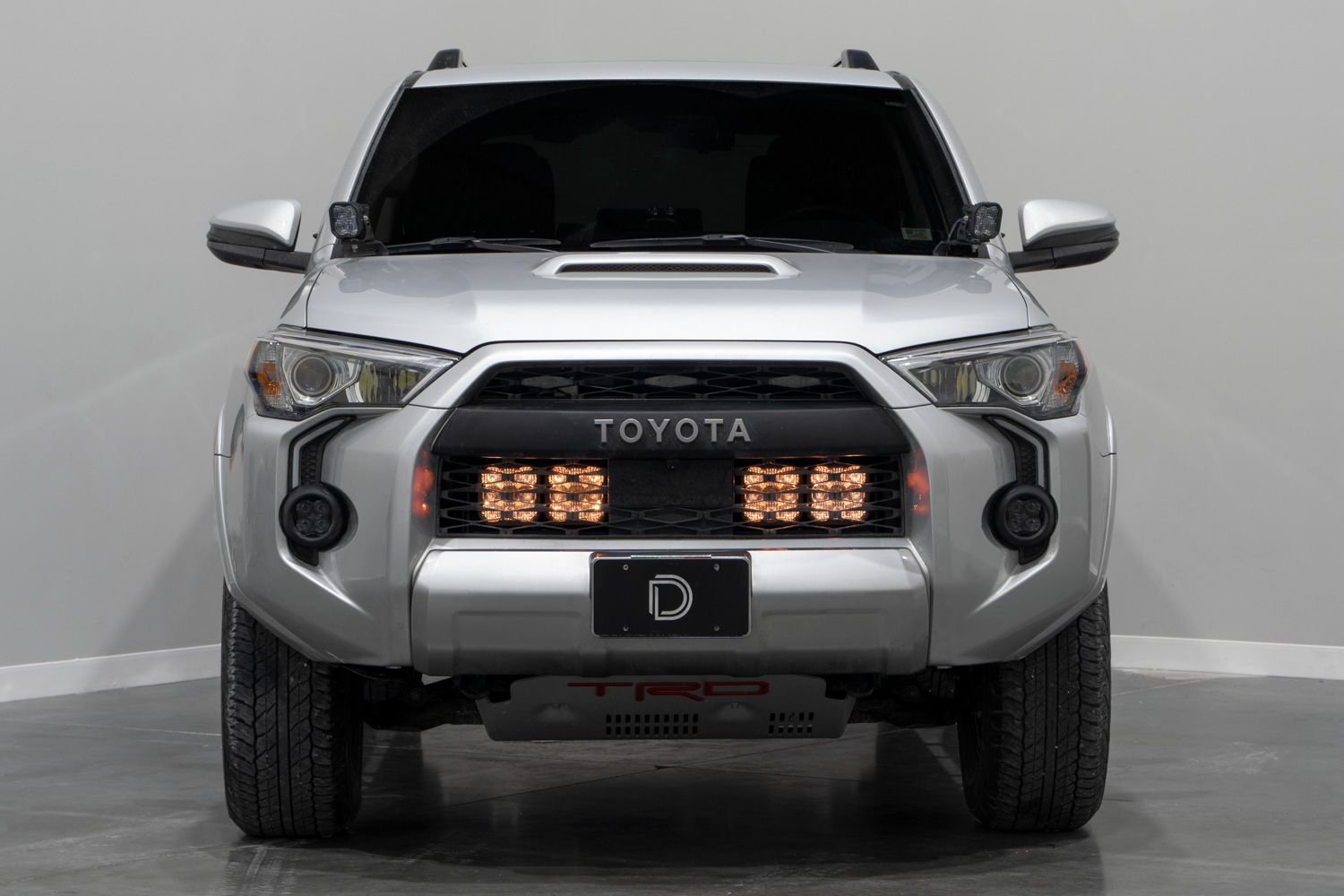

Selectable Backlight: White kits offer eight selectable backlight colors via simple power cycling
-
Heavy-Duty Brackets: Powder-coated steel brackets designed to eliminate vibration and flex
-

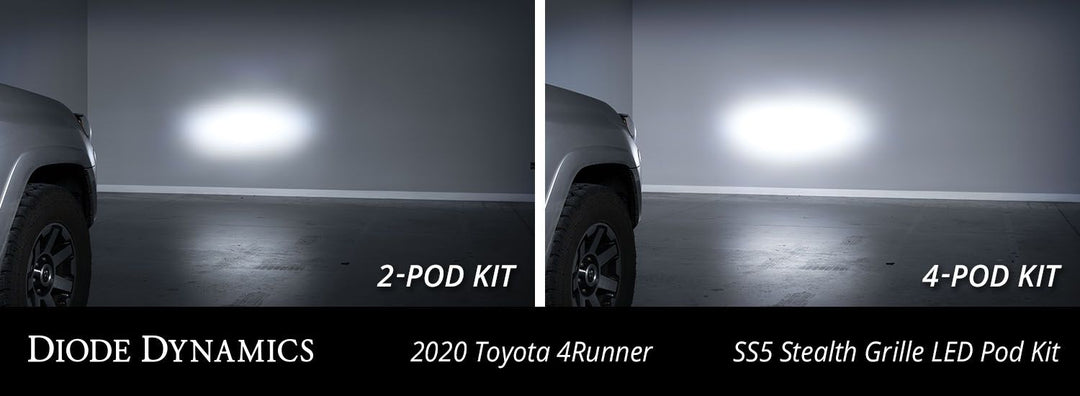

High Output Performance: Delivers the highest intensity available from any 5-inch LED pod
-
USA Assembled Pods: SS5 LED pods are assembled in the USA for quality and consistency
Beam Pattern Options
-
Driving Pattern: Focused 30° × 20° beam optimized for high-speed forward visibility
-
Combo Pattern: Blended driving and flood optics providing a 70° × 30° spread for all-around use
Output Color Options
-
White (6000K): Crisp, cool white output that matches factory LED lighting
-
Yellow (3000K): High-contrast output ideal for dust, fog, snow, and poor weather conditions
Power Level Options
-
Sport: 40W output using nine high-intensity LEDs per pod
-
Pro: 90W output for maximum intensity and long-range performance
What’s Included

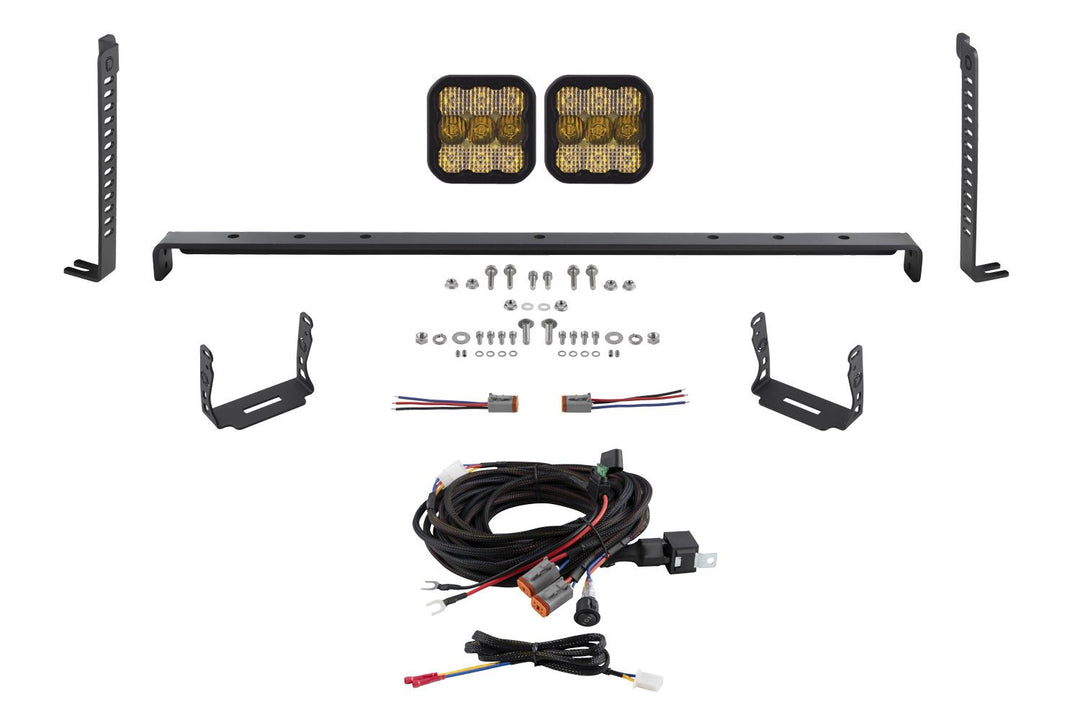

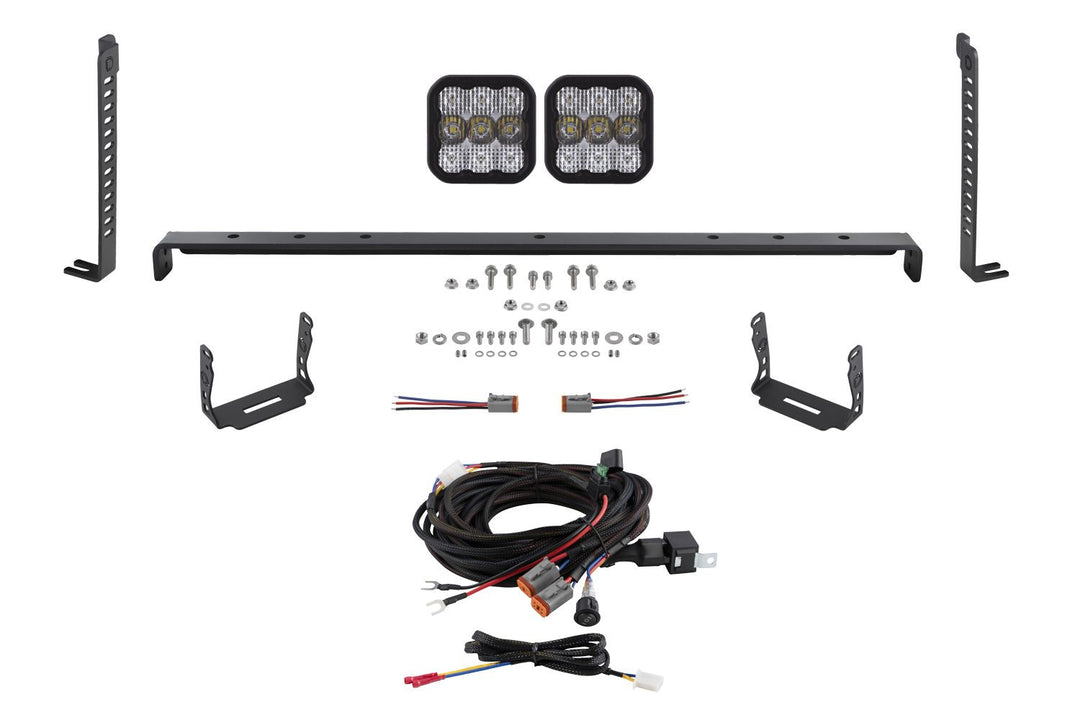

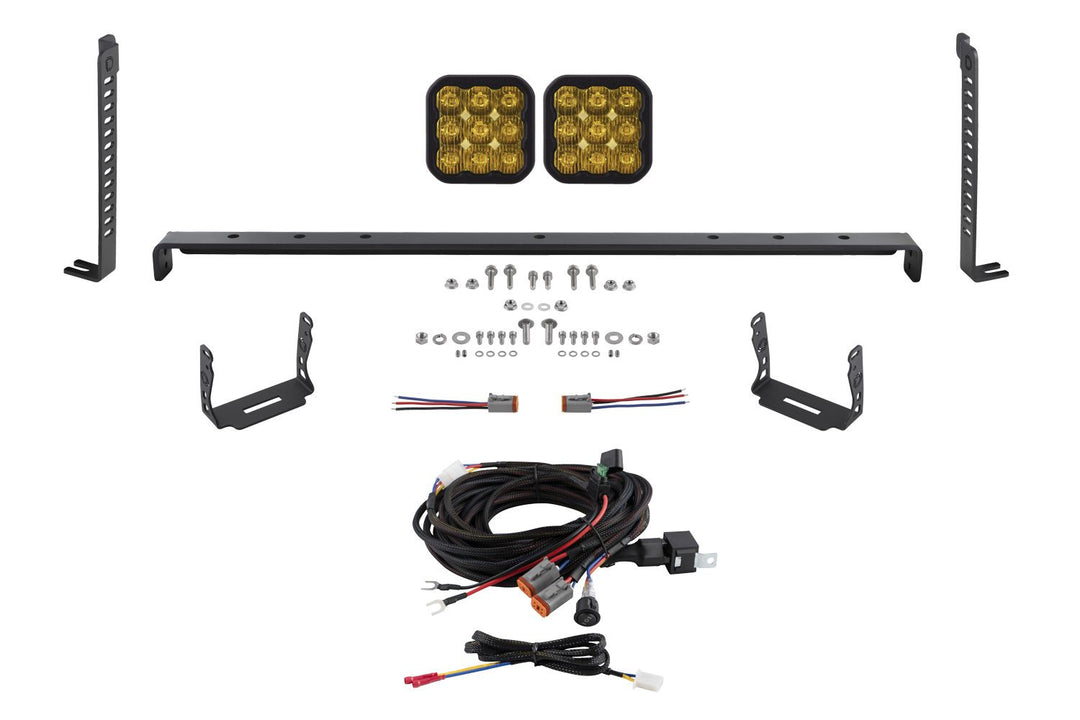

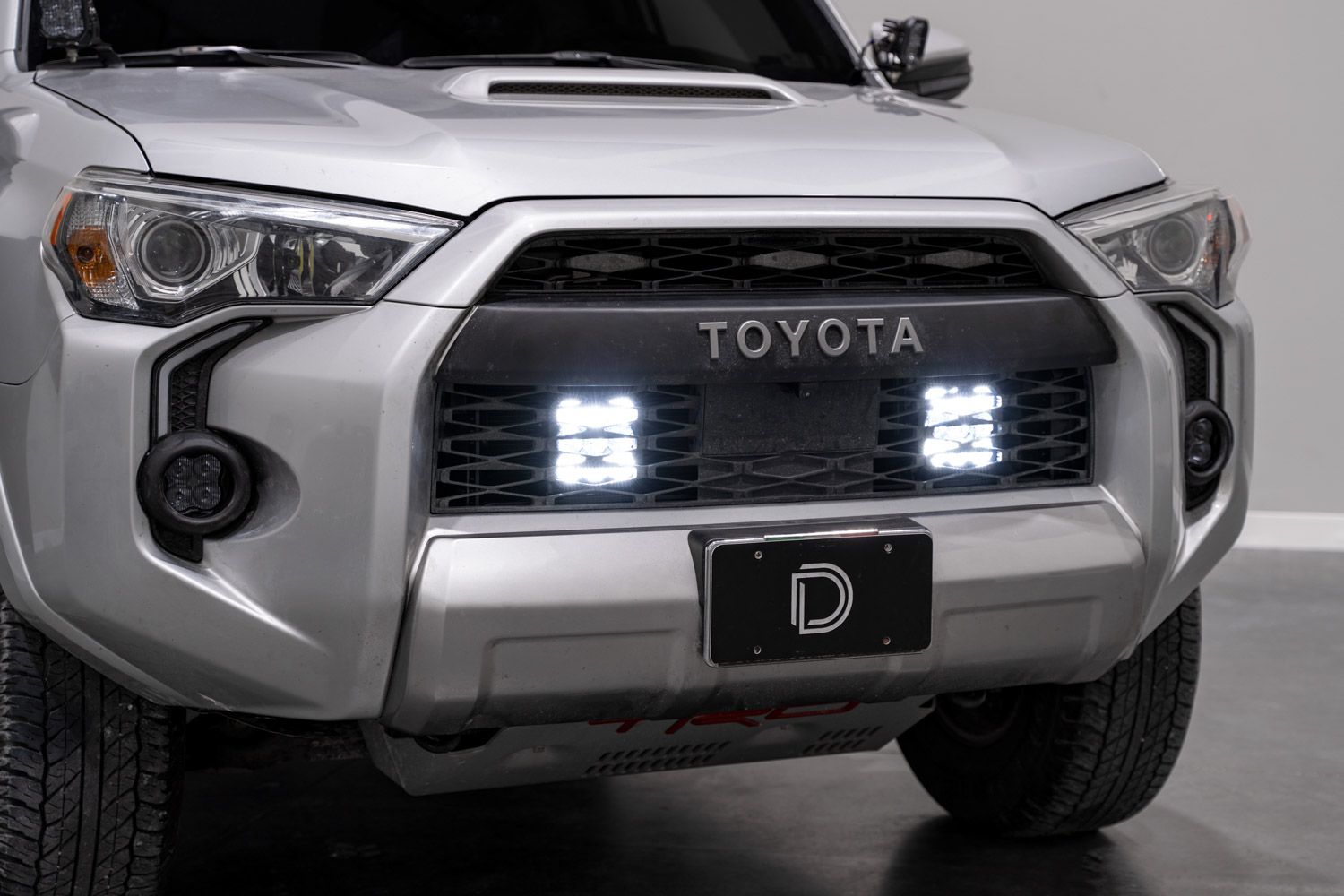

Two-Pod Kit
-
LED Pods: Two (2) Stage Series 5-inch SS5 LED pods
-

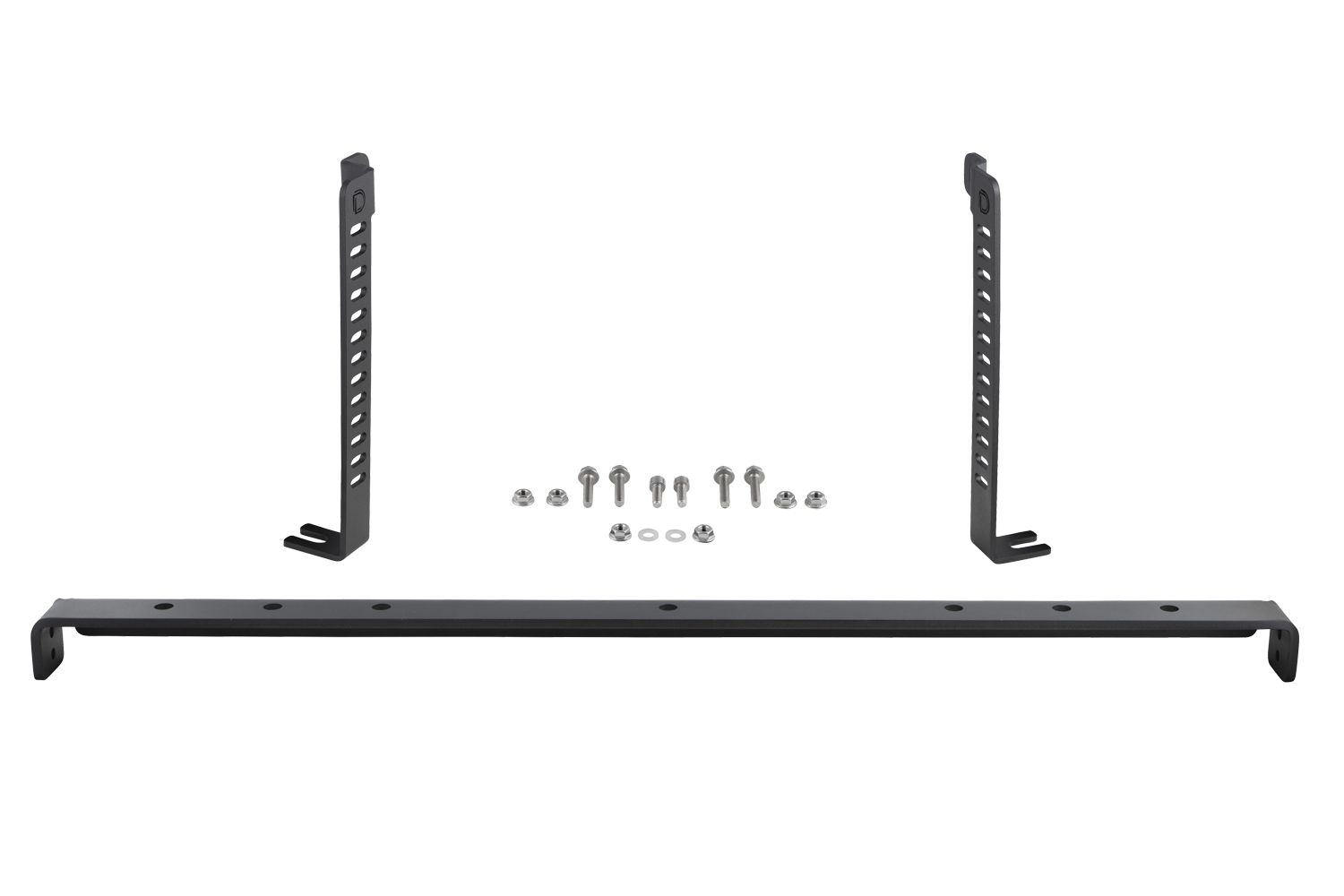

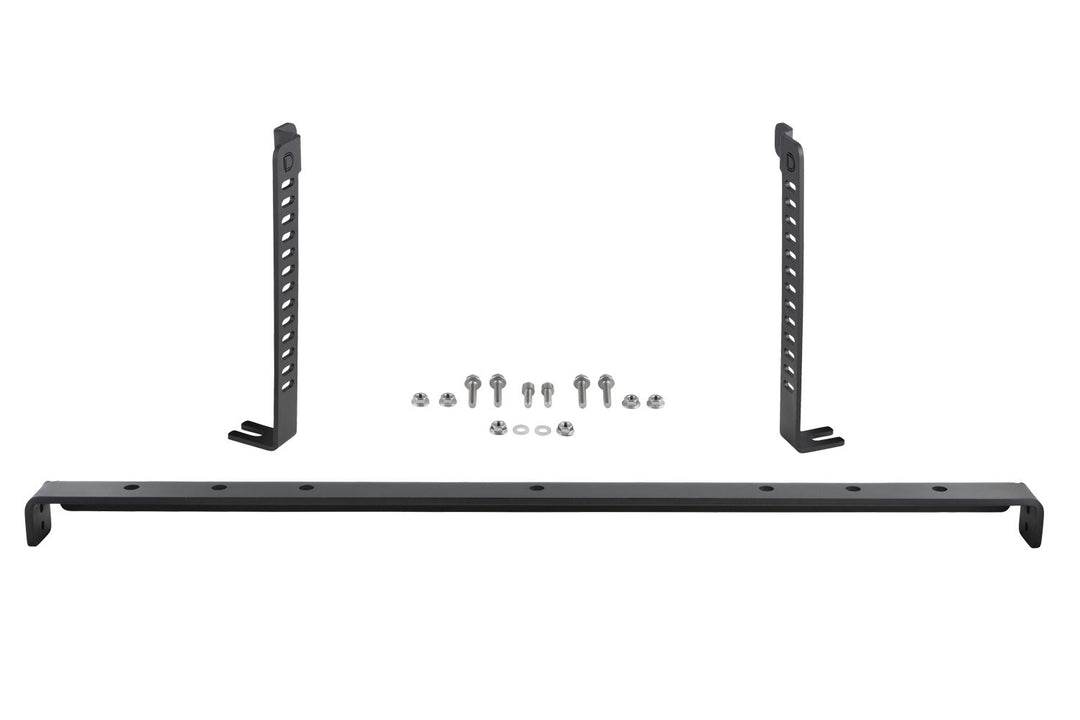

Brackets: Two (2) application-specific heavy-duty steel brackets
-
Crossbar: One (1) SS5 crossbar mount
-
Wiring: One (1) heavy-duty dual-output wiring harness
-
Guide: Installation guide

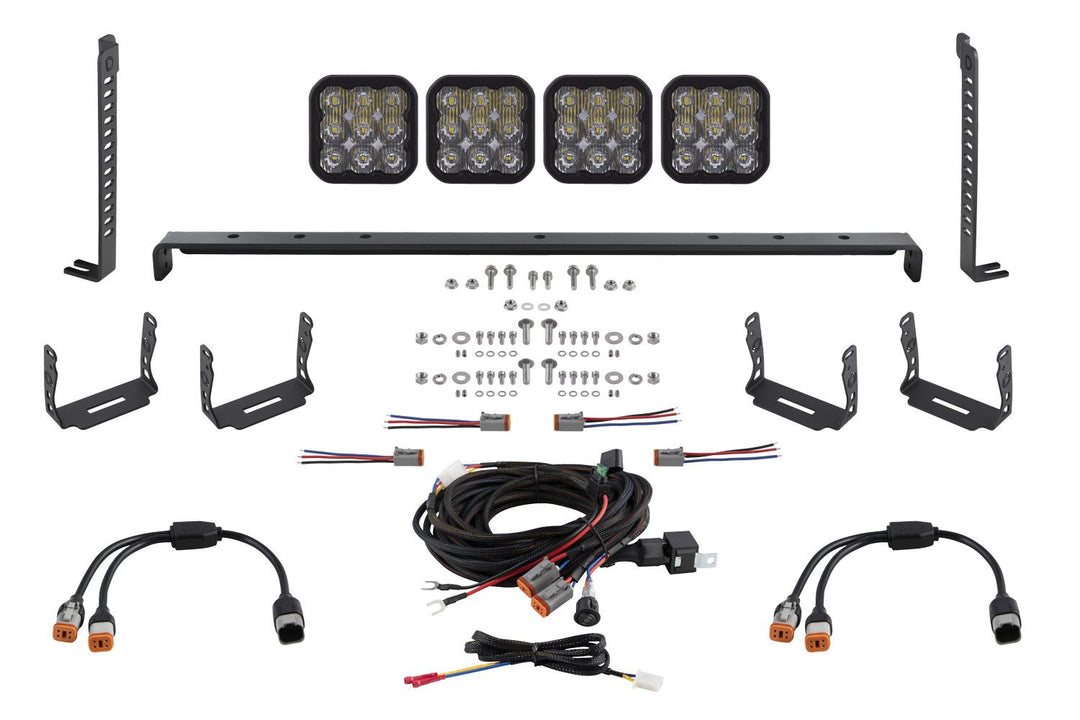

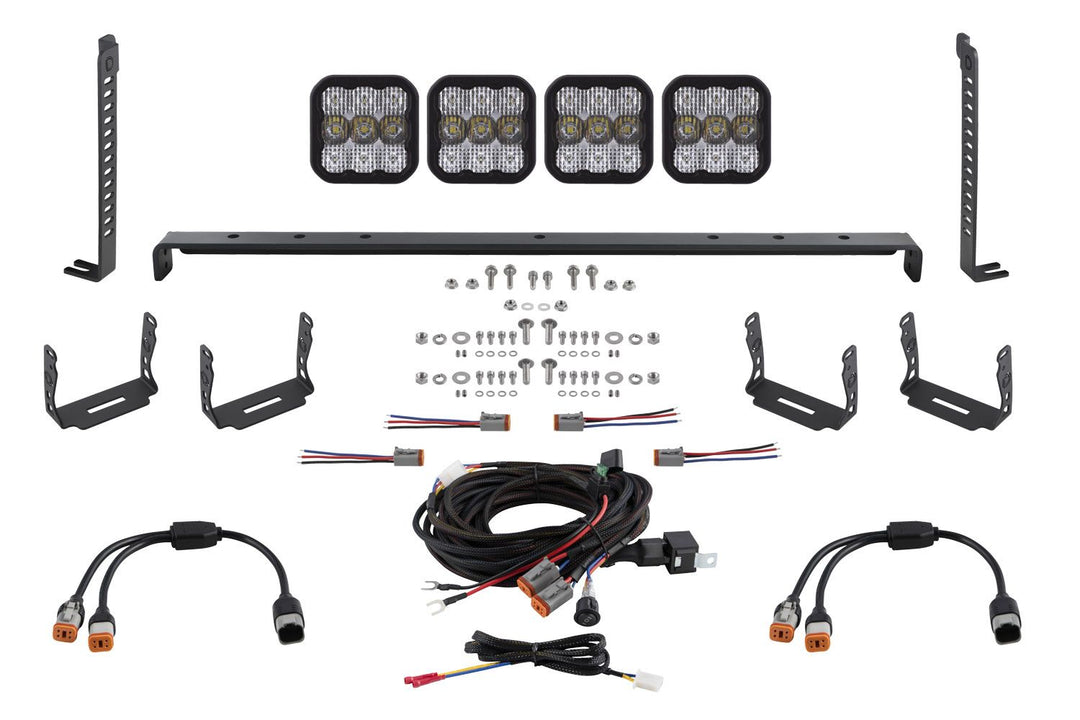

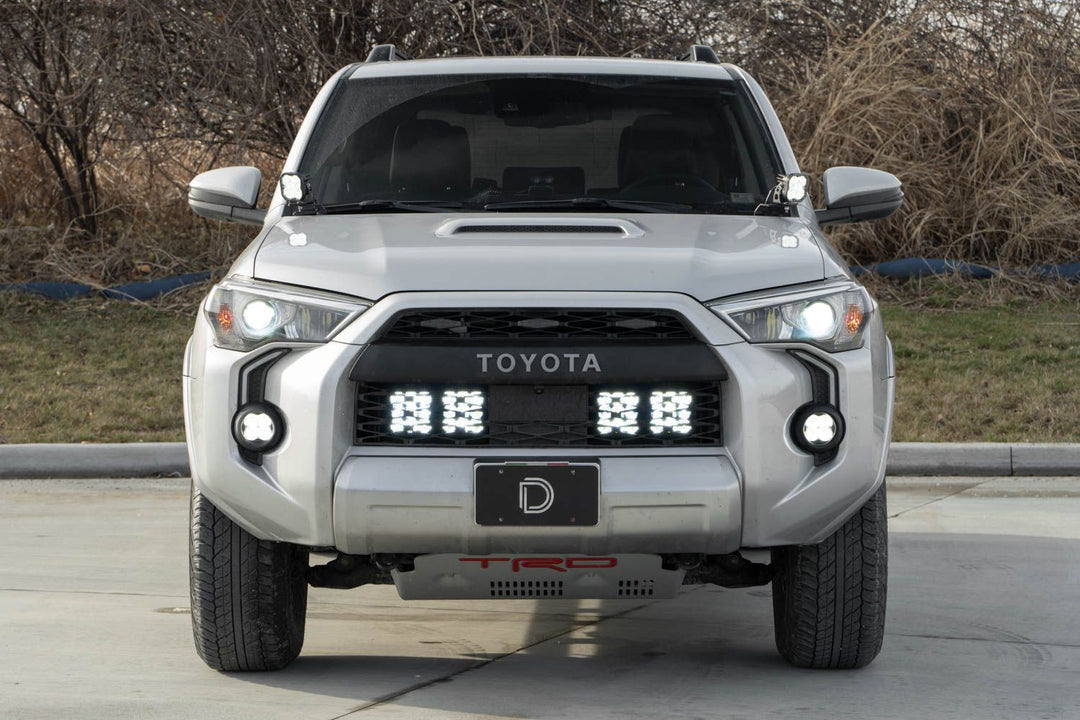

Four-Pod Kit
-
LED Pods: Four (4) Stage Series 5-inch SS5 LED pods
-
Brackets: Two (2) application-specific heavy-duty steel brackets
-
Crossbar: One (1) SS5 crossbar mount
-
Wiring: One (1) heavy-duty dual-output wiring harness
-
Splitters: Two (2) DT 4-pin splitter harnesses
-
Guide: Installation guide
Specifications (Per Pod)
-
Main Beam Power: Sport 40W | Pro 90W
-
Backlight Power: White 3.17W | Yellow 3.07W
-
Color Temperature: 3000K (Yellow), 6000K (White)
-
Beam Patterns: Driving, Combo (Driving + Flood)
-
Operating Voltage: 9–16V
-
Main Beam Current @ 12.8V:
- Sport White 2.75A
- Sport Yellow 2.8A
- Pro 6A
-
Backlight Current @ 12.8V:
-
LED Emitters: Luxeon Z ES, Cree XP-L HI
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress Rating: IP69K waterproof (high pressure)
-
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Fitment
-
Make: Toyota
-
Model: 4Runner
-
Years: (2014–2023)
-
Trim Notes: Not compatible with Limited or Nightshade trims
Installation
-
Install Time: 1–2 hours
-
Tools Required: Basic toolset
-
Modification Required: Basic wiring only
