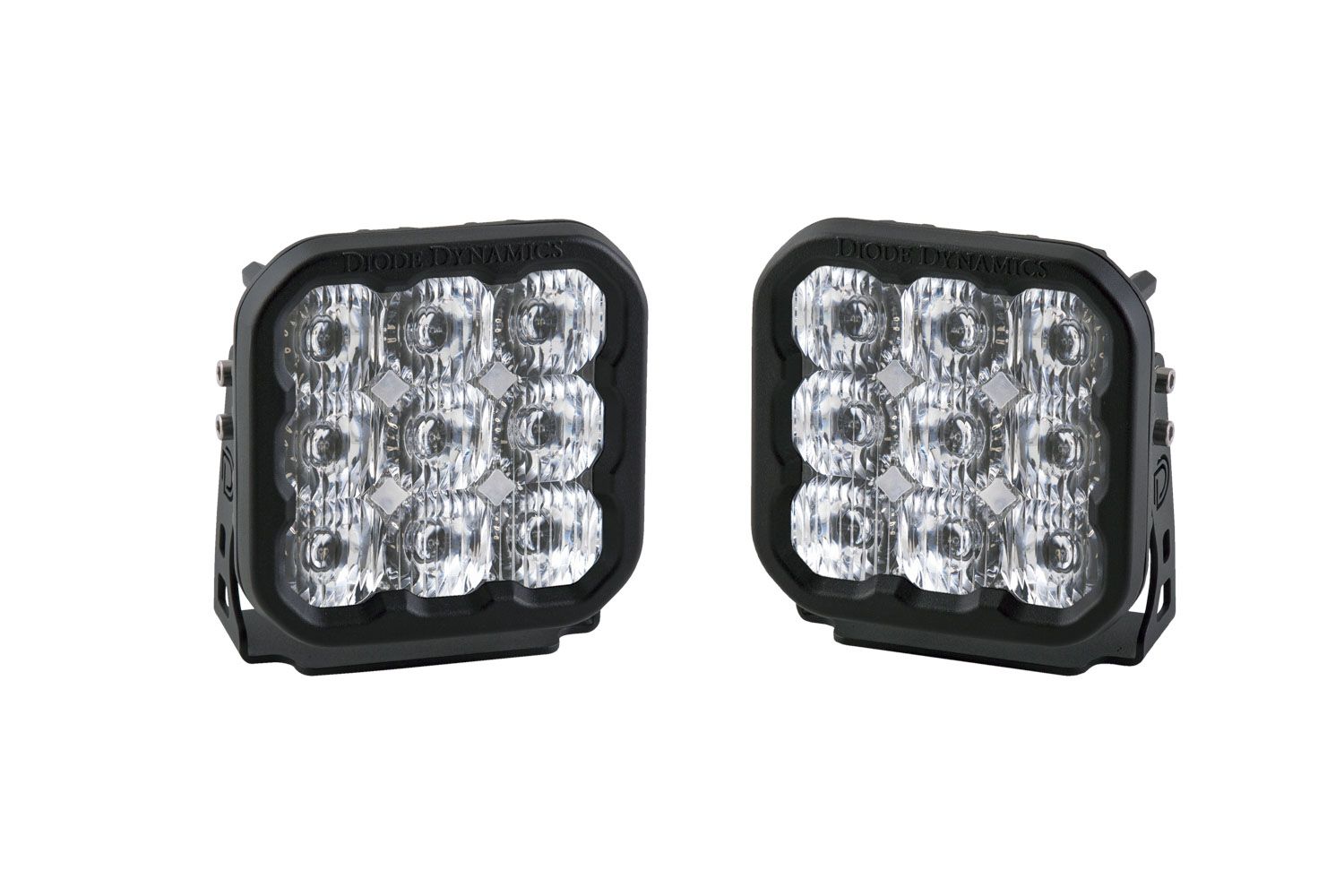

The Stage Series SS5 LED Pods deliver industry-leading intensity in a compact 5-inch form factor, engineered for drivers who demand maximum performance, durability, and modular flexibility. Featuring patented TIR optics, selectable multicolor backlighting, and built-in CrossLink capability, the SS5 is designed to perform as a standalone auxiliary light or as part of a full CrossLink lightbar system—without compromise.
Important note
-
CrossLink ready: Built-in linking capability allows up to eight pods to be connected into a 50-inch lightbar
-
Backlight control: Backlight color is changed by cycling power on and off
-
Wiring required: Wiring harness not included
-
Street legality: Output exceeds SAE auxiliary high beam limits; intended for off-road use
Features
-
TIR optics: Custom-engineered total internal reflection optics focus all usable light on target with minimal glare
-

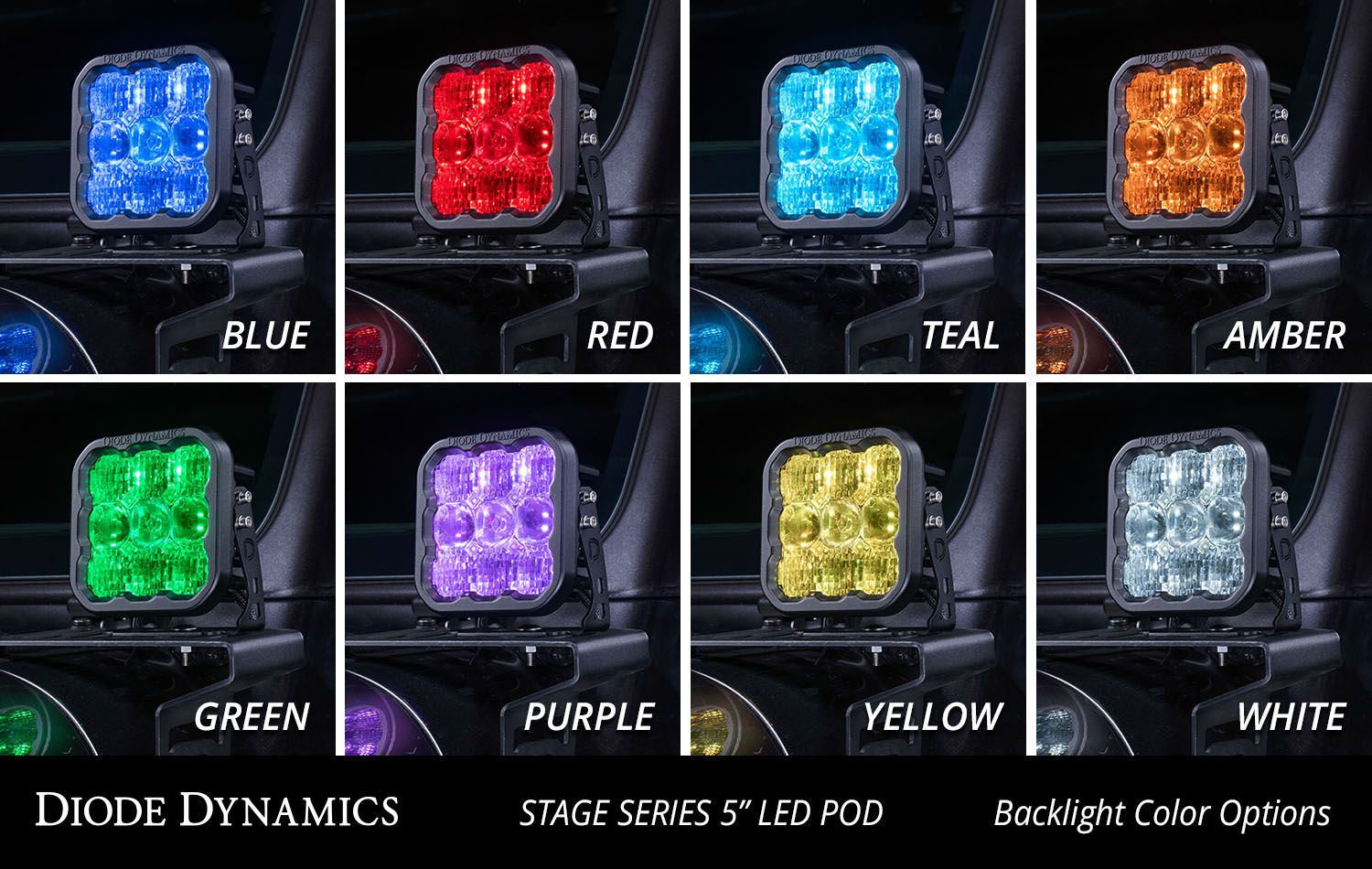

Selectable backlight: Eight color backlight options provide accent lighting or added visibility when the main beam is off
-
CrossLink compatible: Integrated threaded mounts allow linking pods together without special hardware
-
Extreme output: Ultra-high intensity beam capable of shining nearly one mile
-
Heavy-duty build: Torture-tested construction designed for vibration, moisture, and extreme environments
-
Made in USA: Engineered and assembled in the United States
Specifications
(Per pod)
-
Power:

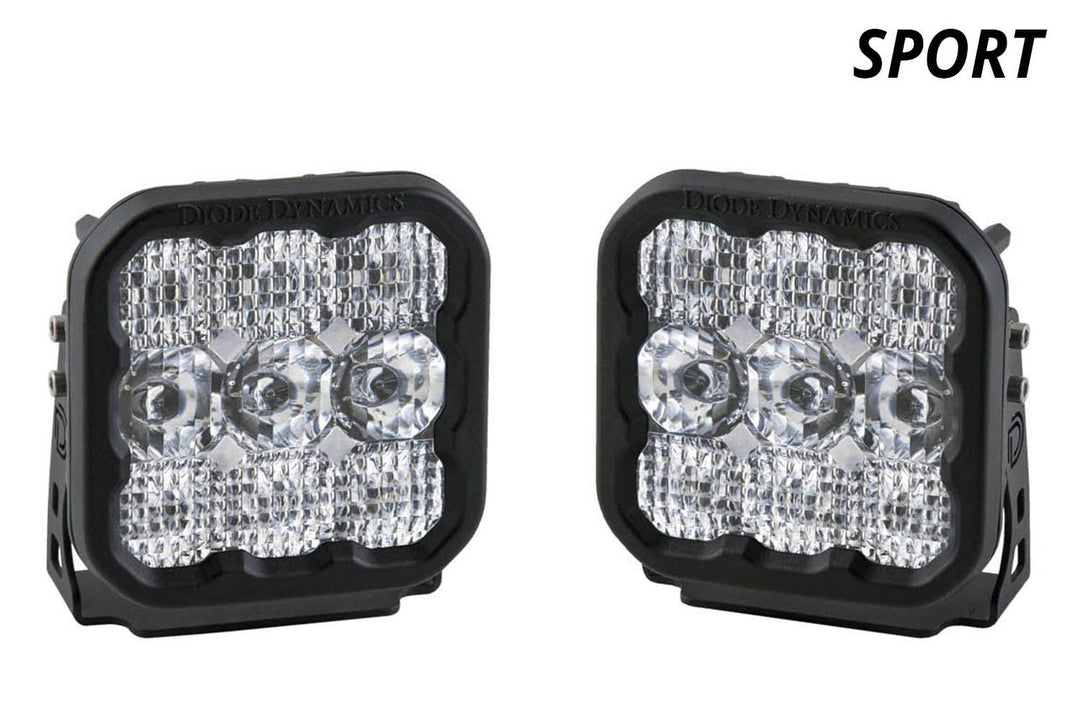

- Sport: 40W main beam, 3.17W backlight

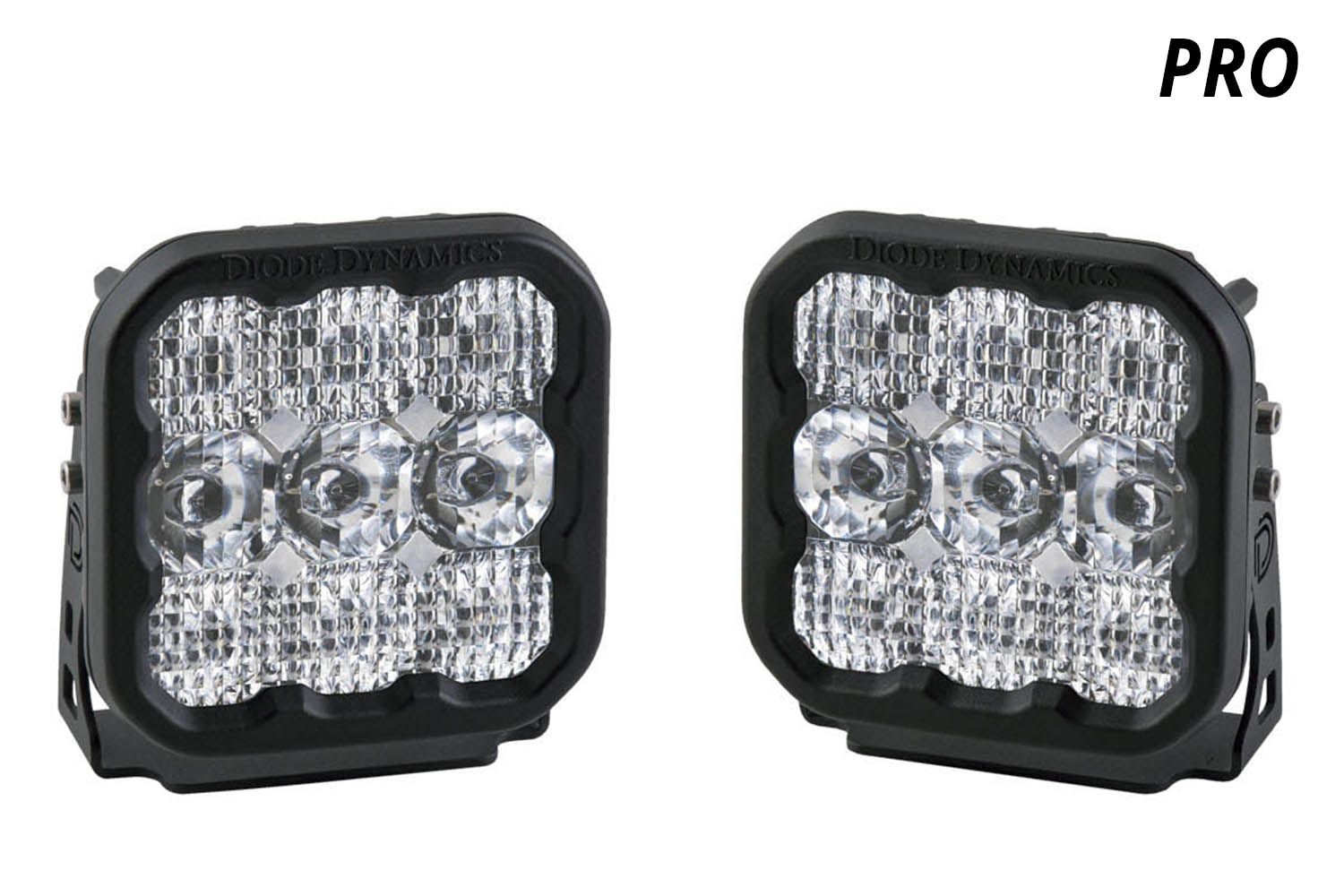

- Pro: 90W main beam, 3.17W backlight
-
Operating voltage: 9–16V
-
Current draw @ 12.8V:
- Sport: 2.75A main beam, 0.25A backlight
- Pro: 6A main beam, 0.25A backlight
-
Color temperature: 6000K (white), 3000K (yellow option available)
-

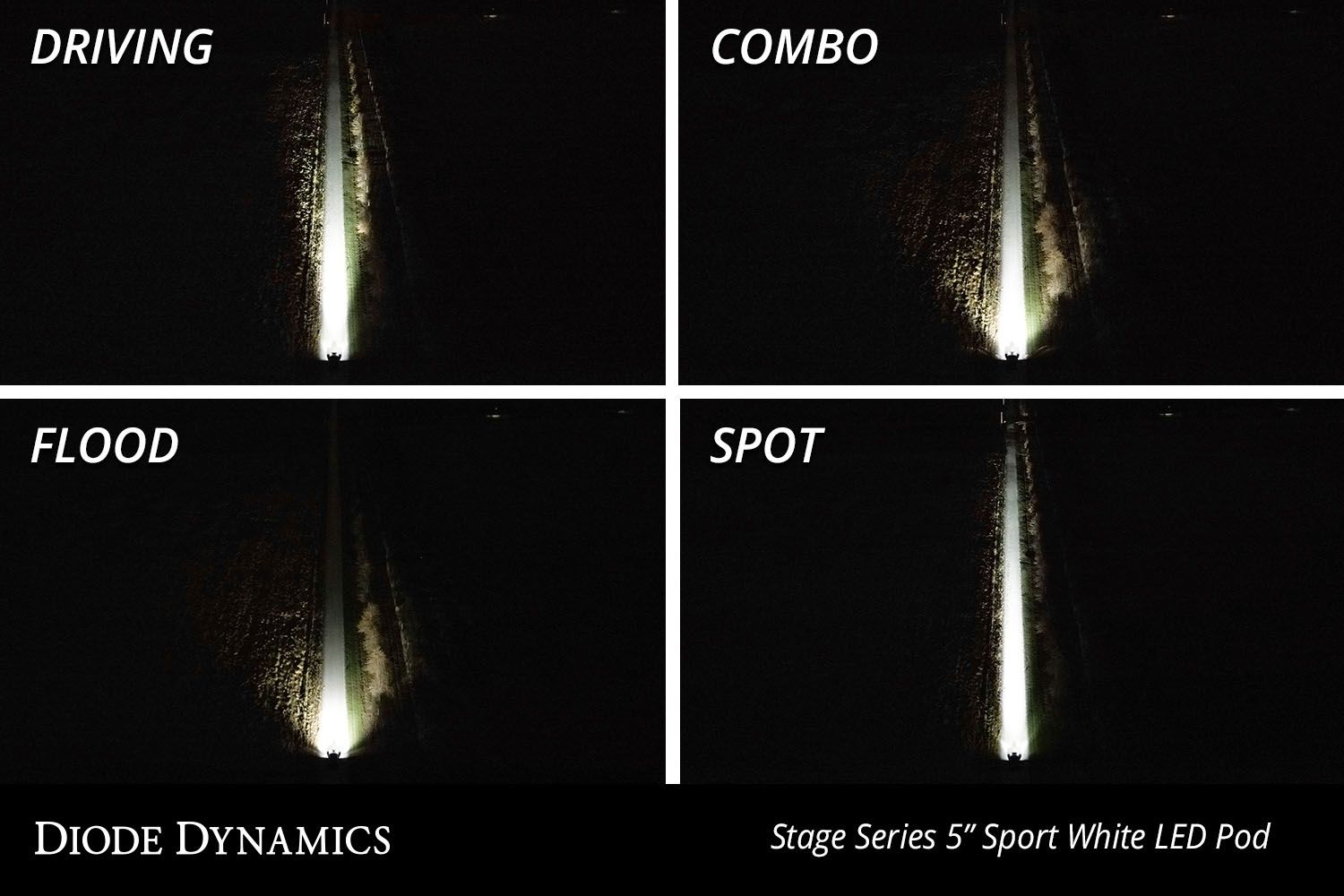

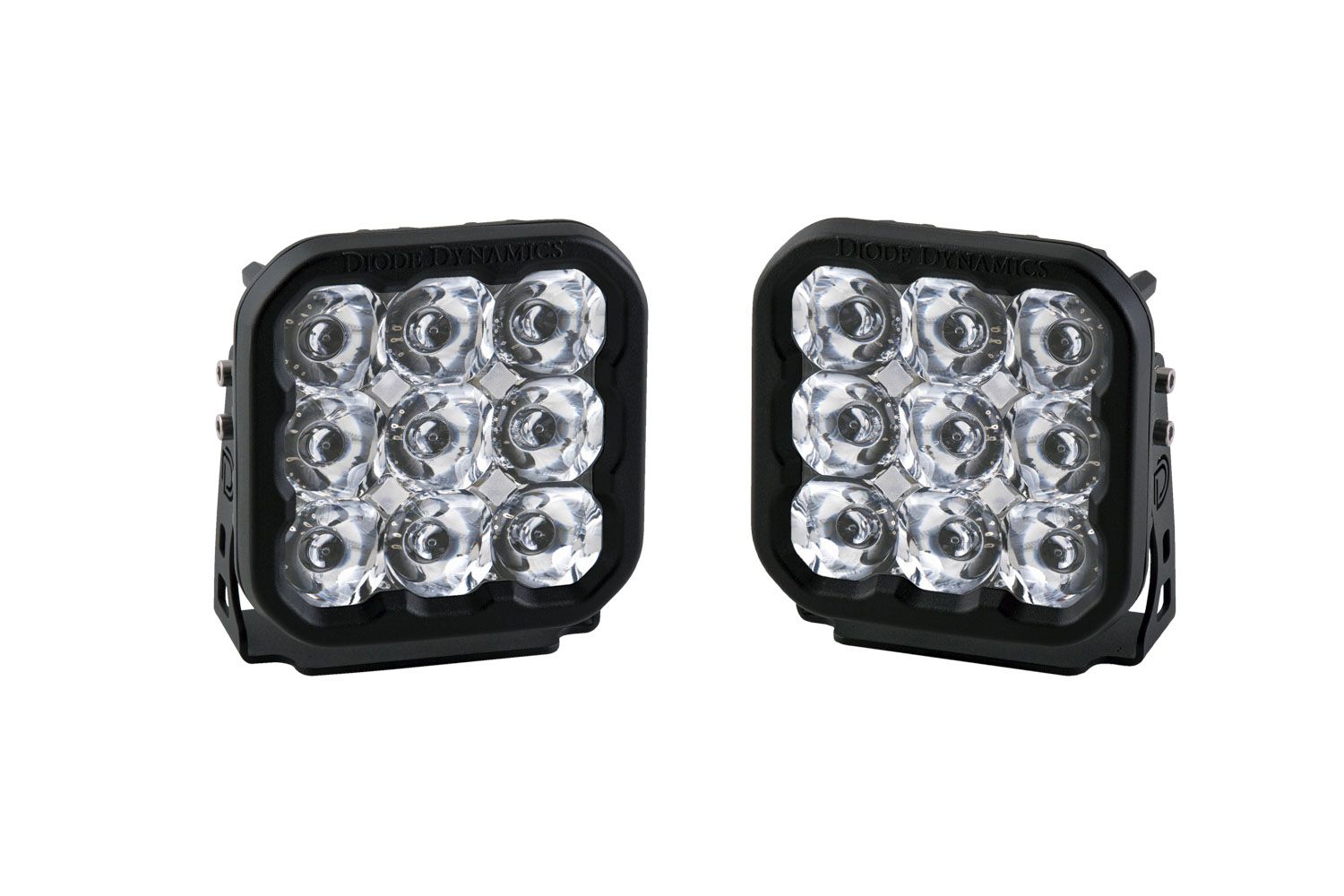

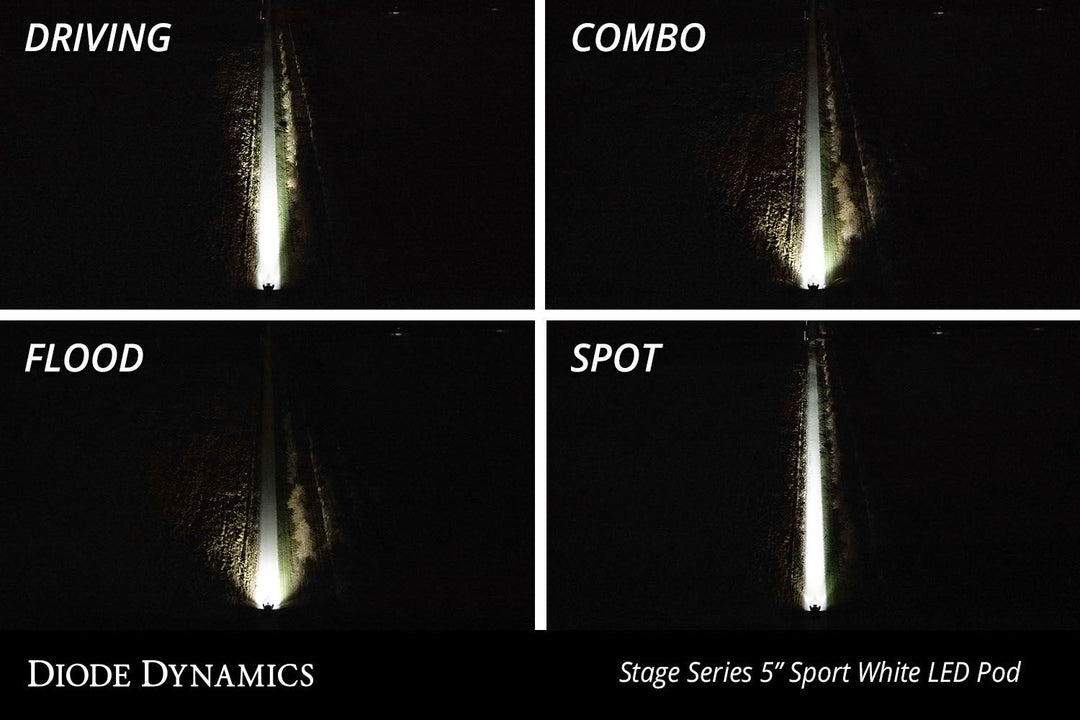

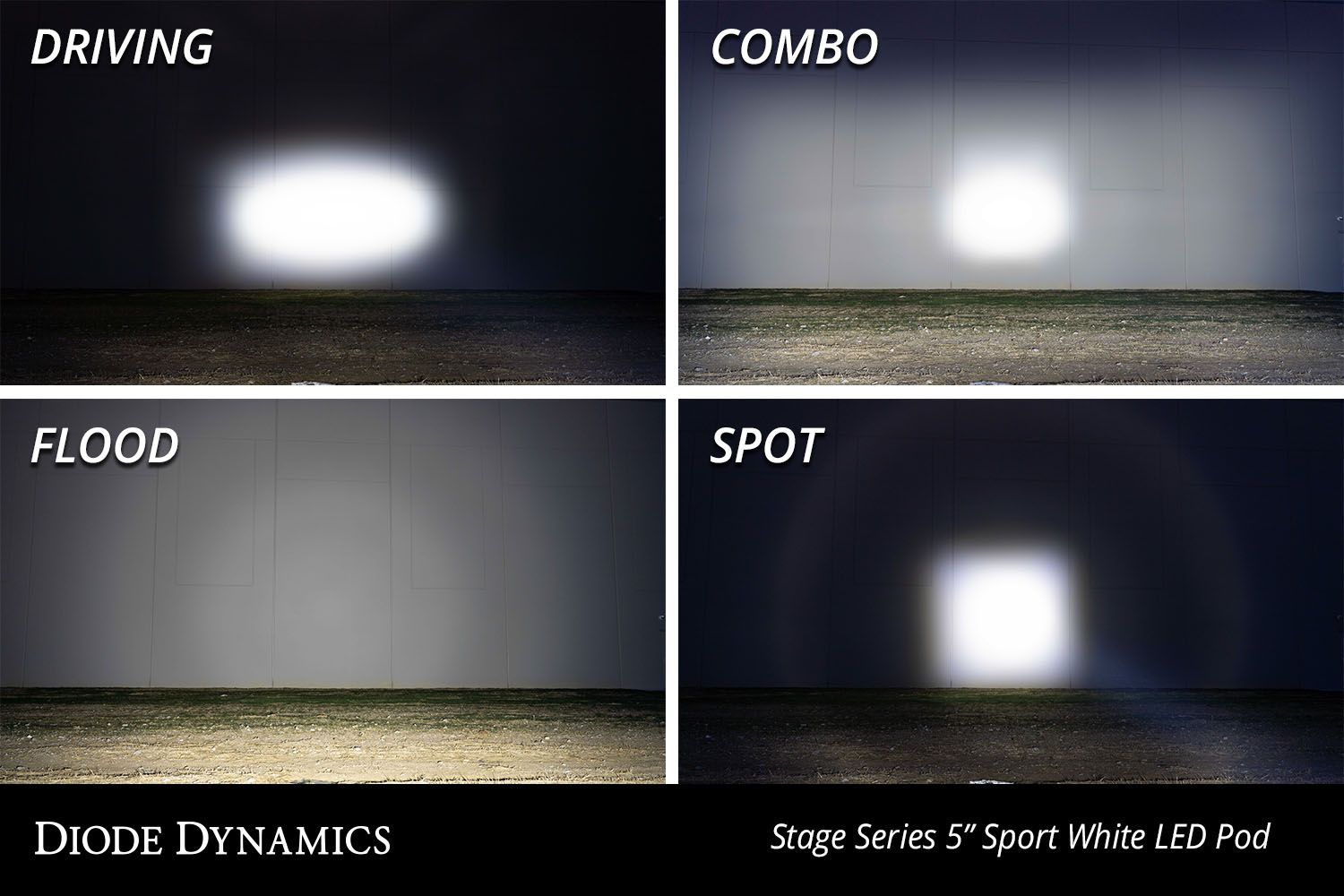

Beam patterns: Driving, Flood, Spot, Combo
-
LED emitters:
- Sport: Luxeon Z ES
- Pro: Cree XP-L HI
-
Connector: Deutsch DT 4-pin
-
Materials: Polycarbonate lens, aluminum housing, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high-pressure resistant
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-

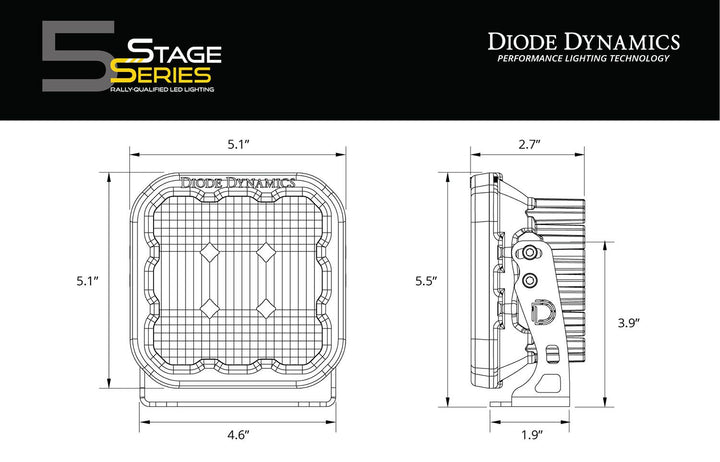

Dimensions: 5.1 x 5.1 x 2.7 inches
-
Weight: 2.35 lb per pod

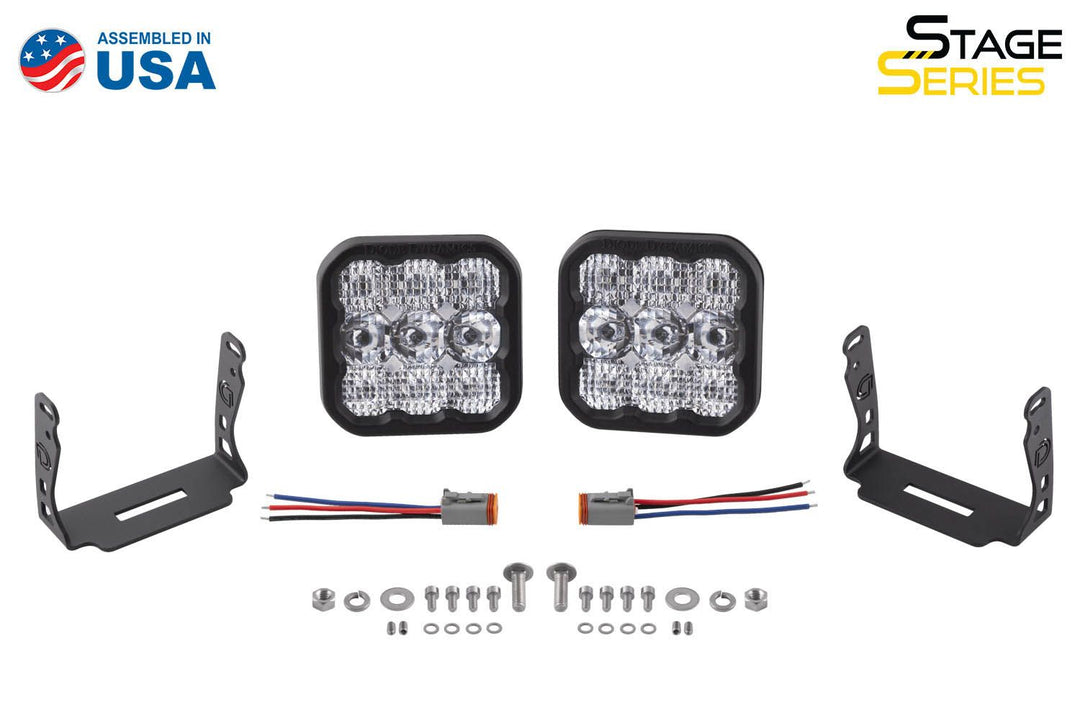

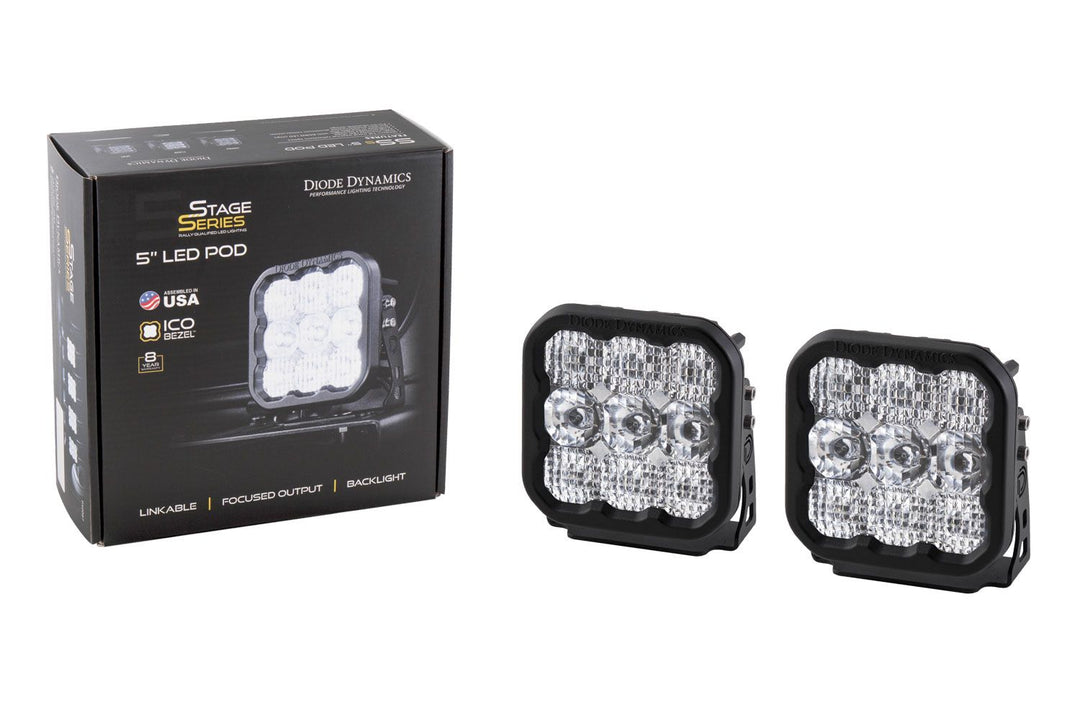

Package contents
-
LED pods: Two (2) Stage Series SS5 LED Pods
-
Wiring: Two (2) Deutsch-style pigtails
-
Mounting hardware: Two (2) brackets with hardware
Warranty & guarantee
-
Warranty: Lifetime limited warranty
-
Return policy: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
Fitment
-

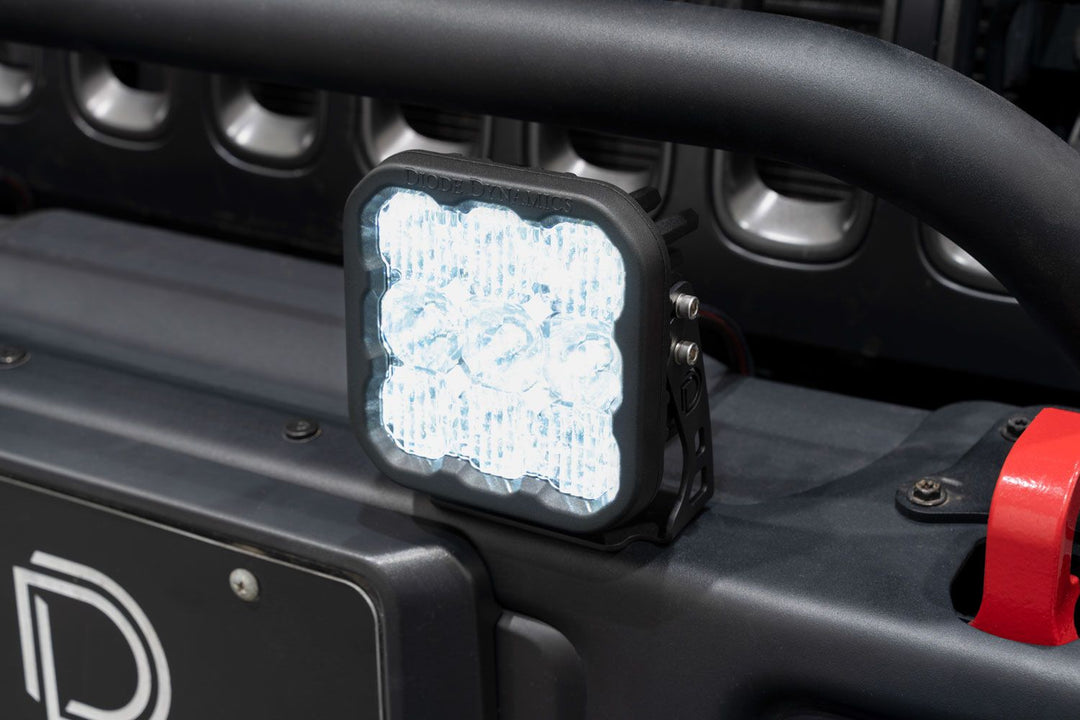

Universal fit: Compatible with most vehicles using standard auxiliary light mounts
-
System compatibility: Stage Series SS5 CrossLink Lightbar systems
Installation
-
Install time: Approximately 30–60 minutes
-
Tools required: Basic hand tools
-
Modification required: None
