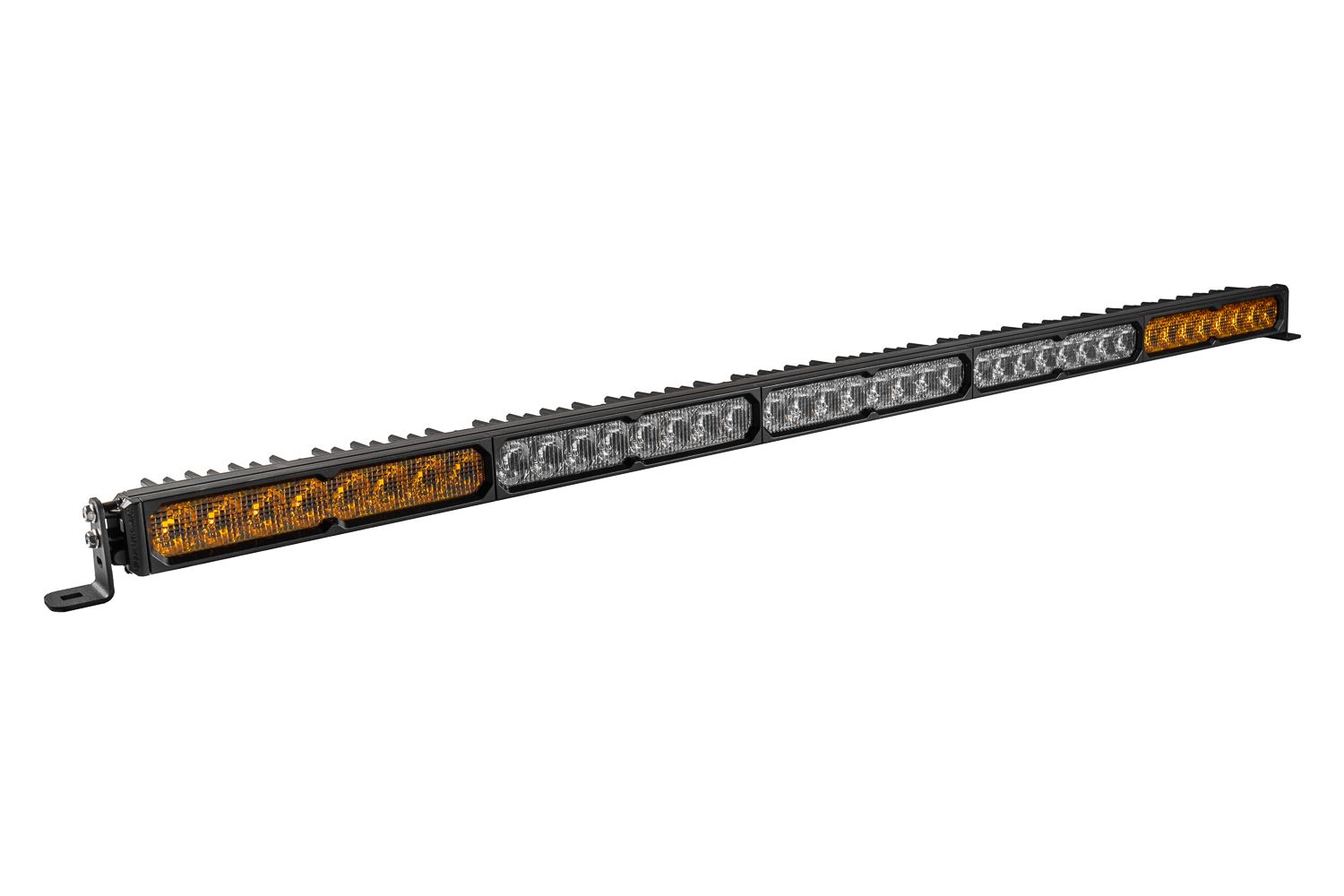

The Diode Dynamics SS50 Dual-Color LED Light Bar delivers unmatched versatility, output, and control in a single premium lighting solution. Featuring patented TIR optics, SmartSelect dual-function beam control, and a unique dual-color configuration, this light bar allows you to adapt instantly to changing terrain and driving conditions. With yellow Combo/Driving optics on the outer segments and white SAE Driving optics in the center, the SS50 Dual-Color is engineered for serious performance both on and off the road.
Important notes
-
SmartSelect technology: Dual-function main beam controlled by cycling power
-
Backlight configuration: Amber outer backlight with selectable multicolor inner backlight
-
Warranty: Limited lifetime warranty
-
Origin: Designed and manufactured in the USA
Features
-

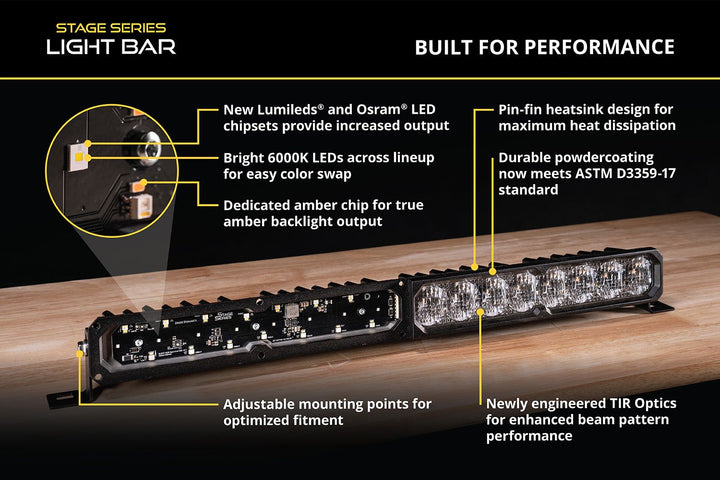

Optics: Patented TIR (Total Internal Reflection) optics maximize usable light output while reducing glare and wasted light.
-

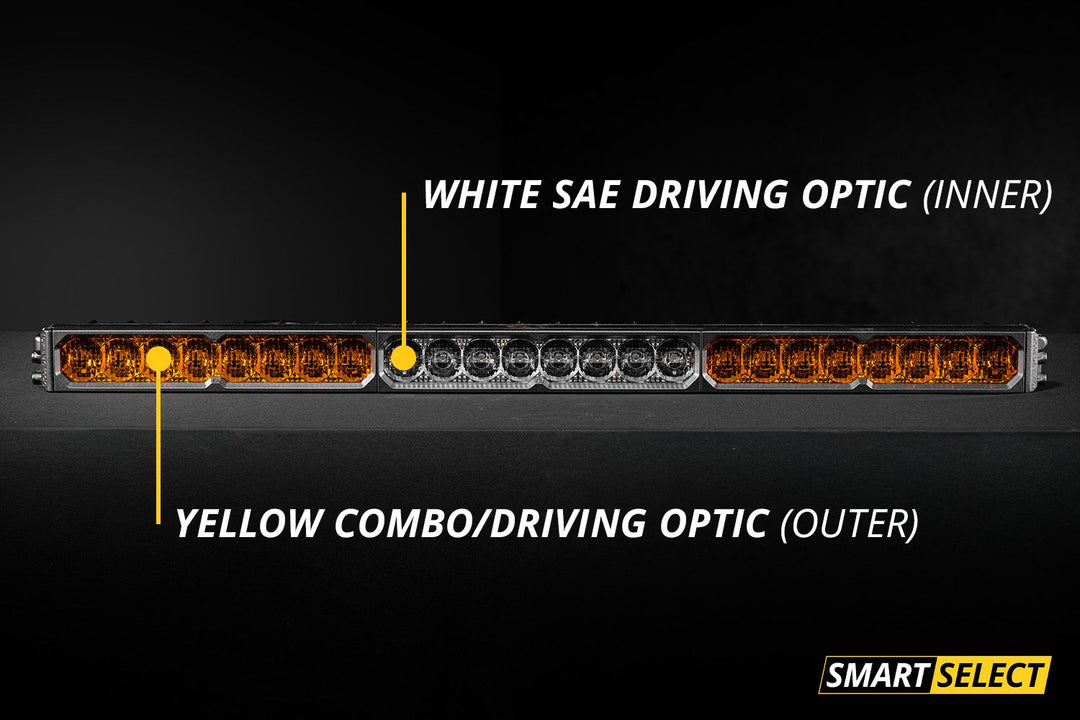

Dual-color output: Yellow Combo/Driving optics on the outer segments paired with white SAE Driving optics in the center segment.
-
Beam control: SmartSelect dual-function main beam allows inner only, outer only, or full bar operation without extra switches.
-
Terrain adaptability: Switch between wide yellow coverage for low-speed conditions and focused white output for high-speed driving.
-
Combo/Driving pattern: Balanced beam blends distance and width using advanced pillow optics for consistent forward illumination.
-
SAE driving pattern: Broad-spot SAE Driving beam supplements high beams with added reach and controlled spread.
-

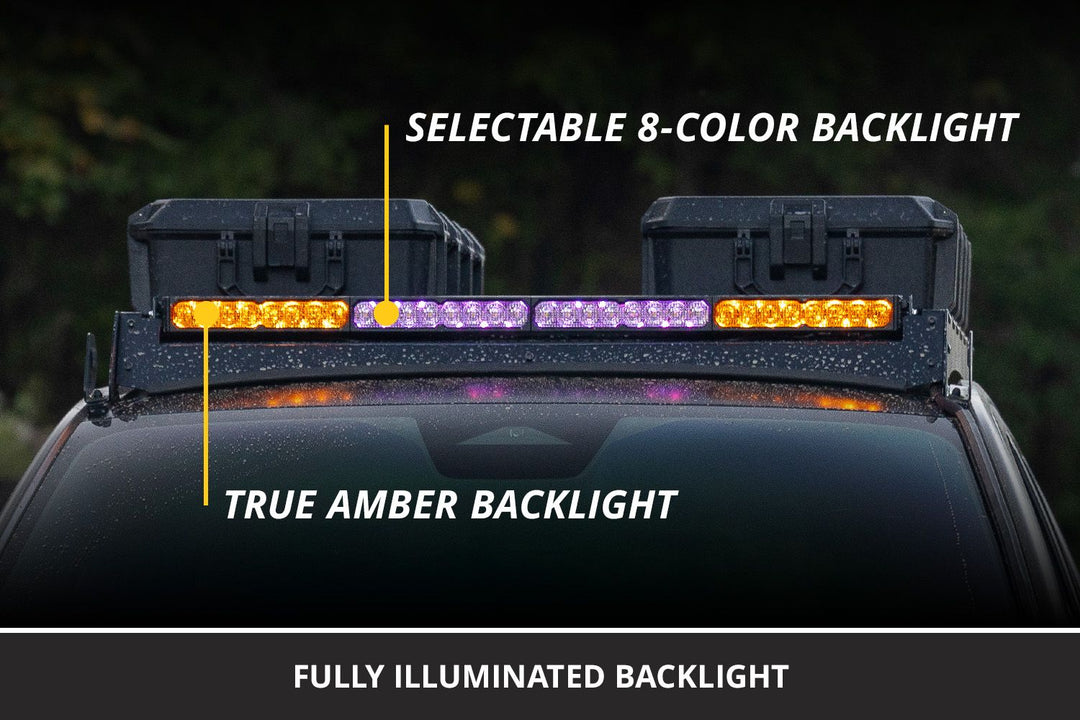

Backlight design: Fully illuminated TIR optics with amber backlight on outer segments and selectable 8-color backlight on inner segment.
-
Startup sequence: Dynamic welcome sequence activates on inner backlight for a premium visual effect.
-
Power levels: Available in Sport and Pro configurations using automotive-grade LED emitters.
-
Construction: Heavy-duty aluminum housing with ASTM-standard powdercoat finish.
-
Protection: IP69K waterproof and high-pressure wash resistant for extreme environments.
-
Engineering: Designed, tested, and assembled in the USA using globally sourced materials.
What’s included
-
Light bar: One (1) SS50 Dual-Color LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal bracket set
Specifications
-
Raw output: Sport 18,440 lumens, Pro 62,720 lumens
-
Color temperature: 3000K (yellow), 6000K (white)
-
Beam angles: Combo/Driving 60° x 30°, SAE Driving 20° x 12°
-
Power: Sport 212W, Pro 295W
-
Voltage: 9–30V
-
Current: Sport 16.56A @ 12.8V, Pro 23.05A @ 12.8V
-
Ingress rating: IP69K
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

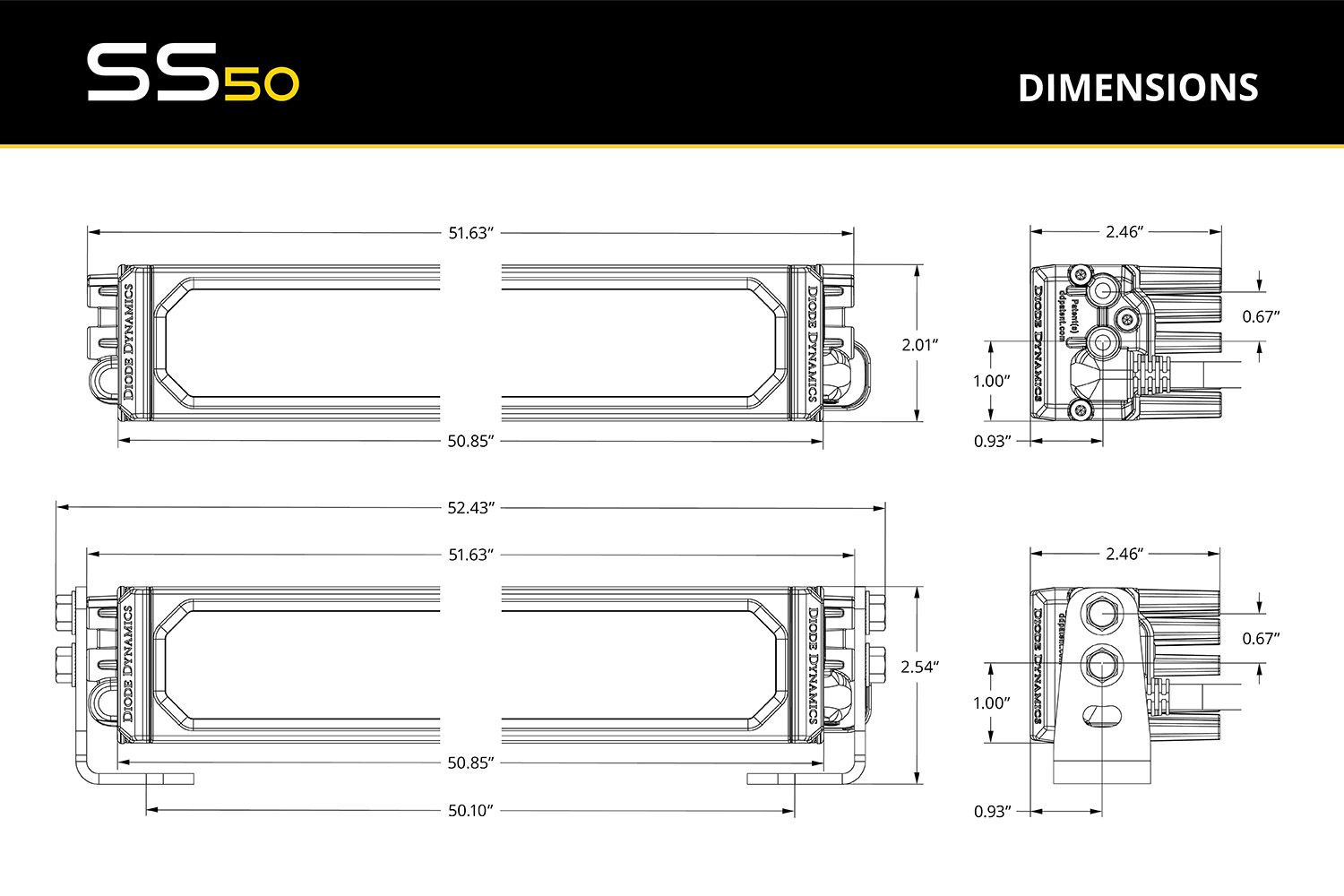

Dimensions: 2.01" x 51.63" x 2.46"
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Modification: None required
