Upgrade the fog lights on your Toyota Sequoia with the SS6 LED Fog Light Kit, engineered to deliver powerful, road-legal performance with a clean, factory-style appearance. This bolt-on solution mounts a pair of 6-inch Stage Series LED light bars using CAD-designed brackets and existing factory mounting points—no cutting or drilling required. With advanced optics, multiple power levels, and an integrated amber backlight, this kit offers a serious upgrade in both function and style.
Important notes:
- SAE Fog beam pattern is road legal when properly aimed (check local laws and regulations).
- Uses factory mounting points for straightforward installation.
- Designed specifically for 2023–2026 Toyota Sequoia models.
Features
-
Direct fitment: Designed specifically for 2023–2026 Toyota Sequoia
-
Patented TIR optics: Maximizes efficiency, focus, and usable light output
-

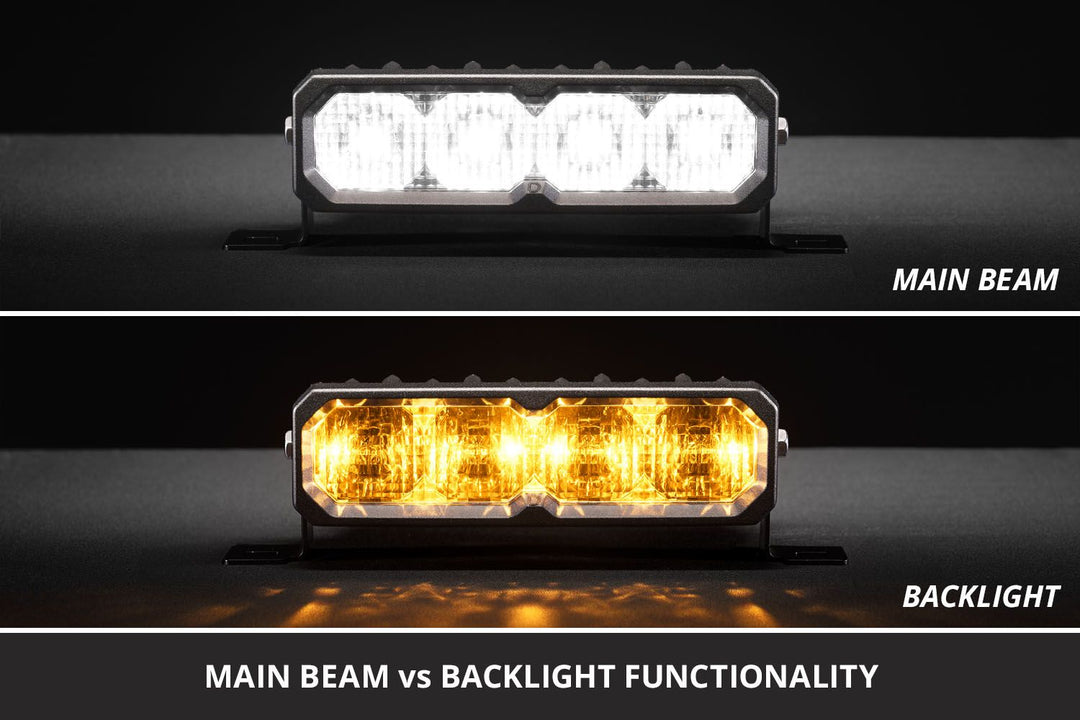

Amber backlight: Integrated amber backlight for distinctive accent lighting
-
Multiple power levels: Available in Sport, Pro, and Max configurations
-
Bolt-on installation: Utilizes factory mounting points for a clean install
-
Extreme durability: IP69K waterproof rating with heavy-duty construction
-
Long-term coverage: Backed by a limited lifetime warranty
-
USA engineered: Designed and assembled in the USA with global materials
White or yellow output
-
White (6000K): Crisp, cool white that matches most factory LED lighting
-
Selective yellow (3000K): Enhanced contrast in poor weather conditions and a distinctive appearance

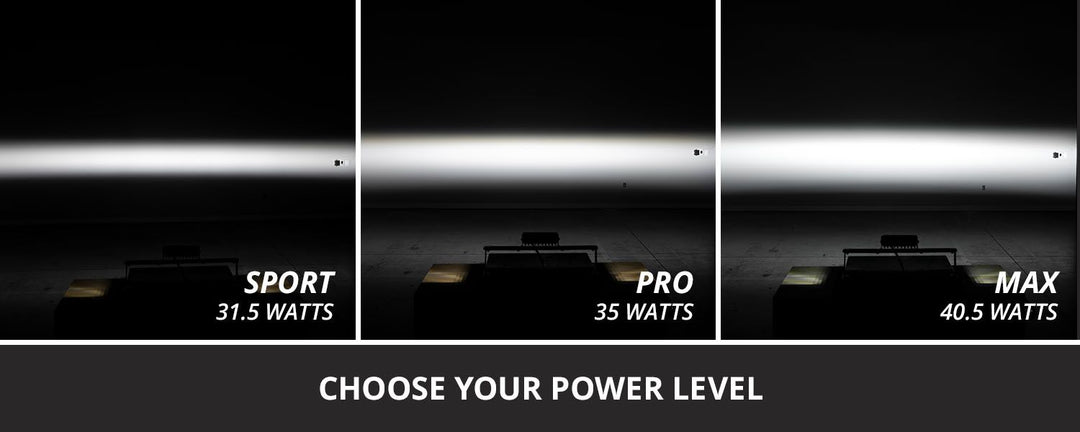

Choose your power level
-
Sport: Excellent performance and value
-
Pro: Increased output and intensity for demanding conditions
-
Max: Extreme performance using Osram HX Boost LEDs, delivering the highest output and intensity in the lineup
Proven reliability
Stage Series lighting is extensively tested to SAE standards for vibration, moisture intrusion, corrosion resistance, and temperature extremes ranging from -40°F to 185°F. These lights are built to perform on-road and off-road, mile after mile.

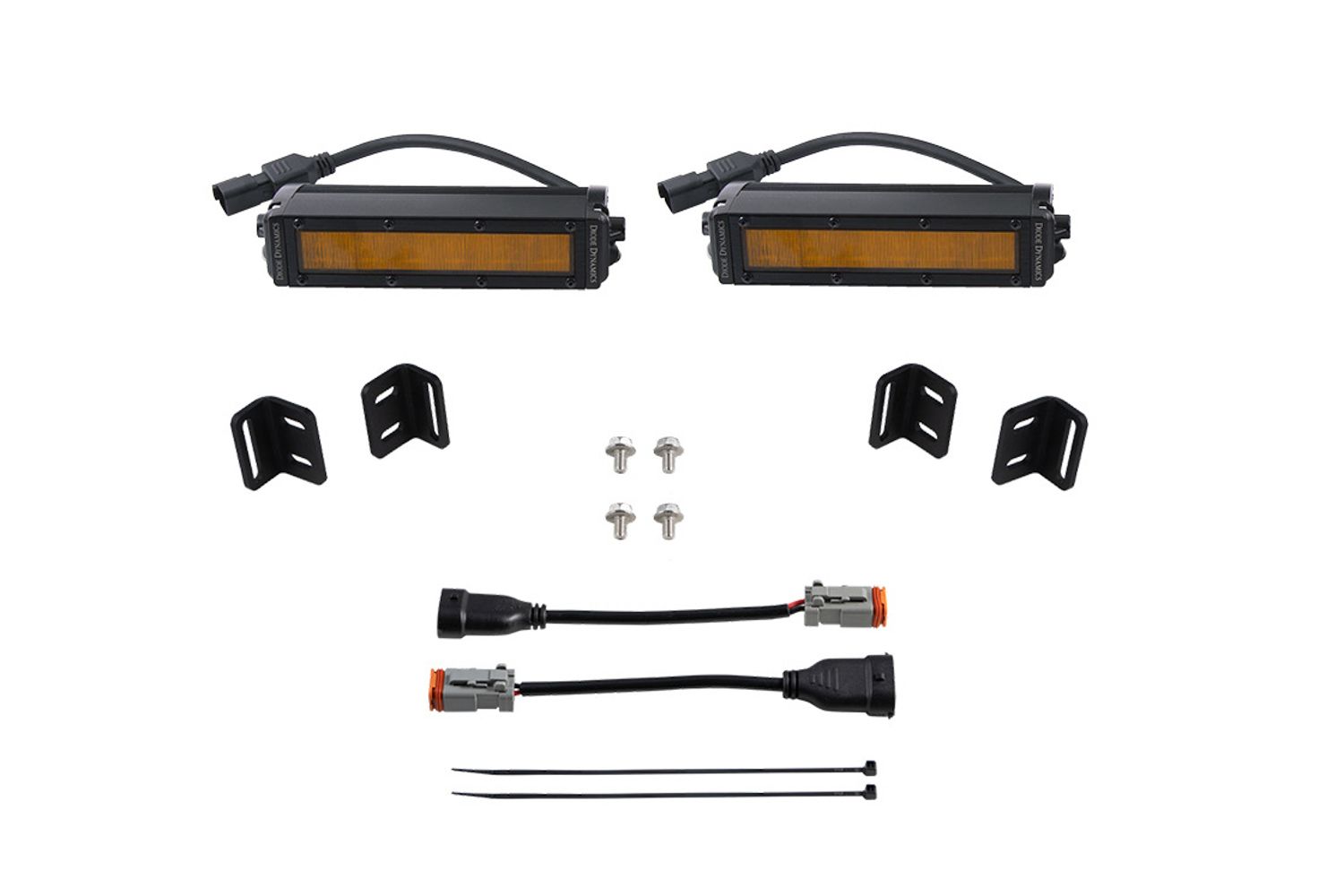

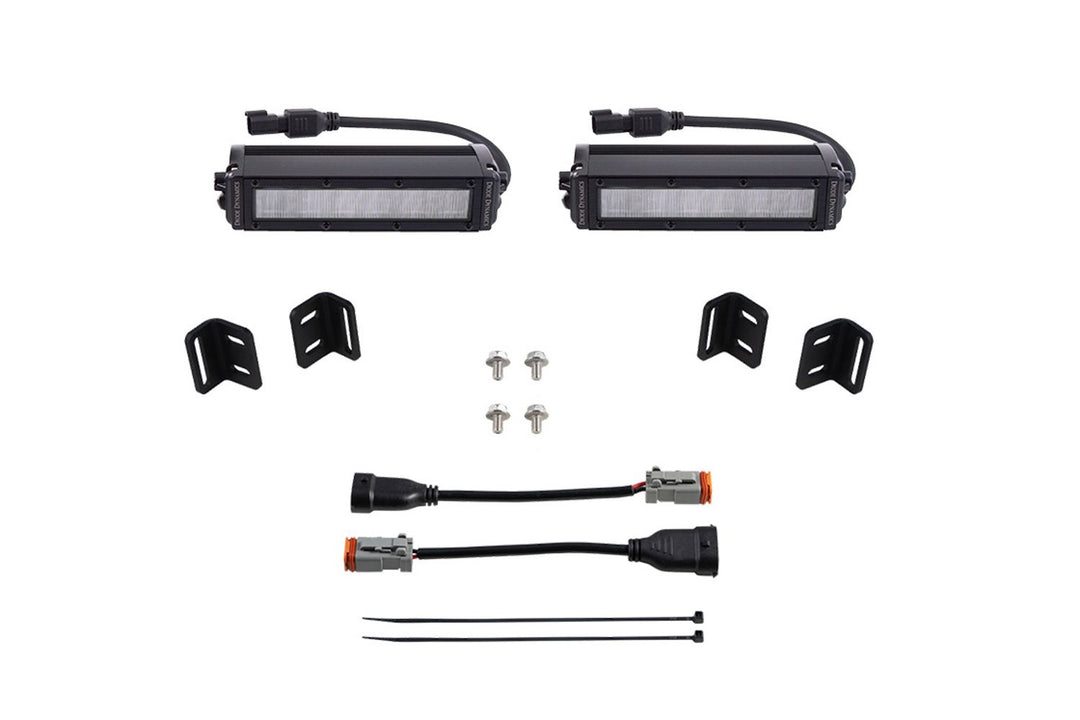

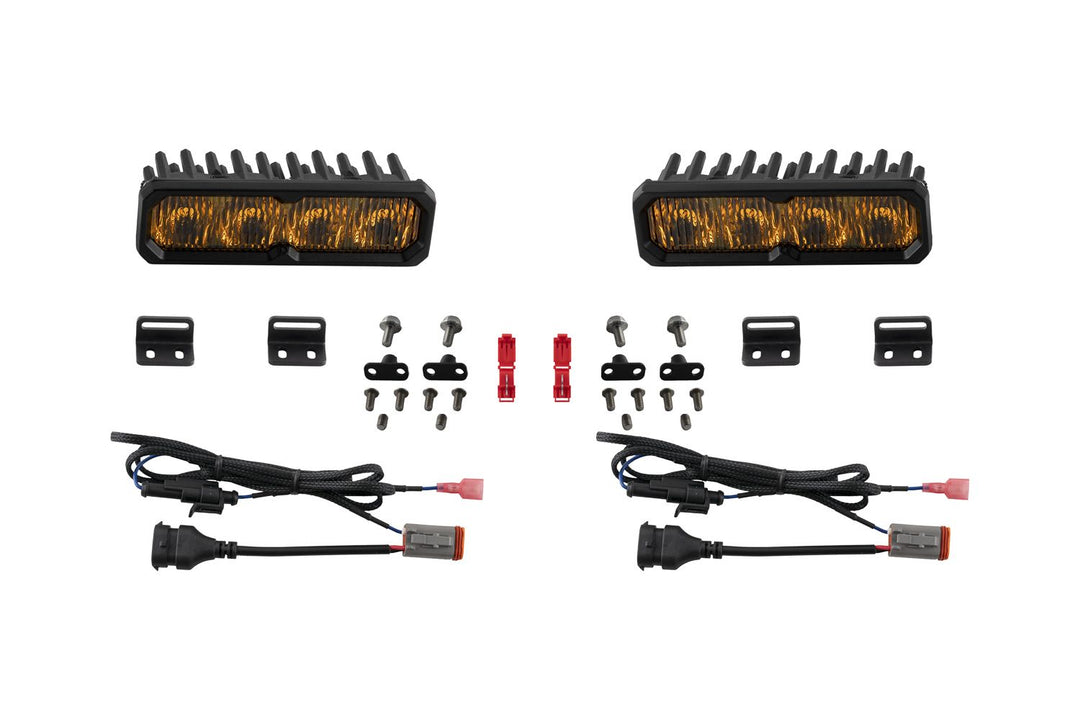

In the Box
-
Brackets: Four (4) application-specific mounting brackets
-
Light bars: Two (2) 6-inch Classic or SS6 LED light bars
-
Adapters: Two (2) H11 DT adapters
-
Hardware: All required mounting hardware
-
Guide: Installation guide
Quantity: Two (2)
Warranty: Lifetime warranty
Return policy: 30-day return with no restocking fee
Satisfaction guarantee: 100% satisfaction guaranteed
Fitment
-
Application: Fog light
-
Make: Toyota
-
Model: Sequoia
-
Years: 2023, 2024, 2025, 2026
Specifications
Performance (per kit configuration)
| Color / Optic / Power |
Peak Intensity |
Lux @ 10m |
Raw Output |
Output Color |
| White SAE Fog Sport |
15,000 cd |
150 lux |
1,844 lm |
6000K White |
| White SAE Fog Pro |
16,000 cd |
160 lux |
6,272 lm |
6000K White |
| White SAE Fog Max |
20,300 cd |
203 lux |
7,920 lm |
6000K White |
| White SAE Fog Classic |
13,000 cd |
130 lux |
2,280 lm |
6000K White |
| Yellow SAE Fog Classic |
7,400 cd |
74 lux |
1,140 lm |
2000K Yellow |
Technical details
-
Color temperature: 2000K, 3000K, 6000K
-
Beam angles:
- SAE Fog: 90° x 10°
- Wide: 100° x 8°
- Combo/Driving: 55° x 20°
-
Power: Sport 31.5W, Pro 35W, Max 40.5W
-
Operating voltage: 9–30V
-
Current draw @ 12.8V: Sport 2.46A, Pro 2.73A, Max 3.16A
-
Ingress rating: IP69K (high-pressure waterproof)
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink
-
Cooling: Passive heatsink
Installation
-
Install time: 1–2 hours
-
Tools needed: Phillips screwdriver
-
Modification required: Minor modification
