Name: Diode Dynamics SS6 LED Fog Light Kit for Tundra (2022+)
Brand: Diode Dynamics
SKU: DD8702
Price: 349.95 USD
Availability: InStock

Diode Dynamics SS6 LED Fog Light Kit for Tundra (2022+)

$349.95

Shipping calculated at checkout.

Select Optic and Color

White SAE Fog/Wide

Yellow SAE Fog/Wide

Select Power

Sport

Pro

Max

Classic

Low stock - 3 items left
Backordered, shipping soon

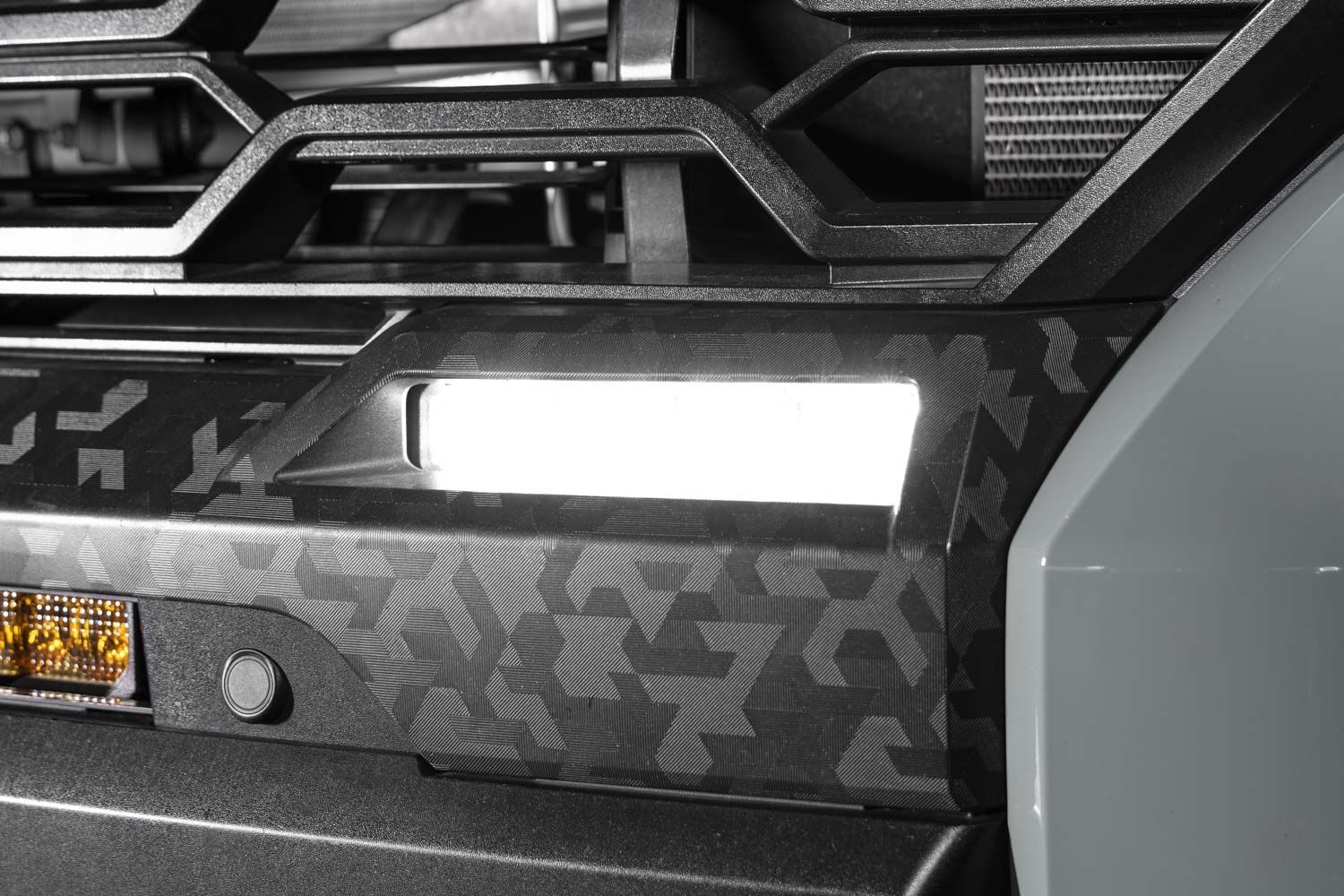

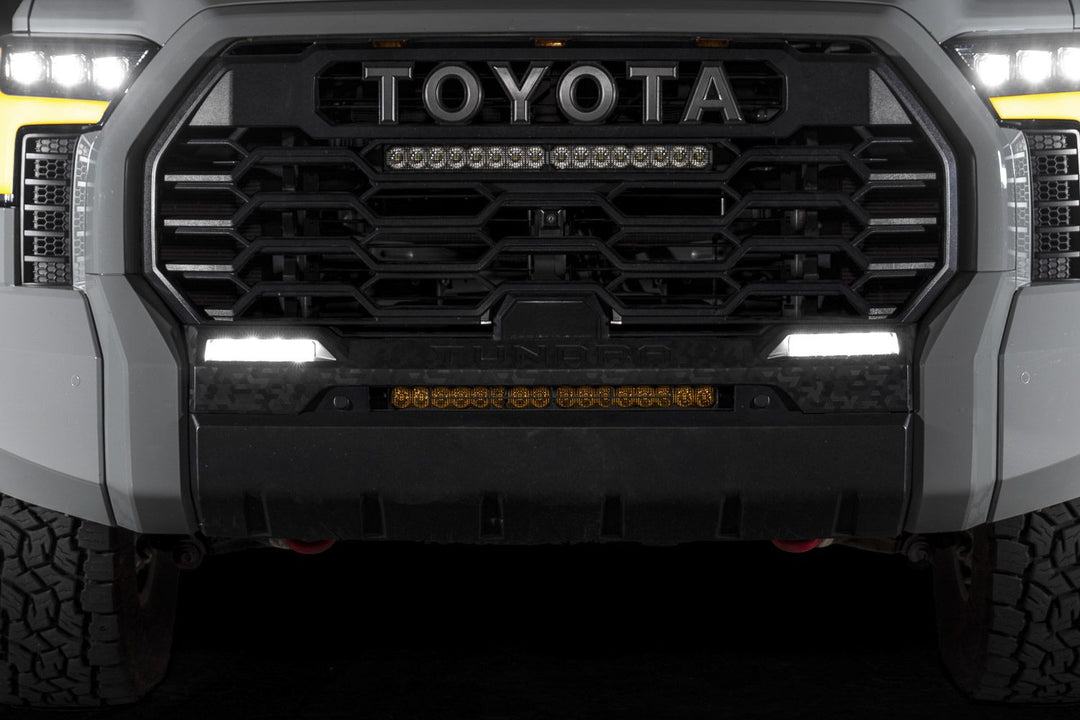

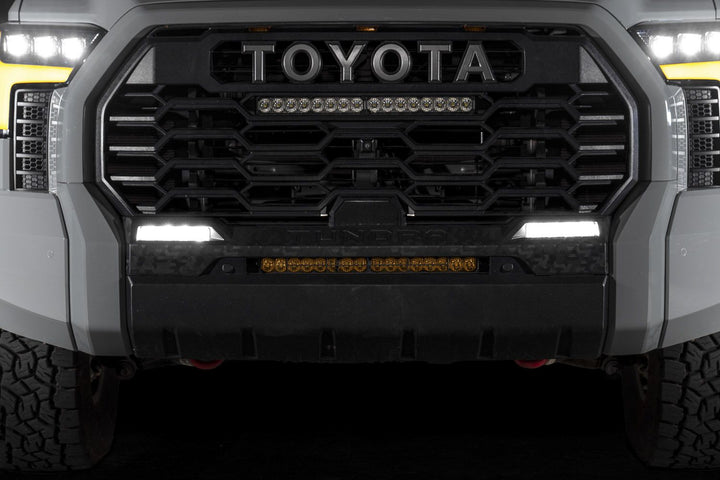

Upgrade your factory fog lights with the SS6 LED Fog Light Kit for the Toyota Tundra, delivering powerful, road-legal performance with a clean, OEM-style appearance. Designed to bolt directly into factory mounting points, this kit provides a major increase in usable light output, modern optics, and premium build quality—without cutting or drilling.

Features

Direct fitment: Designed specifically for the Toyota Tundra using factory mounting points
Patented TIR optics: Maximizes efficiency and directs light exactly where it’s needed

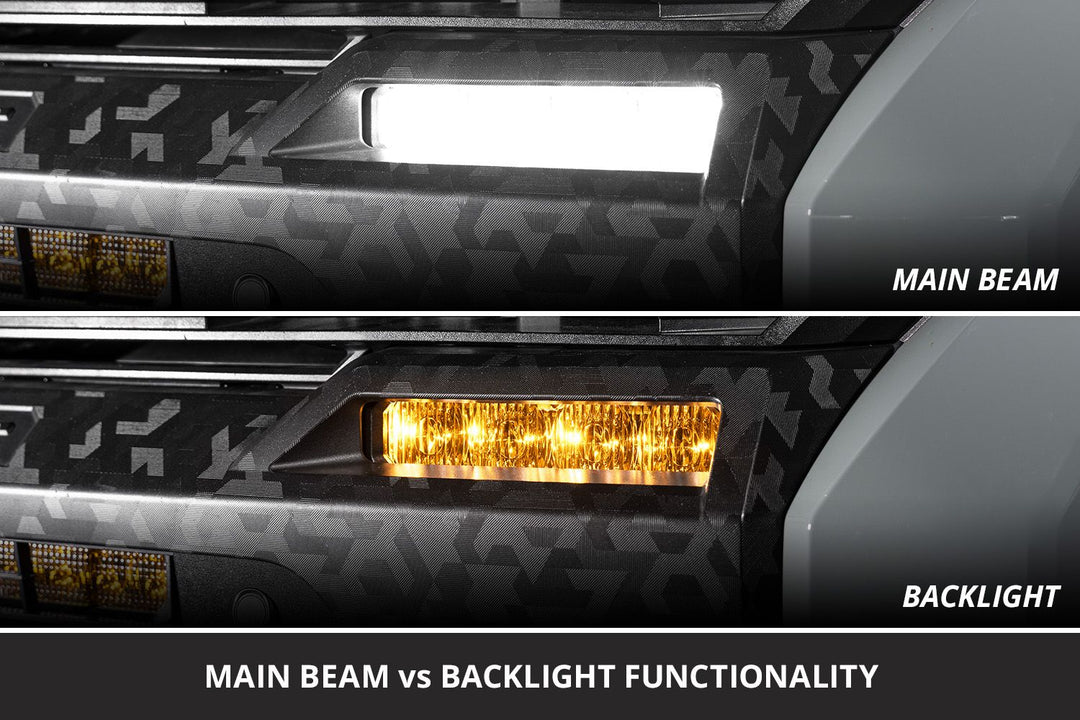

Amber backlight: Integrated true amber backlight for a distinctive accent and added visibility
Multiple power levels: Available in Sport, Pro, and Max configurations
Bolt-on installation: Uses existing mounting points for a clean, factory-style install
Built to last: Backed by a limited lifetime warranty
Made in USA: Manufactured using globally sourced materials

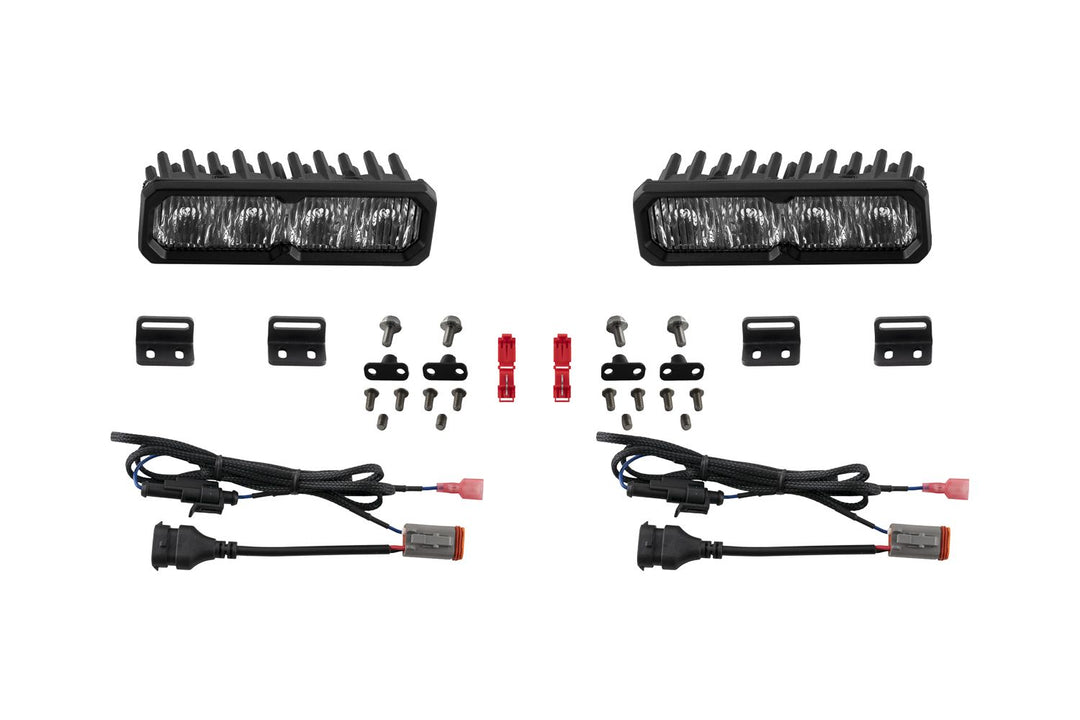

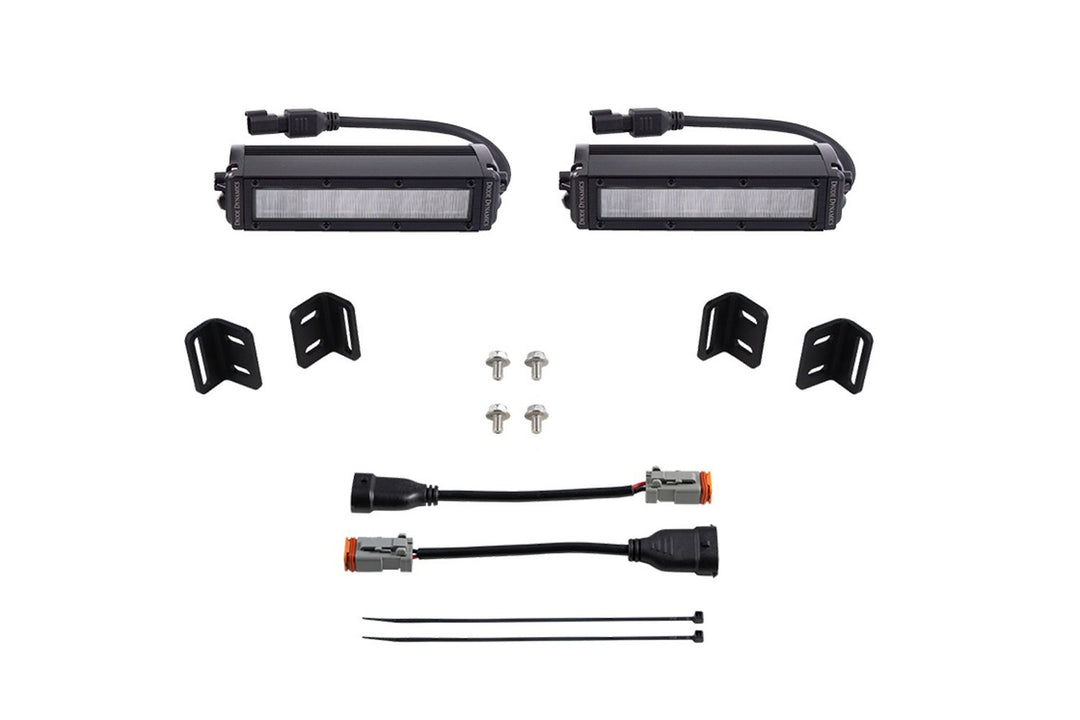

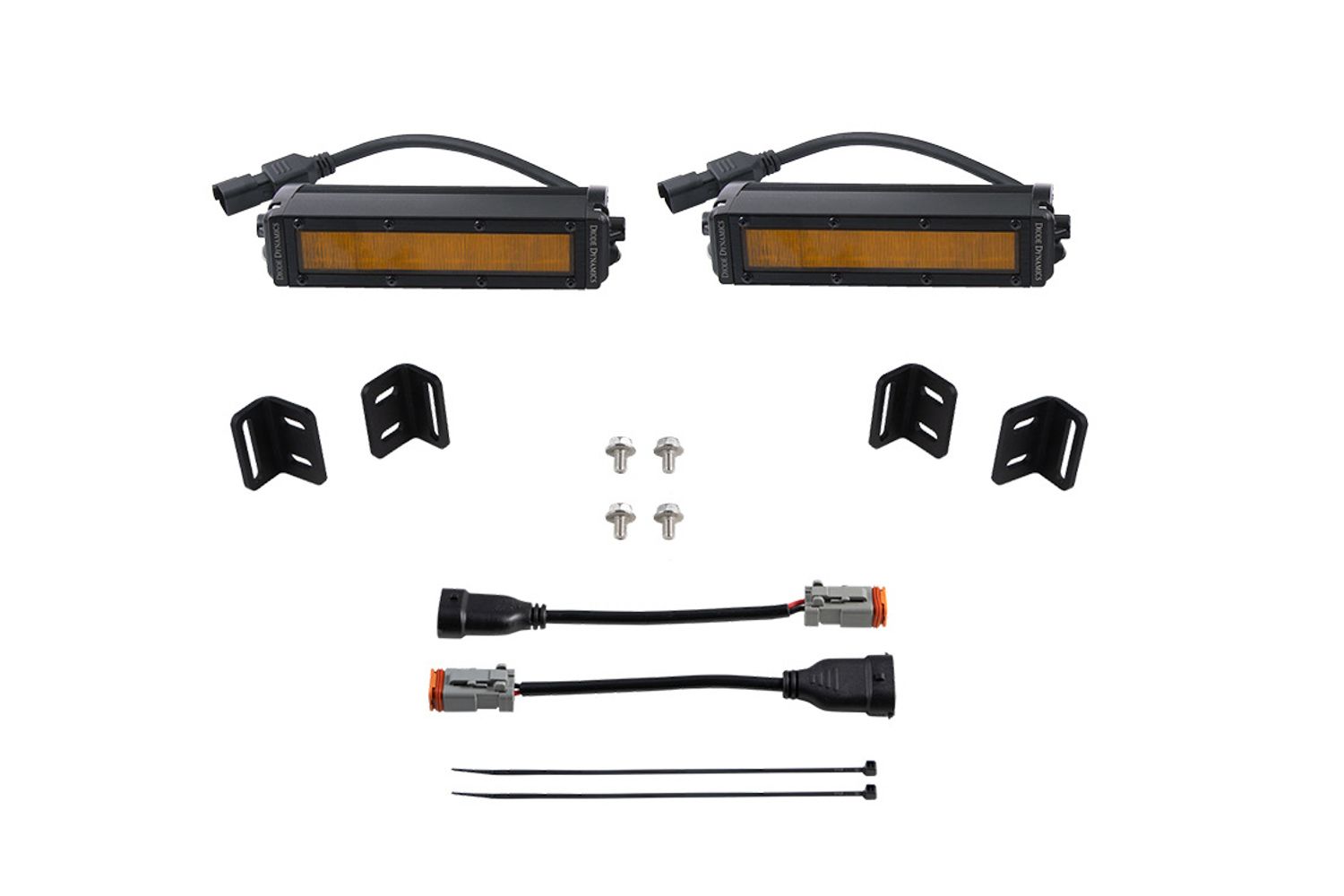

In the box

Application-specific brackets: Four (4)
LED light bars: Two (2) 6" Classic or SS6 Stage Series LED light bars
Adapters: Two (2) H11 DT adapters
Installation guide: Included

Warranty and returns

Warranty: Lifetime warranty
Return policy: 30-day return with no restocking fee
Guarantee: 100% satisfaction guarantee

Fitment

Application: Fog light
Make: Toyota
Model: Tundra
Years: (2022–2026)

Specifications

Color temperature options: 2000K, 3000K, 6000K
Beam angles:
- SAE Fog: 90° x 10°
- Wide: 100° x 8°

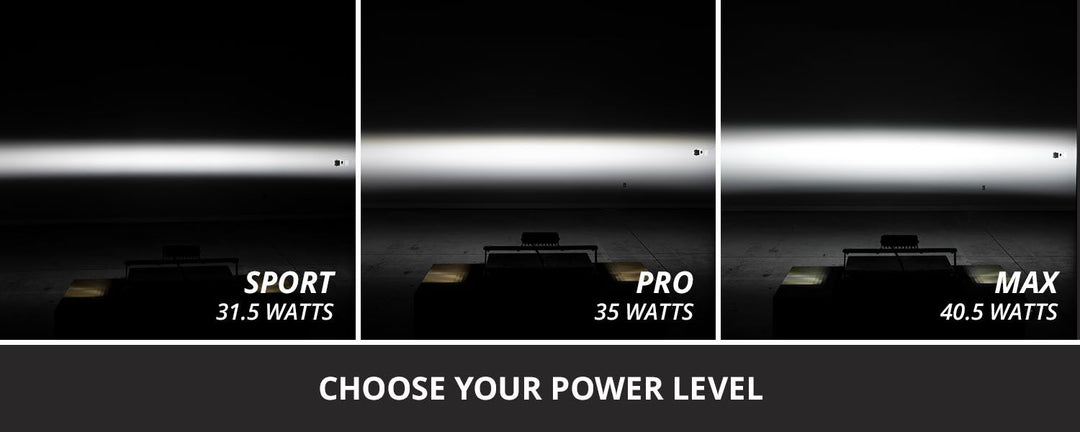

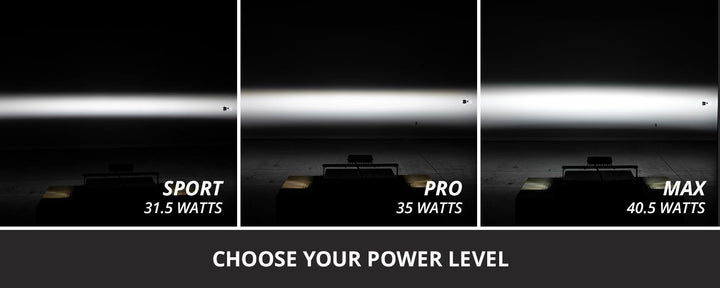

Power (watts):
- Sport: 31.5
- Pro: 35
- Max: 40.5
Current (amps @ 12.8V):
- Sport: 2.46
- Pro: 2.73
- Max: 3.16
Operating voltage: 9–30V
Operating temperature: -40°C to 85°C (-40°F to 185°F)
LED emitters: Luxeon Z ES, Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
Connectors: Deutsch DT
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink
Cooling: Passive heatsink
Ingress rating: IP69K waterproof, high pressure
Unit weight: 1.8 lb
Product weight: 3.6 lb
Shipped weight: 4.7 lb

Installation

Installation time: 1–2 hours
Tools needed: Phillips screwdriver
Modification required: Basic wiring only
