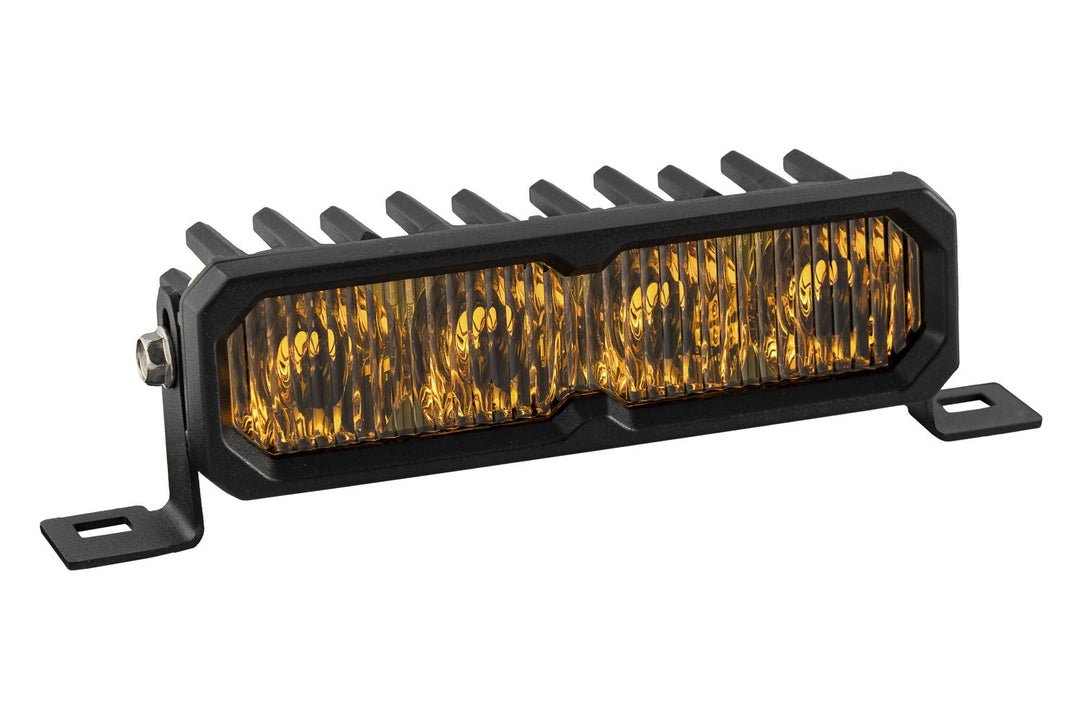

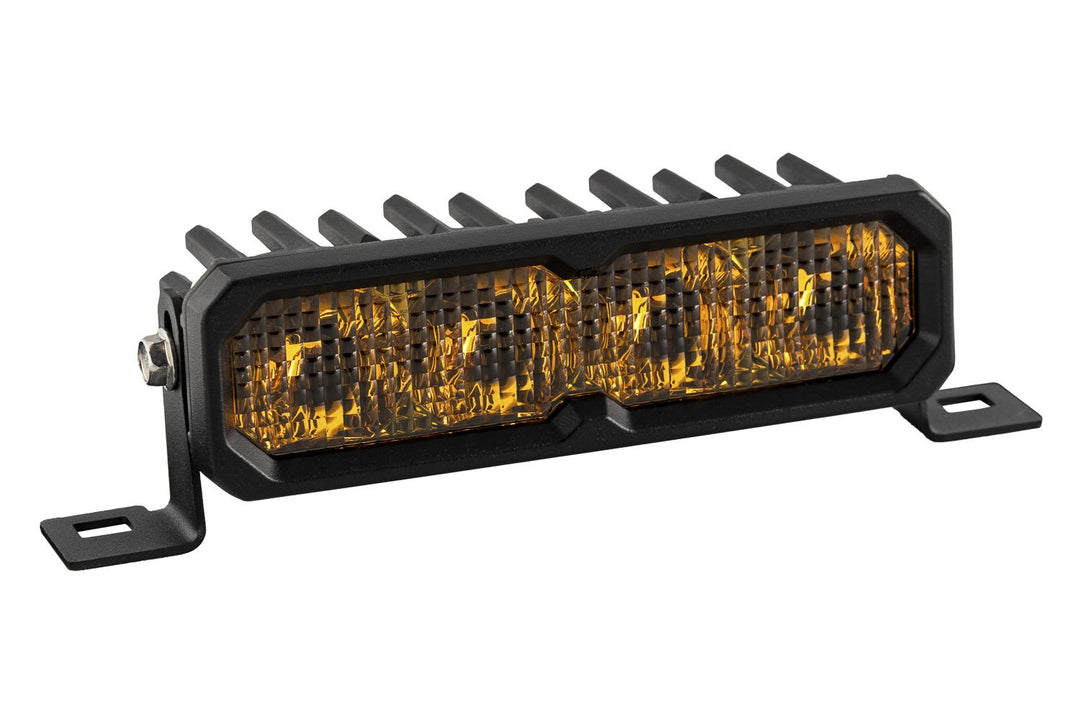

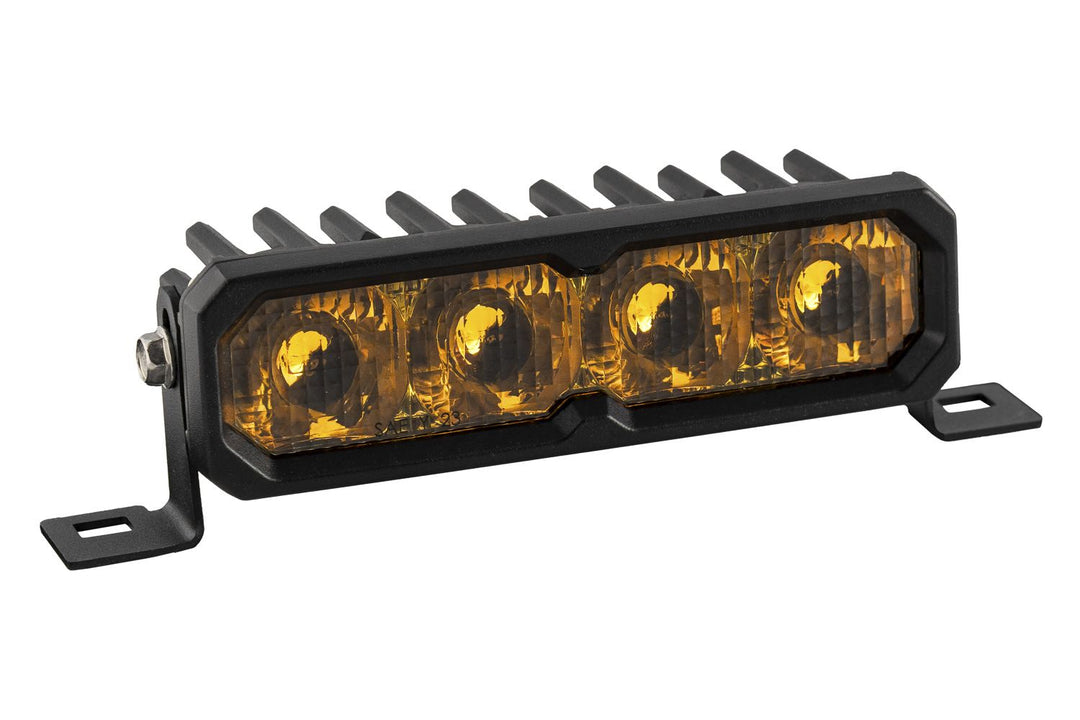

Built for drivers who demand maximum performance from a compact form factor, the Diode Dynamics Stage Series SS6 LED Light Bar delivers unmatched usable light using patented TIR (Total Internal Reflection) optics. Every beam pattern is engineered for real-world conditions, focusing light exactly where you need it while reducing glare and wasted output. With multiple beam patterns, three power levels, and a fully illuminated amber backlight, the SS6 is one of the most capable 6-inch LED light bars on the market—engineered, tested, and proudly made in the USA.
Note
-
Backlight: Amber backlight is available on yellow-output models only
-
Power Levels: Sport, Pro, and Max options vary in output and intensity
-
Application: SAE patterns are road-legal only when properly aimed and installed
-
Wiring: Wiring harness sold separately unless otherwise specified

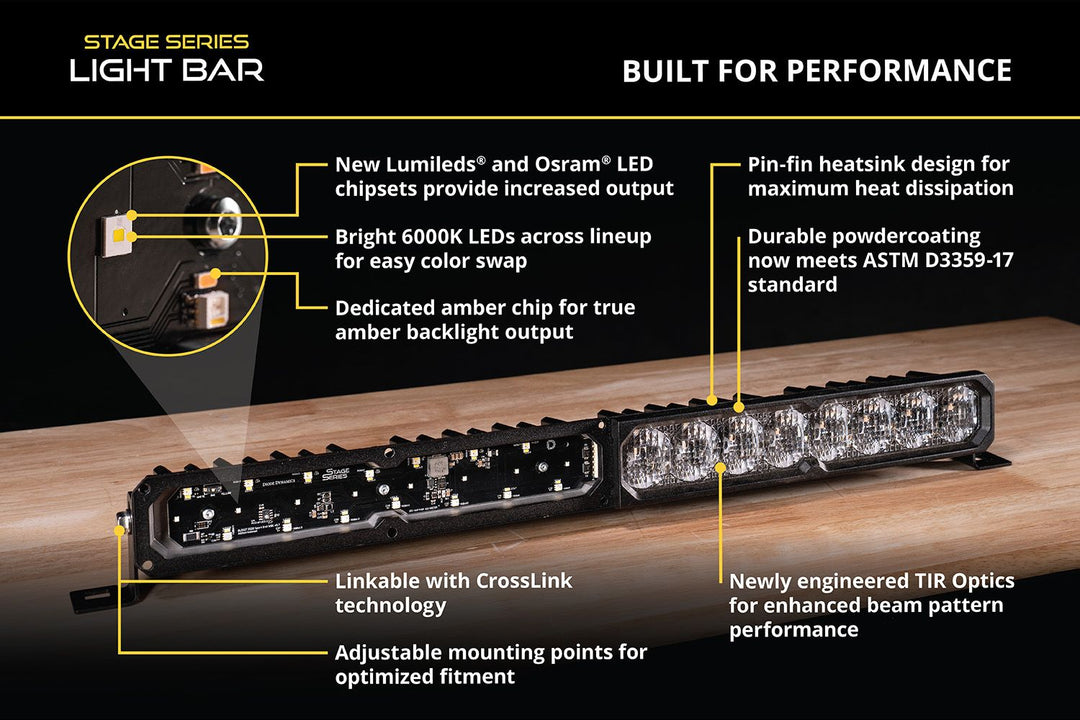

Features
-
Optics: Patented TIR optics maximize efficiency and usable light output
-
Beam Patterns: Combo/Driving, SAE Driving, SAE Fog (coming soon), Flood, and Spot
-
Power Options: Available in Sport, Pro, and Max power levels
-
Backlight: Fully illuminated amber backlight fills the optic for a unique accent look
-
Construction: Durable aluminum housing with ASTM-standard powder coat
-
Waterproofing: IP69K rated for extreme pressure, dust, and moisture resistance
-
Thermal Management: Copper PCB and optimized heatsinks for sustained output
-
Quality: Engineered and manufactured in the USA with global materials
-
Warranty: Limited lifetime warranty
Specs
Color Temperature: 3000K (Yellow)
Operating Voltage: 9–30V

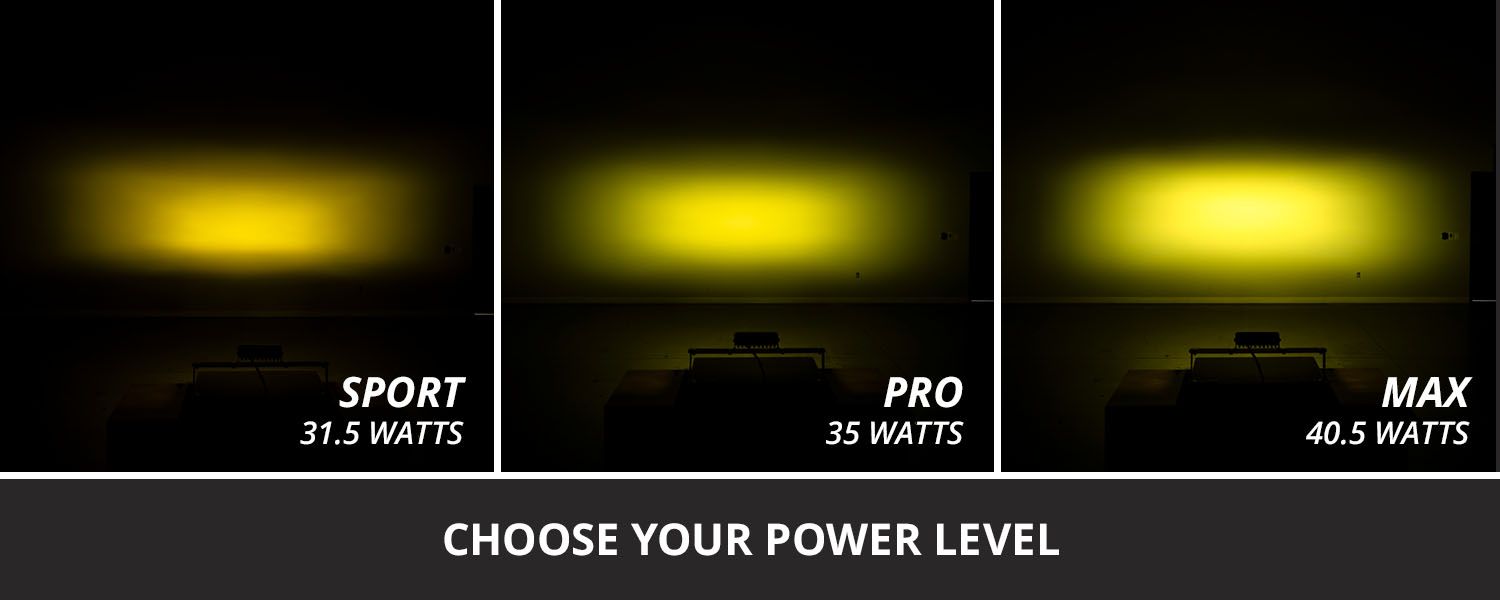

Power Output:
- Sport: 31.5W
- Pro: 35W
- Max: 40.5W
Current Draw (@12.8V):
- Sport: 2.46A
- Pro: 2.73A
- Max: 3.16A

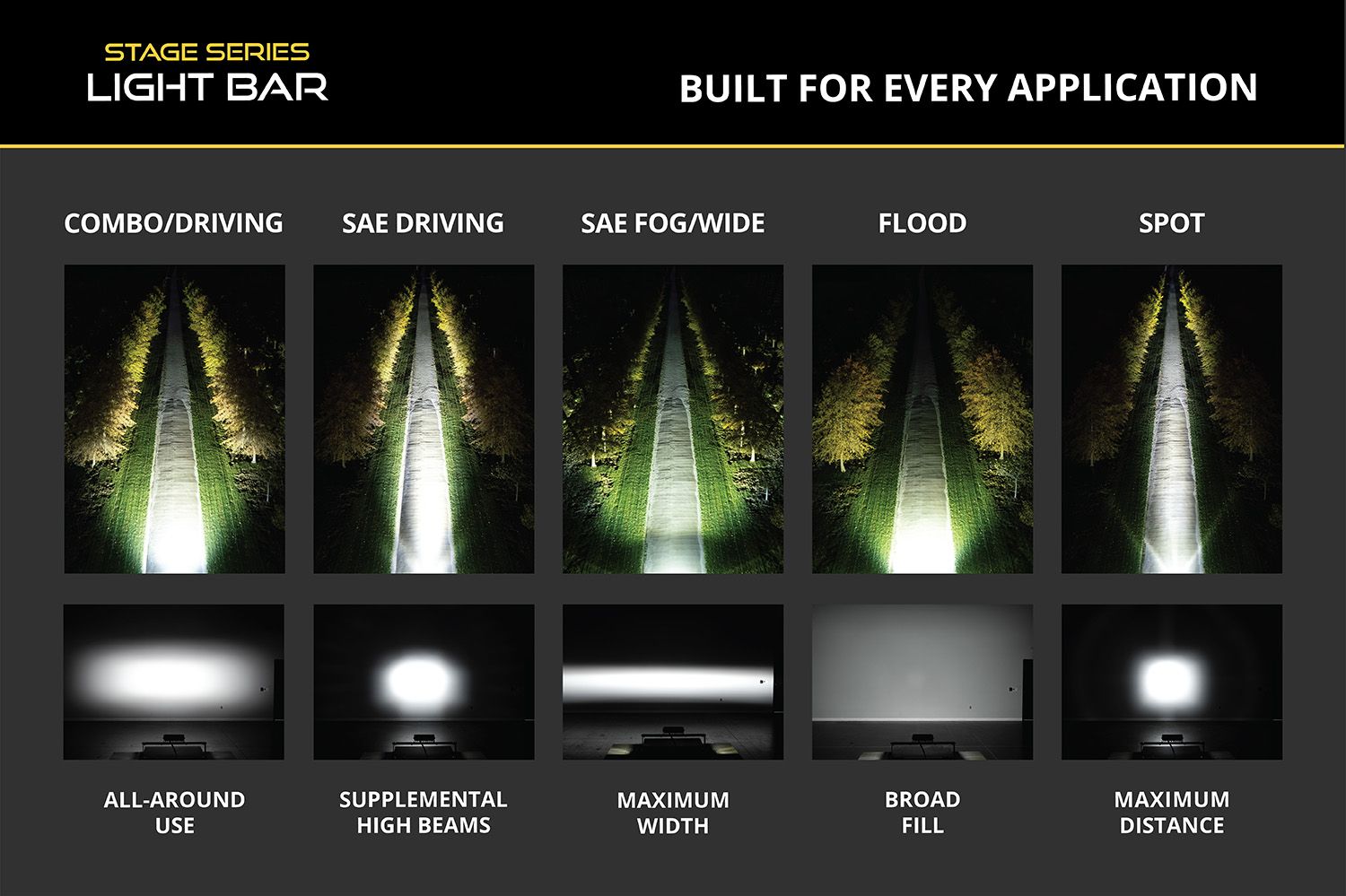

Beam Angles:
- Combo/Driving: 60° x 30°
- SAE Driving: 20° x 12°
- Flood: 100° x 80°
- Spot: 8° x 8°
- SAE Fog: 90° x 10°
Materials: Copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
Ingress Rating: IP69K
Operating Temperature: -40°F to 185°F

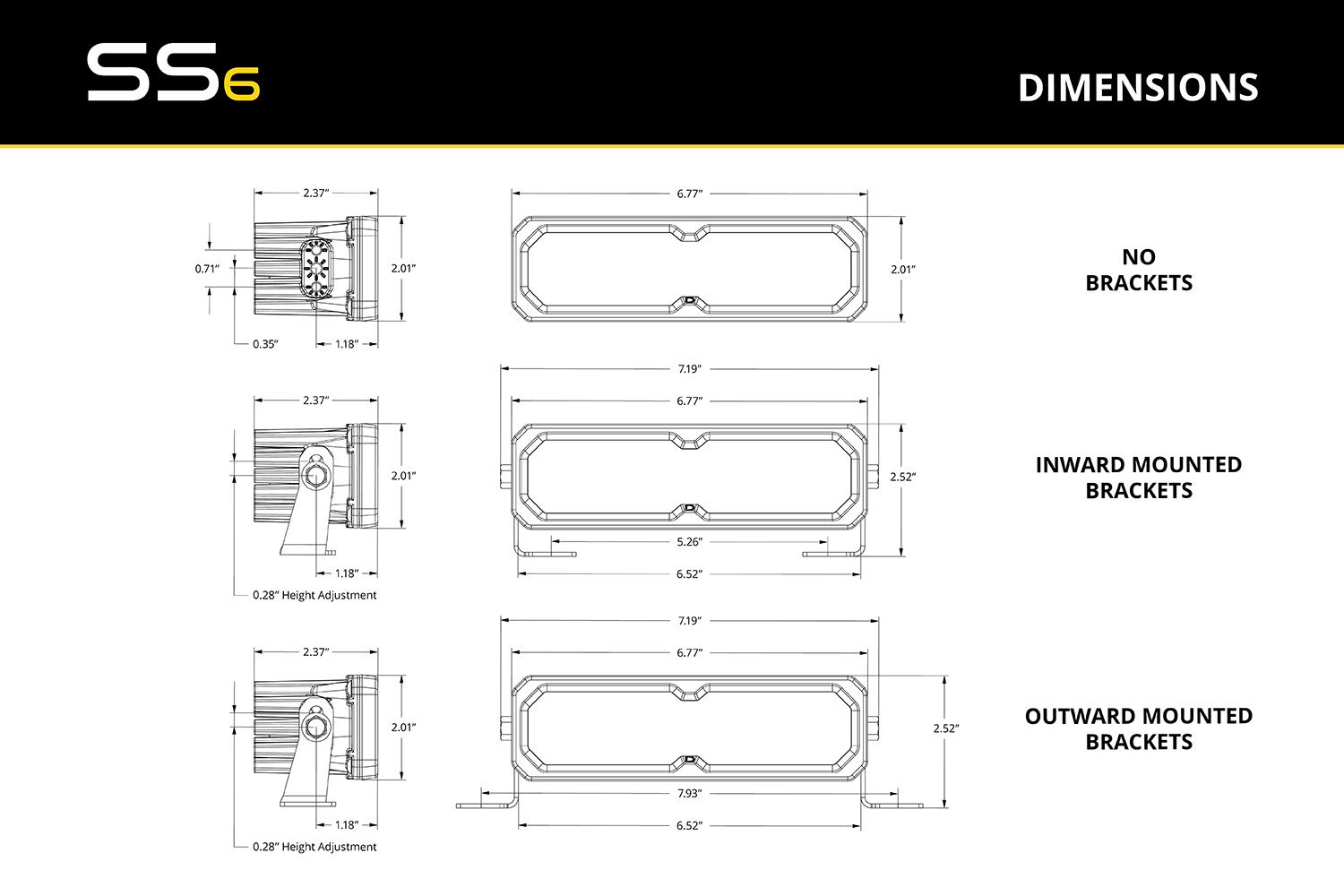

Dimensions: 2.01" x 6.77" x 2.37"
Connector: Deutsch DT
Included
-
Light Bar: One (1) SS6 LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal bracket set
Installation
-
Install Time: 30–60 minutes
-
Tools Required: Basic hand tools
