The Diode Dynamics Stage Series SS10 LED Light Bar is engineered for drivers who demand precision optics, extreme output, and uncompromising durability. Featuring patented TIR (Total Internal Reflection) optics, the SS10 captures and focuses nearly all available light exactly where it’s needed—reducing glare while dramatically increasing usable illumination. With multiple beam patterns, selectable power levels, and a fully illuminated red backlight, the SS10 is built for high-performance off-road, overland, and utility applications.
Notes
-
Backlight Color: Fully illuminated red backlight designed for rear-facing or accent lighting applications.
-
Power Levels: Available in Sport, Pro, and Max configurations.
-
Flush Mounting: Includes a flush mount bezel kit for clean, integrated installs.
Features
-
TIR Optics: Patented Total Internal Reflection optics maximize efficiency and direct light precisely where needed.
-
Beam Patterns: Multiple beam options fine-tuned for real-world driving conditions.
-
Power Levels: Choose Sport, Pro, or Max output to match your lighting needs.
-

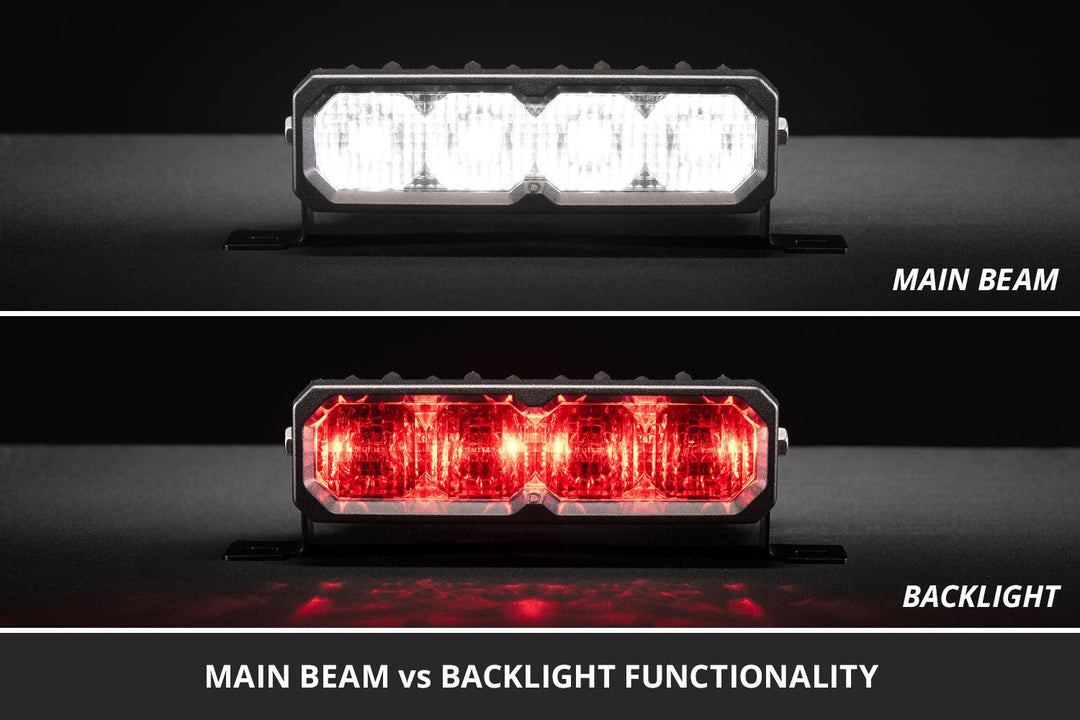

Red Backlight: Fully illuminated backlight fills the optic for a bold, highly visible accent.
-
Construction: Heavy-duty aluminum housing with ASTM-standard powder coat finish.
-
Thermal Management: Advanced heatsink design allows sustained high-output performance.
-
Weather Resistance: IP69K-rated for extreme water and dust intrusion protection.
-
Manufacturing: Engineered and manufactured in the USA using globally sourced materials.
-
Warranty: Backed by a limited lifetime warranty.
Specs
-
Color Temperature: 6000K White
-

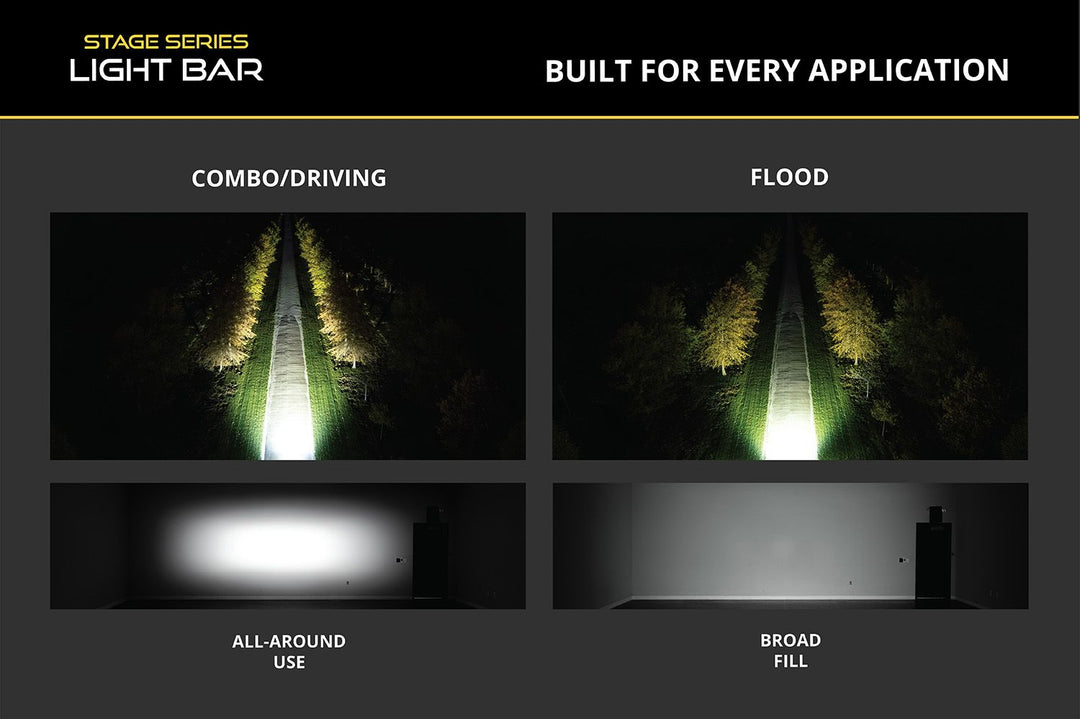

Beam Angles:
-
Combo/Driving: 60° x 30°
-
Flood: 100° x 80°
-

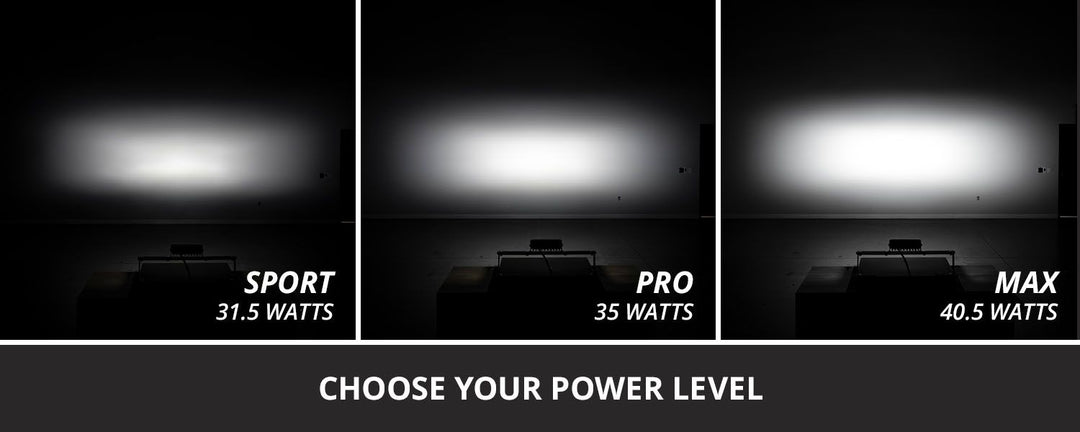

Power Output:
-
Sport: 31.5W
-
Pro: 35W
-
Max: 40.5W
-
Operating Voltage: 9–30V
-
Current Draw @ 12.8V:
-
Sport: 2.46A
-
Pro: 2.73A
-
Max: 3.16A
-
LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum heatsink, polycarbonate lens, copper PCB, stainless steel brackets
-
Cooling: Passive heatsink
-
Ingress Rating: IP69K waterproof / high-pressure resistant
-
Dimensions: 2.01" x 6.77" x 2.37"
Included
-
LED Light Bar: One (1) SS10 LED light bar
-
Wiring: One (1) wire pigtail
-
Mounting: Flush mount bezel kit
Installation
-
Install Time: Approximately 30–60 minutes
-
Tools Required: Basic hand tools
-
Mounting Style: Flush mount using included bezel kit
