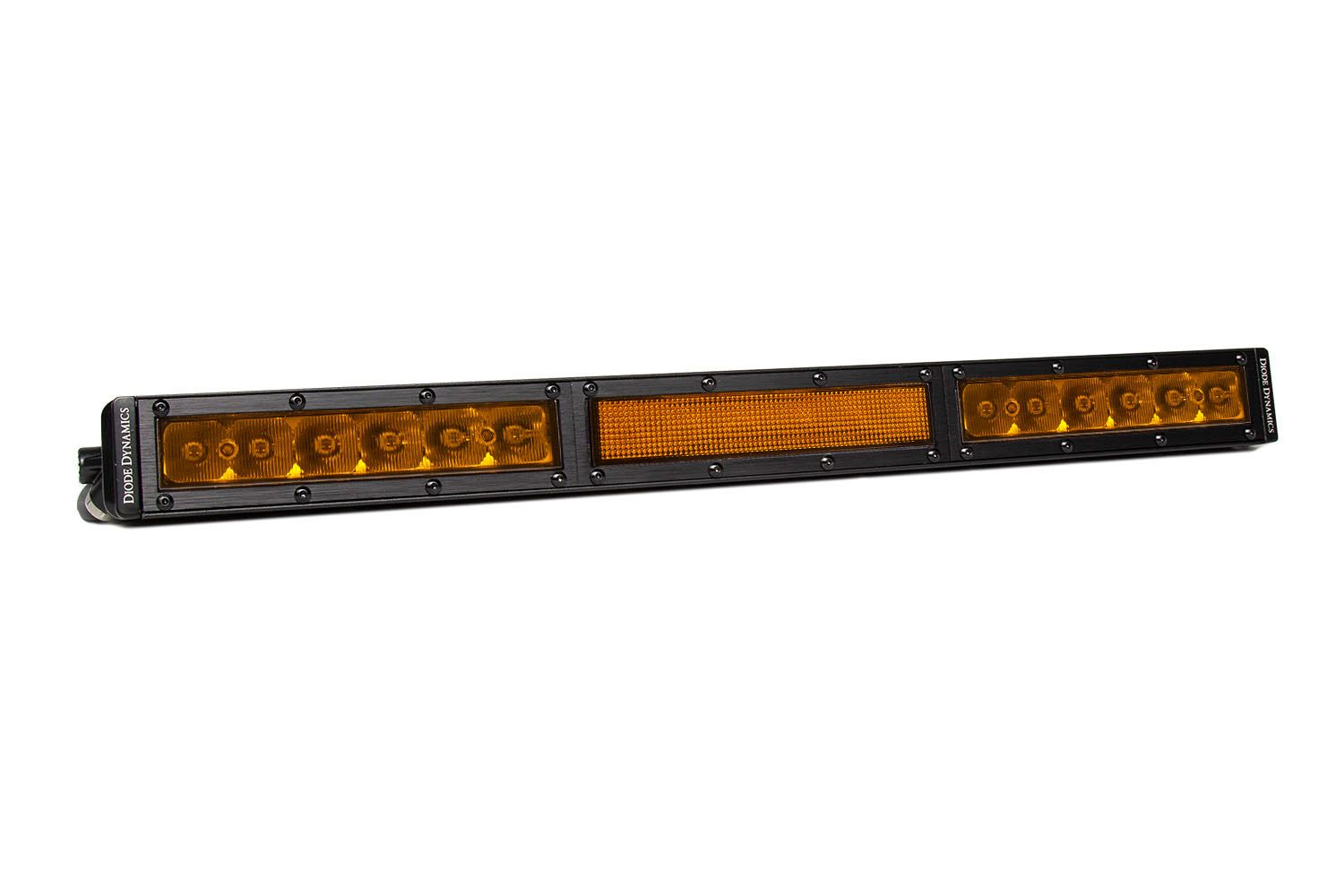

Diode Dynamics Stage Series 18" Amber Classic Light Bar

Designed for maximum versatility in a compact footprint, the Diode Dynamics Stage Series Amber Combo LED Light Bar delivers powerful, focused illumination with added wide-area coverage for demanding driving conditions. Inspired by professional rally racing, this low-profile light bar combines advanced TIR optics, high-intensity automotive-grade LEDs, and a modular segmented design to provide exceptional performance in poor weather, off-road environments, and high-contrast visibility situations.

Important notes

• Output color: 2000K amber
• Beam pattern: Combo (Driving + Flood)
• Quantity: Sold individually (one light bar included)
• Fitment: Universal mounting with included brackets
• Warranty: Backed by an 8-year manufacturer warranty

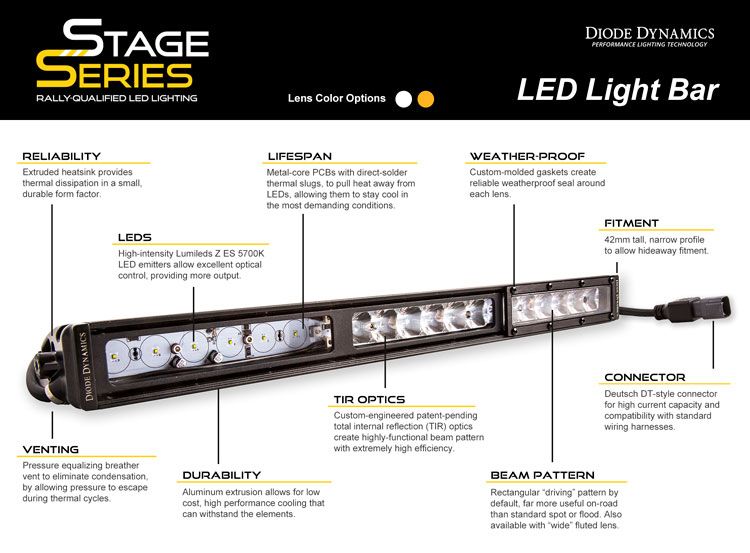

Features

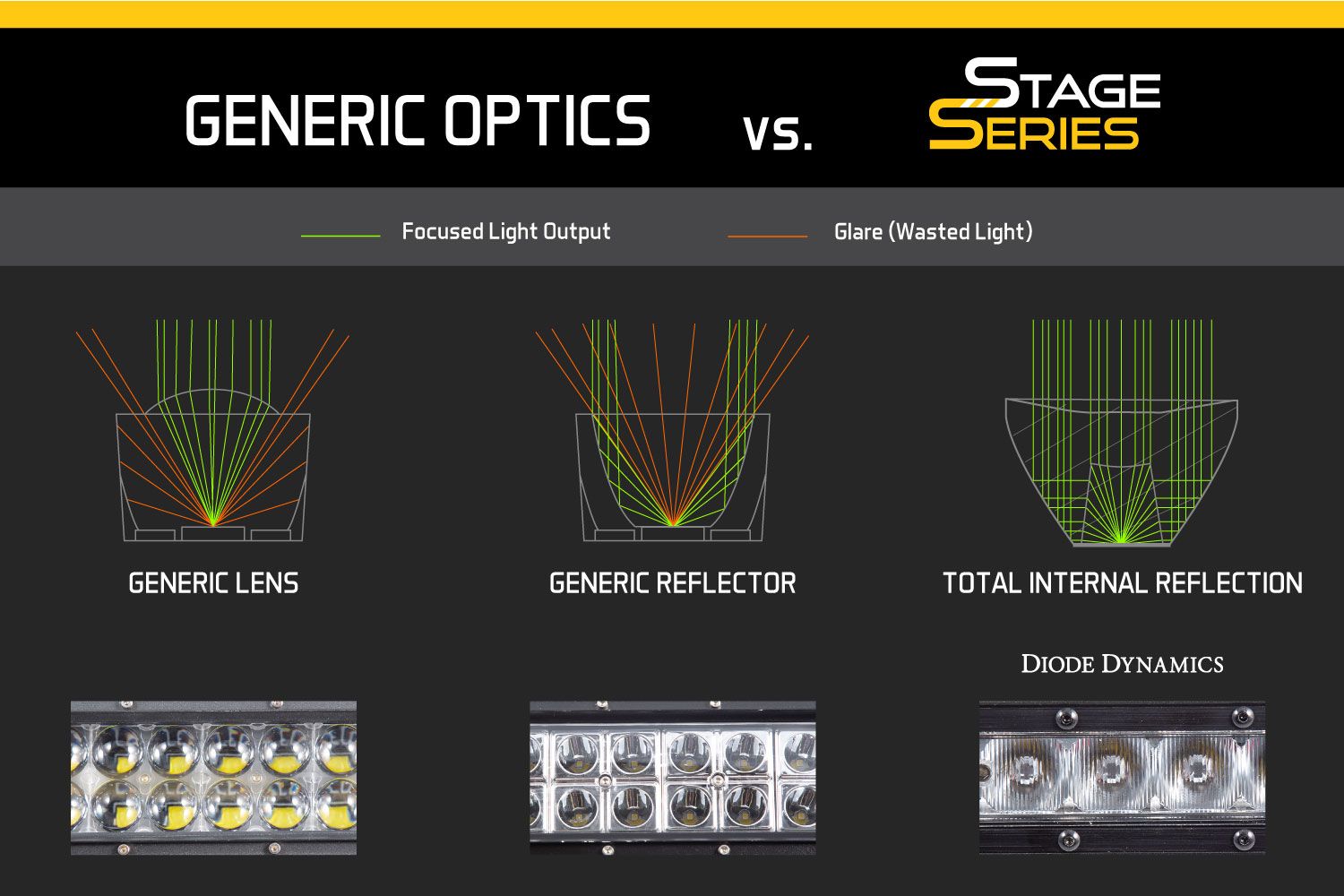

• Optics: Advanced TIR (Total Internal Reflection) optics maximize efficiency while precisely directing light where it’s needed.
• LEDs: High-intensity automotive-grade LEDs produce a deep amber output ideal for fog, dust, rain, and snow.
• Beam pattern: Combo optic blends focused Driving output with wide Flood illumination for balanced distance and peripheral visibility.
• Housing: Slim 42mm extruded aluminum housing allows low-profile installation in tight mounting locations.
• Aerodynamics: Compact heatsink design minimizes wind noise compared to traditional dual-row light bars.
• Modular design: Six-inch segmented construction allows easy lens swaps to change beam pattern or color.
• Sealing: Individually sealed lenses with double-wall construction improve weather resistance and durability.
• Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
• Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and harsh environmental conditions.
• Testing: SAE and DOT tested for vibration, moisture intrusion, corrosion, and extreme temperature operation.

Specifications

• Color temperature: 2000K amber
• Beam angle: Combo (Driving and Flood)
• Measured output: 2,400 lumens
• Raw output: 3,420 lumens
• Peak intensity: 47,800 candela
• Power: 79.8 watts
• Operating voltage: 9–24V
• Current draw: 5.7 amps @ 14V
• Ingress rating: IP69K waterproof and high-pressure resistant
• LED emitter: Luxeon Z ES
• Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
• Cooling: Passive heatsink

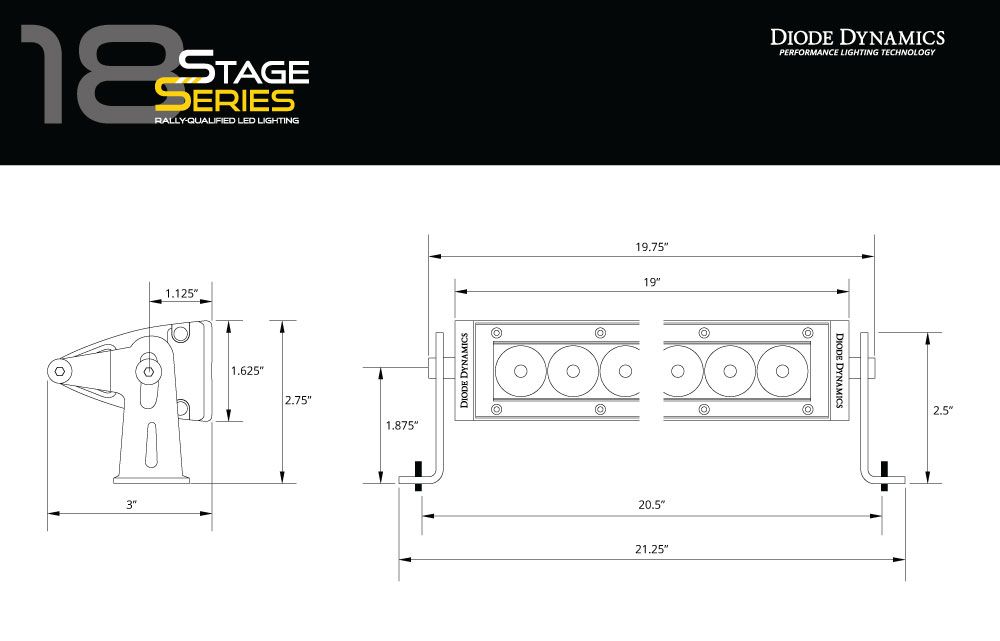

• Dimensions: 19" x 3" x 1.63"

Fitment

• Compatibility: Universal fitment
• Installation: Mounts to any vehicle using the included universal bracket set

In the box

• Light bar: One (1) Stage Series Amber Combo LED Light Bar
• Wiring: One (1) wire pigtail
• Mounting: One (1) universal bracket set
• Hardware: Two (2) M6 hex screws and two (2) M5 hex screws

Warranty and support

• Warranty: 8-year limited warranty
• Returns: 30-day return with no restocking fee
• Guarantee: 100% satisfaction guarantee
