Built for drivers who demand compact size without sacrificing performance, the Diode Dynamics Stage Series White LED Light Bar delivers powerful, precisely focused illumination in a low-profile, rally-proven design. Inspired by professional motorsports, this light bar combines advanced TIR optics, high-intensity automotive-grade LEDs, and a slim extruded housing to provide exceptional visibility for high-speed driving, off-road use, and auxiliary lighting applications.
Important notes
-
Output color: 6000K pure white
-
Beam patterns: Driving or Combo
-
On-road use: Driving pattern meets SAE J581 when properly aimed
-
Quantity: Sold individually (one light bar included)
-
Warranty: Backed by an 8-year manufacturer warranty

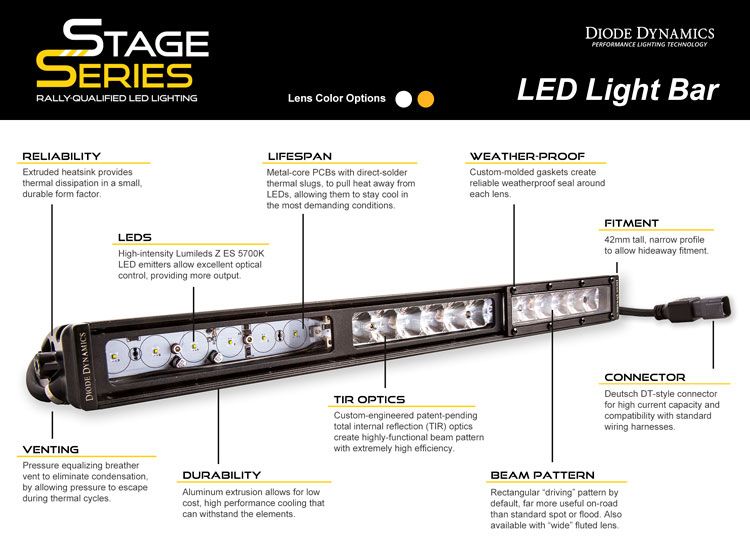

Features
-

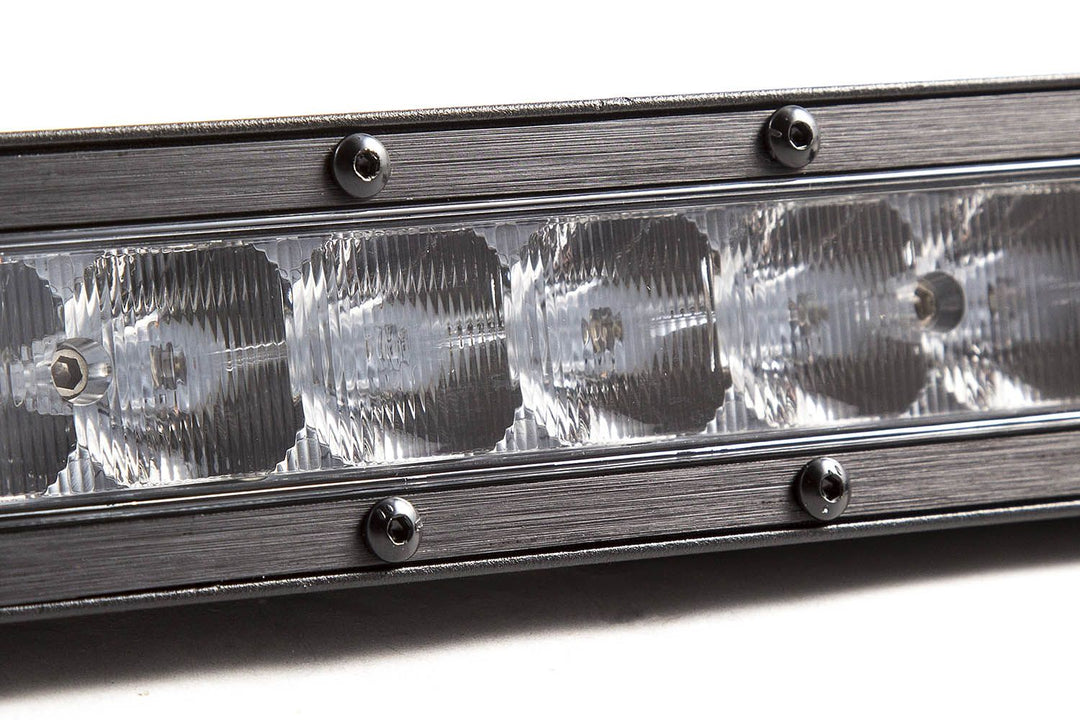

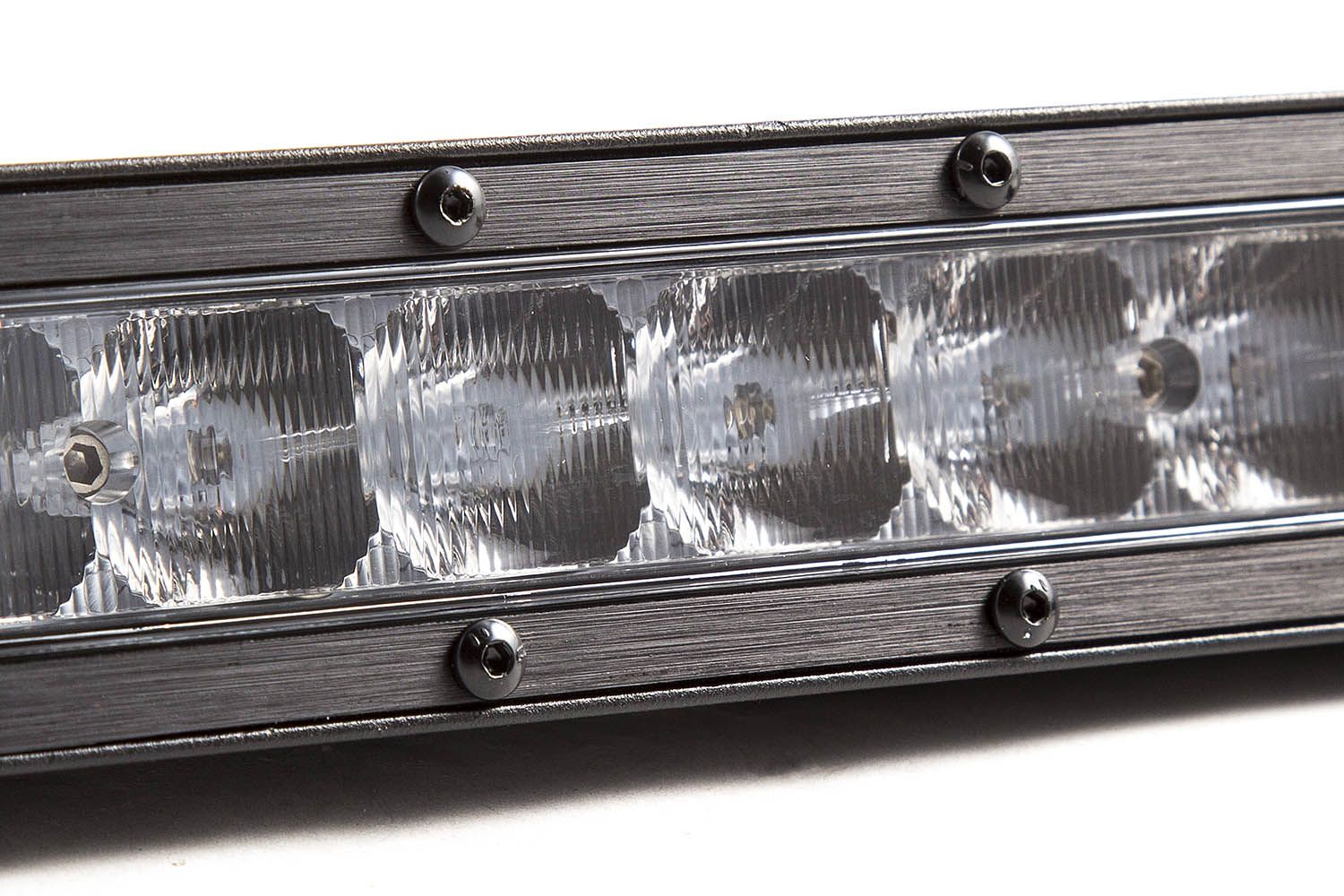

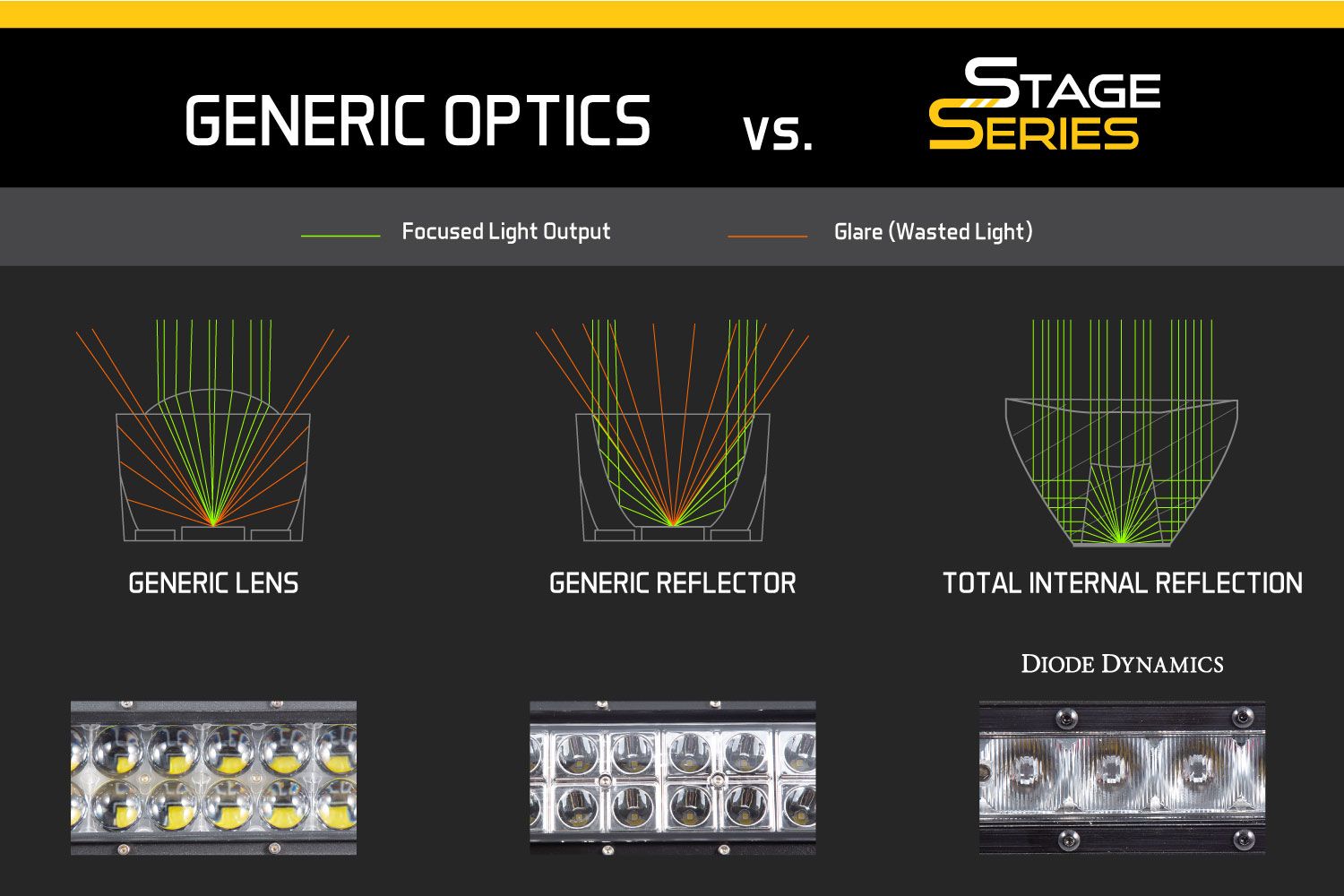

Optics: Advanced TIR (Total Internal Reflection) optics maximize efficiency and focus light exactly where it’s needed.
-
LEDs: High-intensity automotive-grade LEDs produce a clean 6000K white output with no blue tint.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile mounting in tight spaces.
-
Aerodynamics: Compact heatsink design reduces wind noise compared to traditional dual-row light bars.
-

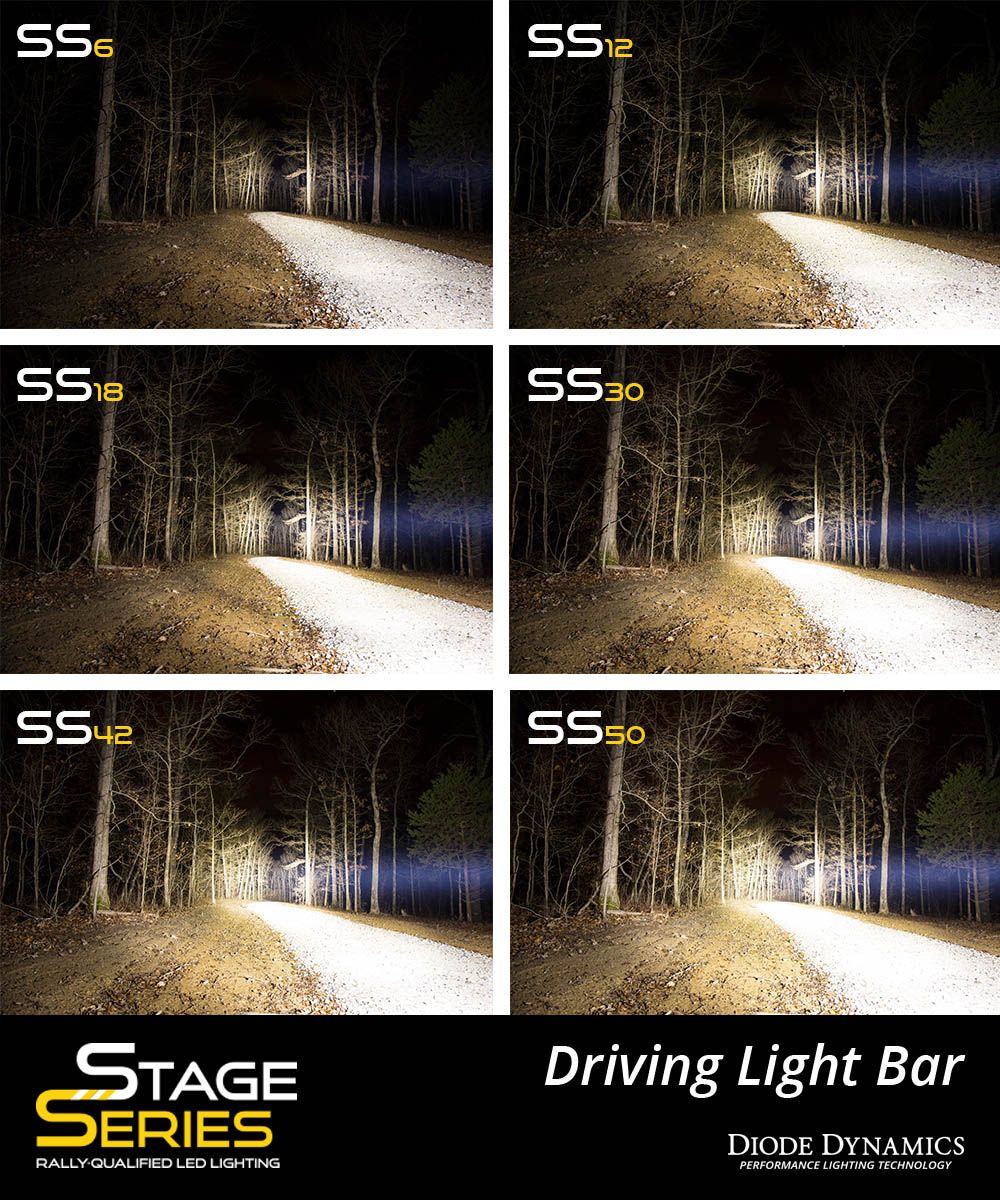

Driving beam: Rectangular 20° x 8° pattern engineered to supplement high beams and project usable light downrange.
-

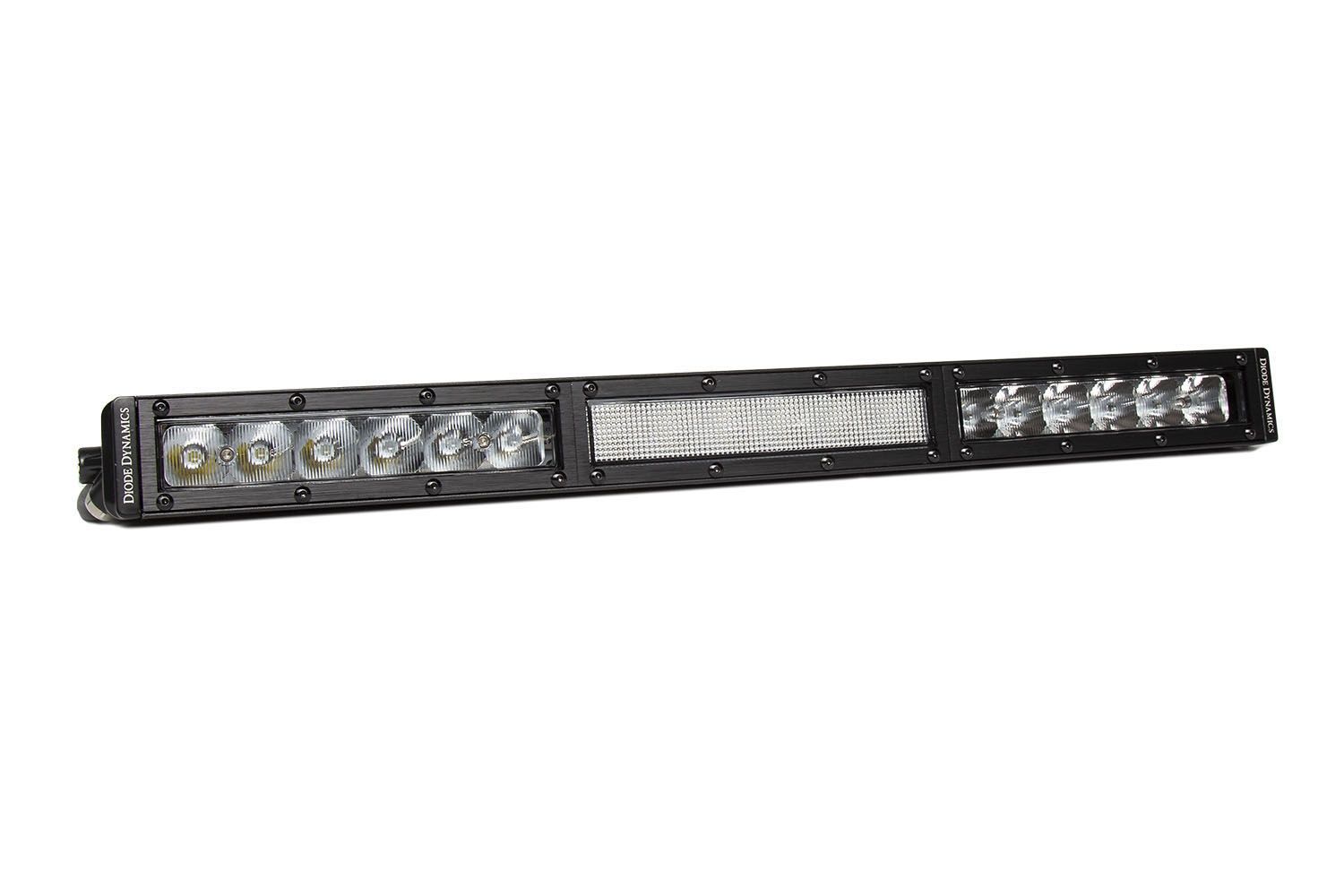

Combo beam: Combines focused Driving optics with Flood illumination to provide distance and wide-area coverage in one bar.
-
Modular design: Six-inch segmented construction allows easy lens swaps to change beam pattern or color.
-
Sealing: Individual double-wall sealed lenses improve weather resistance and durability.
-
Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and harsh environments.
-
Testing: SAE/DOT tested for vibration, moisture intrusion, corrosion, and extreme temperature operation.
Specifications
-
Color temperature: 6000K white
-
Beam patterns: Driving or Combo
-
Measured output: 4,200 lumens
-
Raw output: 6,840 lumens
-

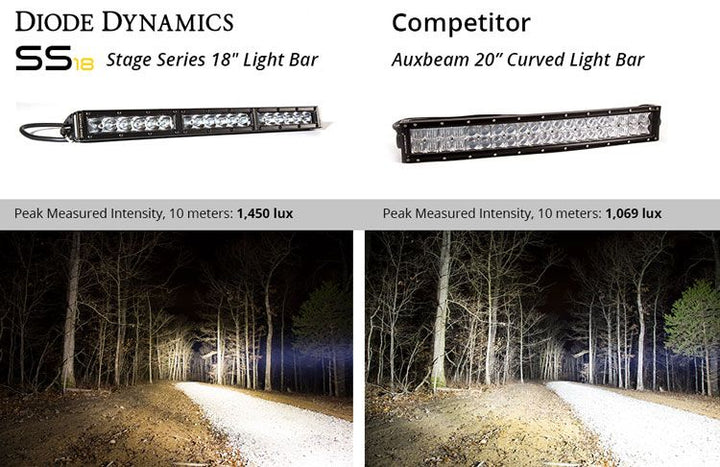

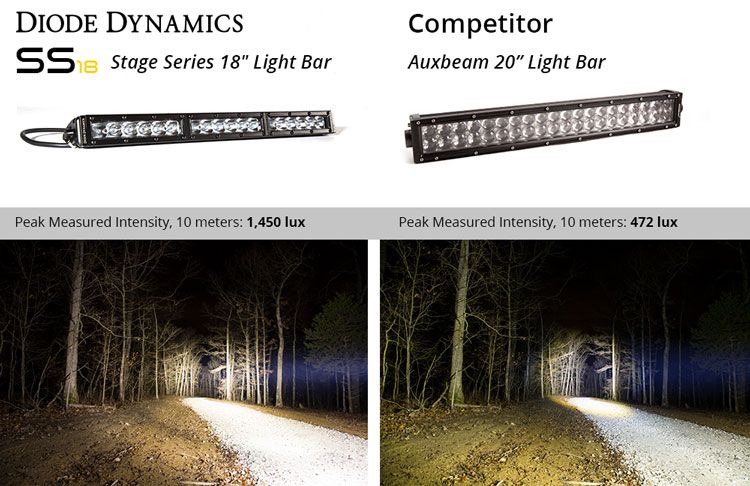

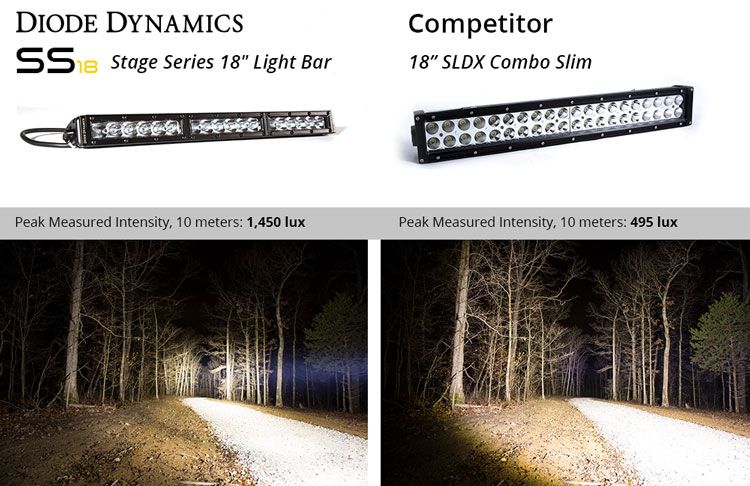

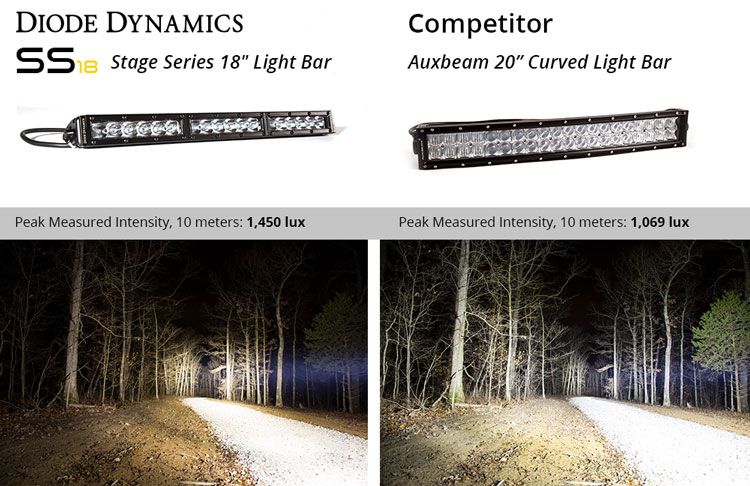

Peak intensity: Up to 165,000 candela (Driving pattern)
-
Power: 79.8 watts
-
Operating voltage: 9–24V
-
Current draw: 5.7 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
LED emitter: Luxeon Z ES
-

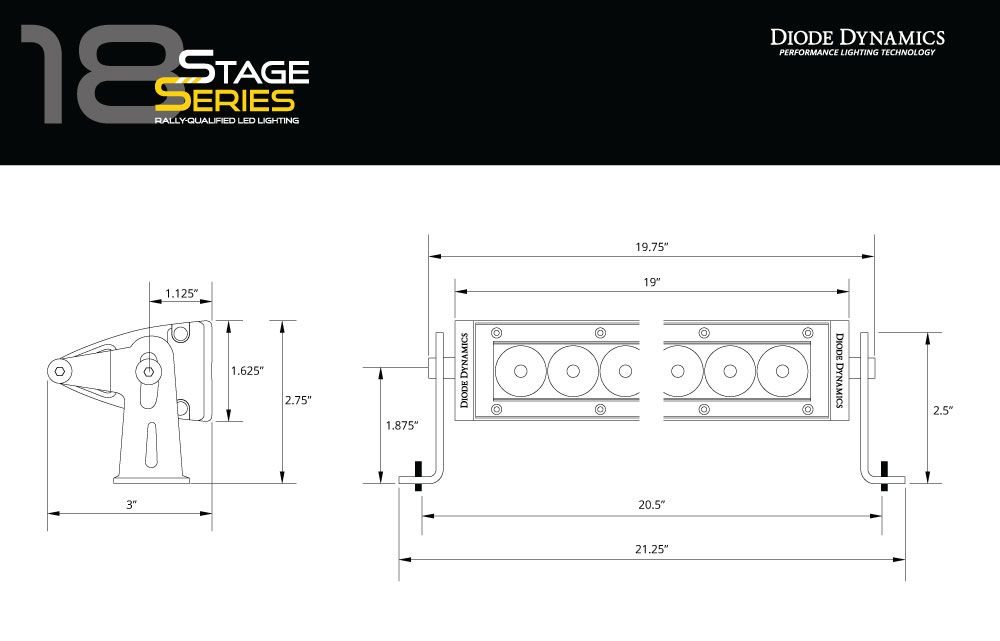

Dimensions: 19" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-

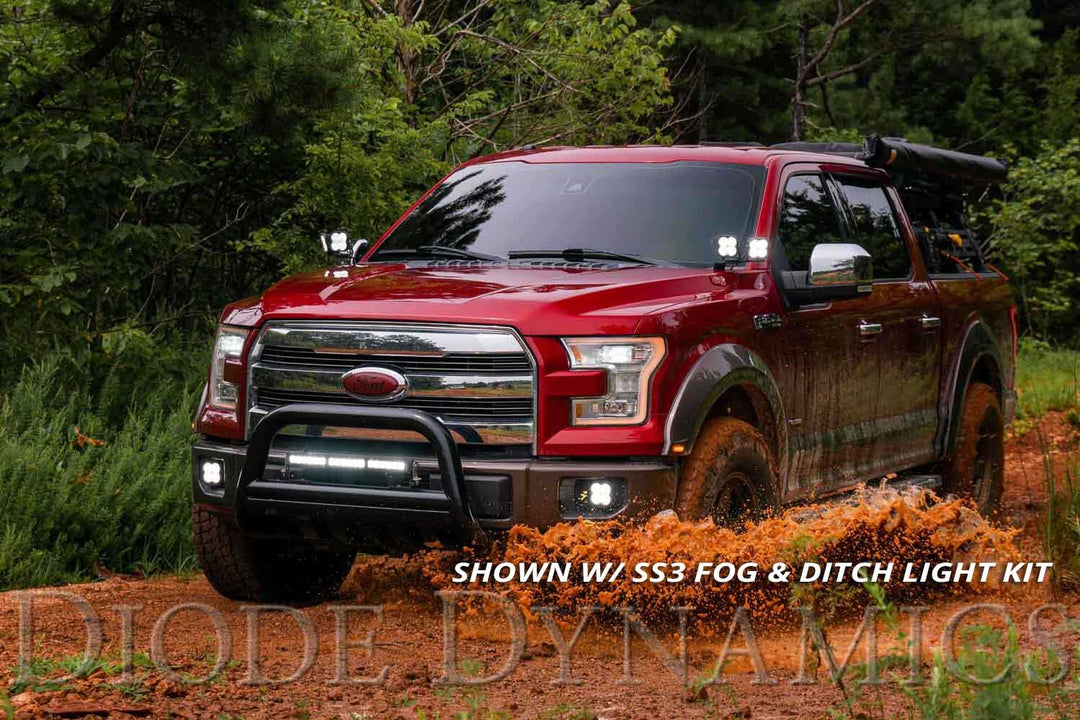

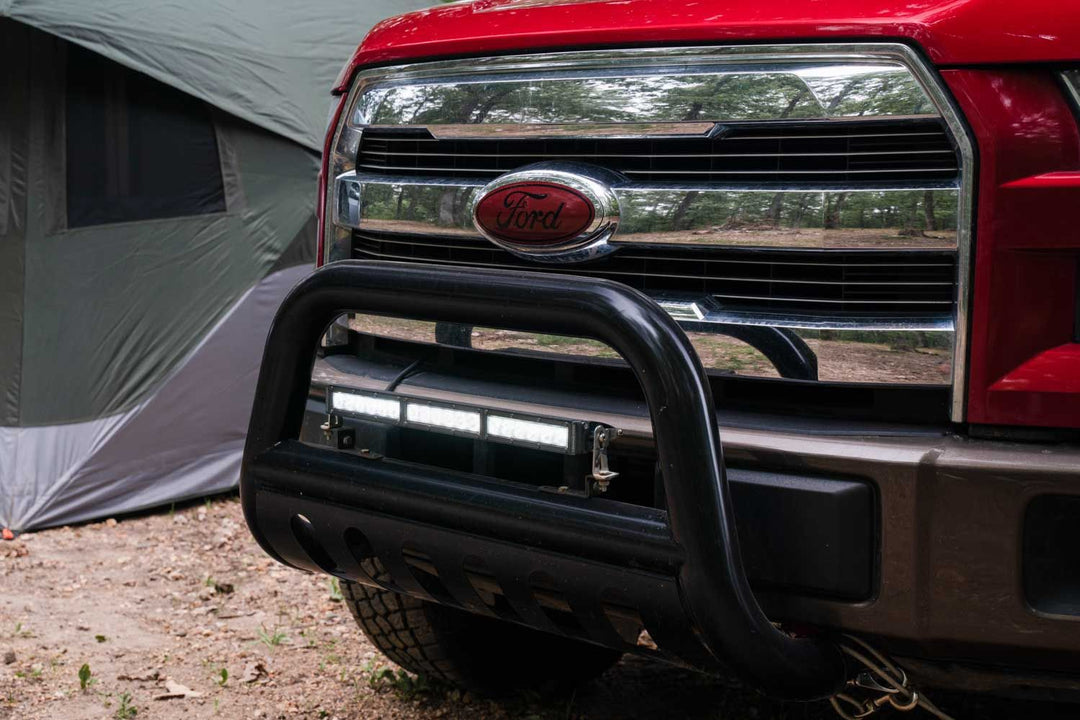

Installation: Mounts to any vehicle using the included universal bracket set
In the box
-

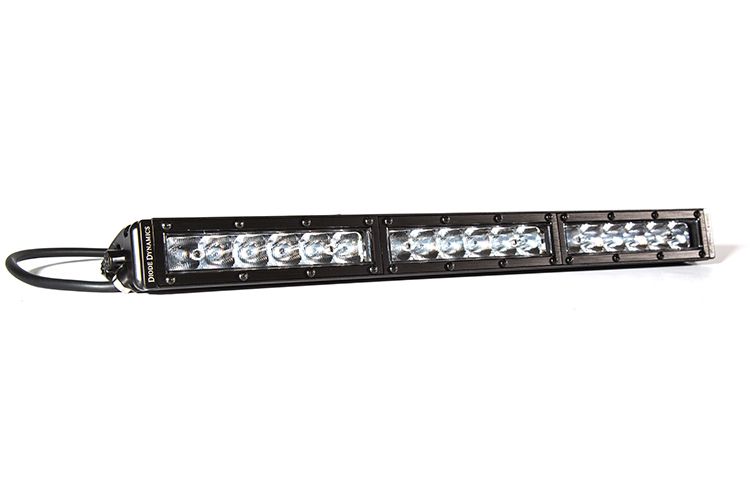

Light bar: One (1) Stage Series White LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: One (1) universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and support
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
