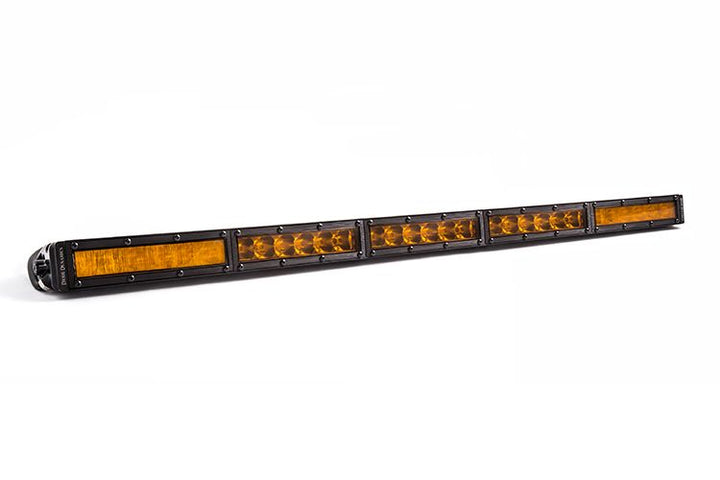

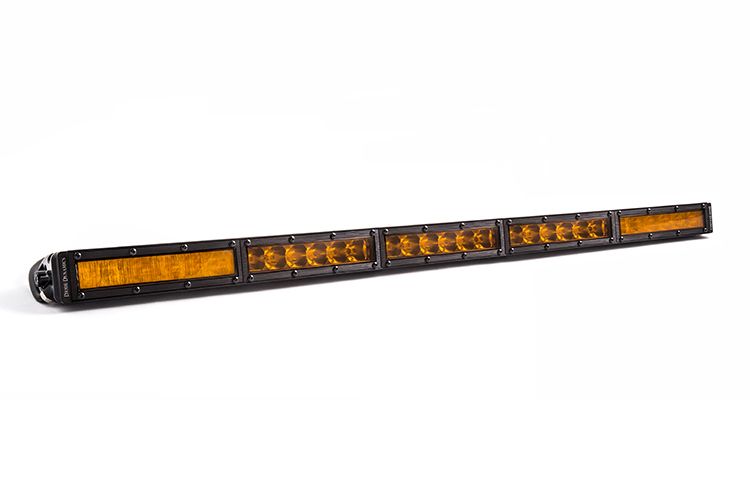

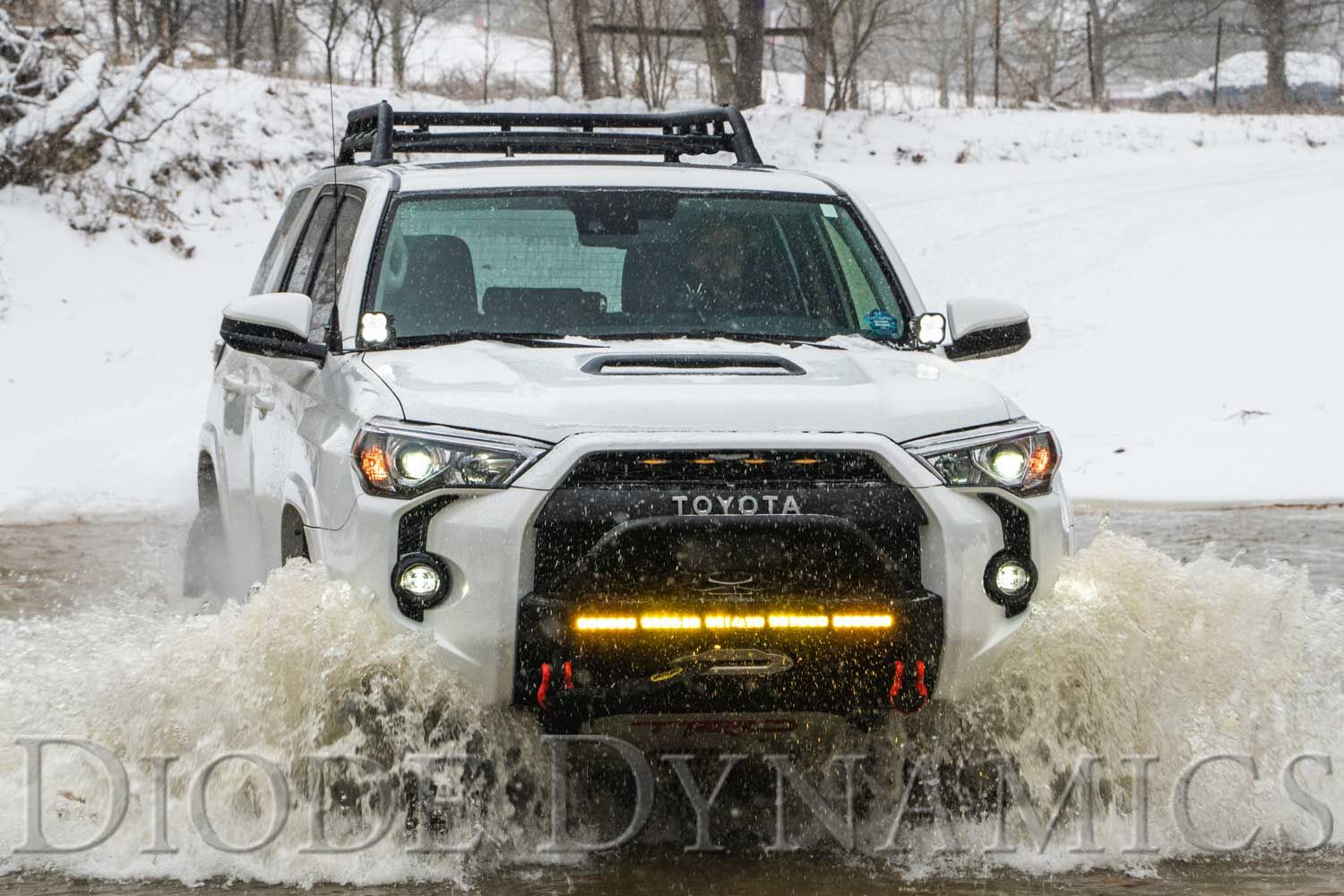

Designed for demanding off-road conditions and poor weather environments, the Diode Dynamics Stage Series 30" Amber Combo LED Light Bar delivers focused distance lighting with wide peripheral coverage in a compact, low-profile design. Inspired by professional rally racing, this light bar uses advanced TIR optics and high-intensity automotive-grade LEDs to produce a deep amber output that cuts through dust, fog, rain, and snow while minimizing glare. Built with durability and modularity in mind, the Stage Series is engineered to perform when visibility matters most.
Important notes
-
Output color: 2000K amber
-
Beam pattern: Combo (Driving + Flood)
-
Quantity: Sold individually (one light bar included)
-
Fitment: Universal mounting hardware included
-
Warranty: Covered by an 8-year manufacturer warranty
Features
-

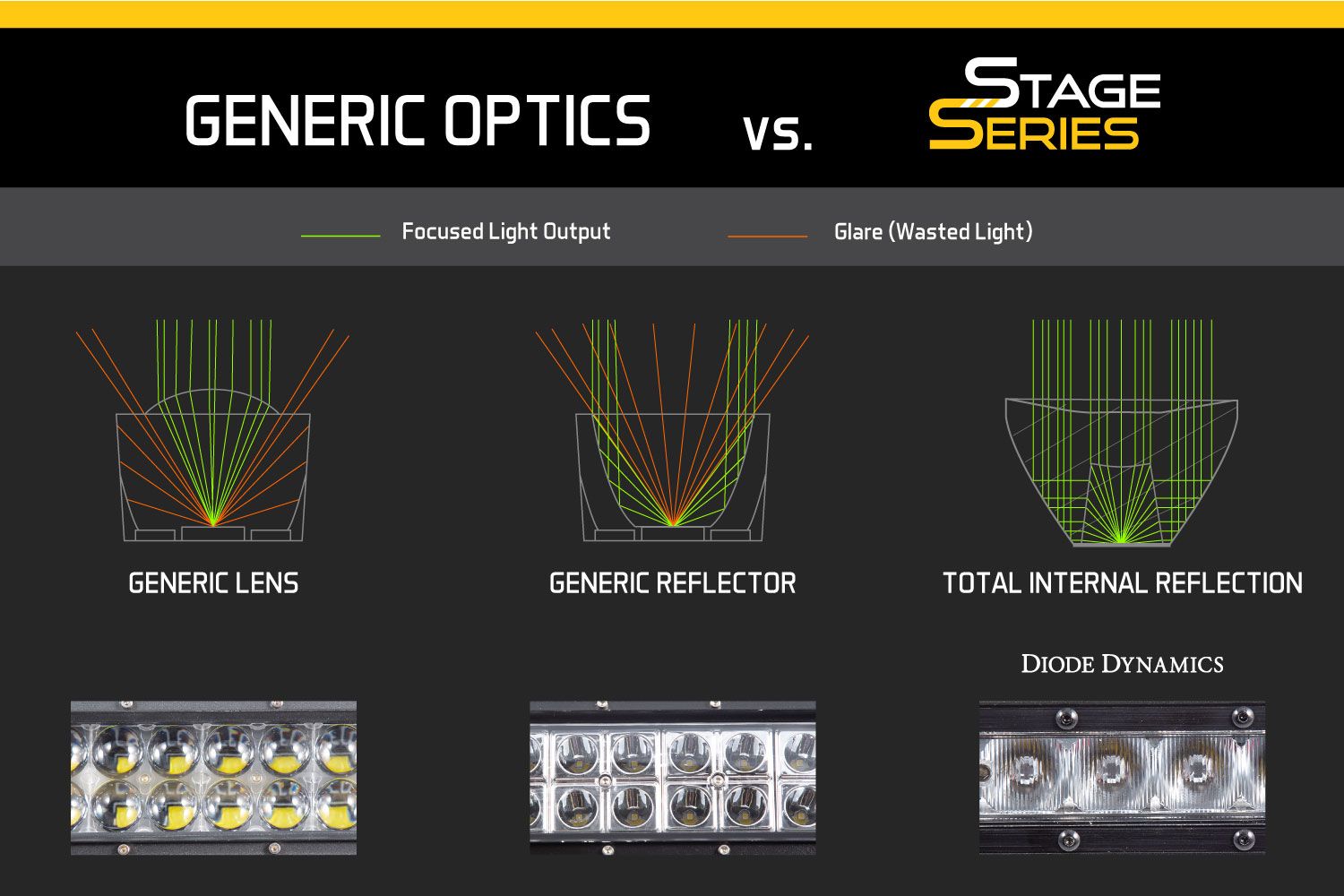

Optics: Advanced TIR (Total Internal Reflection) optics maximize efficiency by directing light only where it’s needed.
-
LEDs: High-intensity automotive-grade LEDs produce a deep amber output ideal for poor visibility conditions.
-
Beam pattern: Combo pattern blends focused driving optics with flood optics for distance and side illumination.
-
Combo layout: Three driving lenses in the center with two flood lenses on the outer edges for balanced coverage.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile installation in tight mounting locations.
-
Aerodynamics: Compact heatsink design reduces wind noise compared to traditional dual-row light bars.
-
Modular design: Six-inch segmented construction allows lens swaps to change beam pattern or color.
-

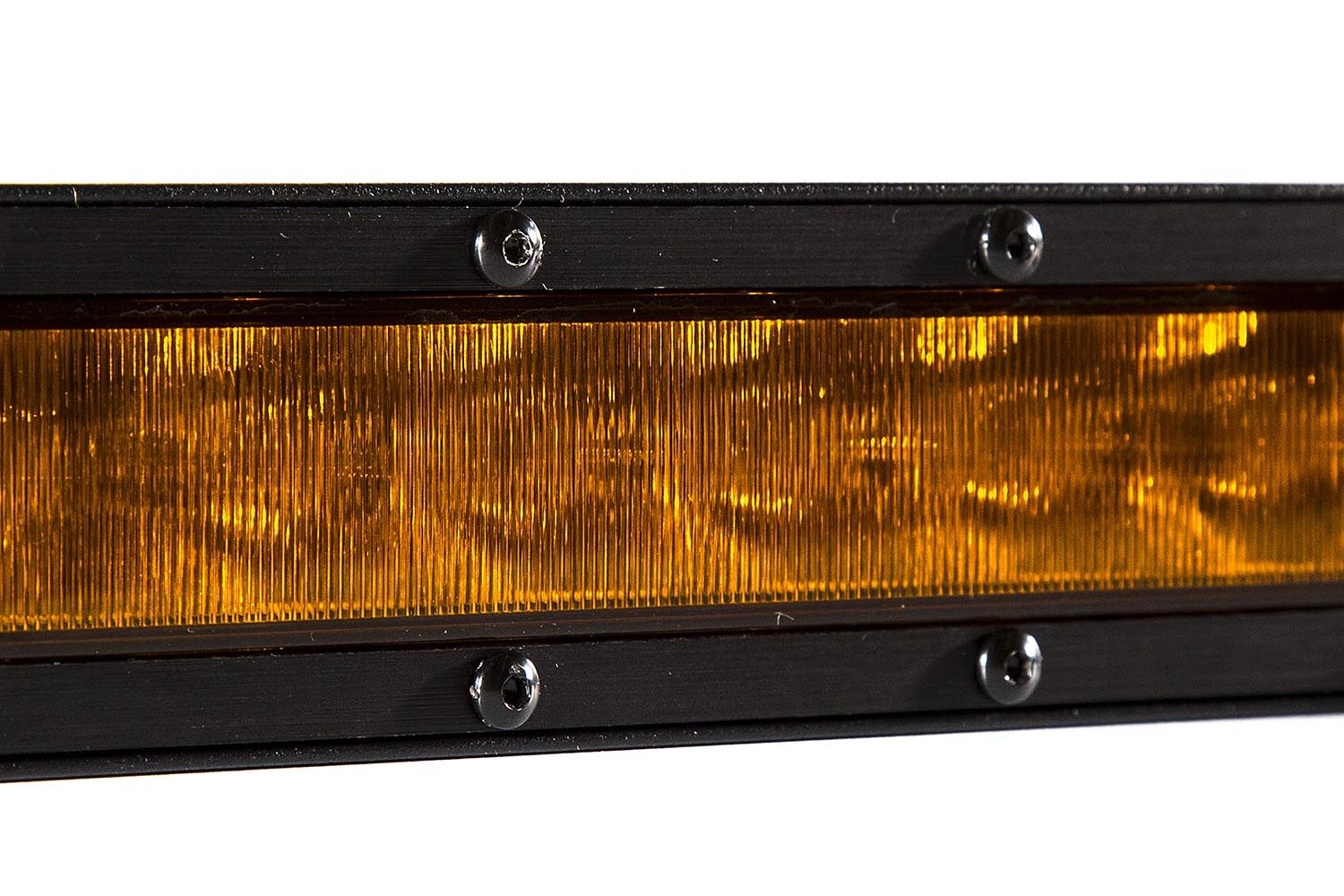

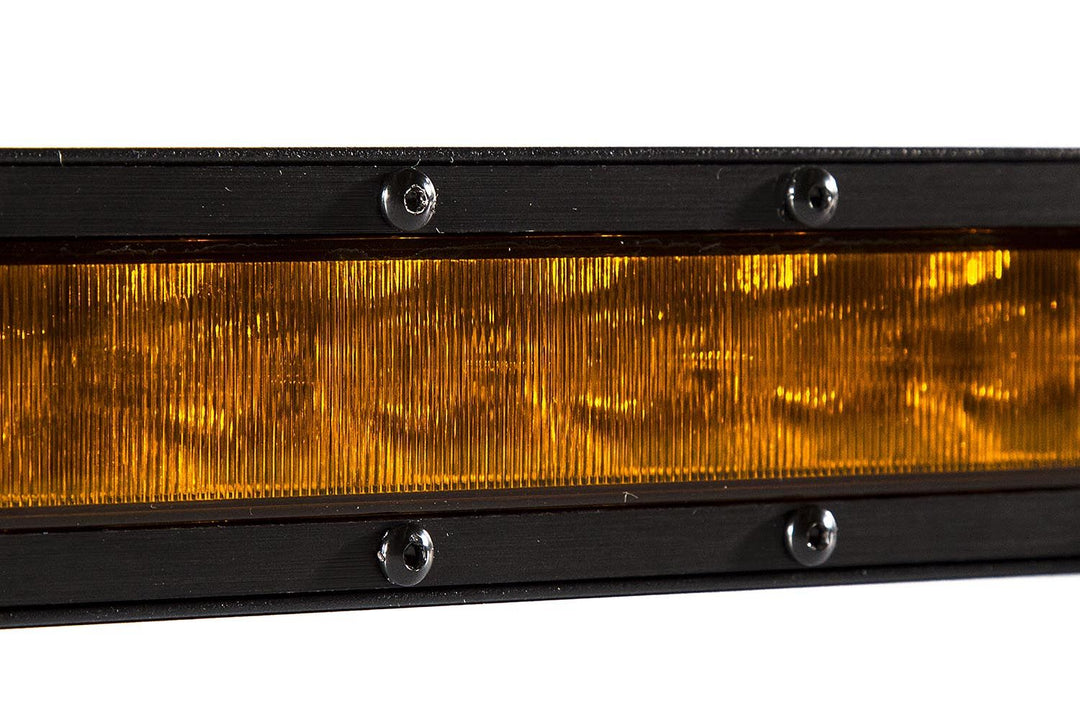

Sealing: Individual lenses with double-wall seals improve weather resistance and durability.
-
Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and harsh environments.
-
Reliability: Tested to SAE and DOT standards for temperature extremes, vibration, moisture, and corrosion.
Specifications
-
Color temperature: 2000K amber
-
Beam pattern: Combo (Driving + Flood)
-
Measured output: 4,000 lumens
-
Raw output: 5,700 lumens
-
Peak intensity: 113,800 candela
-
Illuminance: 1,014 lux @ 10 meters
-
Power: 137.2 watts
-
Operating voltage: 9–24V
-
Current draw: 9.8 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
LED emitter: Luxeon Z ES
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

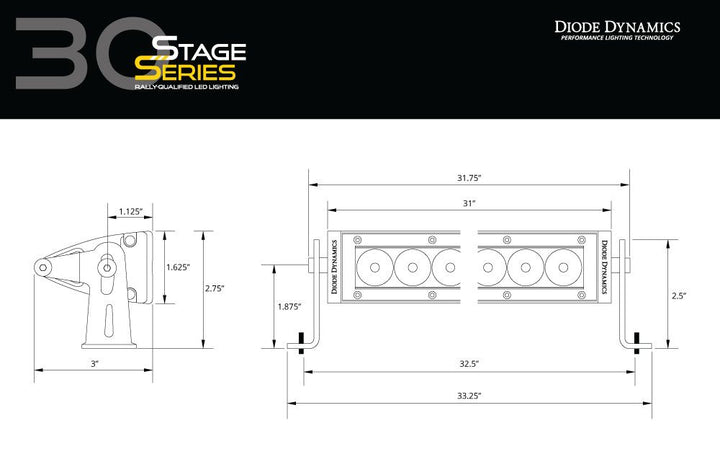

Dimensions: 31" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-

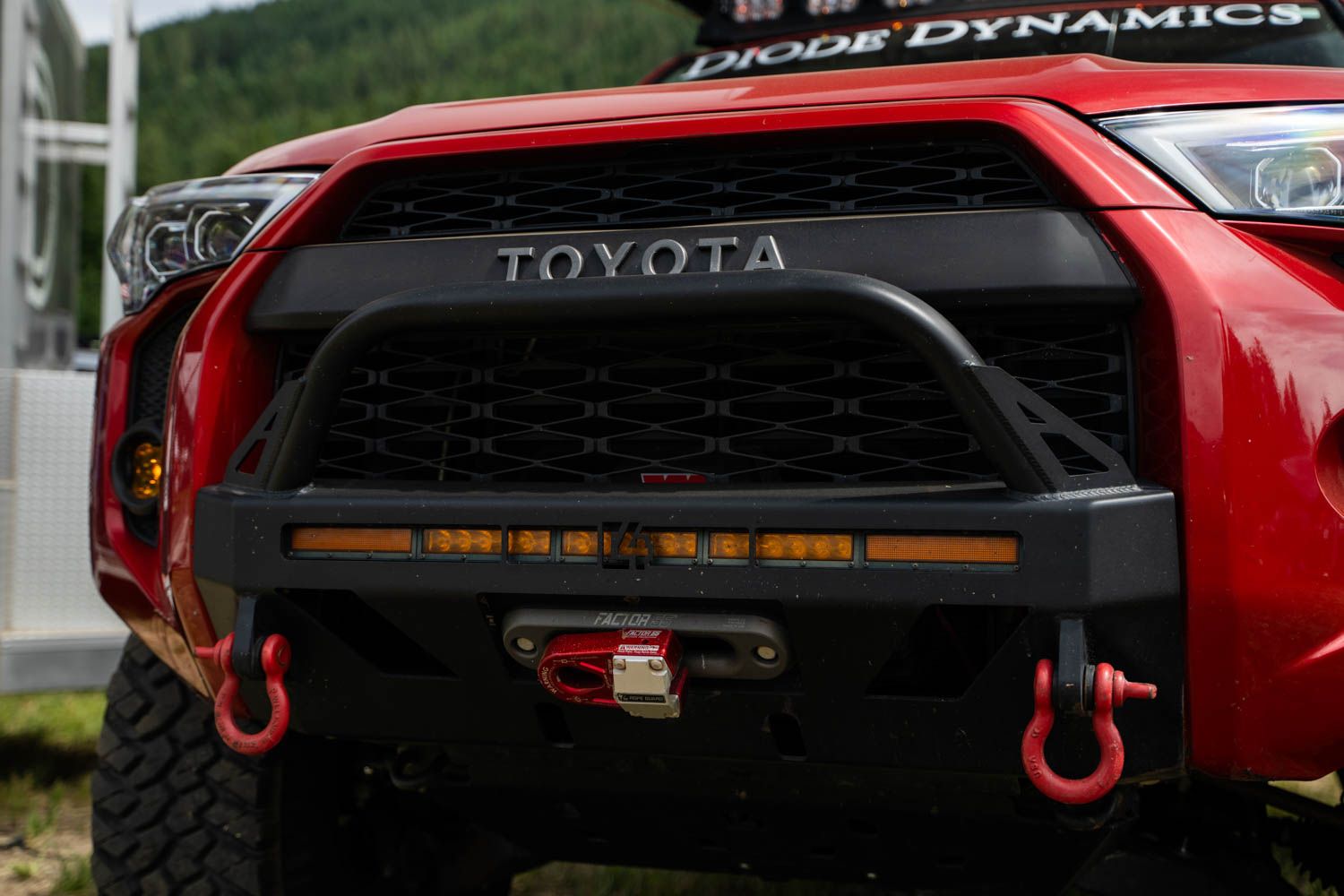

Installation: Mounts to any vehicle using the included universal bracket set
In the box
-
Light bar: One (1) Stage Series 30" Amber Combo LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: One (1) universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and guarantee
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
