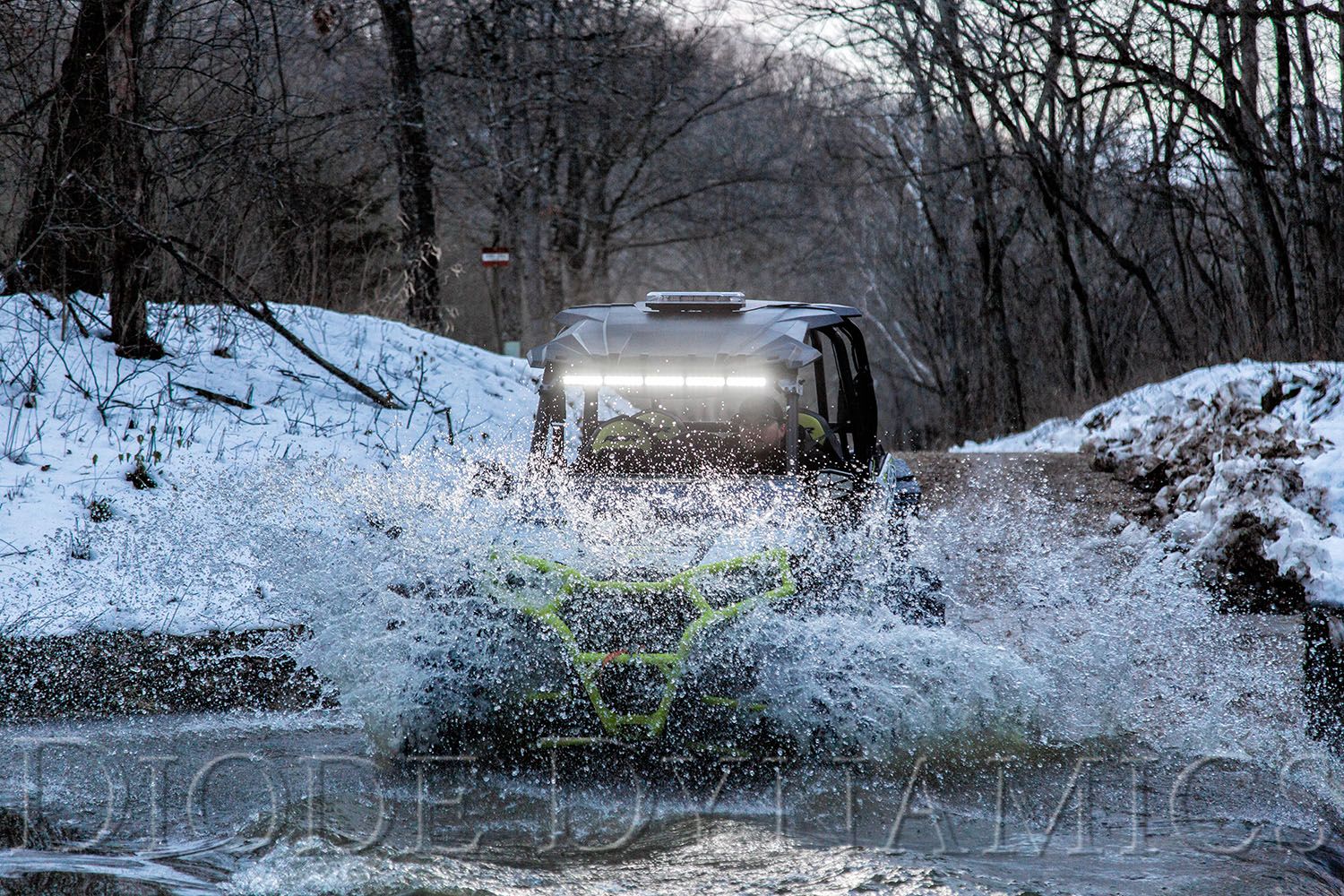

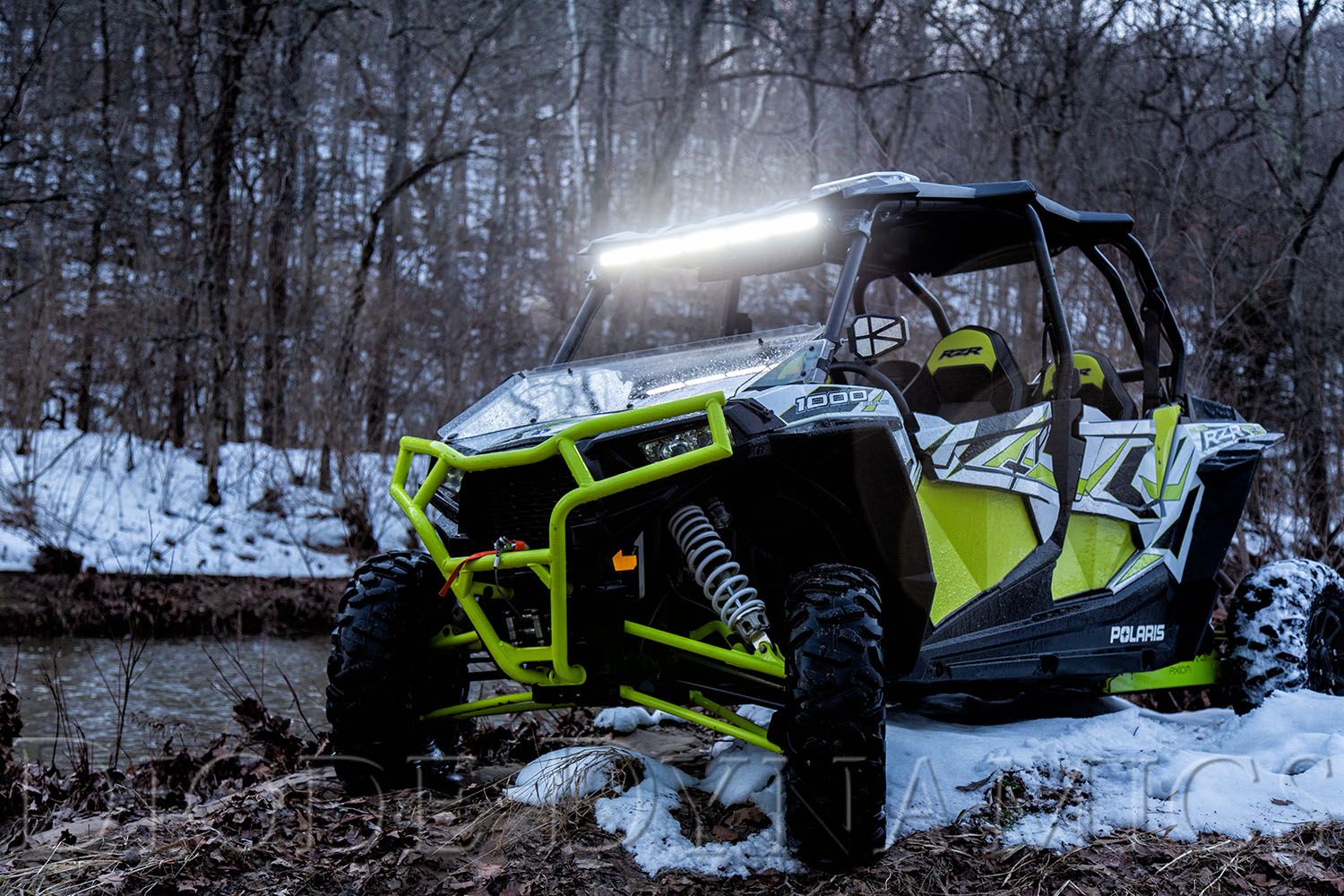

Engineered for serious performance in a low-profile design, the Diode Dynamics Stage Series 30" LED Light Bar delivers exceptional output, precision beam control, and proven durability. Inspired by professional rally racing, this light bar combines advanced TIR optics, high-intensity automotive-grade LEDs, and a modular segmented design to provide powerful forward lighting with reduced glare and maximum efficiency. Whether you’re supplementing high beams or adding all-around illumination, the Stage Series is built to perform in demanding conditions.
Important notes
-
Output color: 6000K pure white
-
Beam patterns: Driving or Combo (Driving + Flood)
-
Quantity: Sold individually (one light bar included)
-
Fitment: Universal mounting hardware included
-
Warranty: Backed by an 8-year manufacturer warranty

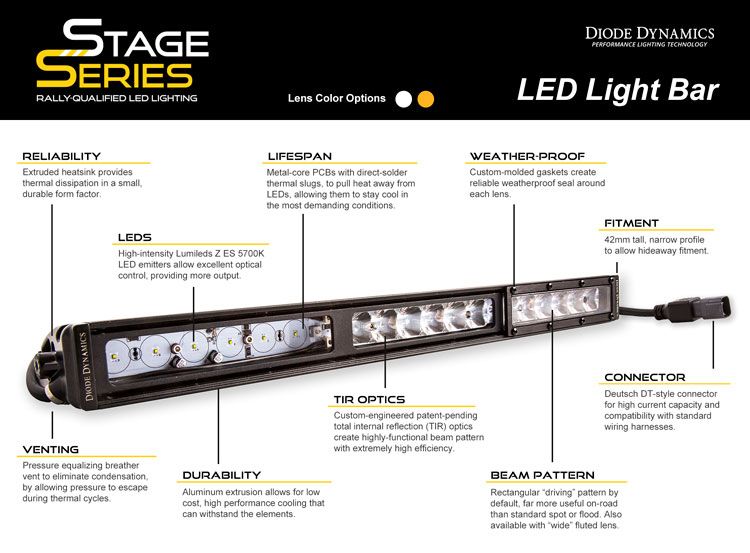

Features
-

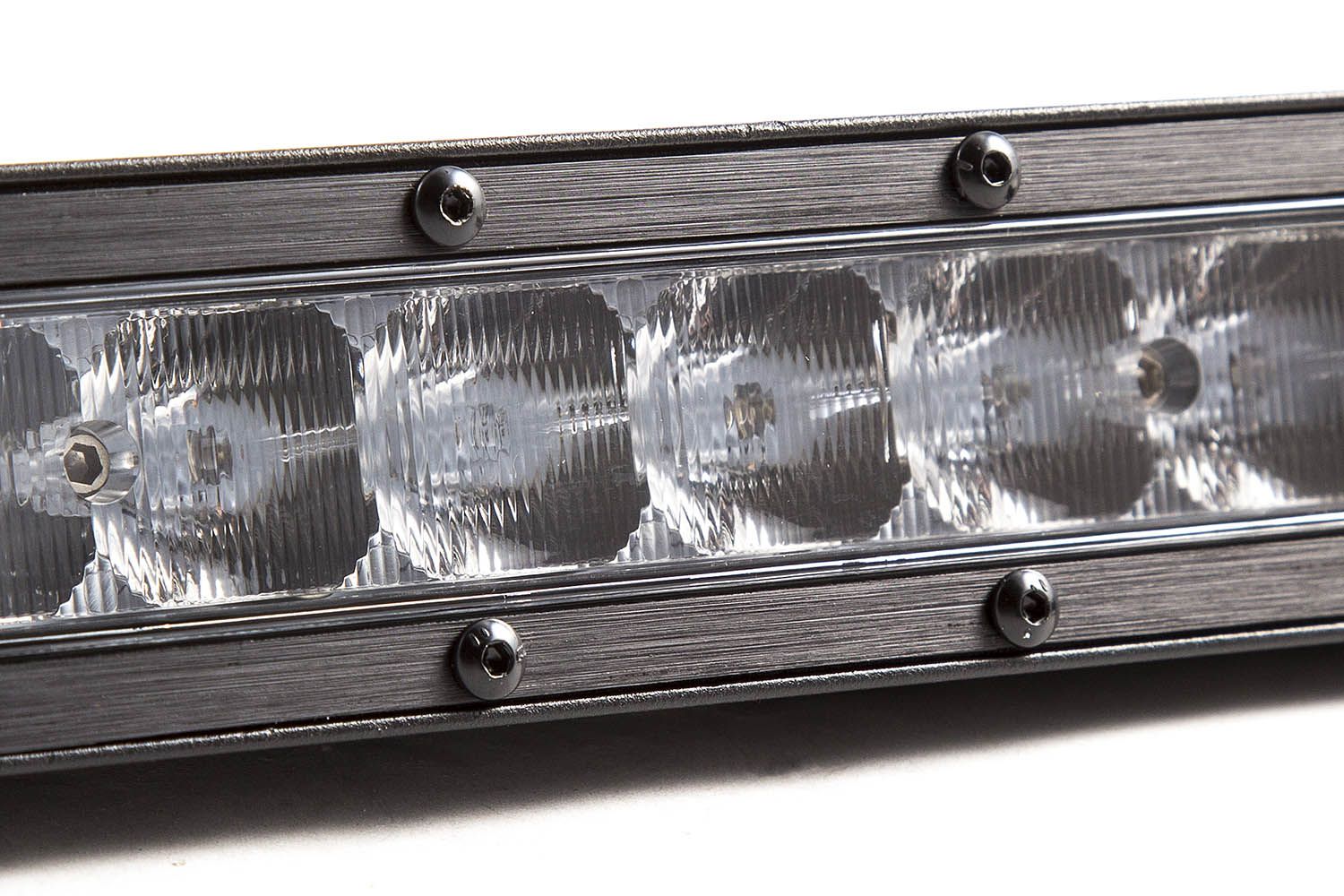

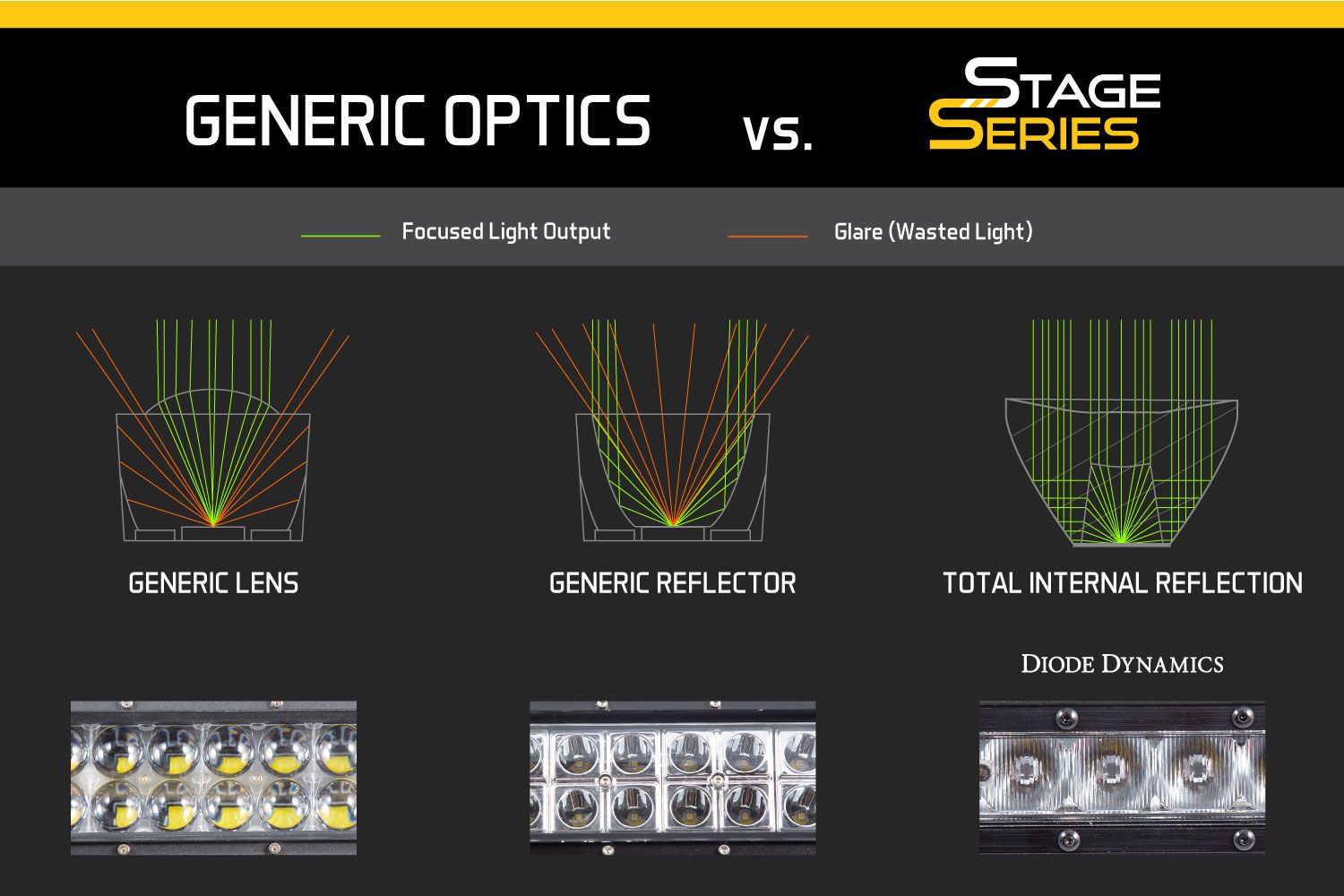

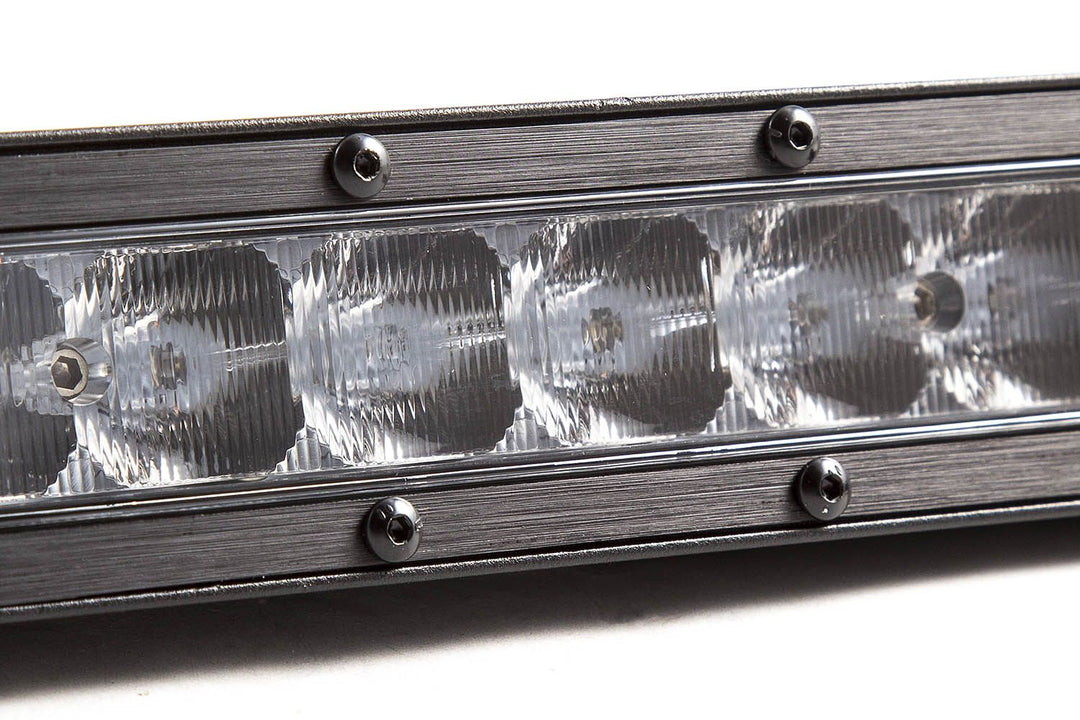

Optics: Advanced TIR (Total Internal Reflection) optics focus light efficiently while minimizing glare and wasted output.
-
LEDs: High-intensity automotive-grade LEDs deliver a clean, pure white 6000K output with excellent clarity.
-

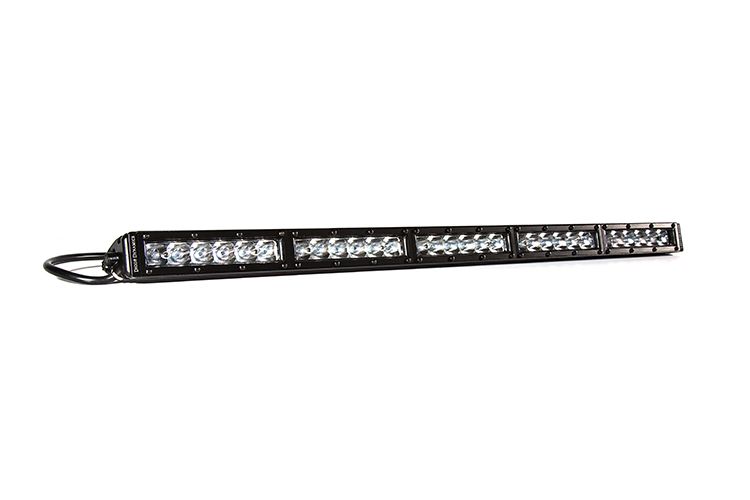

Beam pattern: Available in Driving for long-range projection or Combo for blended distance and wide-area illumination.
-

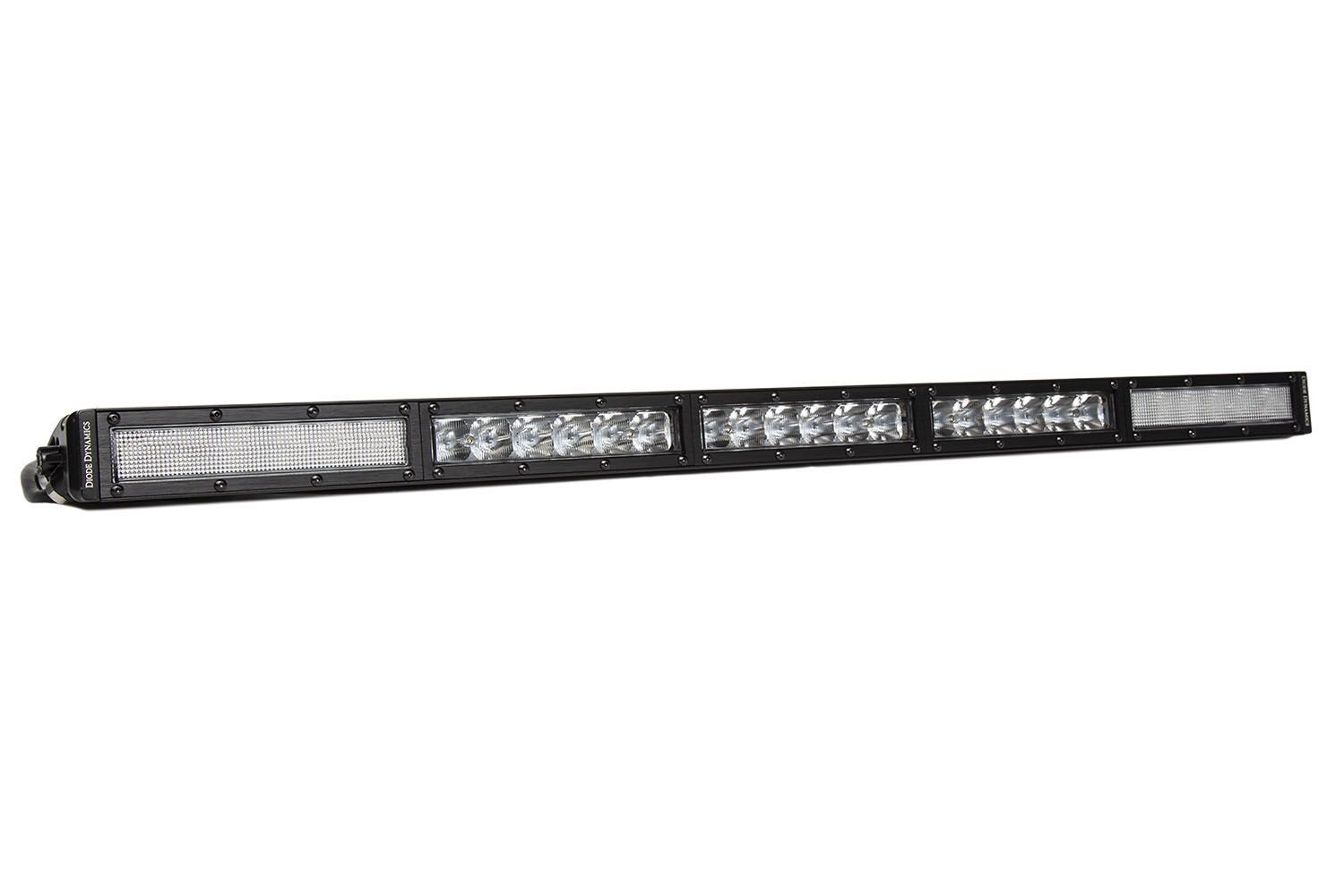

Combo design: Combo pattern uses driving optics in the center with flood optics on the outer segments for balanced coverage.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile installation in tight mounting locations.
-
Aerodynamics: Compact heatsink design reduces wind noise compared to traditional dual-row light bars.
-
Modular construction: Six-inch segmented design allows lens swaps to change beam pattern or color.
-
Sealing: Individually sealed lenses with double-wall construction improve weather resistance and longevity.
-
Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and harsh environments.
-
Testing: SAE and DOT tested for vibration, moisture intrusion, corrosion, and extreme temperatures.
Specifications
-
Color temperature: 6000K white
-
Beam patterns: Driving or Combo (Driving + Flood)
-
Measured output: 7,000 lumens
-
Raw output: 11,400 lumens
-
Peak intensity (Driving): 275,000 candela
-
Peak intensity (Combo): 217,000 candela
-
Power: 137.2 watts
-
Operating voltage: 9–24V
-
Current draw: 9.8 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
LED emitter: Luxeon Z ES
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

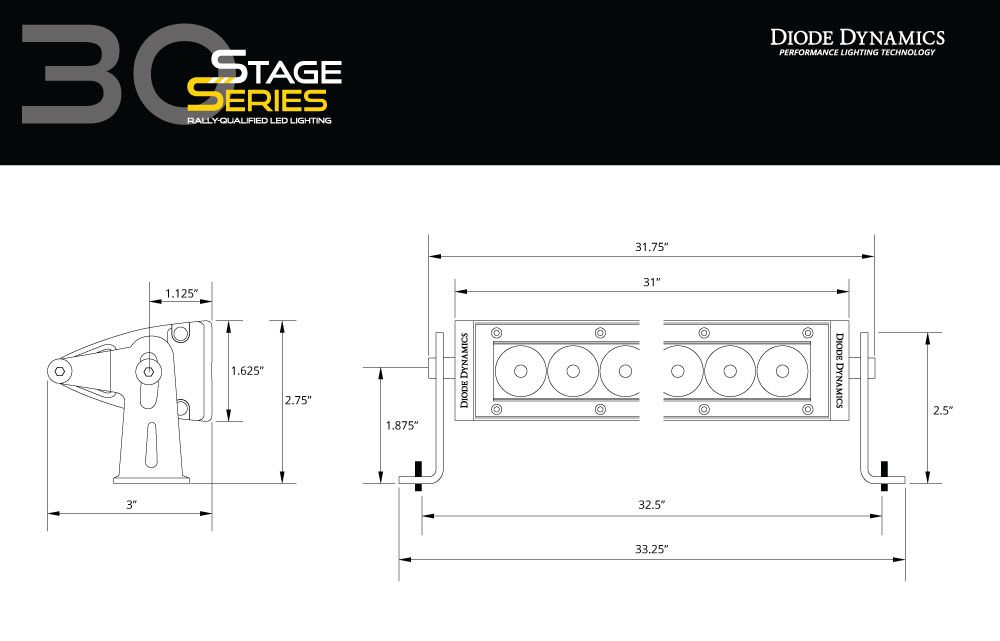

Dimensions: 31" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-
Installation: Mounts to any vehicle using the included universal bracket set
In the box
-
Light bar: One (1) Stage Series 30" LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: One (1) universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and support
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
