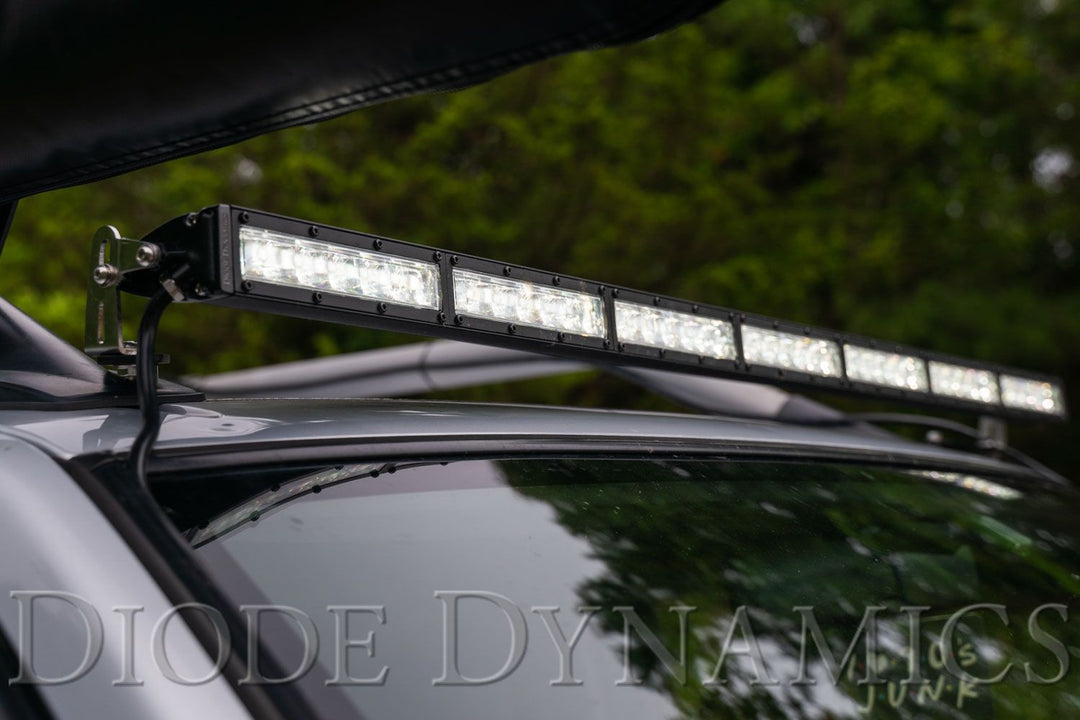

Built for maximum output and all-around trail visibility, the Diode Dynamics Stage Series 42" White Combo LED Light Bar delivers powerful distance lighting with wide peripheral coverage in a slim, low-profile design. Inspired by professional rally racing, this light bar combines advanced TIR optics with high-intensity automotive-grade LEDs to produce a clean 6000K white output with exceptional efficiency and control. Whether mounted on a roof rack, bumper, or chase setup, the Stage Series is engineered to perform in the harshest conditions.
Important notes
-
Output color: 6000K white
-
Beam pattern: Combo (Driving + Flood)
-
Quantity: Sold individually (one light bar included)
-
Fitment: Universal mounting hardware included
-
Warranty: Covered by an 8-year manufacturer warranty

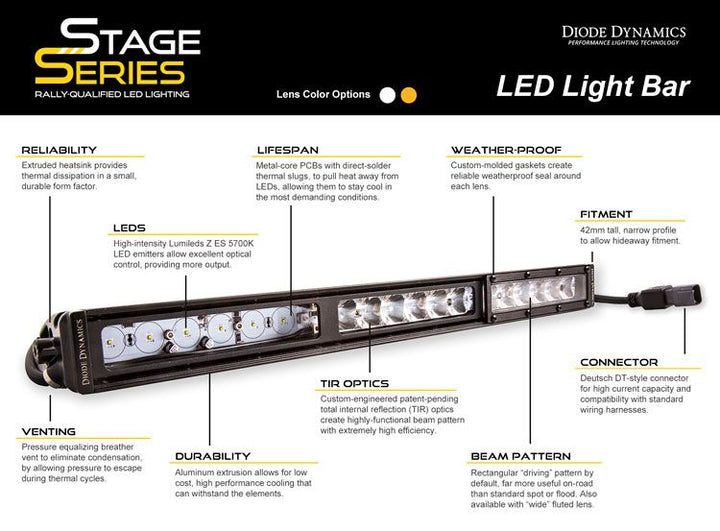

Features
-

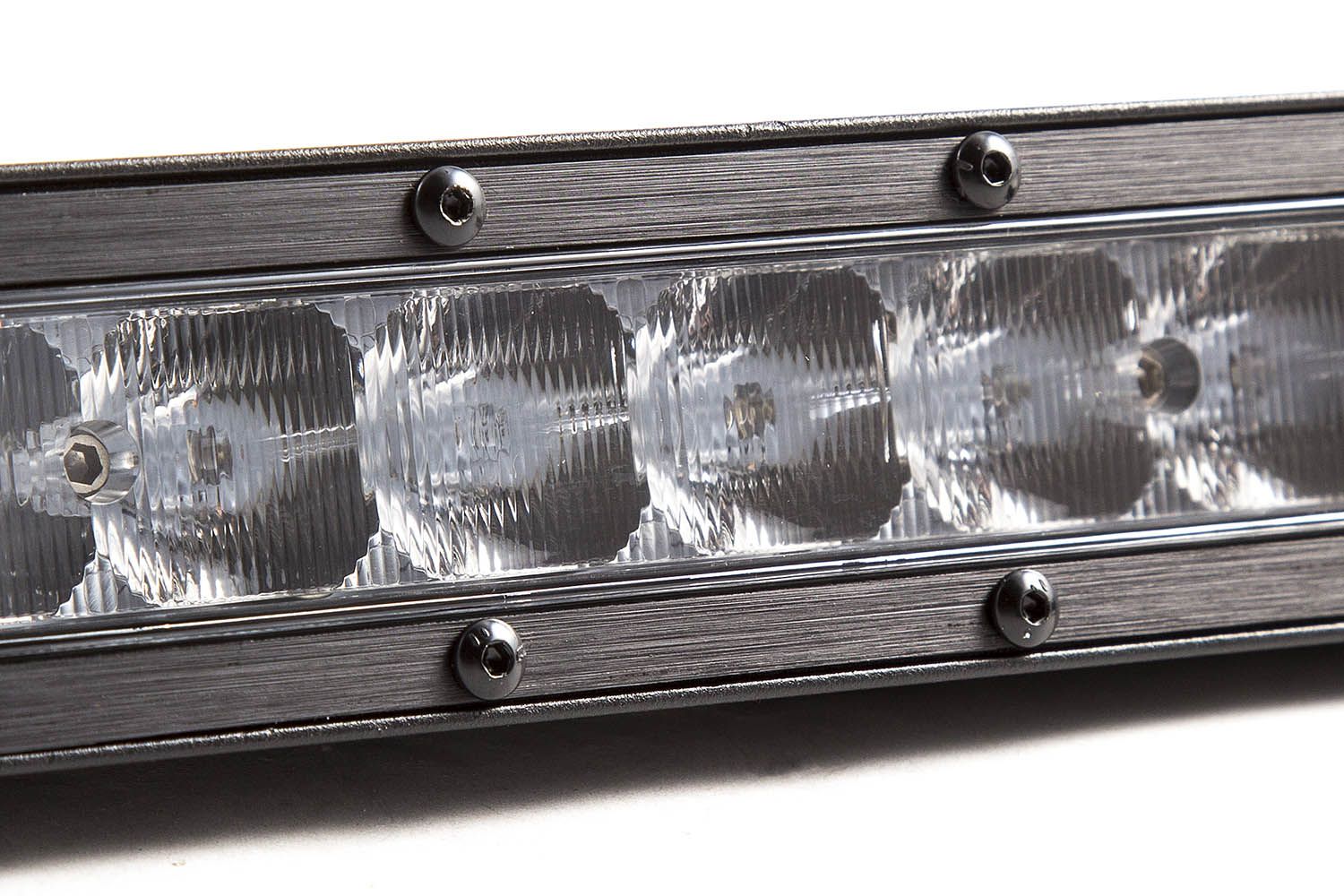

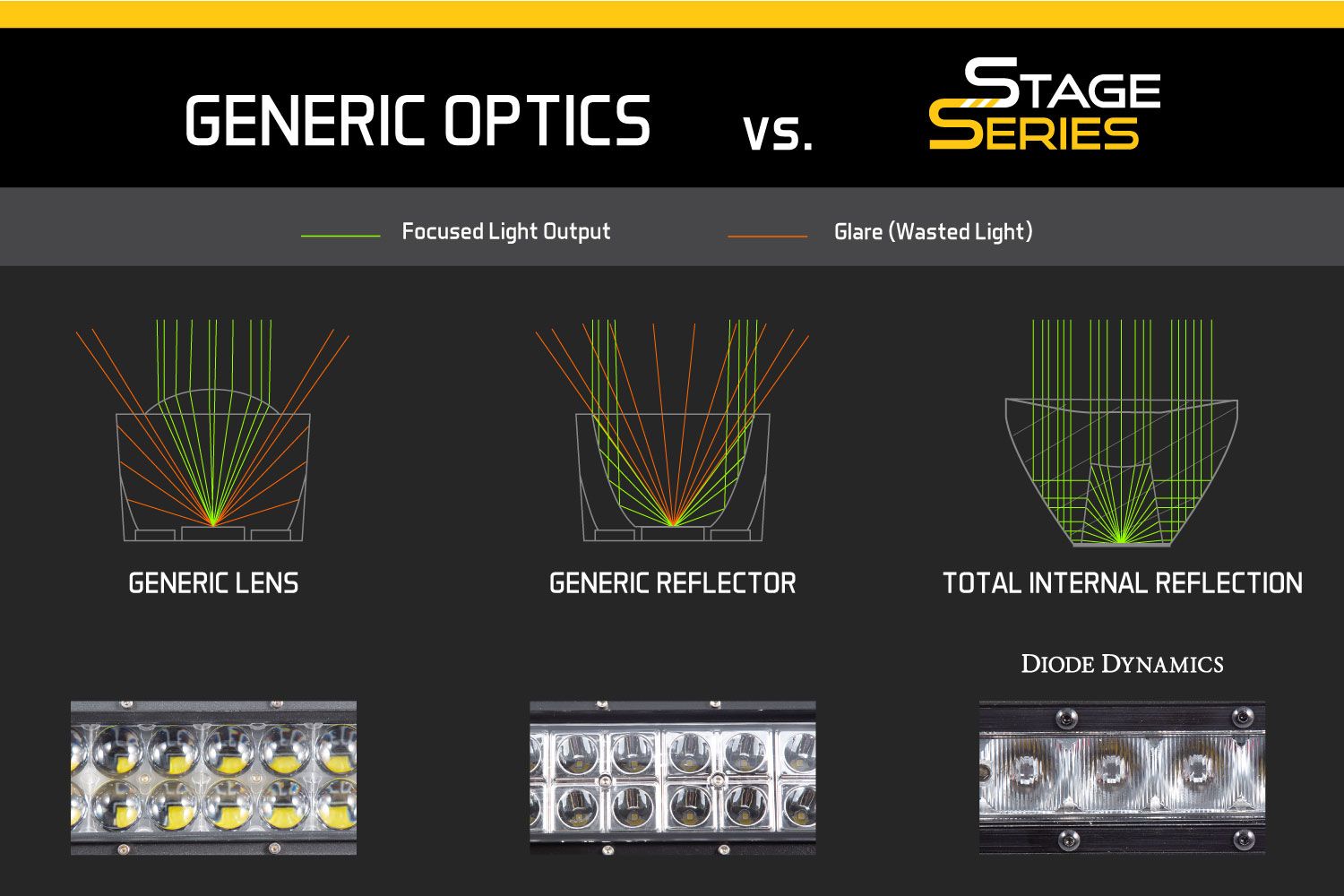

Optics: Advanced TIR (Total Internal Reflection) optics focus light efficiently while minimizing glare.
-
LEDs: High-intensity automotive-grade LEDs deliver strong, pure white illumination.
-
Beam pattern: Combo pattern blends long-range driving optics with wide flood coverage.
-

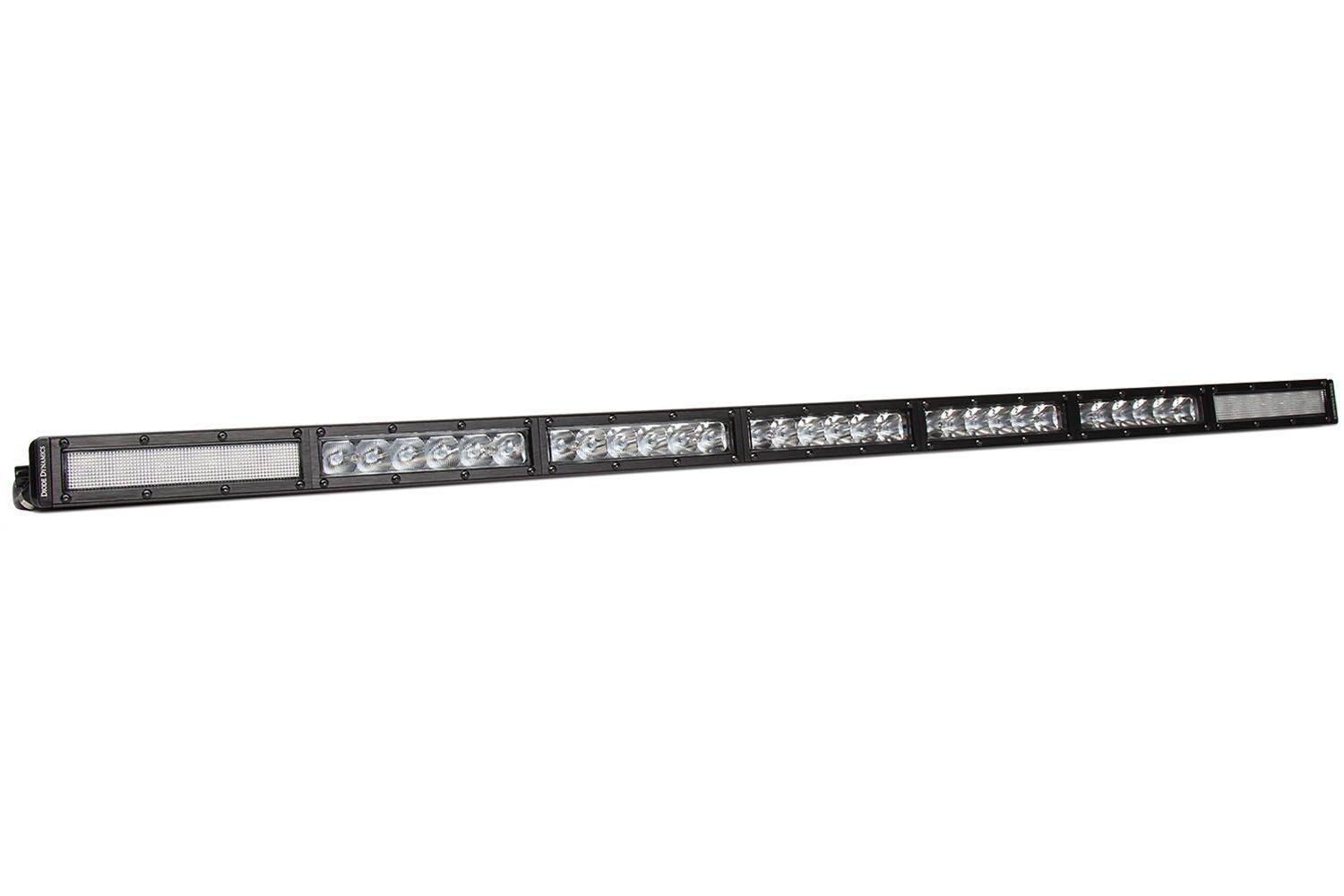

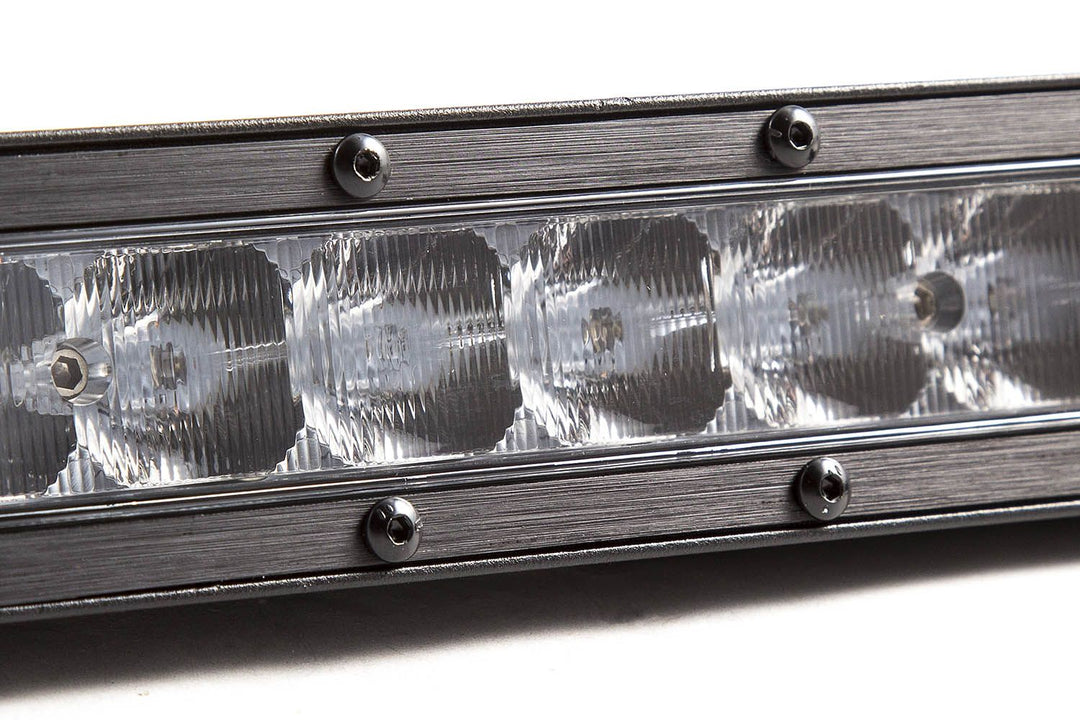

Combo layout: Five driving lenses in the center with two flood lenses on the outer edges for balanced output.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile installation in tight spaces.
-
Aerodynamics: Compact heatsink design reduces wind noise compared to traditional dual-row light bars.
-

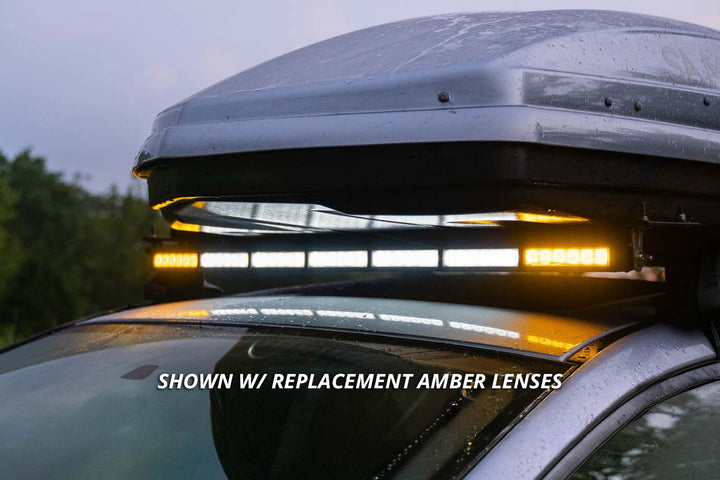

Modular design: Six-inch segmented construction allows lens swaps to change beam pattern or color.
-
Sealing: Individual lenses with double-wall seals improve weather resistance and durability.
-
Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and harsh environments.
-
Reliability: Tested to SAE and DOT standards for temperature extremes, vibration, moisture, and corrosion.
Specifications
-
Color temperature: 6000K white
-
Beam pattern: Combo (Driving + Flood)
-
Measured output: 9,800 lumens
-
Raw output: 15,960 lumens
-
Peak intensity: 301,000 candela
-
Illuminance: 2,790 lux @ 10 meters
-
Power: 224 watts
-
Operating voltage: 9–24V
-
Current draw: 16 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
LED emitter: Luxeon Z ES
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

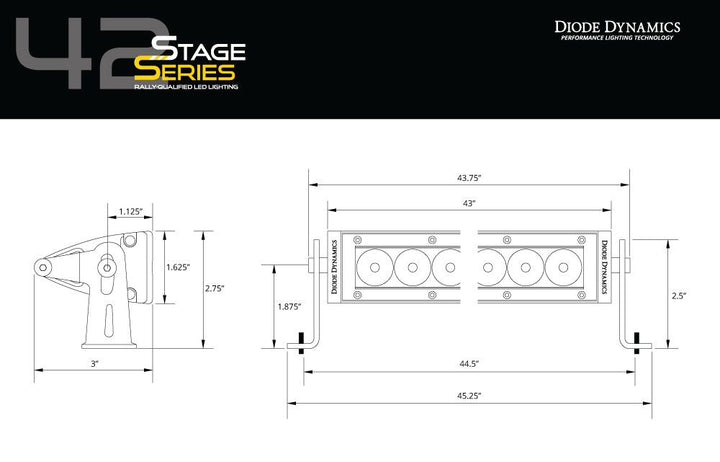

Dimensions: 43" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-
Installation: Mounts to any vehicle using the included universal bracket set
In the box
-
Light bar: One (1) Stage Series 42" White Combo LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: One (1) universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and guarantee
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
