The Diode Dynamics Stage Series Amber LED Light Bar is built for drivers who demand maximum performance in a compact, low-profile design. Inspired by professional rally racing, this light bar combines advanced TIR optics, high-intensity automotive-grade LEDs, and a slim extruded housing to deliver focused, efficient amber lighting that excels in poor weather and tight mounting locations. Designed for durability and versatility, the Stage Series is equally at home on-road or off-road.
Important notes
-
Output color: Amber only (2000K)
-
Beam patterns: Available in Driving or SAE Fog/Wide
-
Road legality: SAE Fog/Wide pattern is road legal when properly aimed
-
Warranty: Covered by an 8-year manufacturer warranty

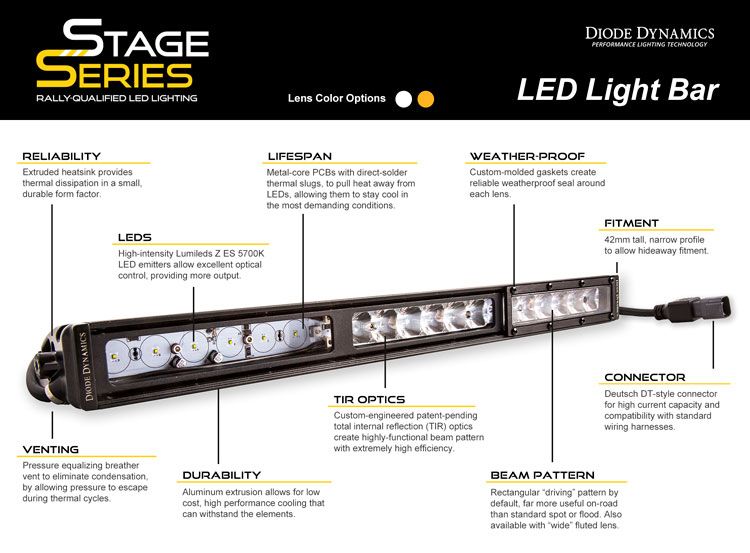

Features
-

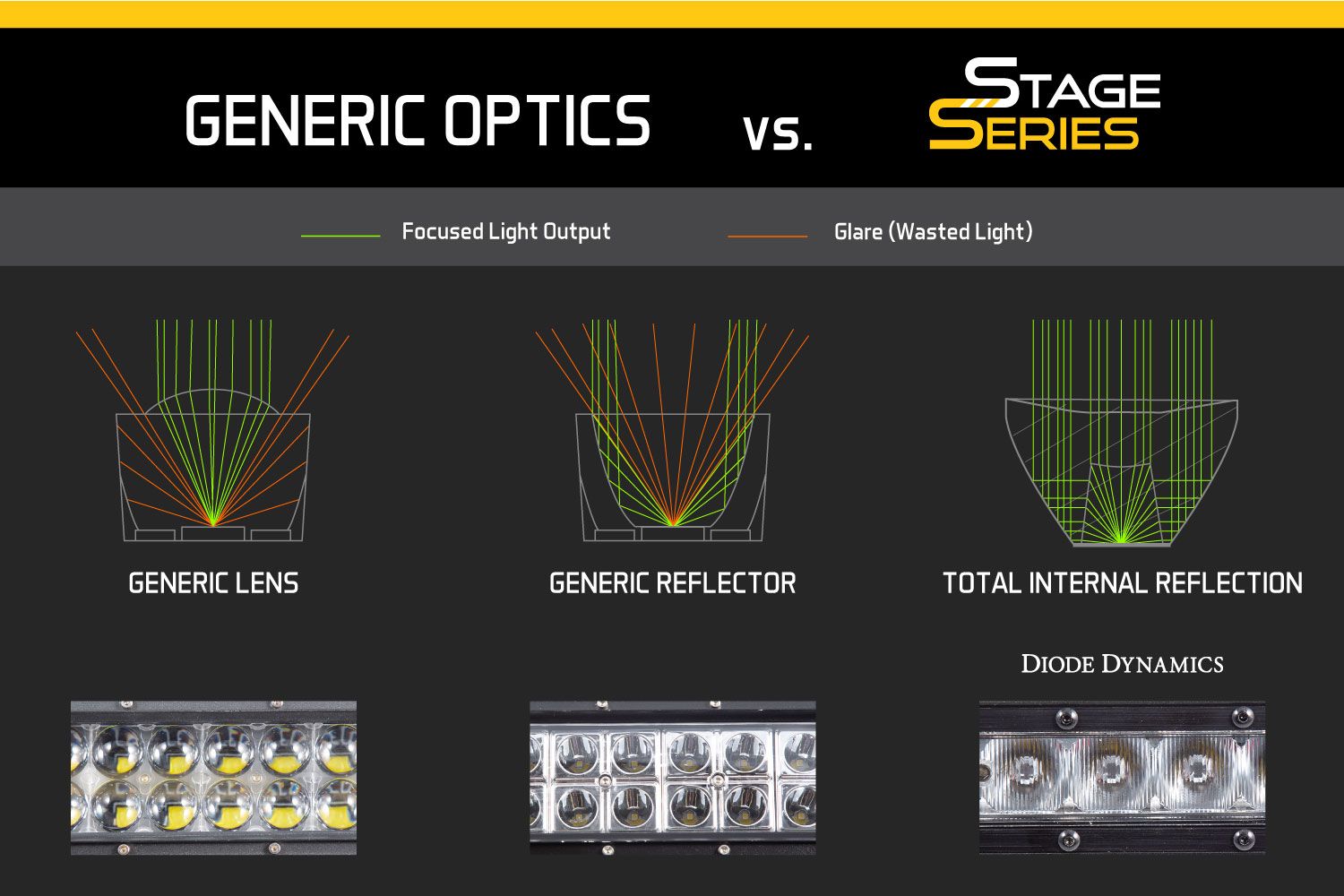

Optics: Advanced TIR (Total Internal Reflection) optics maximize usable light output while minimizing glare.
-
LEDs: High-intensity automotive-grade LEDs deliver deep amber output ideal for fog, dust, rain, and snow.
-
Housing: Slim 42mm extruded aluminum housing allows installation in tight spaces where larger light bars will not fit.
-
Efficiency: Compact design reduces weight and significantly cuts wind noise compared to traditional dual-row housings.
-

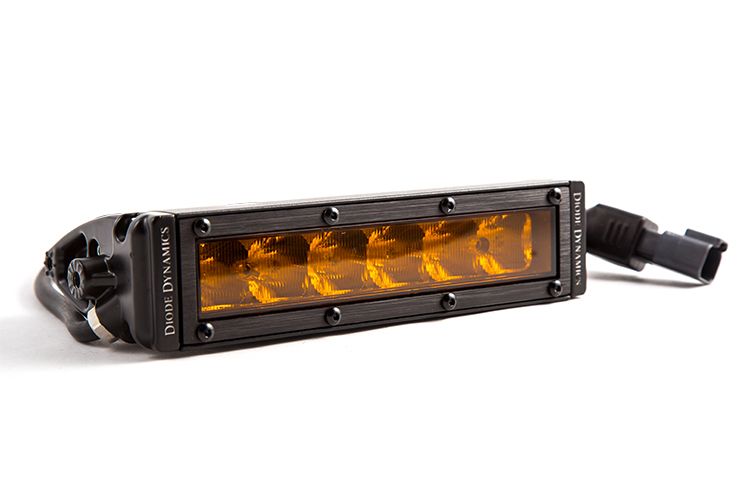

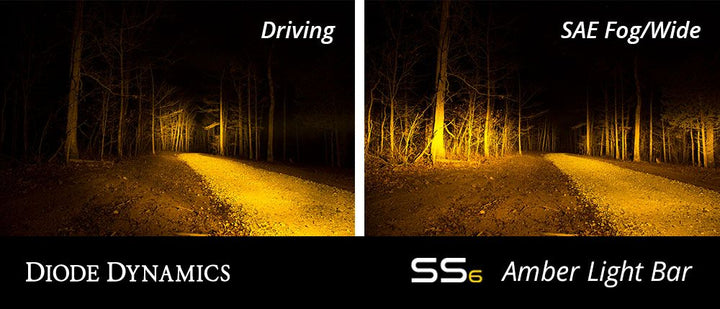

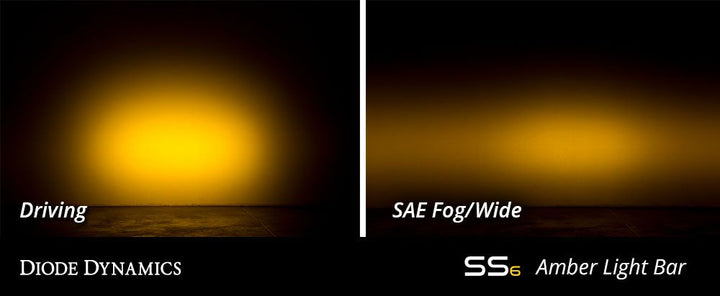

Driving beam: Rectangular 20° x 8° pattern designed to supplement high beams and provide strong downrange visibility at speed.
-

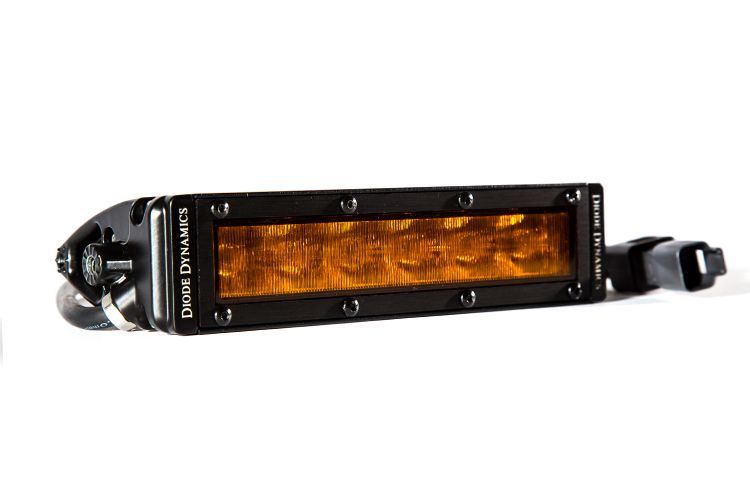

Fog/Wide beam: Wide 100° x 8° pattern designed to enhance visibility in inclement weather without wasted upward light.
-
Modular design: Six-inch segmented construction allows lens and beam pattern changes with simple lens swaps.
-
Sealing: Individual double-wall sealed lenses provide superior weather resistance versus single-lens designs.
-
Connectivity: Deutsch DT connector with included pigtail supports custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and trail abuse.
-
Testing: Proven reliability through SAE/DOT testing for vibration, moisture intrusion, corrosion, and extreme temperatures.
Specifications
-
Color temperature: 2000K amber
-
Beam angles: Driving 20° x 8°, Wide 100° x 8°
-
Measured output: 800 lumens
-
Raw output: 1,140 lumens
-
Peak intensity: Up to 33,000 candela depending on beam pattern
-
Power: 26.6 watts
-
Operating voltage: 9–24V
-
Current draw: 1.9 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
LED emitter: Luxeon Z ES
-

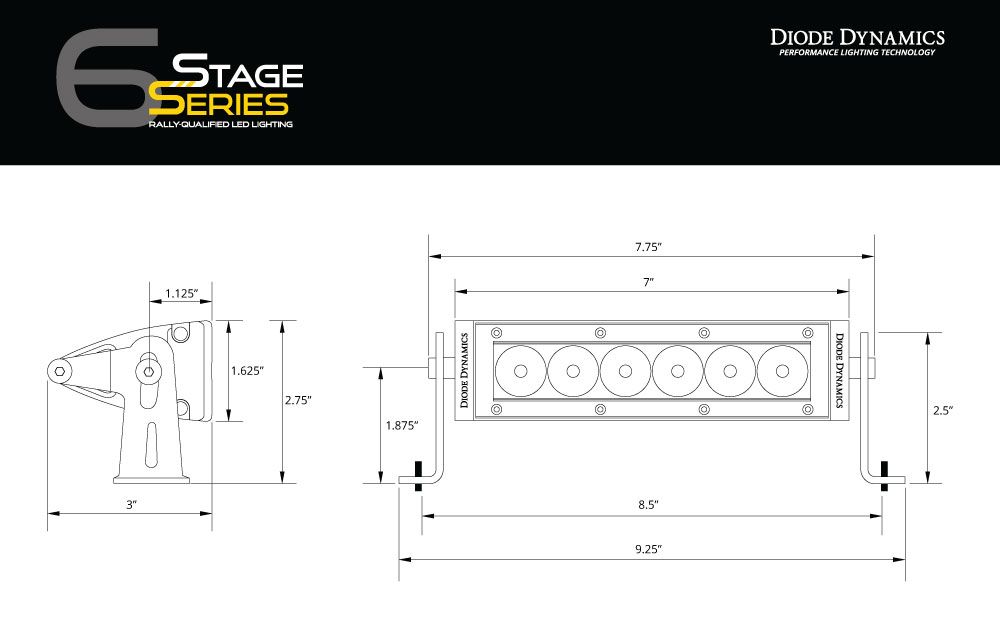

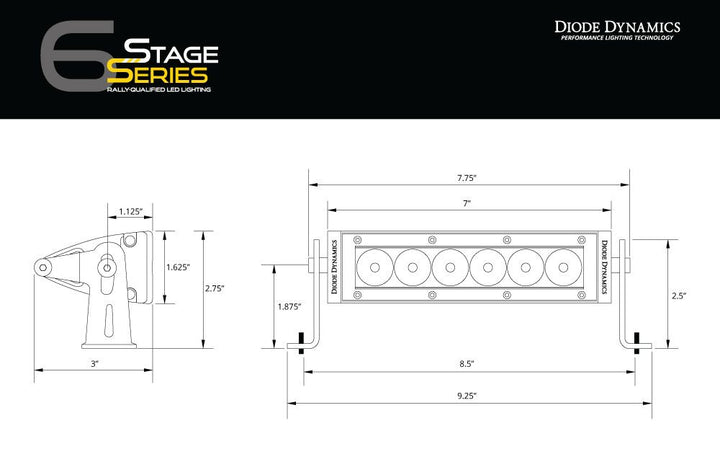

Dimensions: 7" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment using included bracket set
-
Vehicle support: Installs on any make or model
In the box
-
Light bar: One (1) Stage Series Amber LED Light Bar
-
Wiring: One (1) 6-inch wire pigtail
-
Mounting: Universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and support
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
