Inspired by the demands of professional rally drivers, the Diode Dynamics Stage Series LED Light Bar is engineered for maximum performance in a compact, durable package. Featuring custom-engineered TIR optics, high-intensity automotive-grade LEDs, and a slim low-profile housing, this light bar delivers powerful, focused illumination while fitting where traditional light bars cannot. Designed for versatility, efficiency, and long-term reliability, the Stage Series is built to perform in the harshest conditions.
Important notes
-
Beam options: Available in Driving or SAE Fog/Wide patterns
-
Color options: Offered in white or amber output
-
Compliance: Select sizes and beam patterns are SAE road legal when properly aimed
-
Warranty: Backed by an 8-year manufacturer warranty

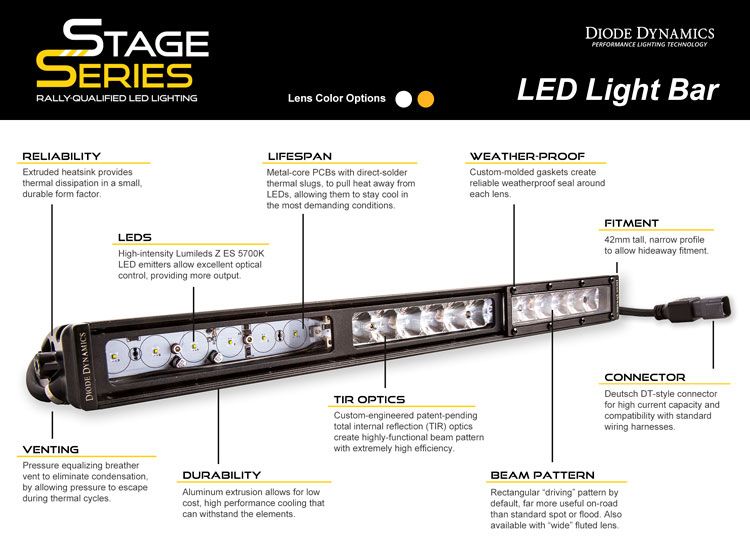

Features
-

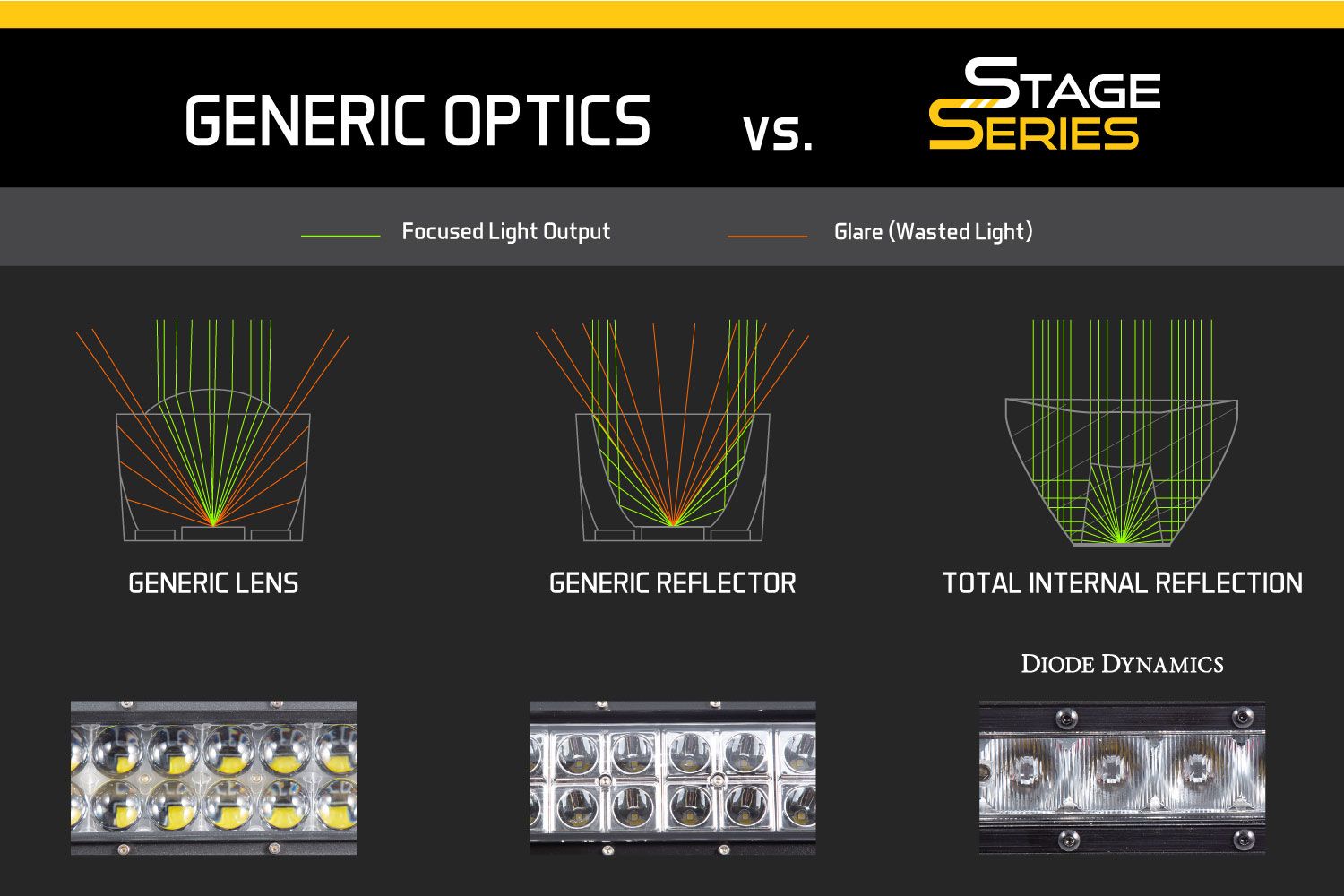

Optics: Advanced Total Internal Reflection (TIR) optics maximize usable light output while reducing glare and wasted light.
-
LEDs: High-intensity automotive-grade LEDs provide powerful, consistent illumination with pure white or amber color options.
-
Housing: Slim 42mm low-profile extruded aluminum housing allows installation in tight spaces where traditional light bars will not fit.
-
Efficiency: Compact design reduces weight and minimizes wind noise compared to larger dual-row light bars.
-
Beam patterns: Available in Driving pattern for long-range visibility or SAE Fog/Wide pattern for wide, controlled illumination in poor weather.
-

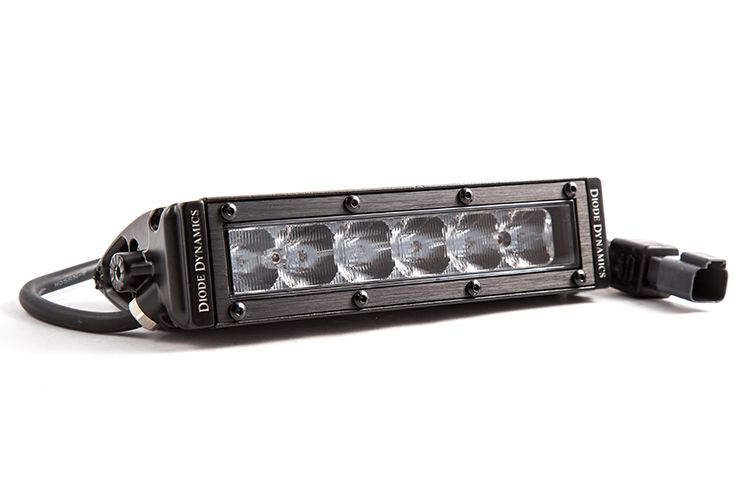

Driving beam: Rectangular 20° x 8° pattern designed to supplement high beams for high-speed nighttime driving.
-

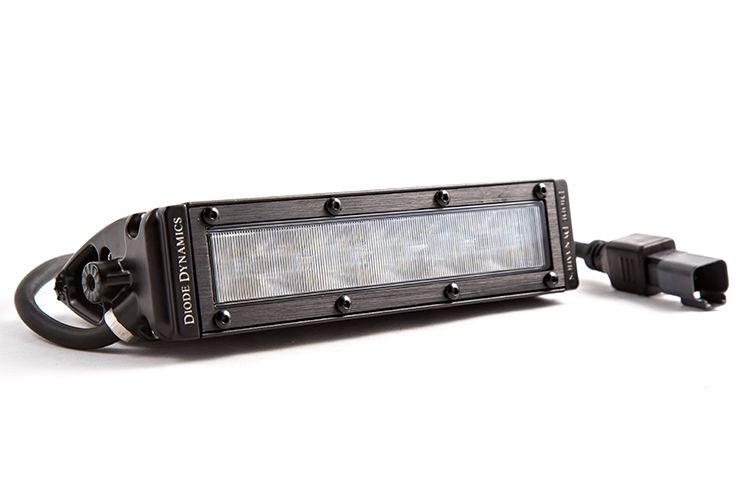

Fog/Wide beam: Wide 100° x 8° pattern designed to enhance visibility in fog, rain, snow, and dust without upward glare.
-
Color output: White output is a true 6000K white with no blue tint, while amber output provides high contrast in inclement weather.
-
Modular design: Six-inch segmented construction allows lens and beam pattern changes with simple lens swaps.
-
Sealing: Individual double-wall sealed lenses improve weather resistance compared to single large-lens designs.
-
Connectivity: Deutsch DT connector with included pigtail allows flexible wiring solutions and optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion and trail abuse.
-
Testing: Proven reliability through extensive SAE/DOT vibration, moisture, corrosion, and thermal testing.
-
Application: Suitable for off-road, auxiliary driving, fog, and utility lighting across any vehicle platform.
What’s included
-
Light bar: One (1) Stage Series LED Light Bar
-
Wiring: One (1) 6-inch wire pigtail
-
Mounting: Universal bracket set
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Specifications
-
Beam angles: Driving 20° x 8°, Wide 100° x 8°
-
Measured output: White 1,400 lumens, Amber 800 lumens
-
Raw output: White 2,280 lumens, Amber 1,140 lumens
-

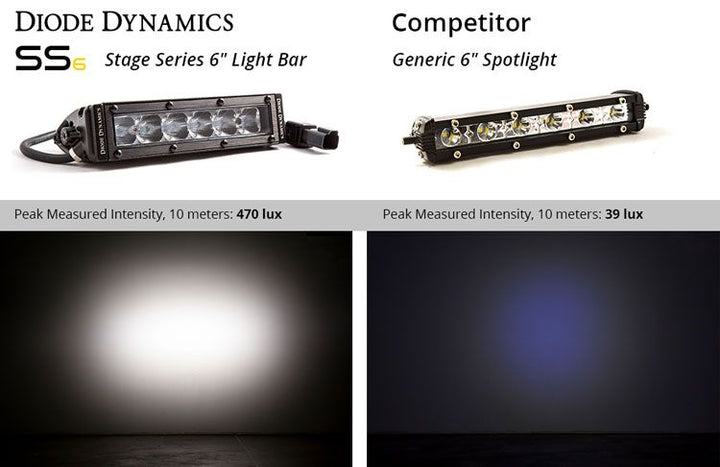

Peak intensity: Up to 55,000 candela depending on beam and color
-
Color temperature: White 6000K, Amber 2000K
-
Power: 26.6 watts
-
Voltage: 9–24V
-
Current: 1.9 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

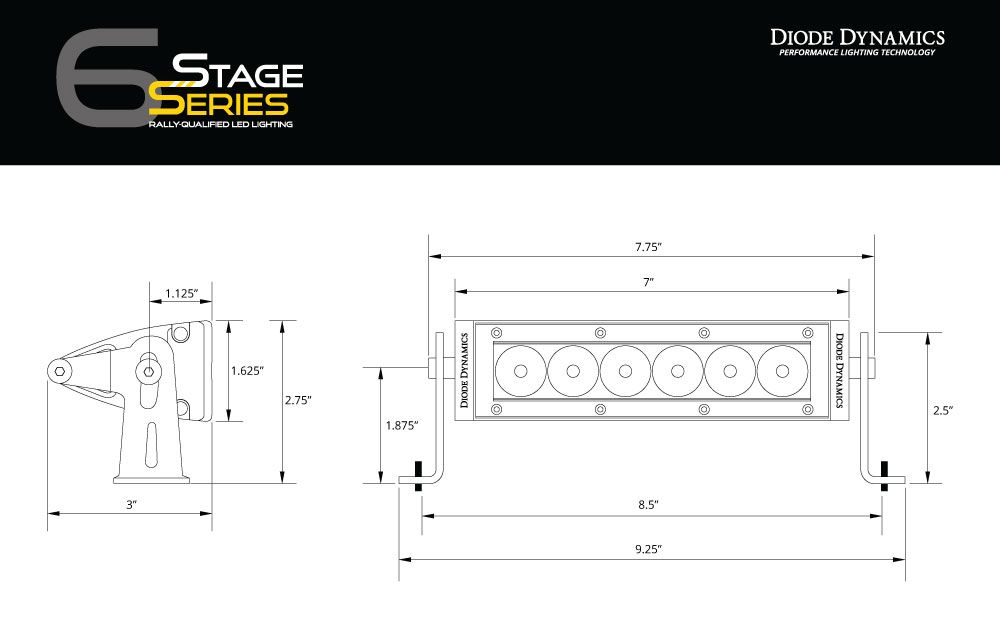

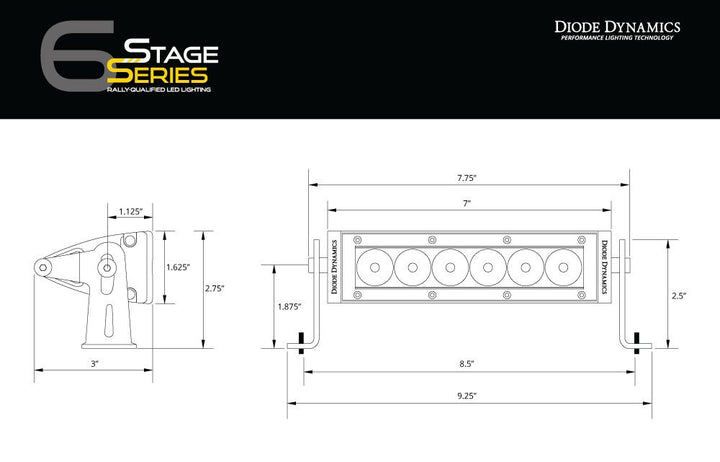

Dimensions: 7" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment with included brackets for installation on any vehicle
Installation
-
Modification: None required
-
Wiring: Compatible with custom wiring or optional Diode Dynamics harnesses
