Built for drivers who demand performance without bulk, the Diode Dynamics Stage Series White LED Light Bars deliver powerful, focused illumination in an ultra-compact form. Inspired by professional rally racing, these lights combine advanced TIR optics, high-intensity automotive-grade LEDs, and a slim low-profile housing to provide exceptional visibility, reduced glare, and unmatched durability. Whether you’re supplementing your high beams, upgrading fog lighting, or building a clean auxiliary setup, the Stage Series is engineered to perform on and off the road.
Important notes
-
Output color: 6000K pure white
-
Beam patterns: Driving or SAE Fog/Wide
-
On-road use: SAE Fog/Wide and Driving patterns are road legal when properly aimed
-
Quantity: Sold as a pair (two light bars included)
-
Warranty: Backed by an 8-year manufacturer warranty

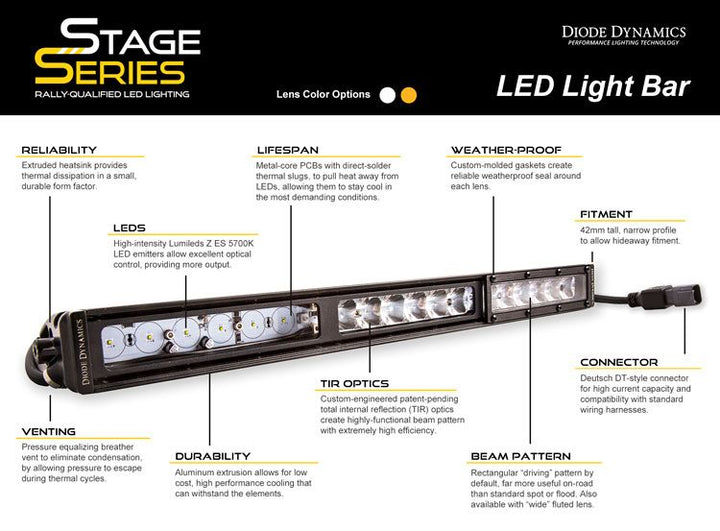

Features
-

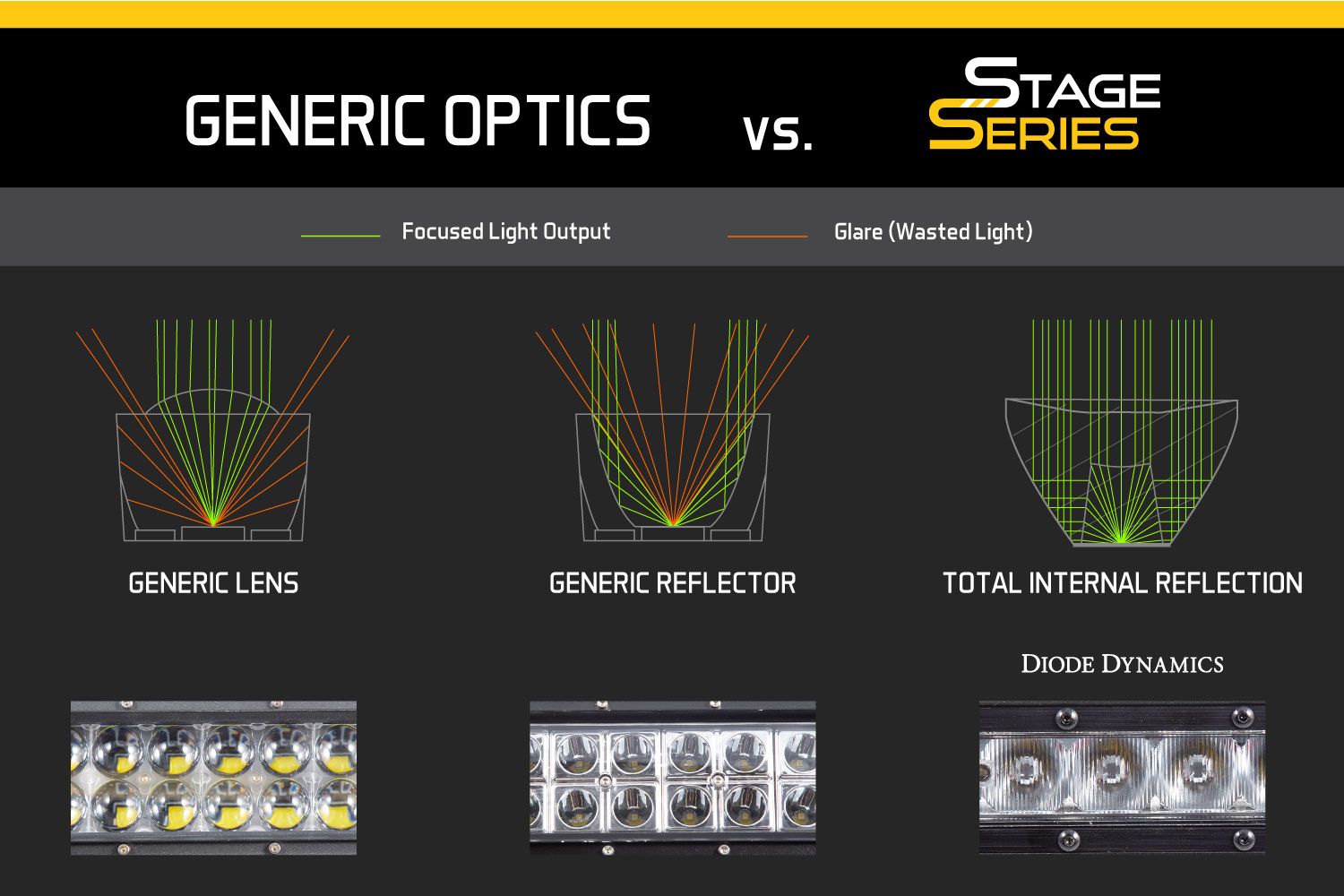

Optics: Advanced TIR (Total Internal Reflection) optics focus nearly all emitted light exactly where it’s needed, reducing glare and increasing efficiency.
-
LEDs: High-intensity automotive-grade LEDs deliver crisp, pure white output without blue tint.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile mounting in tight spaces.
-
Aerodynamics: Compact heatsink design reduces wind noise compared to traditional dual-row light bars.
-
Driving beam: Rectangular 20° x 8° pattern designed to supplement high beams and provide strong downrange visibility at speed.
-
Fog/Wide beam: Wide 100° x 8° pattern engineered for inclement weather without wasted upward light.
-
Modular design: Six-inch segmented construction allows easy lens swaps to change beam pattern or color.
-
Sealing: Individual double-wall sealed lenses offer superior weather resistance.
-
Connectivity: Deutsch DT connectors with included pigtails support custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and trail abuse.
-
Testing: SAE/DOT tested for vibration, moisture intrusion, corrosion, and extreme temperatures.
Specifications
-
Color temperature: 6000K white
-
Beam angles: Driving 20° x 8°, Wide 100° x 8°
-
Measured output: 1,400 lumens (per light)
-
Raw output: 2,280 lumens (per light)
-
Peak intensity: Up to 55,000 candela depending on beam pattern
-
Power: 26.6 watts (per light)
-
Operating voltage: 9–24V
-
Current draw: 1.9 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
LED emitter: Luxeon Z ES
-

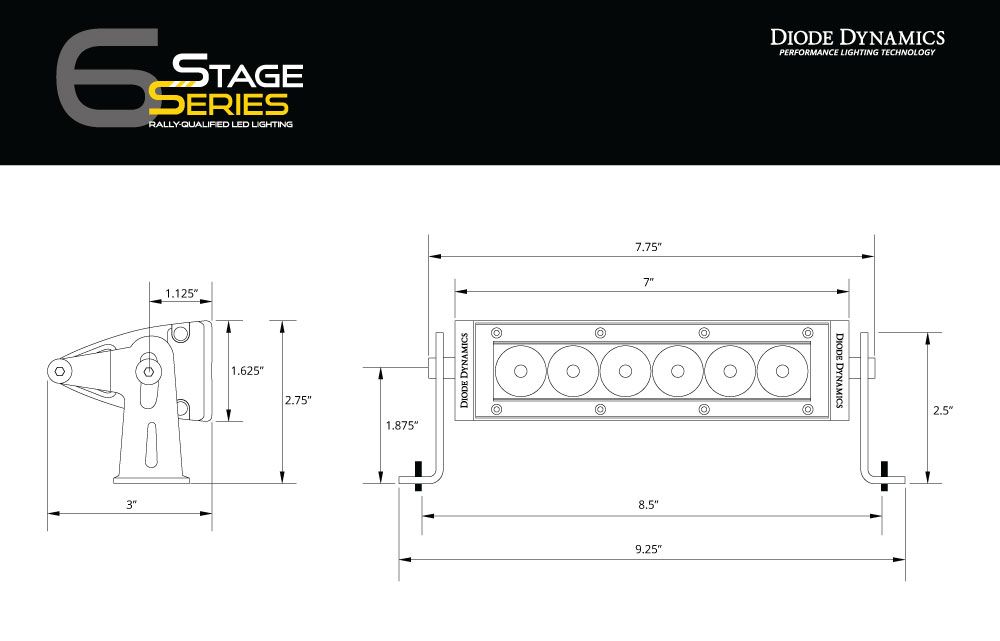

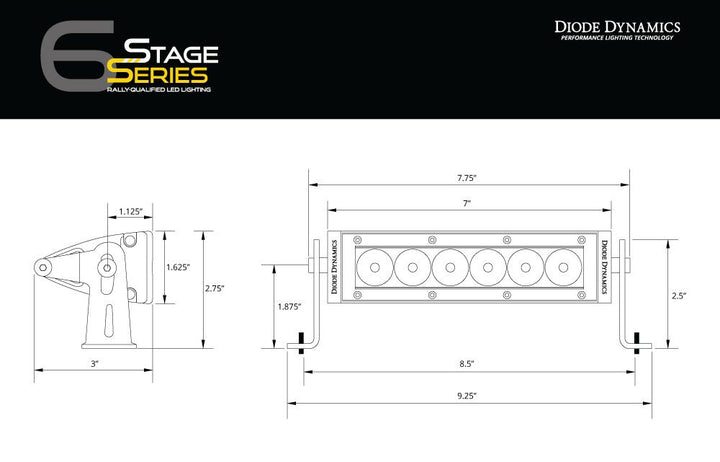

Dimensions: 7" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-
Installation: Mounts to any vehicle using the included universal bracket sets
In the box
-

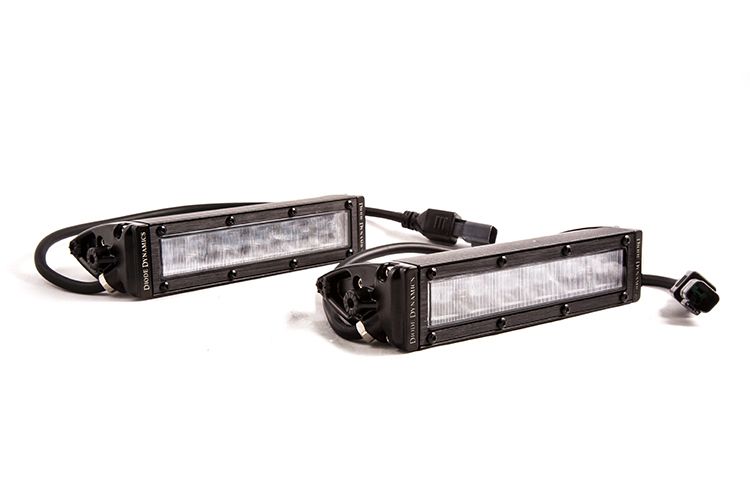

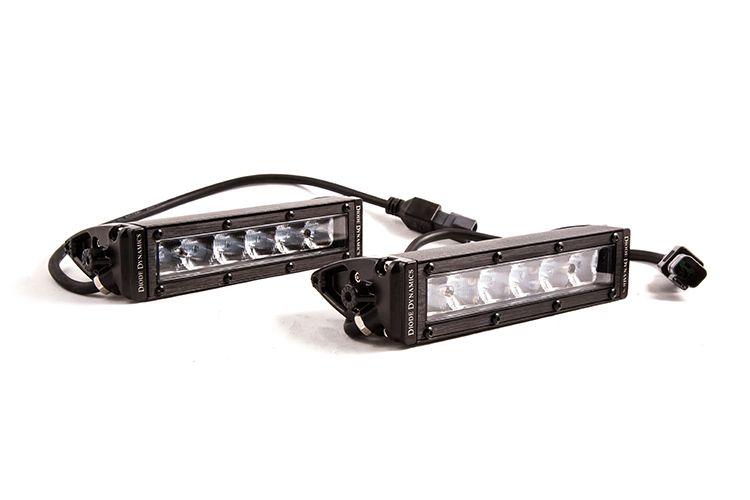

Light bars: Two (2) Stage Series LED Light Bars
-
Wiring: Two (2) wire pigtails
-
Mounting: Two (2) universal bracket sets
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and support
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
