Regular price$799.95
/
Shipping calculated at checkout.

Include Magnet Mounts?
Include RGBW Controller?
  • Low stock - 4 items left
  • Backordered, shipping soon

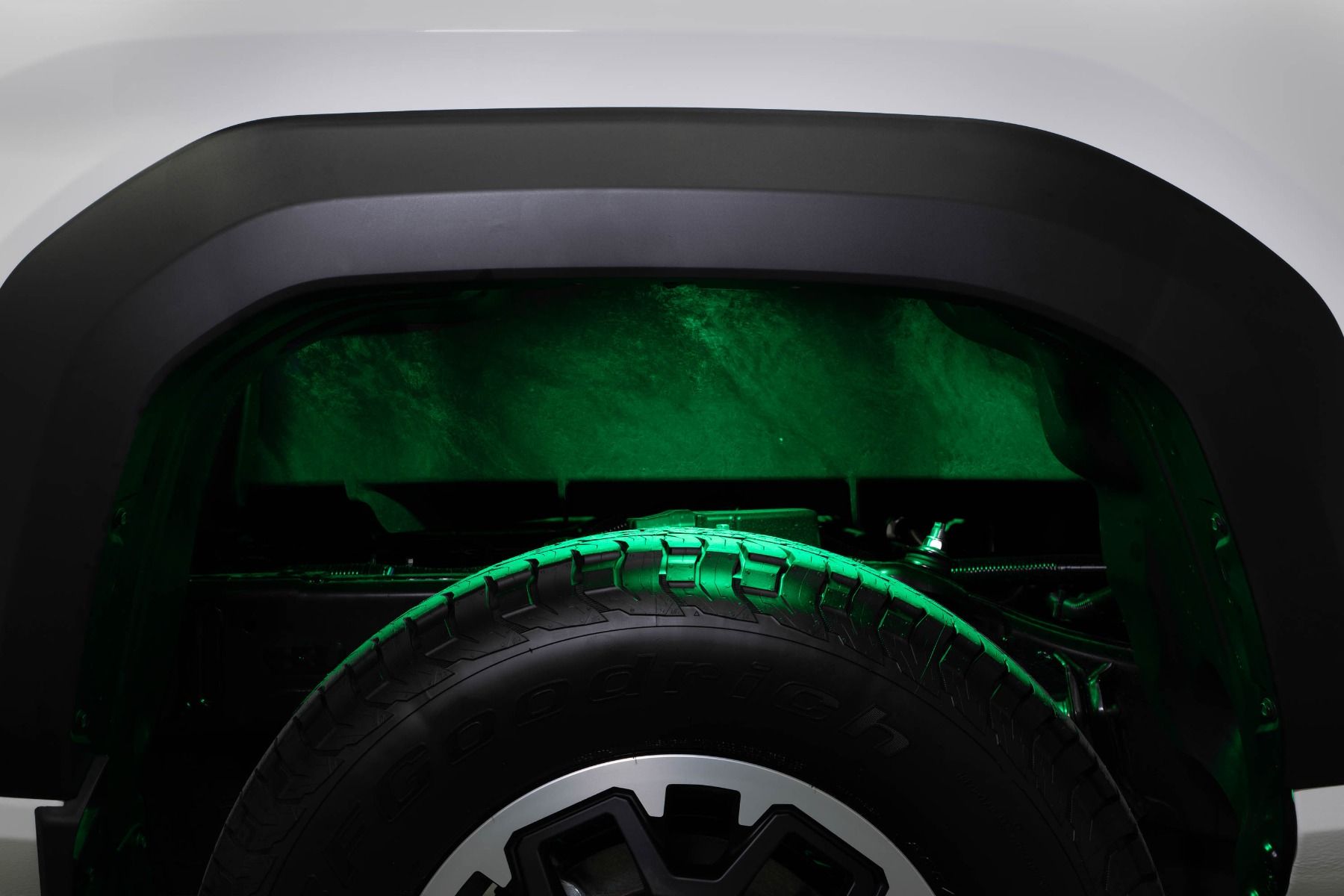

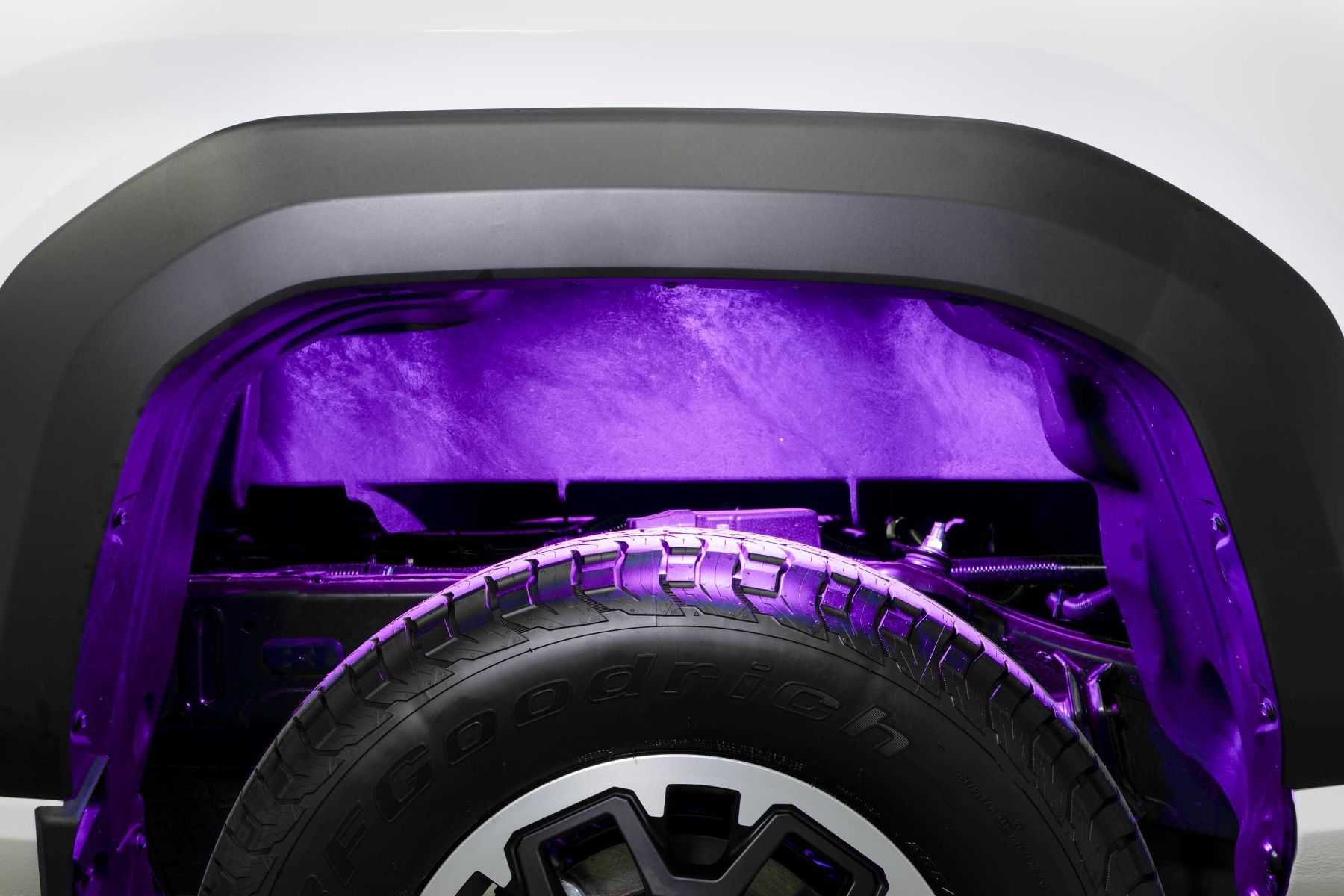

Take your underbody lighting to the next level with the Stage Series RGBW LED Rock Light Kit. Designed for maximum versatility, durability, and visual impact, this kit delivers full multicolor control plus a dedicated pure white output—giving you both show-ready effects and practical trail illumination in one rugged package.

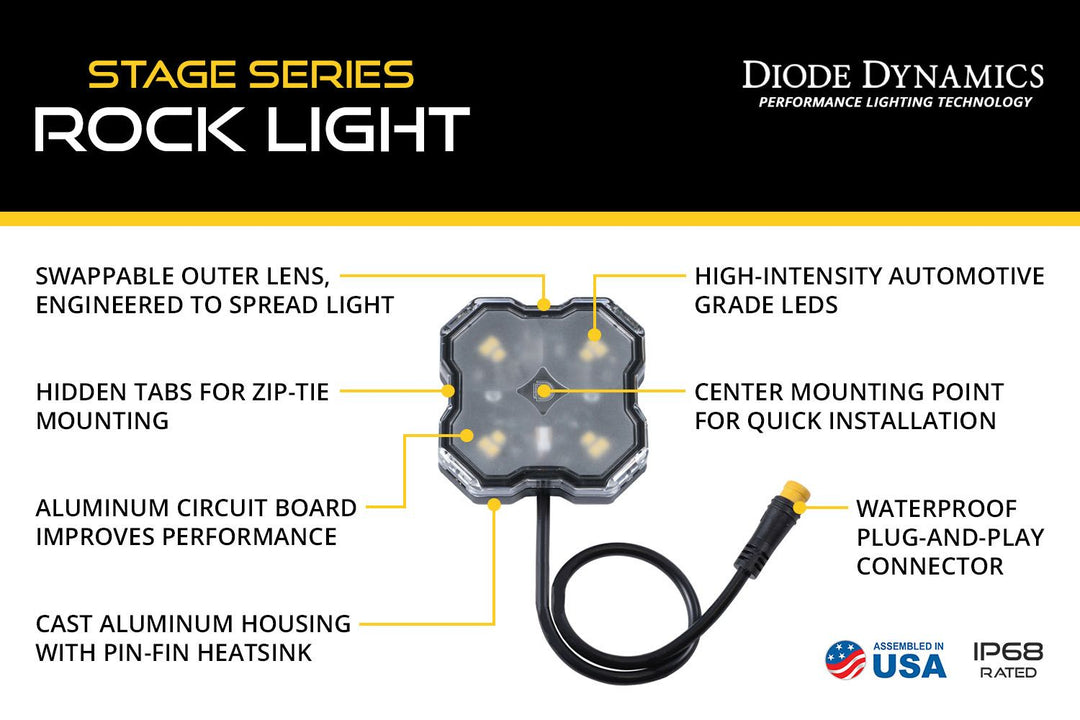

Features

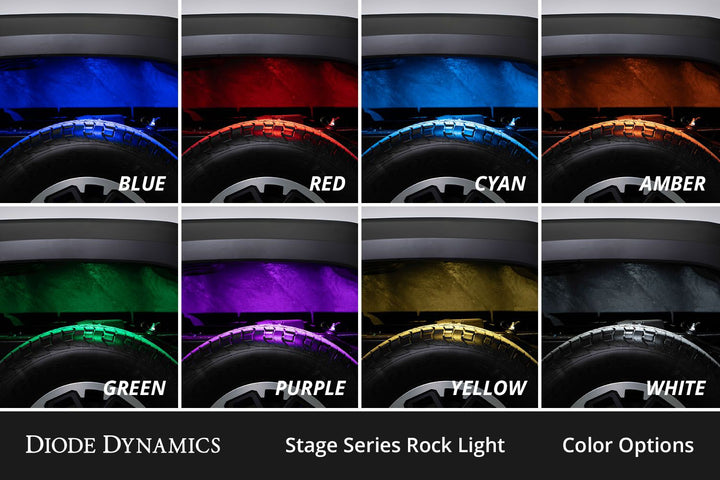

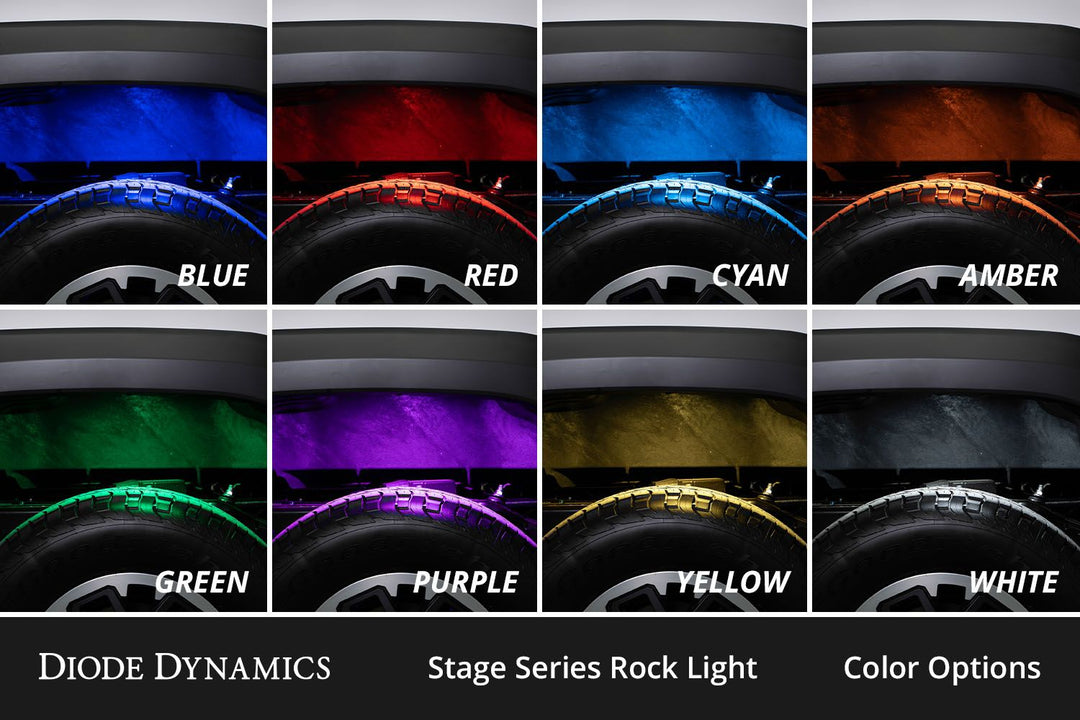

  • RGBW LED output: Four high-intensity RGBW emitters deliver multicolor effects plus a true, bright white mode
  • Bluetooth and remote control: Create custom colors, patterns, strobes, fades, and brightness levels with an optional controller and app
  • Optically-designed lenses: Integrated optics provide wide, even light spread with smooth color blending

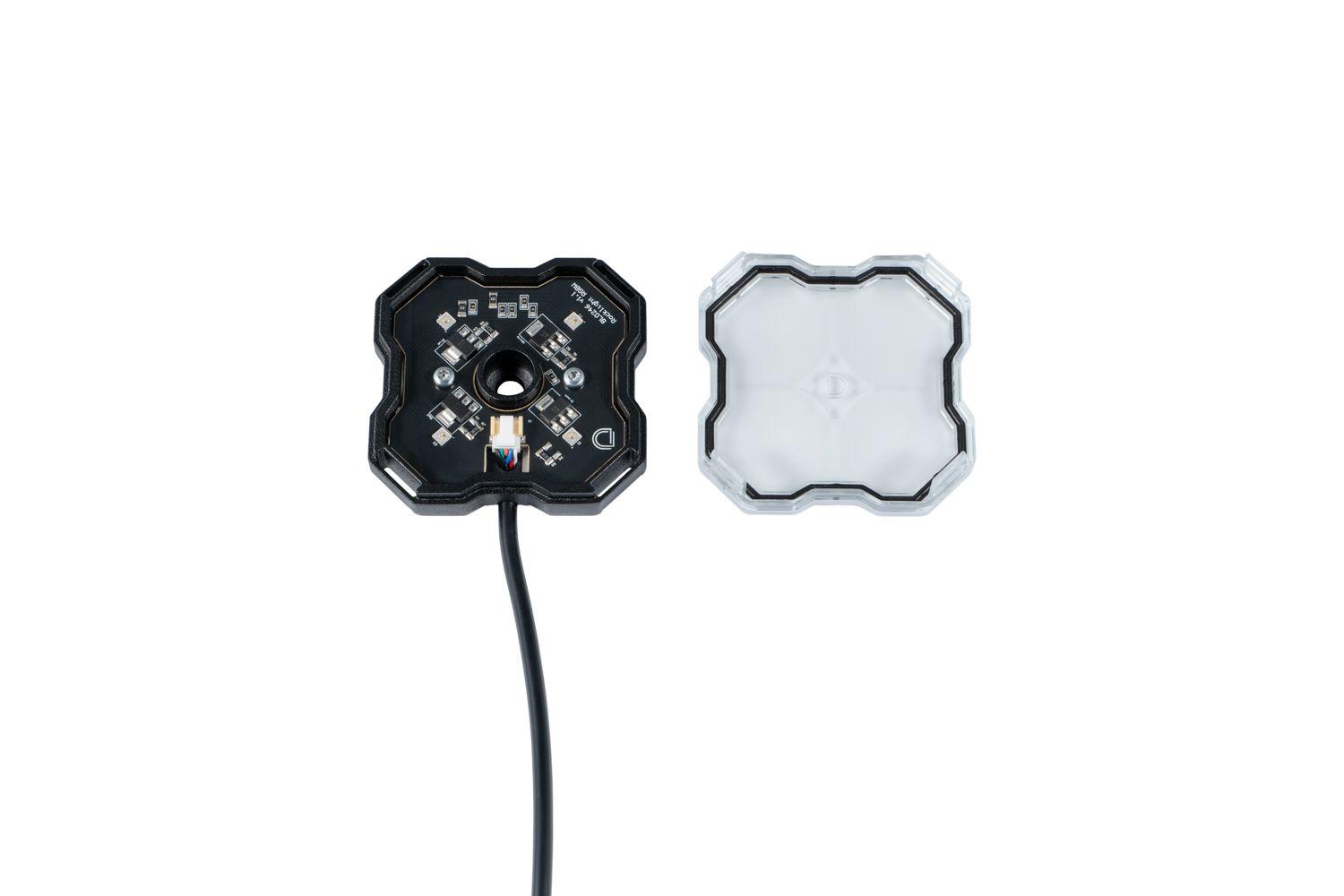

  • Interchangeable lenses: Easily swap lenses as needed for customization or replacement
  • Modular mounting options: Center-bolt mounting standard, with optional magnet mounts available
  • Fully-encapsulated design: IP68 waterproof construction built for harsh off-road conditions
  • Durable housing: Cast aluminum body with pin-fin heatsink for efficient thermal management
  • Engineered and assembled in USA: Built to high quality and performance standards

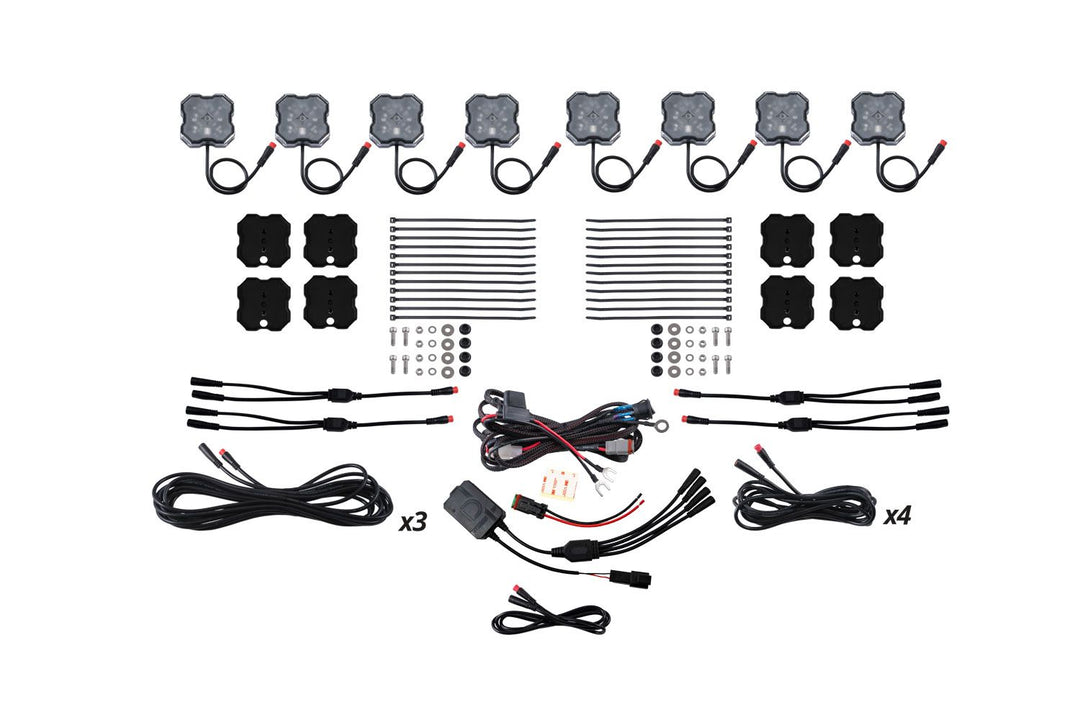

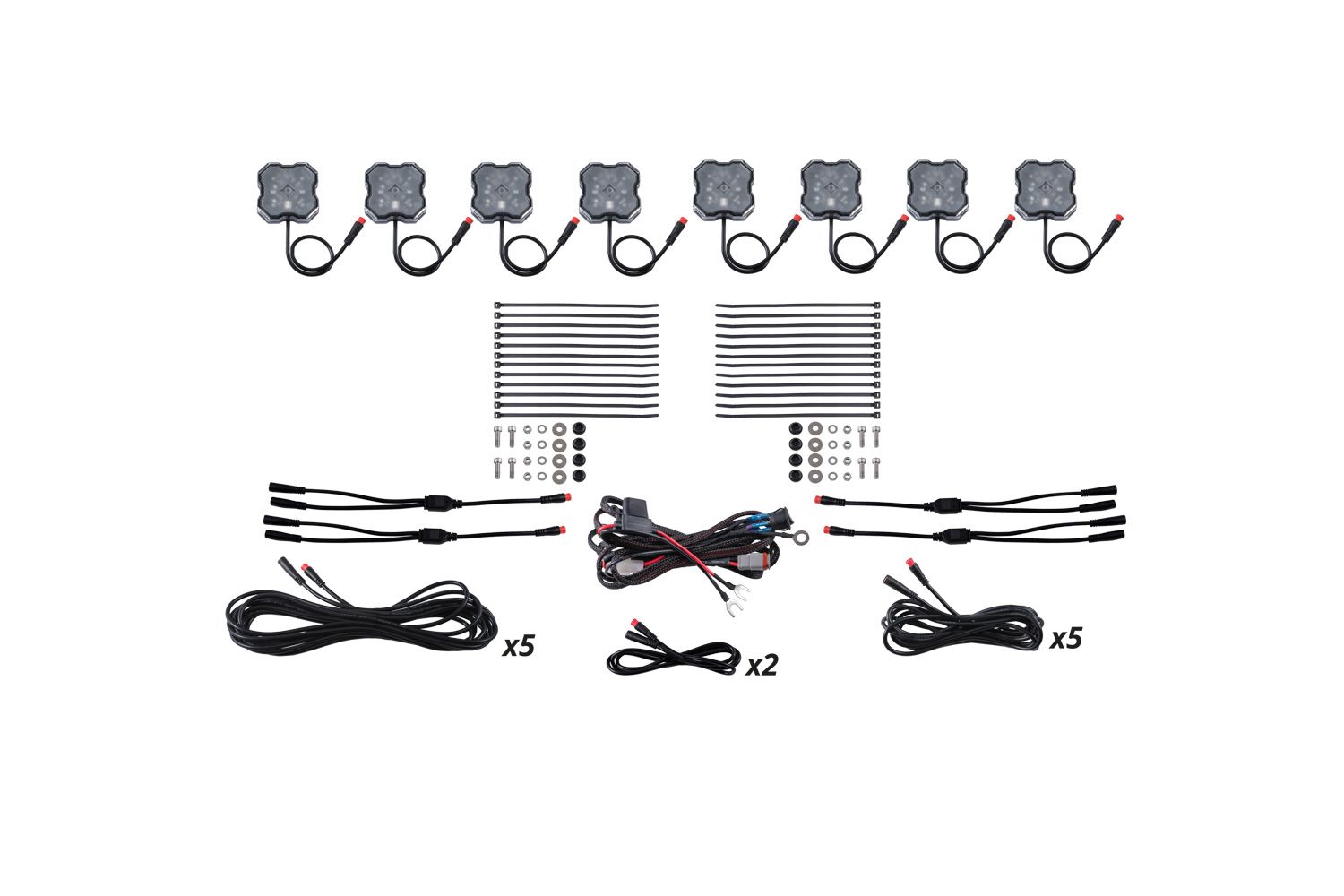

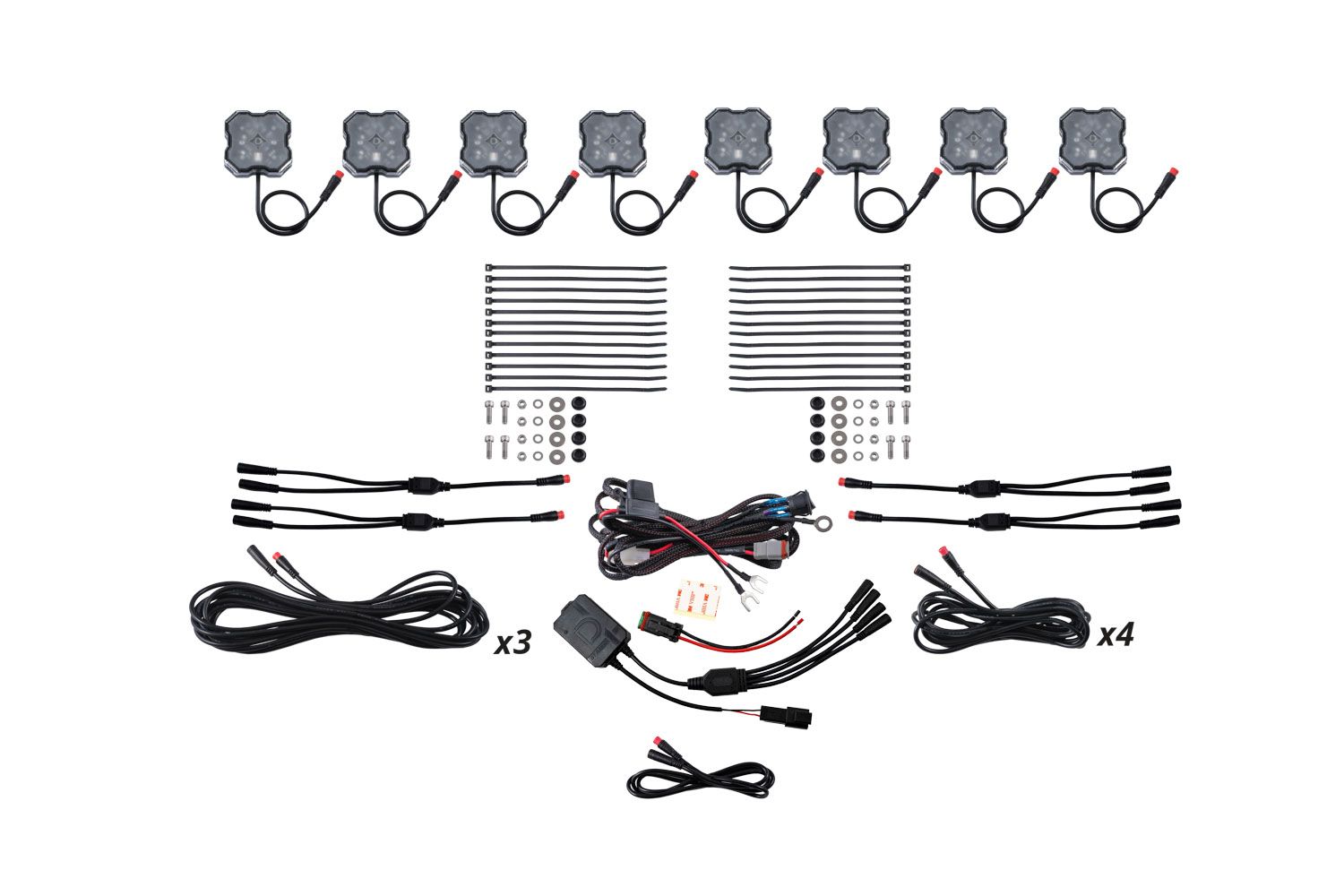

Included in the box

  • Stage Series RGBW rock lights: Eight (8)
  • Rock light hardware kits: Eight (8)

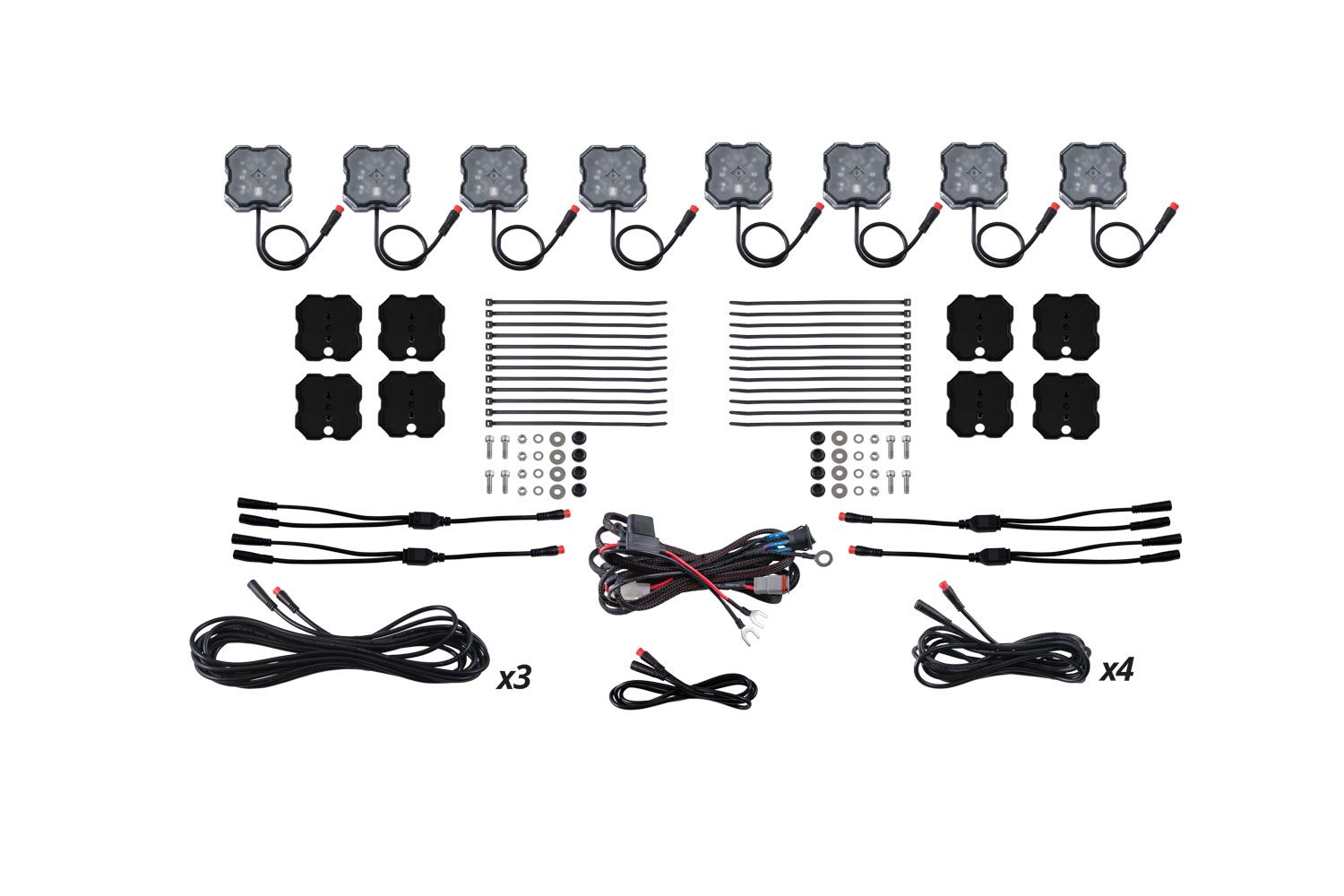

  • Magnet mounts: Eight (8) (optional)
  • Bluetooth RGBW controller: One (1) (optional)
  • RGBW wiring harness: One (1)
  • 1M extension: One (1)
  • 3M extensions: Four (4)
  • 5M extensions: Three (3)
  • M8 splitters: Four (4)
  • Zip ties: Twelve (12)
  • Installation guide: Included

Specifications

  • Measured output (white diffused): 75 lumens
  • Measured output (green diffused): 60 lumens
  • Measured output (red diffused): 50 lumens
  • Measured output (blue diffused): 20 lumens
  • Peak intensity: Up to 30 candela
  • Beam angle: Round, 60°
  • Power: 4.8 watts
  • Current draw: 0.36 amps @ 13.2V
  • LED emitter: Lumileds Z ES
  • Connector: M8 input
  • Materials: UV-coated polycarbonate lens, powdercoated aluminum housing
  • Cooling: Passive pin-fin heatsink
  • Ingress rating: IP68 waterproof
  • Operating temperature: -40°C to 85°C (-40°F to 185°F)

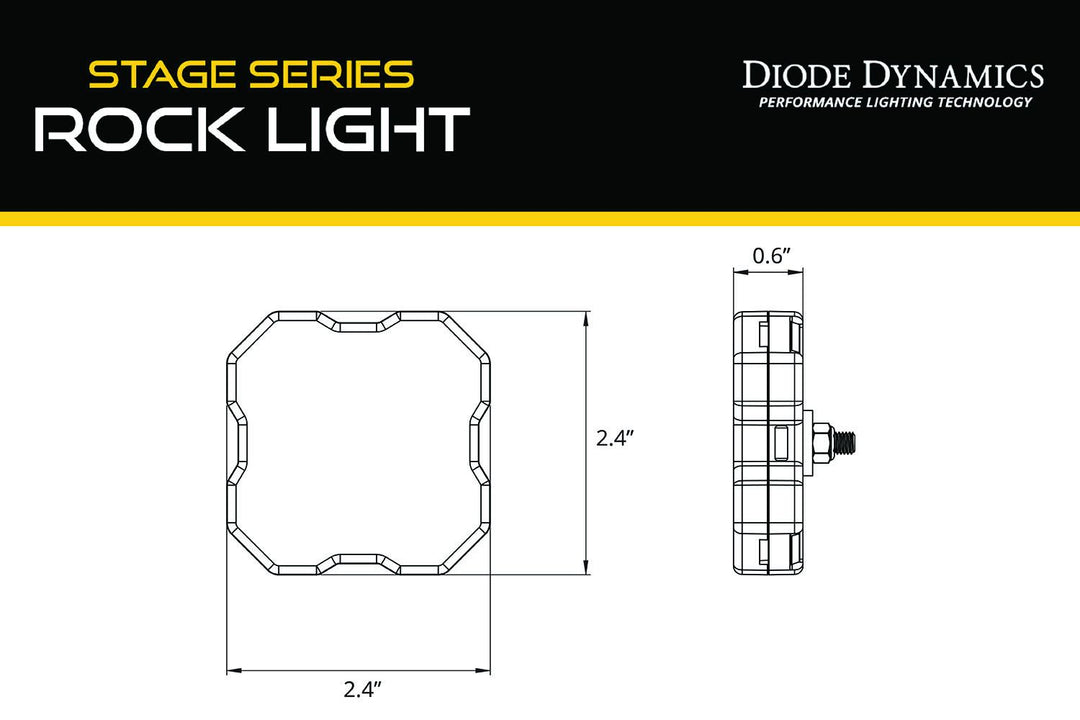

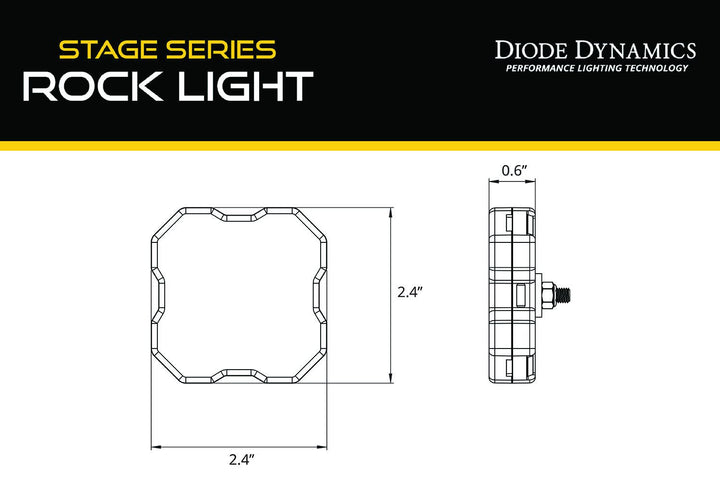

  • Product dimensions: 2.4 × 2.4 × 0.6 in

Warranty and returns

  • Warranty: Lifetime warranty
  • Return policy: 30-day return with no restocking fee
  • Guarantee: 100% satisfaction guarantee

Installation

  • Installation time: 30–60 minutes
  • Tools needed: Basic toolset
  • Modification required: Basic wiring only
