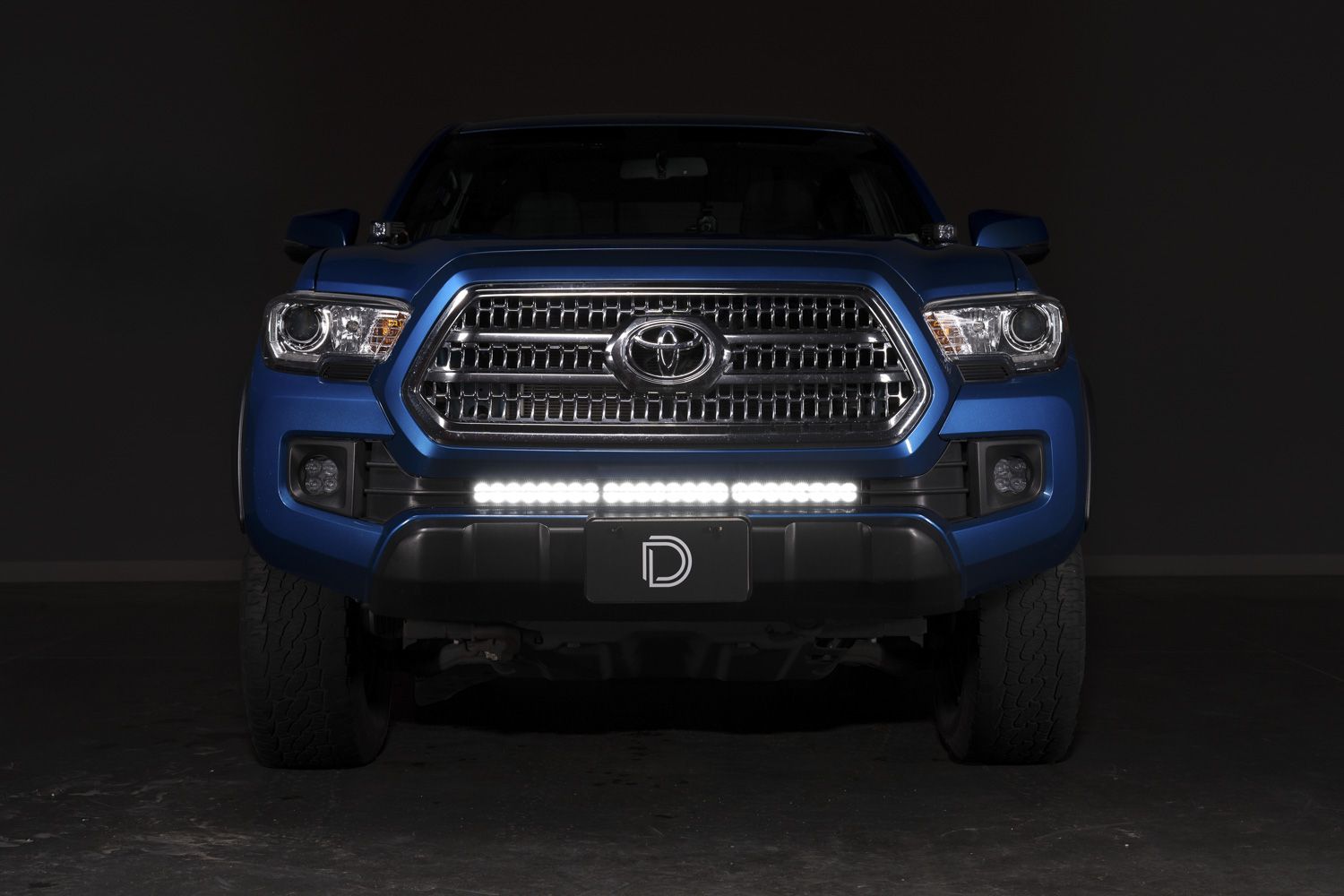

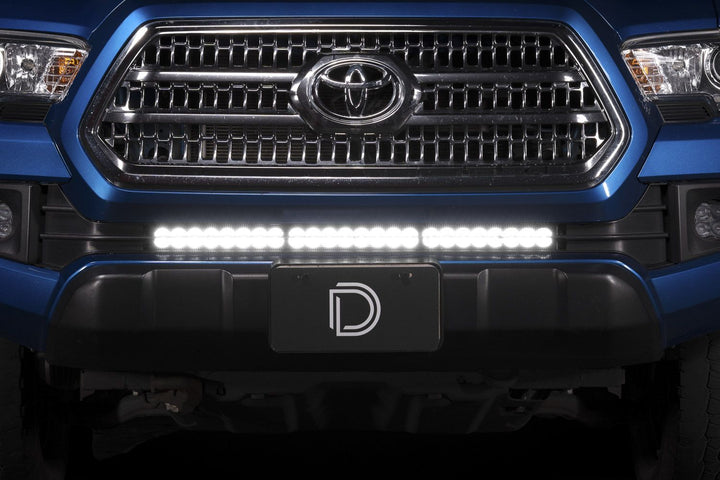

Add serious forward lighting to your Tacoma without sacrificing a factory look. The Stealth LED Light Bar Kit for the 2016–2023 Toyota Tacoma mounts a 30-inch Stage Series LED light bar discreetly behind the grille using application-specific brackets and factory mounting points. No cutting or drilling is required, delivering a clean OEM-style appearance with dramatically increased light output for on-road and off-road use.
Designed and engineered by Diode Dynamics, this kit combines advanced optics, high-output LED technology, and durable construction to create one of the most capable and refined light bar solutions available.
Important note
-
Bracket alignment: Hand-tighten brackets during initial installation to allow proper alignment before final tightening
Features
-
TIR optics: Patented Total Internal Reflection optics maximize efficiency and usable light output
-
Optimized beam patterns: Engineered for real-world driving with balanced distance and width
-
Amber backlight: Integrated amber backlight provides distinctive accent lighting
-
Power options: Available in Sport and Pro power levels to match your lighting needs
-
Durable housing: Aluminum construction with ASTM-standard powdercoat finish
-
Weather resistance: IP69K waterproof rating for extreme environments
-
Built in the USA: Engineered and assembled in the USA using globally sourced materials
-
Warranty: Limited lifetime warranty for long-term peace of mind

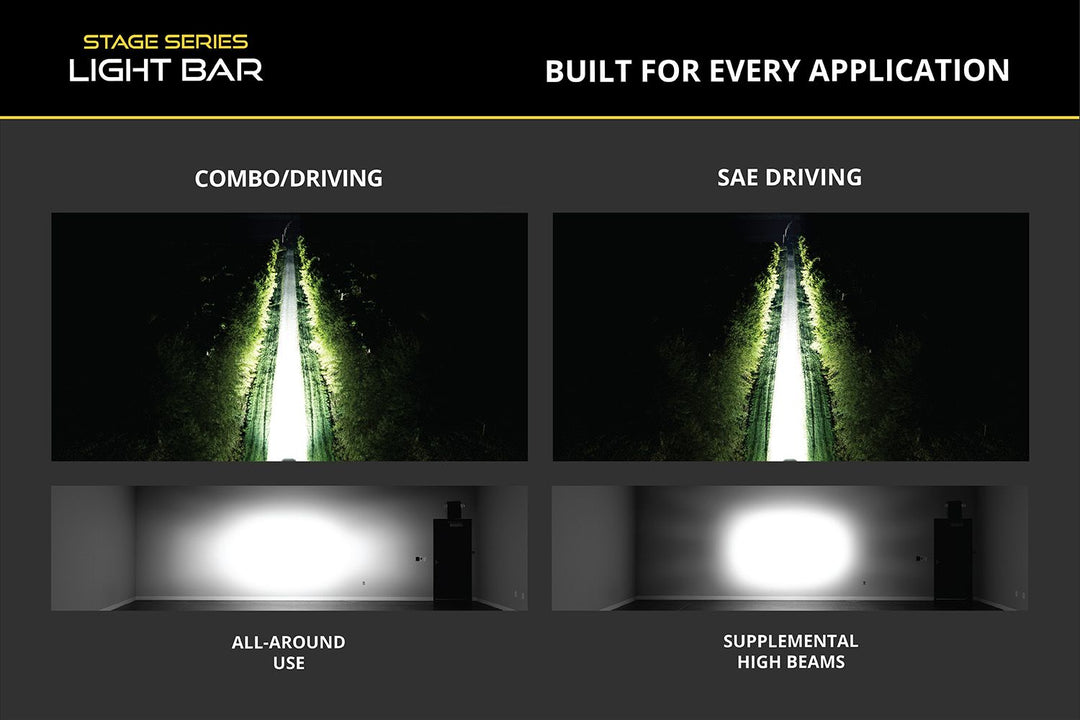

Beam pattern options
-
Combo/Driving pattern: A balanced 60° × 30° beam that blends distance and foreground coverage using dozens of precision pillow optics
-
SAE driving pattern: A focused 20° × 12° pattern designed to supplement high beams with added reach and clarity
Both patterns are engineered to eliminate harsh hotspots, glare, and wasted light commonly found in traditional combo or flood designs.

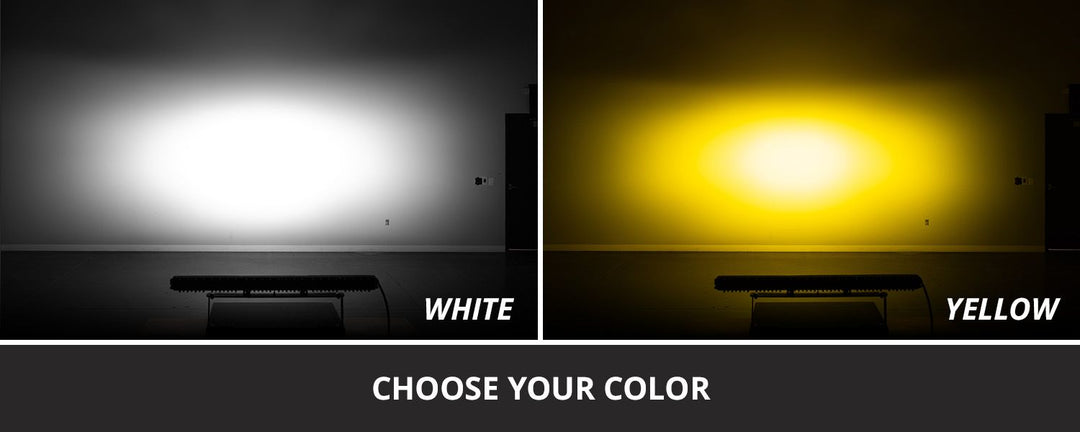

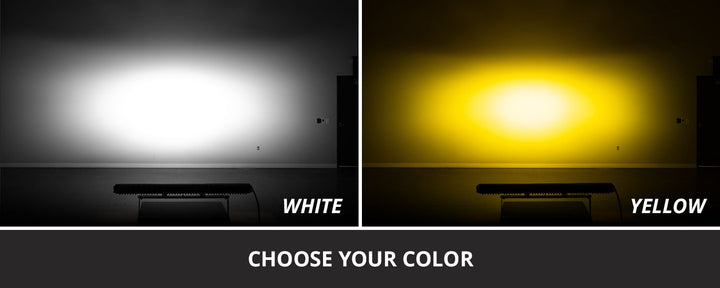

Color and output options
-
White (6000K): Crisp, cool white output that matches factory LED lighting
-
Yellow (3000K): Enhanced contrast for fog, rain, dust, and snow

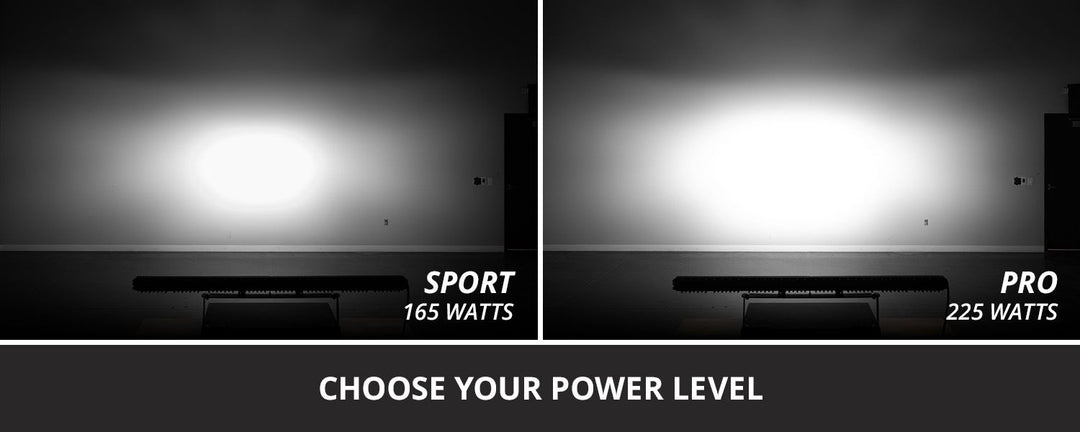

Power levels
-
Sport: Excellent performance and efficiency for most driving conditions
-
Pro: Increased intensity and output for maximum visibility and distance

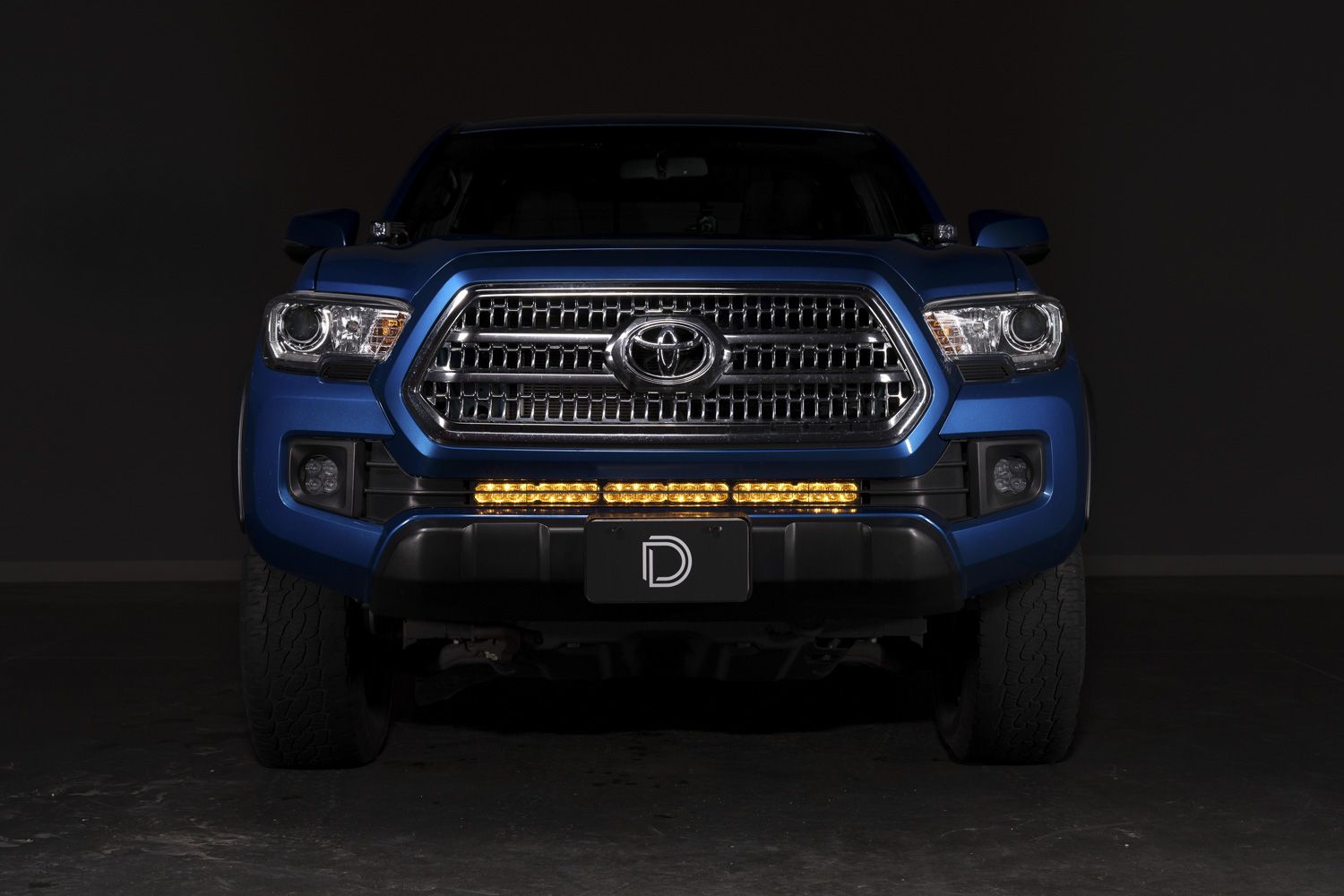

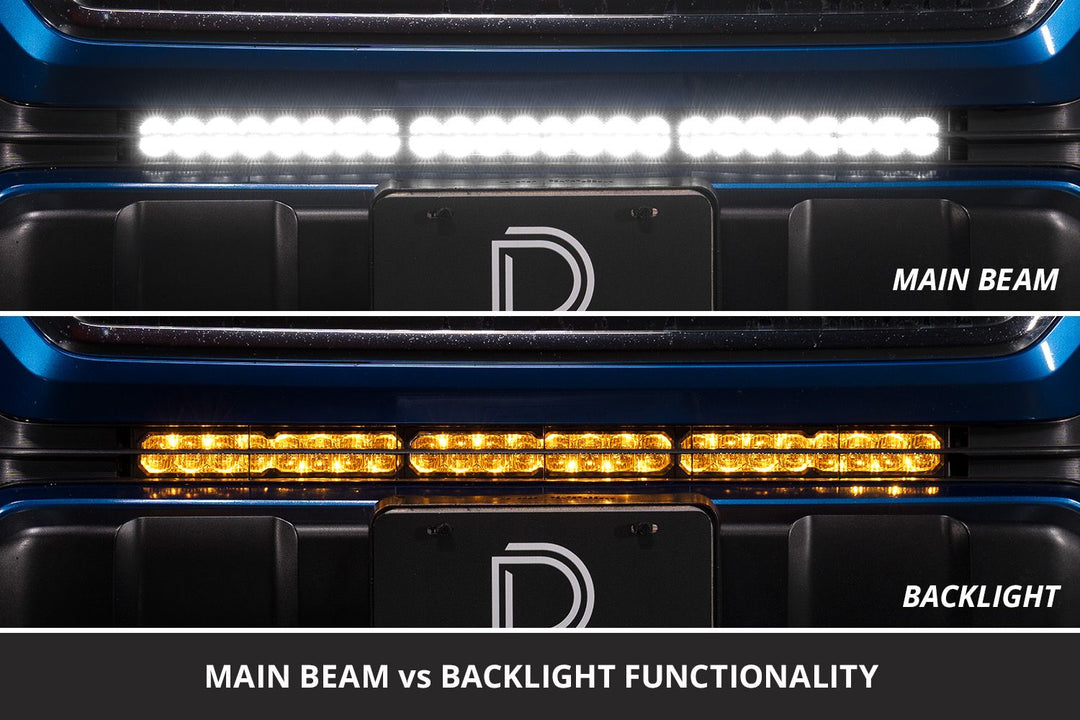

Backlight functionality
All Stage Series LED light bars include an integrated amber backlight that fully illuminates the TIR optic. This backlight can be wired as an accent light for parking, trail use, or vehicle styling when the main beam is off.

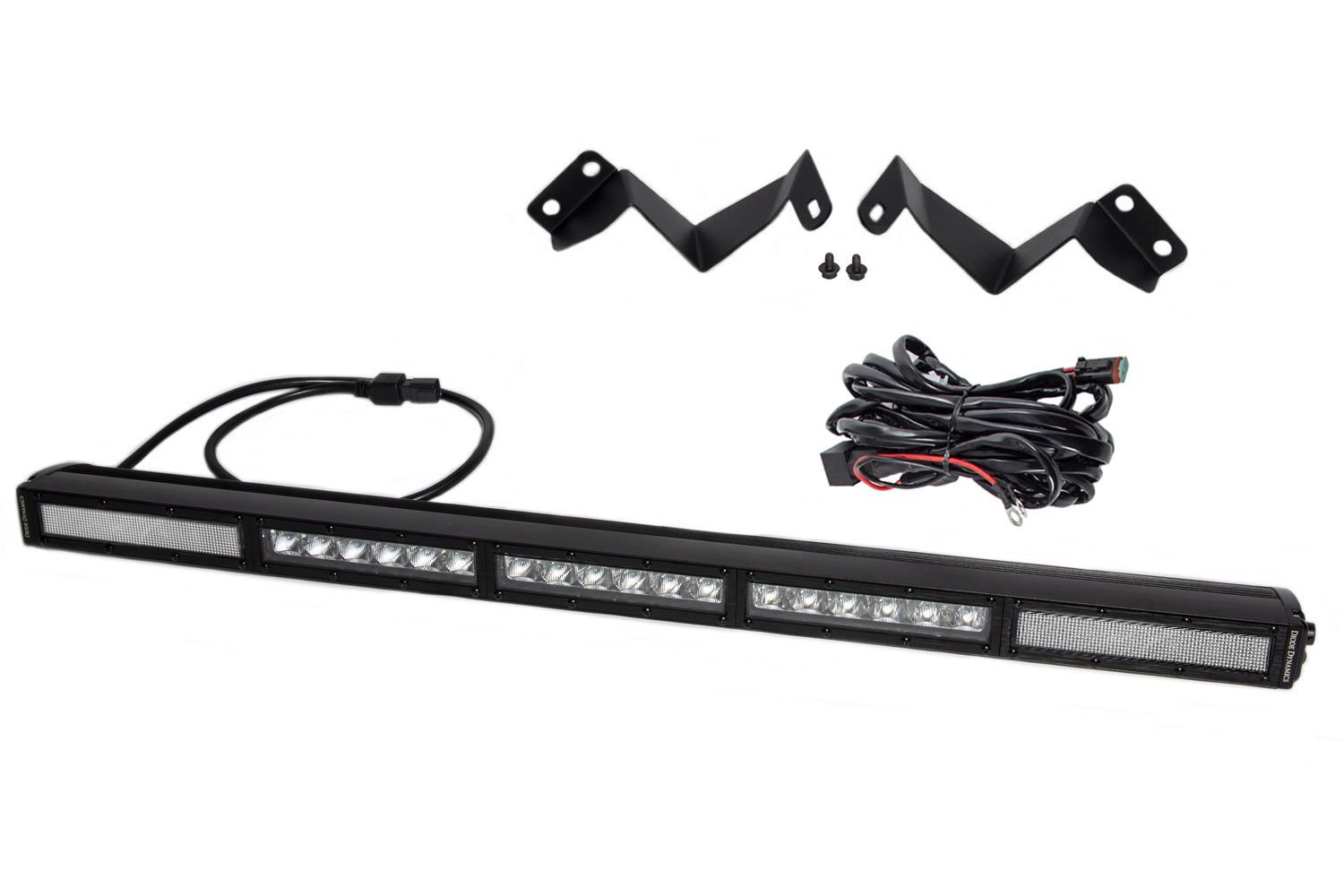

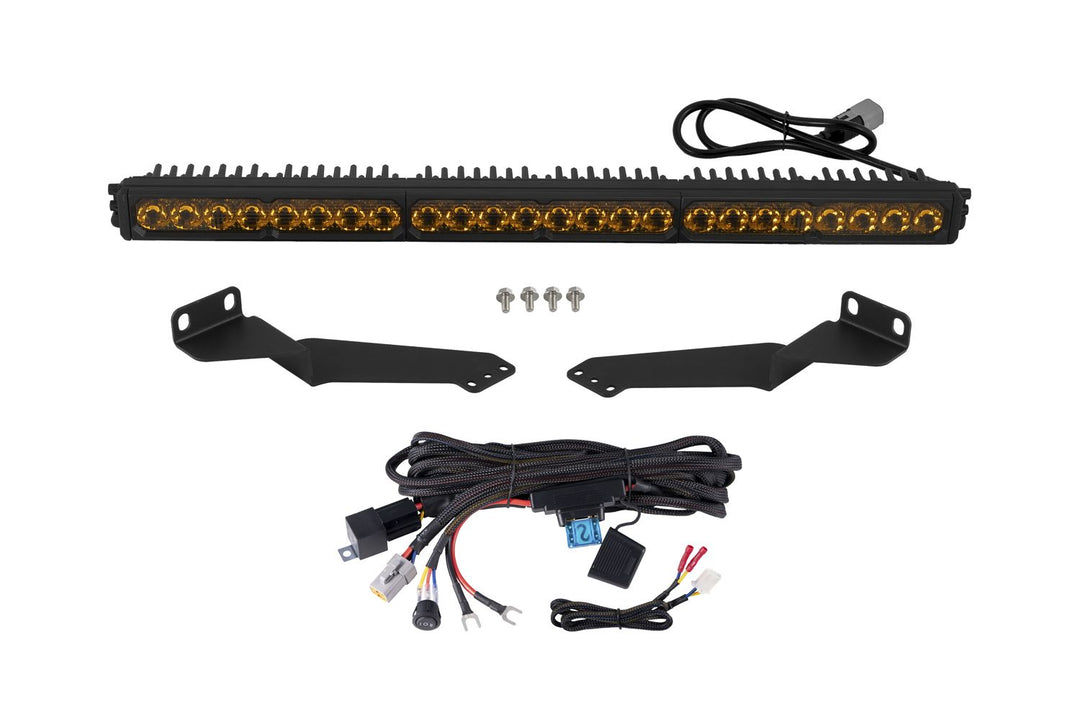

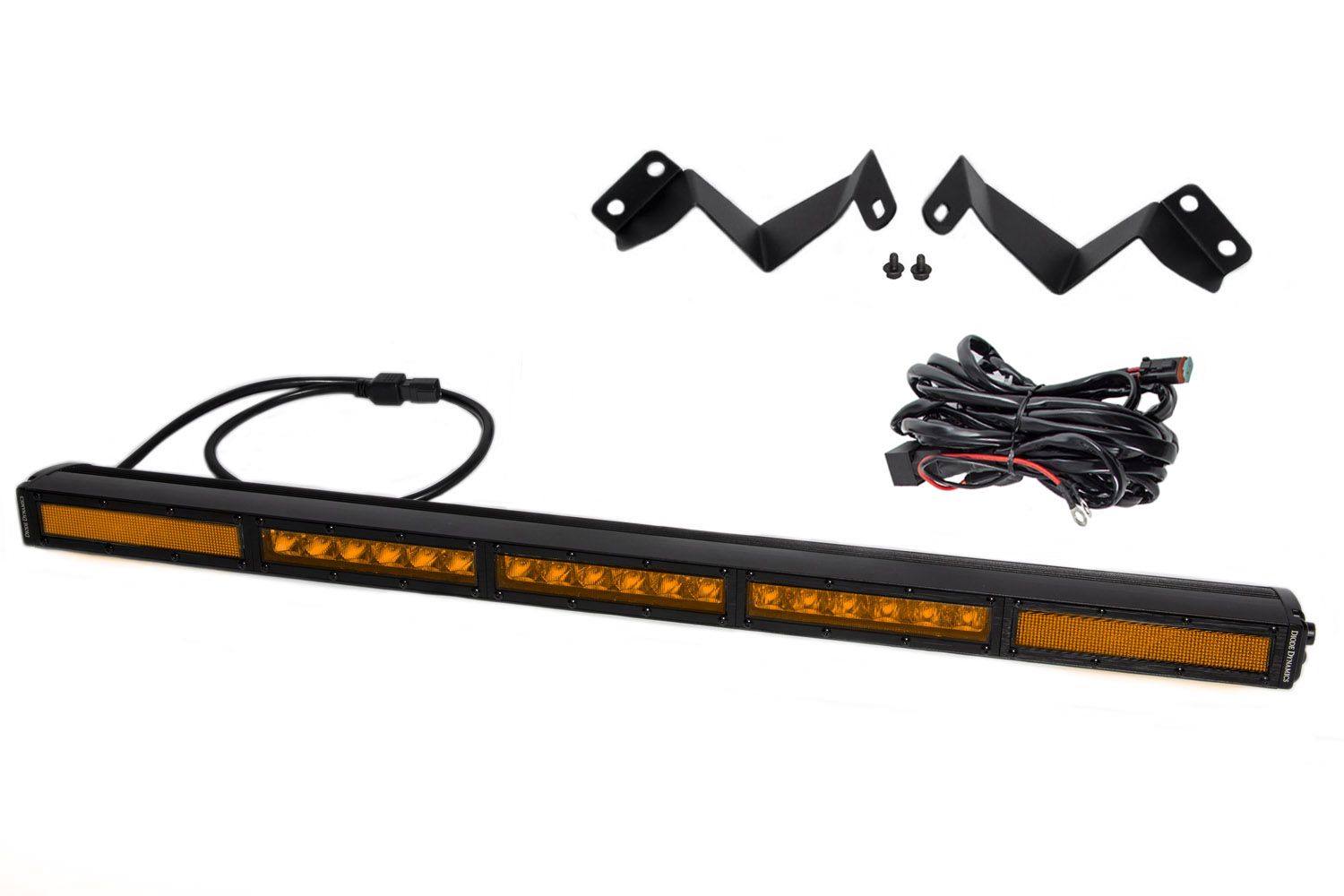

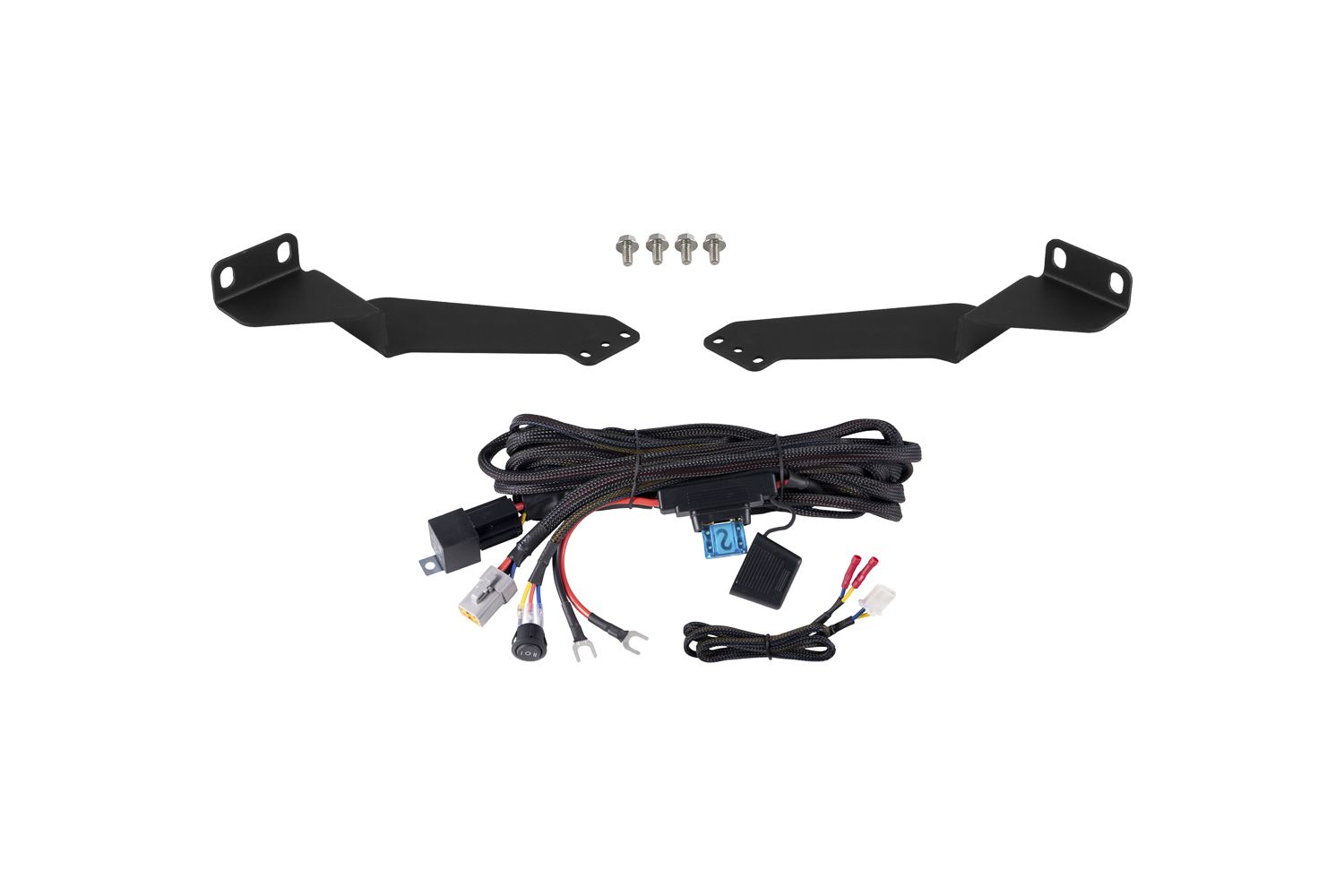

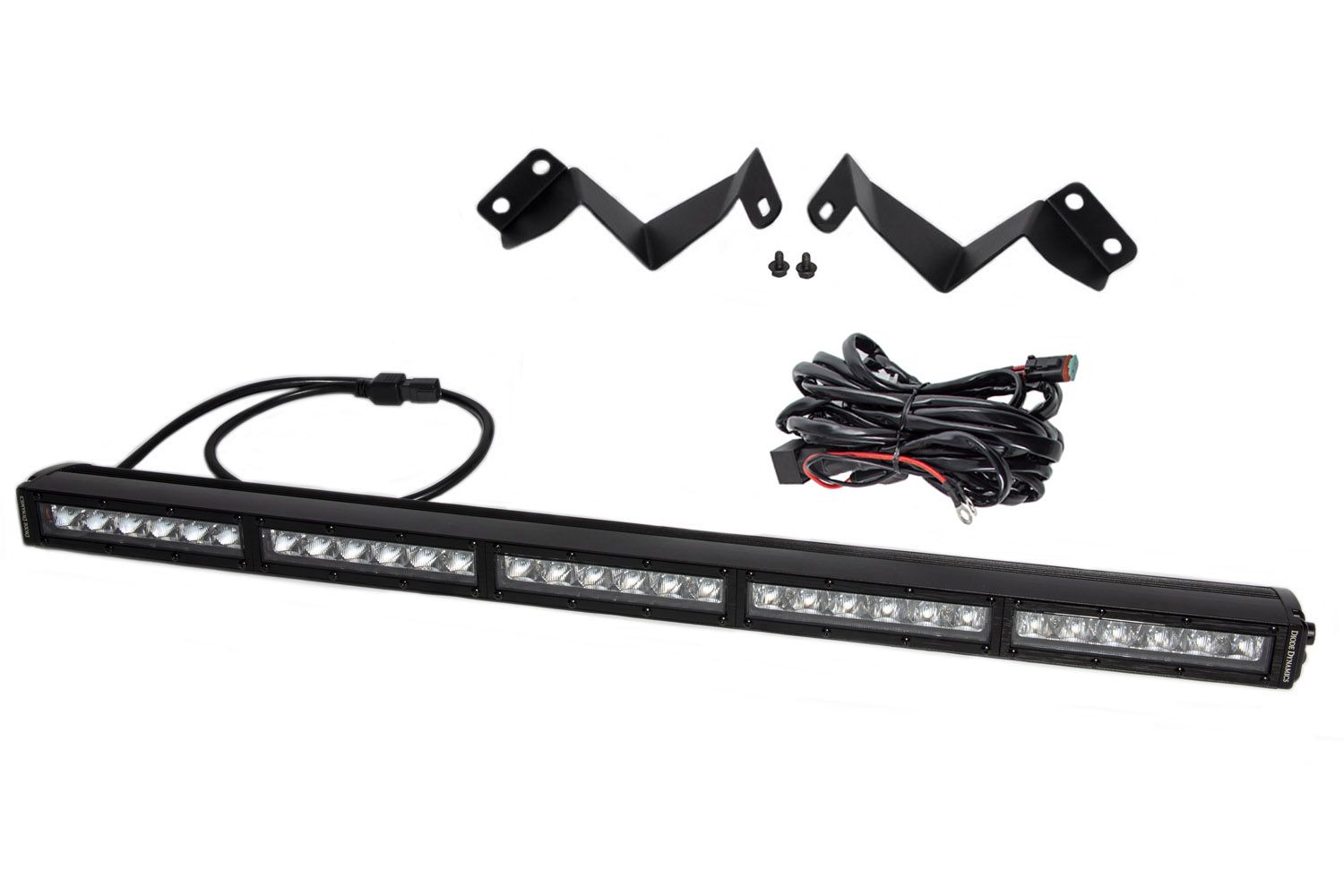

In the box
- Two (2) application-specific mounting brackets
- One (1) 30-inch Classic or SS30 Stage Series LED light bar
- One (1) heavy-duty wiring harness
- Mounting hardware
- Installation guide
Vehicle fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: 2016–2023
-
Electrical compatibility: No electrical issues (tested and confirmed)
Specifications
-
Power (watts): Sport 120W, Pro 165W
-
Operating voltage: 9–24V
-
Current draw @ 12.8V: Sport 9.38A, Pro 12.90A
-
Color temperature: 2000K, 3000K, 6000K
-
Beam patterns: Combo/Driving, SAE Driving
-
Ingress rating: IP69K waterproof
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
Installation
-
Installation time: 20–30 minutes
-
Tools needed: Basic toolset
-
Modification required: None
Warranty and returns
-
Warranty: Limited lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
