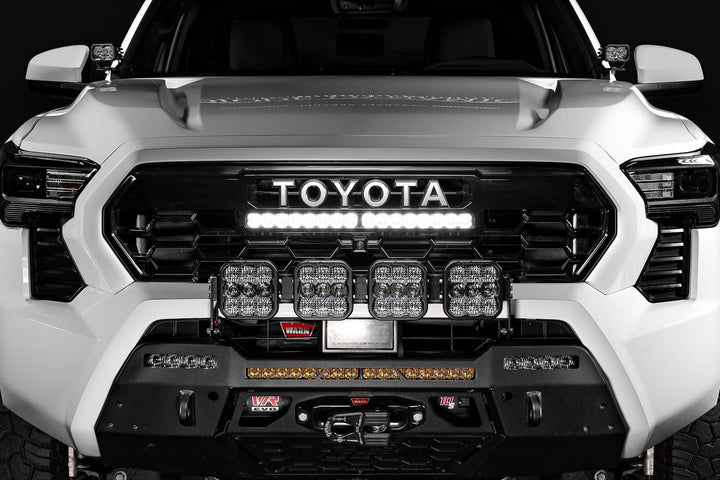

The TRD Pro Grille LED Light Bar Kit for the 2024+ Toyota Tacoma delivers powerful auxiliary lighting tucked cleanly behind the grille for a factory-integrated look. Using CAD-designed, application-specific brackets, this kit mounts a 30-inch Stage Series light bar using factory mounting points—no cutting or drilling required—while delivering industry-leading output, modern optics, and extreme durability.
Important note
-
TRD Pro wiring: When installing on a TRD Pro, the factory switch cannot be used. The included wiring harness with a new switch is required to control this light bar.
Features
-
Patented TIR optics: Maximizes efficiency and usable light output while minimizing glare.
-
Upgraded beam patterns: Engineered for real-world performance with balanced distance and width.
-

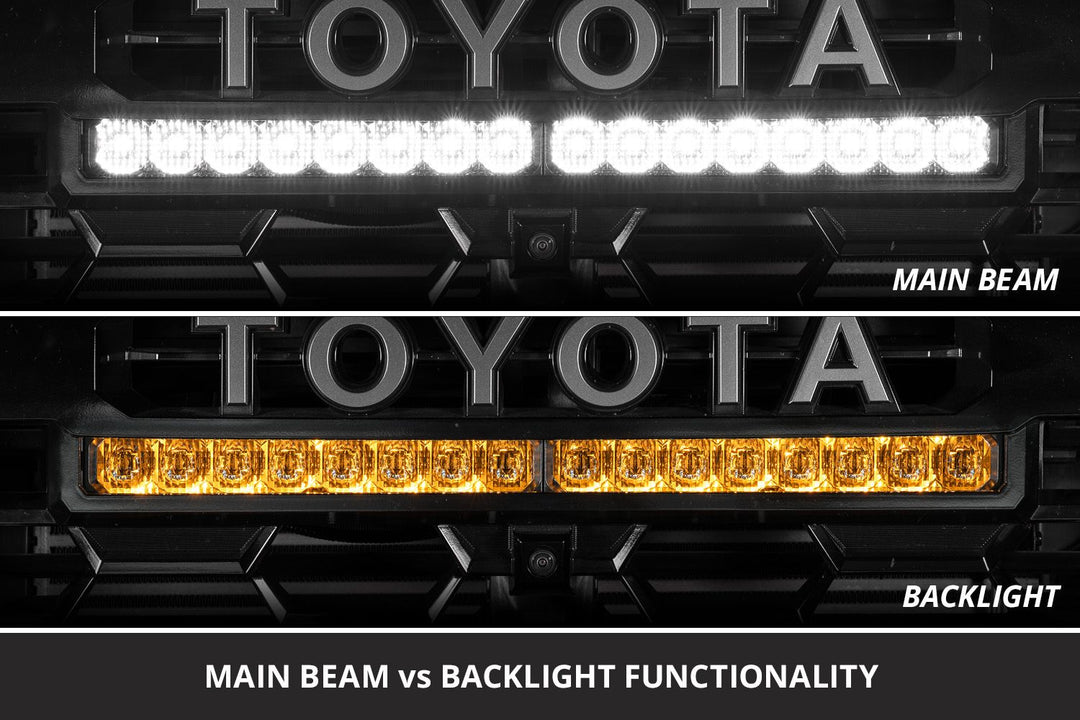

Amber backlight: Integrated true amber backlight provides distinctive accent lighting.
-

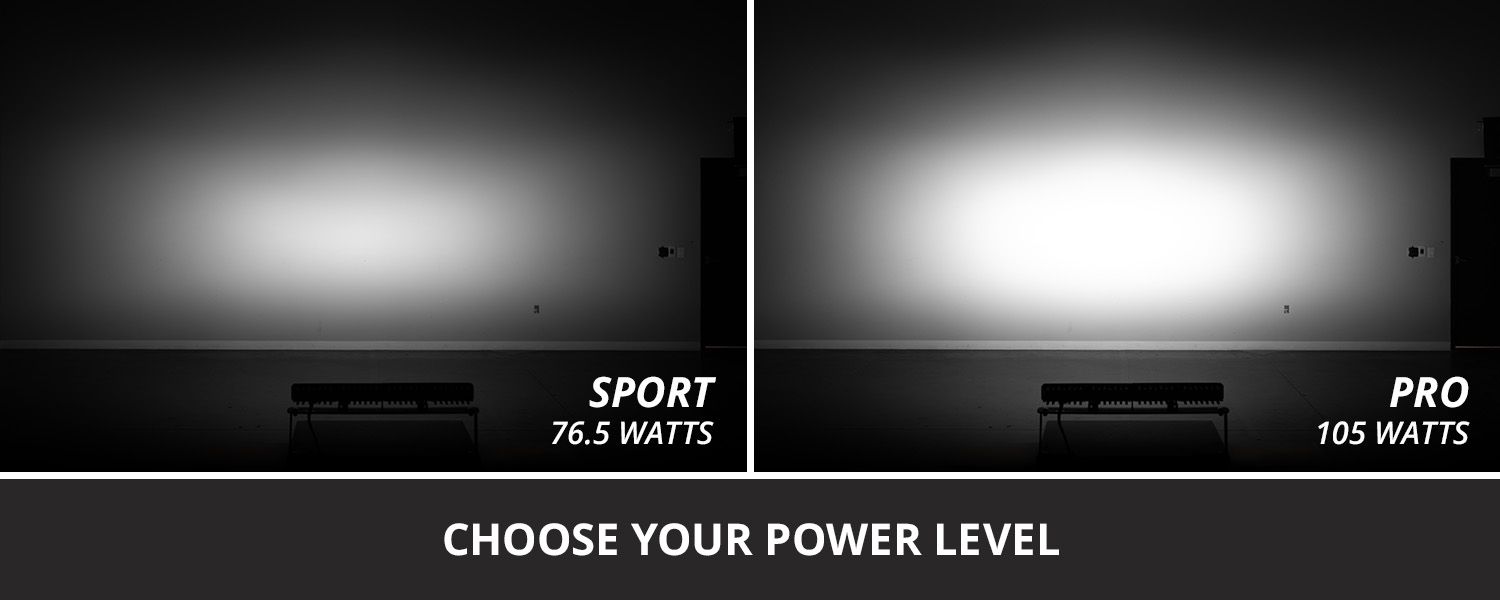

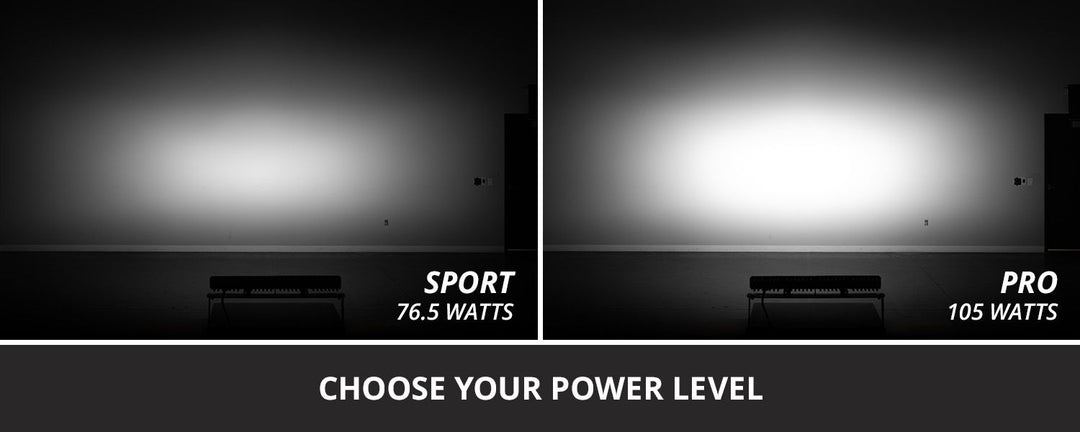

Power level options: Available in Sport and Pro configurations.
-
Durable construction: Aluminum housing with ASTM-standard powdercoat finish.
-
Extreme protection: IP69K waterproof rating for harsh environments.
-
Warranty coverage: Backed by a limited lifetime warranty.
-
Made in USA: Engineered and manufactured using globally sourced materials.
Specifications
-
Color temperature: 3000K, 6000K
-

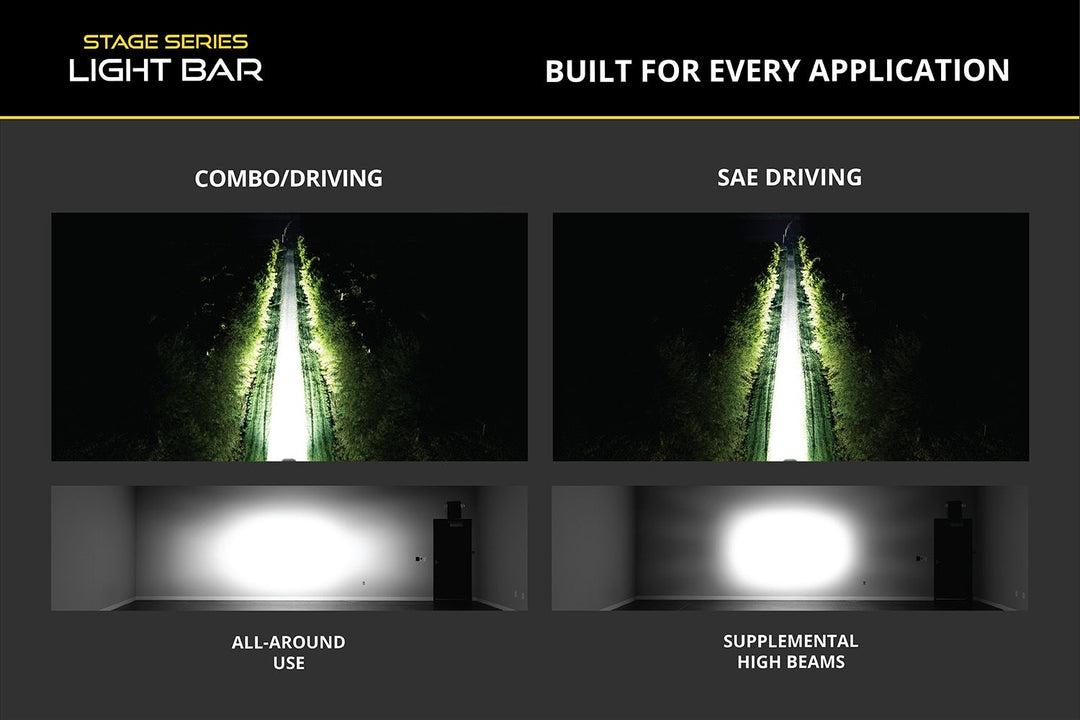

Beam angle: Combo/Driving (60°x30°), SAE Driving (20°x12°)
-
Power: Sport – 76.5W, Pro – 105W
-
Operating voltage: 9–30V
-
Current draw: Sport – 5.98A, Pro – 8.20A @ 12.8V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Osram Ostar Projection Compact, Lumileds automotive-grade LEDs
-
Connector: Deutsch DT input
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
Ingress rating: IP69K waterproof, high pressure

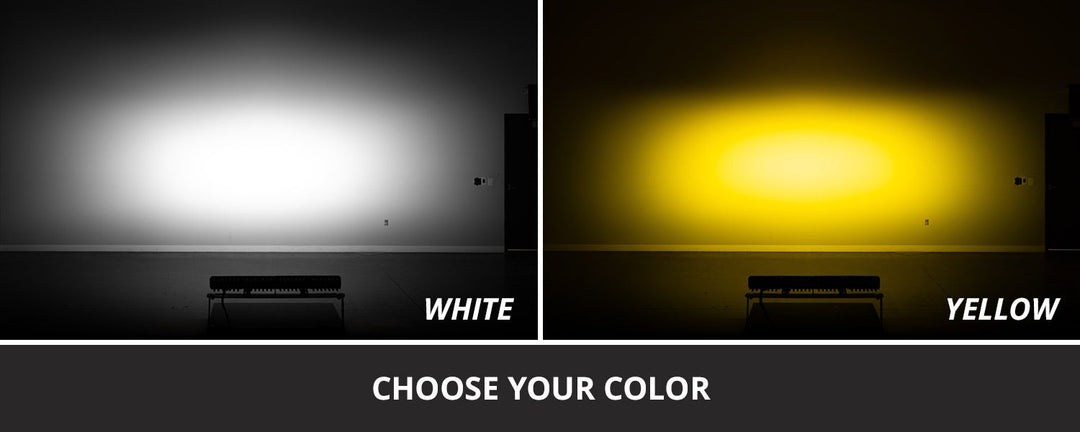

Output by configuration
-
White SAE Driving Sport: 146,500 cd, 1,465 lux @10m, 7,376 lm
-
White SAE Driving Pro: 193,500 cd, 1,935 lux @10m, 25,088 lm
-
Yellow SAE Driving Sport: 128,000 cd, 1,280 lux @10m, 7,376 lm
-
Yellow SAE Driving Pro: 161,500 cd, 1,615 lux @10m, 25,088 lm
-
White Combo Sport: 41,500 cd, 415 lux @10m, 7,376 lm
-
White Combo Pro: 69,200 cd, 692 lux @10m, 25,088 lm
-
Yellow Combo Sport: 36,000 cd, 360 lux @10m, 7,376 lm
-
Yellow Combo Pro: 56,000 cd, 560 lux @10m, 25,088 lm
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)

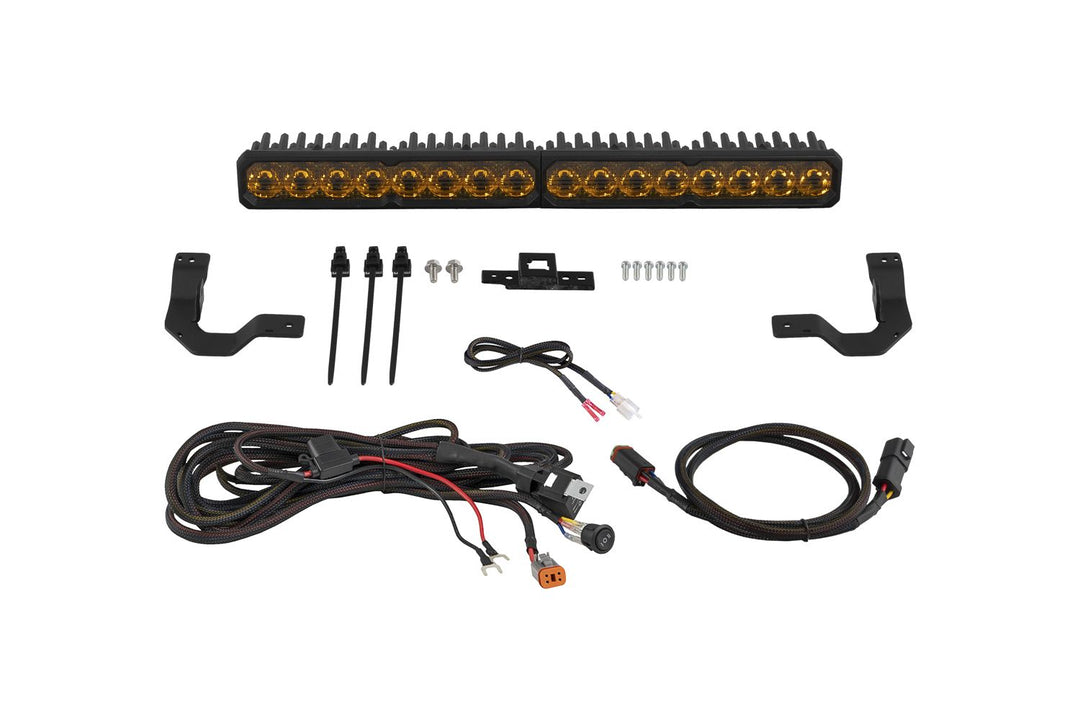

Included in the box
-

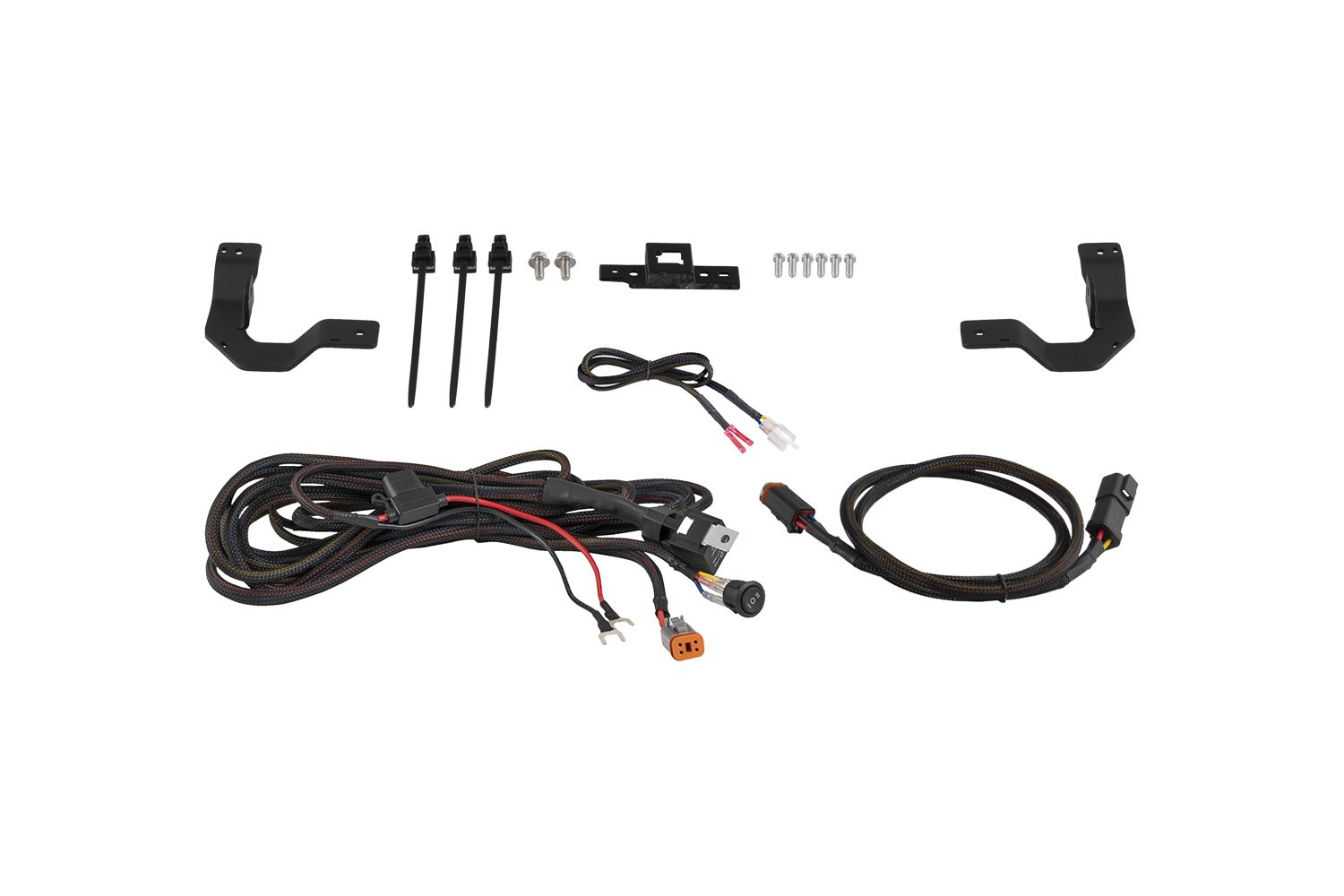

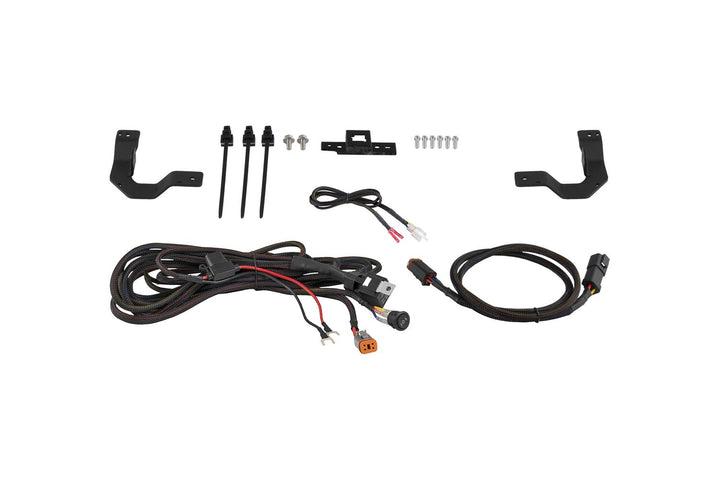

Grille bracket kit: One (1) TRD Pro grille light bar bracket kit
-
LED light bar: One (1) SS20 Stage Series LED light bar
-
Wiring harness: One (1) wiring harness
-
Zip ties: Three (3)
-
Hardware: Mounting hardware
Additional details
-
Quantity: One (1)
-
Installation time: 1–2 hours
-
Tools required: Basic toolset
-
Modification: Basic wiring only
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
