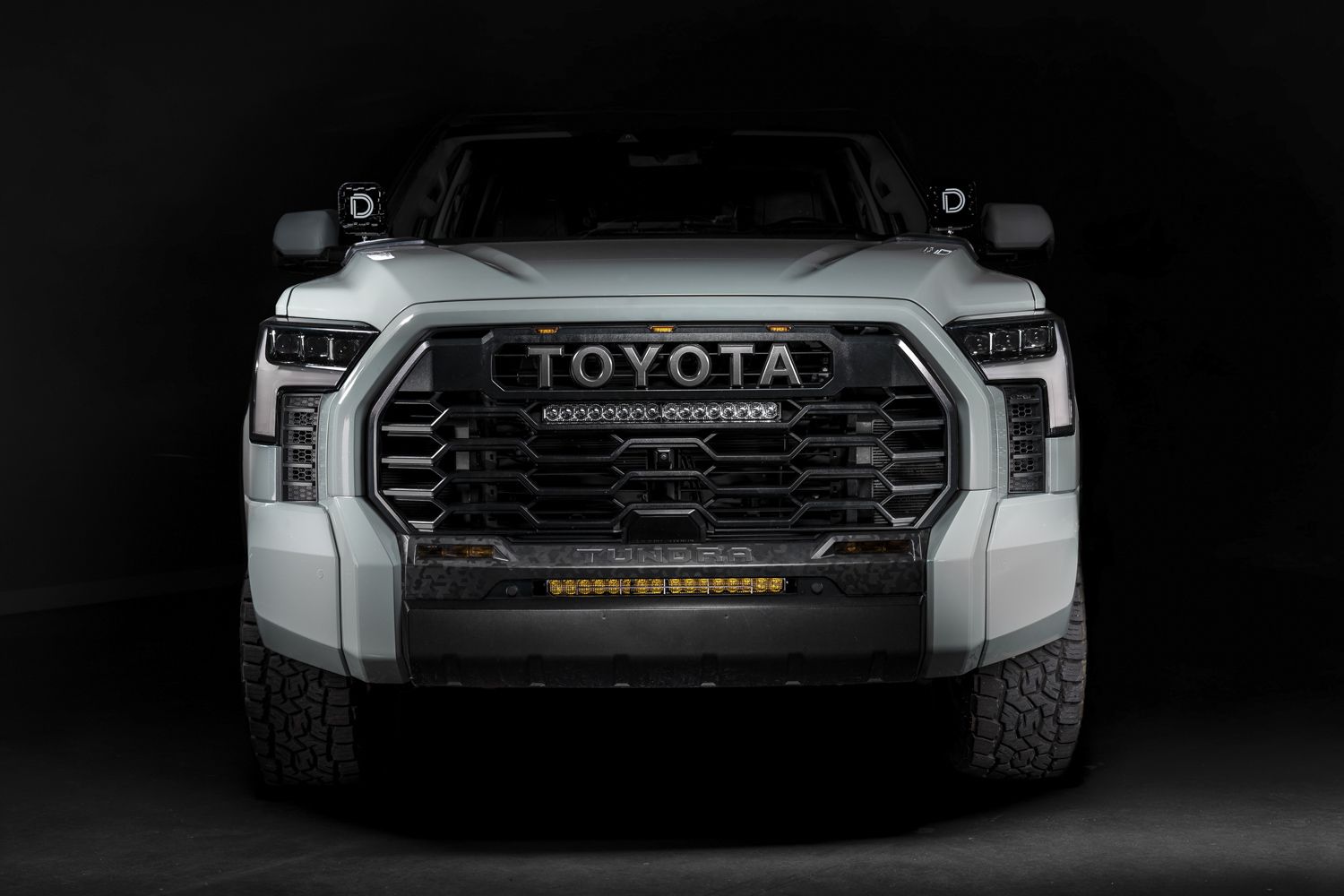

The TRD Pro Grille LED Light Bar Kit for the Toyota Tundra (2022–2026) delivers powerful auxiliary lighting with a clean, OEM-style appearance. Designed specifically for behind-the-grille mounting, this kit installs a 20-inch Stage Series LED light bar using application-specific brackets that bolt directly to factory mounting points—no cutting or drilling required. With advanced optics, upgraded beam patterns, and extreme durability, this system provides serious light output without compromising factory functionality.
Important notes
-
TRD Pro wiring: Factory switch cannot be used; included harness and separate switch required
-
Active grille shutters: Fully compatible and will not interfere with operation
-
Installation: Minor modification required
-

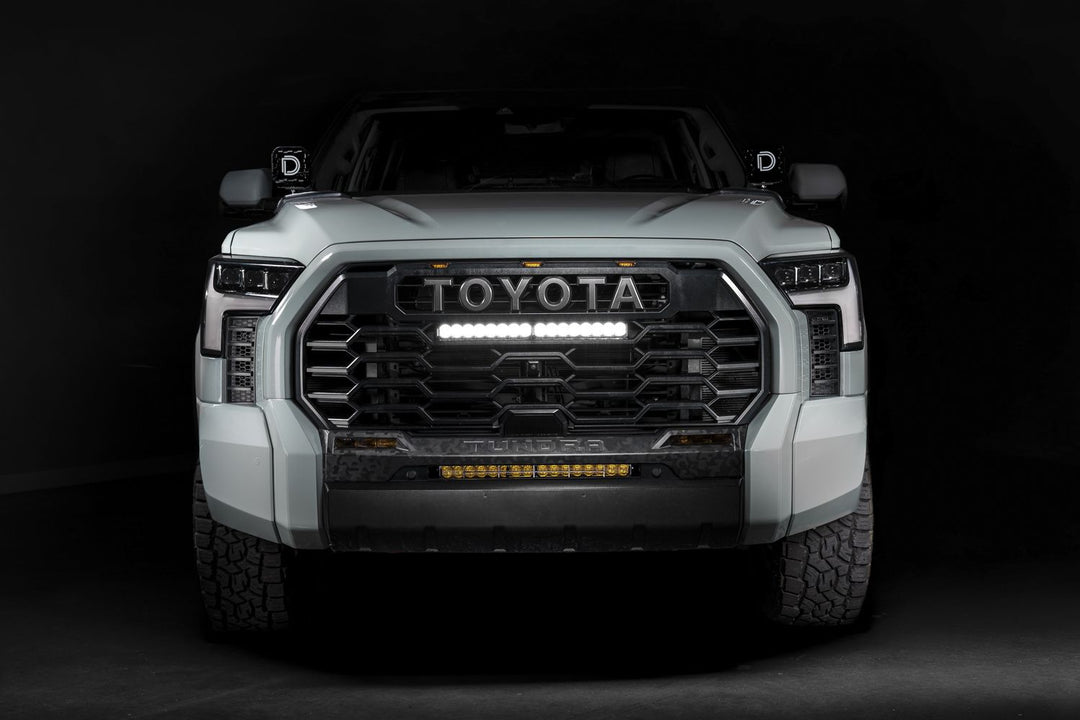

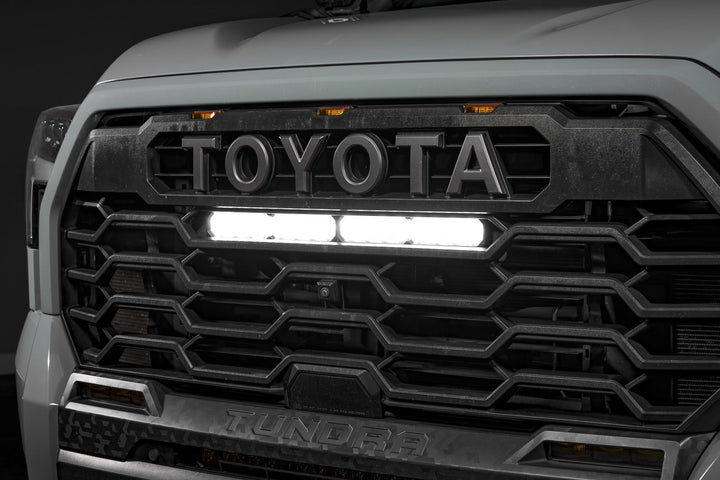

Mount location: Behind grille, OEM-style concealed install
Features
-
Patented TIR optics: Maximizes efficiency and directs light precisely where needed
-
Upgraded beam patterns: Engineered for real-world driving and off-road conditions
-

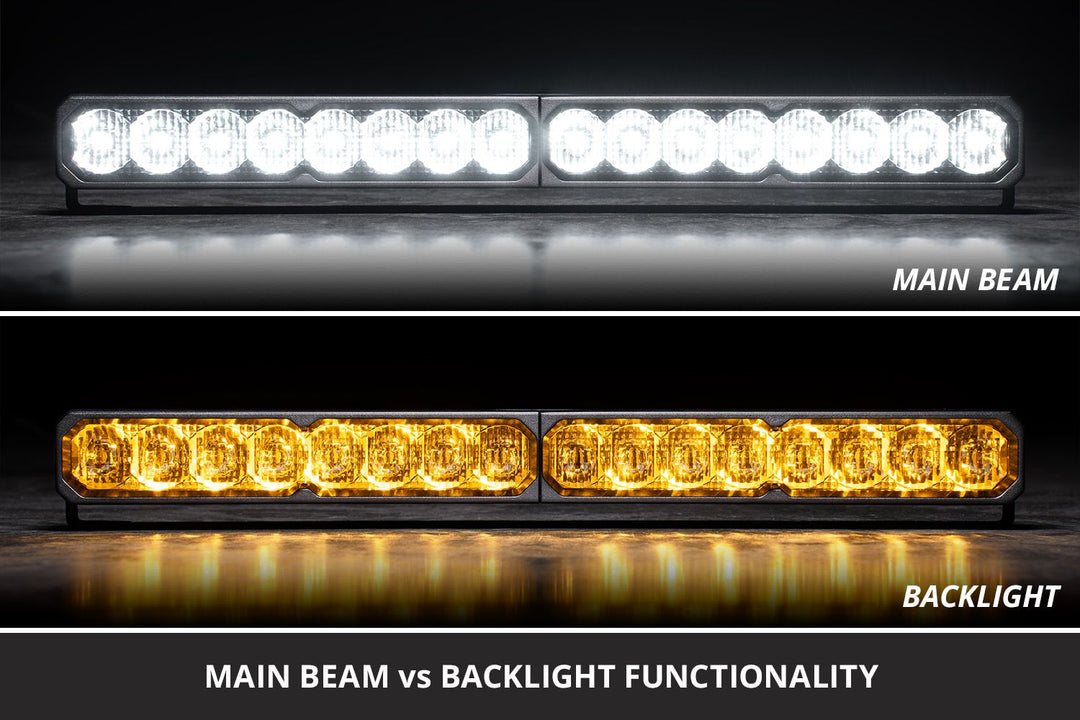

Amber backlight: Integrated accent lighting for added visibility and style
-

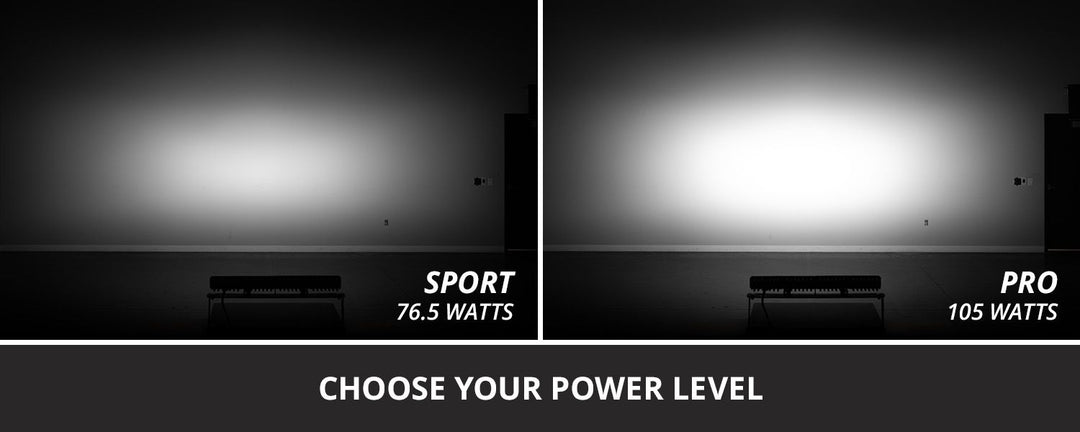

Power level options: Available in Sport and Pro configurations
-
Durable housing: Aluminum construction with ASTM-standard powdercoat finish
-
Extreme weather protection: IP69K waterproof and high-pressure rated
-
OEM-style fitment: CAD-designed brackets utilize factory mounting points
-
Made in USA: Engineered and assembled with globally sourced materials

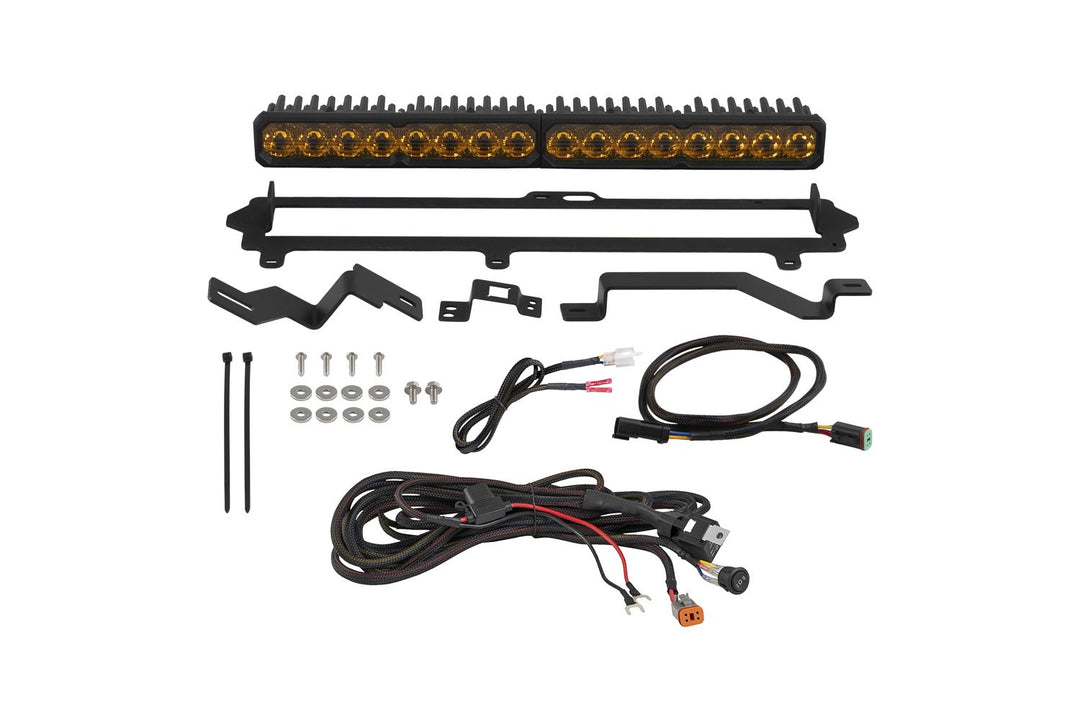

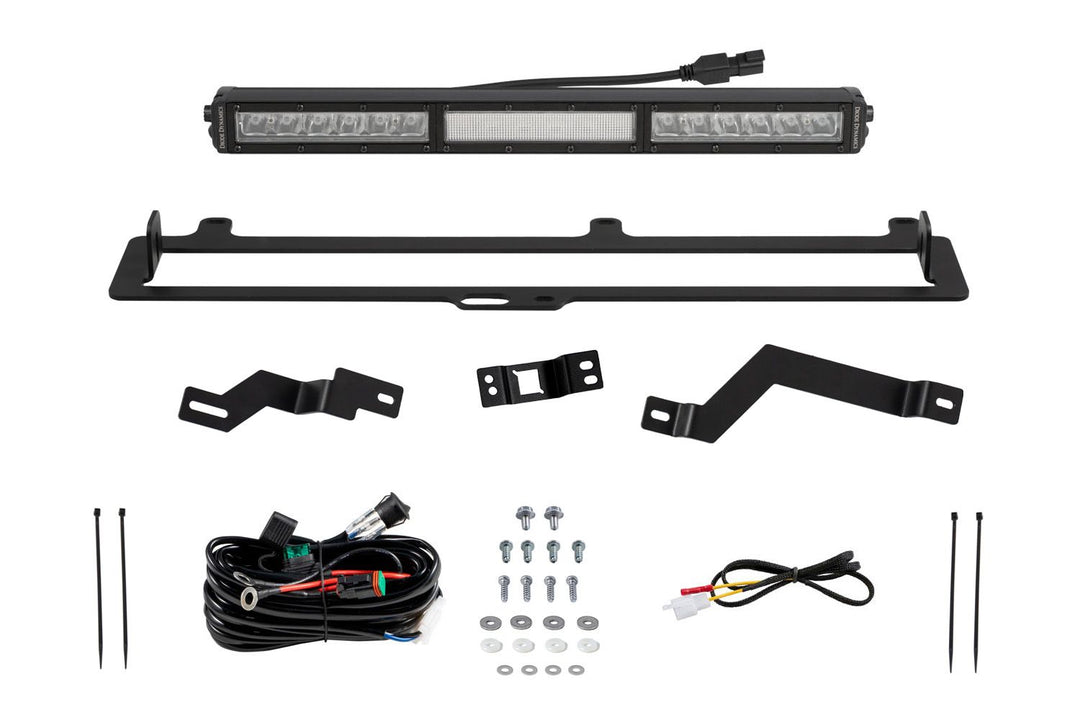

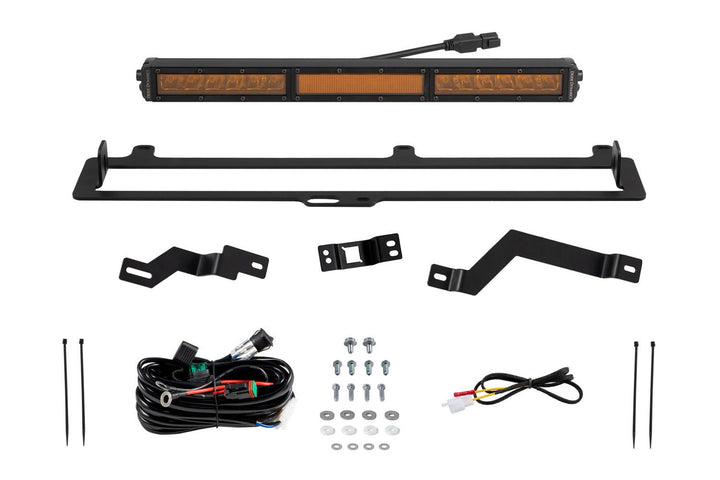

Included in the box
-
LED light bar: One 18" Classic or SS20 Stage Series LED Light Bar
-
Wiring harness: One heavy-duty wiring harness
-

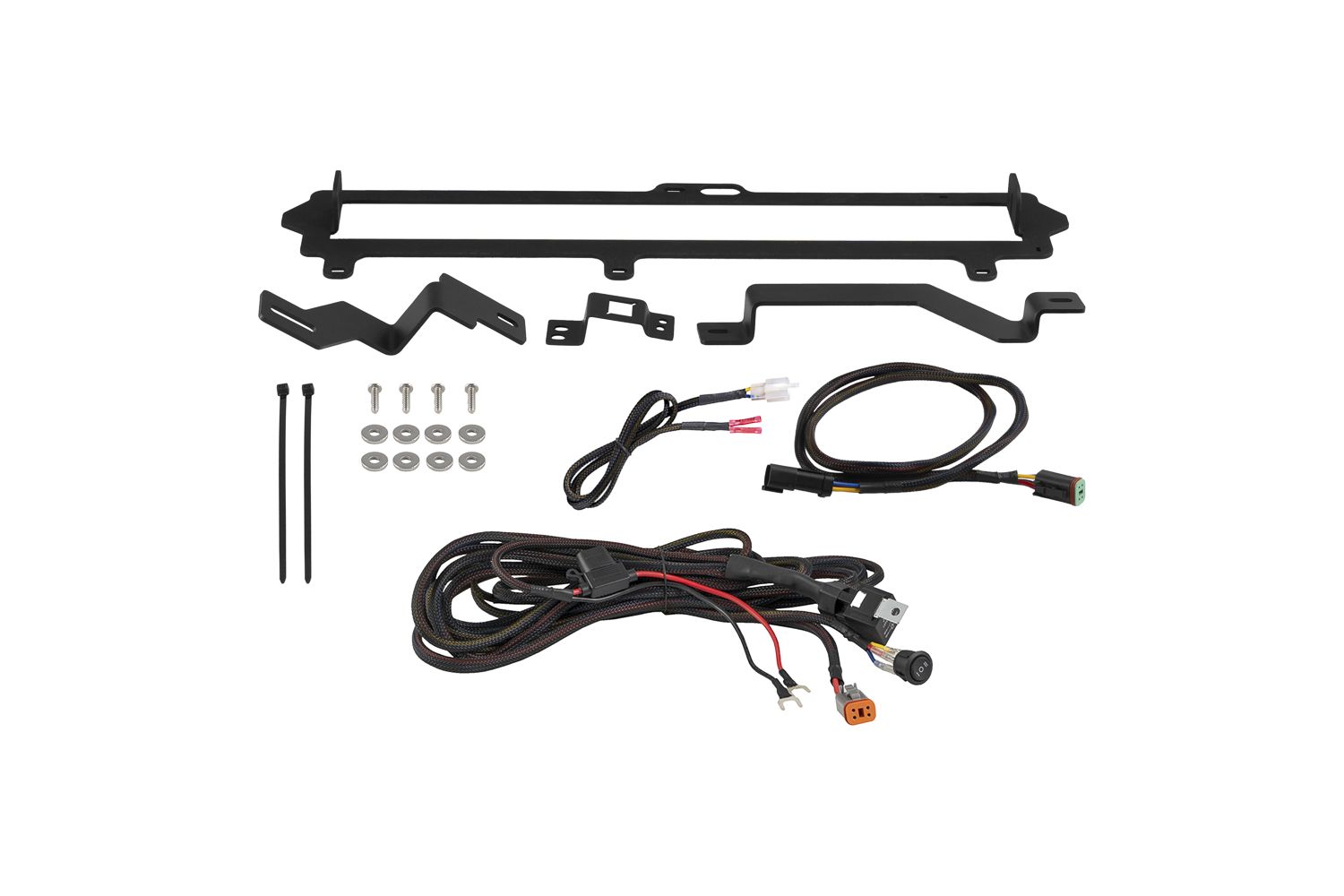

Mounting kit: One Pro grille bracket kit for 2022+ Tundra
-
Hardware: All necessary mounting hardware
-
Quantity: One (1) complete kit
Specifications
SS20 / Classic LED light bar
-

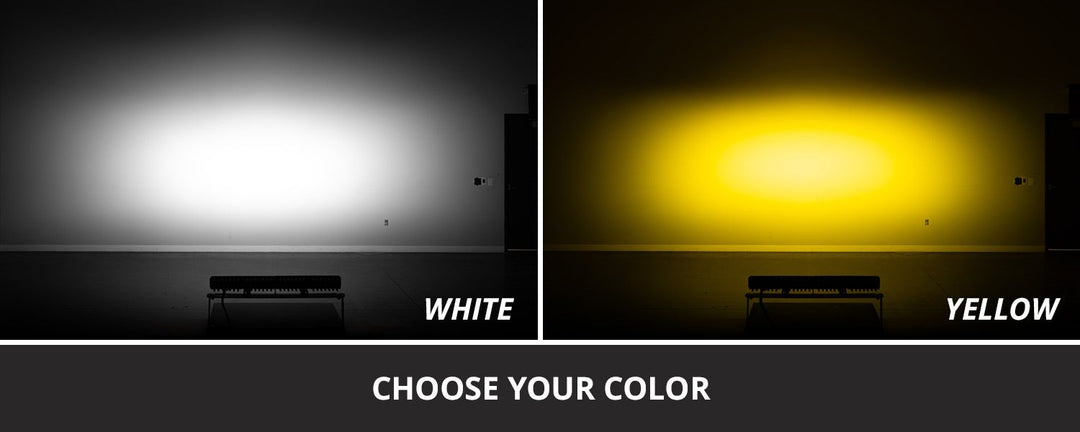

Color temperature: 3000K (Yellow), 6000K (White)
-

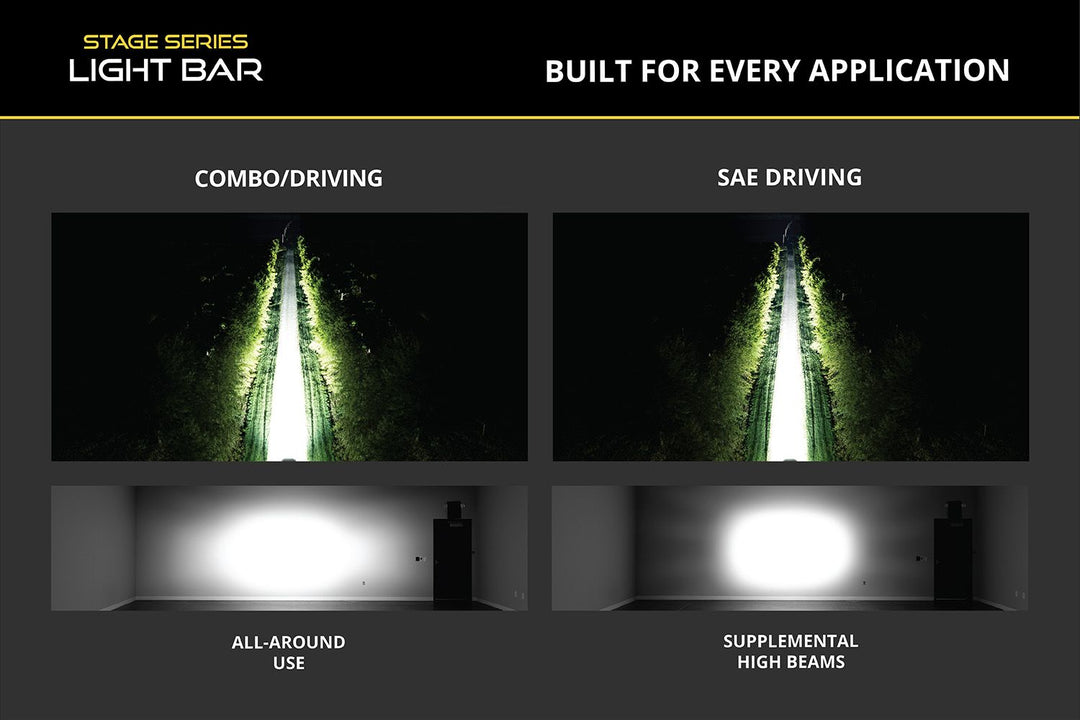

Beam patterns: Combo, Combo/Driving, SAE Driving
-
Power (watts): Sport: 76.5W, Pro: 105W
-
Current draw (@12.8V): Sport: 5.98A, Pro: 8.20A
-
Peak output: Up to 25,088 raw lumens (Pro)
-
Beam angles:
- Combo/Driving: 60° x 30°
- Driving: 20° x 12°
-
Operating voltage: 9–30V
-
Waterproof rating: IP69K
-
Materials: Aluminum and copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
Operating temperature: -40°F to 185°F
Fitment
-
Make: Toyota
-
Model: Tundra
-
Years: (2022–2026)
Warranty & protection
-
Warranty: Limited lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
