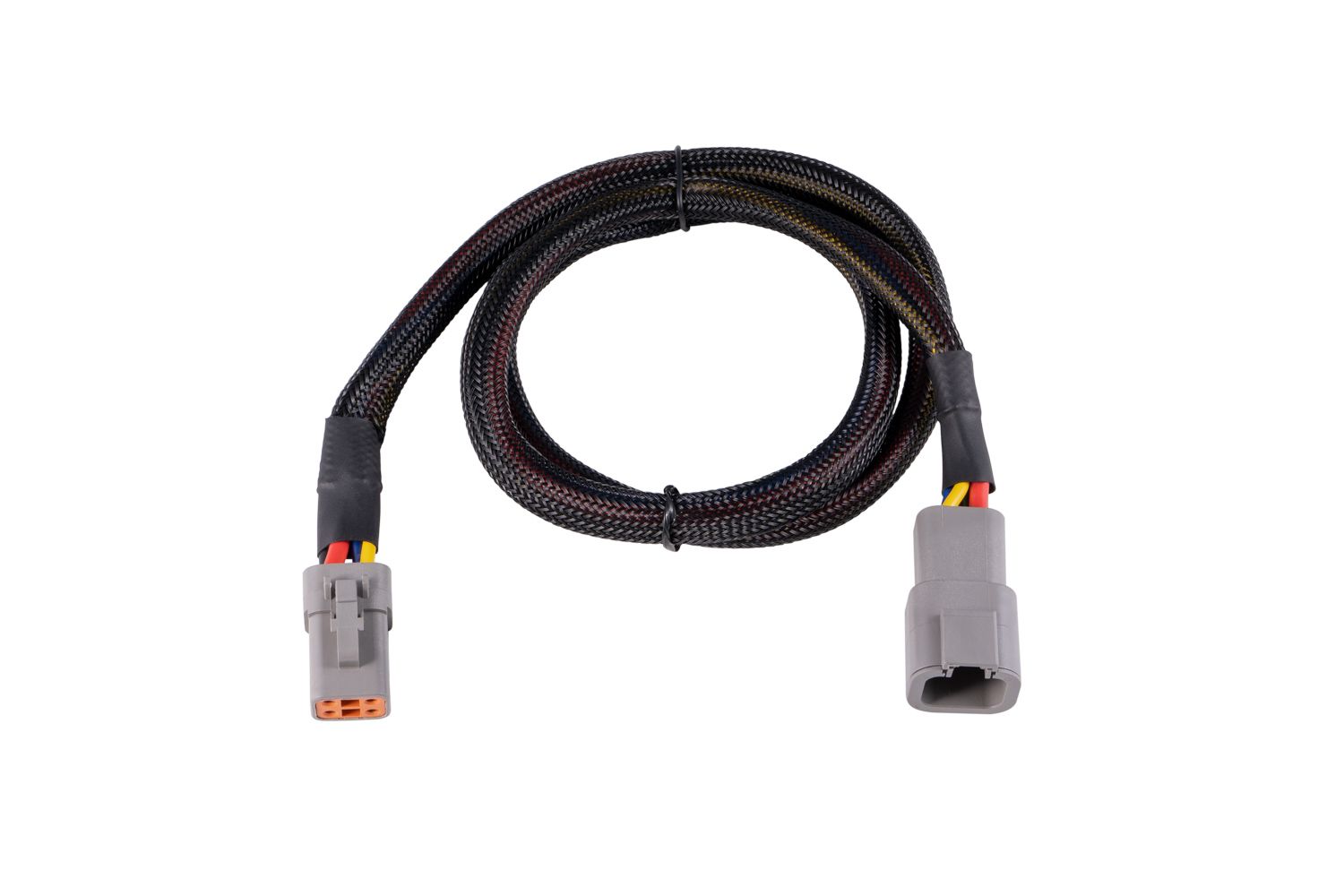

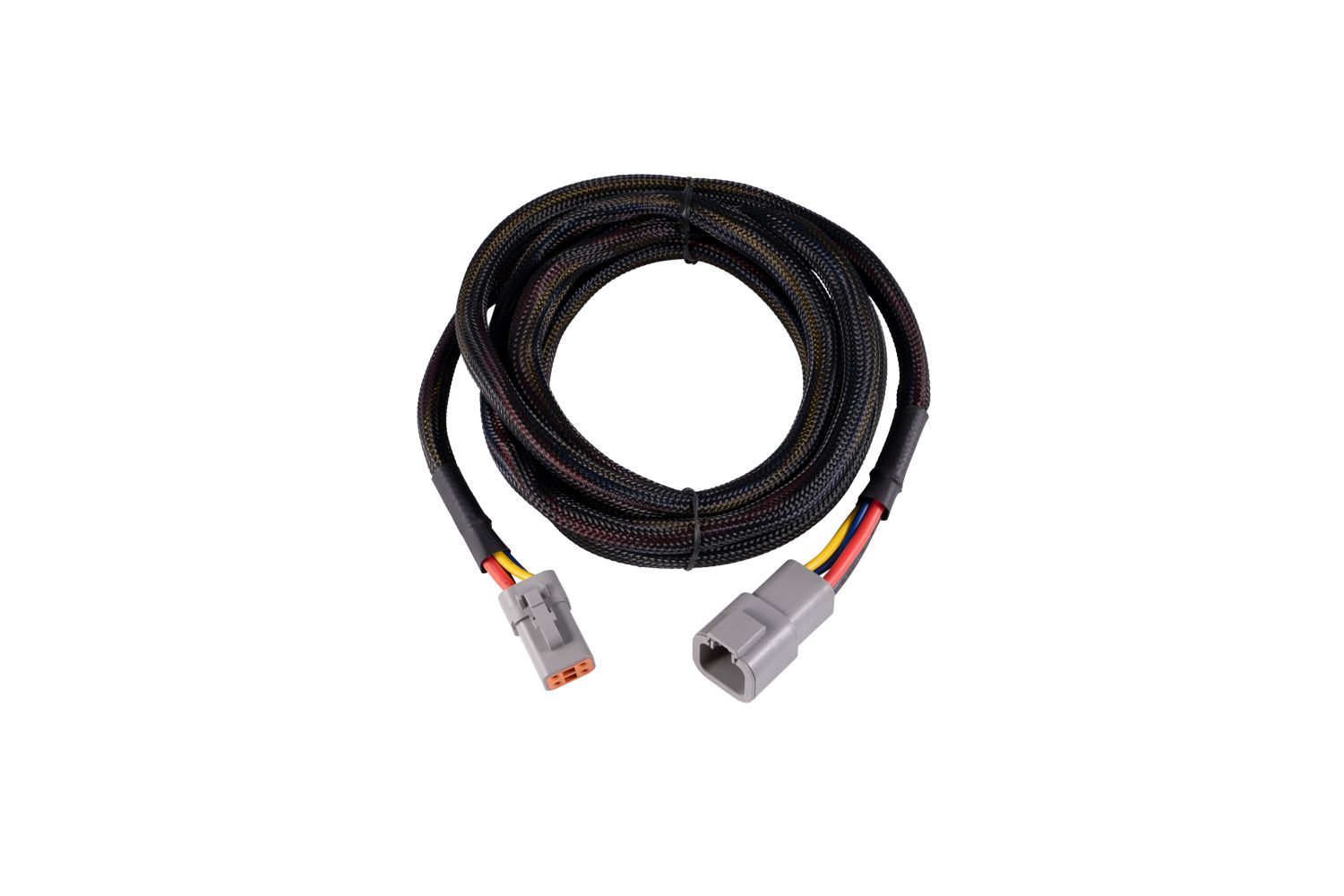

Diode Dynamics Ultra Heavy Duty DT 4-Pin Extension Wire

When your install needs a little more reach, the Stage Series SS5 Pro CrossLink DT-P Extension Wire provides the extra length required to properly connect your 5–8 Pod SS5 Pro CrossLink Lightbar to an Ultra Heavy Duty DT-P Wiring Harness. Built with oversized 10AWG wiring and OEM-grade DT-P connectors, this extension maintains full current capacity while keeping your setup clean, secure, and completely plug-and-play.

Important note

• Pro systems only: Compatible with 5–8 Pod SS5 Pro CrossLink Lightbars
• Harness compatibility: Designed for use with Ultra Heavy Duty DT-P 4-pin wiring harnesses
• Connector type: DT-P 4-pin only
• Modification required: None

Features

• Added length: Extends wiring reach between the lightbar and Ultra Heavy Duty wiring harness
• Pro CrossLink compatibility: Designed specifically for 5–8 Pod SS5 Pro CrossLink Lightbars
• DT-P connectors: Uses DT-P 4-pin connectors for true plug-and-play installation
• Heavy-duty wiring: Built with oversized 10AWG wire to handle high current loads

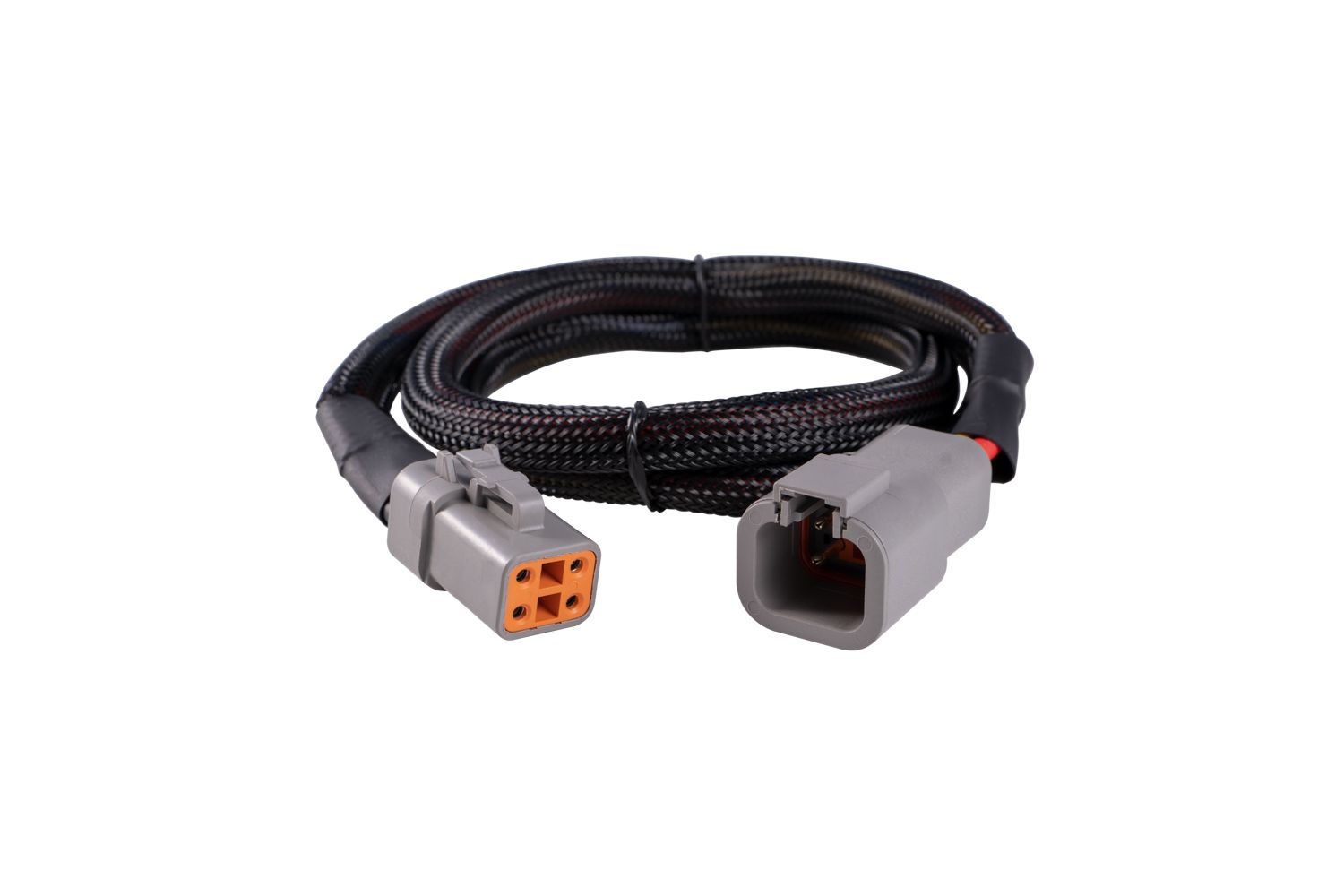

• Male/female design: Includes one male and one female connector for seamless extension
• Made in USA: Engineered and assembled in the United States

Specifications

• Operating voltage: 9–16V
• Wire gauge: 10 AWG
• Operating temperature: -40°C to 85°C (-40°F to 185°F)
• Connector type: DT-P 4-pin
• Warranty: 3-year limited warranty

Package contents

• Extension wire: One (1) DT-P 4-pin extension cable

Fitment

• Light compatibility: Stage Series SS5 LED Pods
• System compatibility: 5–8 Pod SS5 Pro CrossLink Lightbars

Installation

• Installation time: Approximately 5–10 minutes
• Tools required: None
• Modification required: None
