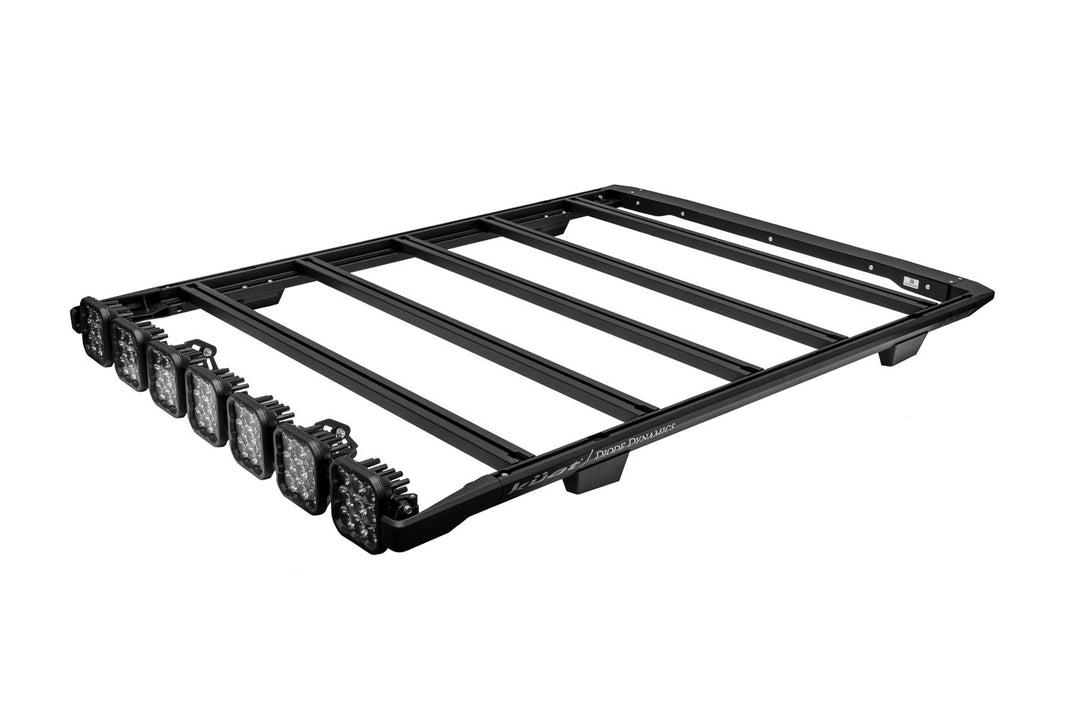

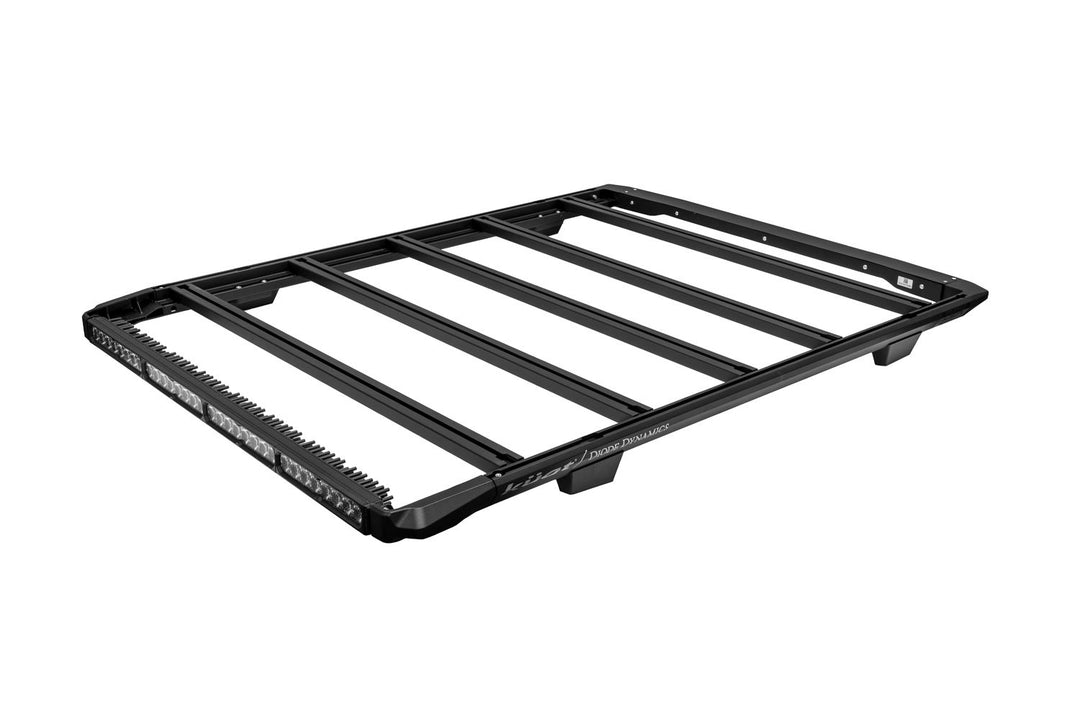

The Diode Dynamics x Kuat DEK Roof Rack for the Toyota Tacoma combines premium rack design with fully integrated Stage Series lighting for a clean, OEM-style solution. Featuring all-metal construction, adjustable crossbars, and your choice of high-output Diode Dynamics lighting, the DEK is engineered to carry gear confidently while delivering serious illumination on and off the trail.
Important note
-
Lighting origin: Diode Dynamics lighting is engineered and made in the USA using globally sourced materials.
-
Rack system: This kit includes the complete Kuat DEK roof rack with integrated lighting.
-
Weight rating: Rated for up to 300 lb of cargo.
Features
-
Integrated lighting: Kuat DEK roof rack with built-in Stage Series lighting.
-

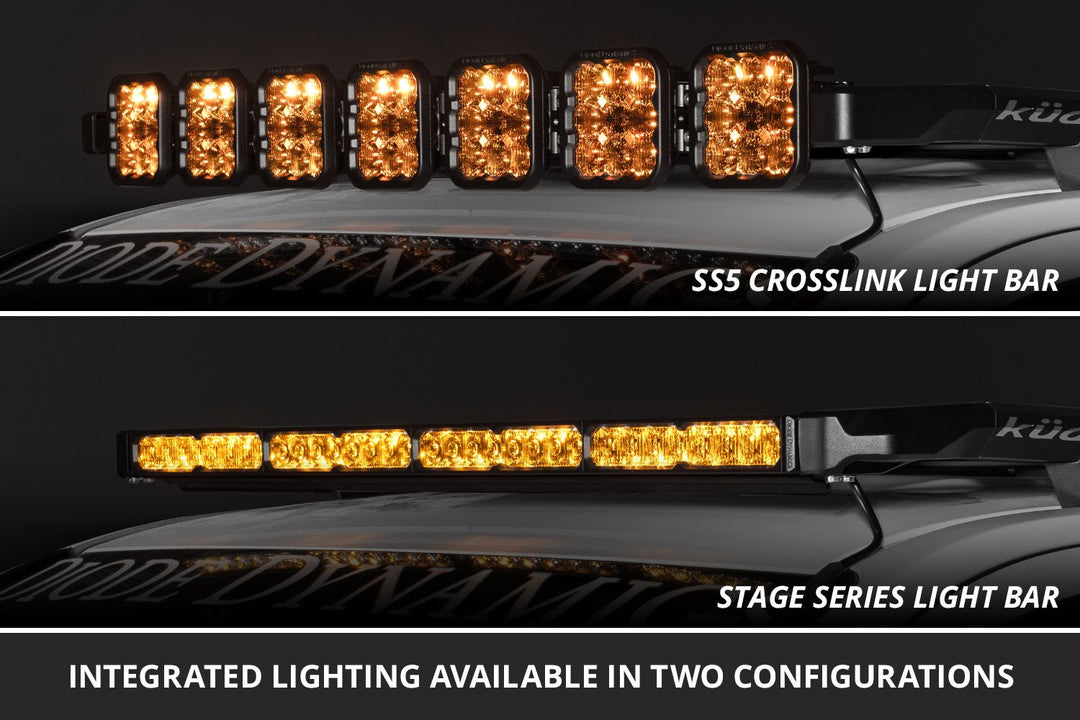

Lighting options: Available with SS5 CrossLink or Stage Series LED lightbar configurations.
-
All-metal construction: Durable, lightweight design engineered to support rooftop tents and gear.
-
Bolt-on installation: Simple install with no drilling required.
-
Adjustable crossbars: Designed to clear antennas and sunroofs while offering flexible accessory mounting.
-
T-channel compatibility: Integrated T-channels for mounting tents, recovery gear, and cargo.
-
High load capacity: Supports up to 300 lb.
-
OEM-style integration: Lighting is seamlessly built into the rack for a clean appearance.
-
Warranty coverage: Backed by a limited lifetime warranty.
Specifications
-
Color temperature: 3000K, 6000K
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Cooling: Passive pin-fin heatsink
-
Compliance: SAE J575 durability test
Lighting output options
-
Sport SS5 CrossLink: 131,300 cd, 1,300 lux @10m, 4,800 lm
-
Pro SS5 CrossLink: 170,000 cd, 1,700 lux @10m, 9,700 lm
-
Sport White SS40: 204,000 cd, 2,040 lux @10m, 14,752 lm
-
Pro White SS40: 281,000 cd, 2,810 lux @10m, 50,176 lm
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)
-
Application: Off-road
Included in the box
-
Roof rack: One (1) Kuat DEK roof rack
-
LED lightbar: One (1) SS5 CrossLink LED lightbar or Stage Series LED lightbar
-
Mounting brackets: Two (2) lightbar mounting brackets
-
Wiring: Necessary wiring harnesses
-
Wire management: One (1) universal adhesive wire hider
-
Zip ties: Four (4)
-
Hardware: Necessary mounting hardware
Additional details
-
Quantity: One (1)
-
Installation time: 2–3 hours
-
Tools required: Basic toolset
-
Modification: None
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
