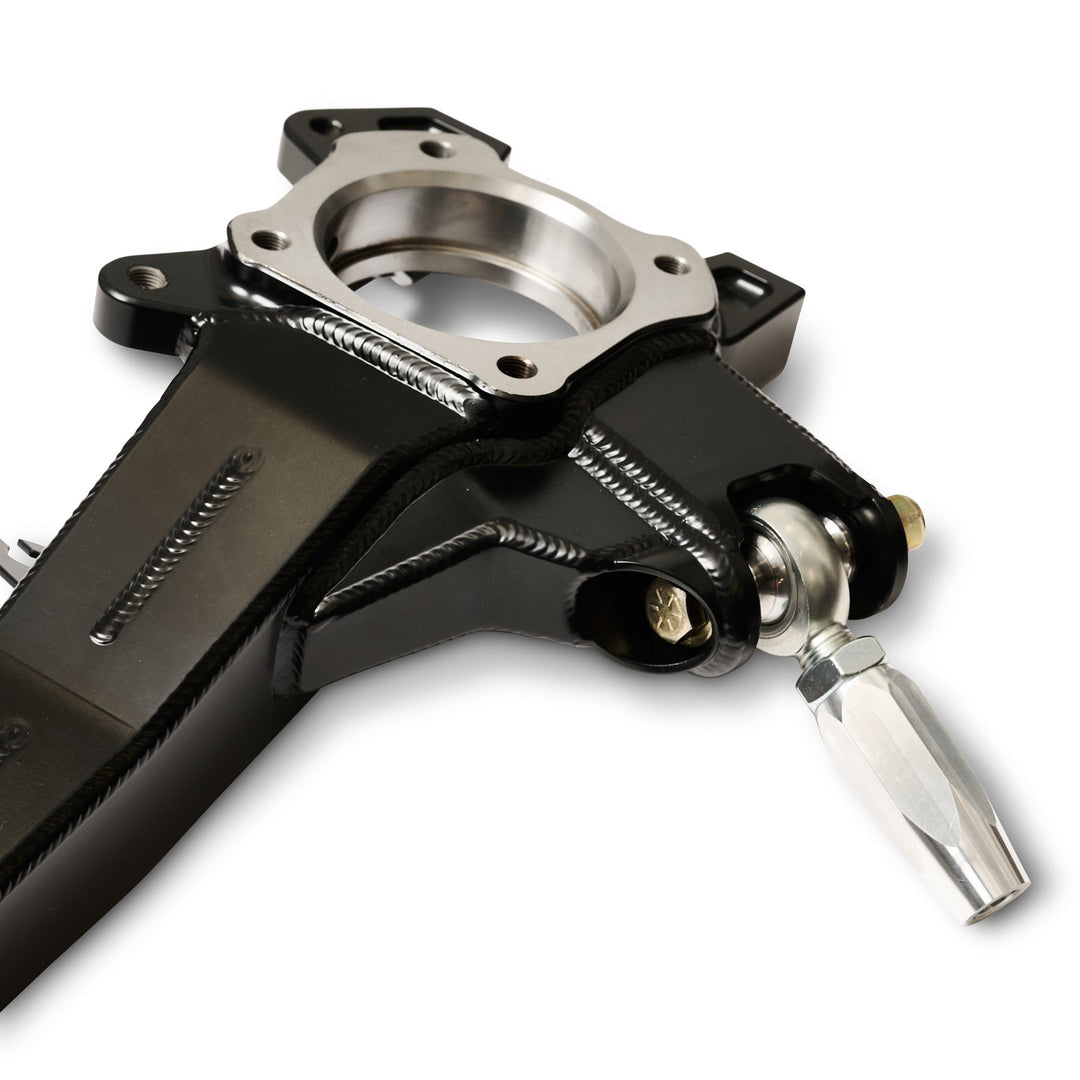

DRT Fabrication Fabricated Spindles for 4Runner (2015-2024)& GX460 (2015-2022)

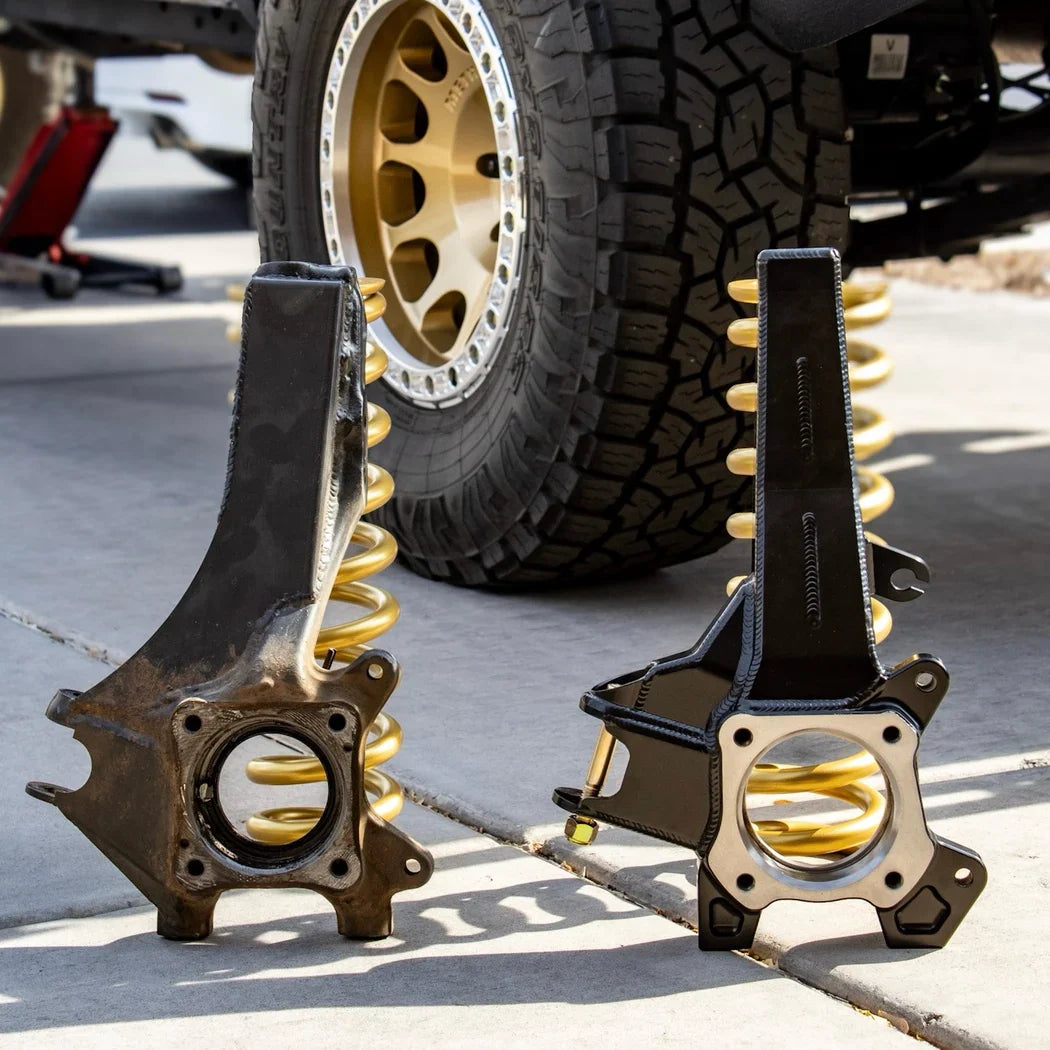

Most bolt-on long travel kits today reuse the factory spindles—leaving a critical weak link in your suspension system. The DRT Fabrication fabbed spindle eliminates this weak point, giving you the missing link in building a bulletproof suspension package. This design is based on the factory spindle with no geometry changes, meaning it is compatible with any bolt-on long travel kit designed for OEM spindles (both 2WD & 4WD Tacoma).

 IMPORTANT NOTE: All non-Tacoma models will require a Tacoma bottom taper misalignment from your UCA manufacturer.
If you have questions, please contact info@drt-fabrication.com
Estimated lead time: 3–4 weeks.

Key Features:

Strength & Construction:

• Built from 3/16" & 1/4" A36 steel plate with internal gussets.
• 100% MIG welded for maximum durability.

Steering:

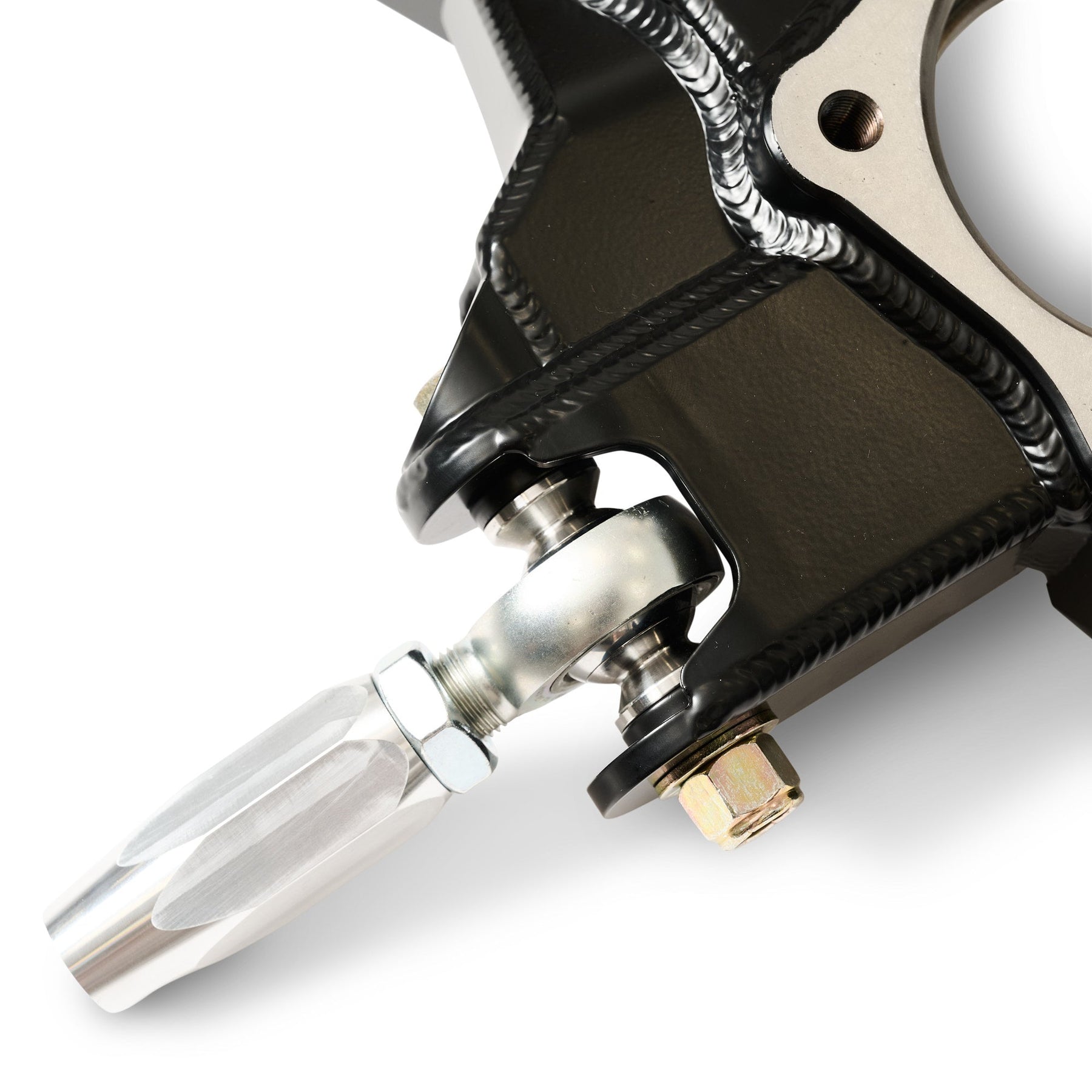

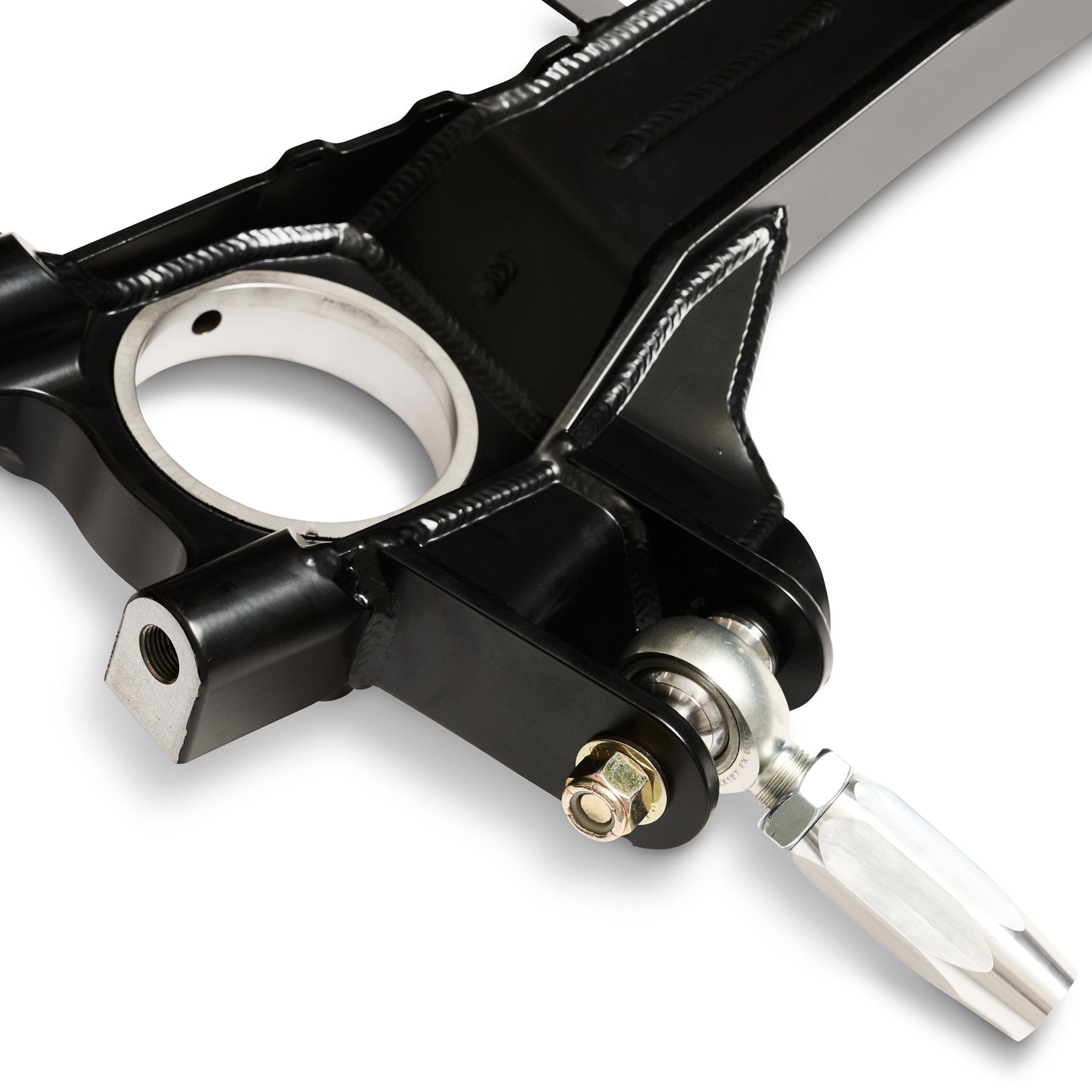

• Standard dual-shear heim steering (outer only) with correct heim center placement—unlike aftermarket conversions that alter geometry.
• Works with factory inner/outer tie rods and steering extenders.

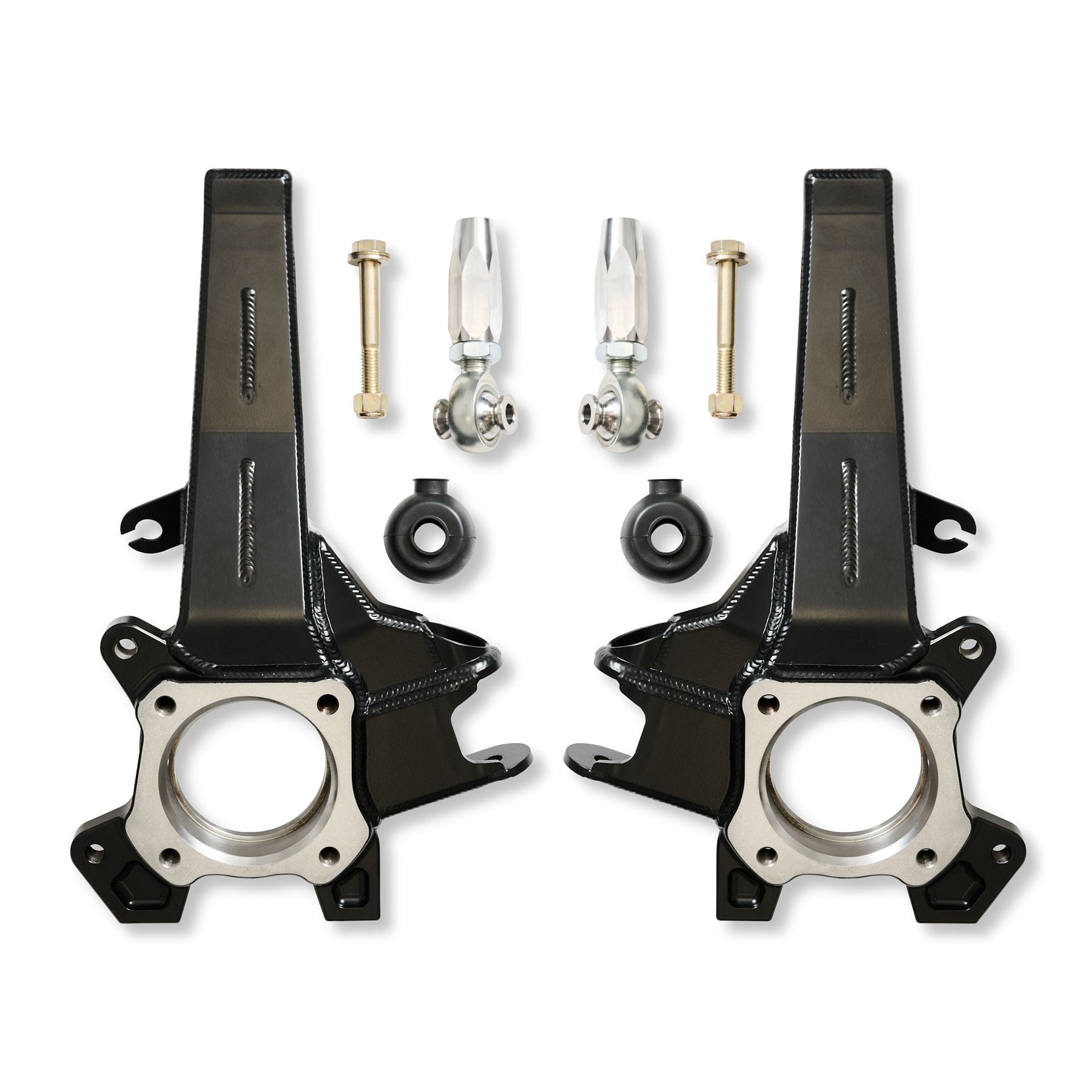

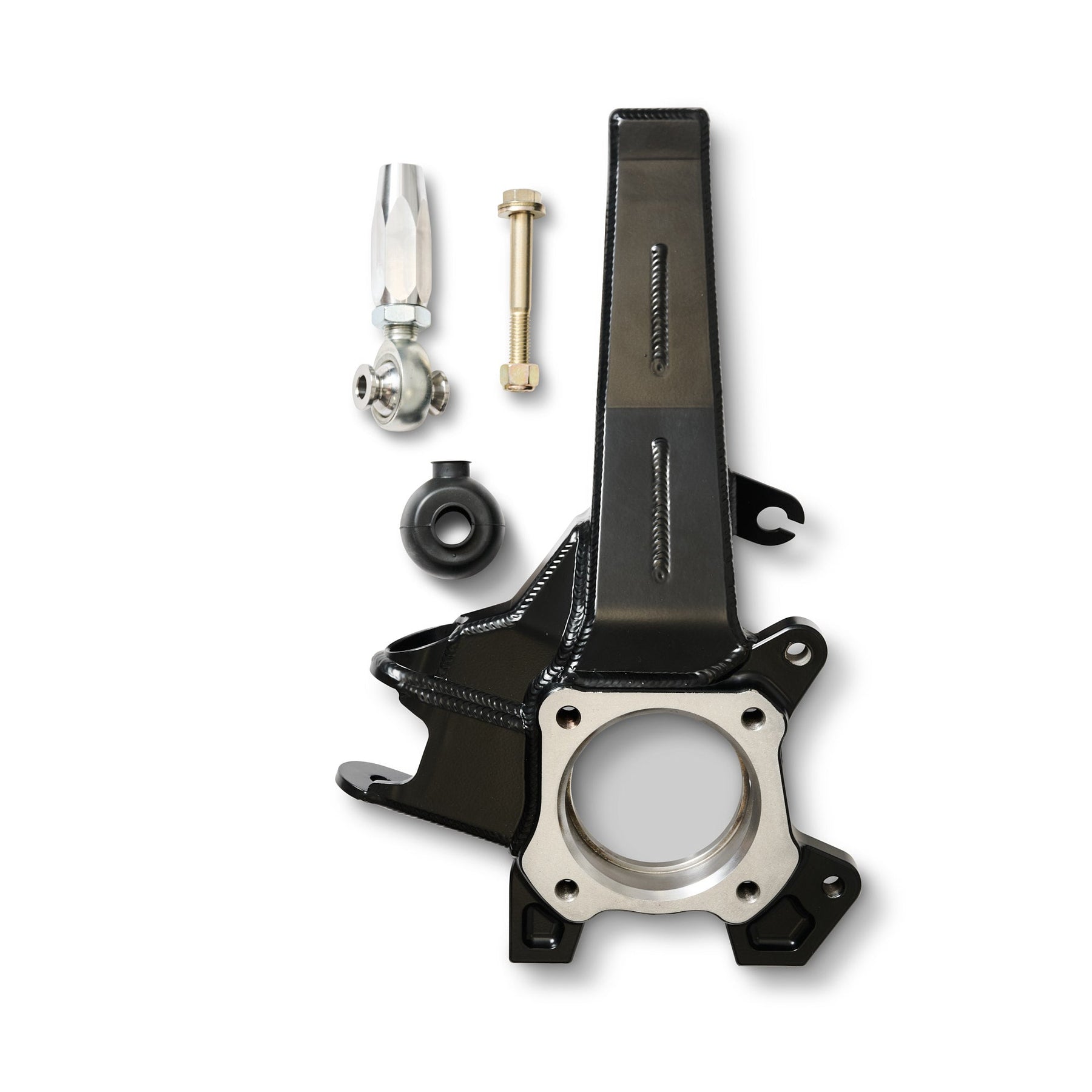

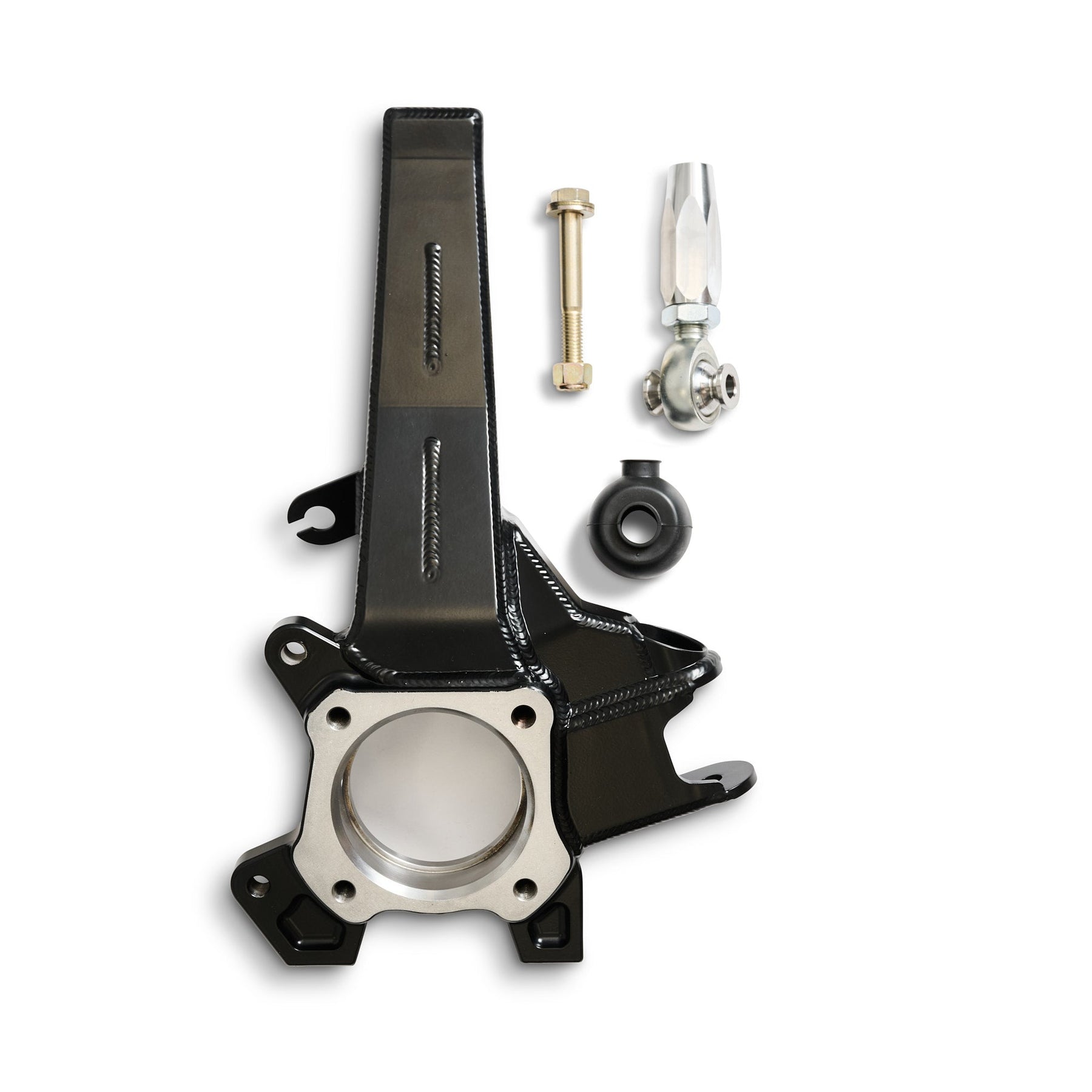

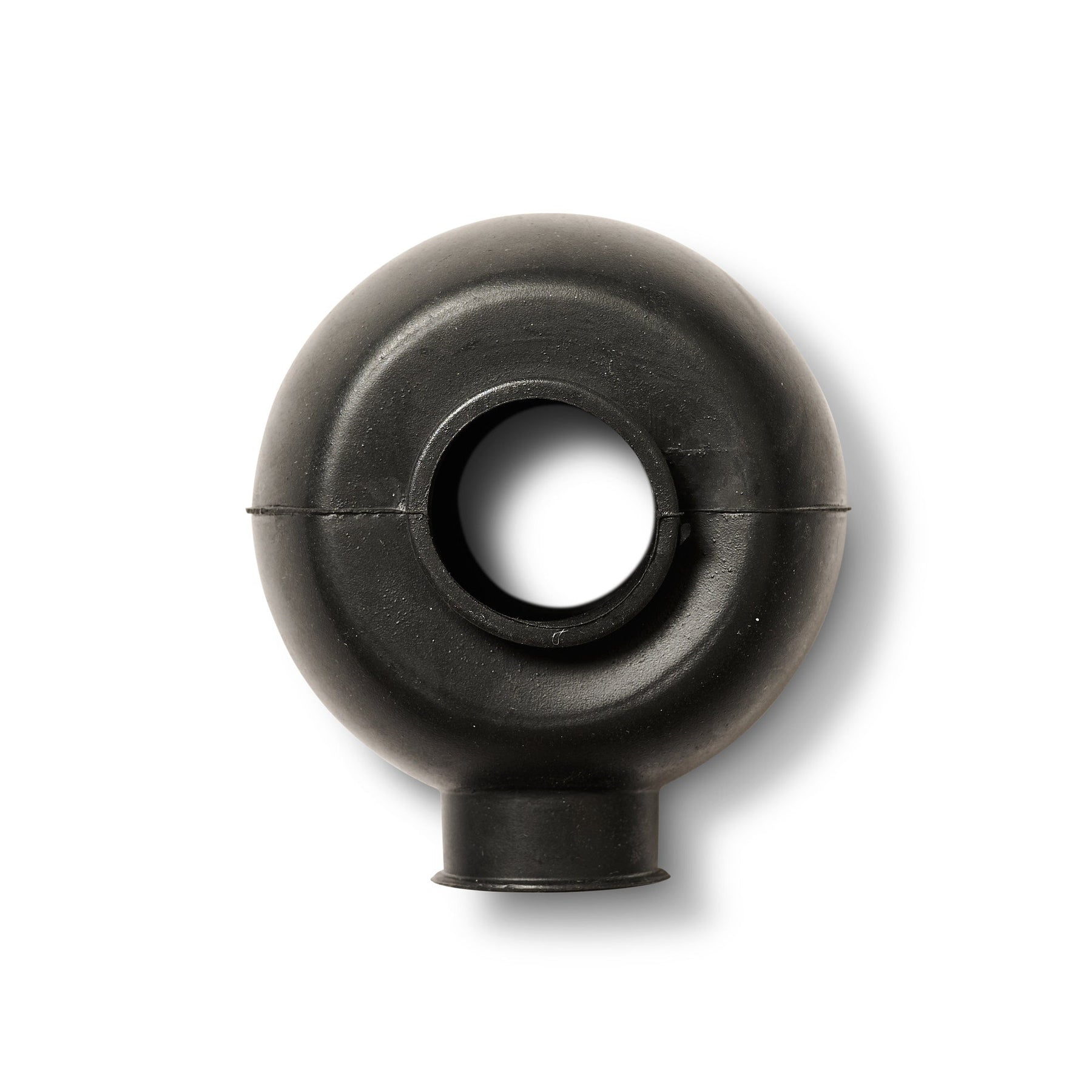

• Includes 3/4" FK JMX12T heim, custom high-angle misaligns, and a rubber boot cover for protection.

Hub Block & Brake Integration:

• Machined from billet steel with integrated caliper mounts.
• ABS sensor relocated behind caliper bracket—protected from damage.
• Stress risers minimized with extensive filleting.

Finish

• Powder coated satin black for a clean, durable finish.

Specs:

• 3/16" & 1/4" A36 plate + internal gusset
• 100% MIG welded
• Double shear heim outer steering w/ boot cover
• Relocated ABS sensor
• Billet hub block, tie rod, and UCA mount
• Satin black powder coat

Requirements & Compatibility

• Wheels: Minimum 16" diameter, minimum 4.5" backspacing
• Sway bars: Not compatible
• Works with factory & aftermarket LCAs
• Fits mid-travel & long-travel applications using OEM-style spindles
• Compatible with bolt-on LT kits and heim steering kits using a JMX12T heim (must use DRT HAM high-angle misaligns)

Brake Kit Fitment:

• SOS Performance BBK: Requires special adapter (contact SOS Performance).
• PowerBrake BBK: Requires special adapter (contact PowerBrake).
