DRT Fabrication Power Steering Cooler & Winch Relocation Kit for Tacoma (2016-2023)
- In stock, ready to ship
- Backordered, shipping soon

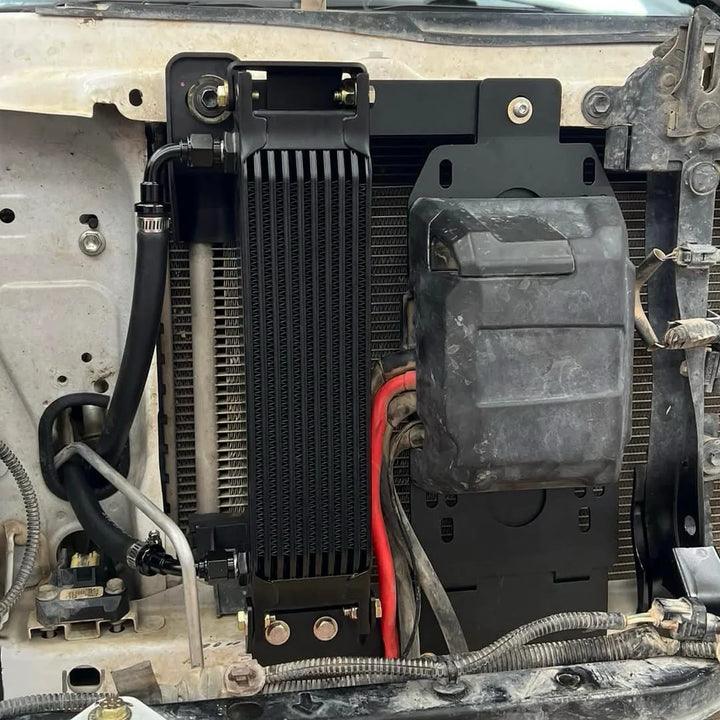

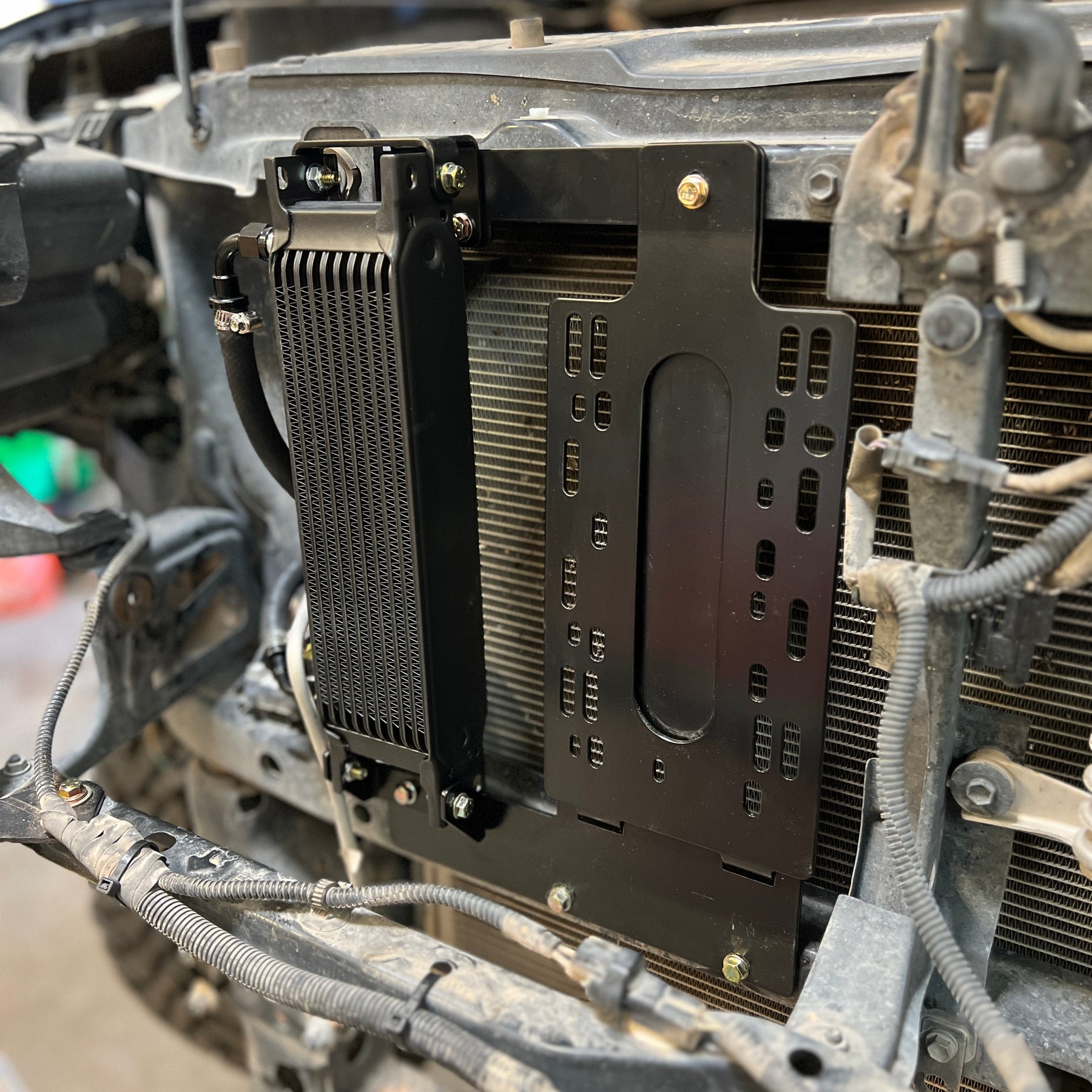

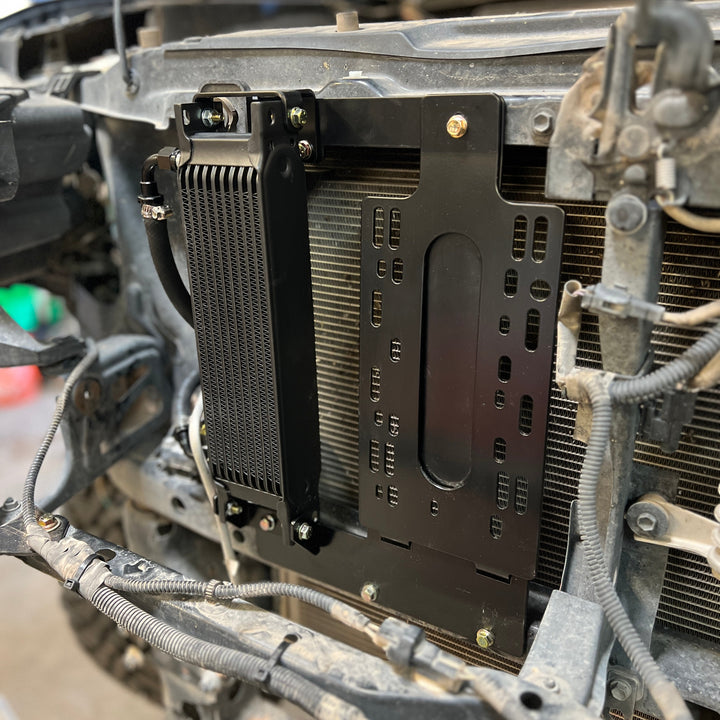

This kit combines two essential upgrades for your 2016–2023 Toyota Tacoma: a power steering cooler relocation/upgrade and a winch control pack relocation bracket. Designed for strength and simplicity, this package is perfect for off-road builds, bumper installs, and overland setups.
Winch Control Pack Relocation
- Fits: Warn ZEON & EVO series, Superwinch, Smittybilt, and Carbon Off-Road winches
- Can fit other brands by drilling your own mounting holes
- Bracket formed from .120 steel plate
- No drilling required – bolts directly to core support
-
Two-piece design for easy install:
- Base plate bolts to core support using existing holes
- Sub plate attaches to winch control box
- Tongue-and-groove design makes installation more secure and eliminates the struggle of accessing tight hardware areas
Power Steering Cooler Upgrade
Some bumpers require relocation of the factory cooler, or you may simply want a stronger unit. The solid-mount power steering cooler delivers peace of mind with reliable mounting and improved performance.
Cooler Specs
- Rows: 10
- Core Length: 11”
- Core Height: 2 ¾”
- Core Thickness: 2”
- Overall Height: 13”
- Overall Length: 3 ⅞”
- Overall Width: 2”
- Inlet: -6AN
- Outlet: -6AN
Kit Includes
- (1) 10-row power steering cooler
- 5 ft power steering hose
- (1) 45° -6AN push-lock fitting
- (1) 90° -6AN push-lock fitting
- (4) Hose clamps
- Rubber edge trim
- Necessary hardware
This kit ensures both your winch control box and power steering system are mounted securely, making it one of the most functional upgrades for your Tacoma’s front-end setup.
