Beat-Sonic CS15 Front Camera Interface for Select Toyota Models (2022+)
- In stock, ready to ship
- Backordered, shipping soon
Seamlessly integrate a front-facing camera into your factory Toyota infotainment screen—without sacrificing OEM backup camera functionality. The Beat-Sonic CS15 is a true plug-and-play front camera interface designed specifically for newer Toyota platforms, allowing you to manually or automatically display a front camera feed on your factory display. It’s an ideal solution for tight parking situations, trail obstacles, low front spoilers, or navigating confined spaces with confidence.
With intelligent logic built in, the CS15 prioritizes safety by always defaulting to the factory backup camera when in reverse, while giving you full control of the front camera at low speeds or on demand.
Note
- Front Camera Not Included: This product does NOT include a front camera (sold separately).
- OEM Backup Camera Retained: Factory rear camera functionality remains unchanged.
- Reverse Priority: Backup camera always overrides the front camera in reverse.
- OE-Style Switch Included: Factory-look selector switch with white LED is included.
- Vehicle-Specific: Compatible only with listed Toyota models and screen sizes.
Recommended Front Cameras (Sold Separately)
- BCAM10W: White front license plate mount
- BCAM11A: Black front grille mount
Features
- Front & Rear Camera Integration: Switch between front camera, rear camera, and factory display.
- Manual Camera Activation: View the front camera anytime using the included selector switch.
- Low-Speed Auto Display: Automatically displays the front camera below 9 mph.
- Programmable Timer: Adjustable display duration (5s / 10s / 15s / 20s / ON–OFF).
- Obstacle Awareness: Ideal for parking, off-road driving, and front clearance visibility.
- OE-Style Selector Switch: Factory-style fit with white LED illumination.
-
Plug-and-Play Installation: No cutting, splicing, or factory wiring modification required.
Specifications
- Brand: Beat-Sonic
- Model: CS15
- Operating Voltage: DC 11V – 15V
- Current Draw: < 100 mA (camera not included)
- Main Unit Dimensions: 70 × 19 × 61 mm
- Main Unit Weight: 38 g
- Selector Switch Cable Length: 1.8 m
Compatibility
Compatible ONLY with the following Toyota models and screen sizes:
- 2025–2026 Toyota 4Runner: 8” display only
- 2025–2026 Toyota Camry: 8” or 12.3” display
- 2023–2026 Toyota Corolla / GR Corolla: 8” display
- 2024–2026 Toyota Grand Highlander: 12.3” display
- 2023–2026 Toyota Highlander: 8” or 12.3” display
- 2024–2026 Toyota Land Cruiser: 8” or 12.3” display
- 2023–2026 Toyota Prius: 8” or 12.3” display
- 2023–2025 Toyota RAV4: 8” or 12.5” display
- 2025–2026 Toyota Sienna: 8” or 12.3” display
- 2023–2026 Toyota Sequoia: 8” display only
- 2024–2026 Toyota Tacoma: 8” display only
- 2022–2026 Toyota Tundra: 8” display only

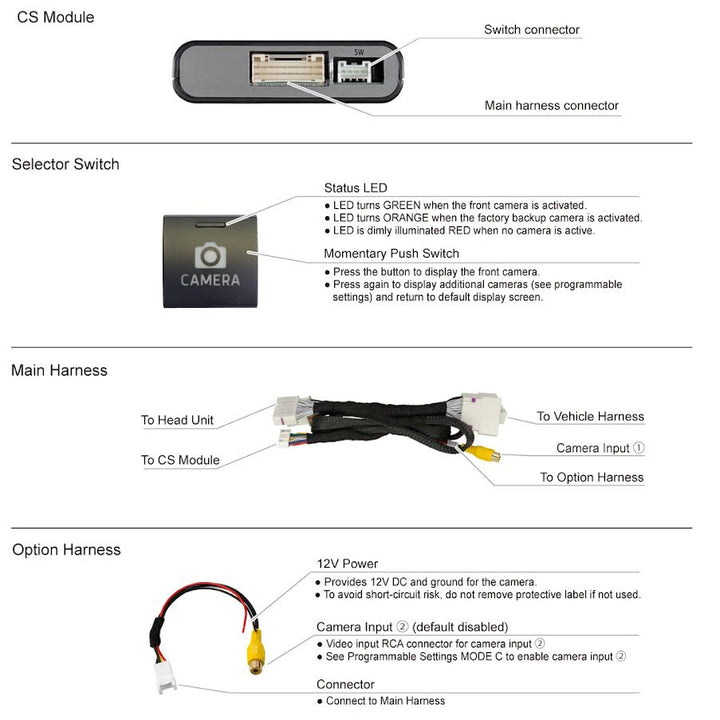

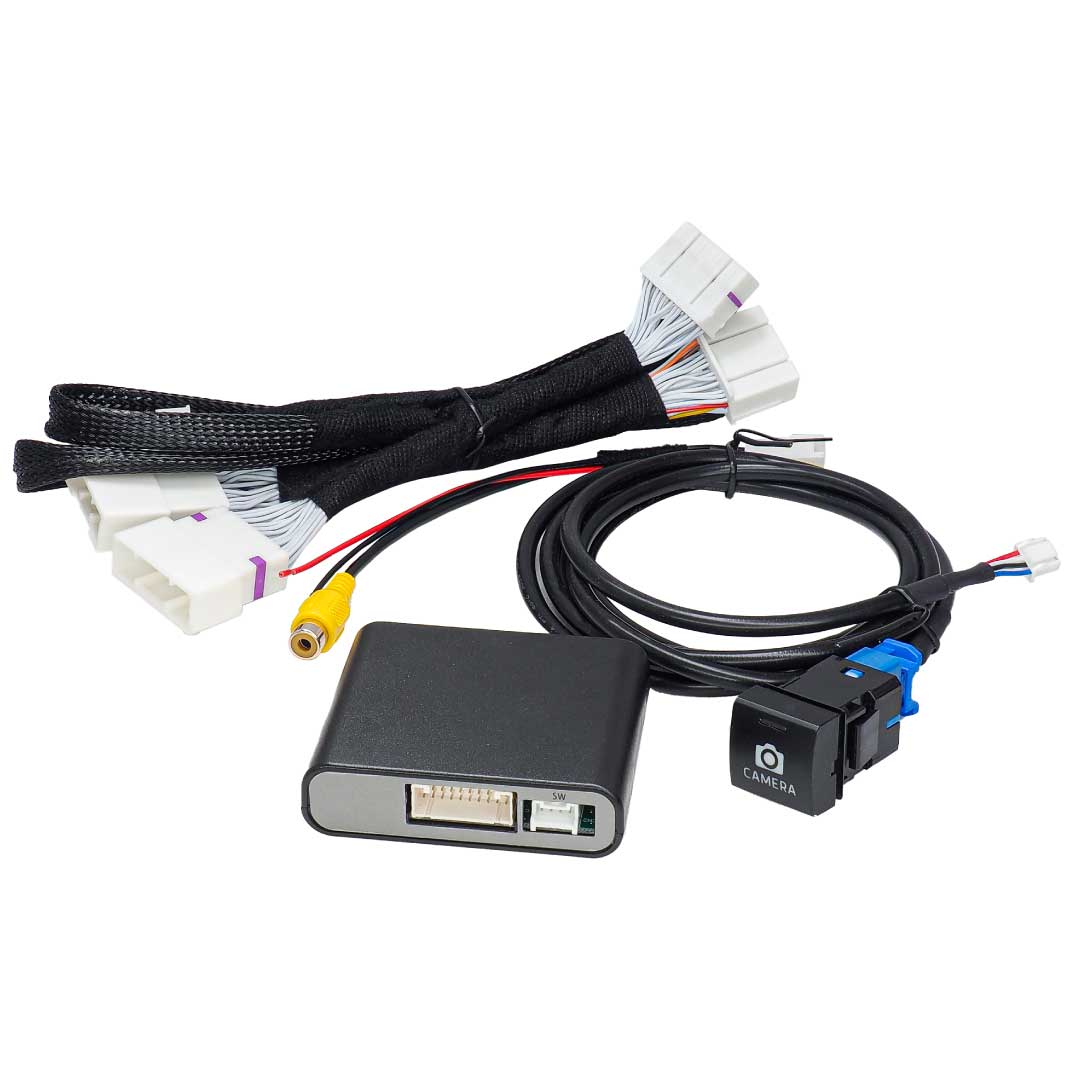

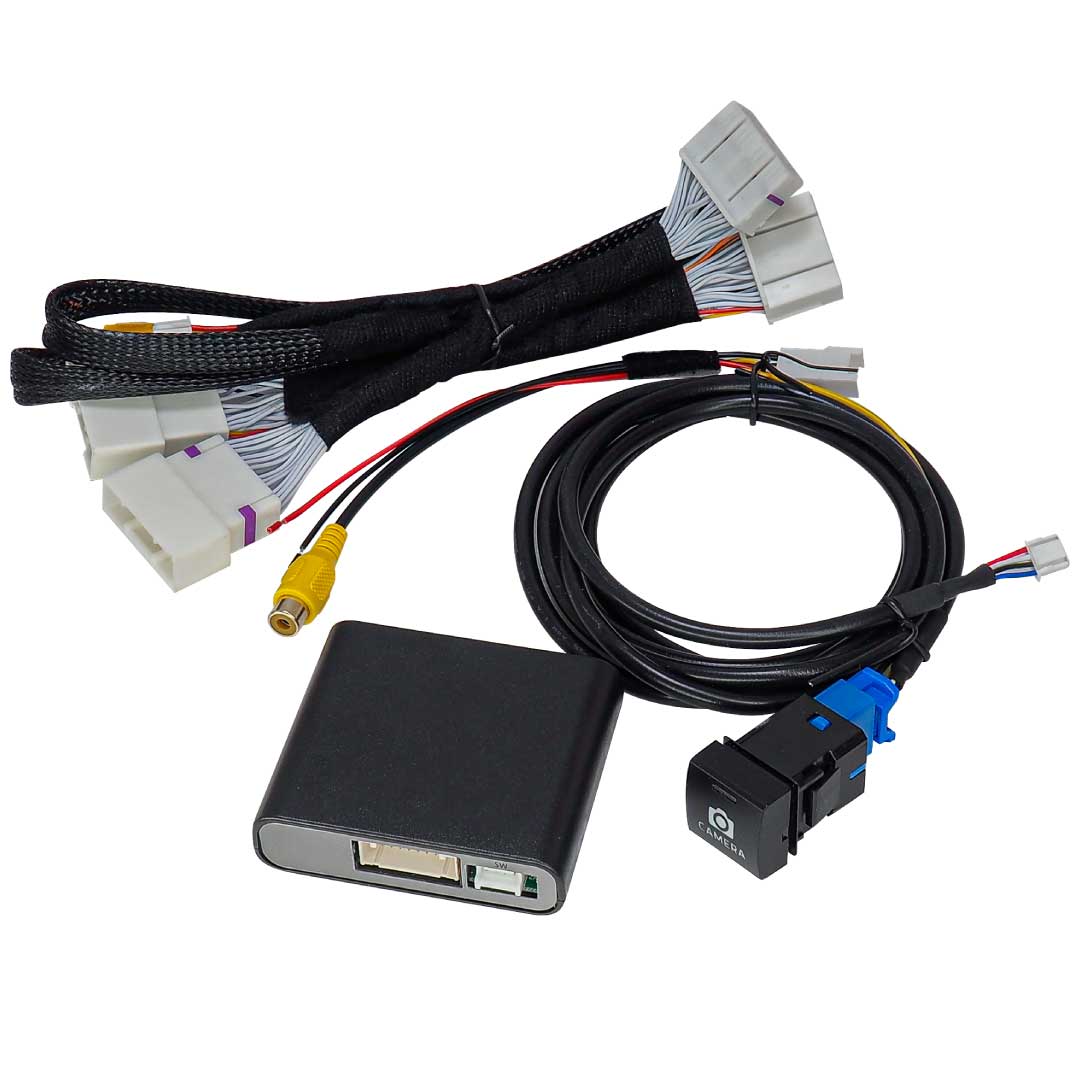

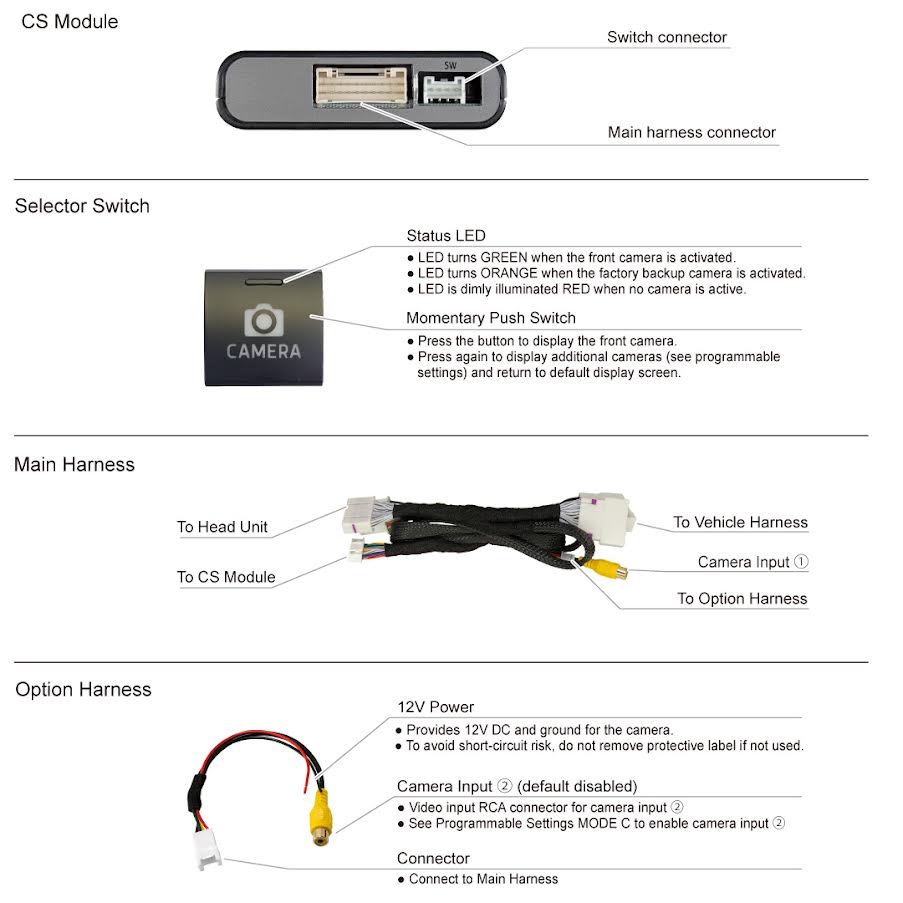

What’s Included
- Front Camera Interface Module
- OE-Style Selector Switch (White LED)
- Plug-and-Play Wiring Harness
- Installation Documentation
FAQ – Quick Answers
-
Does this include a front camera?
No. Front camera is sold separately (BCAM11A recommended). -
Will my factory backup camera still work?
Yes. The OEM backup camera remains fully functional and always takes priority. -
Can I view the rear camera while driving?
Yes, using the selector switch. -
Can this system record video?
Not recommended. A dedicated 2-channel dash cam is better suited for recording.
