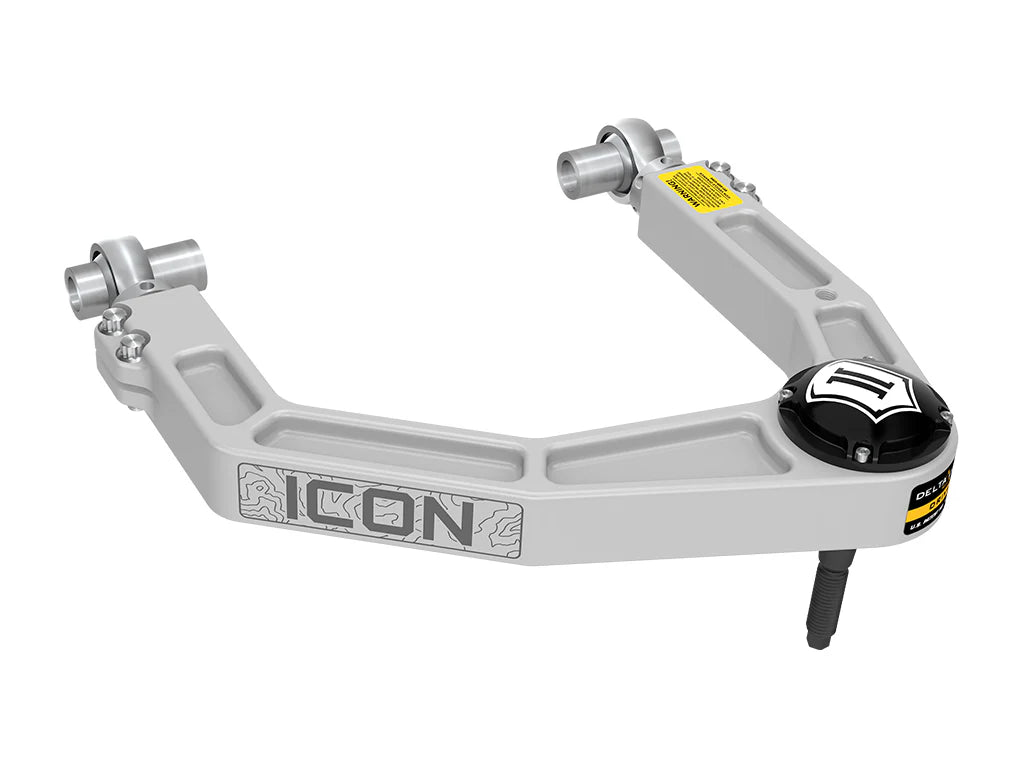

Icon Billet FrontUpper Control Arms w/ Delta Joint Pro for Tacoma (2024+),Land Cruiser (2024+), GX550 (2025+) , 4Runner (2025+)

The ICON Billet Aluminum Upper Control Arm Kit is engineered to dramatically improve front suspension performance, alignment capability, and durability for late-model Toyota and Lexus platforms. Designed specifically to correct front-end geometry on lifted vehicles, this kit increases camber and caster adjustment while improving suspension and component clearance—making it an ideal upgrade for both daily-driven and off-road–focused builds.

Each upper control arm is CNC-machined from 6061 billet aluminum using a hybrid H-beam cross-section, delivering exceptional strength while remaining lightweight and highly resistant to bending forces. The factory ball joint is replaced with the ICON Delta Joint PRO, a fully serviceable and rebuildable joint designed to allow full bump and droop travel without binding.

At the chassis pivots, FK 3/4” Heim joints provide smooth, precise articulation, while ICON’s double adjuster sleeveallows fast, on-vehicle camber and caster adjustments without removing the arms. Supplied with all required hardware, this kit offers a premium front-end solution for improved handling, alignment, and long-term reliability on and off the trail.

Features

• Billet Aluminum Construction: CNC-machined 6061 aluminum with a satin anodized finish
• Corrected Geometry: Restores proper alignment on vehicles with up to 3” of lift
• On-Vehicle Adjustment: ICON double adjuster sleeve enables quick camber and caster tuning
• Delta Joint PRO: Allows maximum articulation without binding through full suspension travel
• Serviceable Design: Delta Joint PRO is fully rebuildable and 100% serviceable
• FK Heim Joints: 3/4” rod ends at chassis pivots for strength and precise movement
• Dust Protection: O-ring sealed dust cover cap for extended joint life
• Improved Clearance: Optimized for increased suspension and component clearance

Fitment

• Toyota Tacoma: 2024–2025
• Toyota Land Cruiser 250 Series: 2024–2025
• Toyota 4Runner: 2025
• Lexus GX550: 2024–2025

Included in the Box

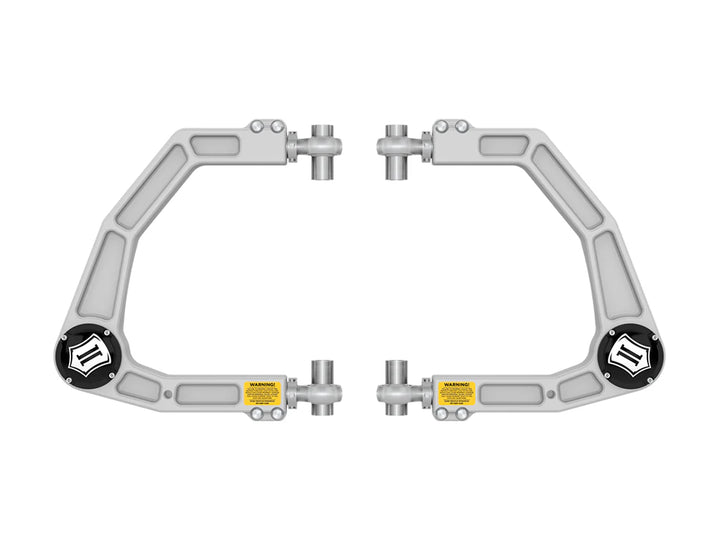

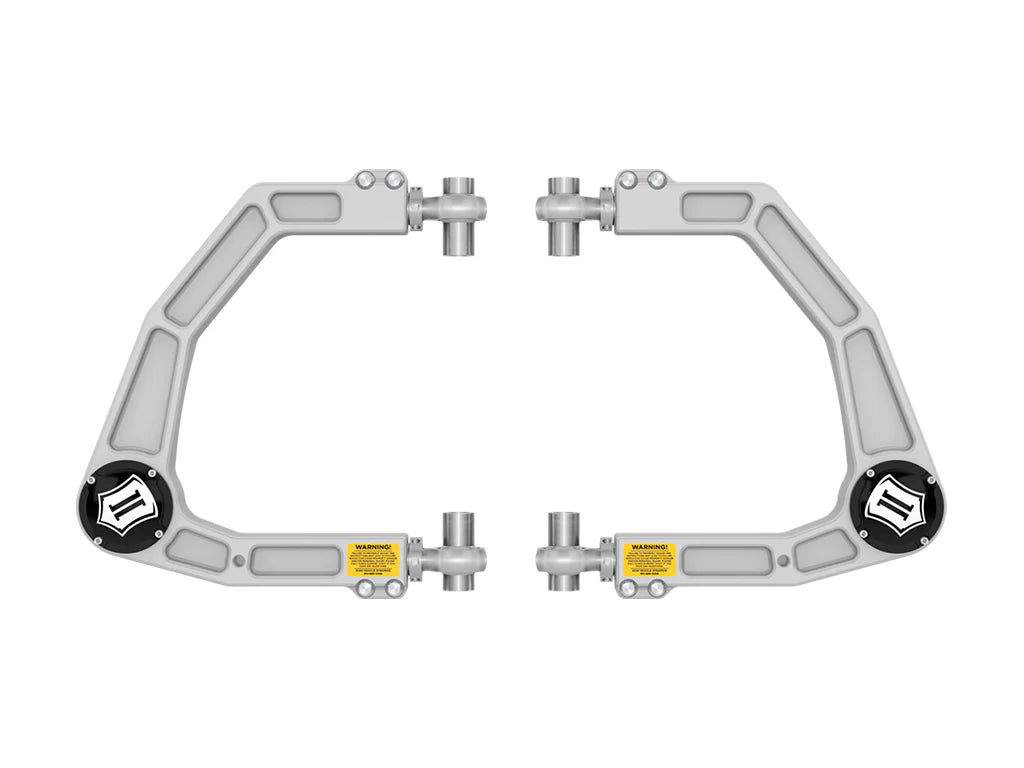

• ICON billet aluminum upper control arms (left & right)
• ICON Delta Joint PRO assemblies
• FK Heim joints
• Double adjuster sleeves

Tech Specs

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• TECH NOTE: Compatible with 0-3” of front lift over stock
• TECH NOTE: Also available with gold anodized finish. See part number 58552GDJ.
