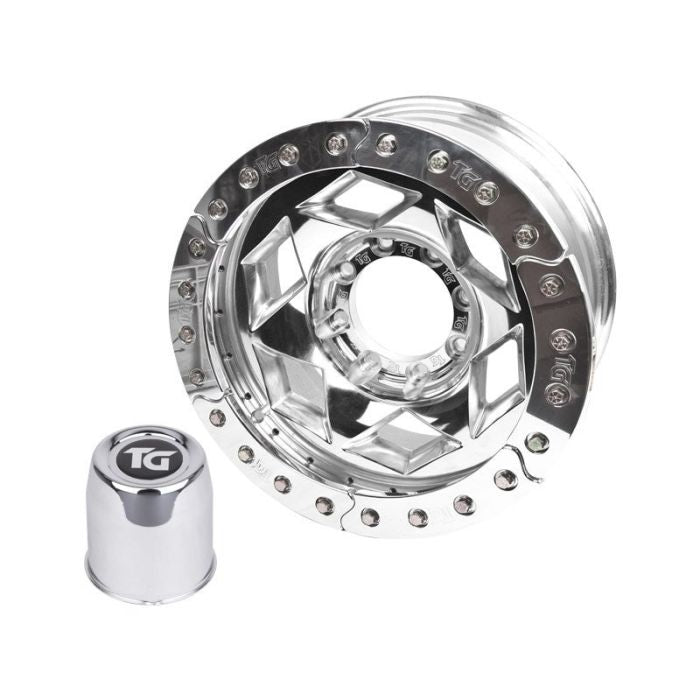

Trail Gear 17" Aluminum Beadlock Wheel, (8 on 6.5 w/ 5.00" BS), Polished Segmented Ring

Built for serious off-road abuse, Trail-Gear Creeper Locks™ 8-Lug Beadlock Wheels deliver unmatched strength, durability, and trail-ready performance. Cast from solid aluminum with an integrated inner beadlock design, these heavy-duty wheels are engineered to handle extreme terrain while maintaining secure tire retention at low pressures. With multiple backspacing options and sectional beadlock rings for easier serviceability, Creeper Locks™ provide the confidence and capability needed for rock crawling, trail running, and competitive off-road driving.

Important Notes

• Lug Nut Requirement: Requires conical seat lug nuts for proper installation
• Heavy Duty Weight: Each wheel weighs approximately 45 lbs with beadlock ring and hardware
• Hub Cover Included: TG hub cover is included with every wheel at no additional cost
• Beadlock Use: Designed for off-road use where bead retention at low tire pressures is critical

Features

• Solid Aluminum Construction: Cast from a single piece of aluminum for maximum strength and durability
• Integrated Inner Beadlock: Inner beadlock design helps secure the tire during extreme off-road use
• Sectional Beadlock Rings: Interlocking multi-piece rings allow individual segment replacement if damaged
• Aggressive Knurling: Enhanced bite into tire bead improves retention and reduces slippage
• Steel Time-Sert Inserts: All 24 bolt holes feature steel inserts to prevent thread galling and increase longevity
• Grade 8 Hardware: Includes high-strength 5/16 inch beadlock bolts for reliable clamping force
• Drop Center Inner Lip: Helps center the tire on the wheel during mounting for easier installation
• Trail Proven Performance: Extensively tested on demanding terrain including extreme rock crawling courses

Specifications

• Wheel Size: 17 x 9 inches
• Backspacing Options: 3.75 inch, 4.25 inch, or 5.00 inch
• Center Bore: 5-1/8 inches
• Load Rating: 2200 lbs per wheel
• Bolt Hole Quantity: 24 beadlock hardware mounting points
• Wheel Weight: Approximately 45 lbs each

Included In The Box

• Wheel: Trail-Gear Creeper Locks™ 8-lug beadlock wheel
• Beadlock Ring: Sectional interlocking beadlock ring system
• Hardware: Grade 8 beadlock bolts and mounting hardware
• Hub Cover: TG hub cover included

Fitment

• Application: Vehicles equipped with 8-lug wheel hubs compatible with specified center bore and backspacing options
