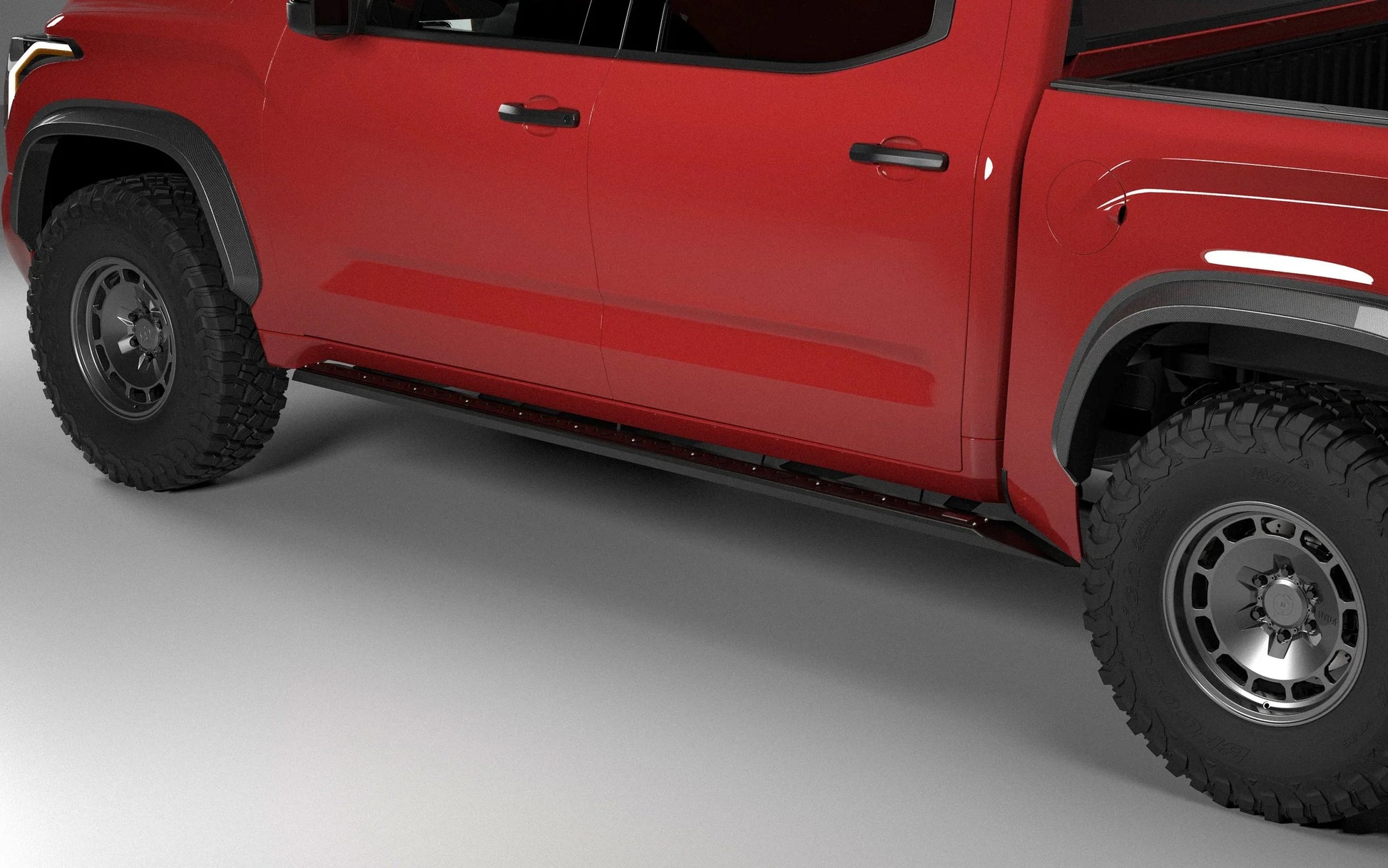

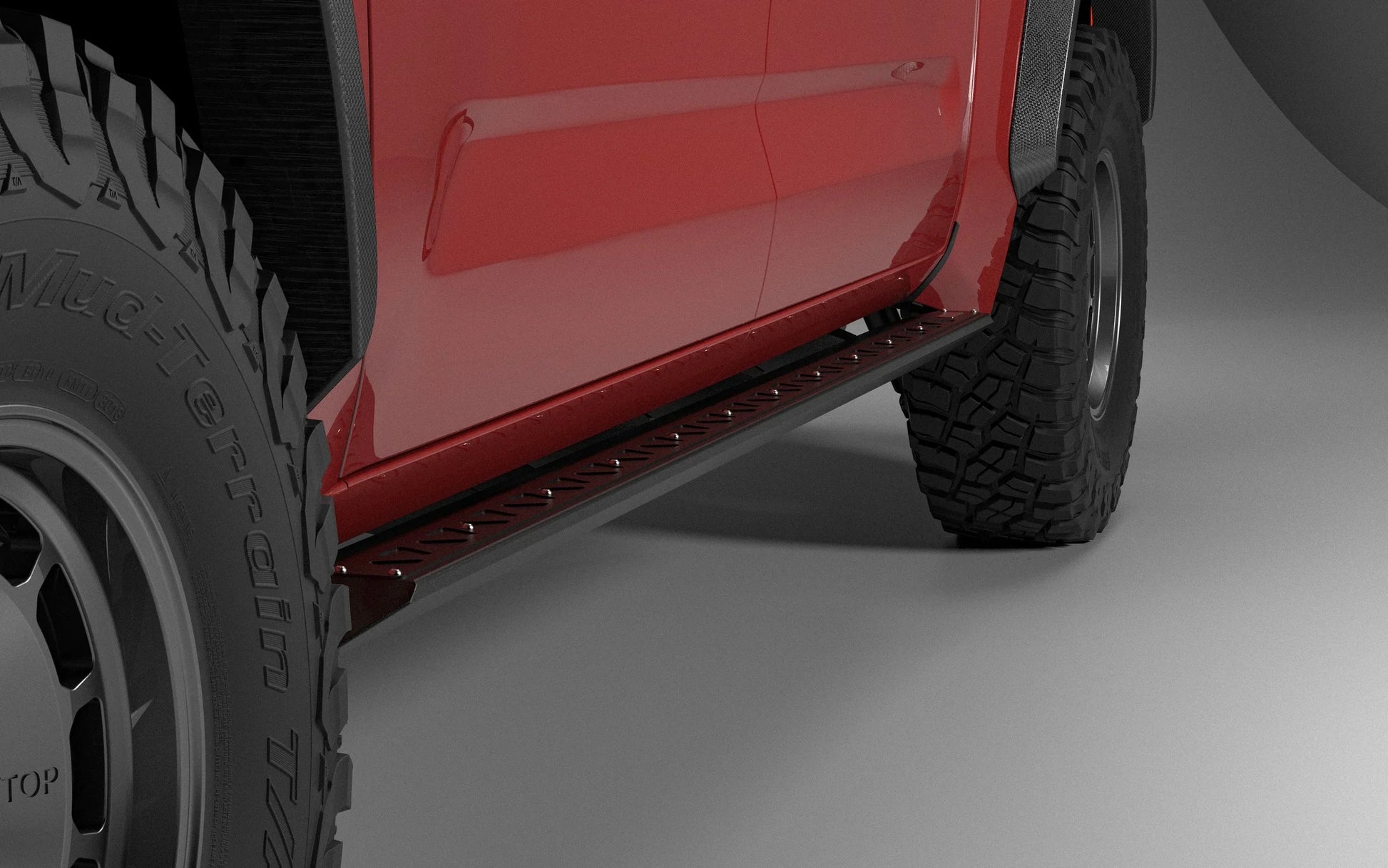

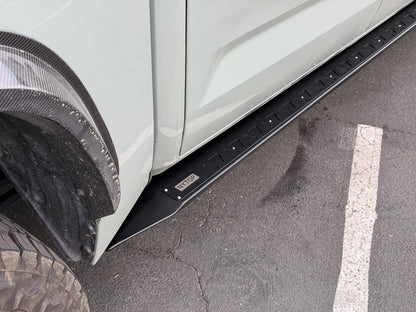

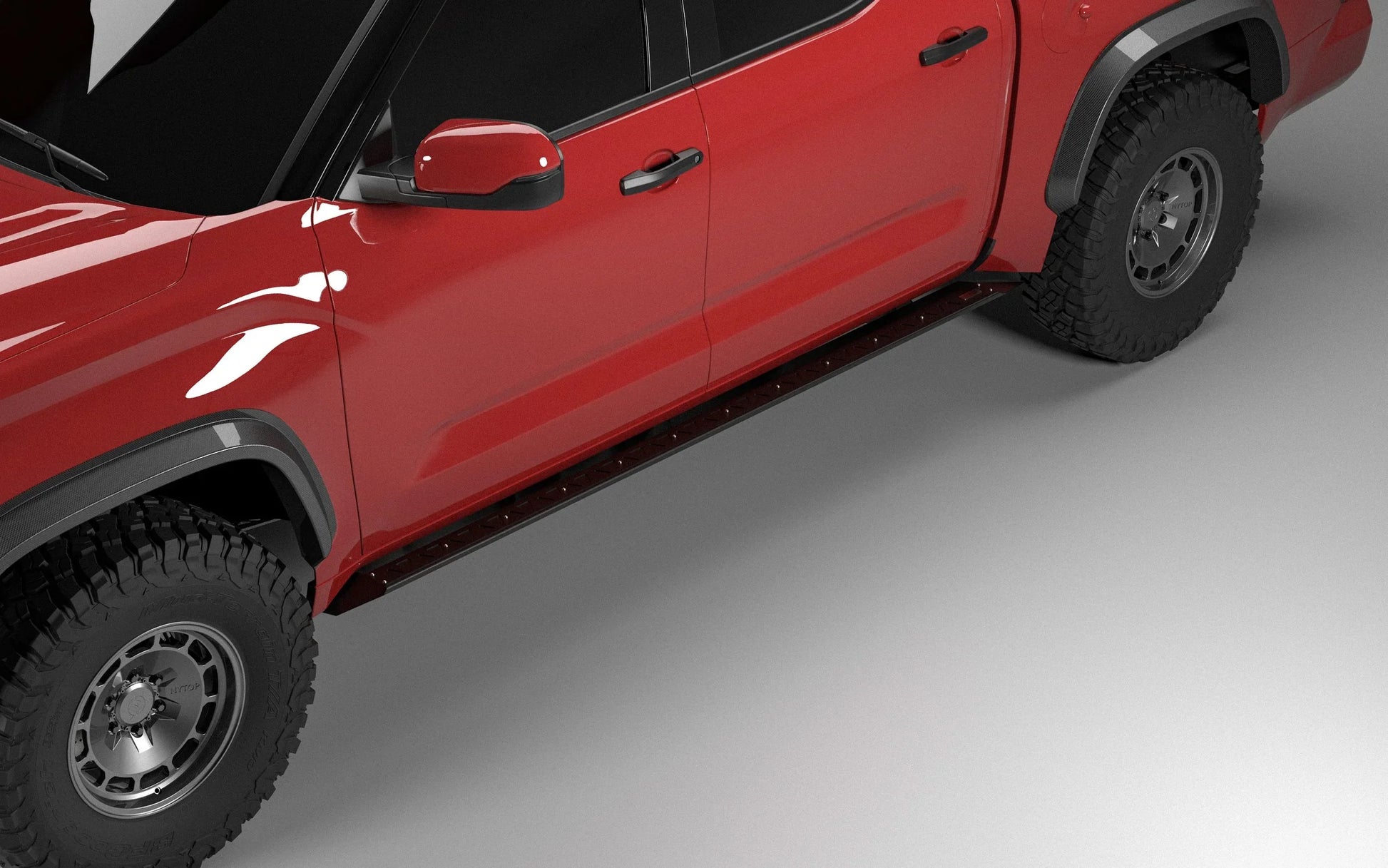

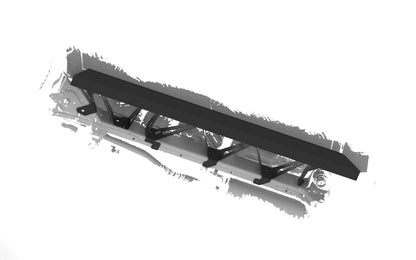

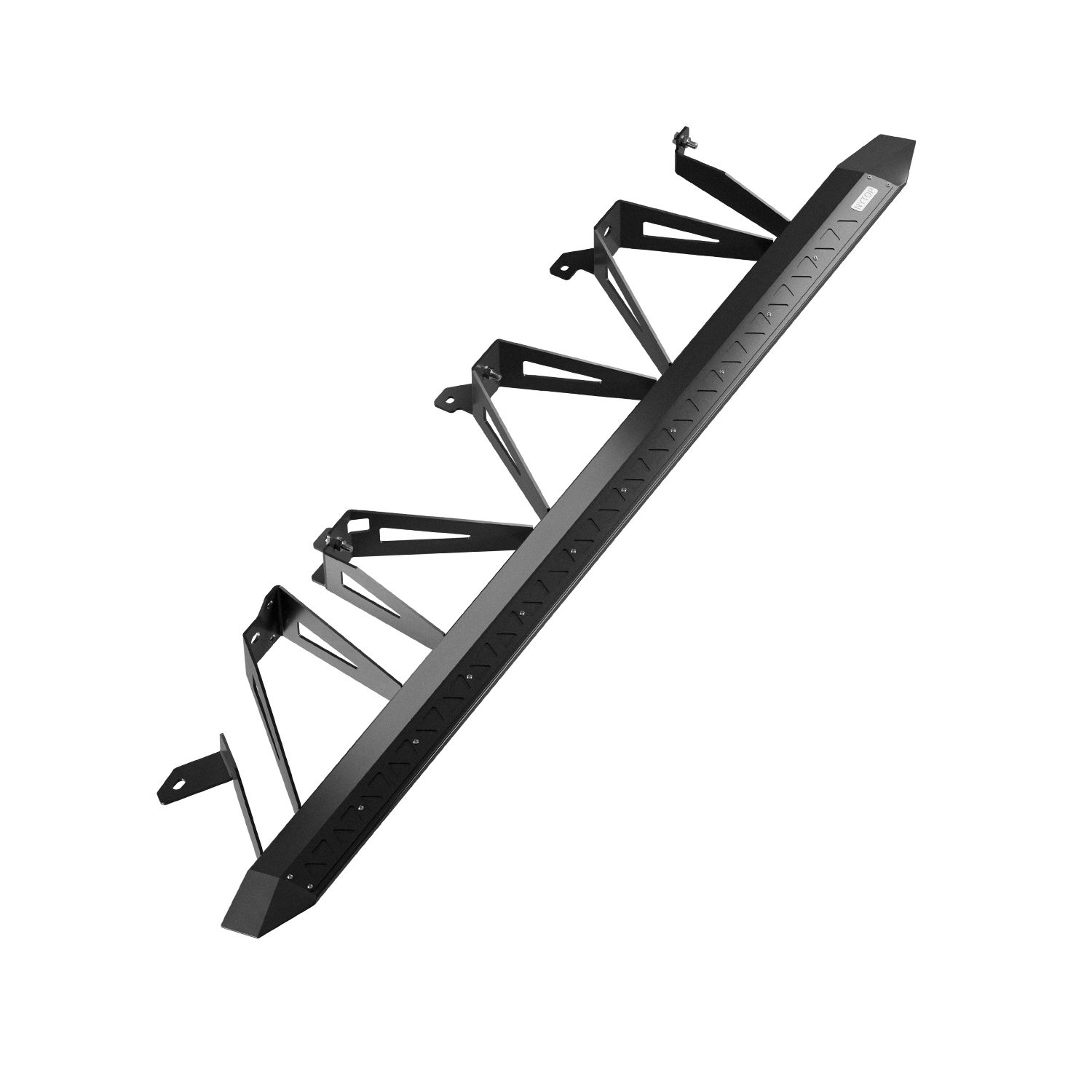

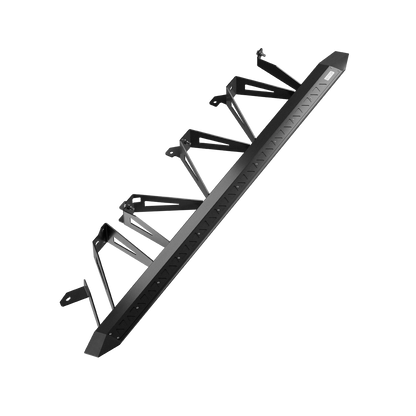

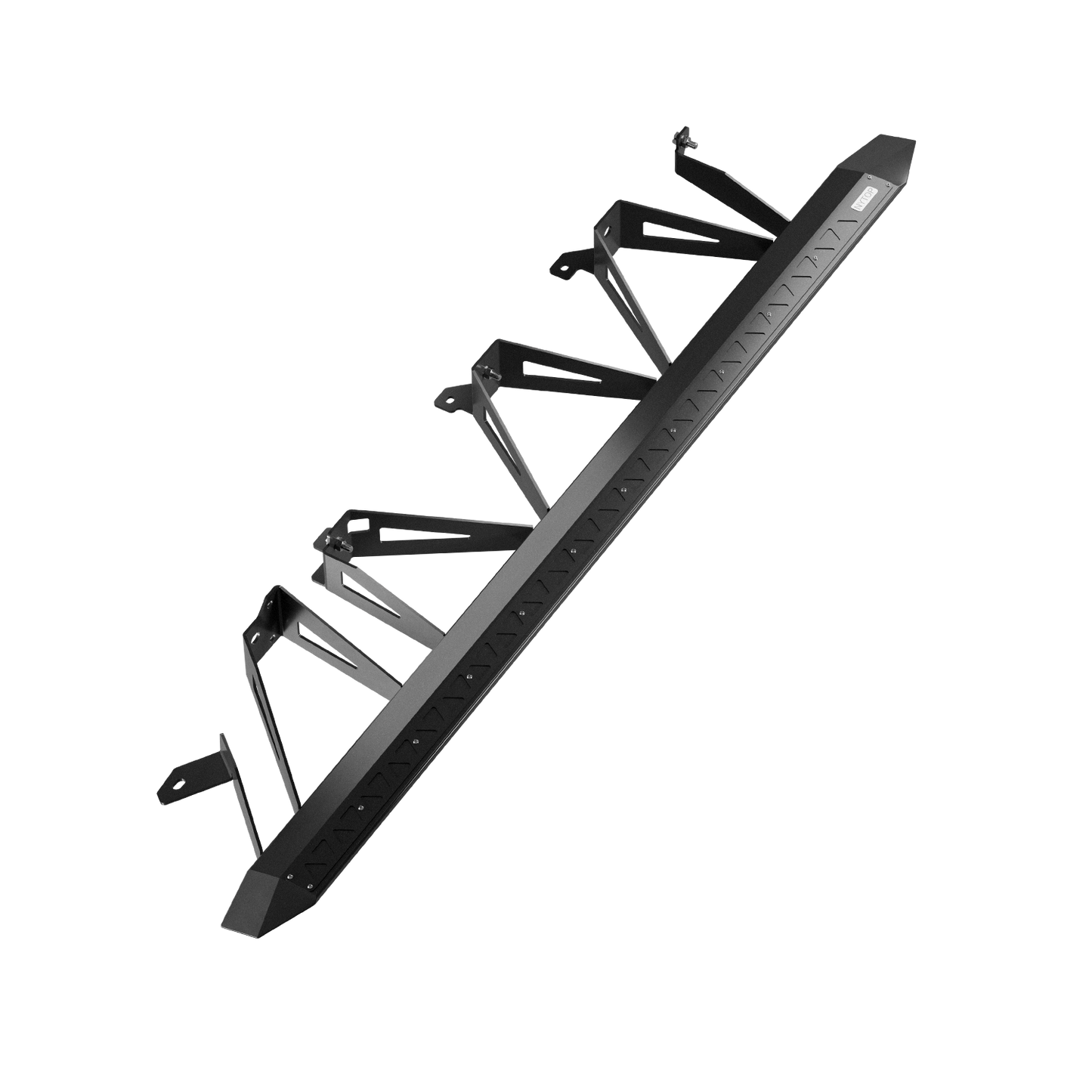

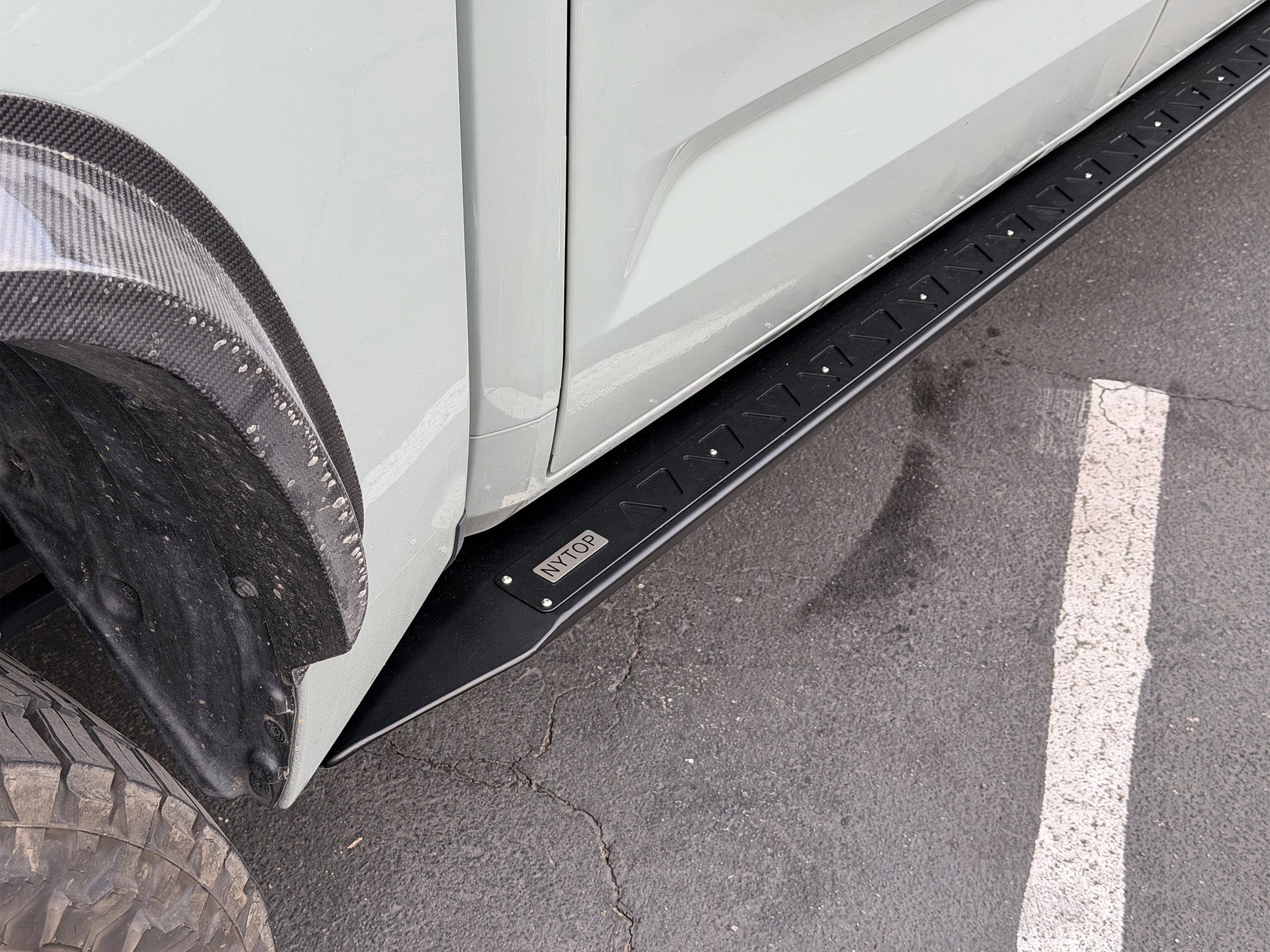

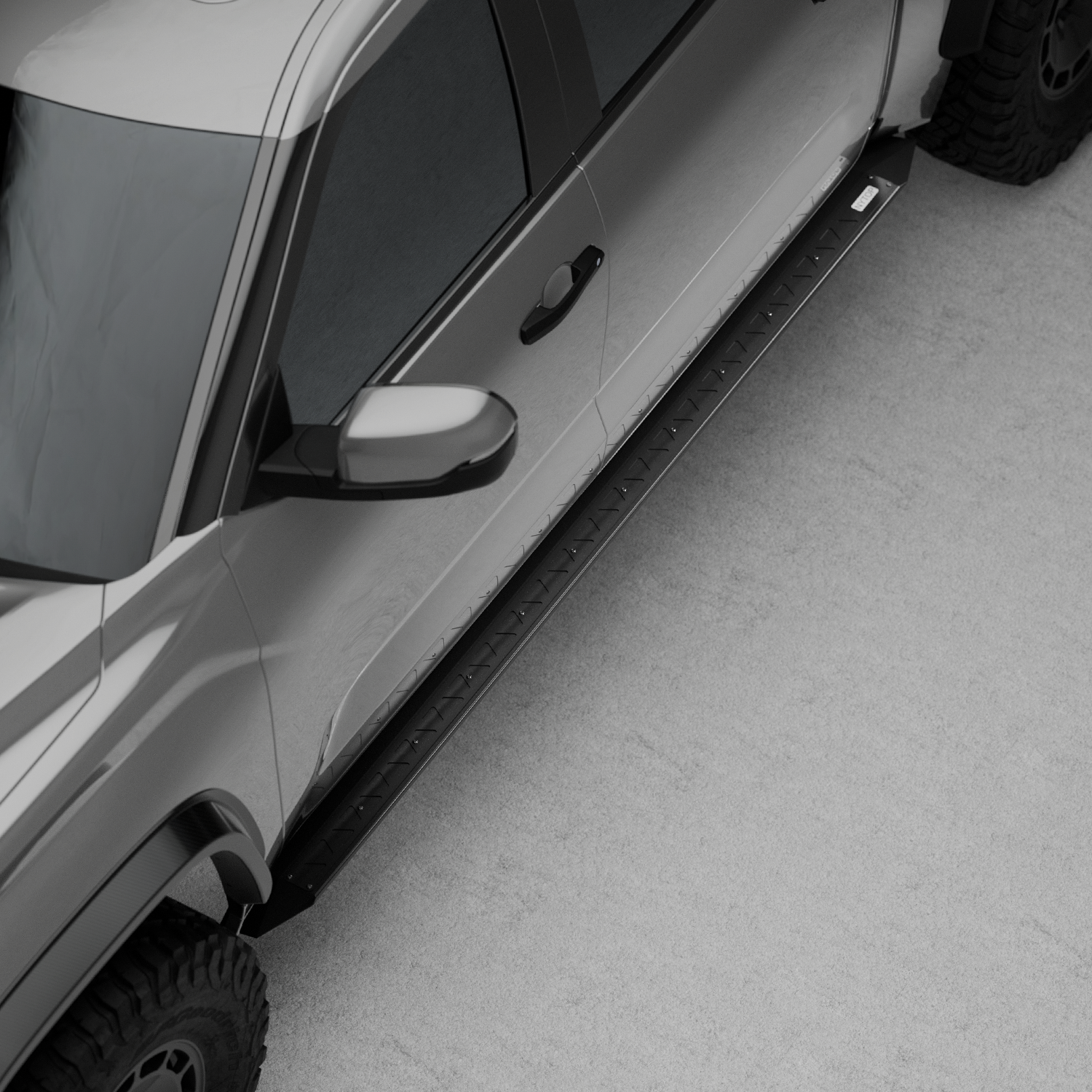

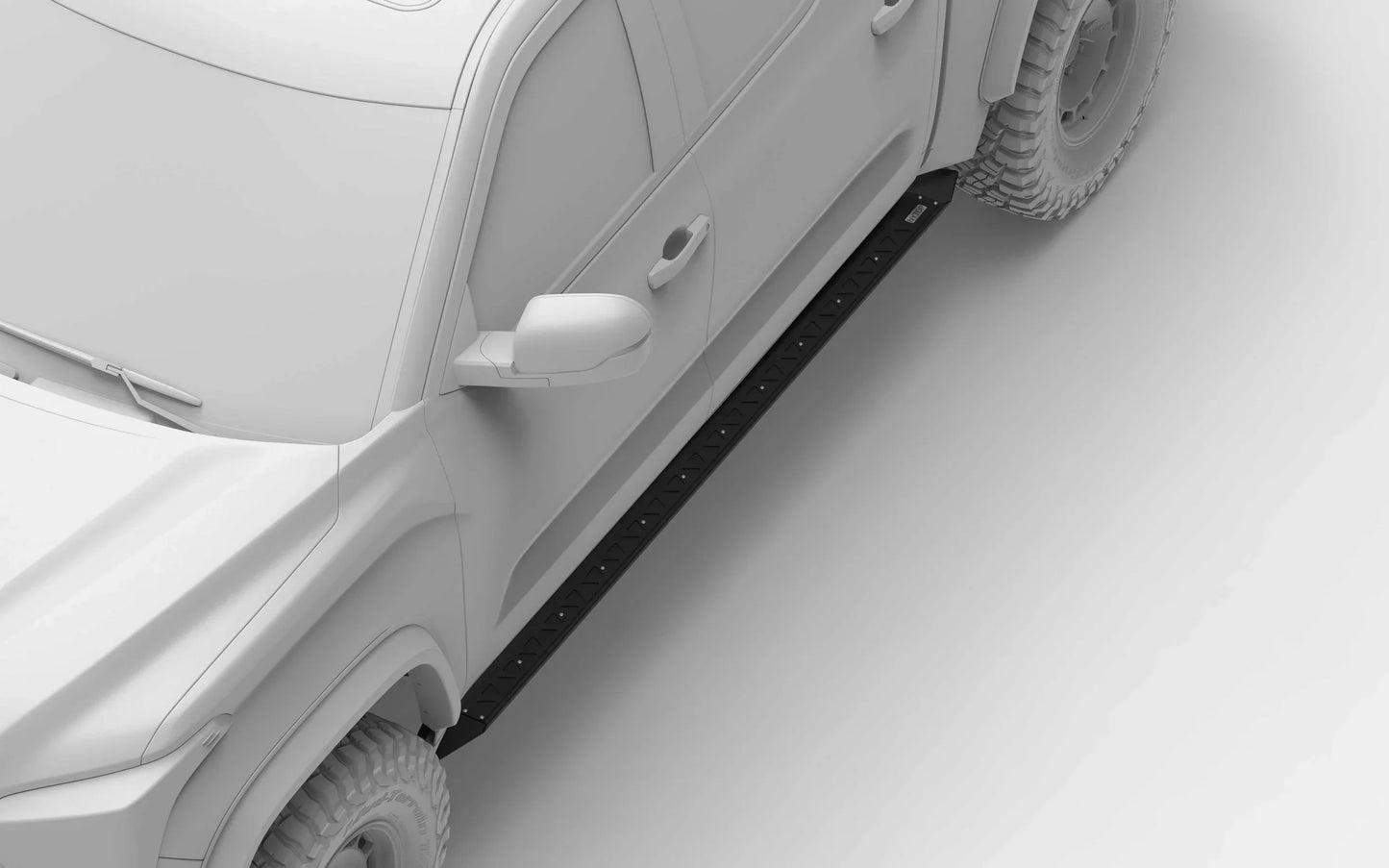

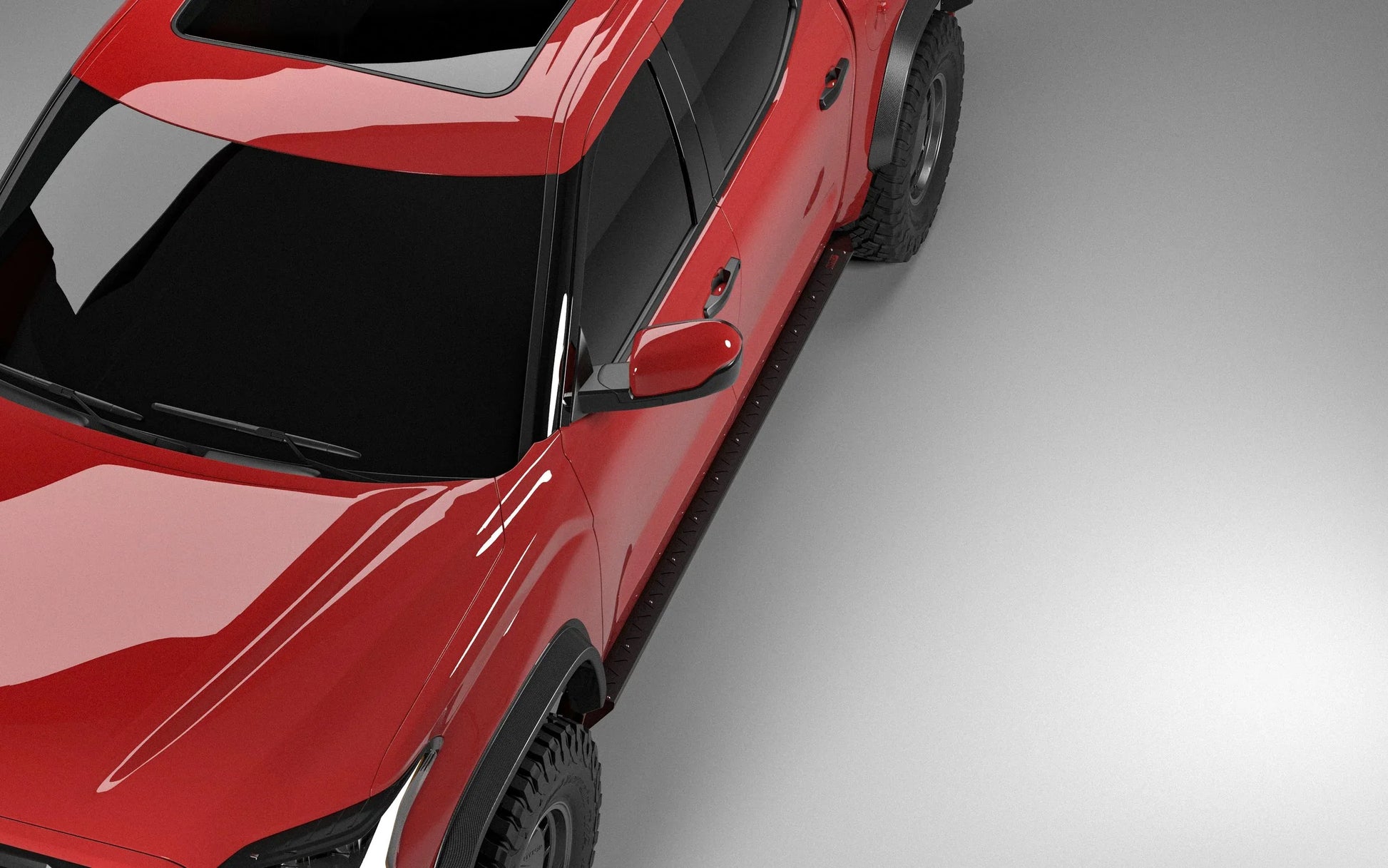

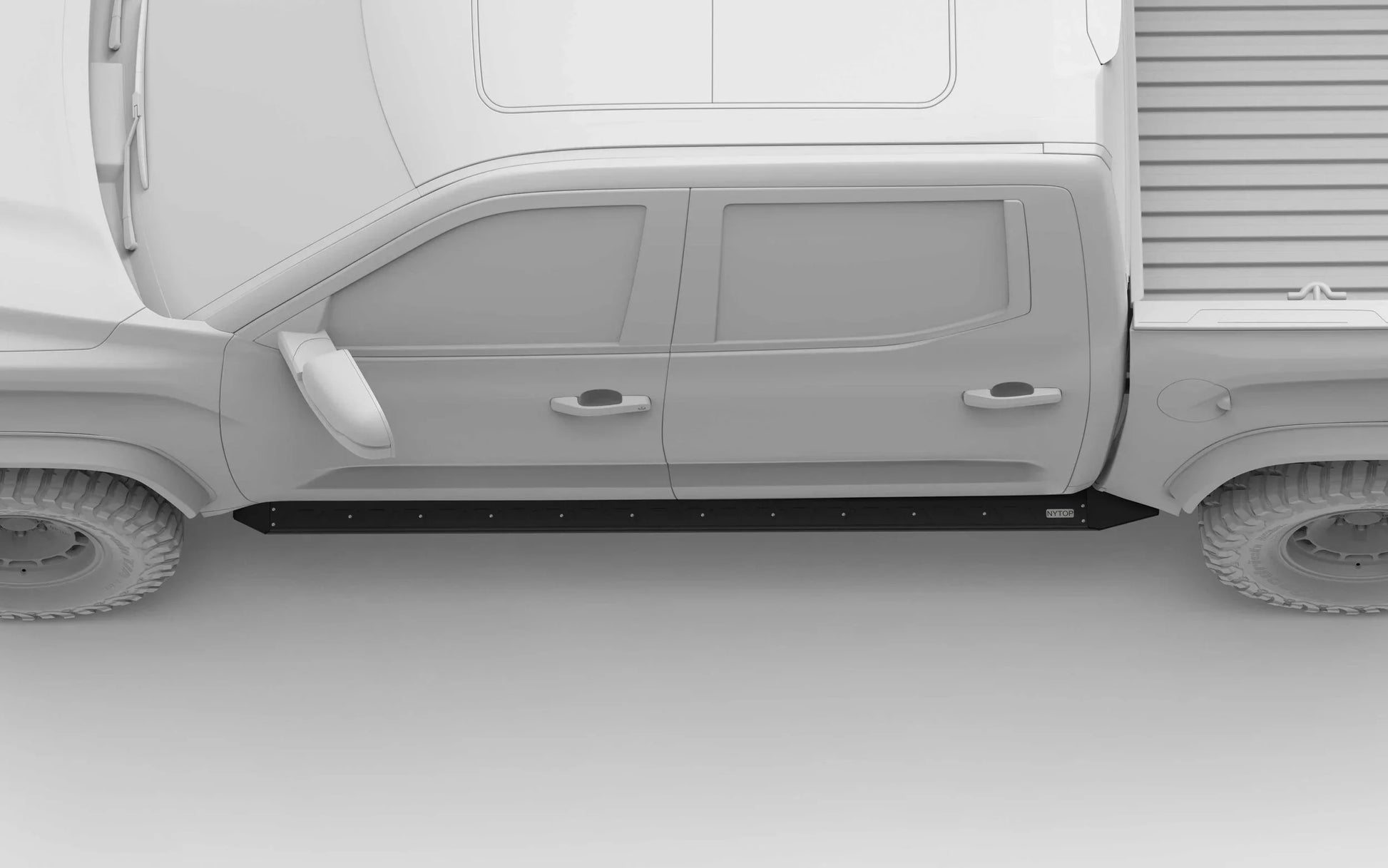

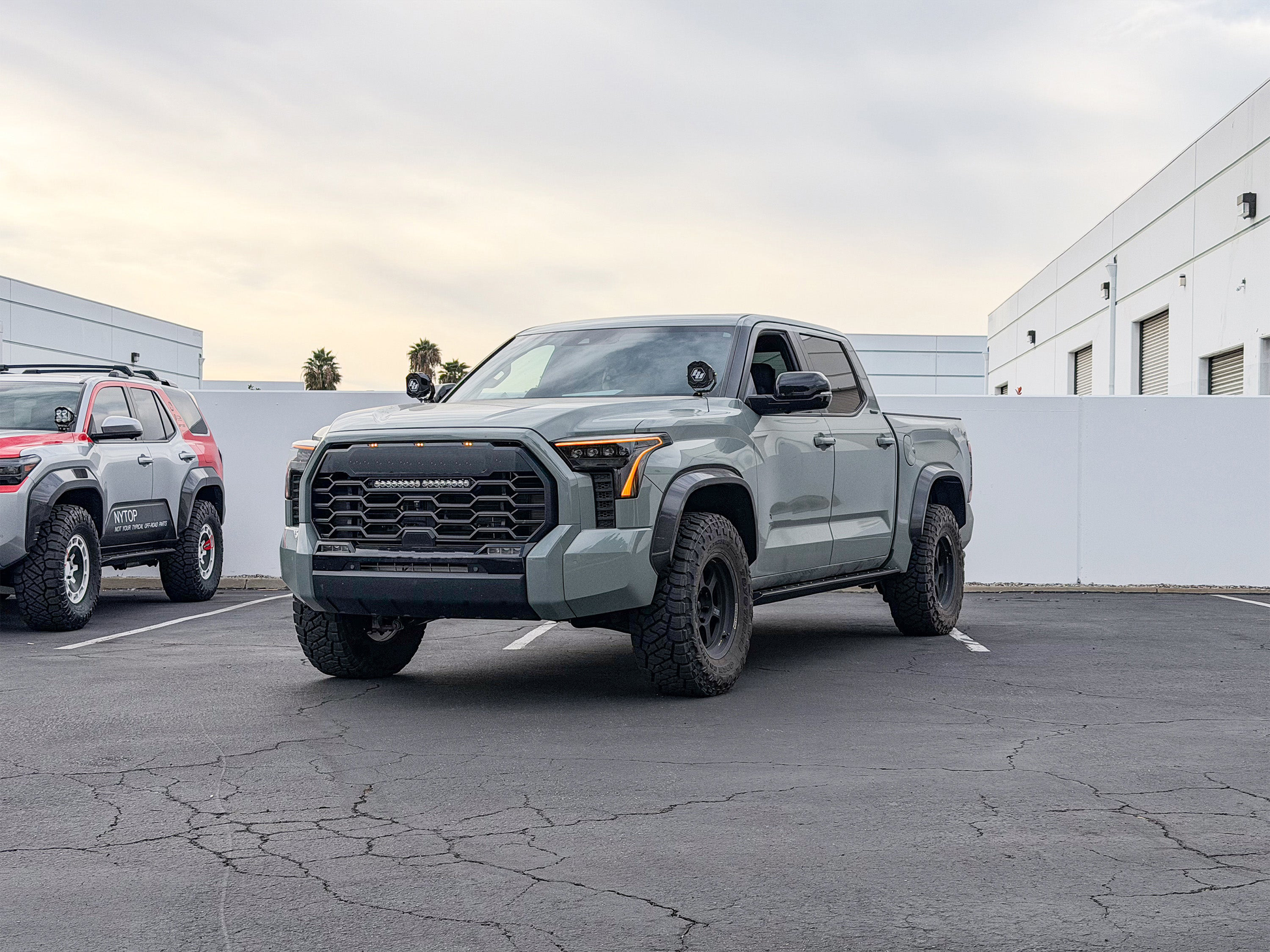

Equip your Toyota Tundra with next-generation rock sliders engineered for high clearance, uncompromised strength, and practical daily usability. Featuring a non-tubular, flat-angled design optimized for sliding performance and a wide stepping surface, these sliders deliver true off-road protection without sacrificing comfort or factory-level fitment.
Important Notes
-
No Drilling or Cutting Required: Designed with patent pending hardware that allows installation without any irreversible modifications.
-
Follow All Torque Specs: Proper torqueing is essential for safe and secure mounting.
-
Professional Installation Recommended: Ensures correct BoxBolt® and blind stud installation.
-
Inspect After Off-Road Use: Hardware should be checked periodically to confirm everything remains properly torqued.
Features
-

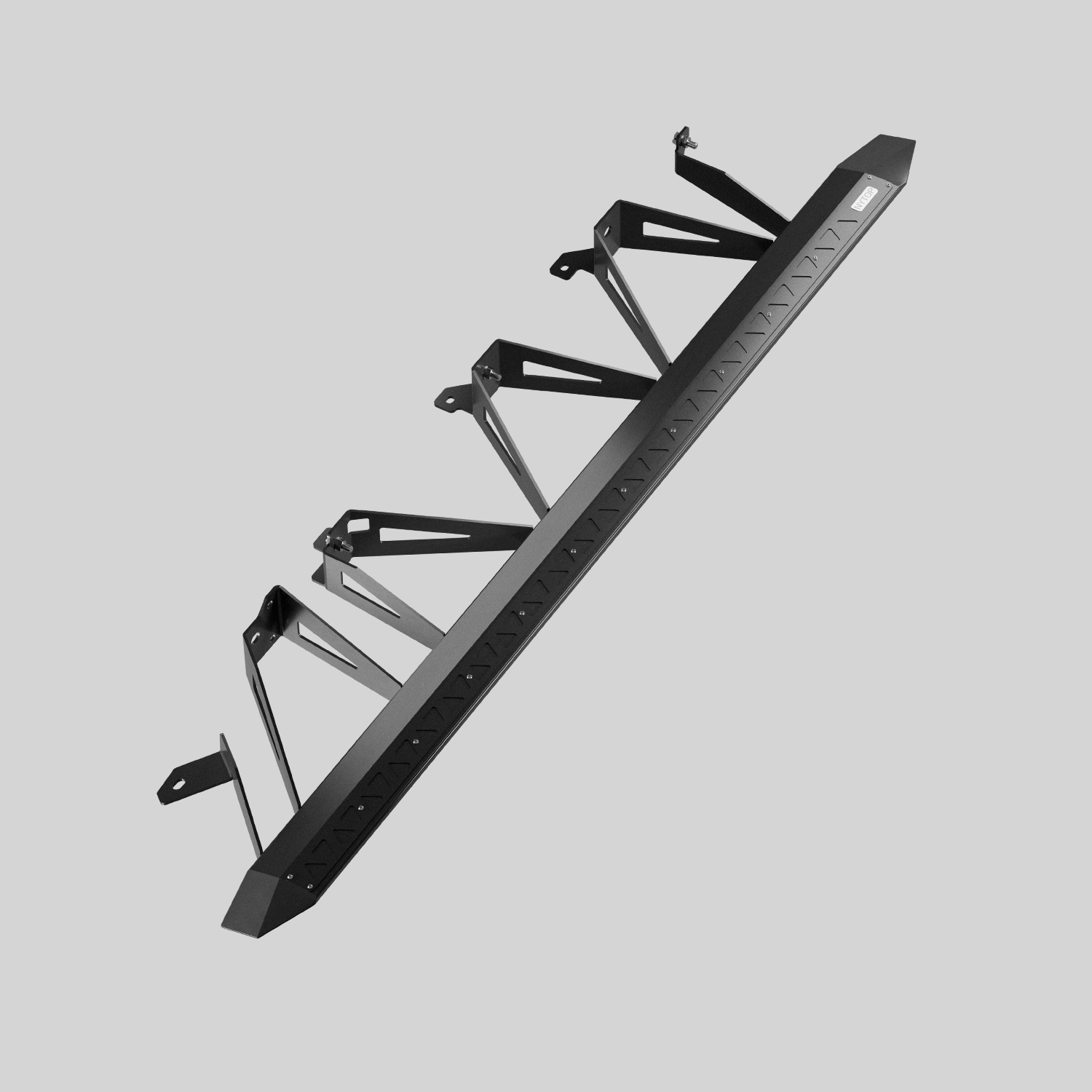

Non-Tubular High-Clearance Design: Sleek, low-profile construction maximizes clearance and slide performance.
-
28.5° Angled Bottom Surface: Flat angled geometry engineered to glide over obstacles with minimal resistance.
-

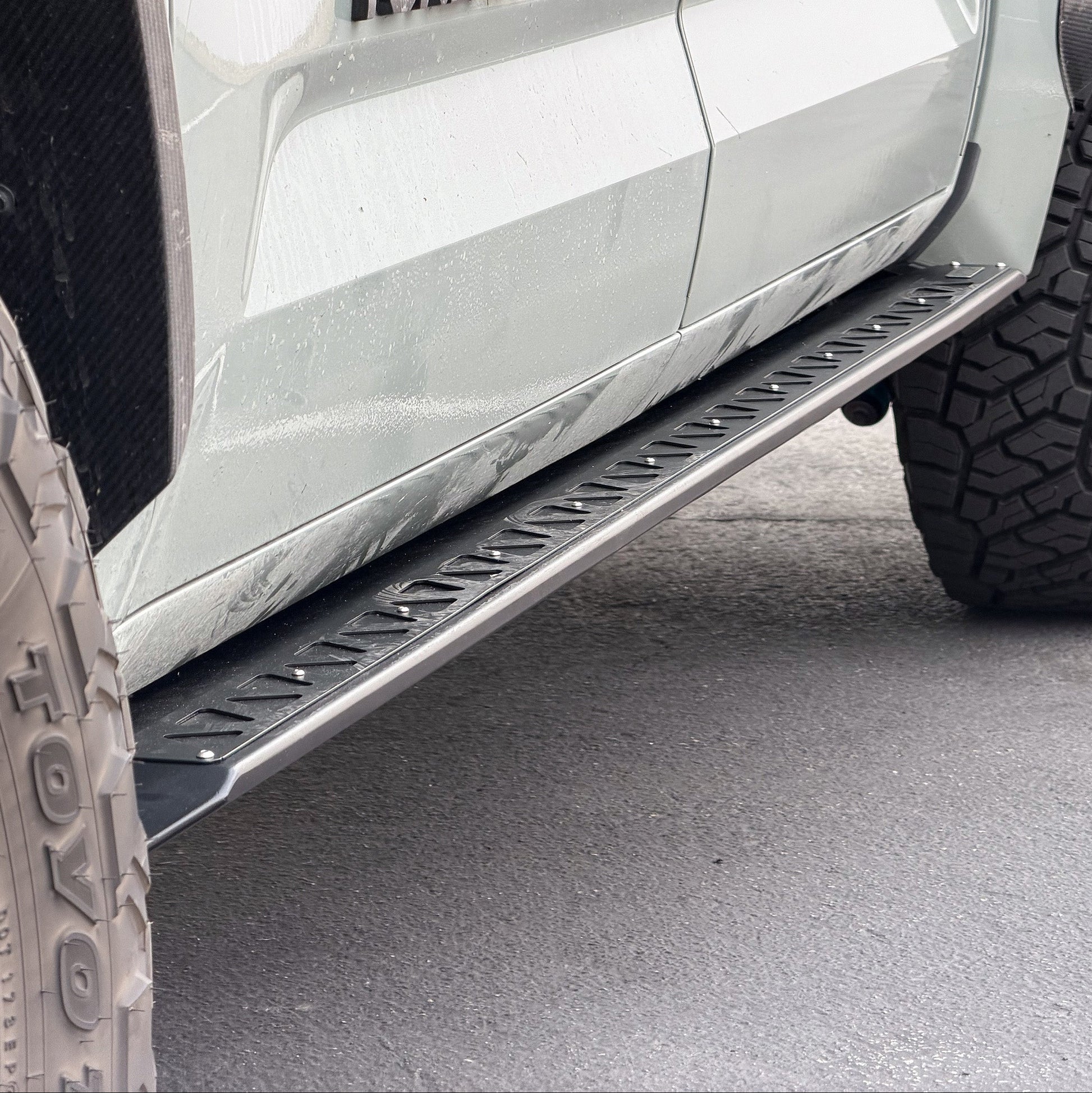

4-Inch Wide Stepping Platform: Level top surface offers a sturdy and comfortable step for daily access.
-
Heavy-Duty Steel Build: TIG welded using 3/16-inch and 1/4-inch high-strength steel for exceptional durability.
-
Wrinkle Black Powder Coat: Textured finish delivers corrosion resistance and a rugged OEM-plus appearance.
-

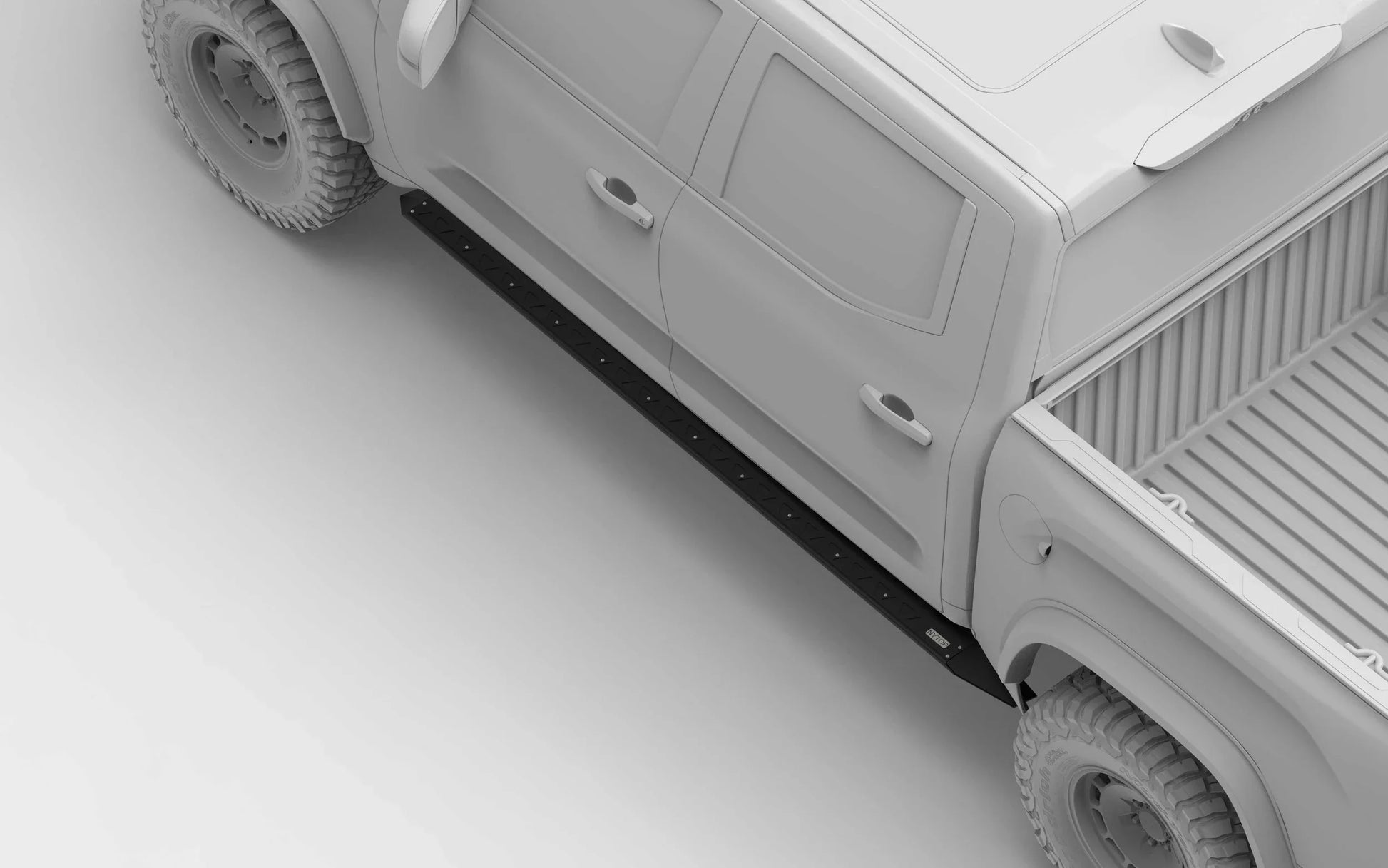

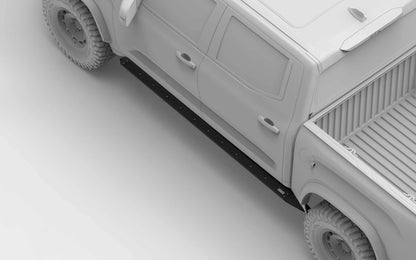

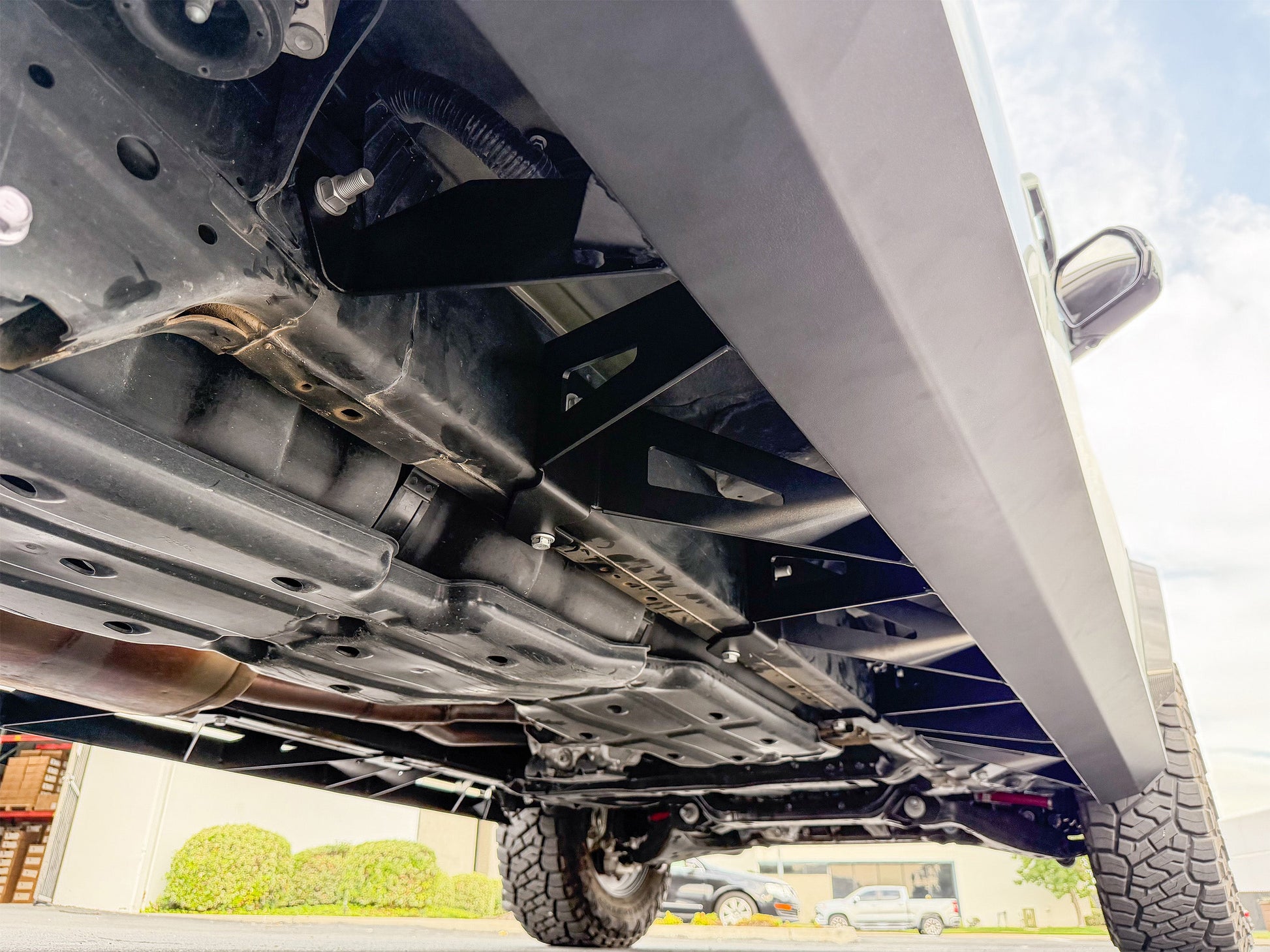

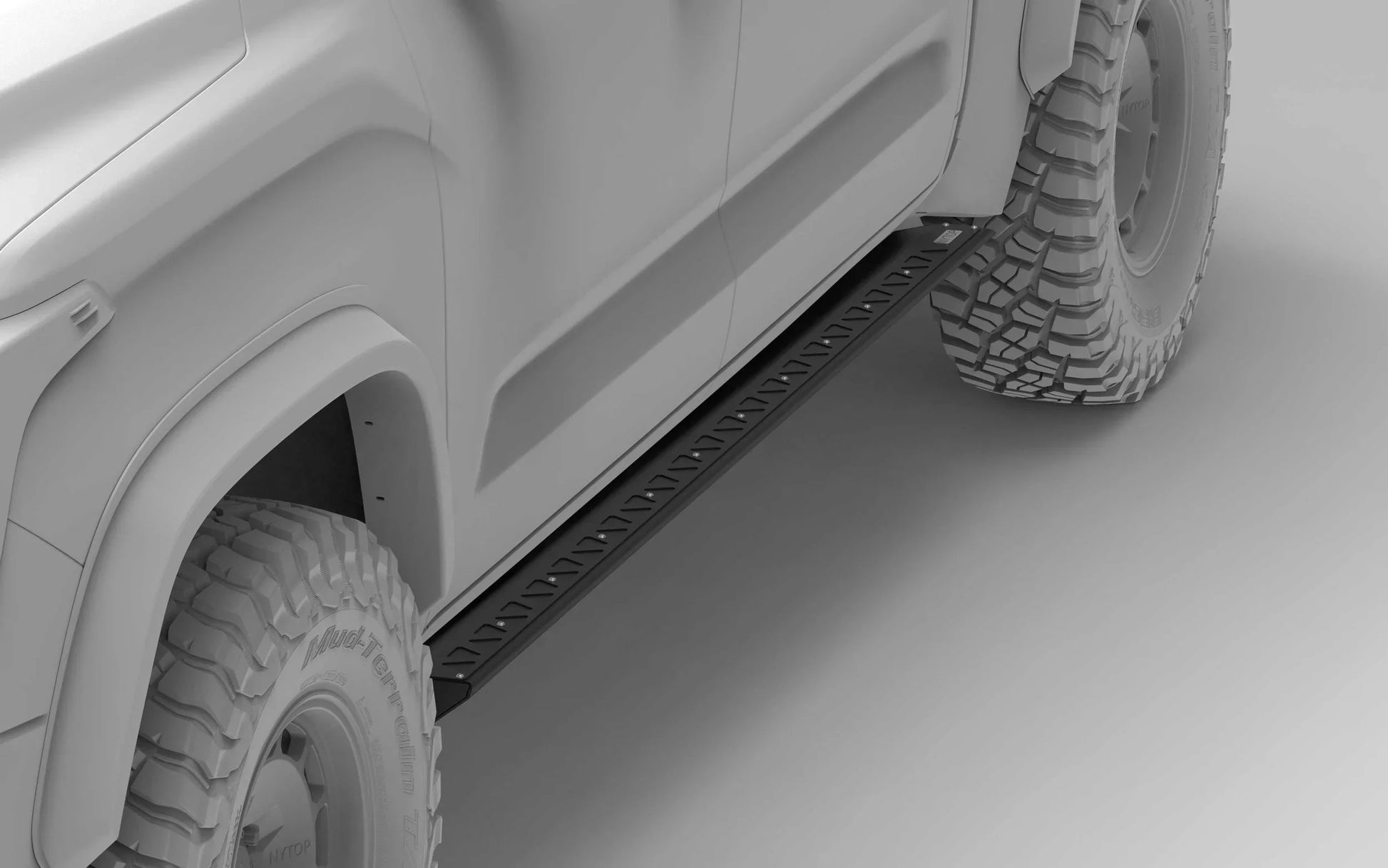

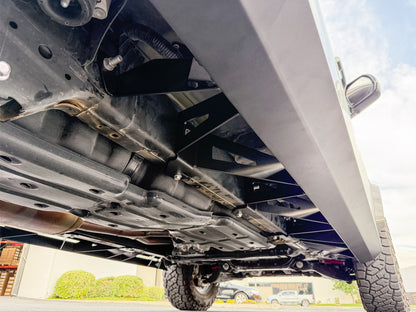

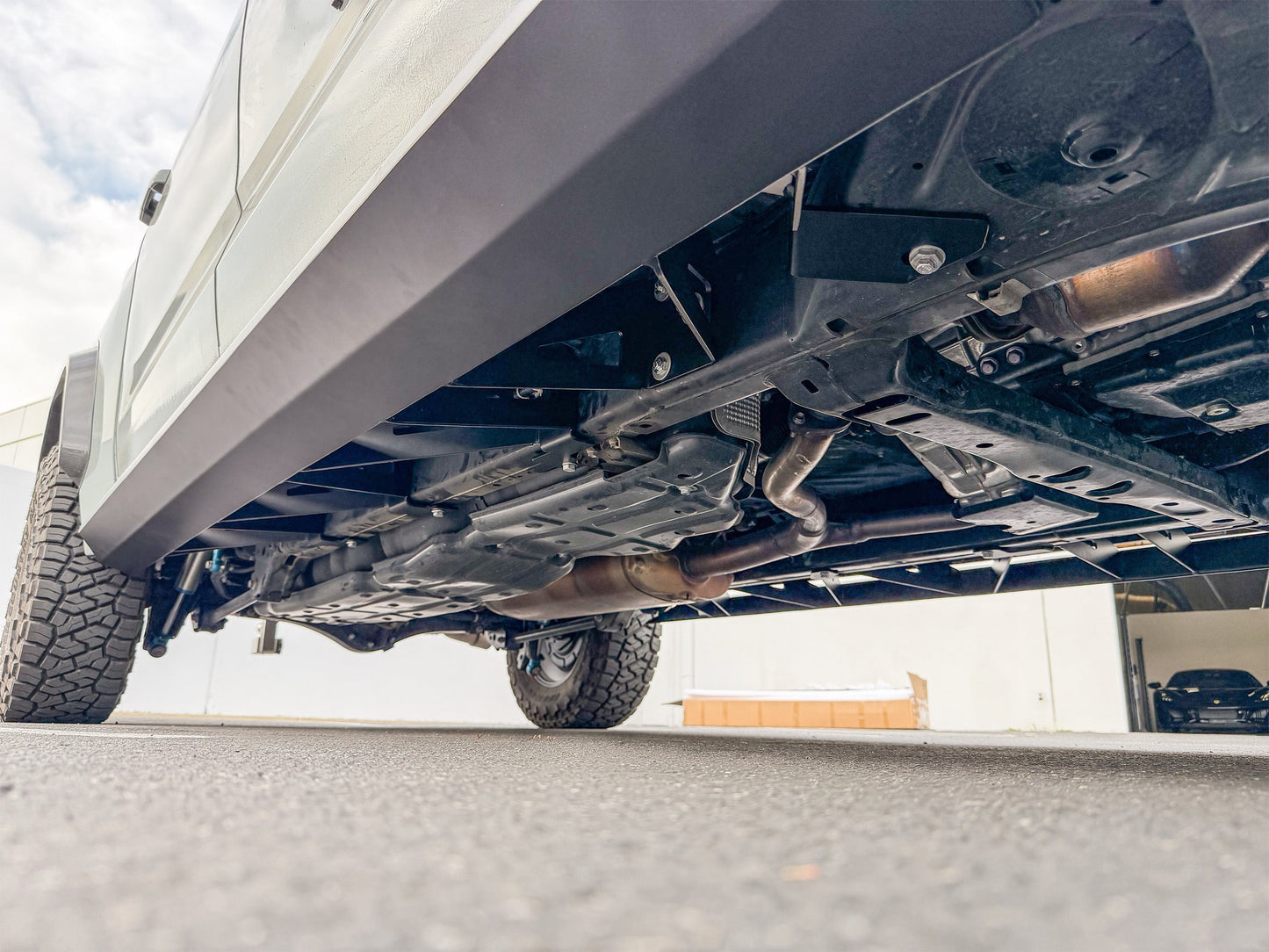

Frame-Mounted Protection: Shields rocker panels and body structure while doubling as functional side steps.
-
Complete Installation Kit: Includes all required mounting hardware.
-
Torque Specifications:
-
M6 BoxBolts®: 14 ft-lbs (19 Nm)
-
M8 BoxBolts®: 19 ft-lbs (25 Nm)
-
M12 BoxBolts®: 59 ft-lbs (80 Nm)
-
Standard M12 Bolts: 75 ft-lbs (101 Nm)
-
M14 Blind Studs & Nuts: 105 ft-lbs (142 Nm)
Specifications
-
Material: 3/16-inch & 1/4-inch high-strength steel
-
Finish: Wrinkle black powder coat
-
Design: Non-tubular, high-clearance, low-profile
-
Bottom Angle: 28.5° flat angled surface
-
Step Width: 4 inches (top platform)
-

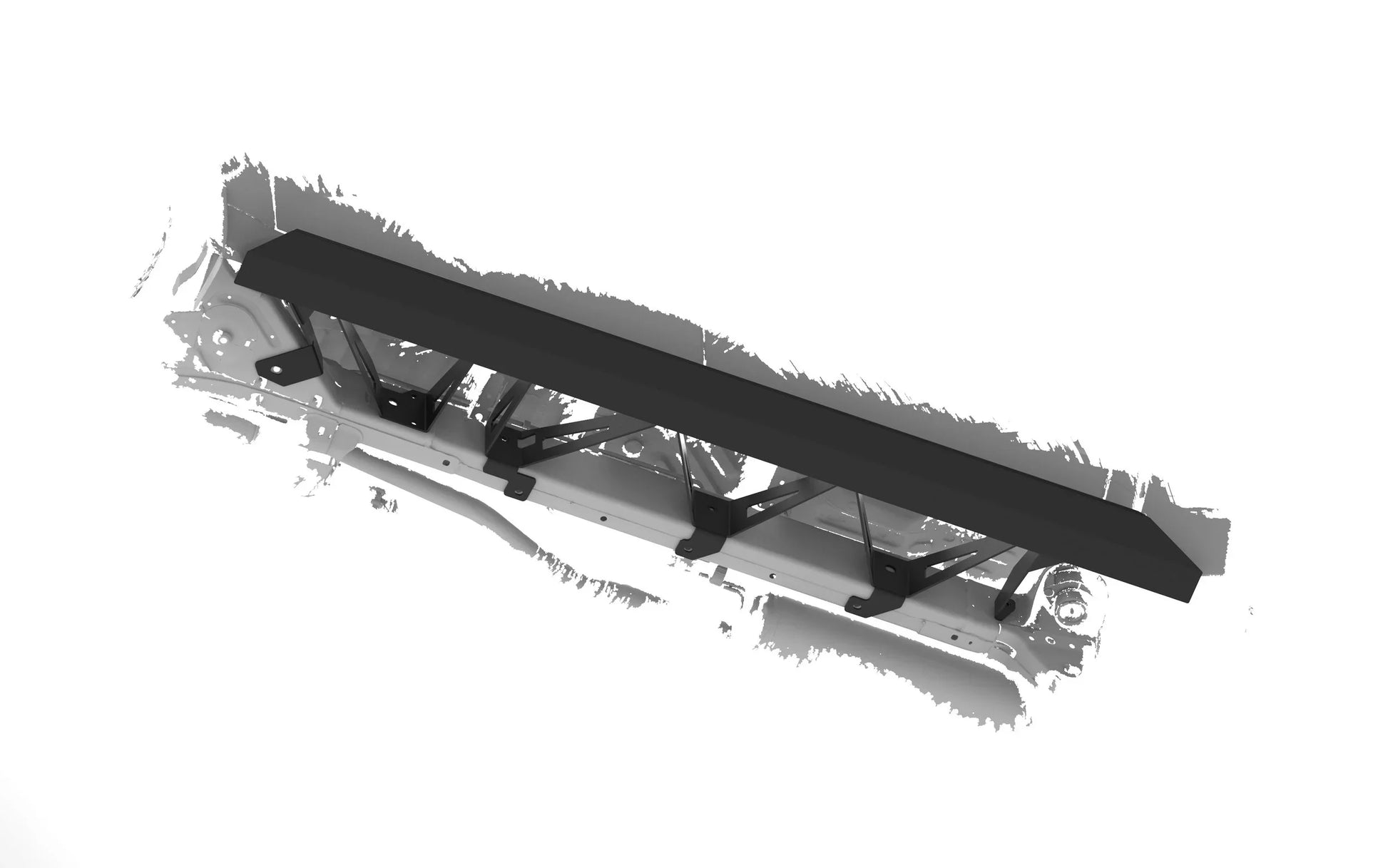

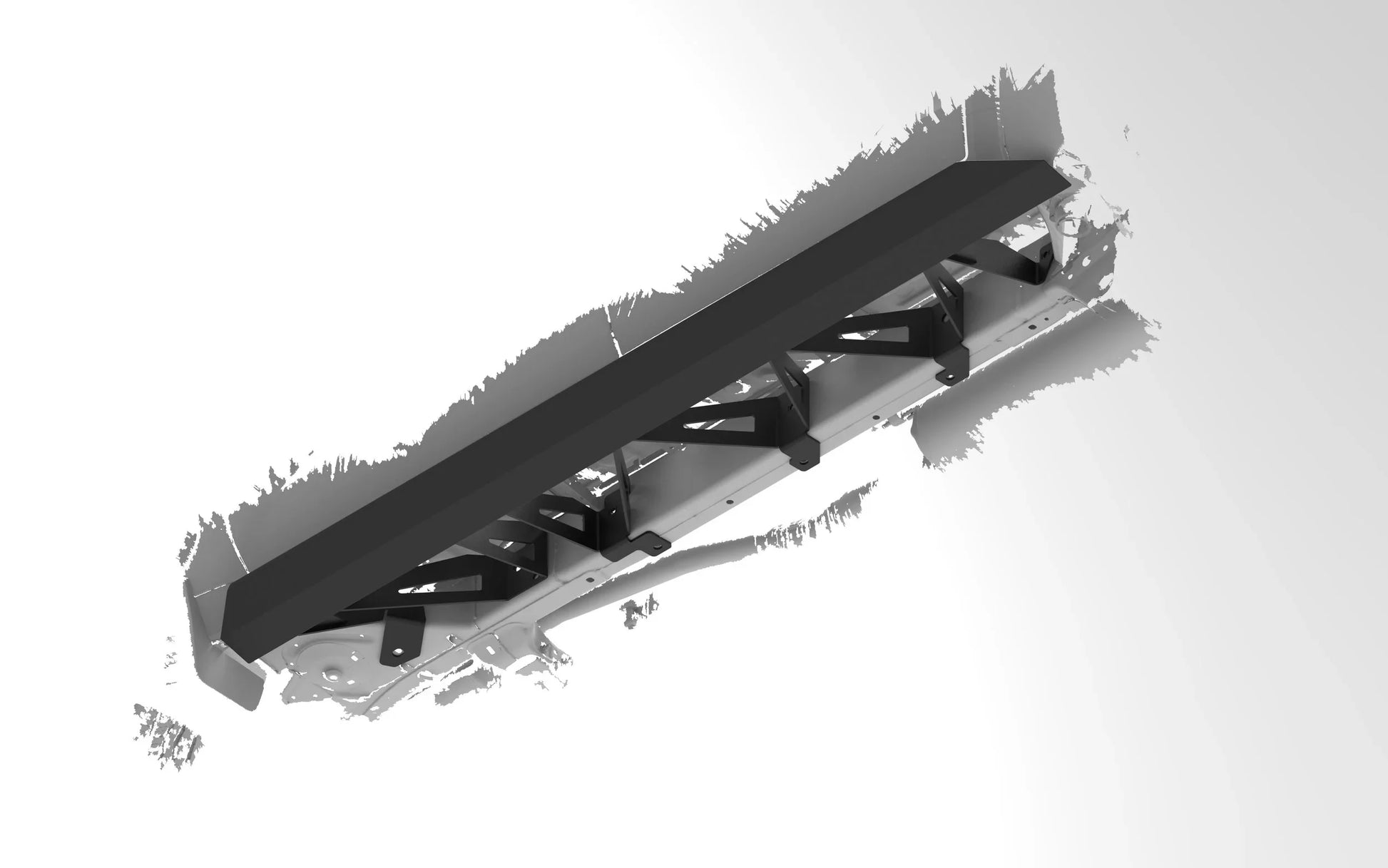

Mounting Style: Bolt-on, frame-mounted using patent pending hardware
-
Compatibility: Works with factory and most aftermarket suspension setups
Vehicle Fitment
- Toyota Tundra — All Powertrains
- Mounts directly to the frame with no cutting, drilling, or trimming required
