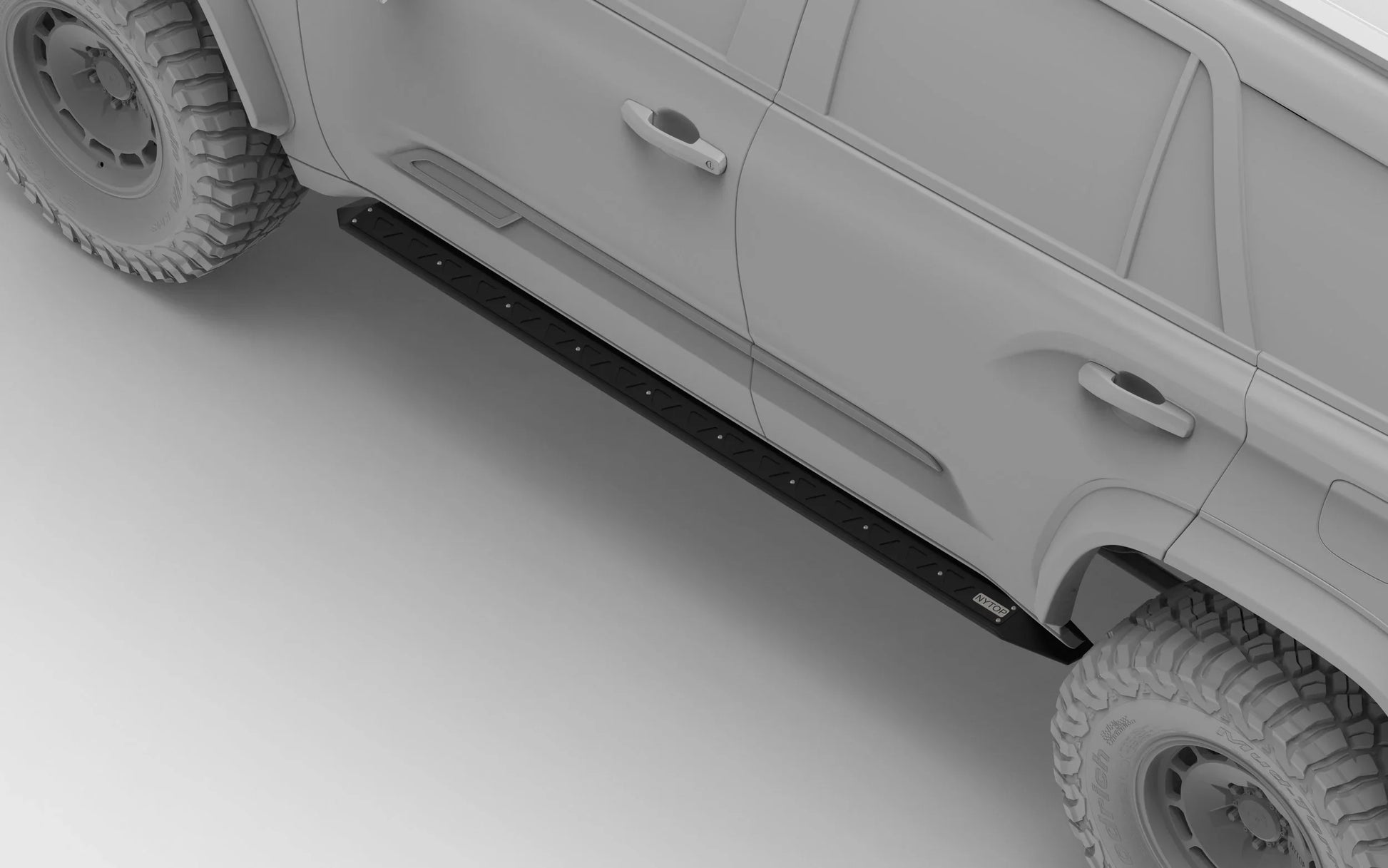

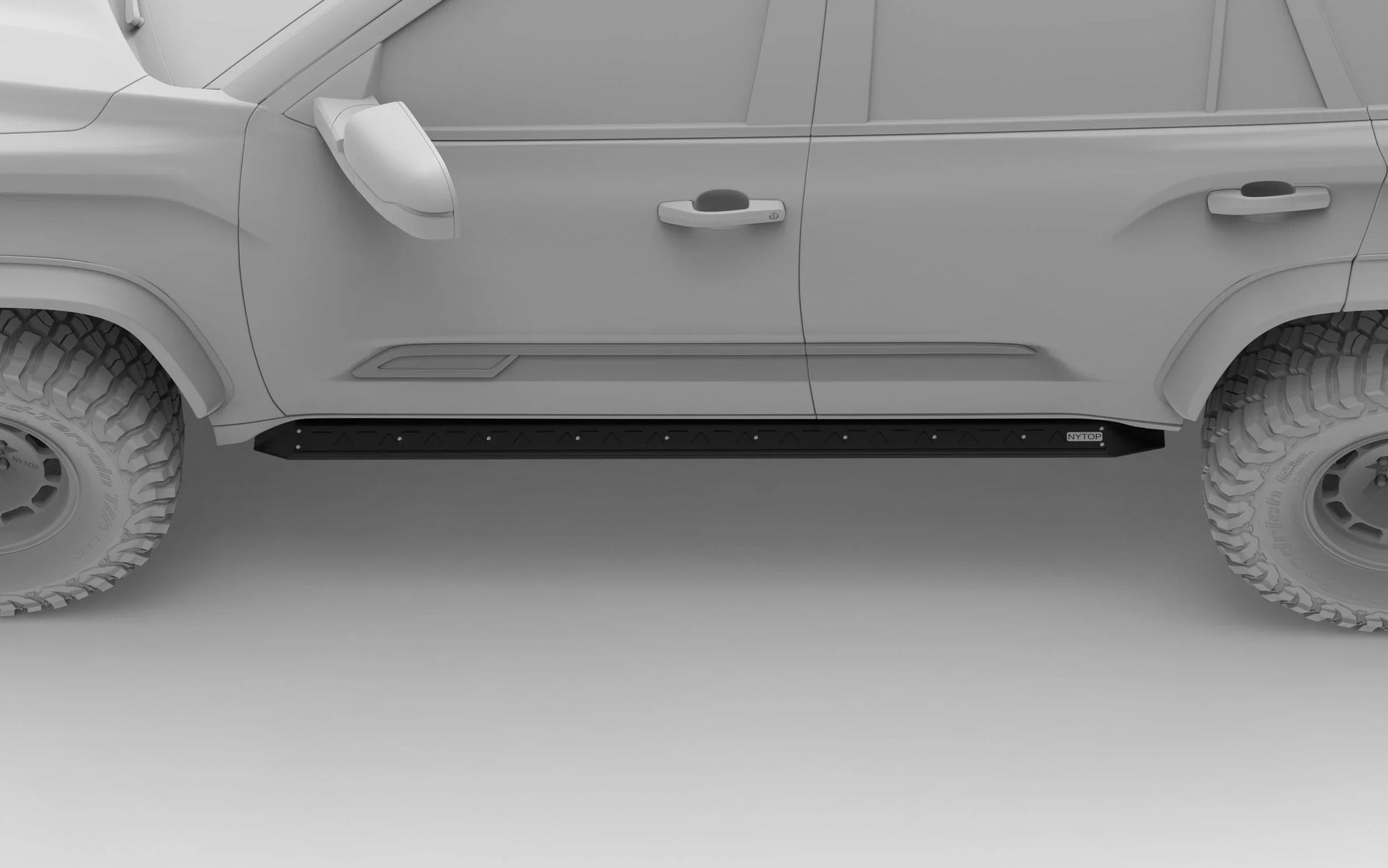

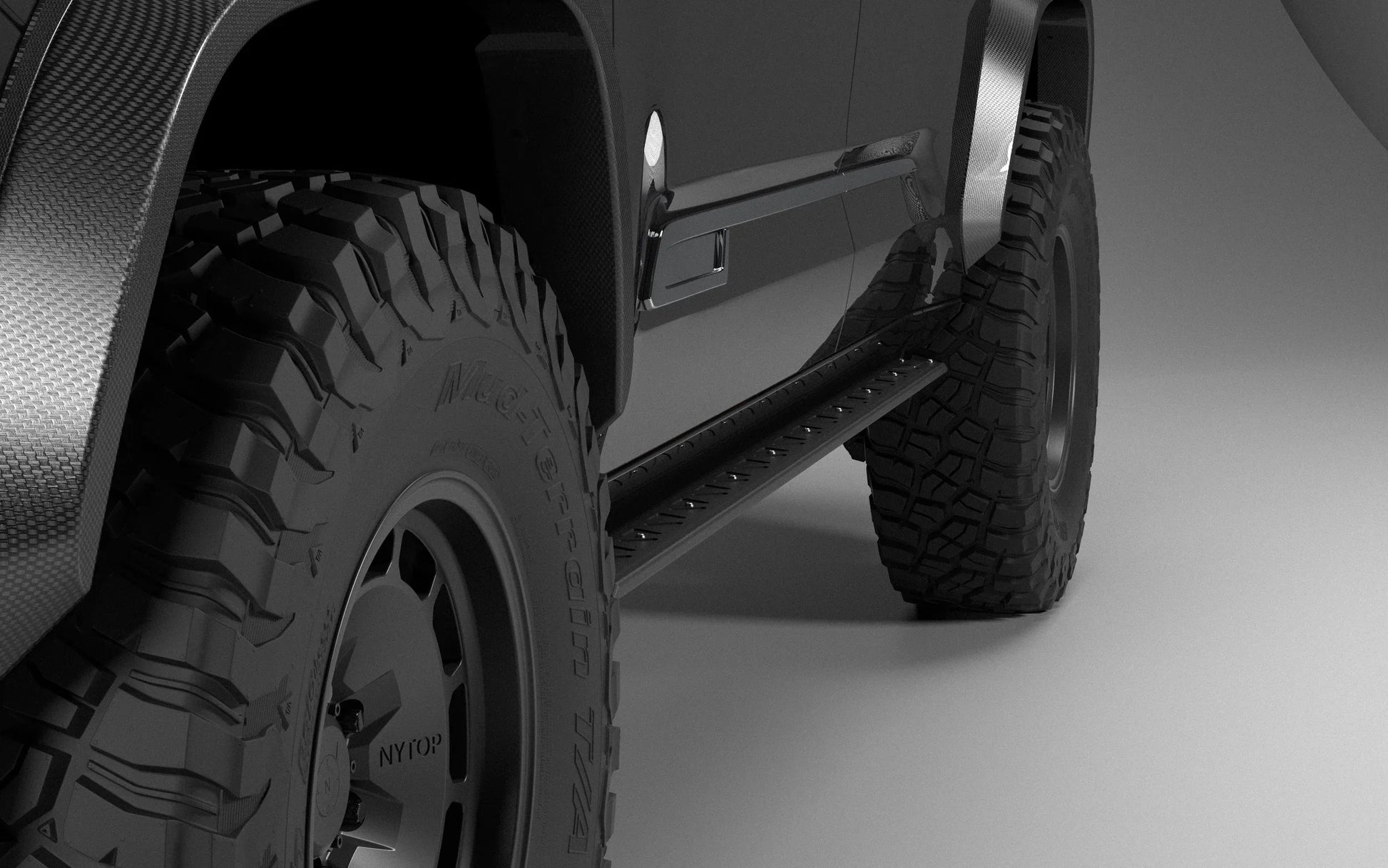

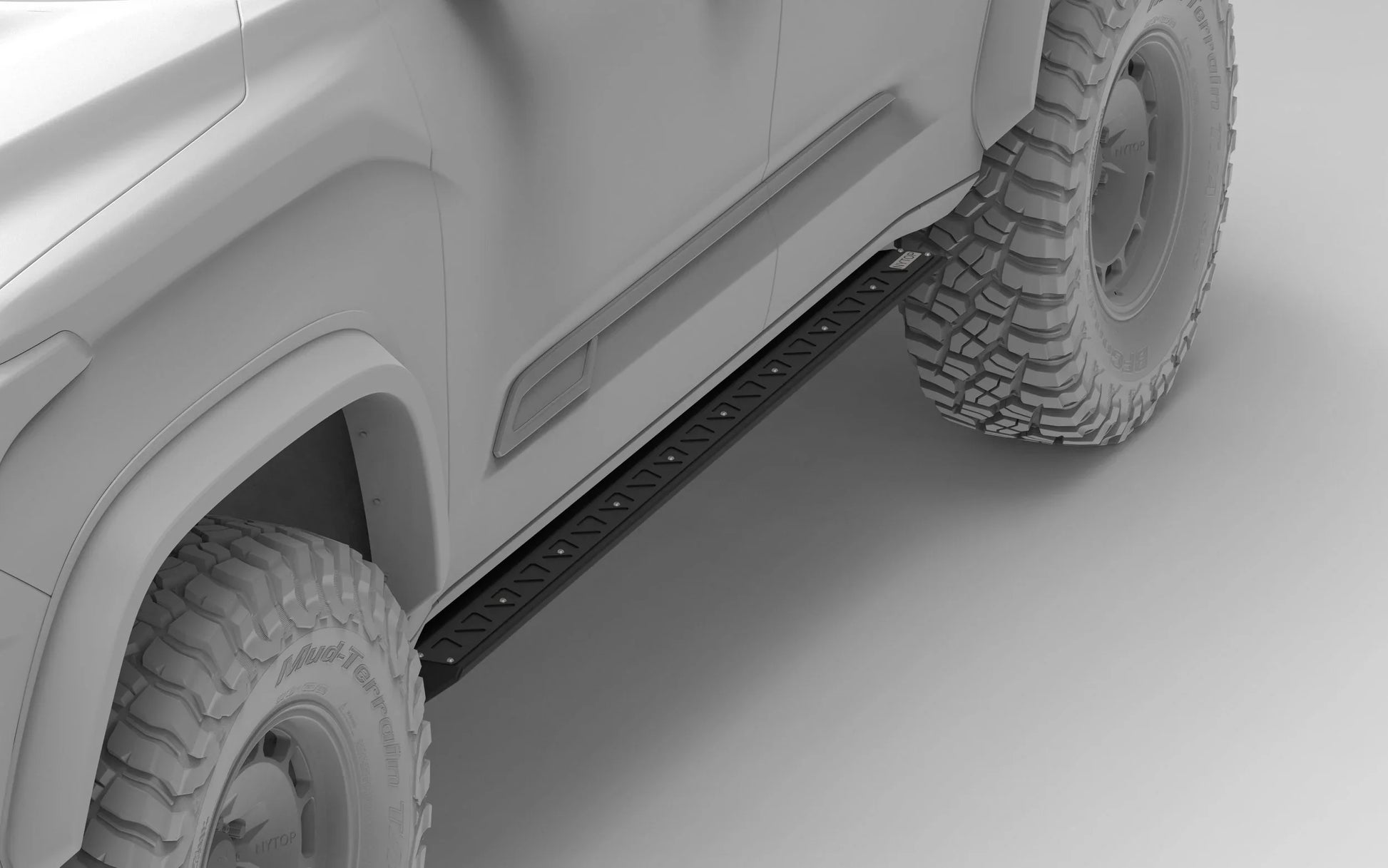

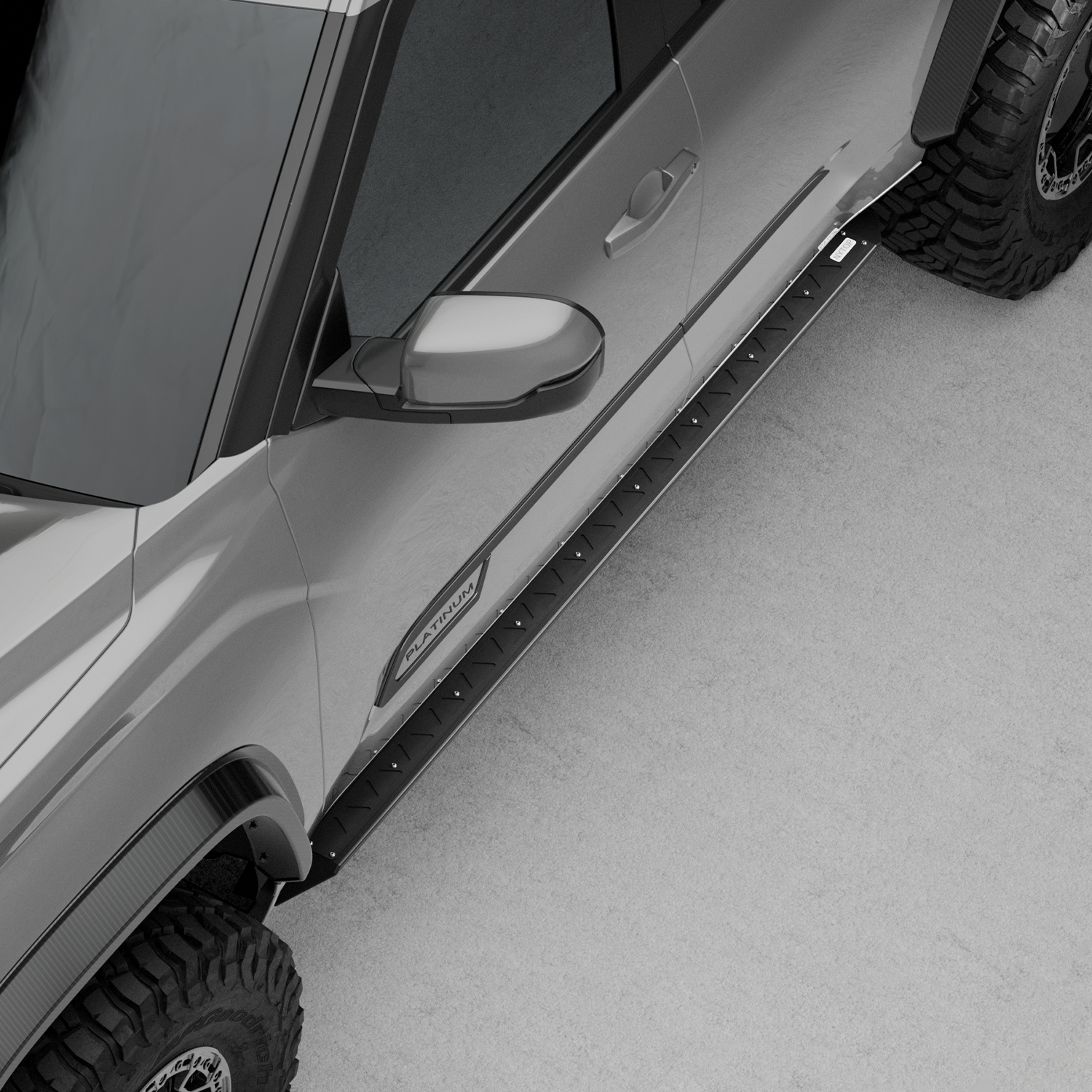

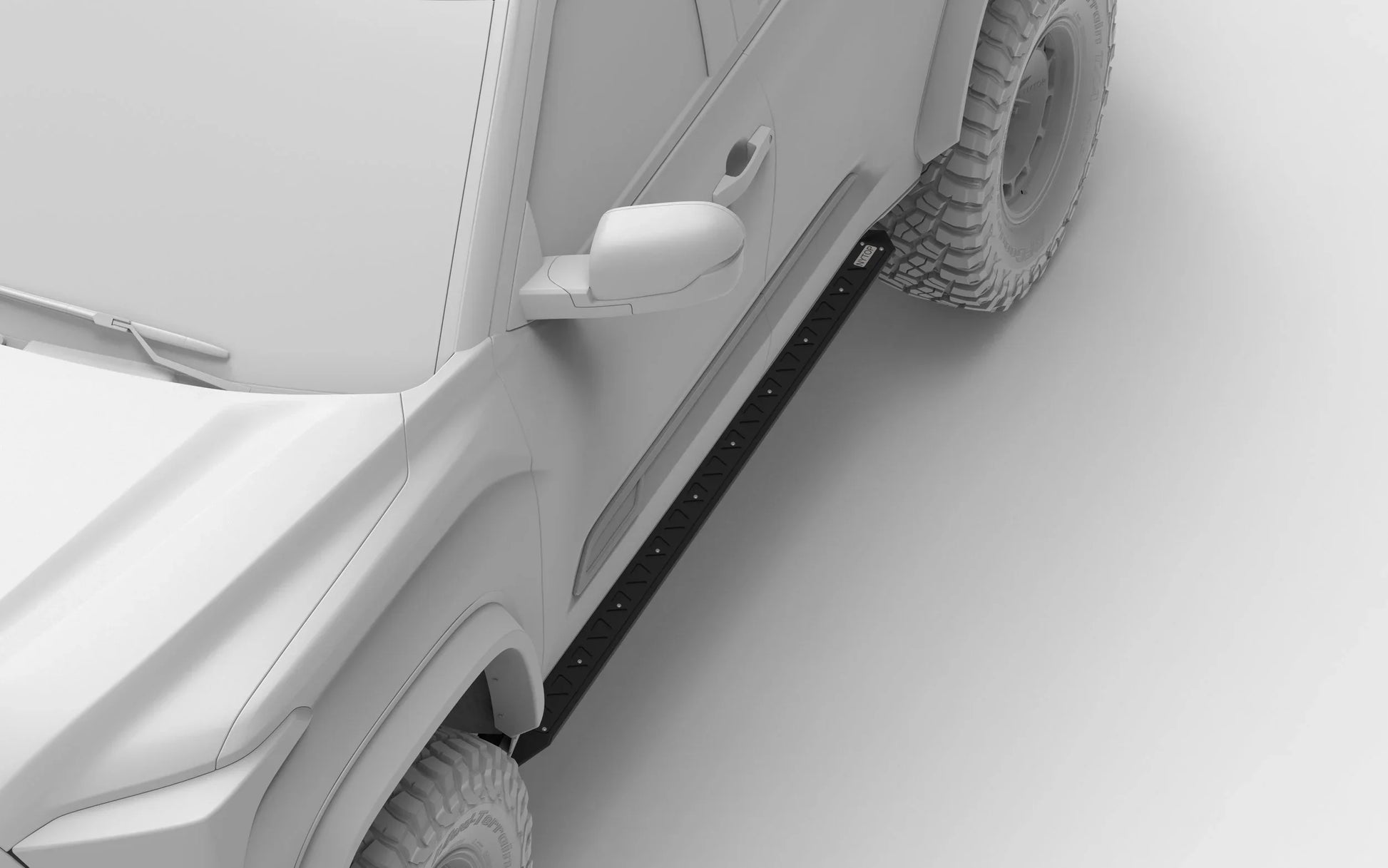

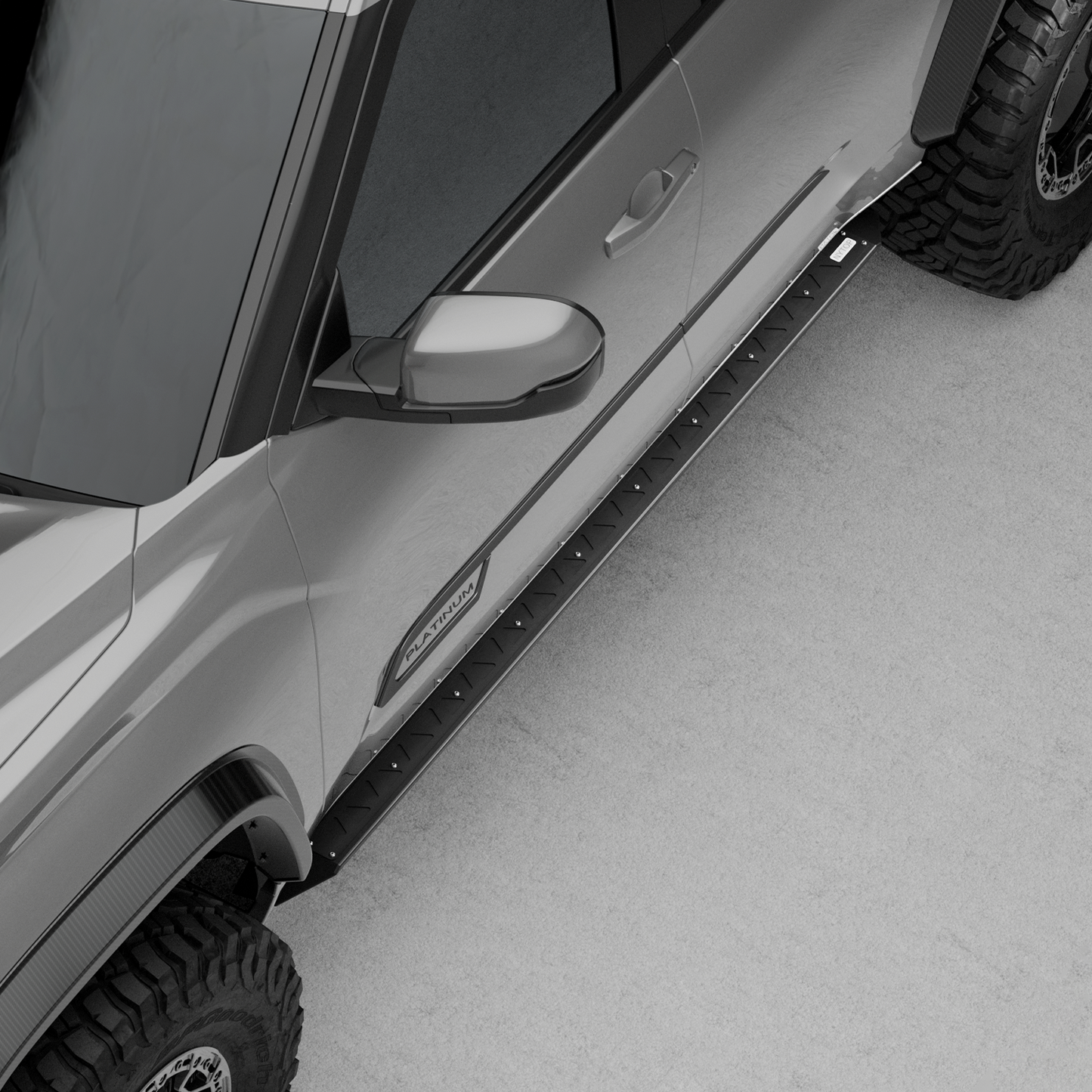

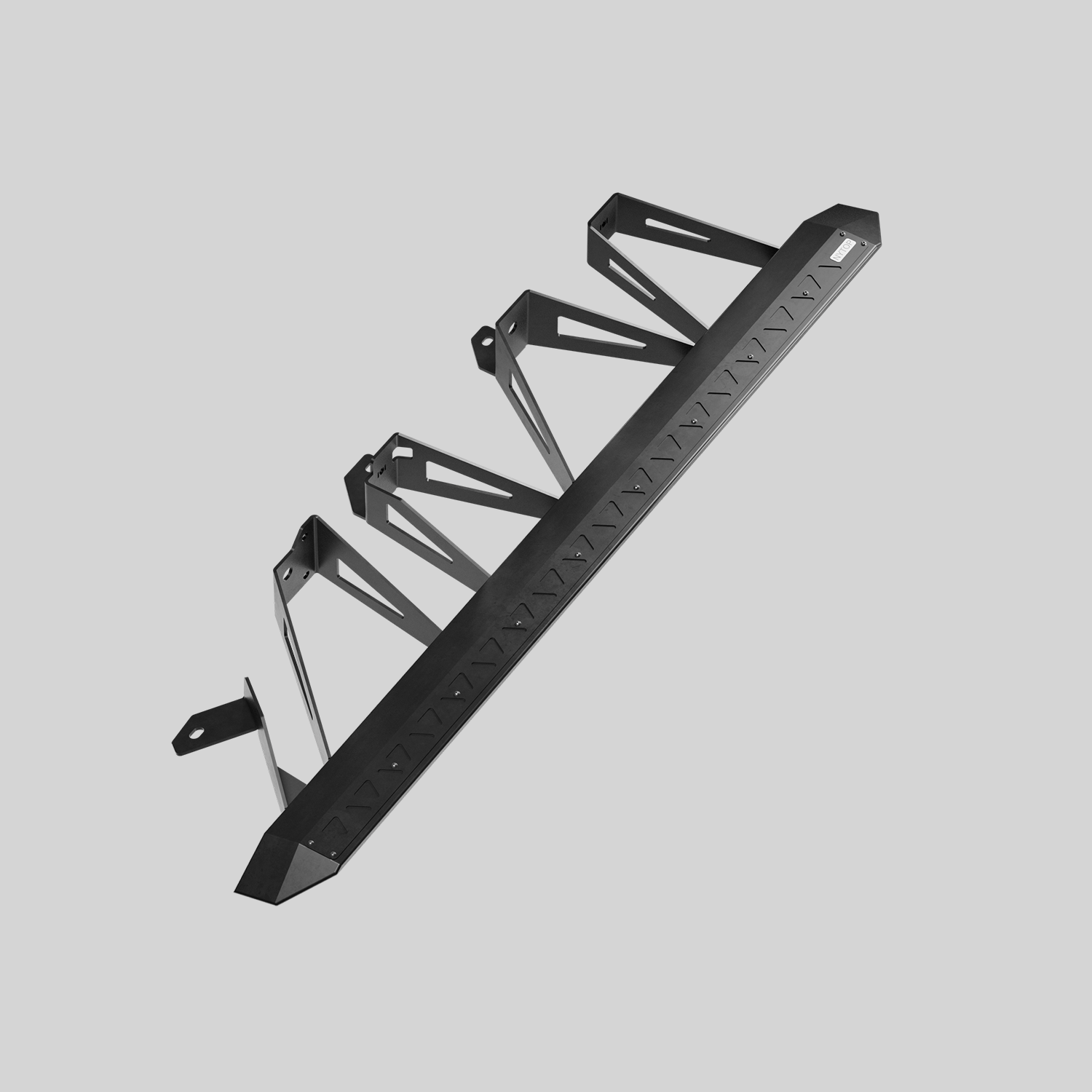

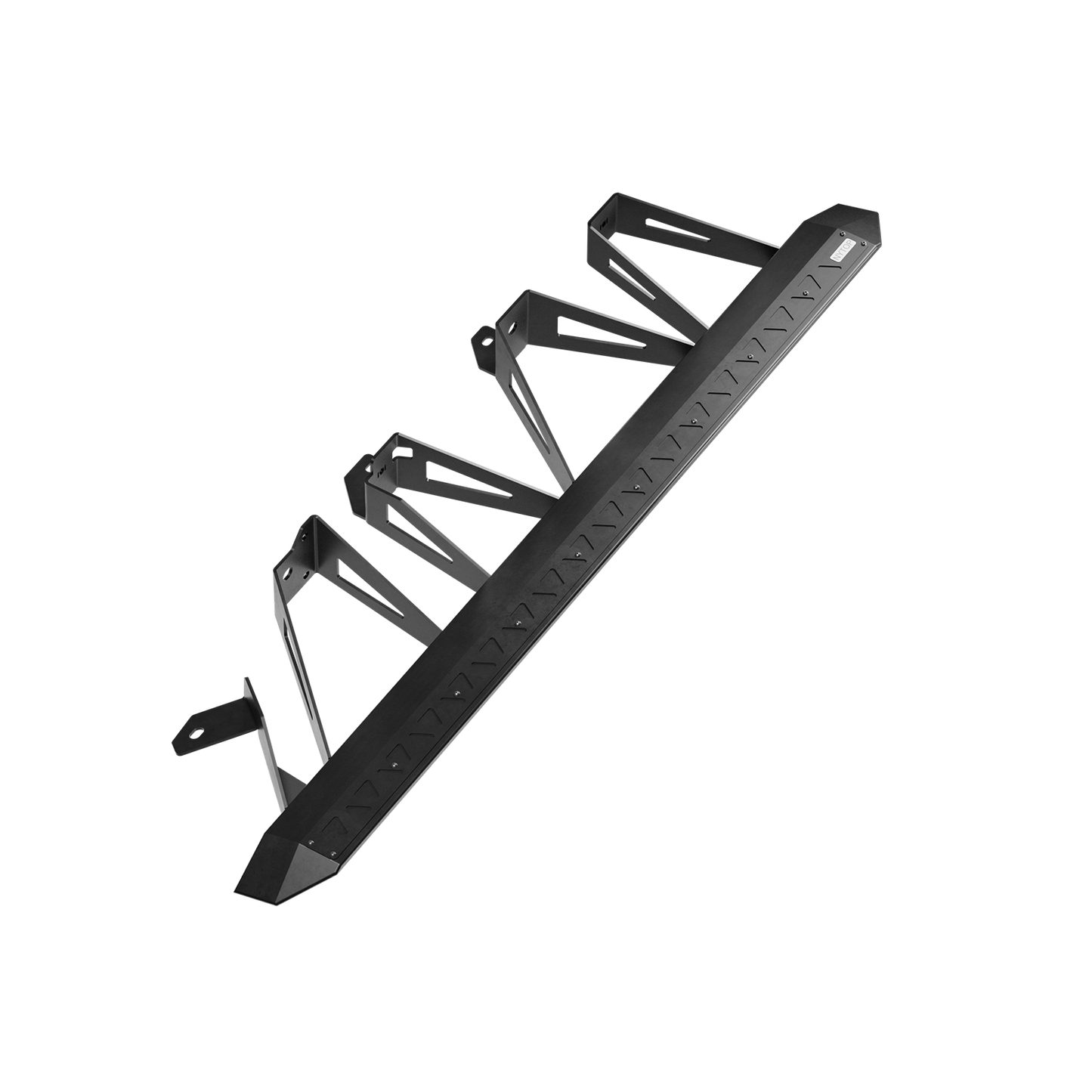

Equip your Toyota Sequoia with high-clearance, low-profile rock sliders engineered for serious protection and practical daily use. Featuring a non-tubular, flat-angled design optimized for sliding performance and a wide stepping platform, these sliders deliver true off-road capability while maintaining factory-level comfort and appearance.
Important Notes
-
No Cutting or Drilling Required: Uses patent pending hardware to allow installation without any irreversible modifications.
-
Follow All Torque Specs: Proper torqueing is essential for strength and safety.
-
Professional Installation Recommended: Ensures correct installation of BoxBolts® and blind studs.
-
Periodic Hardware Checks: Re-torque after off-road use to maintain secure mounting.
Features
-
High-Clearance, Low-Profile Design: Maximizes ground clearance while maintaining a sleek, tight-to-body fit.
-
28.5° Angled Bottom Surface: Flat angled geometry allows the sliders to glide over rocks and obstacles with reduced hang-up.
-
4-Inch Wide Stepping Platform: Level upper surface provides a functional step for daily vehicle entry and exit.
-
Heavy-Duty Steel Construction: TIG welded using 3/16-inch and 1/4-inch high-strength steel for superior durability.
-
Wrinkle Black Powder Coat: Rugged, corrosion-resistant finish matches OEM aesthetics and withstands trail abuse.
-
Frame-Mounted Protection: Shields rocker panels and lower body while doubling as strong, stable side steps.
-
Bolt-On Installation: Patent pending hardware eliminates the need to drill, trim, or modify the vehicle.
-
Hardware Included: Comes with all required mounting components and fasteners.
Specifications
-
Material: 3/16-inch & 1/4-inch high-strength steel
-
Finish: Wrinkle black powder coat
-
Design: Non-tubular, high-clearance, 28.5° angled bottom
-
Step Width: 4 inches
-
Mounting Style: Frame-mounted using patent pending hardware
-
Torque Specs:
-
M6 BoxBolts®: 14 ft-lbs (19 Nm)
-
M8 BoxBolts®: 19 ft-lbs (25 Nm)
-
M12 BoxBolts®: 59 ft-lbs (80 Nm)
-
Standard M12 Bolts: 75 ft-lbs (101 Nm)
-
M14 Blind Studs & Nuts: 105 ft-lbs (142 Nm)
Vehicle Fitment

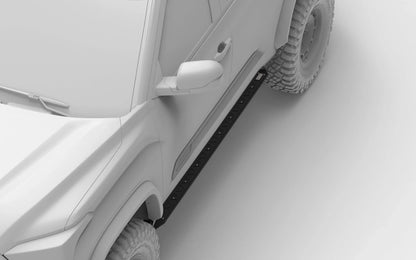

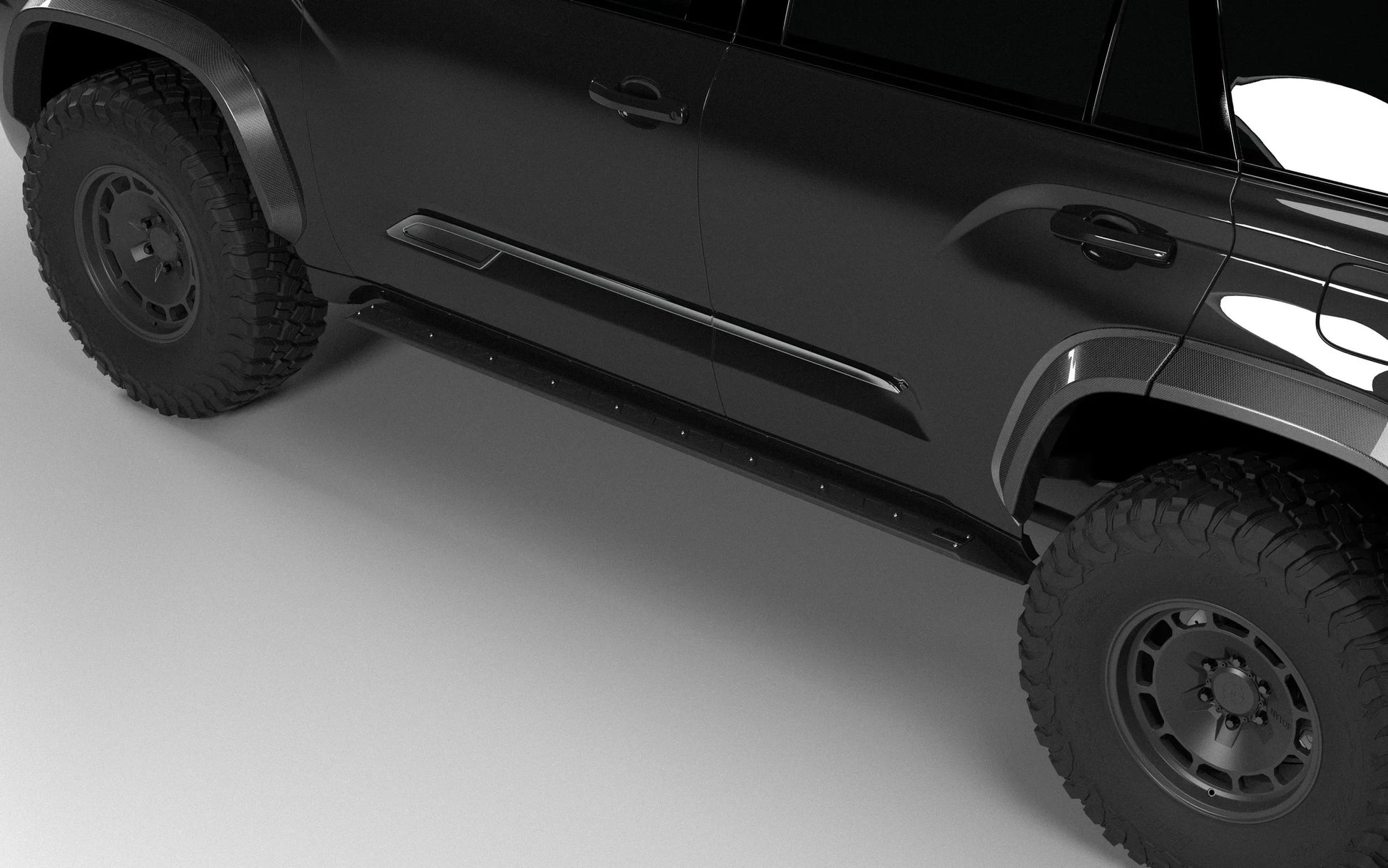

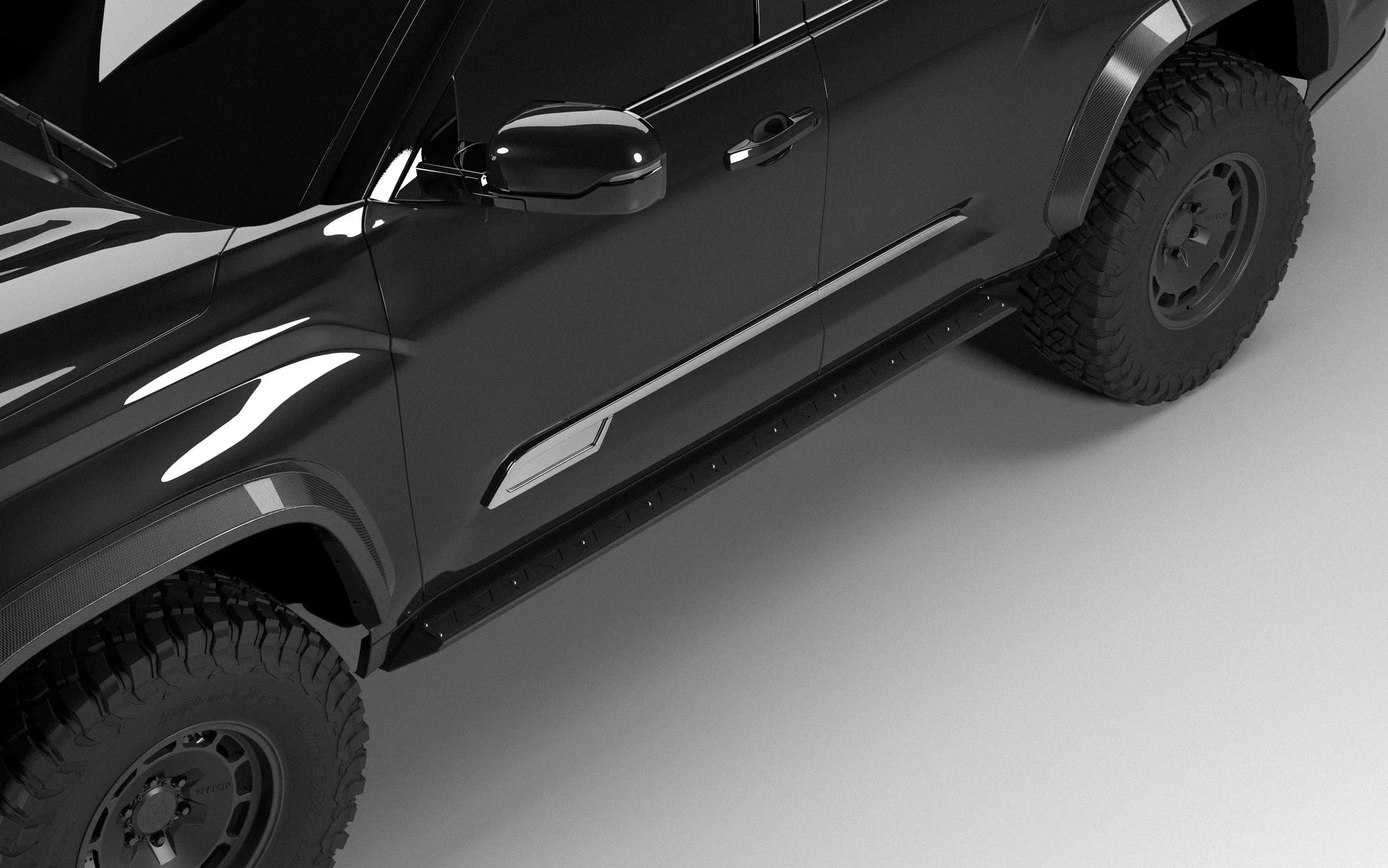

- 2023–Current Toyota Sequoia — All Trims
- Direct frame-mounted installation with no trimming, drilling, or permanent modifications required.
