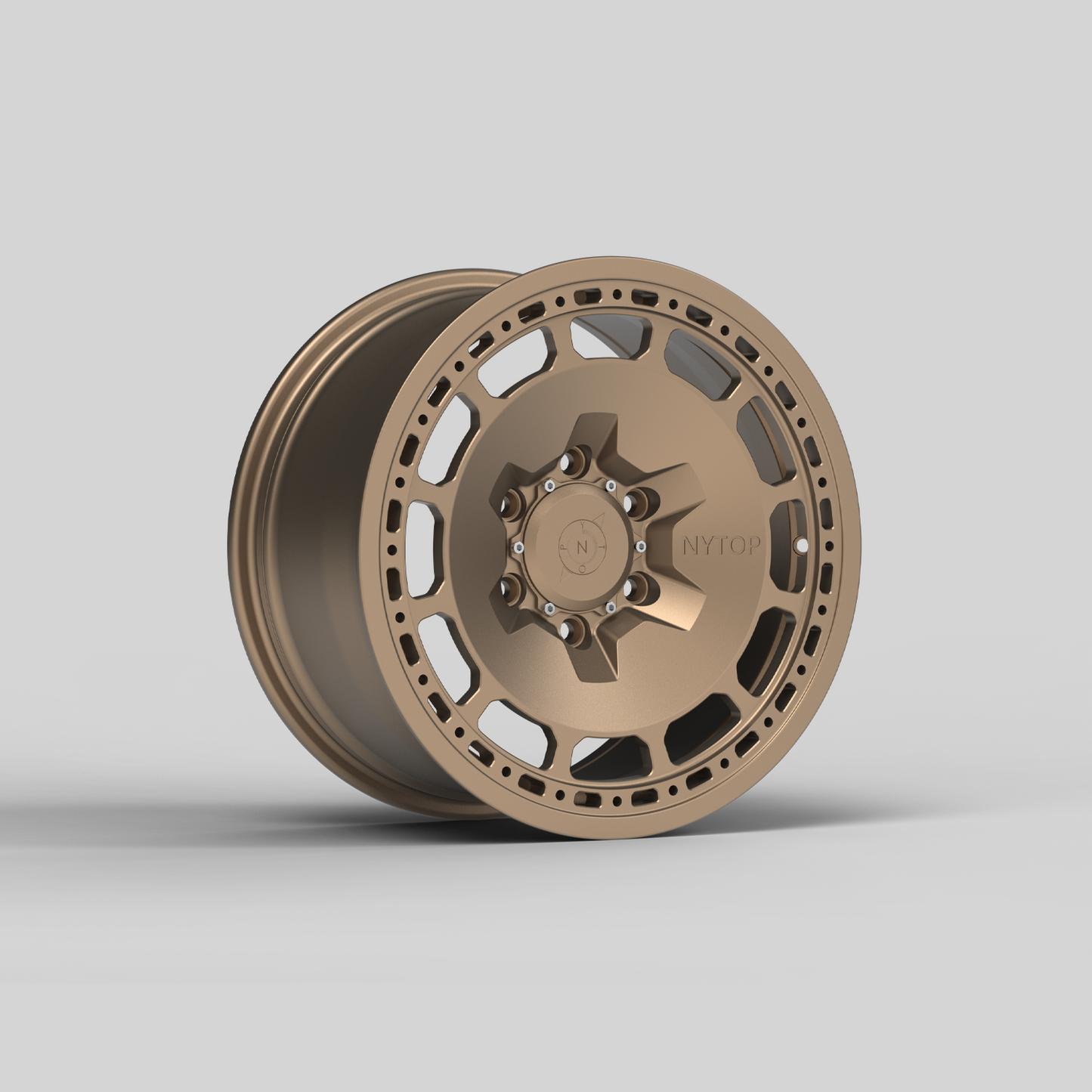

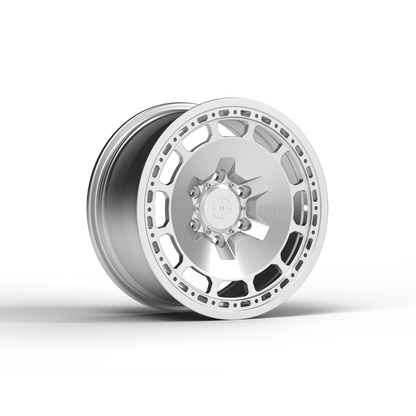

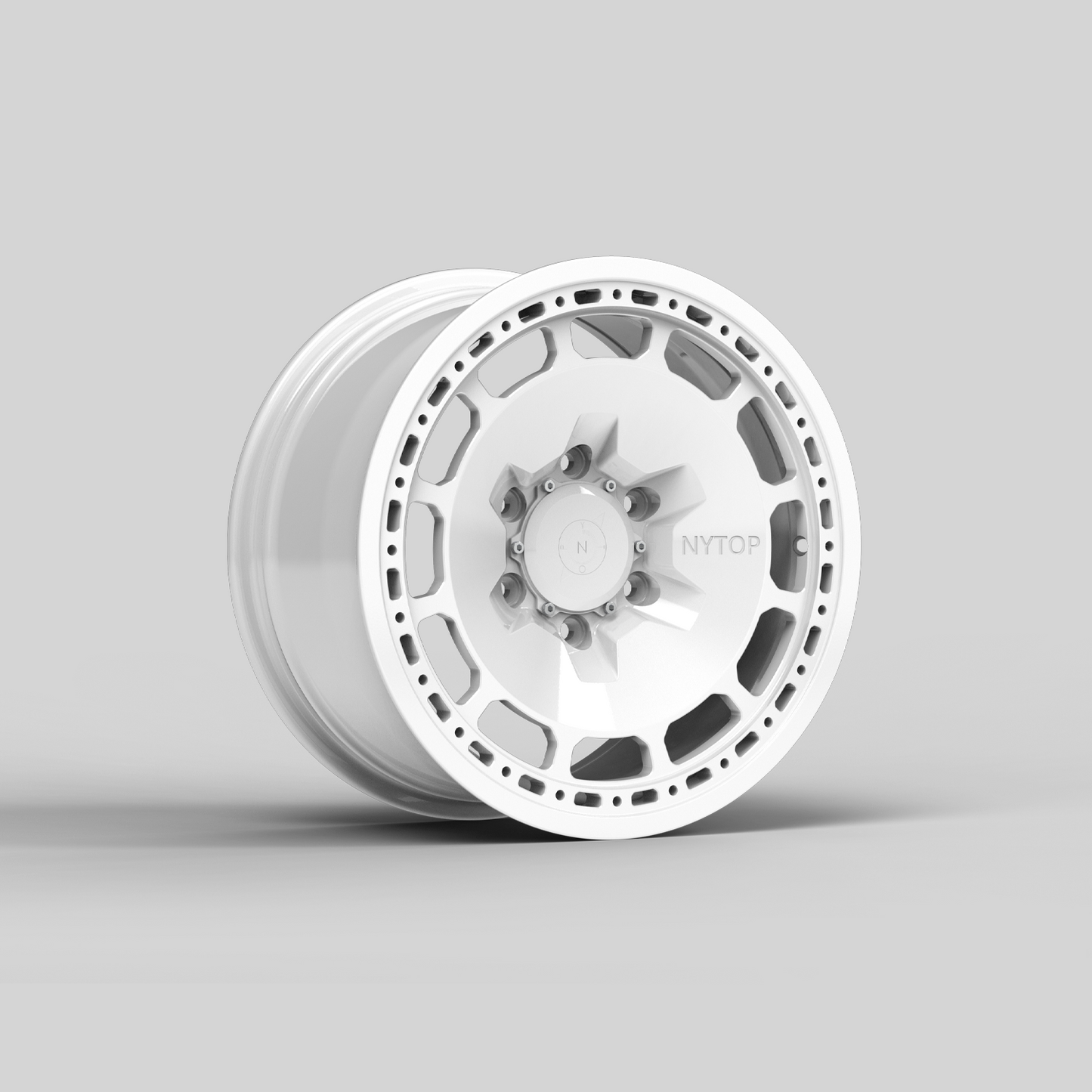

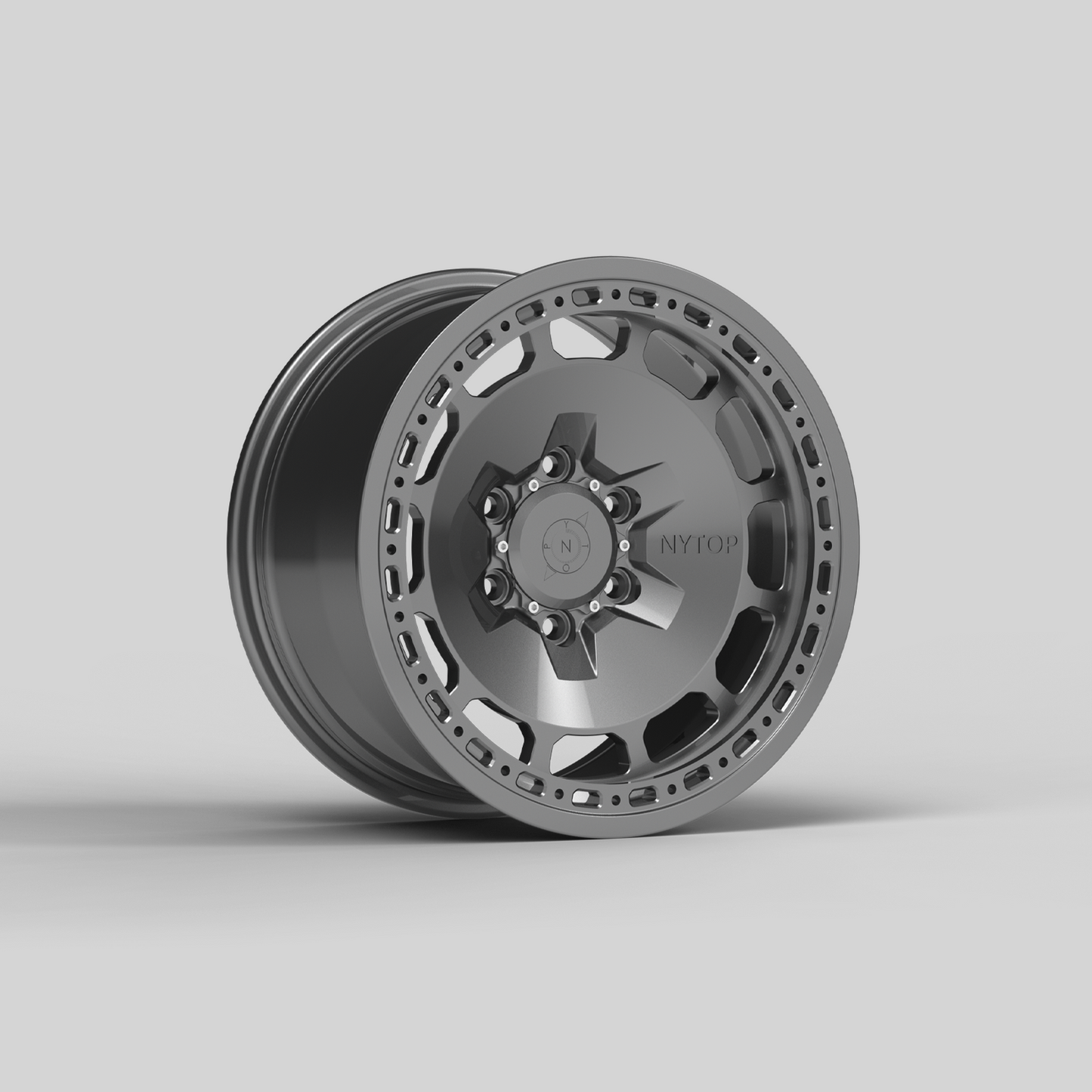

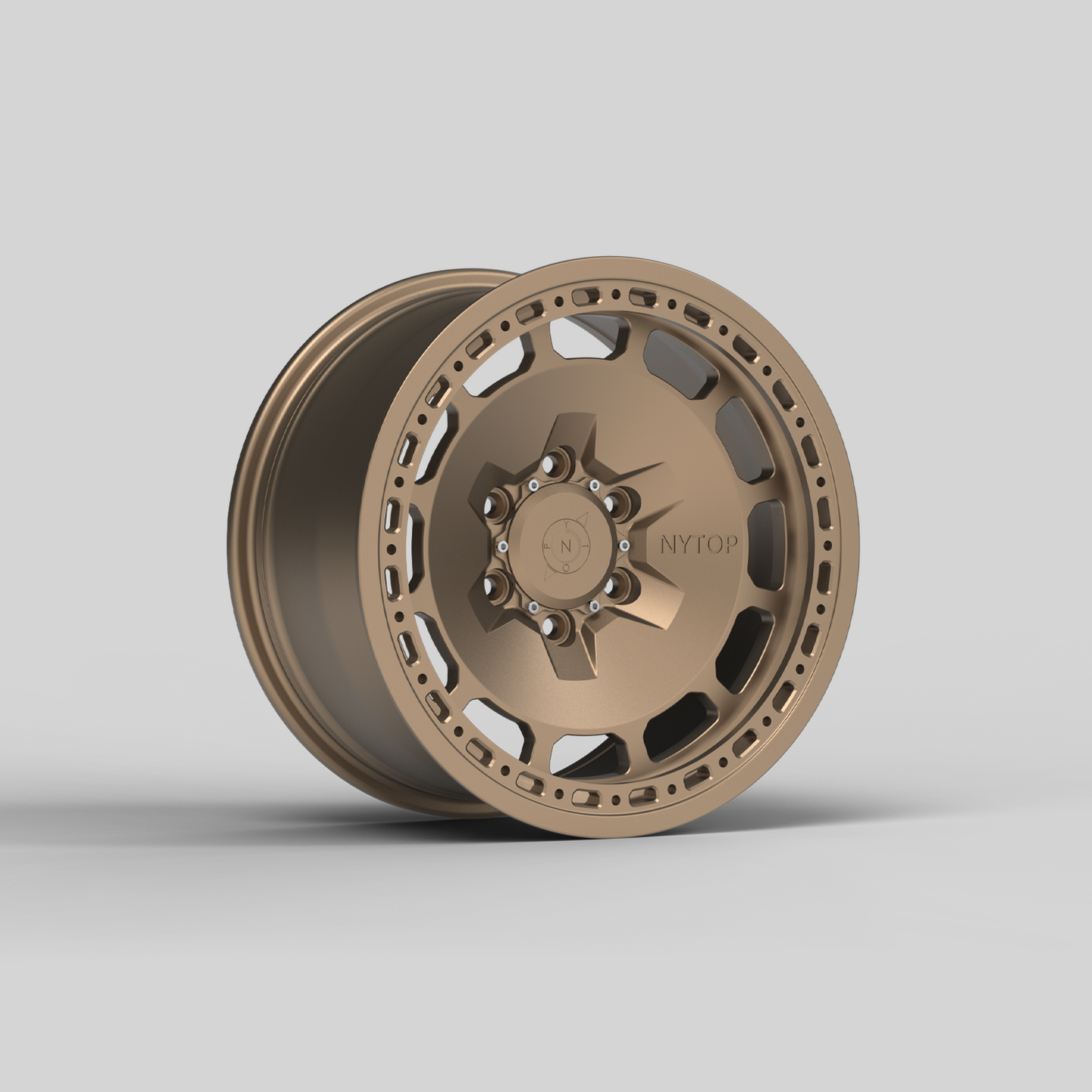

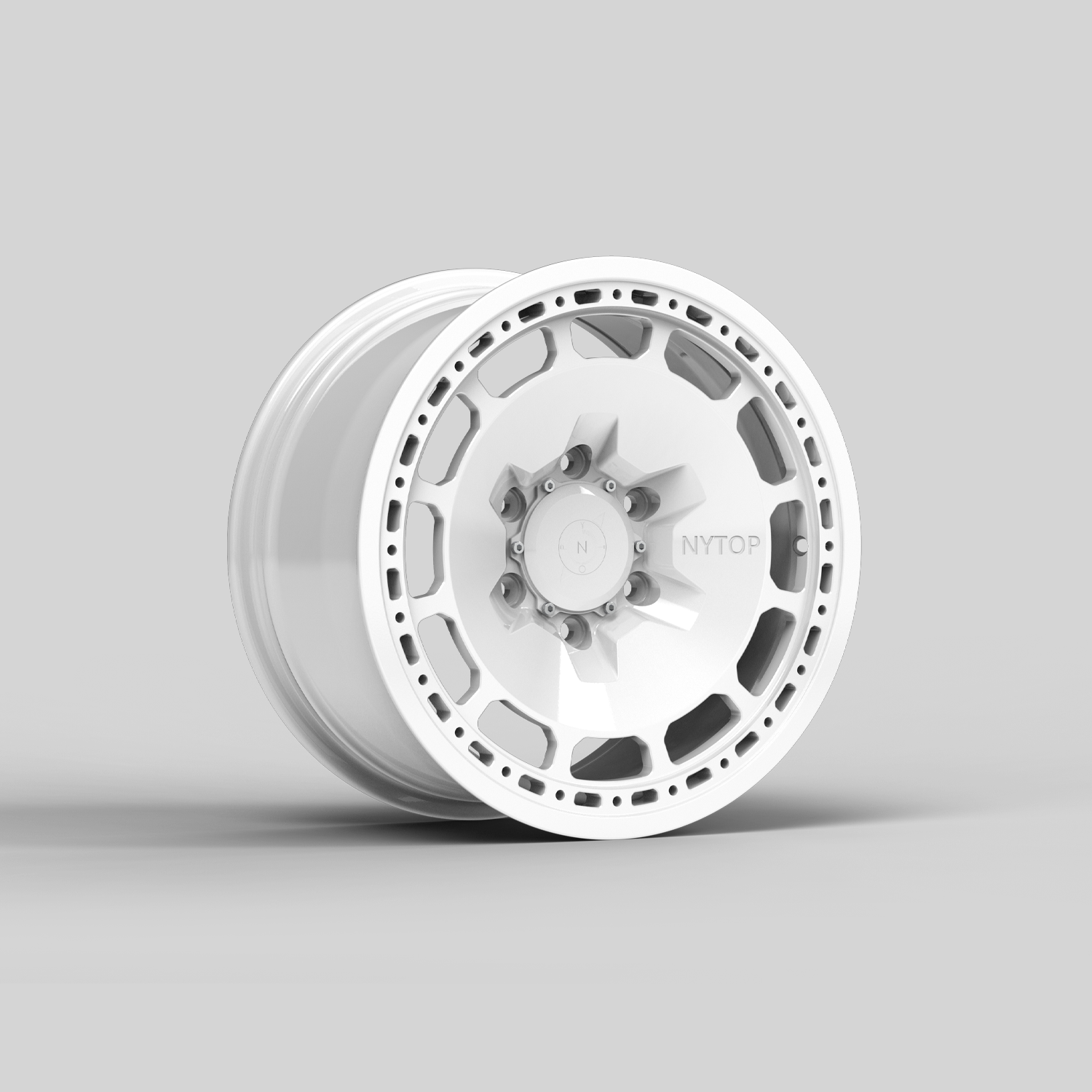

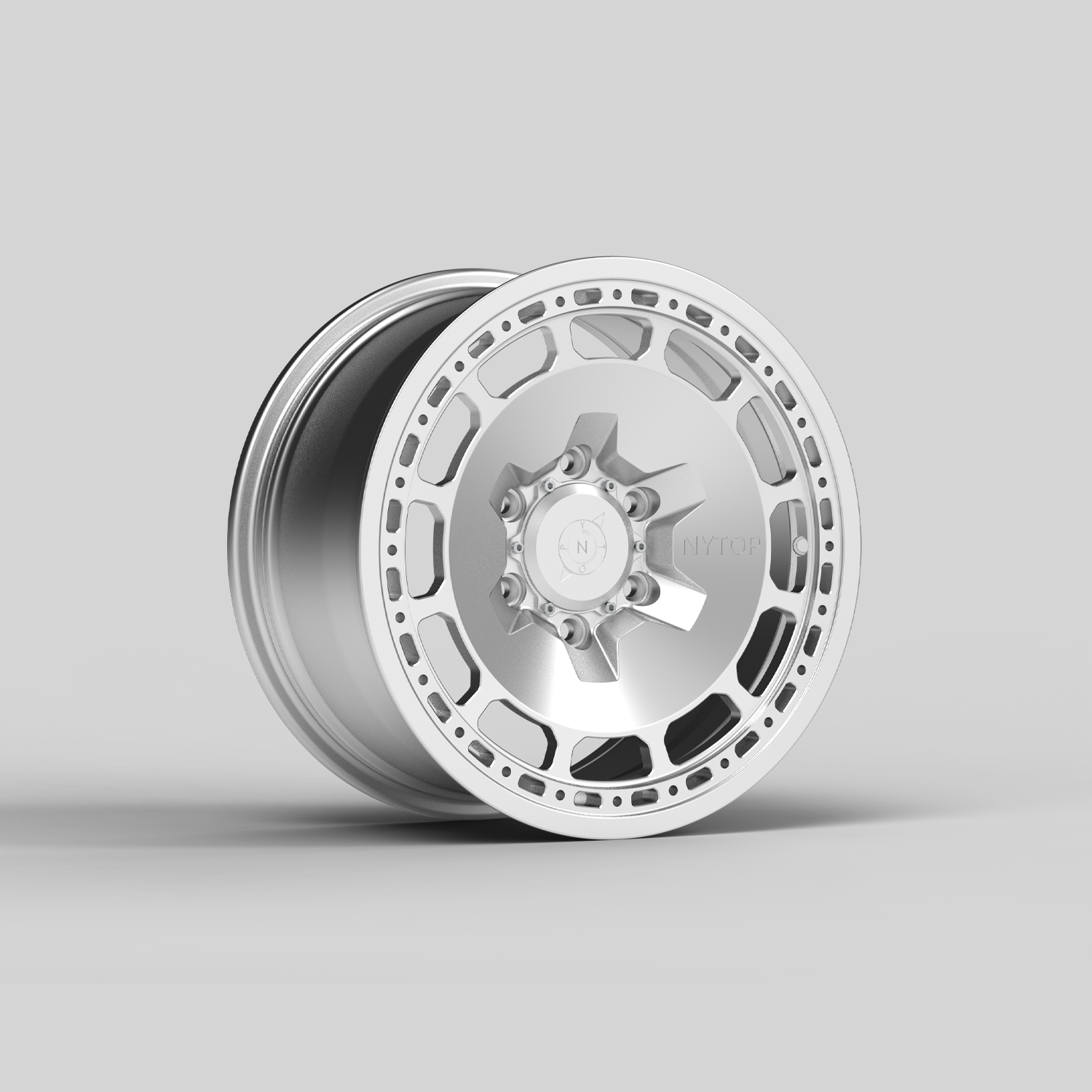

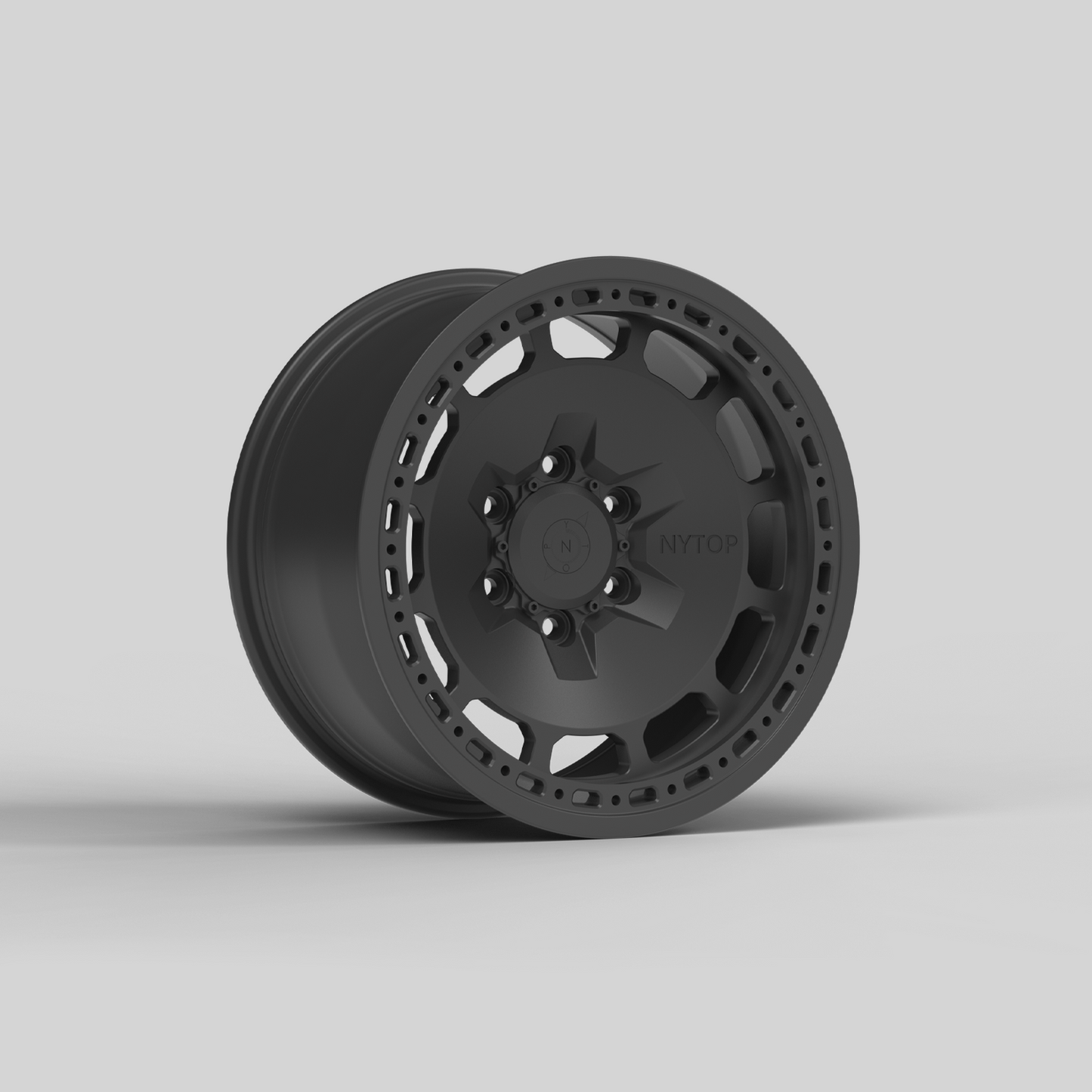

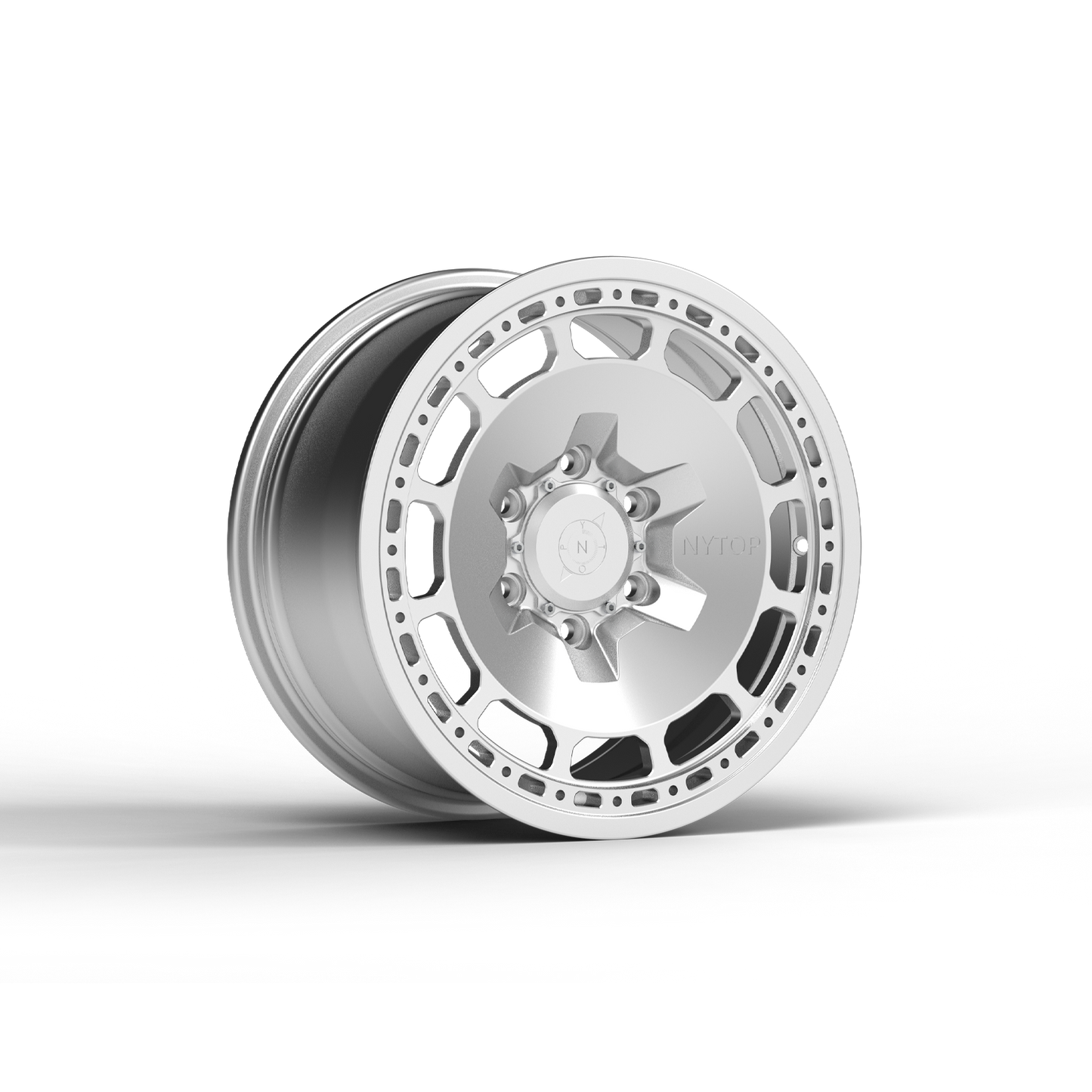

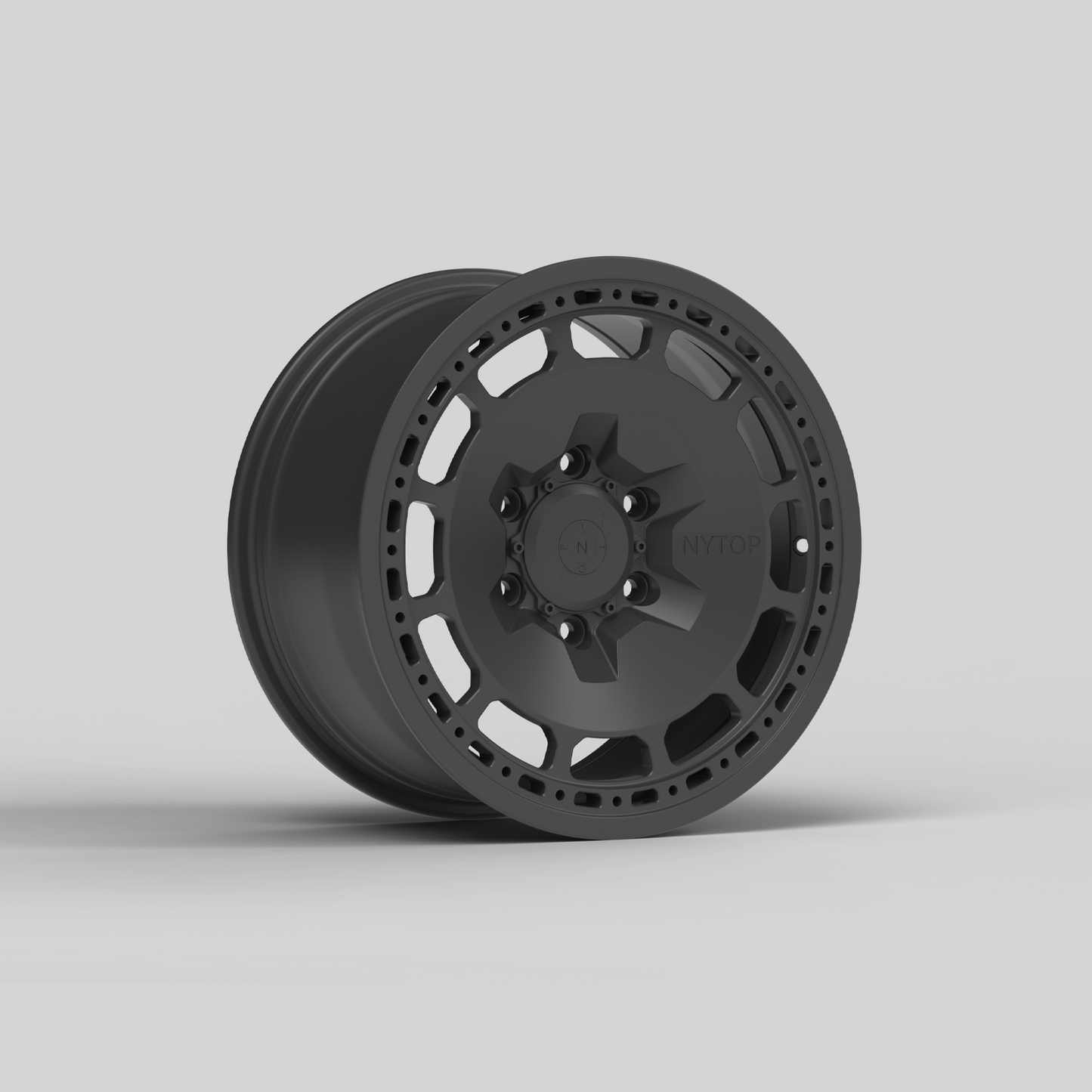

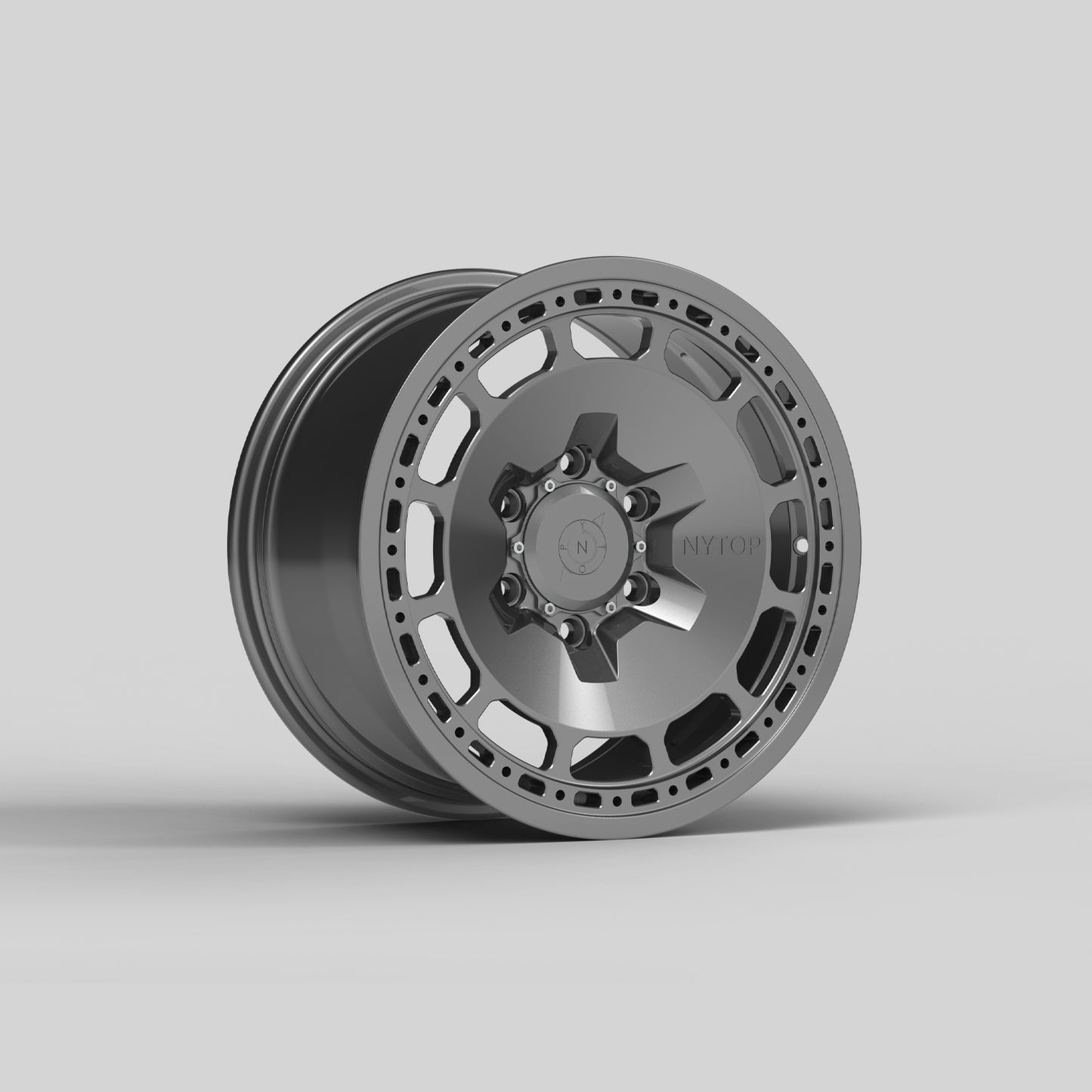

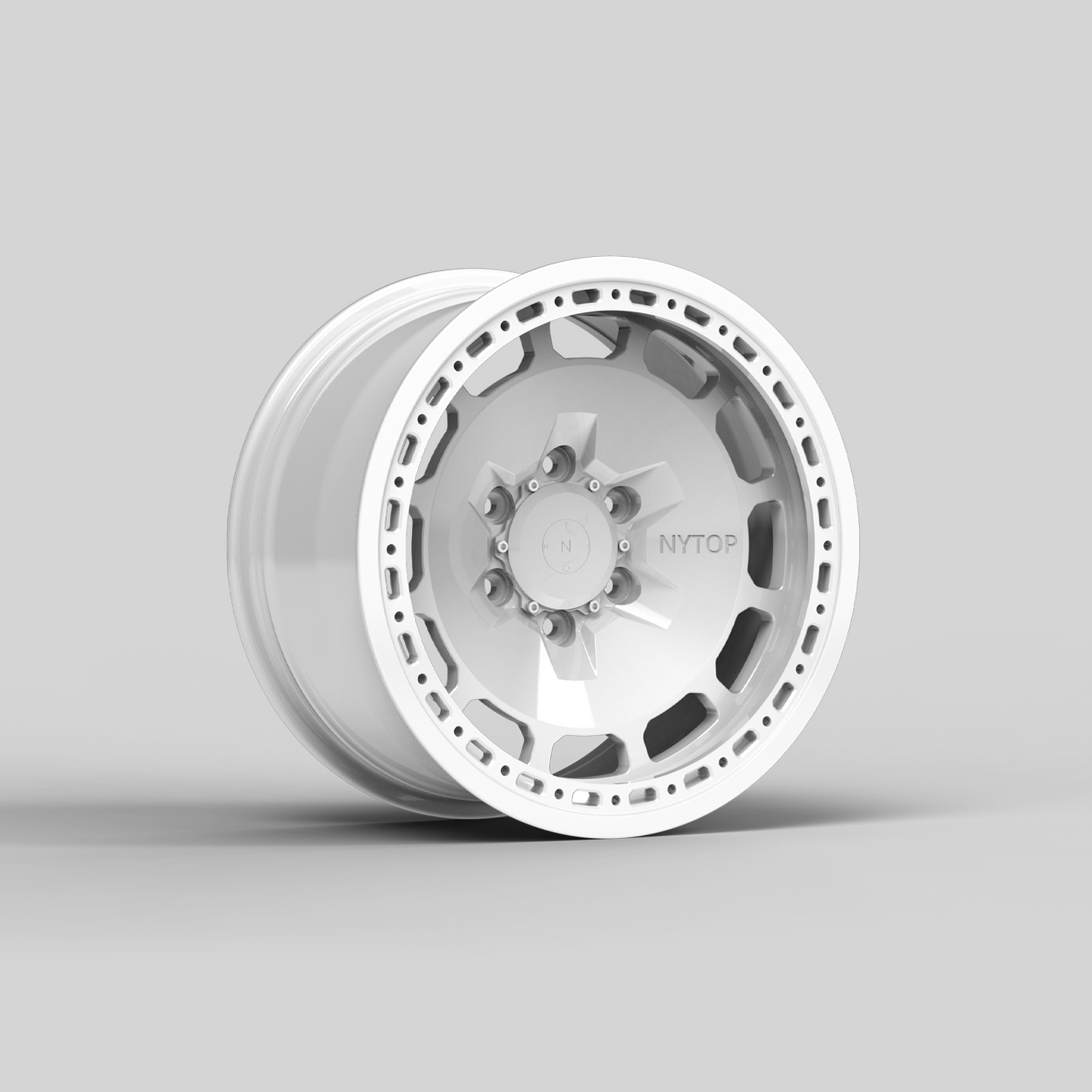

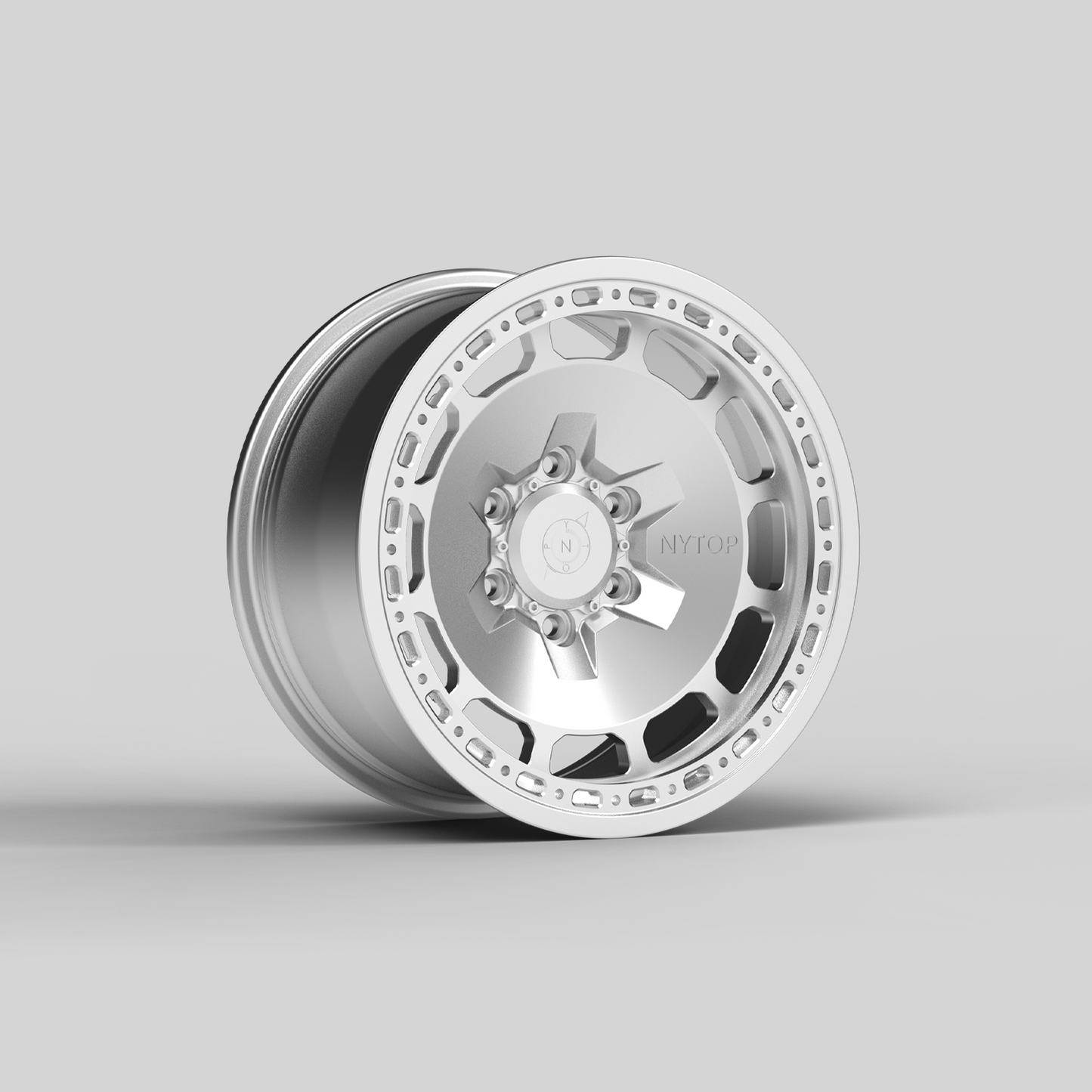

The Adventure Series Beadlock Wheels are engineered for serious off-roaders who demand strength, versatility, and premium machining. Built from CNC-machined forged 6061-T6 aerospace-grade aluminum, these wheels deliver exceptional rigidity while staying lightweight and trail-ready. Each wheel features a screw-on CNC-machined billet aluminum center cap, completing a high-end aesthetic and functional design.

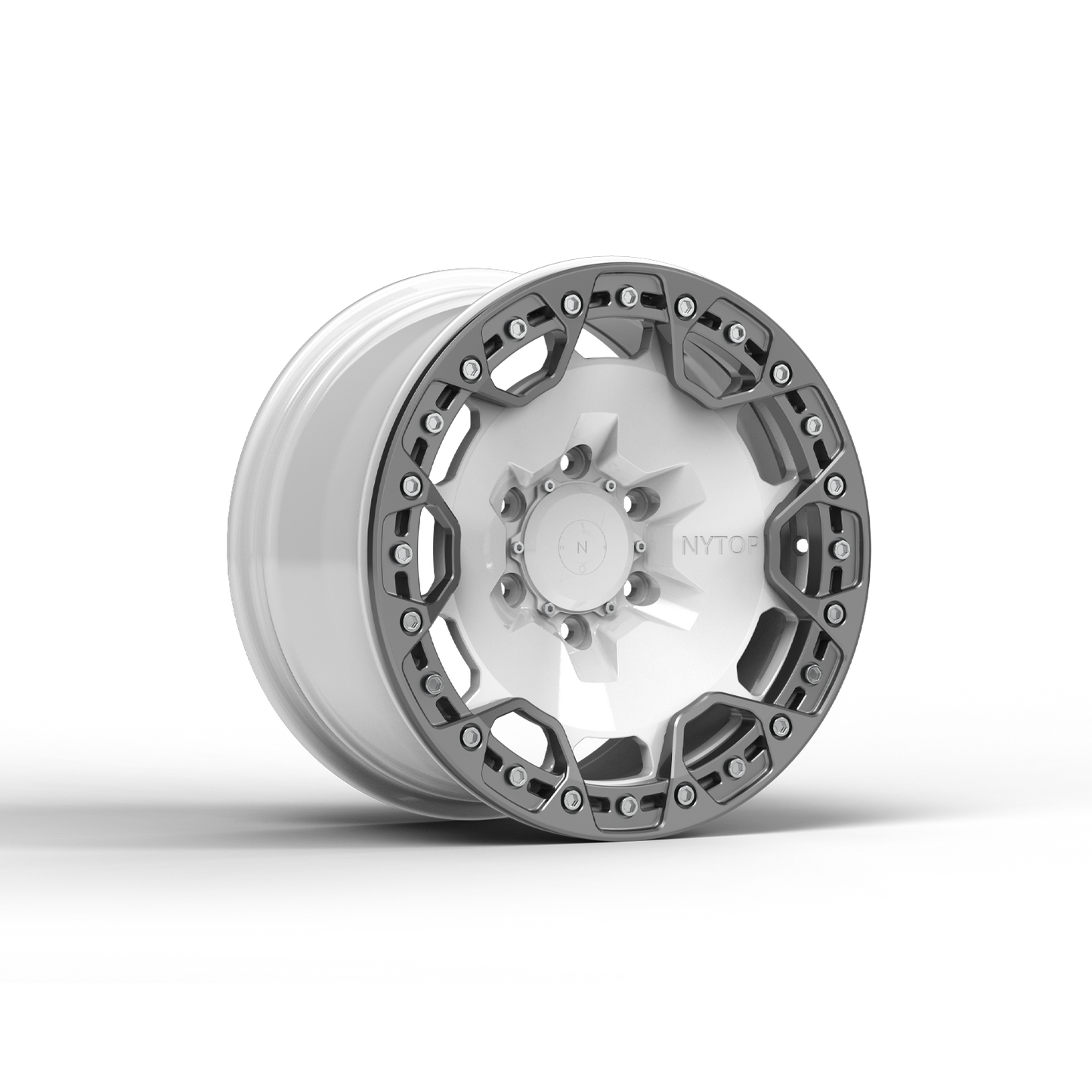

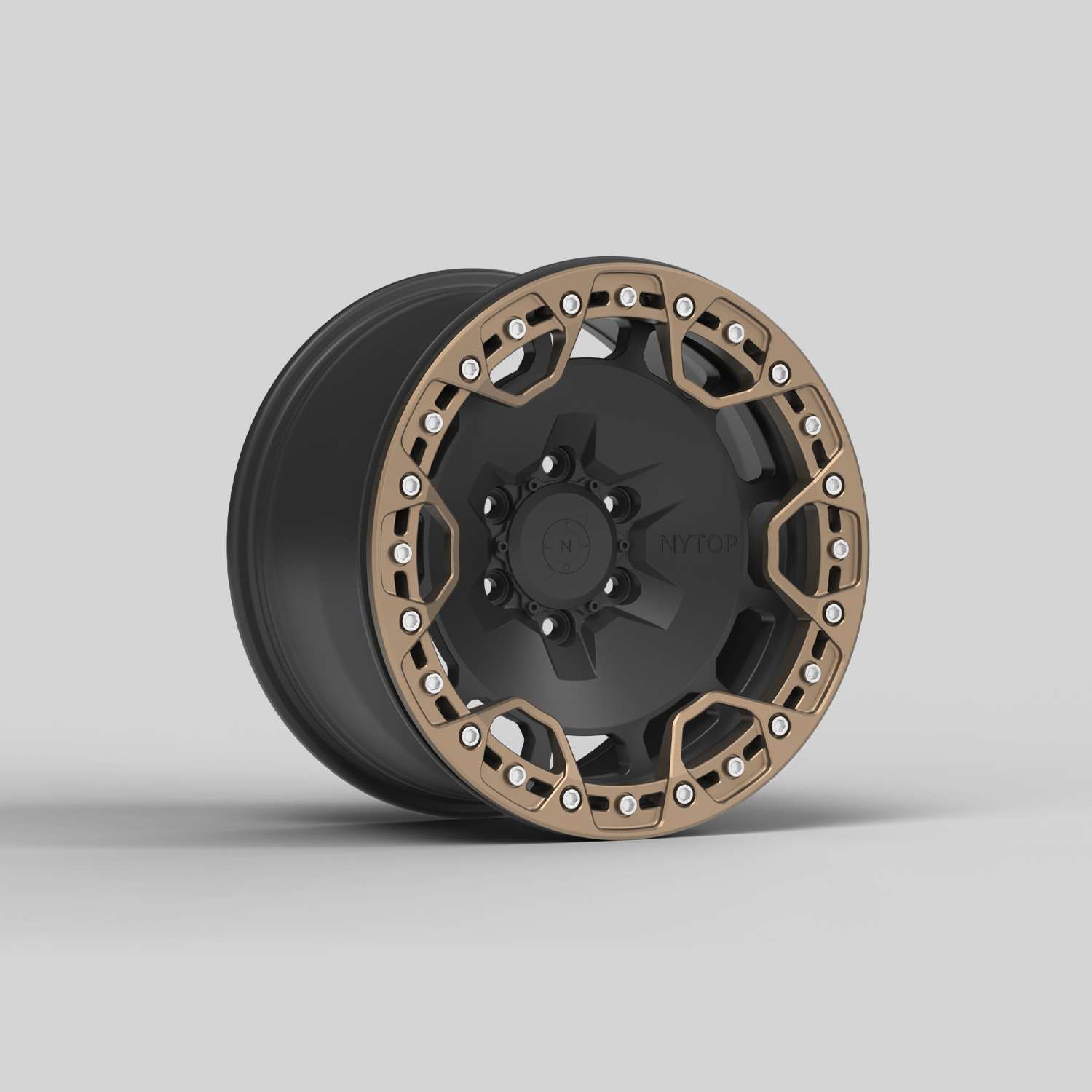

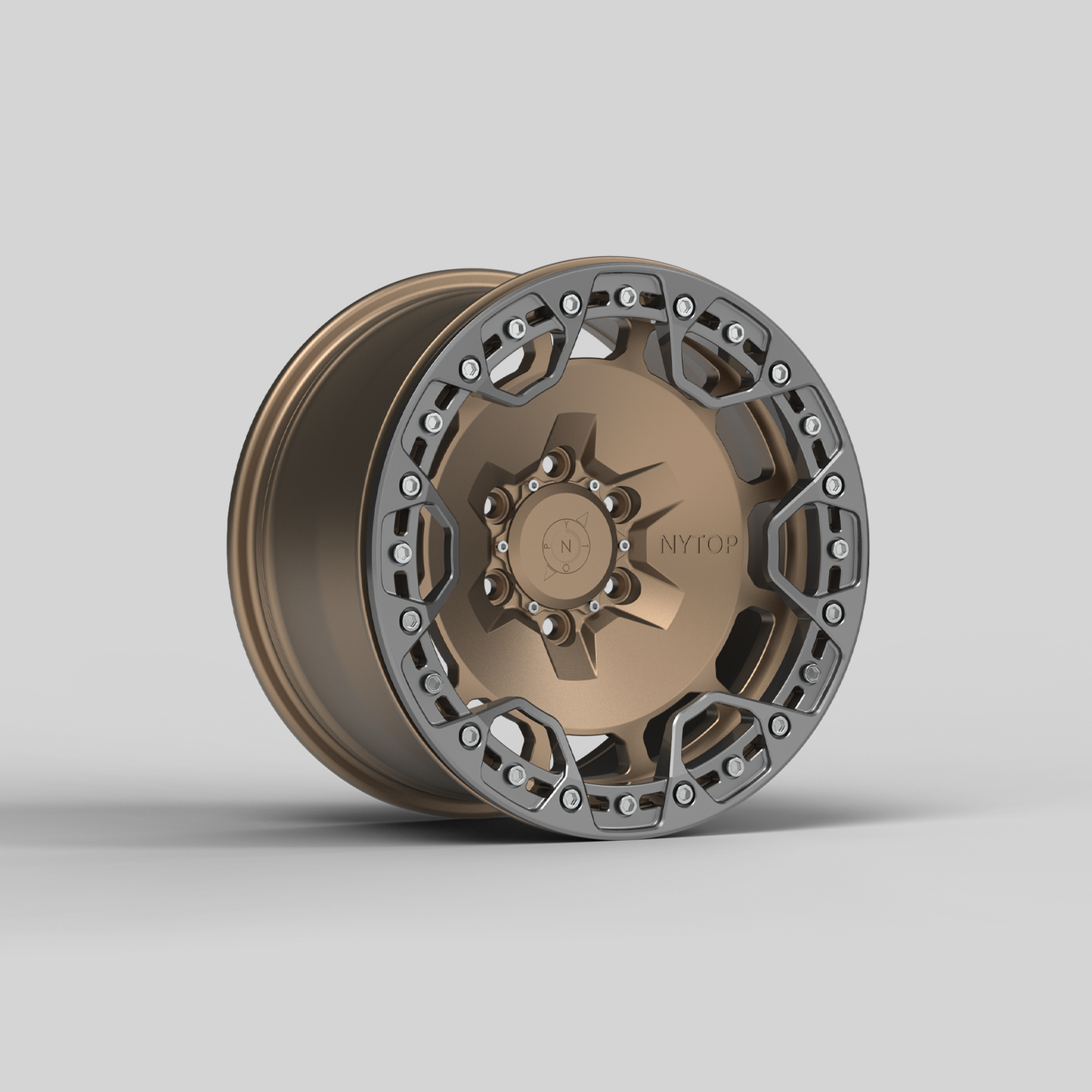

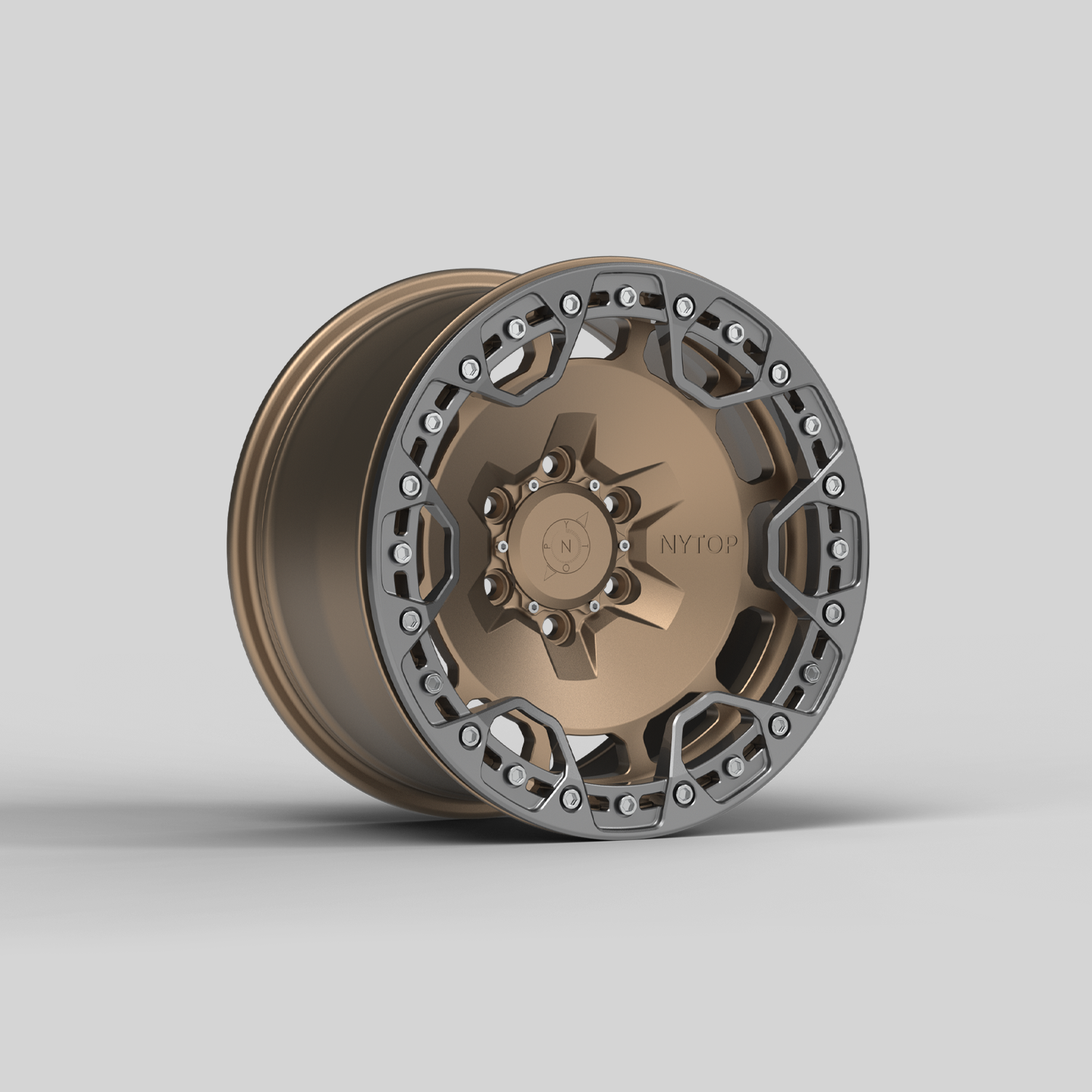

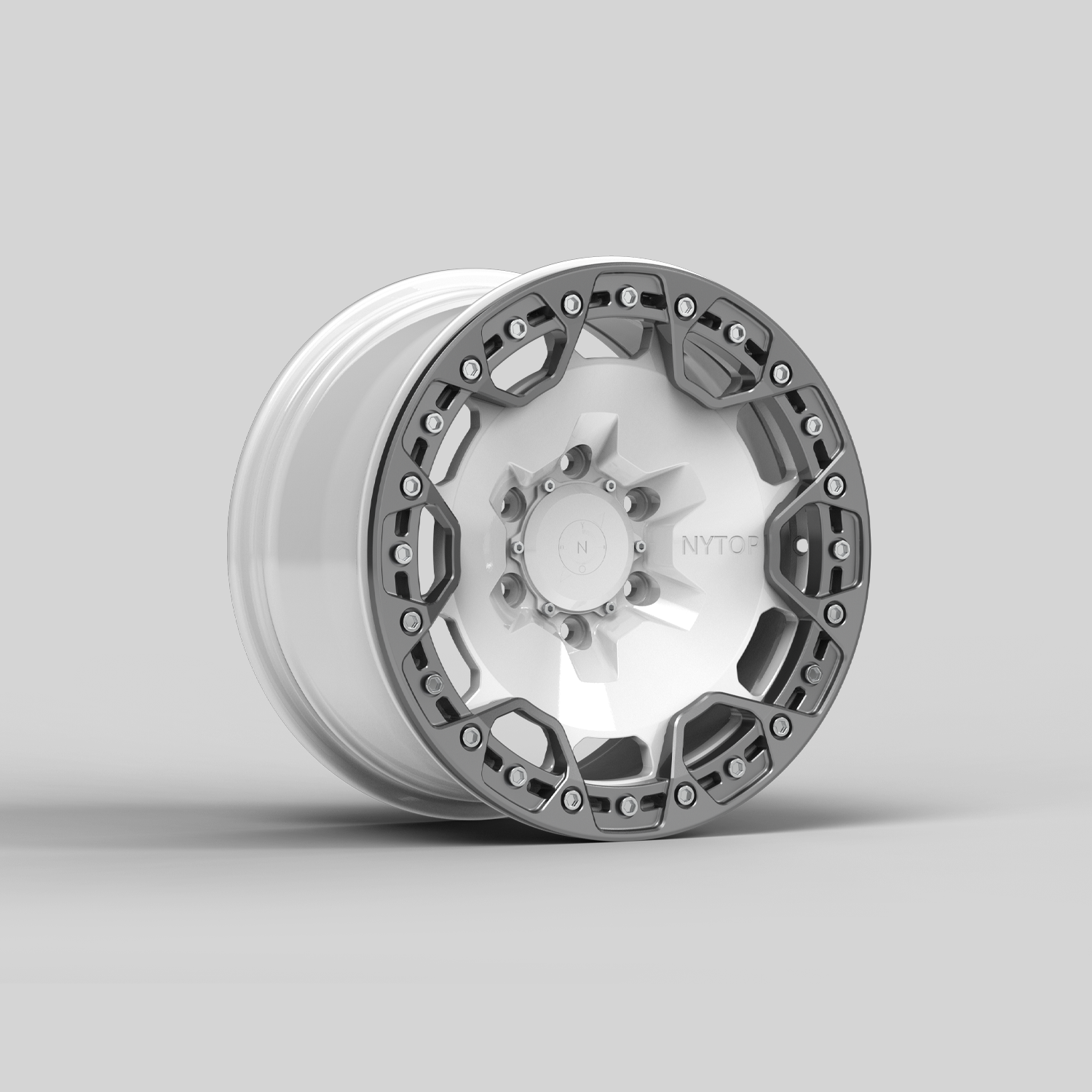

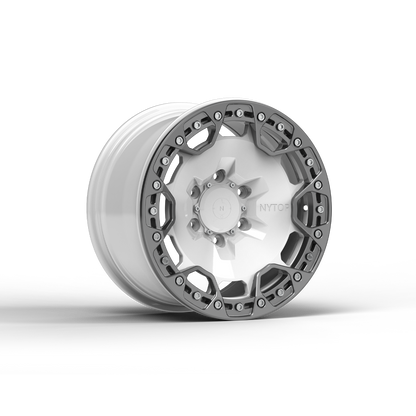

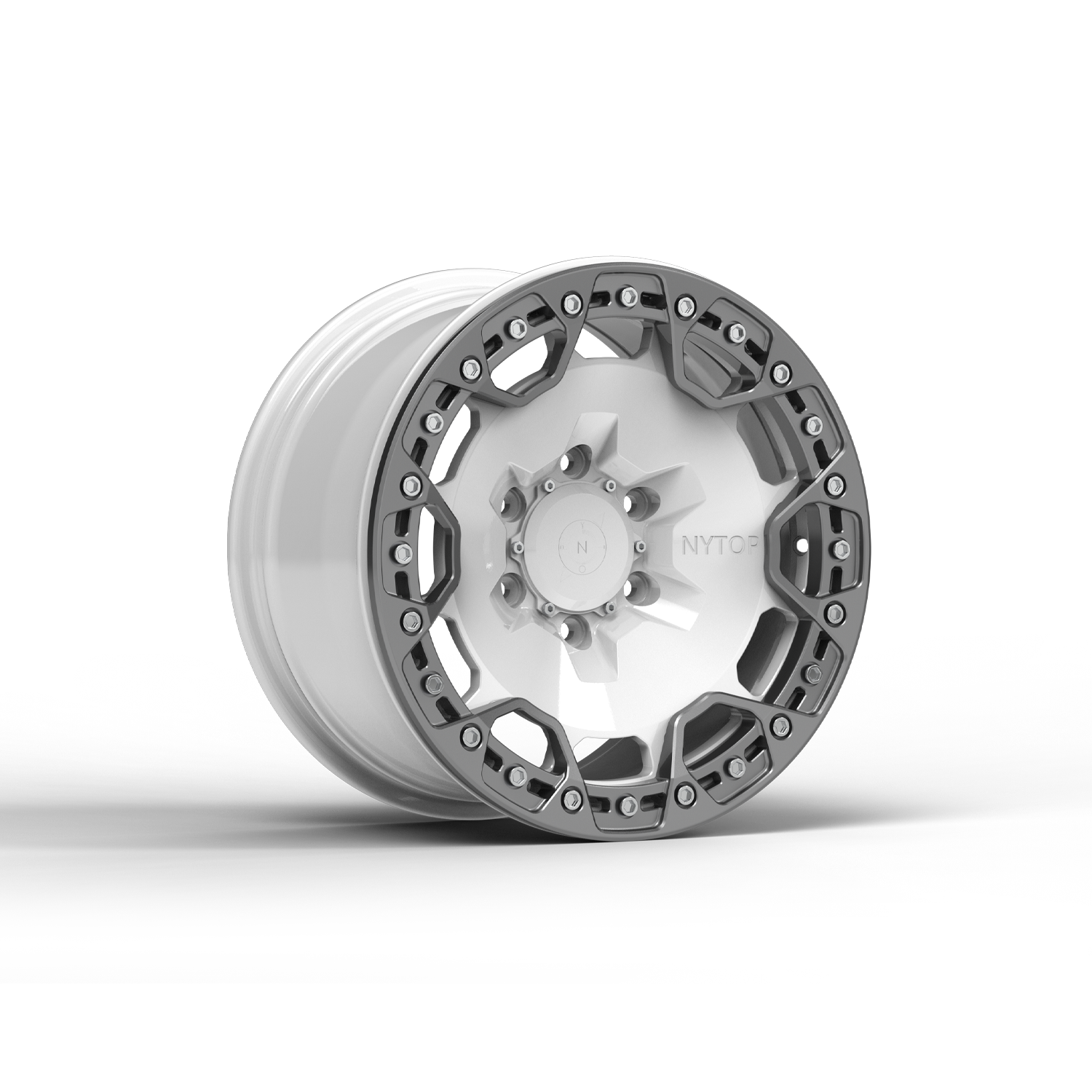

These wheels can be used with or without beadlock rings, giving you flexibility for daily driving, overlanding, or full off-road beadlock use. When paired with the proprietary beadlock rings, the self-guiding bead profile makes mounting smoother and easier—eliminating the need for pry bars while ensuring a secure, consistent bead seat.
Important notes
Priced per wheel — beadlock rings are sold separately.
Do NOT use extended lugs.
Optional 95.1 mm hub-centric adapter ring needed for new Toyota TNGA-F trucks (sold separately).
Features
Forged 6061-T6 Aluminum: CNC-machined aerospace-grade construction for maximum strength and durability.
Dual Mounting Options: Compatible with both standard tire mounting and beadlock ring mounting.
Proprietary Beadlock Interface: Self-guiding profile pulls the tire bead into place as bolts tighten—no pry bars needed.
Billet Center Caps: Premium CNC-machined screw-on center caps included for a clean, high-end finish.
Lug & Hub Centric Design: Engineered for perfect fitment and balanced performance across multiple platforms.
Off-Road Rated Load Capacity: Built to handle demanding trail use with a high load rating.
Specifications
Wheel Size: 17x8.5
Offsets: 0 mm and +25 mm
Bolt Pattern: 6x139.7 (6x5.5)
Hub Bore: 106.1 mm
Optional Hub Adapter: 95.1 mm (for new Toyota TNGA-F platform)
Max Load Rating: 2,850 lbs per wheel
Wheel Weight: ~23.5 lbs per wheel
Vehicle fitment
Toyota Off-Road Models
These wheels fit Toyota off-road vehicles using the 6x139.7 pattern:
Previous Generation Tacoma (2005–2023) – Direct fit (106.1 mm hub).
4Runner (2003–2024) – Direct fit (106.1 mm hub).
FJ Cruiser – Direct fit.
GX460 – Direct fit.
Land Cruiser 120 / 150 chassis – Direct fit.
Older Tundra (2000–2021) – Most trims use 5-lug or 6x139.7 depending on model year → Some fit, some don’t.
NEW Toyota TNGA-F Platform (Requires Hub Adapter Ring, Sold Separately)
These models use the same bolt pattern (6x139.7) but have a 95.1 mm hub, so they require the adapter ring:
2022+ Toyota Tundra
2023+ Toyota Sequoia
2024+ Toyota Tacoma
2024+ Toyota Land Cruiser (250 series)
2024+ Lexus GX550
These wheels fit perfectly with the correct adapter ring.
Additional compatibility
These wheels also fit many non-Toyota vehicles with the 6x139.7 bolt pattern (hub rings may vary):
2019–current Ford Ranger (4th & 5th Gen, incl. Raptor)
