Introducing the Reflex Light Actuator™ (Patent Pending) — the first actuator system engineered exclusively for the Baja Designs light lineup. Born from racing in Baja, the Reflex brings professional race-level engineering into a consumer-ready, plug-and-play solution. Designed specifically for Baja Designs lights, the Reflex delivers instant, on-the-fly control of light pitch angle, allowing drivers to adjust their lighting up to 20 degrees (depending on light type) for optimal coverage across terrain changes, climbs, descents, and high-speed sections.

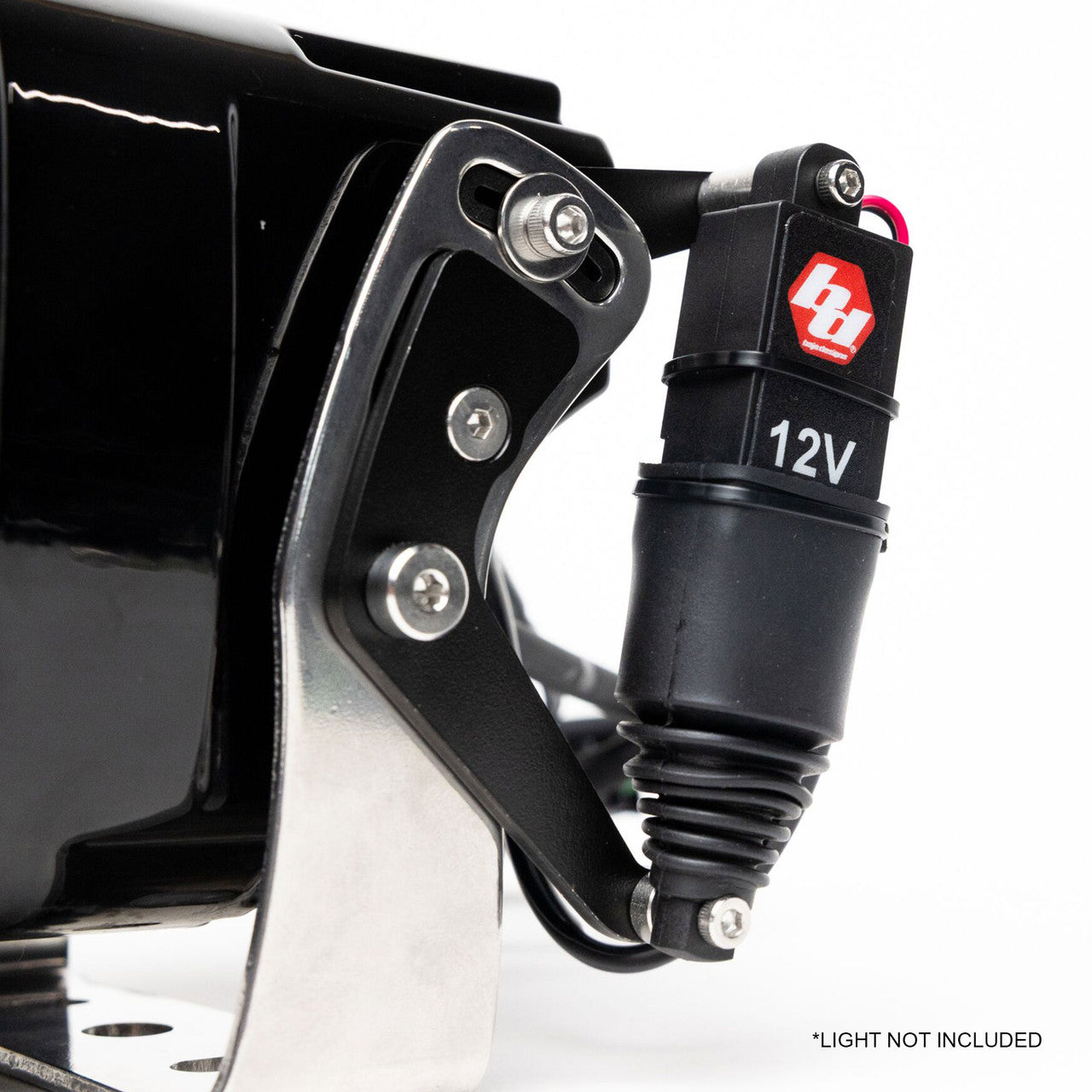

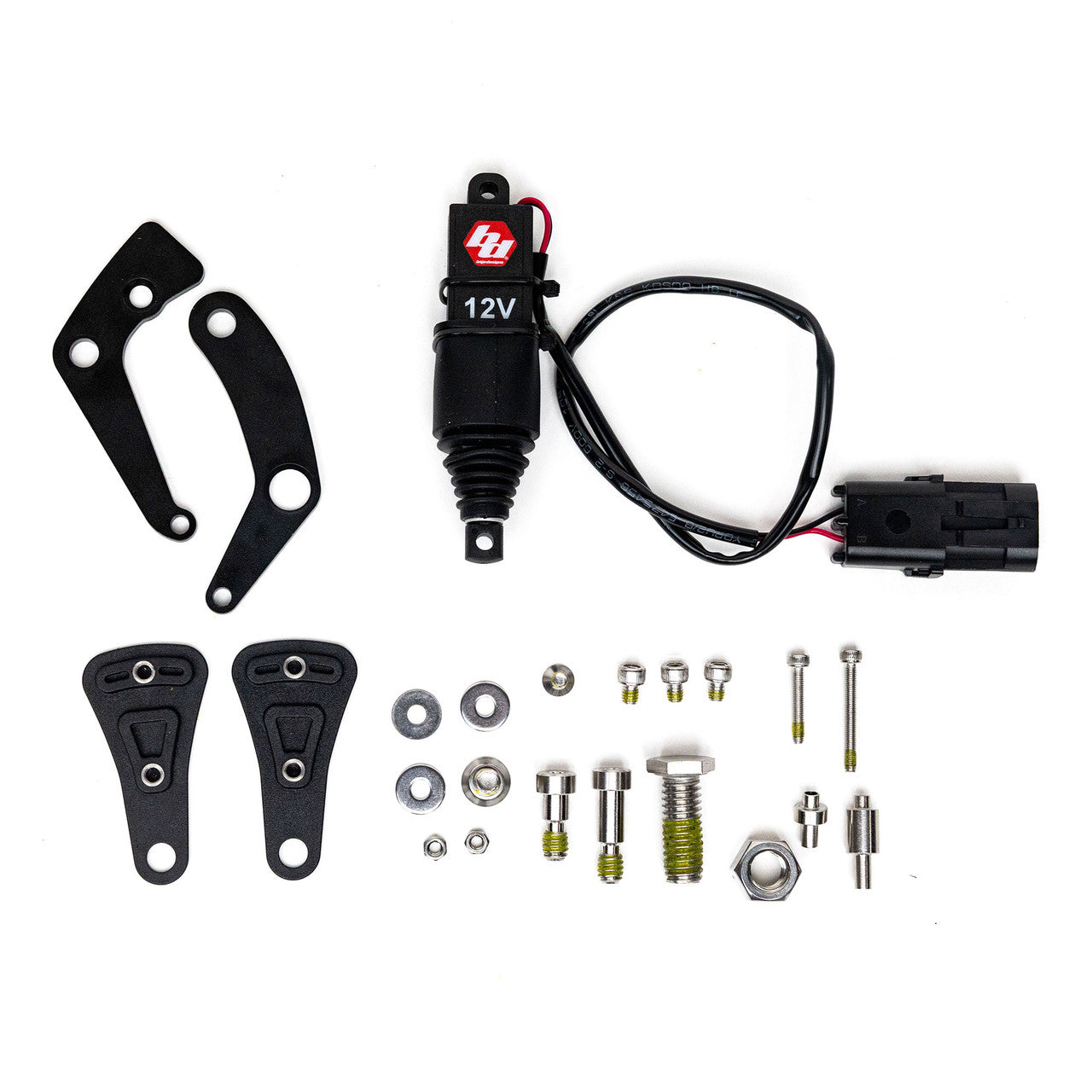

The Reflex mounts directly to existing Baja Designs universal light brackets using included hardware—no fabrication, no guesswork, just a clean and straightforward installation. This actuator kit is compatible with XL Series (standard housing) auxiliary lights.
Important note
- ?? OUT OF STOCK (BACKORDER AVAILABLE)
-
Wiring harness sold separately: Required for operation.
-
Light not included: Actuator kit only.
-
Baja Designs lights only: Designed exclusively for use with Baja Designs universal brackets.
Features
-
Low-profile actuator design: Allows on-the-fly pitch adjustment through a wide range of motion.
-
Up to 20° of adjustment: Fine-tune light output based on terrain and speed.
-
Direct bolt-on installation: Mounts directly to Baja Designs universal brackets for new installs or retrofits.
-
Broad compatibility: Works with most VSKs using the light’s universal bracket.
-
Flexible control options: Compatible with rocker switches or power management systems such as sPOD, SwitchPros, and others.
-
Built to last: Backed by the Baja Designs Limited Lifetime Warranty.
Specifications
-
Power draw: 0.14A / 2.0W @ 13.8V per actuator
-
Compliance: MIL-STD-810G, IEC compliant
-
Waterproof rating: IP54
Installation
